Understanding Digital Tools in Remote Sensing and Geographic Information Systems

Explore the integration of digital technology, remote sensing, and geographic information systems (GIS) in modern science. Remote sensing utilizes aerial photography and satellite imagery to collect vital data, while GPS provides precise location tracking through satellite communication. GIS enables the manipulation of spatial data layers for analysis in resource management, planning, and hazard assessment. Understanding these tools enhances our insights into environmental monitoring and the Earth-Sun relationship, shedding light on natural processes and seasonal changes.

teddy
Télécharger la présentation

Understanding Digital Tools in Remote Sensing and Geographic Information Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

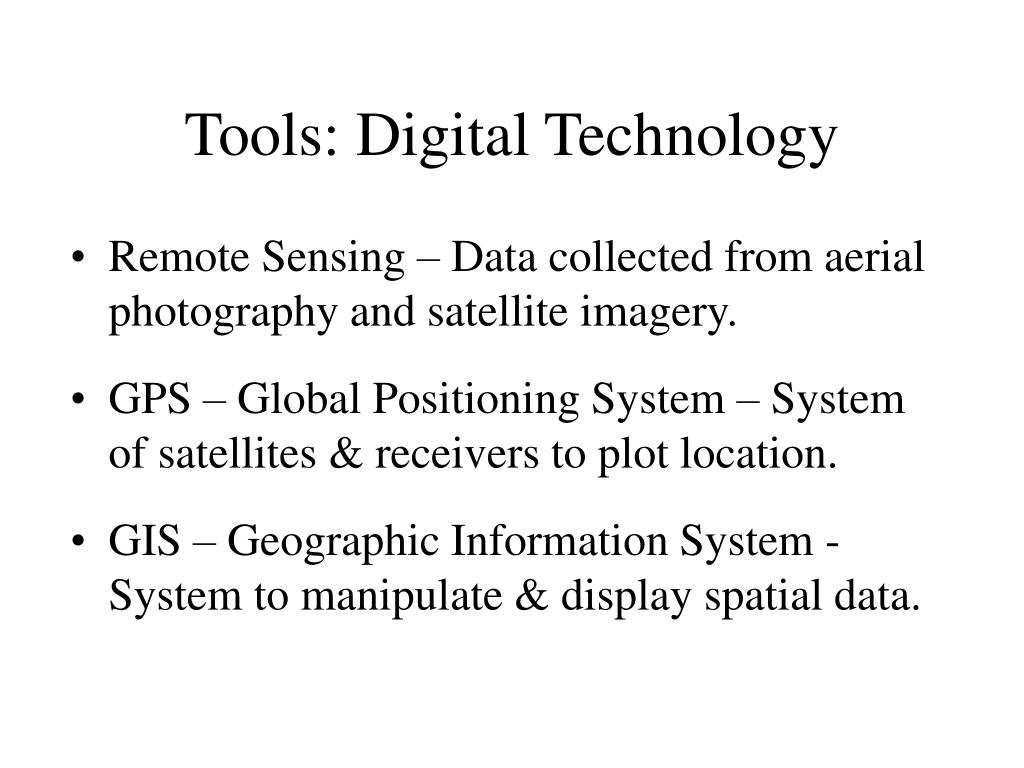

  1. Tools: Digital Technology • Remote Sensing – Data collected from aerial photography and satellite imagery. • GPS – Global Positioning System – System of satellites & receivers to plot location. • GIS – Geographic Information System - System to manipulate & display spatial data.

  2. Remote Sensing • Aerial Photography

  3. Remote Sensing • Geostationary Satellites • GOES (Weather)

  4. Global Positioning System • 24 satellites orbit earth every 12 hours • Time of signal to receiver gives distance • Triangulation gives location

  5. Geographic Information Systems • System for storing, analyzing and manipulating spatially referenced data • Data consists of layers of one variable such as: vegetation, landforms, or soils • Layers can be overlaid/combined for analysis or display • Applications include: resource management, planning, hazard assessment, etc.

  6. GEOG 1112: Weather and Climate Earth-Sun Geometry Seasons

  7. Our Place in Space • Speed of Light • 299,792 km/s (186,282 m/s) • Milky Way Galaxy – 100,000 ly across • Our Solar System – 11 ly across • Moon is 1.28 light seconds away • Gravity – mutual attracting force exerted by the mass of an object on all other objects

  8. The Sun • About 4.6 Billion Years Old • Average Star, Nothing Special • 100 times diameter of Earth • Powers most natural processes on Earth • 8.3 min. for Sun’s energy to reach Earth • Strong Magnetic Fields/Sunspots

  9. Solar Activity and Solar Wind • Solar wind = clouds of electrically charged particles • Sunspots are caused by magnetic storms. These cause changes in the solar output • Sunspots have activity cycles

  10. Auroras

  11. Earth-Sun Relationship • Most Physical Processes on Earth powered by incoming radiation from Sun • Earth-Sun Relationship Complex – Depends on: • Latitude • Position of Sun in Sky • Time of Year • Earth’s Rotation/Axial Tilt

  12. Shape of the Earth • Insolation • Variation in Sun Angle by Latitude • Oblate Spheroid • Subsolar Point

  13. Atmospheric Beam Depletion • High solar angles see little reduction in intensity as the path from the top of the atmosphere to the surface is short. • Solar radiation is diminished relative to the amount of atmosphere the radiation passes through.

  14. Earth’s Orbit Around the Sun • Plane of the Ecliptic • One Revolution = 365.24 Days • Elliptical Orbit • Perihelion/Aphelion • Seasons not due to distance from Sun

  15. Dimensions and Distances • Earth’s orbit • Average distance from Earth to the Sun is 150,000,000 km (93,000,000 mi) • Perihelion – closest at January 3 • 147,255,000 km (91,500,000 mi) • Aphelion – farthest at July 4 • 152,083,000 km (94,500,000 mi) • Takes energy 8 min 20 sec to reach Earth • Plane of Earth’s orbit is the plane of the ecliptic
