  1. B. Information TechnologyCMPB245:Database Design Normalization Pt. 2

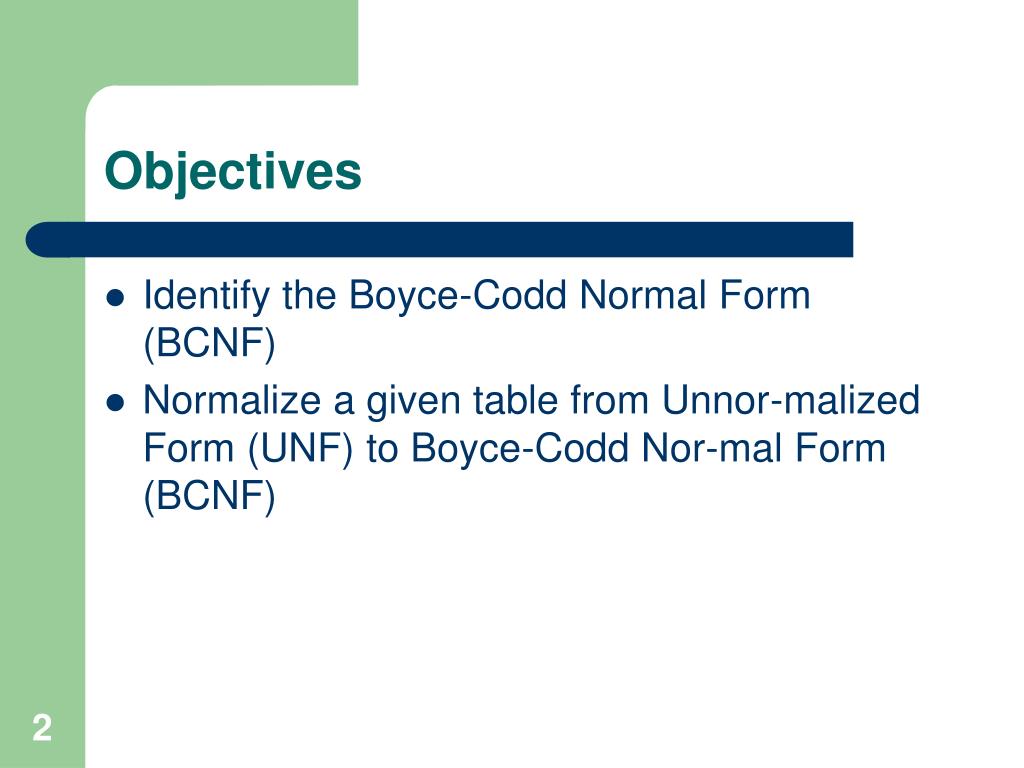

  2. Objectives • Identify the Boyce-Codd Normal Form (BCNF) • Normalize a given table from Unnor-malized Form (UNF) to Boyce-Codd Nor-mal Form (BCNF)

  3. The Boyce-CoddNormal Form Objective 1

  4. Boyce-Codd Normal Form(BCNF) • A relation is in BCNF • If and only if every determinant is a candidate key • Identify all the determinants • Make sure they are candidate keys • If this is true, then the relation is in BCNF

  5. Boyce-Codd Normal Form(BCNF) • BCNF is violated when a relation • contains two or more composite candidate keys • that overlaps and share at least one common attribute

  6. Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample Consider the Client_Interview relation CLIENT_INTERVIEW

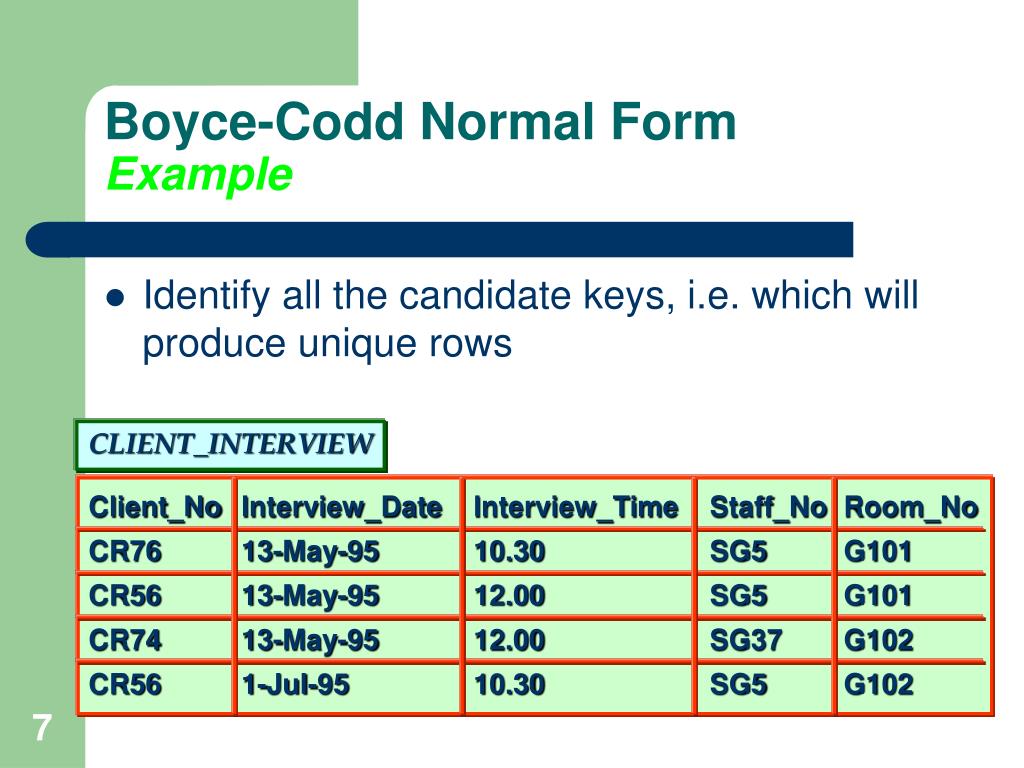

  7. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • Identify all the candidate keys, i.e. which will produce unique rows

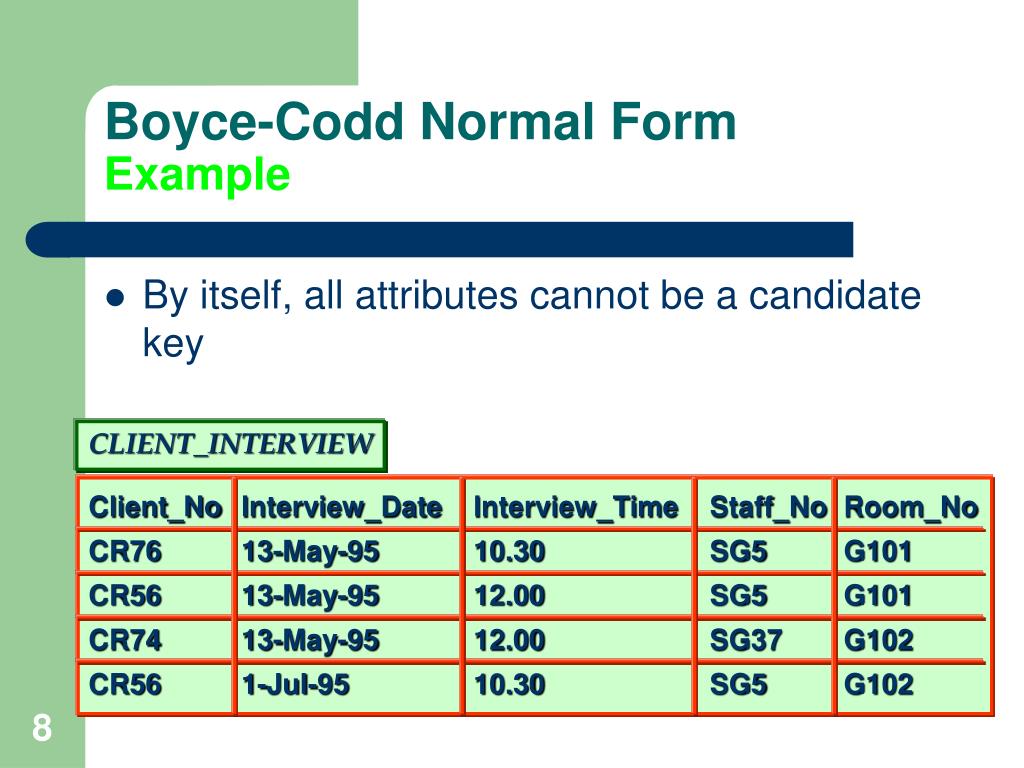

  8. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • By itself, all attributes cannot be a candidate key

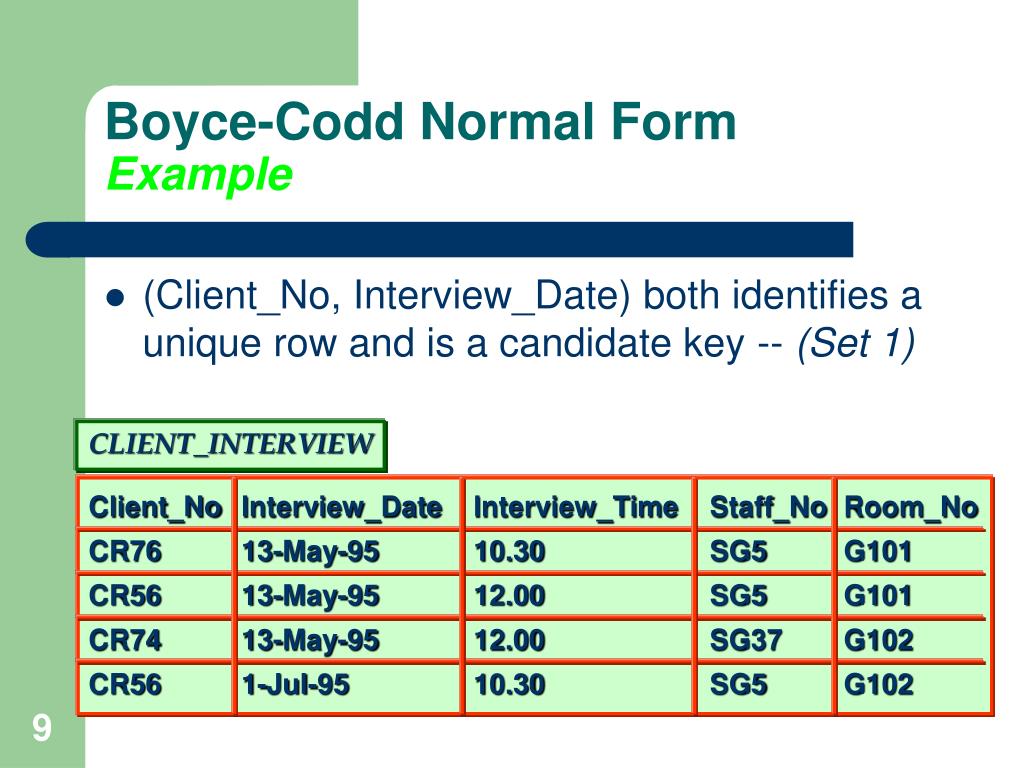

  9. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • (Client_No, Interview_Date) both identifies a unique row and is a candidate key -- (Set 1)

  10. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • What about (Staff_No, Interview_Date) together? • No, because there are two rows

  11. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • What about (Staff_No, Interview_ Date, Interview_ Time) together? • Yes, they can be another candidate key - (Set 2)

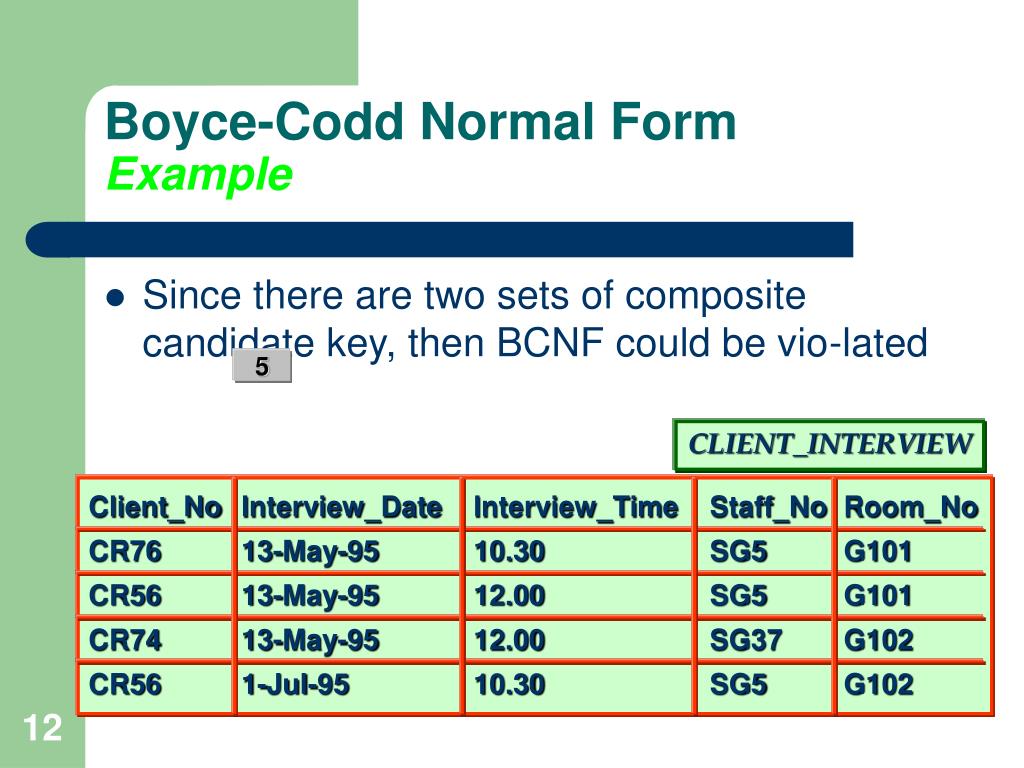

  12. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • Since there are two sets of composite candidate key, then BCNF could be vio-lated 5

  13. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • Try use (Client_No, Interview_Date) as the primary key

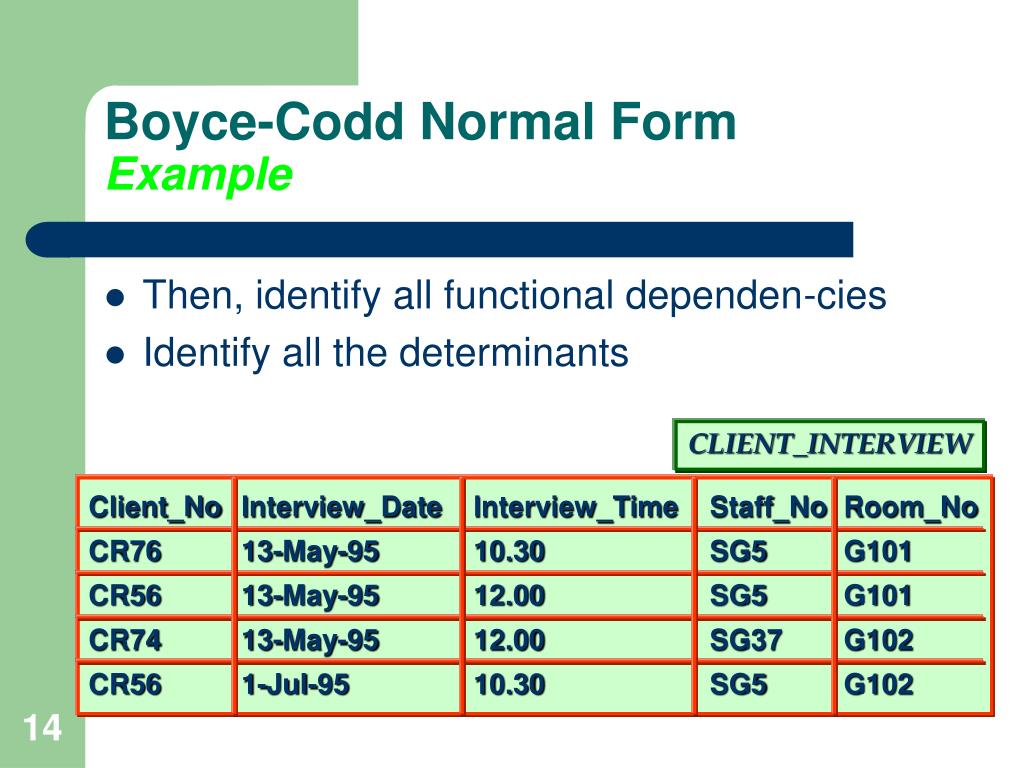

  14. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample • Then, identify all functional dependen-cies • Identify all the determinants

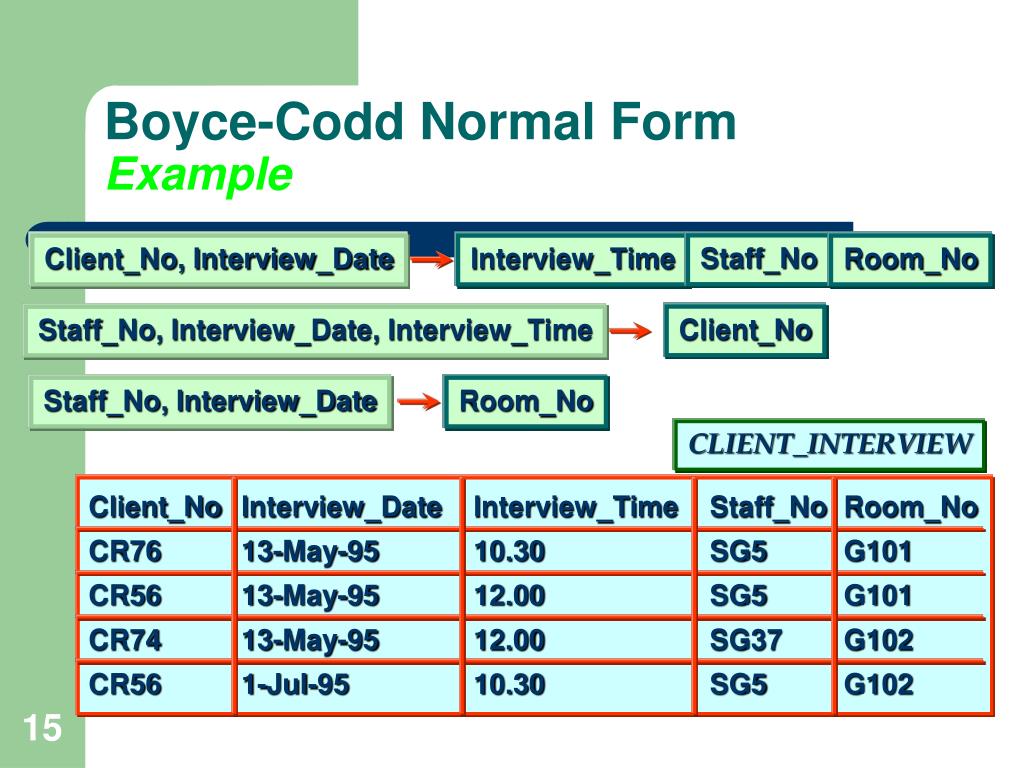

  15. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample Staff_No Client_No, Interview_Date Interview_Time Room_No Client_No Staff_No, Interview_Date, Interview_Time Staff_No, Interview_Date Room_No

  16. Client_No, Interview_Date Staff_No, Interview_Date, Interview_Time Boyce-Codd Normal FormExample Staff_No Client_No, Interview_Date Interview_Time Room_No Client_No Staff_No, Interview_Date, Interview_Time Staff_No, Interview_Date Room_No • The candidate keys overlap and share a common attribute Interview_Date • Hence, the BCNF is violated

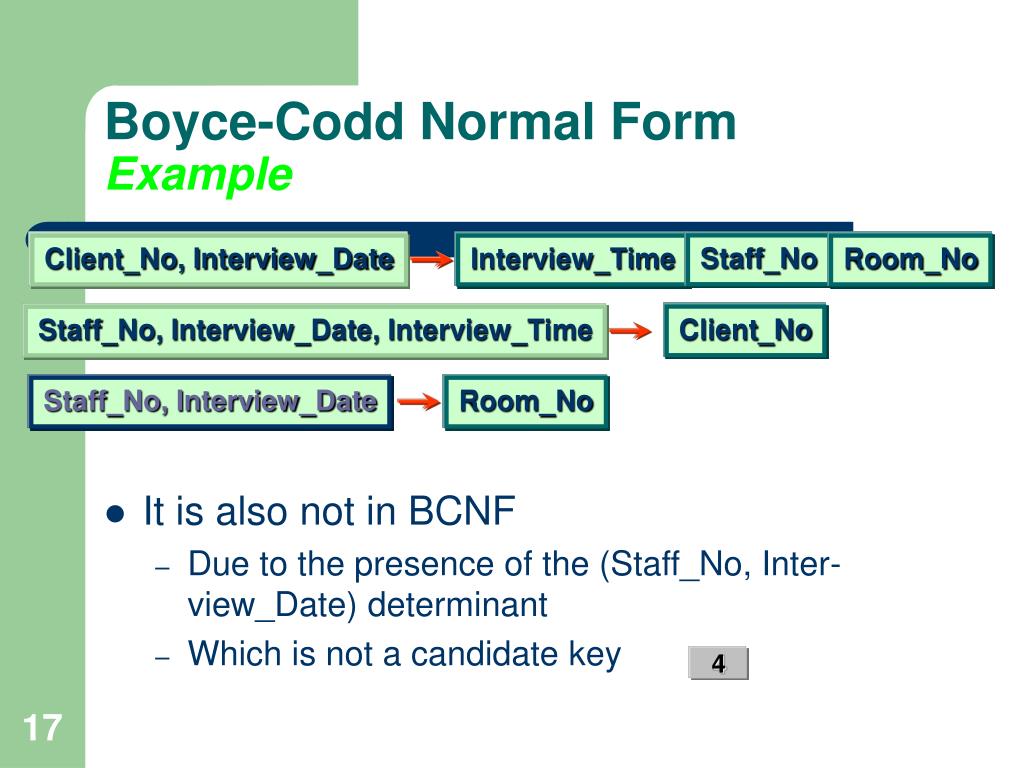

  17. Staff_No Client_No, Interview_Date Interview_Time Room_No Client_No Staff_No, Interview_Date, Interview_Time Staff_No, Interview_Date Room_No Boyce-Codd Normal FormExample Staff_No, Interview_Date • It is also not in BCNF • Due to the presence of the (Staff_No, Inter-view_Date) determinant • Which is not a candidate key 4

  18. Staff_No Client_No, Interview_Date Interview_Time Room_No Client_No Staff_No, Interview_Date, Interview_Time Staff_No, Interview_Date Room_No Boyce-Codd Normal FormExample • Normalize Client_Interview relation to BCNF by • removing the violating functional dependency based on (Staff_No, Interview_Date) determinant

  19. CLIENT_INTERVIEW Client_No Interview_Date Interview_Time Staff_No Room_No CR76 13-May-95 10.30 SG5 G101 CR56 13-May-95 12.00 SG5 G101 CR74 13-May-95 12.00 SG37 G102 CR56 1-Jul-95 10.30 SG5 G102 Boyce-Codd Normal FormExample

  20. Client_No Interview_Date Interview_Time Staff_No CR76 13-May-95 10.30 SG5 CR56 13-May-95 12.00 SG5 CR74 13-May-1995 12.00 SG37 CR56 1-Jul-95 10.30 SG5 Staff_No Interview_Date Room_No SG5 13-May-95 G101 SG5 13-May-95 G101 SG37 13-May-1995 G102 SG5 1-Jul-95 G102 Boyce-Codd Normal FormExample INTERVIEW STAFF_ROOM

  21. Review of NormalizationProcess (UNF to BCNF) Objective 2

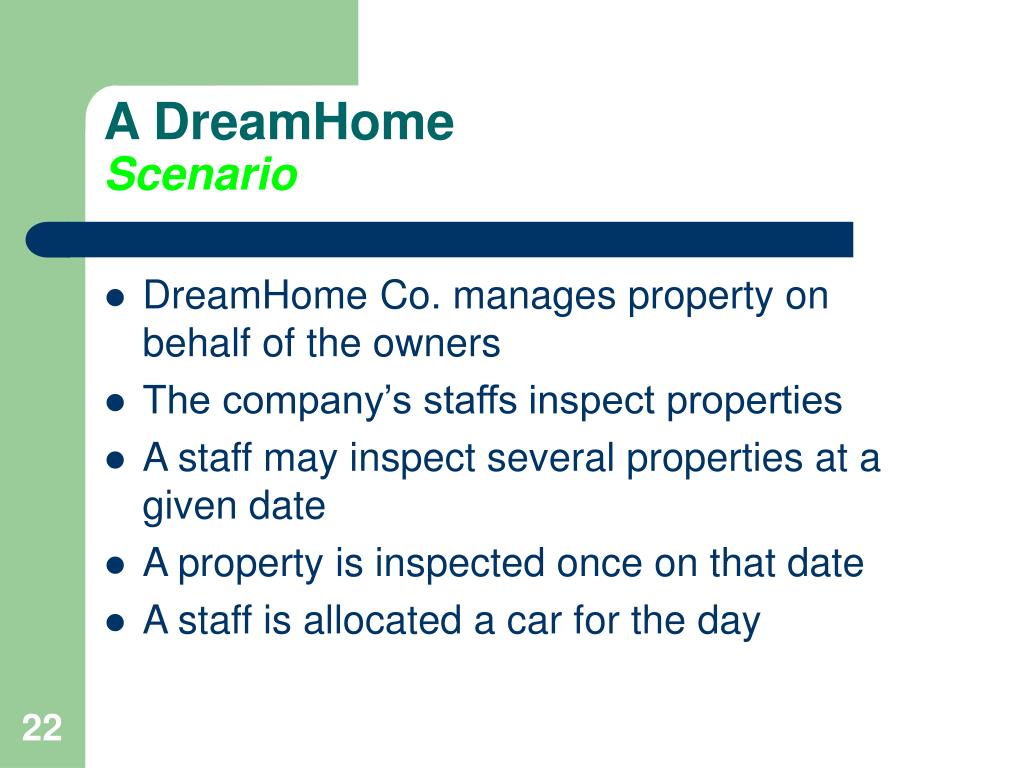

  22. A DreamHomeScenario • DreamHome Co. manages property on behalf of the owners • The company’s staffs inspect properties • A staff may inspect several properties at a given date • A property is inspected once on that date • A staff is allocated a car for the day

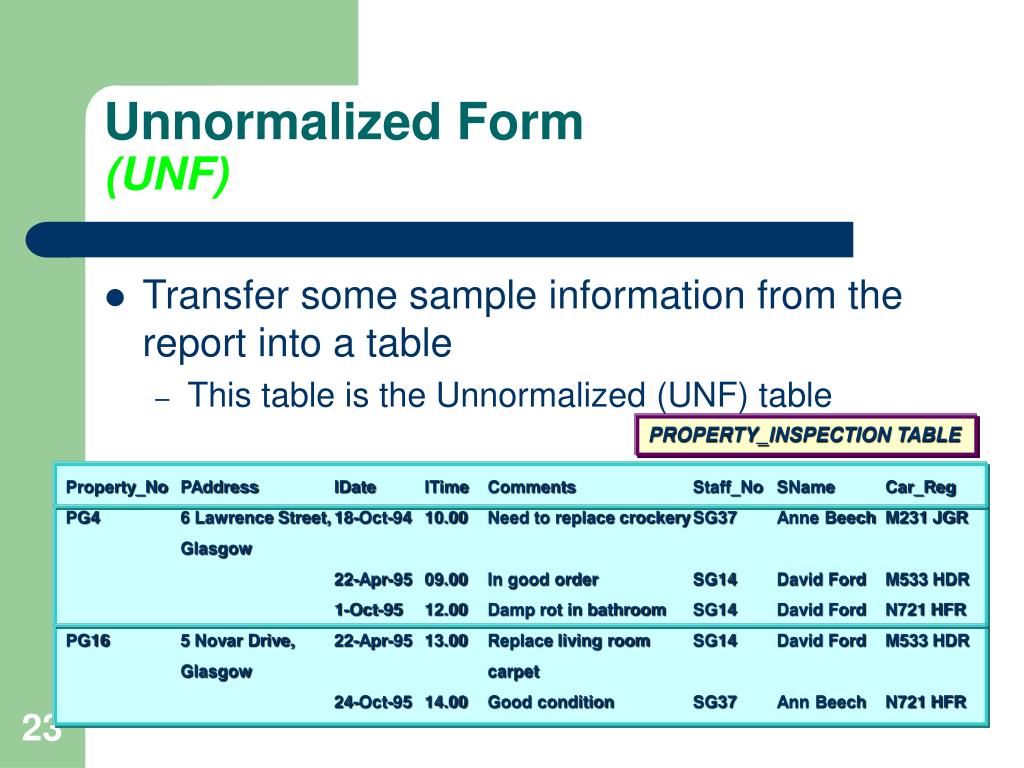

  23. Property_No PAddress IDate ITime Comments Staff_No SName Car_RegProperty_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street, 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR Glasgow 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive, 22-Apr-95 13.00 Replace living room SG14 David Ford M533 HDR Glasgow carpet 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR Unnormalized Form(UNF) • Transfer some sample information from the report into a table • This table is the Unnormalized (UNF) table PROPERTY_INSPECTION TABLE

  24. PROPERTY_INSPECTION TABLE Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street, 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR Glasgow 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive, 22-Apr-95 13.00 Replace living room SG14 David Ford M533 HDR Glasgow carpet 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR Unnormalized Form(UNF) • Identify the key attributes for table • The key attribute is Property_No

  25. PROPERTY_INSPECTION TABLE Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street, 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR Glasgow 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive, 22-Apr-95 13.00 Replace living room SG14 David Ford M533 HDR Glasgow carpet 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR First Normal Form (1NF)First Approach • Identify the repeating group in the unnormalized table

  26. PROPERTY_INSPECTION TABLE Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street, 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR Glasgow 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive, 22-Apr-95 13.00 Replace living room SG14 David Ford M533 HDR Glasgow carpet 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR First Normal Form (1NF)First Approach • The repeating attributes are • IDate, ITime, Comments, Staff_No, SName, Car_Reg

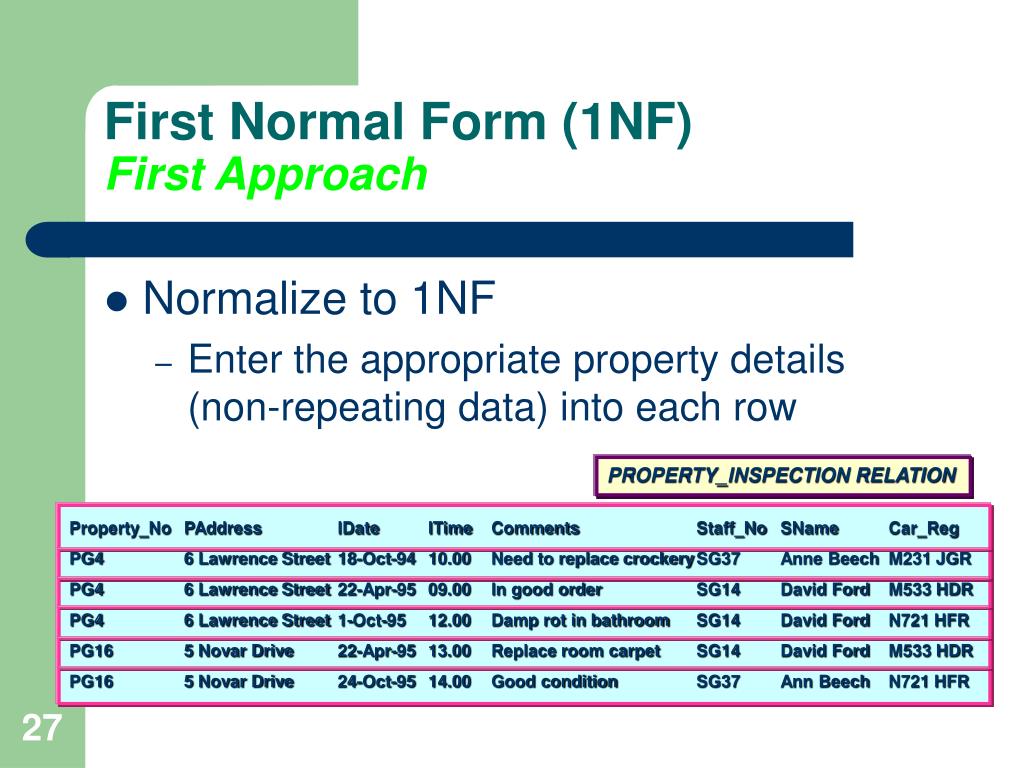

  27. PROPERTY_INSPECTION RELATION Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR PG4 6 Lawrence Street 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR PG4 6 Lawrence Street 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive 22-Apr-95 13.00 Replace room carpet SG14 David Ford M533 HDR PG16 5 Novar Drive 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR First Normal Form (1NF)First Approach • Normalize to 1NF • Enter the appropriate property details (non-repeating data) into each row

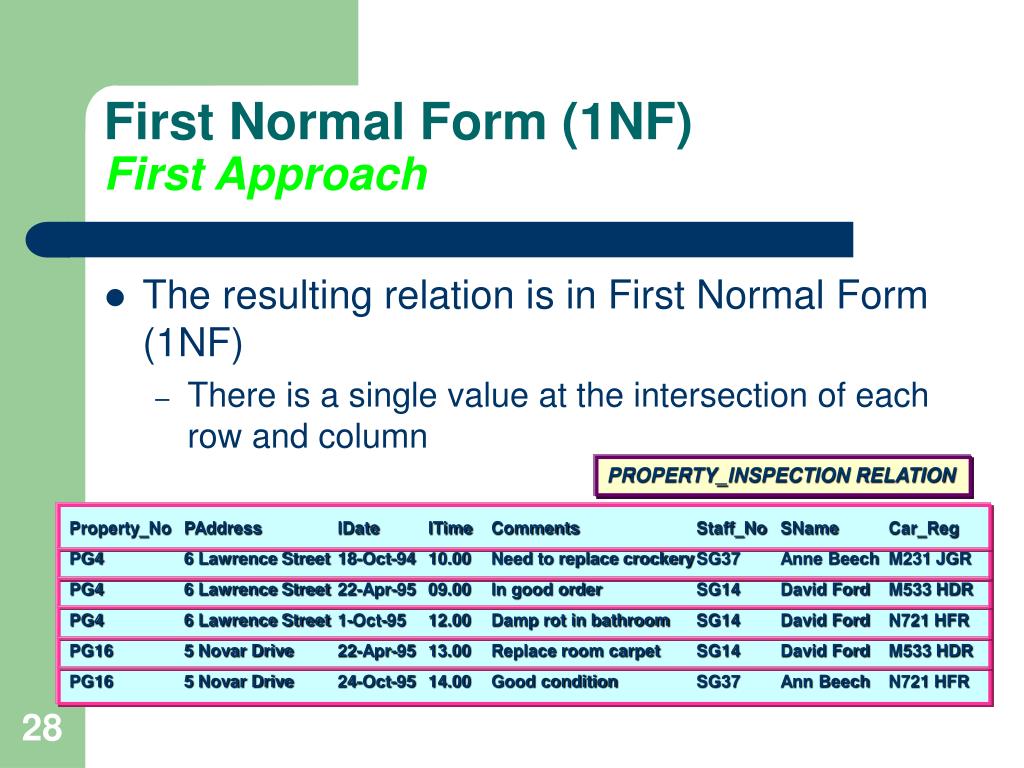

  28. PROPERTY_INSPECTION RELATION Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR PG4 6 Lawrence Street 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR PG4 6 Lawrence Street 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive 22-Apr-95 13.00 Replace room carpet SG14 David Ford M533 HDR PG16 5 Novar Drive 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR First Normal Form (1NF)First Approach • The resulting relation is in First Normal Form (1NF) • There is a single value at the intersection of each row and column

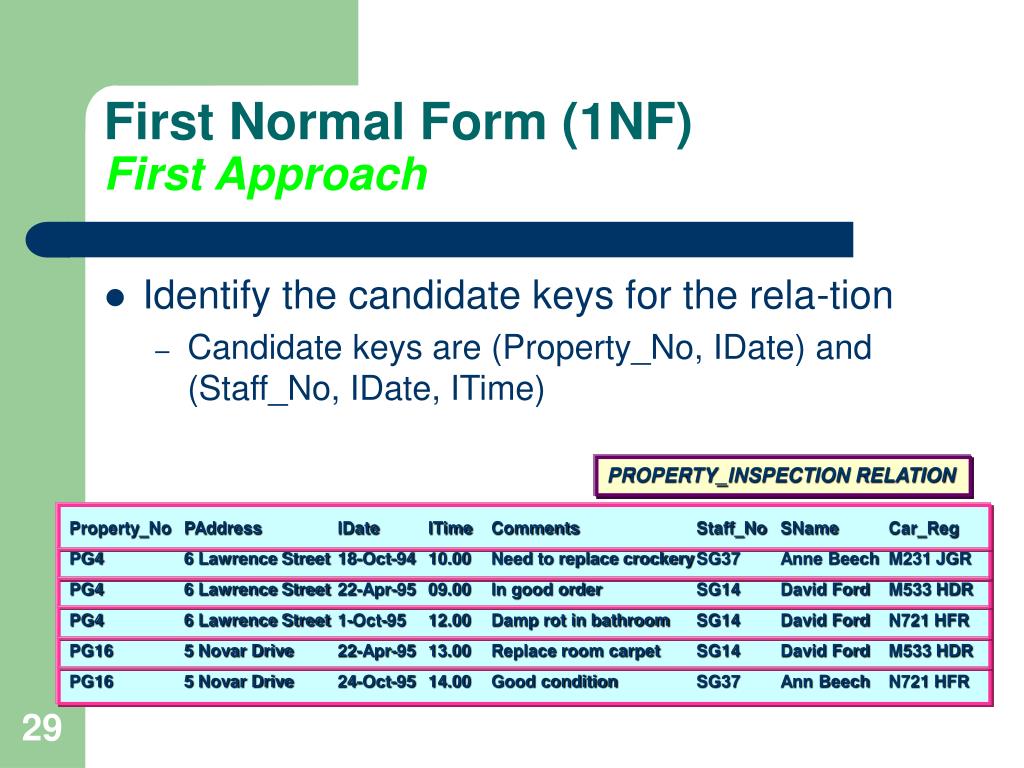

  29. PROPERTY_INSPECTION RELATION Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR PG4 6 Lawrence Street 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR PG4 6 Lawrence Street 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive 22-Apr-95 13.00 Replace room carpet SG14 David Ford M533 HDR PG16 5 Novar Drive 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR First Normal Form (1NF)First Approach • Identify the candidate keys for the rela-tion • Candidate keys are (Property_No, IDate) and (Staff_No, IDate, ITime)

  30. PROPERTY_INSPECTION RELATION Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR PG4 6 Lawrence Street 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR PG4 6 Lawrence Street 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive 22-Apr-95 13.00 Replace room carpet SG14 David Ford M533 HDR PG16 5 Novar Drive 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR First Normal Form (1NF)First Approach • Let’s select (Property_No, IDate) as the primary key

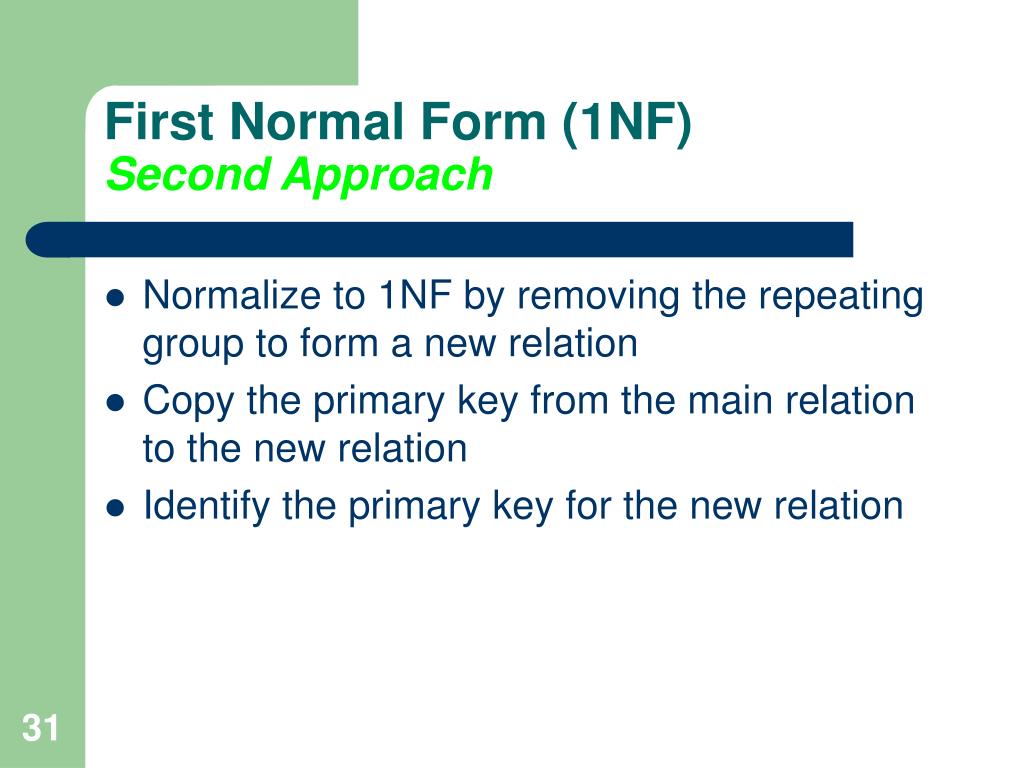

  31. First Normal Form (1NF)Second Approach • Normalize to 1NF by removing the repeating group to form a new relation • Copy the primary key from the main relation to the new relation • Identify the primary key for the new relation

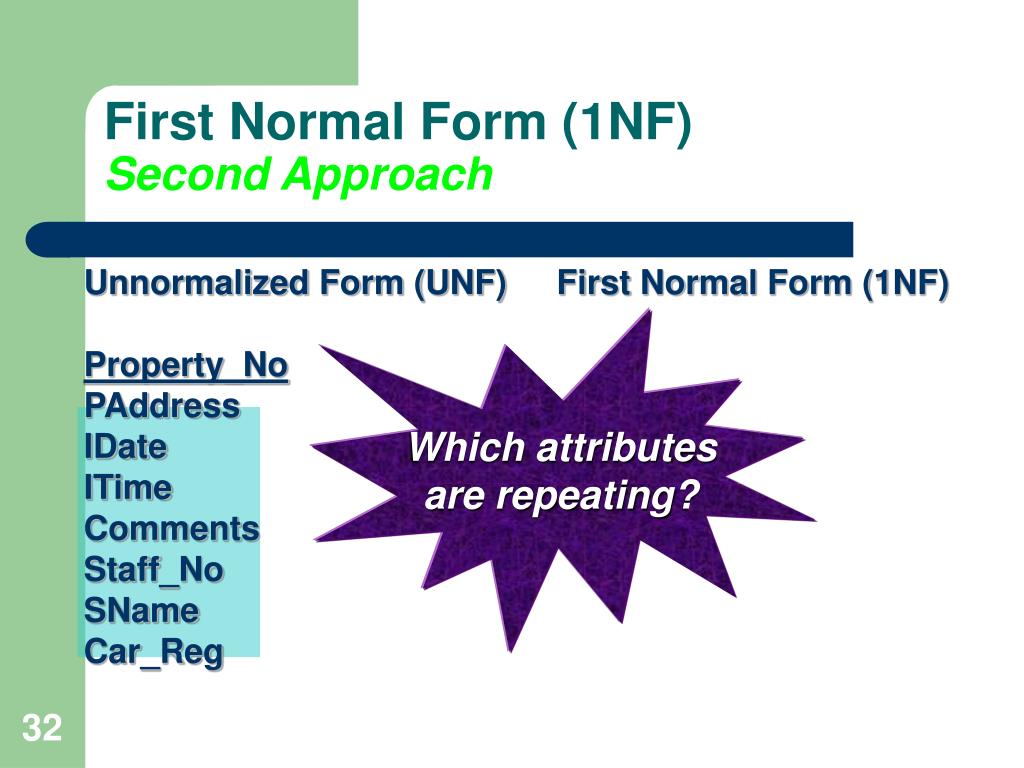

  32. First Normal Form (1NF)Second Approach Unnormalized Form (UNF) First Normal Form (1NF) Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg Which attributes are repeating?

  33. First Normal Form (1NF)Second Approach Unnormalized Form (UNF) First Normal Form (1NF) Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg MOVE

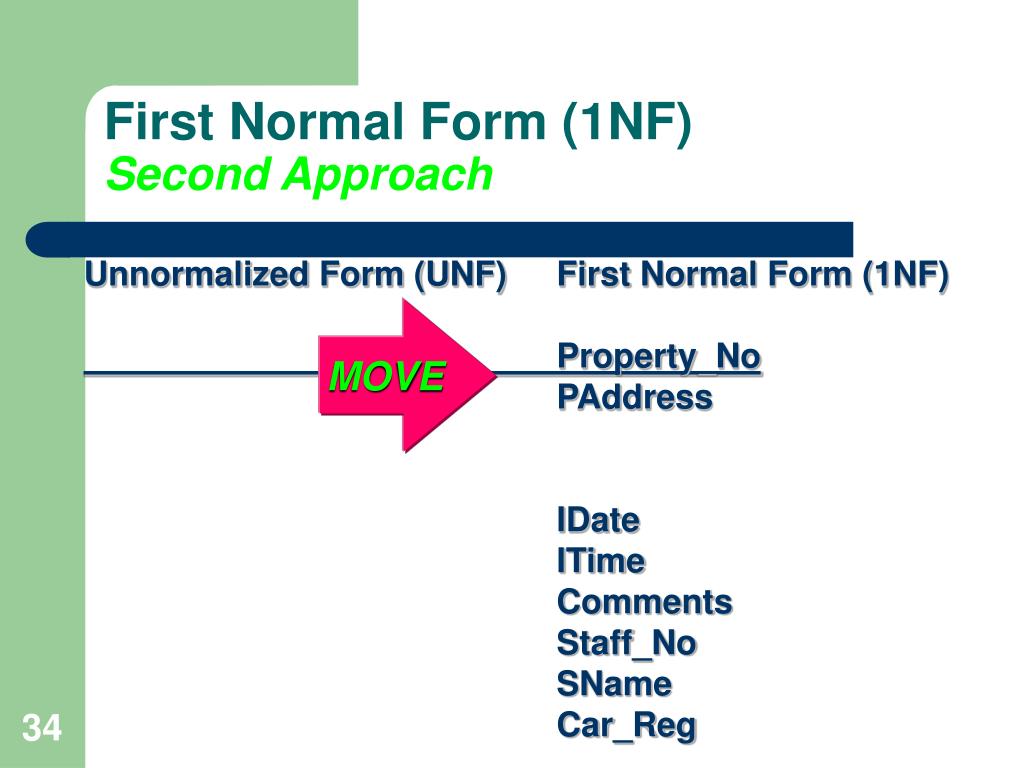

  34. First Normal Form (1NF)Second Approach Unnormalized Form (UNF) First Normal Form (1NF) Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg MOVE

  35. First Normal Form (1NF)Second Approach Unnormalized Form (UNF) First Normal Form (1NF) Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg Copy the primary key

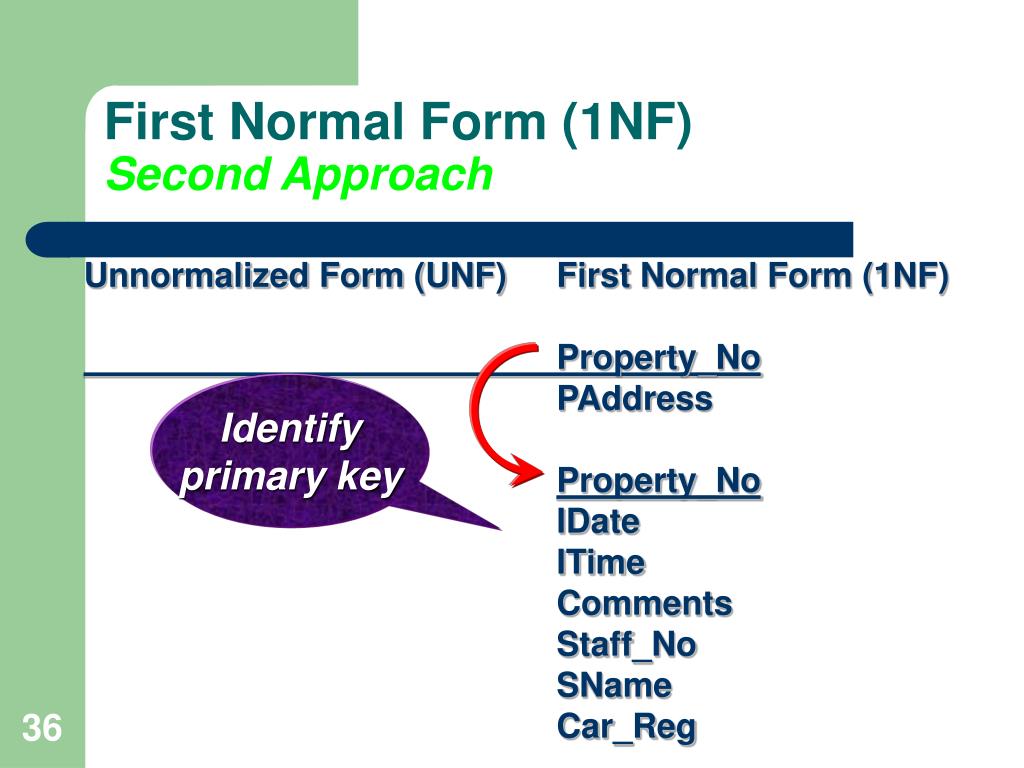

  36. First Normal Form (1NF)Second Approach Unnormalized Form (UNF) First Normal Form (1NF) Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg Identify primary key

  37. First Normal Form (1NF)Second Approach Unnormalized Form (UNF) First Normal Form (1NF) Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg Property_No and IDate

  38. First Normal Form (1NF)Second Approach Unnormalized Form (UNF) First Normal Form (1NF) Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg

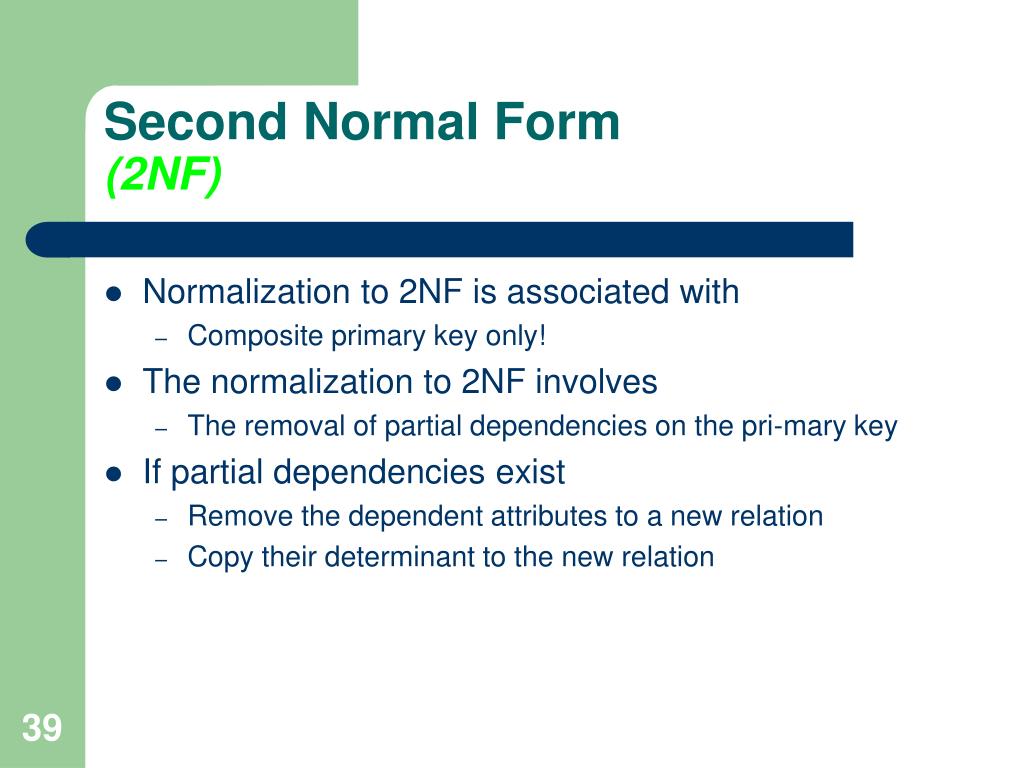

  39. Second Normal Form(2NF) • Normalization to 2NF is associated with • Composite primary key only! • The normalization to 2NF involves • The removal of partial dependencies on the pri-mary key • If partial dependencies exist • Remove the dependent attributes to a new relation • Copy their determinant to the new relation

  40. PROPERTY_INSPECTION RELATION Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR PG4 6 Lawrence Street 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR PG4 6 Lawrence Street 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive 22-Apr-95 13.00 Replace room carpet SG14 David Ford M533 HDR PG16 5 Novar Drive 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR Second Normal FormFirst Approach • Identify the functional dependen-cies in the Property_Inspection rela-tion

  41. PROPERTY_INSPECTION RELATION Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR PG4 6 Lawrence Street 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR PG4 6 Lawrence Street 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive 22-Apr-95 13.00 Replace room carpet SG14 David Ford M533 HDR PG16 5 Novar Drive 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR Second Normal FormFirst Approach Property_No, IDate ITime Comments Staff_No SName Car_Reg Property_No PAddress Staff_No SName

  42. PROPERTY_INSPECTION RELATION Property_No PAddress IDate ITime Comments Staff_No SName Car_Reg PG4 6 Lawrence Street 18-Oct-94 10.00 Need to replace crockery SG37 Anne Beech M231 JGR PG4 6 Lawrence Street 22-Apr-95 09.00 In good order SG14 David Ford M533 HDR PG4 6 Lawrence Street 1-Oct-95 12.00 Damp rot in bathroom SG14 David Ford N721 HFR PG16 5 Novar Drive 22-Apr-95 13.00 Replace room carpet SG14 David Ford M533 HDR PG16 5 Novar Drive 24-Oct-95 14.00 Good condition SG37 Ann Beech N721 HFR Second Normal FormFirst Approach Staff_No, IDate Car_Reg Staff_No, IDate, ITime Property_No PAddress Comments

  43. Car_Reg Property_No, IDate ITime Comments Staff_No SName Property_No PAddress Staff_No SName Staff_No, IDate Car_Reg Staff_No, IDate, ITime Property_No PAddress Comments Second Normal FormFirst Approach • PAddress is functionally dependent on Pro-perty_No • Remove it to form a new relation with a copy its determinant, Property_No

  44. Second Normal FormFirst Approach Comments Primary Key PAddress Property_No Car_Reg IDate ITime Staff_No Alternate Key SName

  45. Second Normal FormFirst Approach • The relations have the form: Prop (Property_No, Address) Prop_ (Property_No, IDate, ITime, Inspection Comments, Staff_No, SName, Car_Reg) Which is the same as the 1NF generated from the second approach

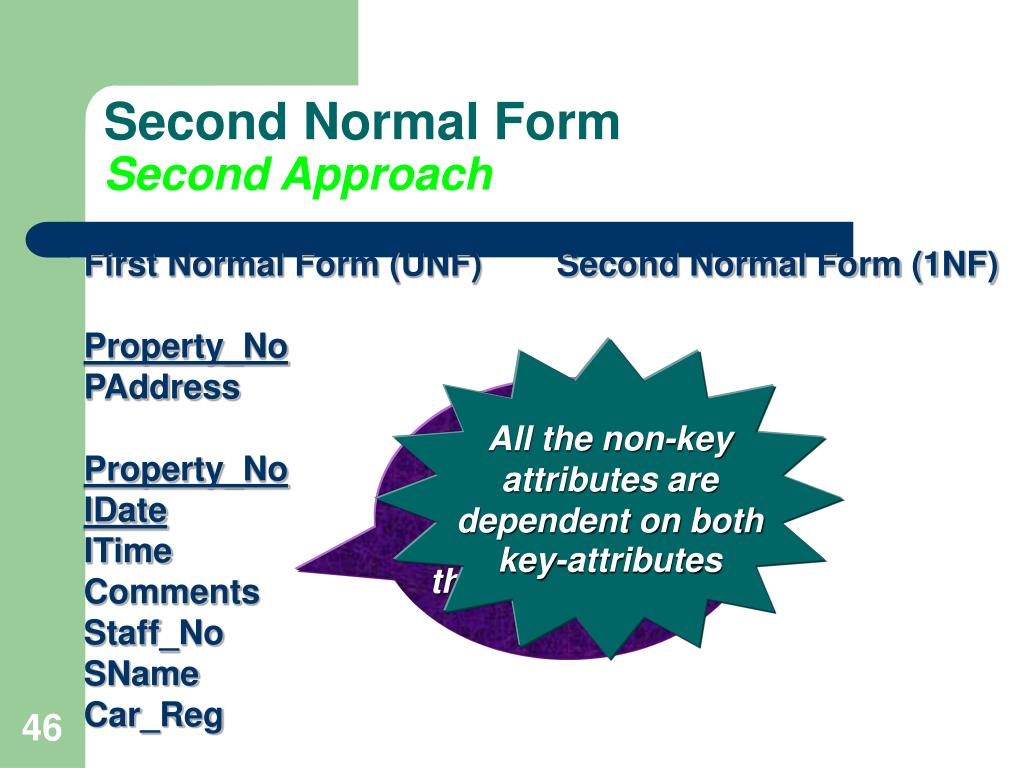

  46. Second Normal FormSecond Approach First Normal Form (UNF) Second Normal Form (1NF) Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg All the non-key attributes are dependent on both key-attributes Which of the non-key attributes depend on part of the primary key?

  47. Second Normal FormSecond Approach First Normal Form (UNF) Second Normal Form (1NF) Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg MOVE MOVE

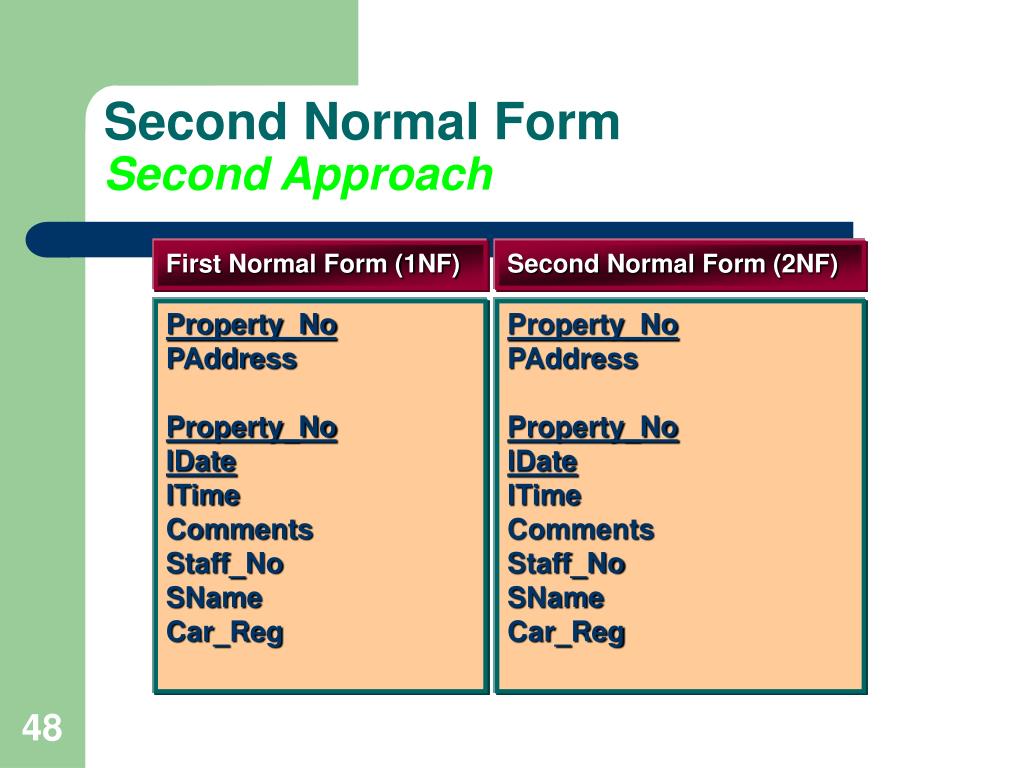

  48. Second Normal FormSecond Approach First Normal Form (1NF) Second Normal Form (2NF) Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg Property_No PAddress Property_No IDate ITime Comments Staff_No SName Car_Reg

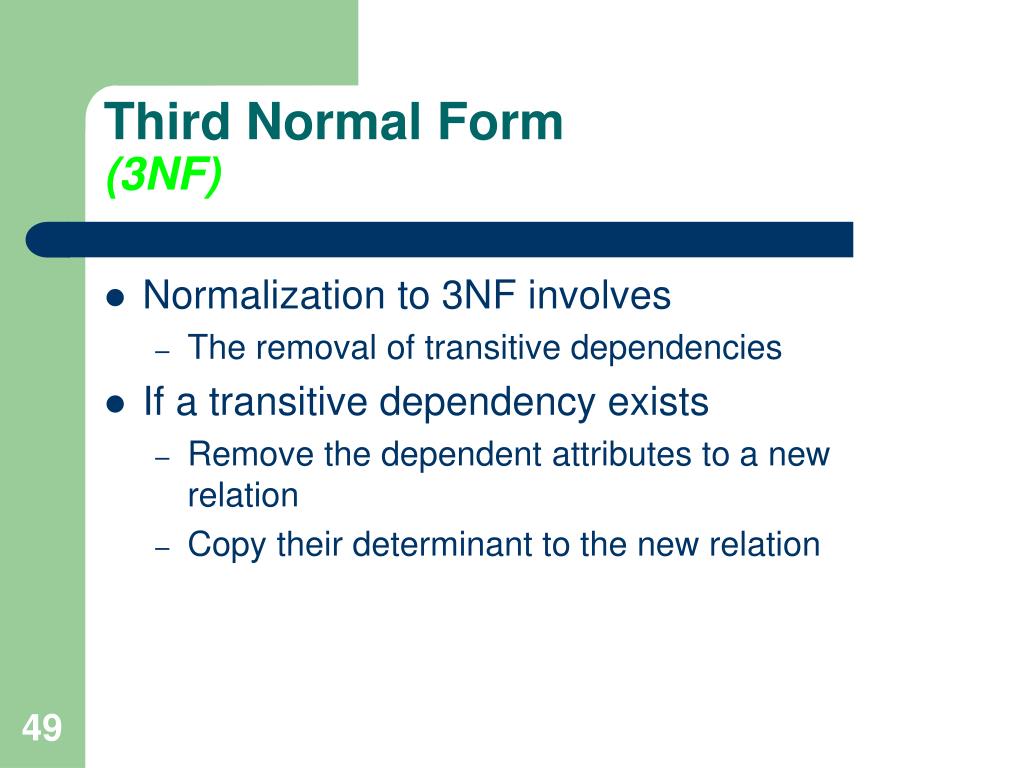

  49. Third Normal Form(3NF) • Normalization to 3NF involves • The removal of transitive dependencies • If a transitive dependency exists • Remove the dependent attributes to a new relation • Copy their determinant to the new relation

  50. Property_No PAddress Property_No, IDate ITime Comments Staff_No SName Car_Reg Staff_No SName Staff_No, IDate Car_Reg Staff_No, Idate, ITime Property_No Comments Third Normal FormFirst Approach • Identify the functional dependencies in the Prop and Prop_Inspection relation
