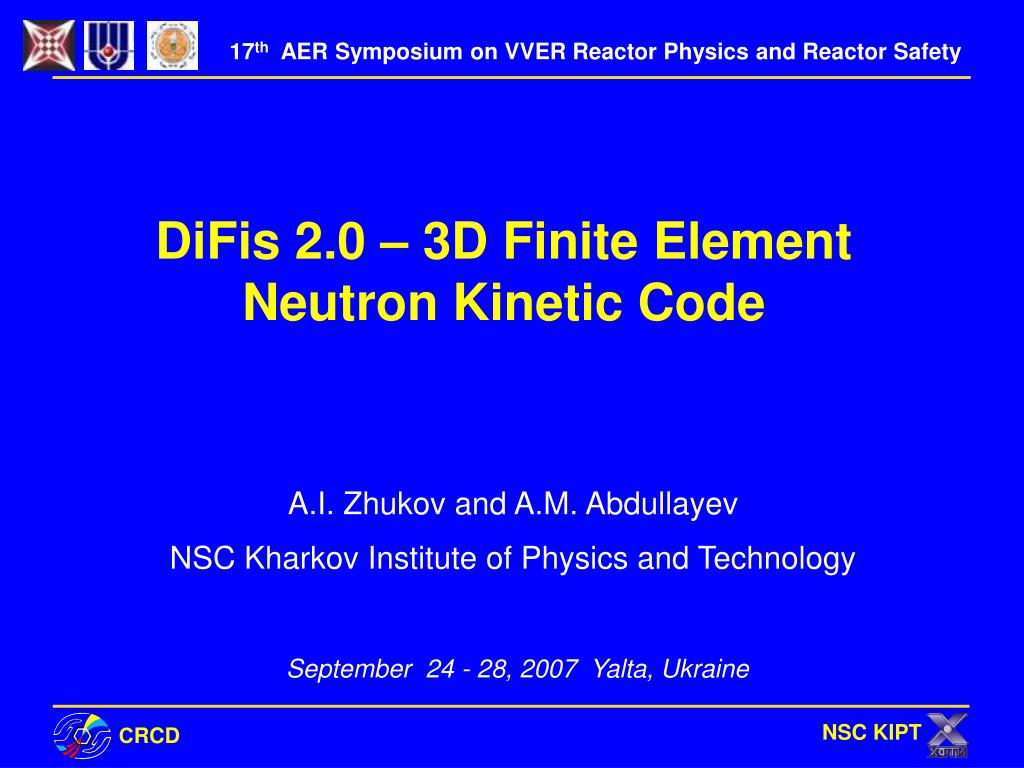

  1. 17th AER Symposium on VVER Reactor Physics and Reactor Safety DiFis 2.0 – 3D Finite Element Neutron Kinetic Code A.I. Zhukov and A.M. Abdullayev NSC Kharkov Institute of Physics and Technology September 24 - 28, 2007 Yalta, Ukraine

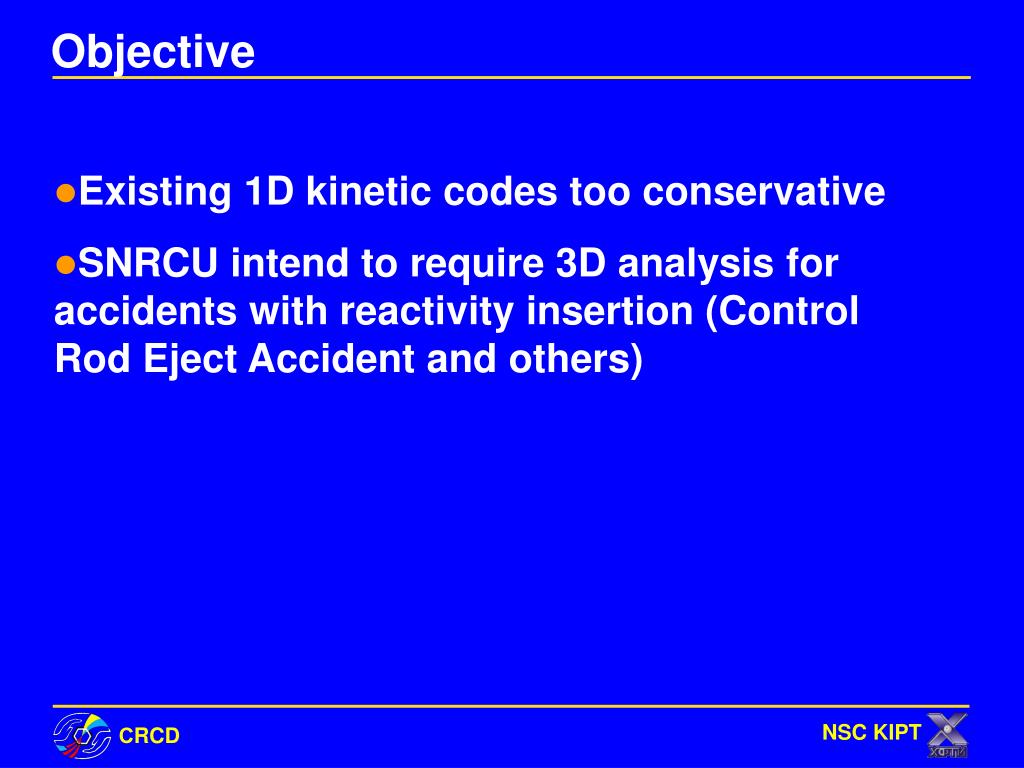

  2. Objective • Existing 1D kinetic codes too conservative • SNRCU intend to require 3D analysis for accidents with reactivity insertion (Control Rod Eject Accident and others)

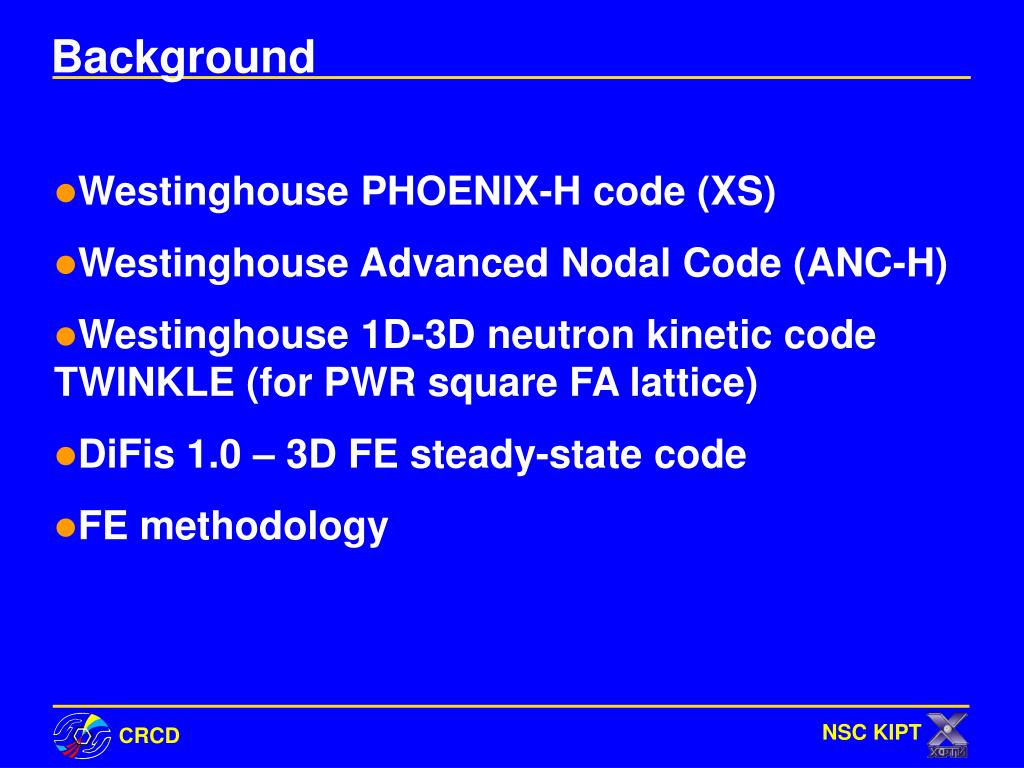

  3. Background • Westinghouse PHOENIX-H code (XS) • Westinghouse Advanced Nodal Code (ANC-H) • Westinghouse 1D-3D neutron kinetic code TWINKLE (for PWR square FA lattice) • DiFis 1.0 – 3D FE steady-state code • FE methodology

  4. Nuclear Model 2 group approximation

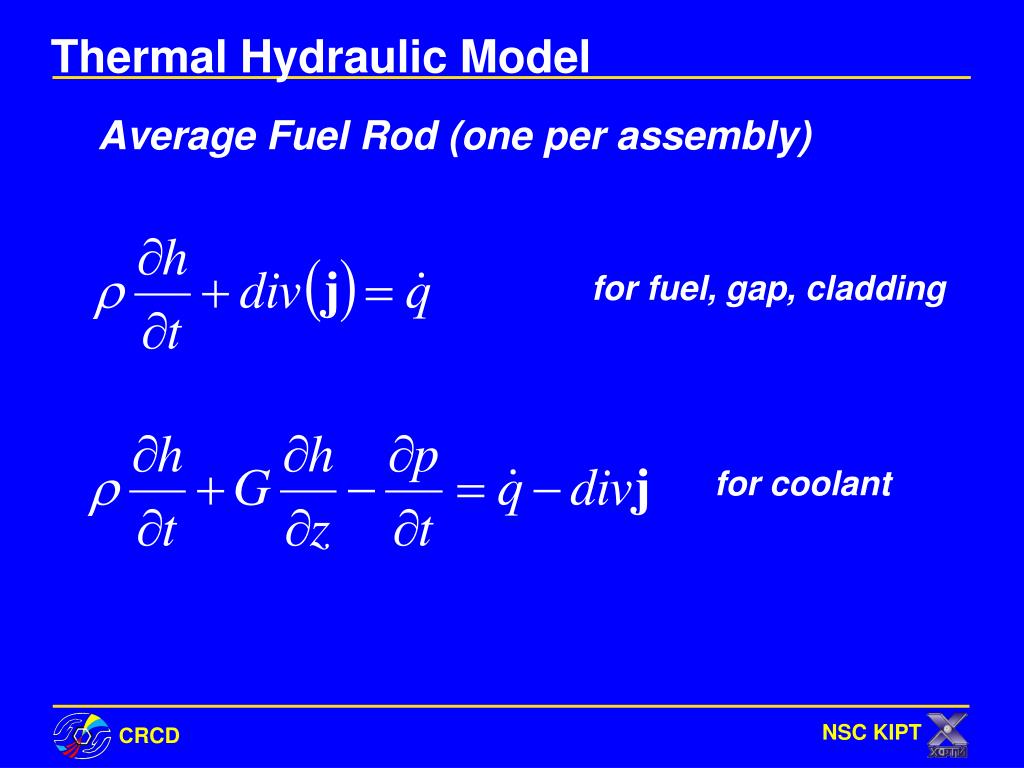

  5. Thermal Hydraulic Model Average Fuel Rod (one per assembly) for fuel, gap, cladding for coolant

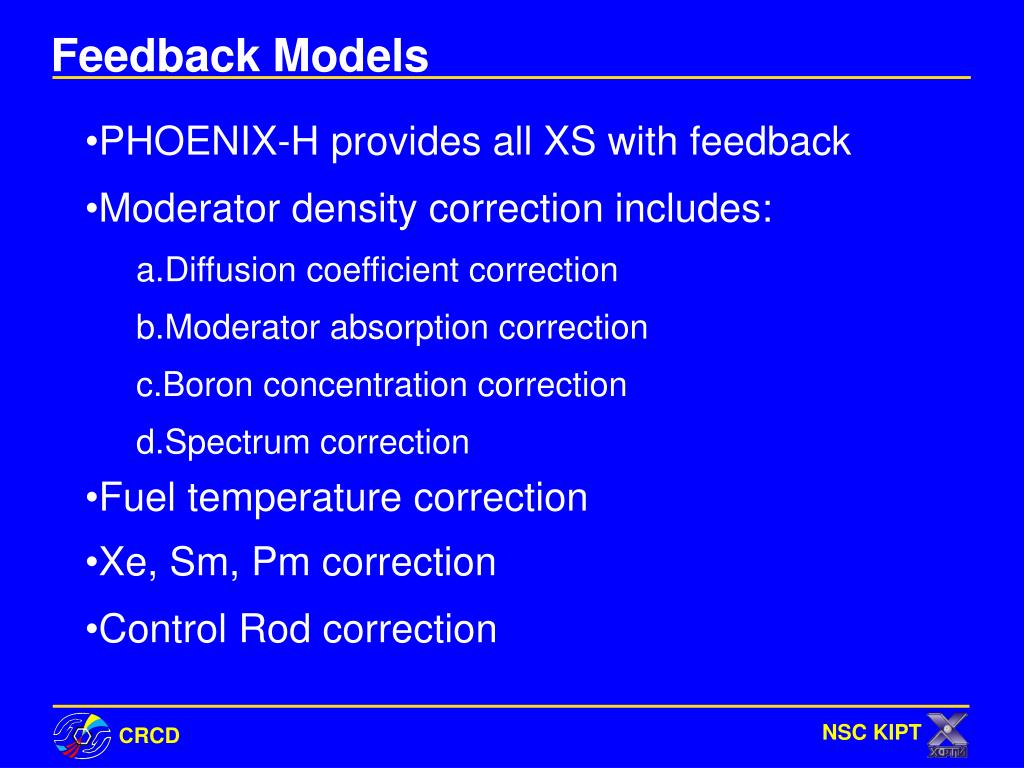

  6. Feedback Models • PHOENIX-H provides all XS with feedback • Moderator density correction includes: • Diffusion coefficient correction • Moderator absorption correction • Boron concentration correction • Spectrum correction • Fuel temperature correction • Xe, Sm, Pm correction • Control Rod correction

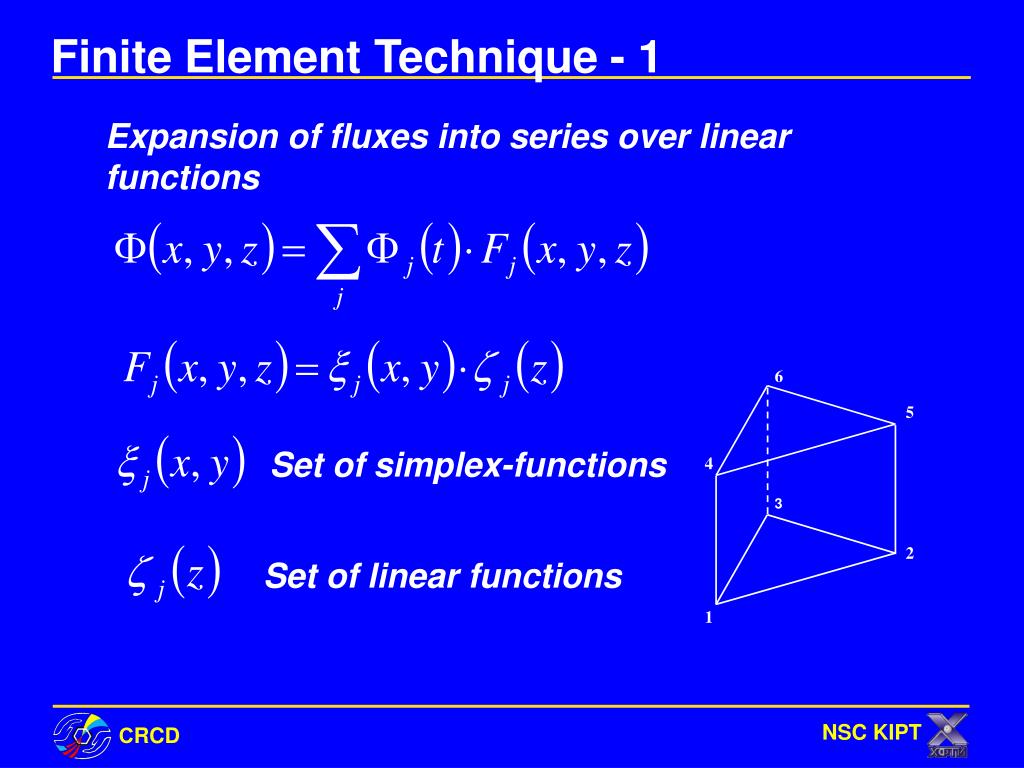

  7. 6 5 4 3 2 1 Finite Element Technique - 1 Expansion of fluxes into series over linear functions Set of simplex-functions Set of linear functions

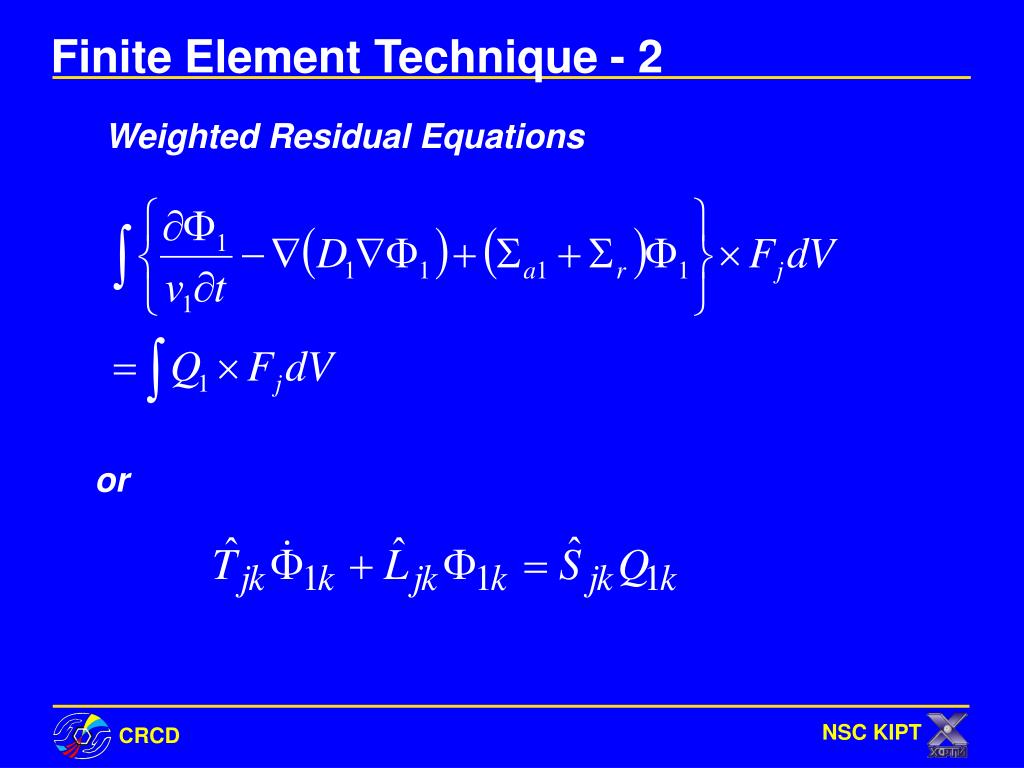

  8. Finite Element Technique - 2 Weighted Residual Equations or

  9. 12 11 14 13 10 9 34 33 15 2 1 8 36 35 32 31 16 3 6 7 38 37 12 11 30 29 17 4 5 24 39 14 13 10 9 28 18 19 22 23 40 15 2 1 8 27 20 21 41 16 3 6 7 26 42 17 4 5 24 25 43 18 19 22 23 54 44 45 20 21 52 53 46 47 50 51 48 49 6 2 1 5 3 6 4 3 4 5 2 1 Finite Element Technique - 3

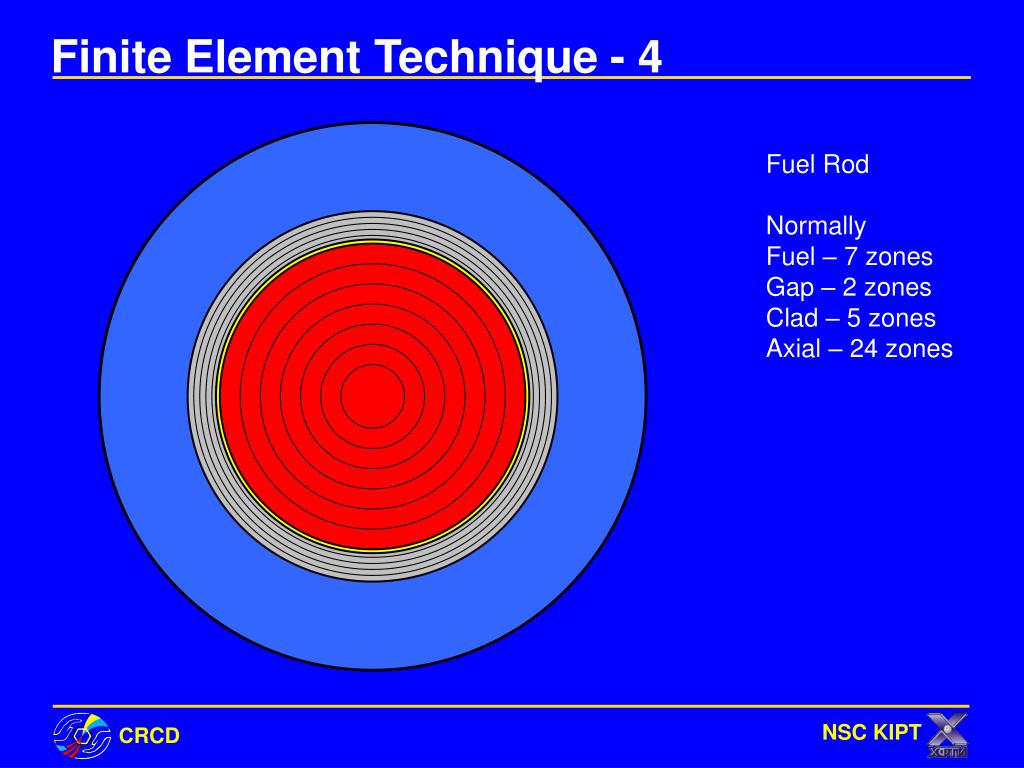

  10. Finite Element Technique - 4 Fuel Rod Normally Fuel – 7 zones Gap – 2 zones Clad – 5 zones Axial – 24 zones

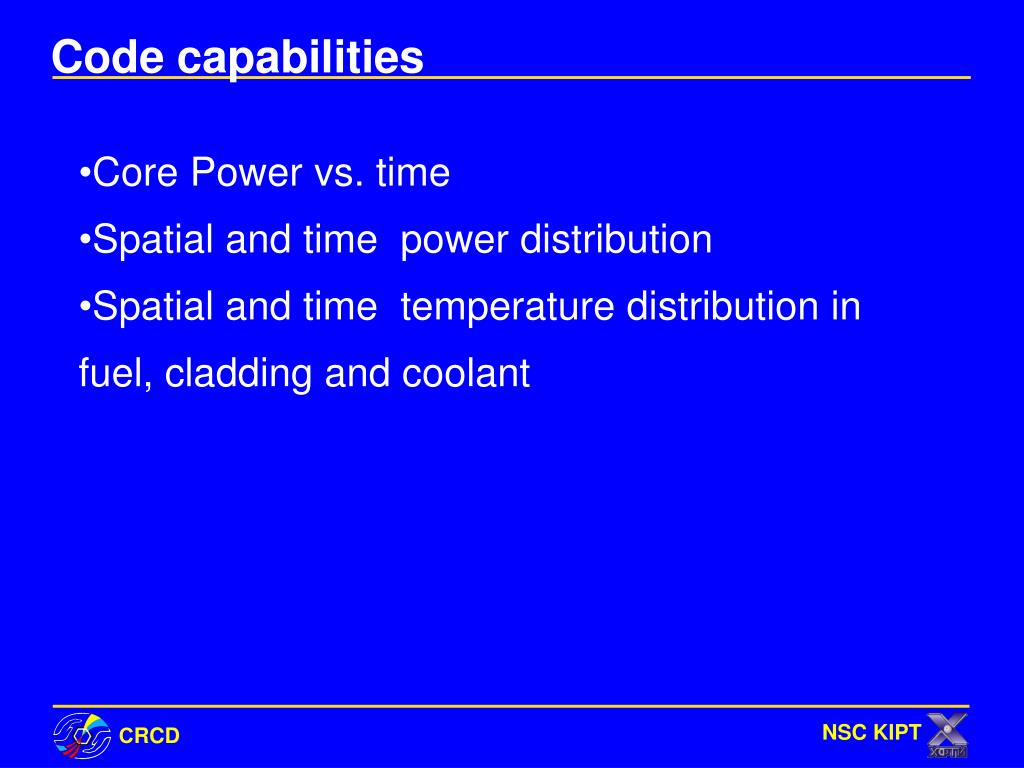

  11. Code capabilities • Core Power vs. time • Spatial and time power distribution • Spatial and time temperature distribution in fuel, cladding and coolant

  12. Example of Steady-State Calculations EOC Relative FA Power ANC DiFis-ANC Max Err = 4.0% Rms Err = 1.6%

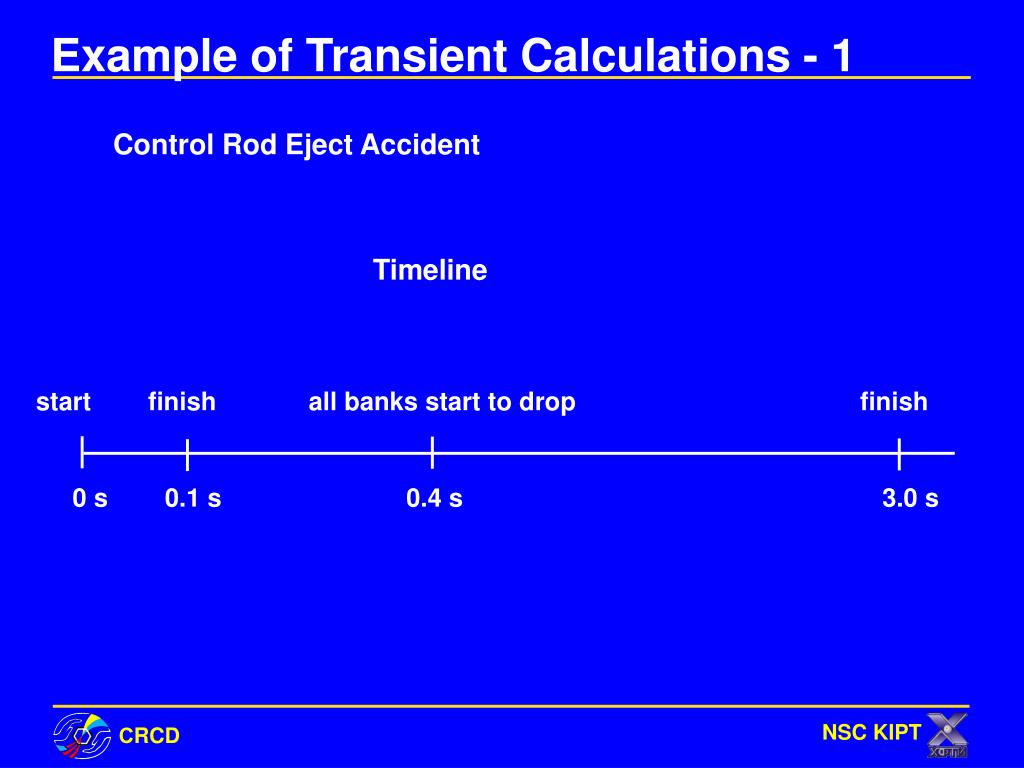

  13. Example of Transient Calculations - 1 Control Rod Eject Accident Timeline start finish all banks start to drop finish 0 s 0.1 s 0.4 s 3.0 s

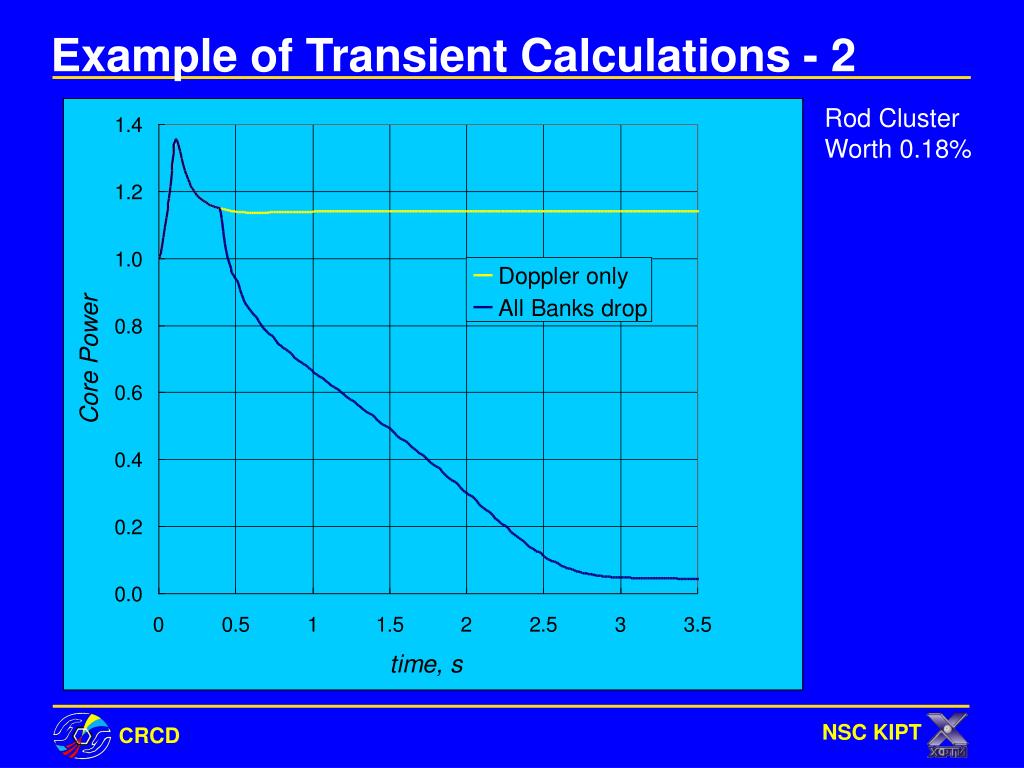

  14. Example of Transient Calculations - 2 Rod Cluster Worth 0.18%

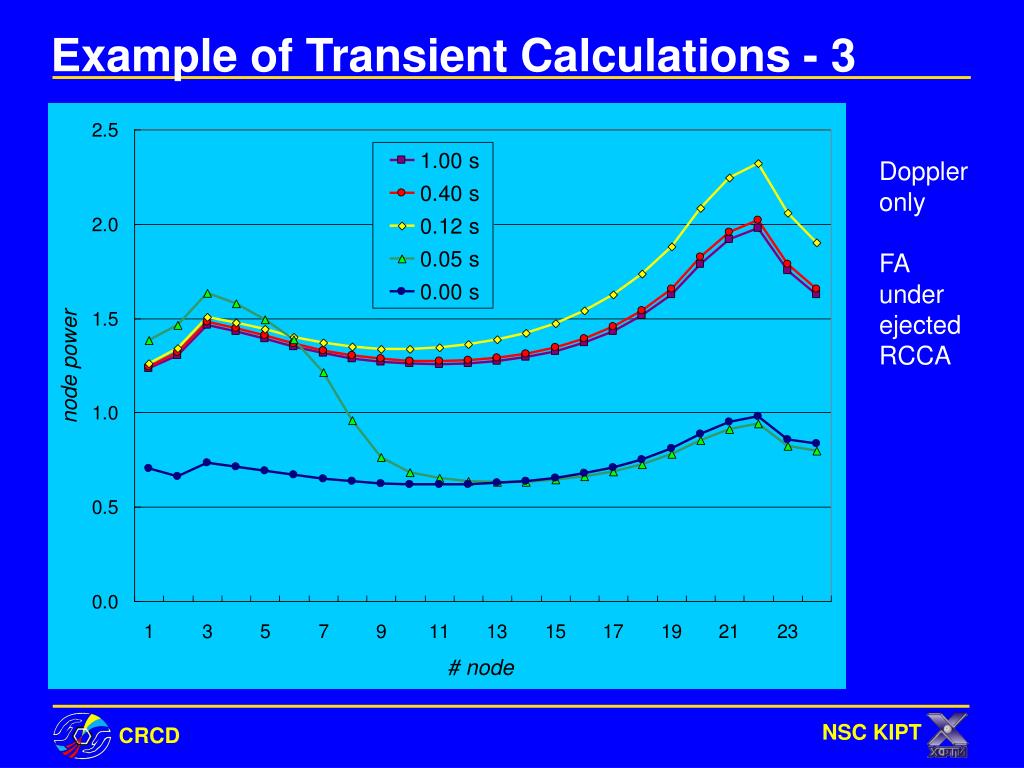

  15. Example of Transient Calculations - 3 Doppler only FA under ejected RCCA

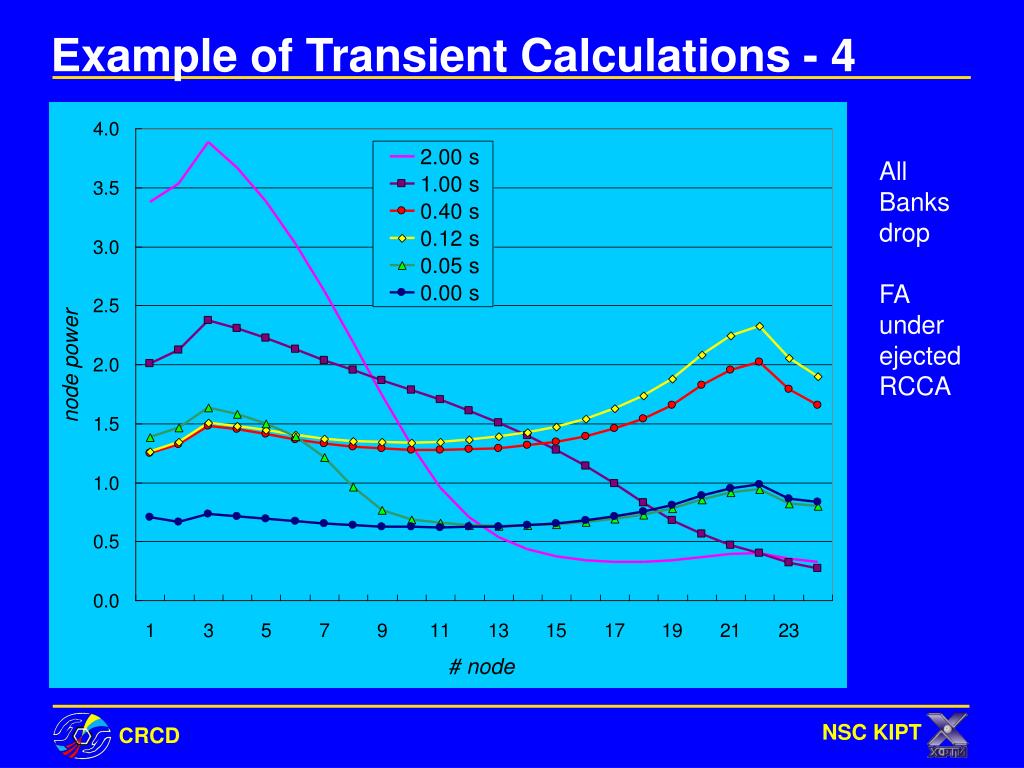

  16. Example of Transient Calculations - 4 All Banks drop FA under ejected RCCA

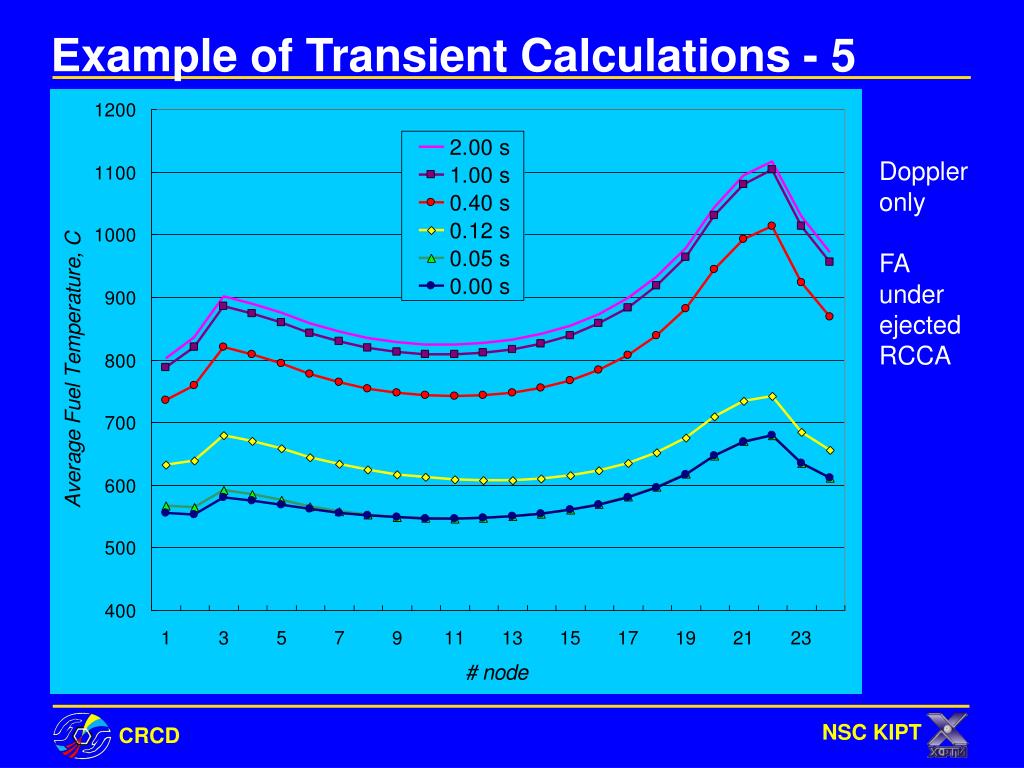

  17. Example of Transient Calculations - 5 Doppler only FA under ejected RCCA

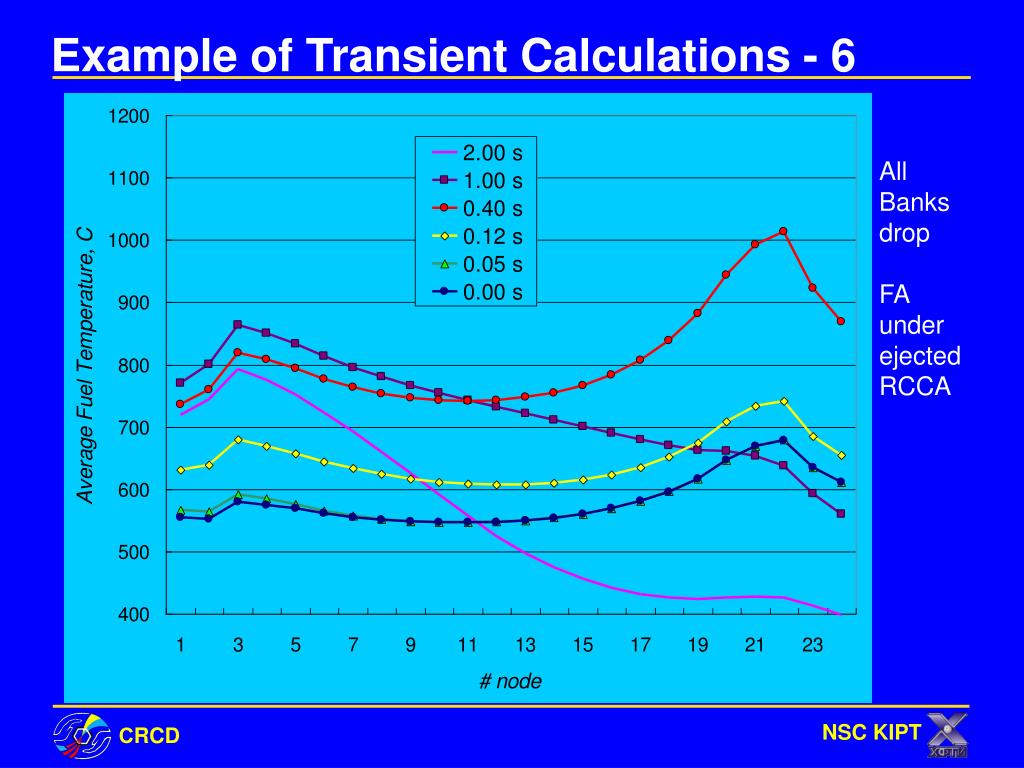

  18. Example of Transient Calculations - 6 All Banks drop FA under ejected RCCA

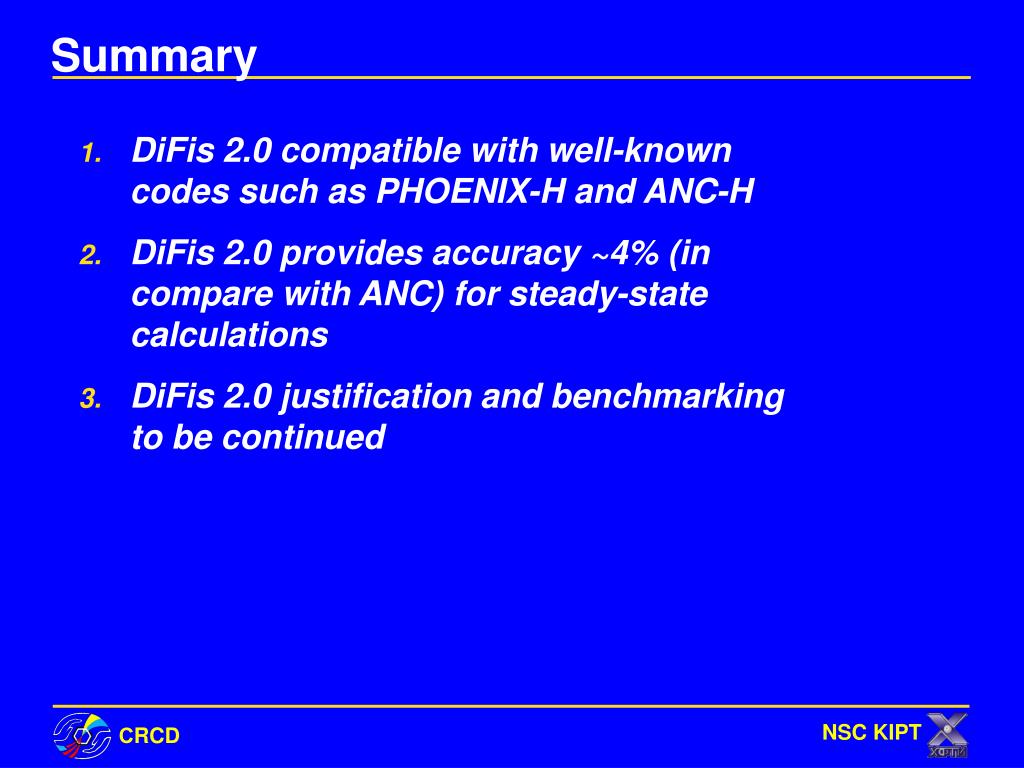

  19. Summary DiFis 2.0 compatible with well-known codes such as PHOENIX-H and ANC-H DiFis 2.0 provides accuracy ~4% (in compare with ANC) for steady-state calculations DiFis 2.0 justification and benchmarking to be continued
