  1. City Water Equipment Introduction Applications Features Installation draw

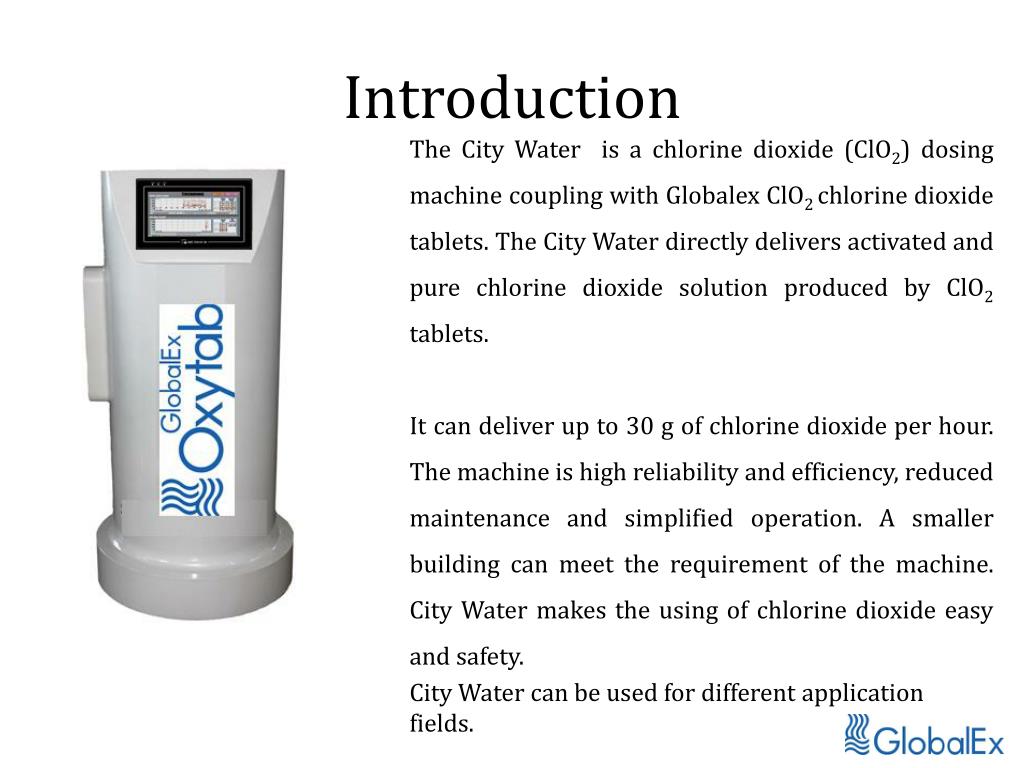

  2. Introduction The City Water is a chlorine dioxide (ClO2) dosing machine coupling with Globalex ClO2 chlorine dioxide tablets. The City Water directly delivers activated and pure chlorine dioxide solution produced by ClO2 tablets. It can deliver up to 30 g of chlorine dioxide per hour. The machine is high reliability and efficiency, reduced maintenance and simplified operation. A smaller building can meet the requirement of the machine. City Water makes the using of chlorine dioxide easy and safety. City Water can be used for different application fields.

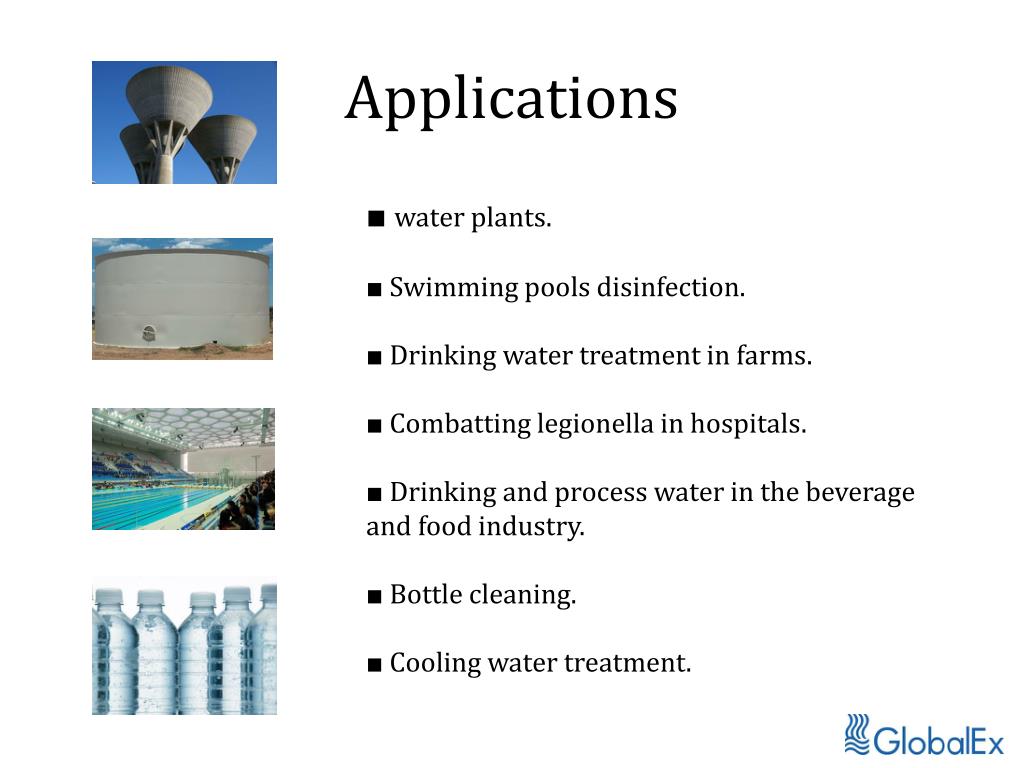

  3. Applications ■ water plants. ■ Swimming pools disinfection. ■ Drinking water treatment in farms. ■ Combatting legionella in hospitals. ■ Drinking and process water in the beverage and food industry. ■ Bottle cleaning. ■ Cooling water treatment.

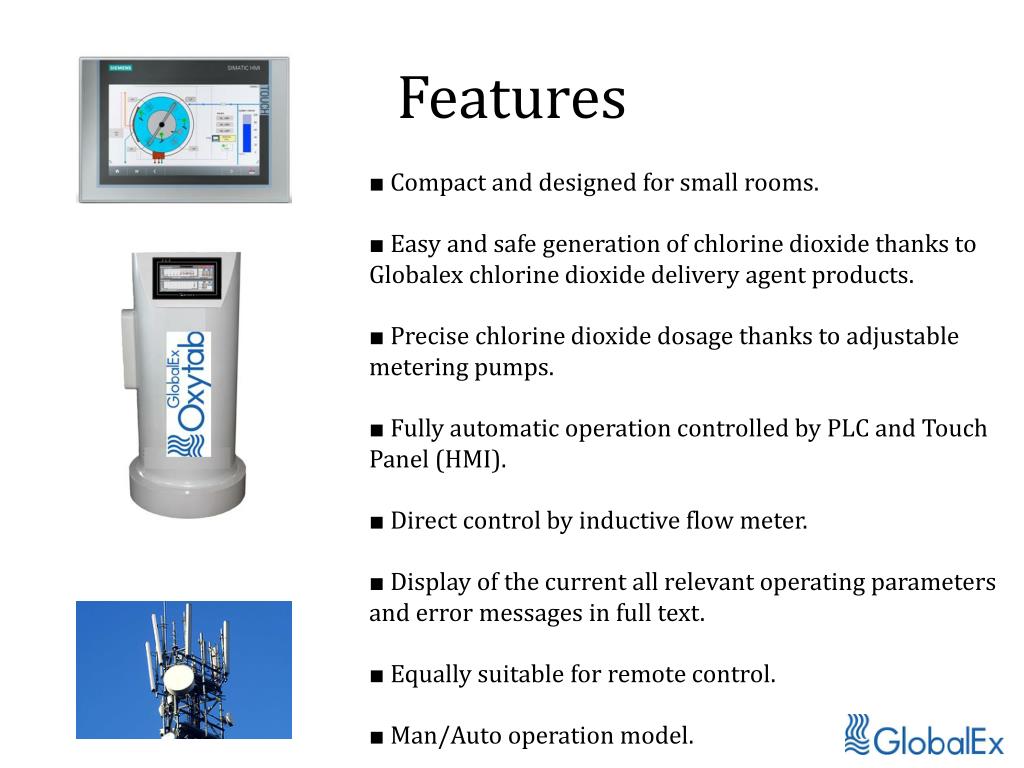

  4. Features ■ Compact and designed for small rooms. ■ Easy and safe generation of chlorine dioxide thanks to Globalexchlorine dioxide delivery agent products. ■ Precise chlorine dioxide dosage thanks to adjustable metering pumps. ■ Fully automatic operation controlled by PLC and Touch Panel (HMI). ■ Direct control by inductive flow meter. ■ Display of the current all relevant operating parameters and error messages in full text. ■ Equally suitable for remote control. ■ Man/Auto operation model.

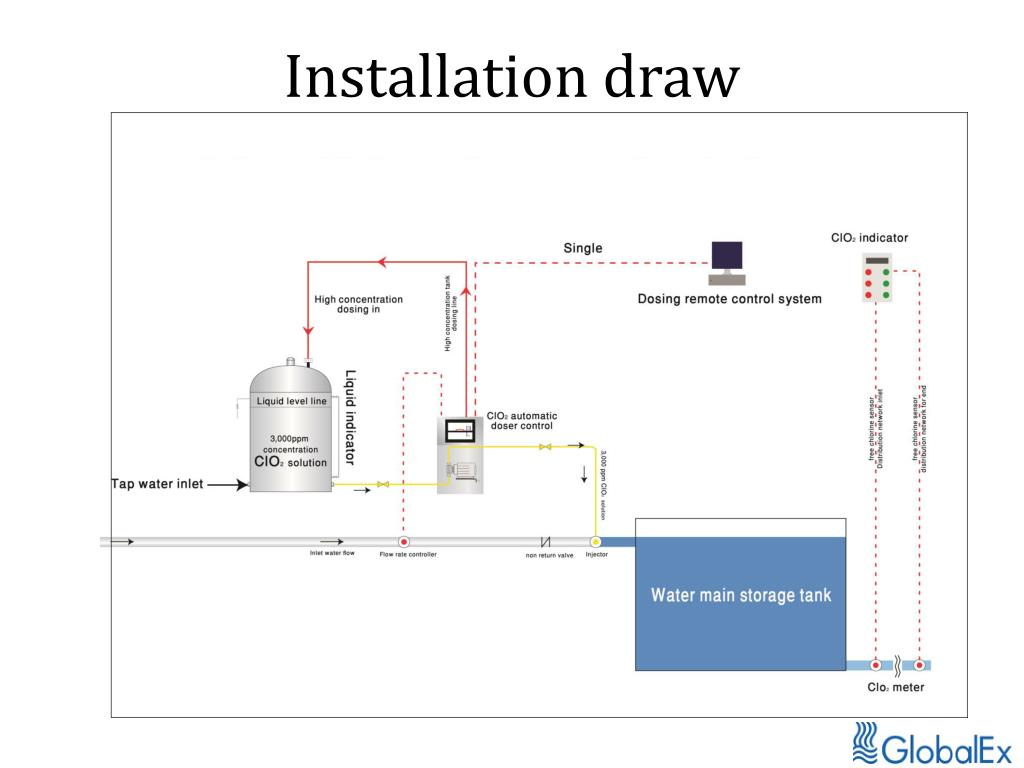

  5. Installation draw
