Understanding Angles in Polygons: Interior and Exterior Theorems

This section covers the fundamental theorems related to the angles of polygons. The Interior Angles Theorem states that the sum of the interior angles of a convex n-gon is (n-2)180°. For regular polygons, the measure of each interior angle is given by (n-2)180/n. The Exterior Angles Theorem reveals that the sum of the exterior angles of any convex polygon is 360°. It also illustrates how to find properties of regular polygons, such as the type based on exterior angles, and provides examples involving various polygons, including pentagons and nonagons.

temira
Télécharger la présentation

Understanding Angles in Polygons: Interior and Exterior Theorems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

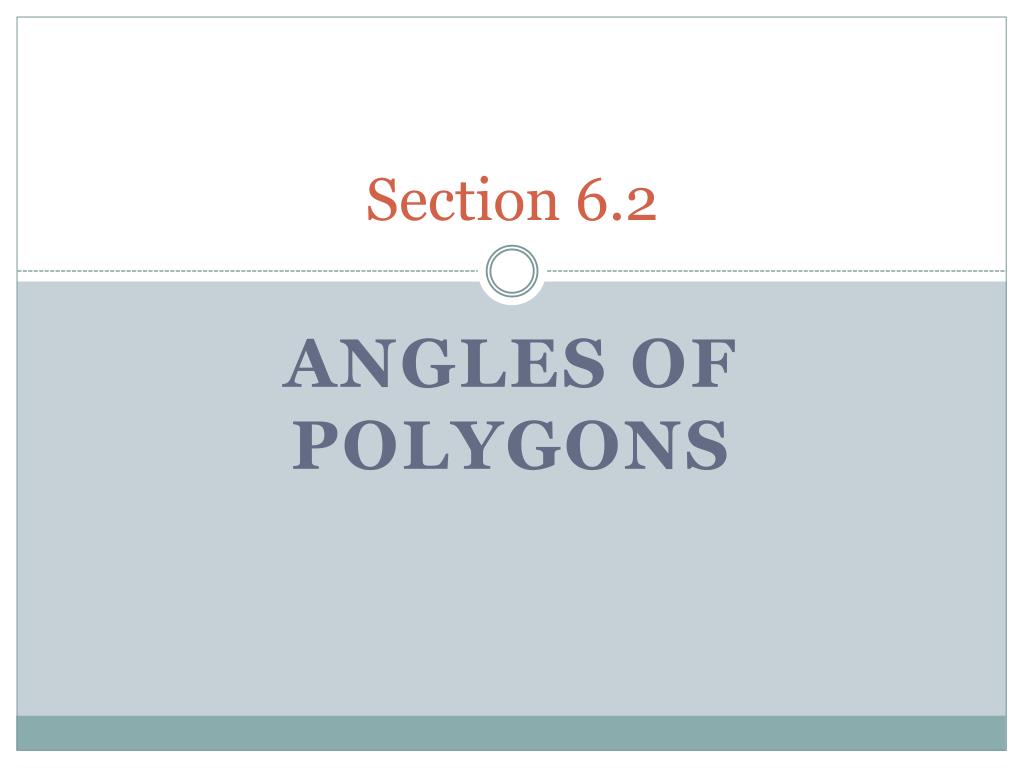

  1. Section 6.2 Angles of Polygons

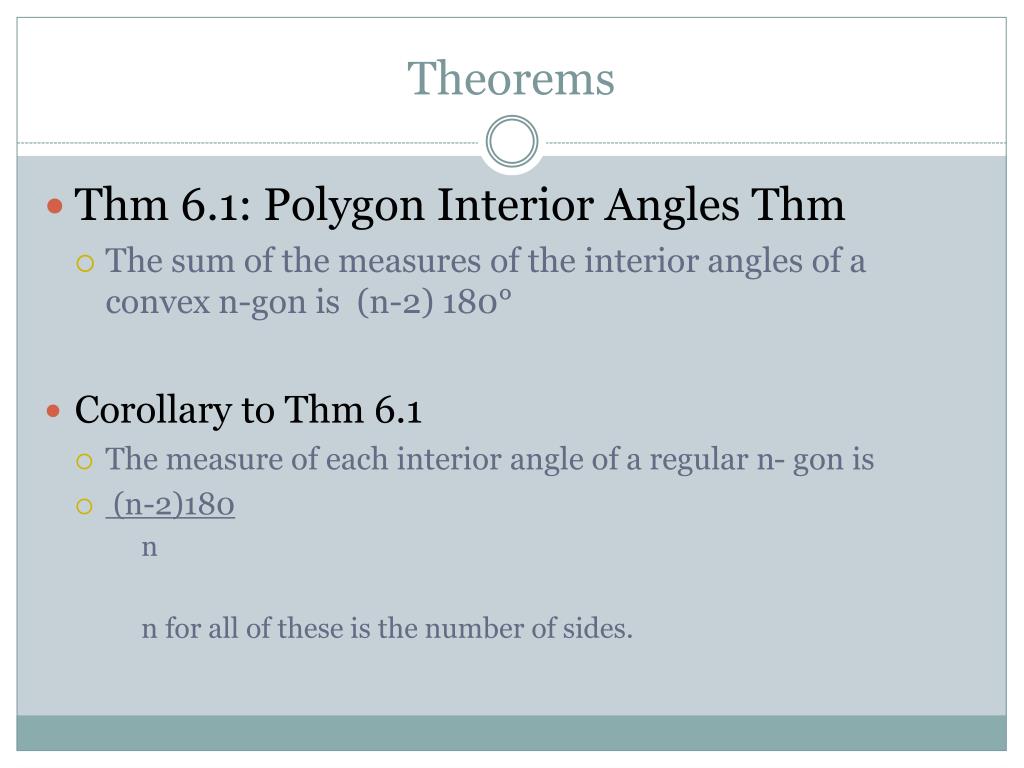

  2. Theorems • Thm 6.1: Polygon Interior Angles Thm • The sum of the measures of the interior angles of a convex n-gon is (n-2) 180° • Corollary to Thm 6.1 • The measure of each interior angle of a regular n- gon is • (n-2)180 n n for all of these is the number of sides.

  3. Find the measure of each interior angle of a regular pentagon: (n- 2)180° (5-2)180° 3(180)=540° 540/5= 108°

  4. More Thms cont. • Thm 6.2 Polygon Exterior Angles Thm: • The sum of the measures of the exterior angles, one from each vertex, of a convex polygon is 360° • Corollary to Thm 6.2: • The measure of each exterior angle of a regualr n-gon is (360°)/n

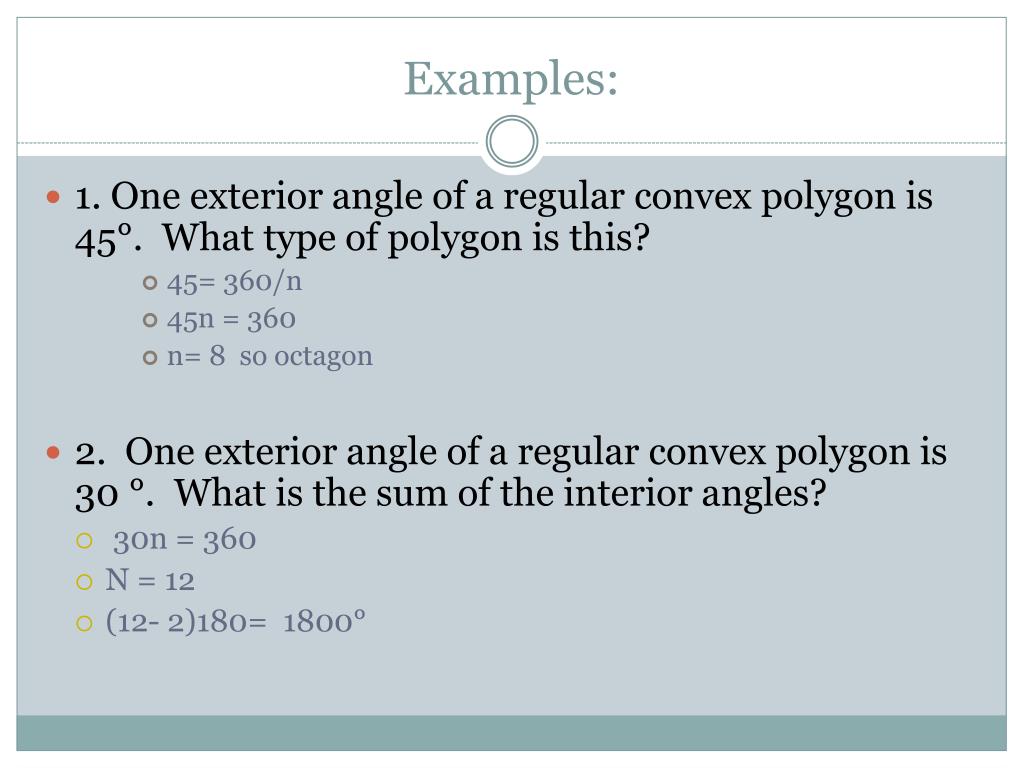

  5. Examples: • 1. One exterior angle of a regular convex polygon is 45°. What type of polygon is this? • 45= 360/n • 45n = 360 • n= 8 so octagon • 2. One exterior angle of a regular convex polygon is 30 °. What is the sum of the interior angles? • 30n = 360 • N = 12 • (12- 2)180= 1800°

  6. More exs. • 3. Each interior angle of a regular convex polygon is 60°. How many sides does it have? • 120n= 360 • n= 3 • 4. What is the measure of each interior angle of a regular convex pentagon? • 5n = 360 • N = 72 • 180 – 72= 108 • 5. What is the measure of each interior angle of a regular convex nonagon? • 140° 60

  7. More exs. A polygon has 27 sides, all diagonals are drawn from one vertex, how many diagonals are there? 5 sides 3 triangles 2 diagonals 6 sides 4 triangles 3 diagonals 24 N= sides N -2 = # triangles N- 3 = # of diagonals Do it for an octagon N = 8, triangles=6, diagonals= 5
