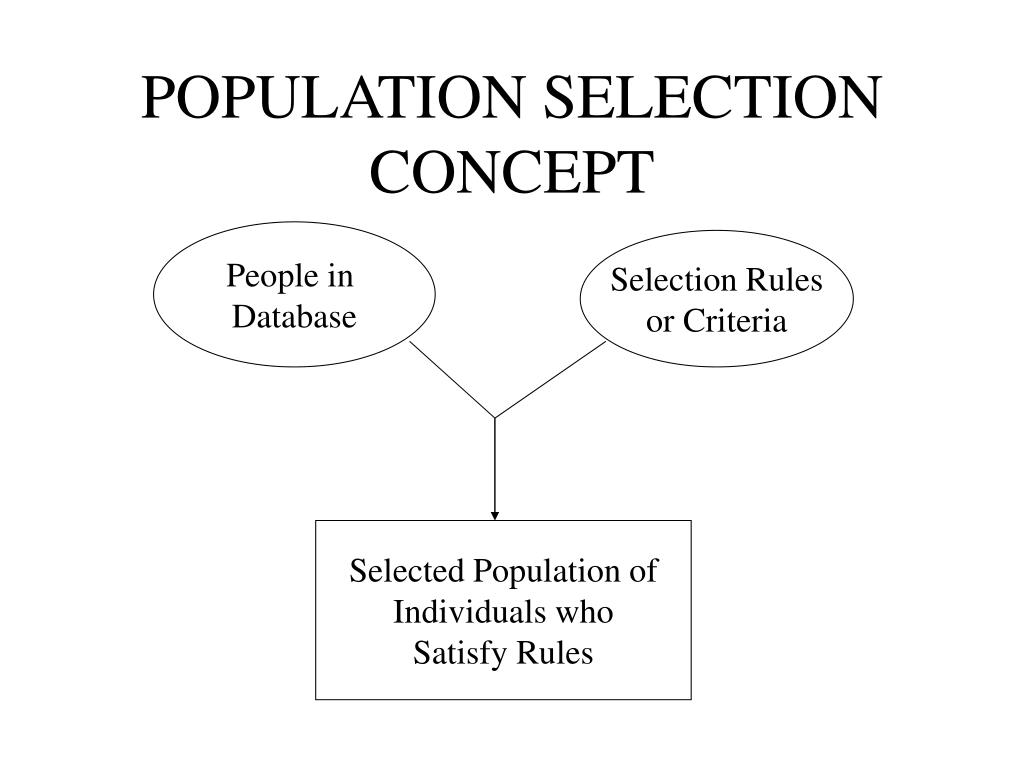

  1. POPULATION SELECTIONCONCEPT People in Database Selection Rules or Criteria Selected Population of Individuals who Satisfy Rules

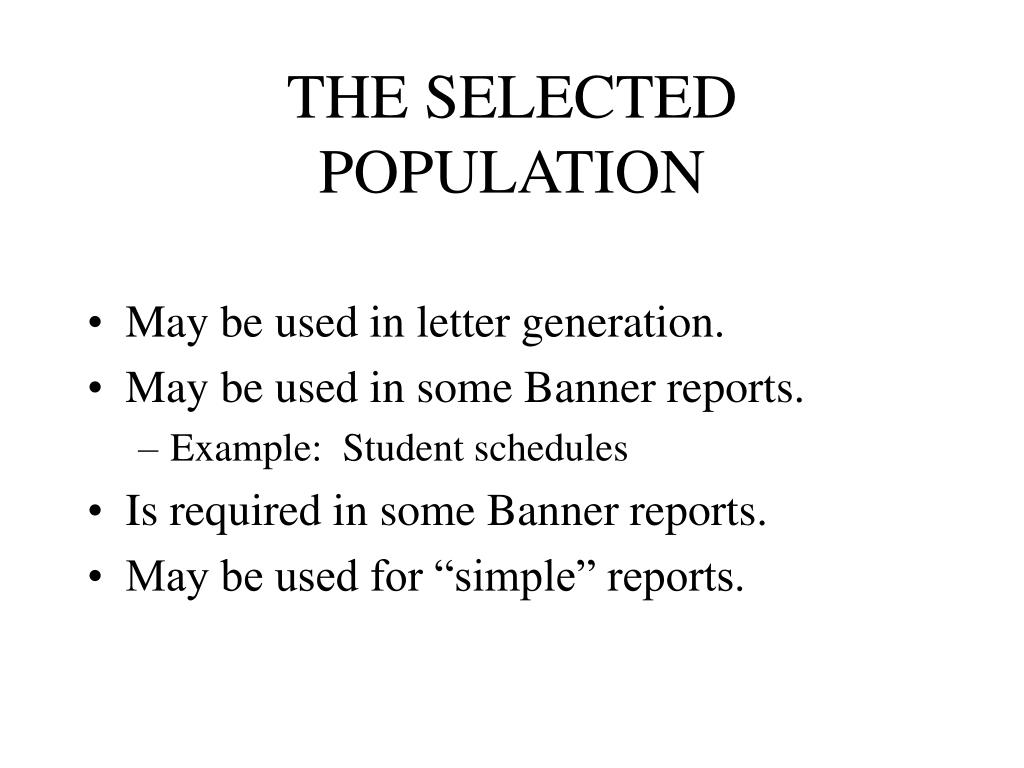

  2. THE SELECTED POPULATION • May be used in letter generation. • May be used in some Banner reports. • Example: Student schedules • Is required in some Banner reports. • May be used for “simple” reports.

  3. Examples • General Person • Find the number of (or get a list of) person records with missing birth dates. • Recruiting • Find the number of (or get a list of) recruits from a particular high school.

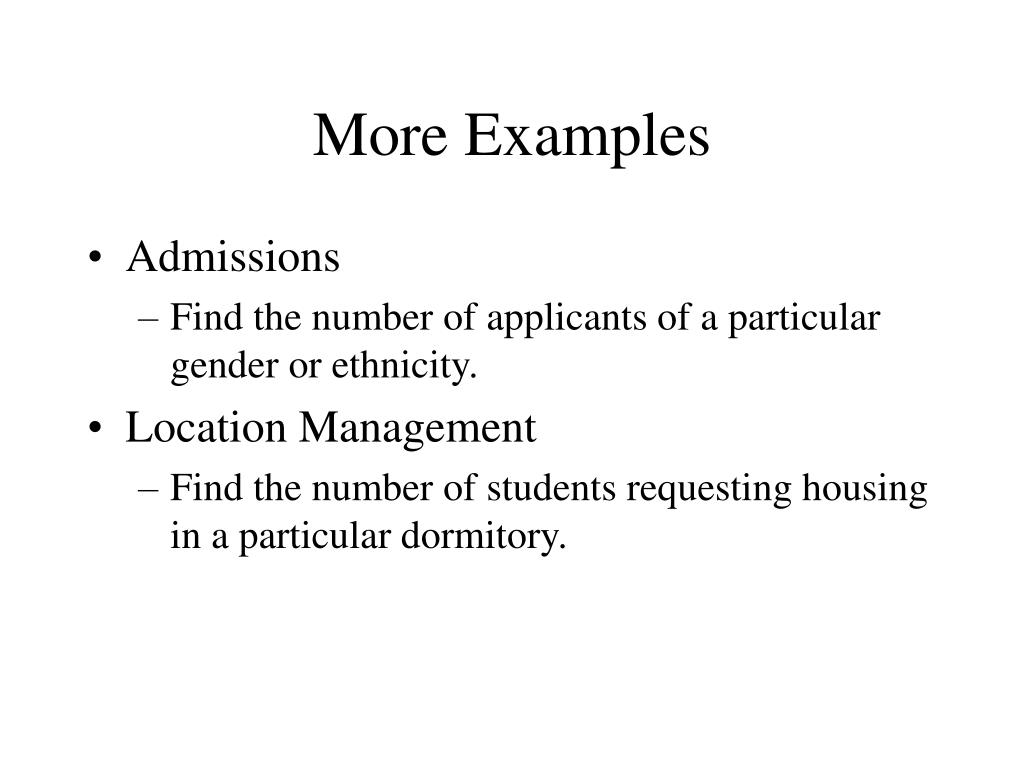

  4. More Examples • Admissions • Find the number of applicants of a particular gender or ethnicity. • Location Management • Find the number of students requesting housing in a particular dormitory.

  5. More Examples • General Student • Find the number of students in a particular major. • Accounts Receivable • Find the number of students who have been charged a parking fine.

  6. And More Examples • Faculty Load • Find the number of faculty members who are teaching more than 15 credits. • Academic History • Find the number of students graduating with honors.

  7. Know Your Data • Where are the data entered on Banner forms? • How do the Banner forms correspond to the Oracle tables in the database? • What are the relationships between data in different tables?

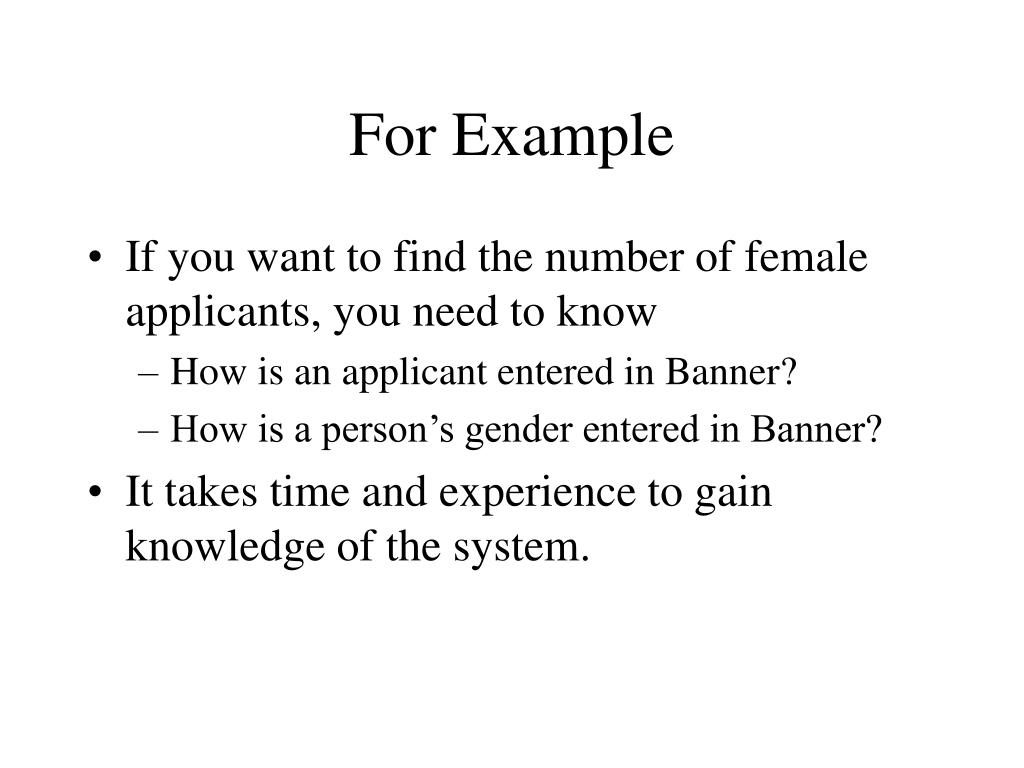

  8. For Example • If you want to find the number of female applicants, you need to know • How is an applicant entered in Banner? • How is a person’s gender entered in Banner? • It takes time and experience to gain knowledge of the system.

  9. Know the Tables • Normally, a table corresponds to a block of a Banner form. • The naming convention for tables is similar to that for forms. • Seven characters

  10. Table Names • 1st character - System • 2nd character - Module • 3rd character - Type of table • Base, Repeating, and Virtual (or View) • 4th - 7th characters - Abbreviation of table purpose

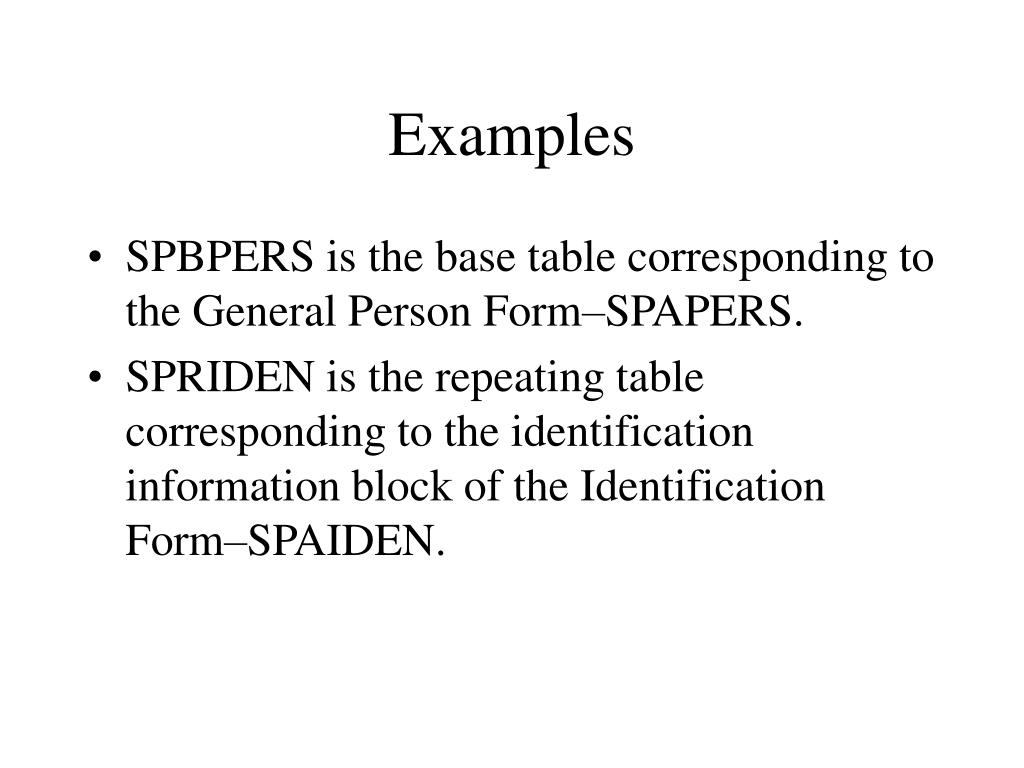

  11. Examples • SPBPERS is the base table corresponding to the General Person Form–SPAPERS. • SPRIDEN is the repeating table corresponding to the identification information block of the Identification Form–SPAIDEN.

  12. Examples (continued) • SPRADDR is the repeating table corresponding to the address information block of SPAIDEN. • SPVADDS is a virtual table (or view) created to give current name and address information.

  13. Finding Table Names • Use Dynamic Help from the Banner form. • Consult the Banner Student Technical Reference Manual. • Print the Data Element Dictionary from GURPDED.

  14. Visualizing a Table • Think of a table as a grid having rows and columns–similar to a spreadsheet. • Each row of the grid corresponds to a record. • Each column of the grid corresponds to a field in the record.

  15. A Simplified View of SPBPERS

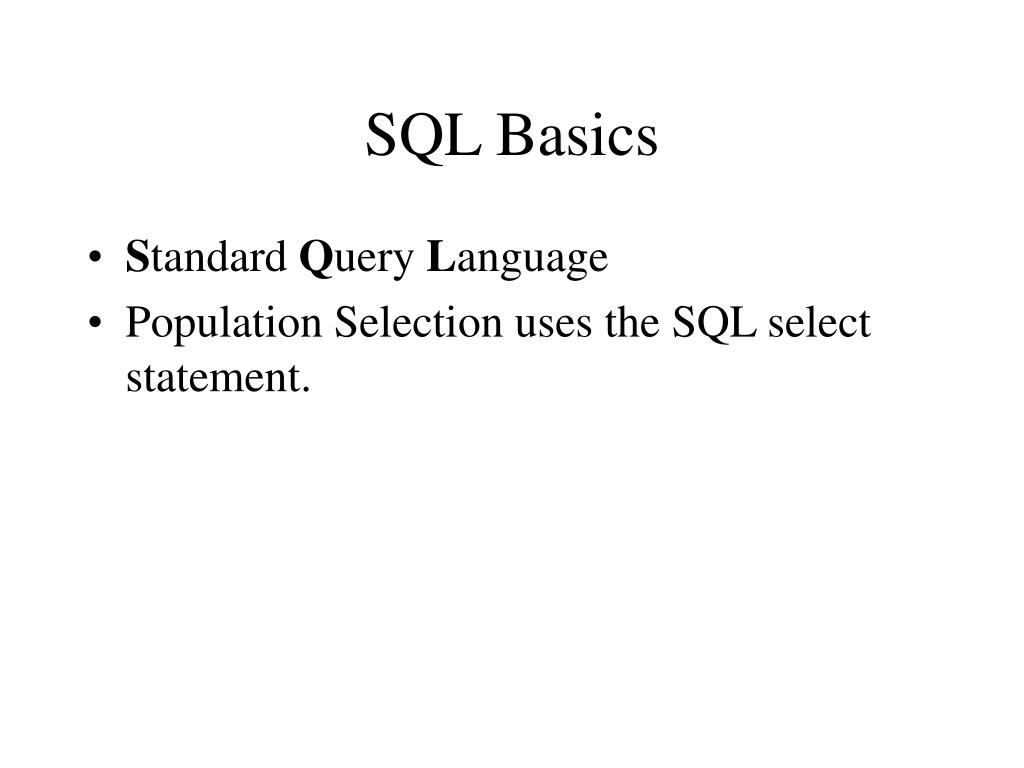

  16. SQL Basics • Standard Query Language • Population Selection uses the SQL select statement.

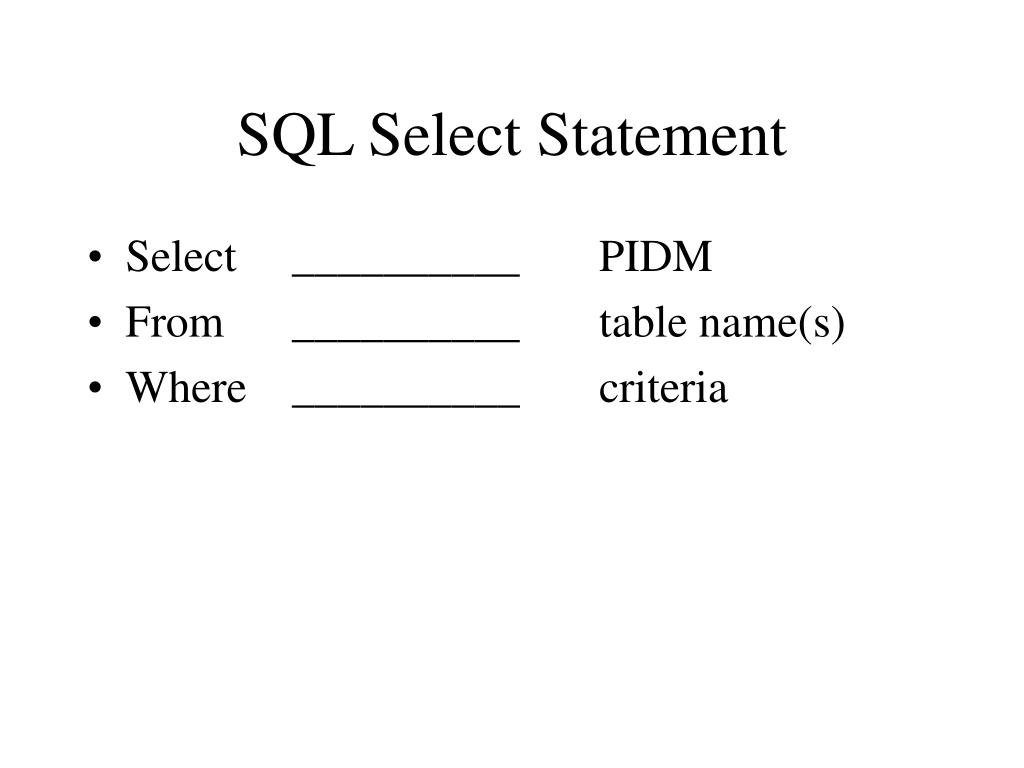

  17. SQL Select Statement • Select __________ PIDM • From __________ table name(s) • Where __________ criteria

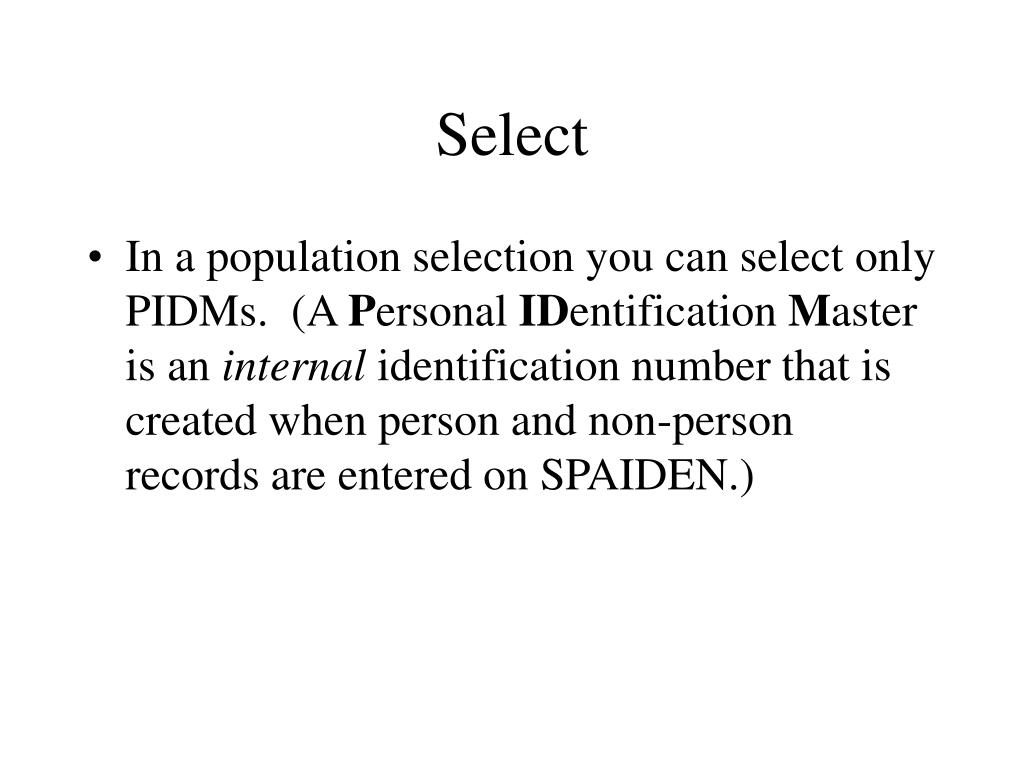

  18. Select • In a population selection you can select only PIDMs. (A Personal IDentification Master is an internal identification number that is created when person and non-person records are entered on SPAIDEN.)

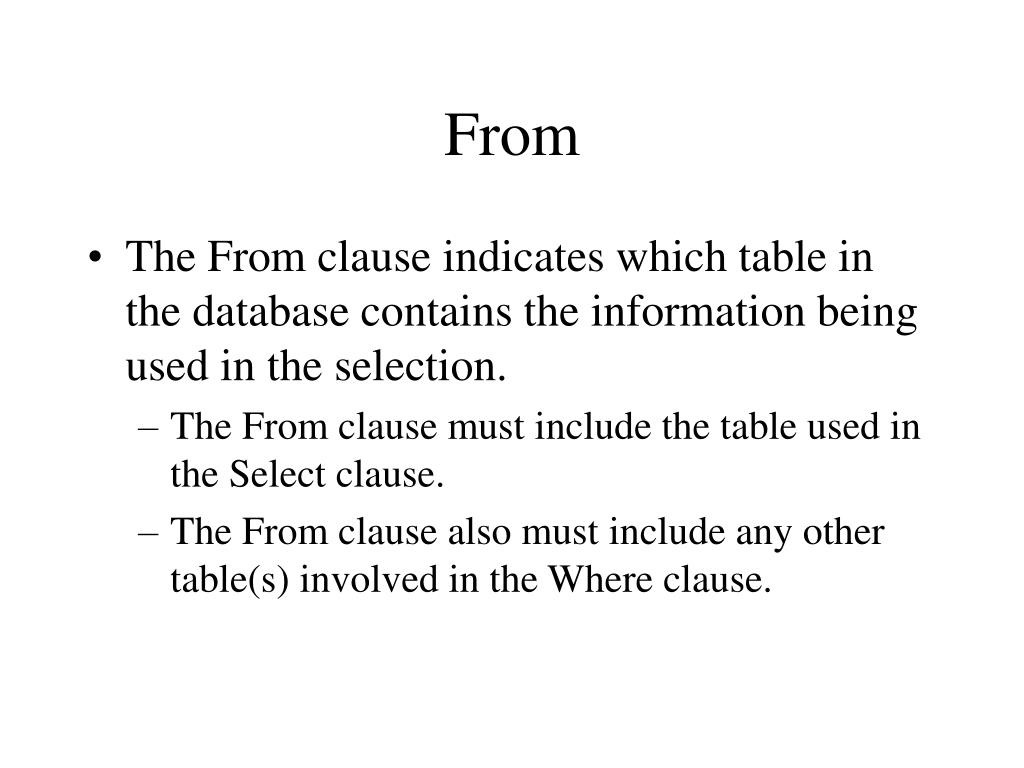

  19. From • The From clause indicates which table in the database contains the information being used in the selection. • The From clause must include the table used in the Select clause. • The From clause also must include any other table(s) involved in the Where clause.

  20. Example–SQL Select • Select SPRIDEN_PIDM • From SPRIDEN • Where SPRIDEN_LAST_NAME = ‘Smith’

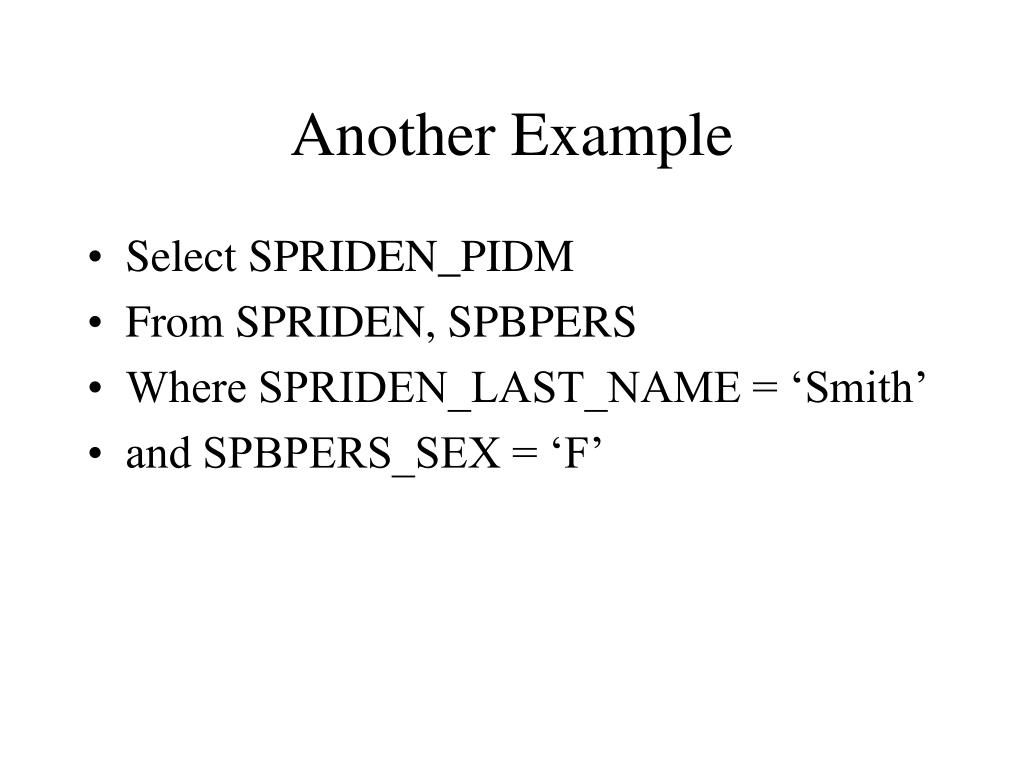

  21. Another Example • Select SPRIDEN_PIDM • From SPRIDEN, SPBPERS • Where SPRIDEN_LAST_NAME = ‘Smith’ • and SPBPERS_SEX = ‘F’

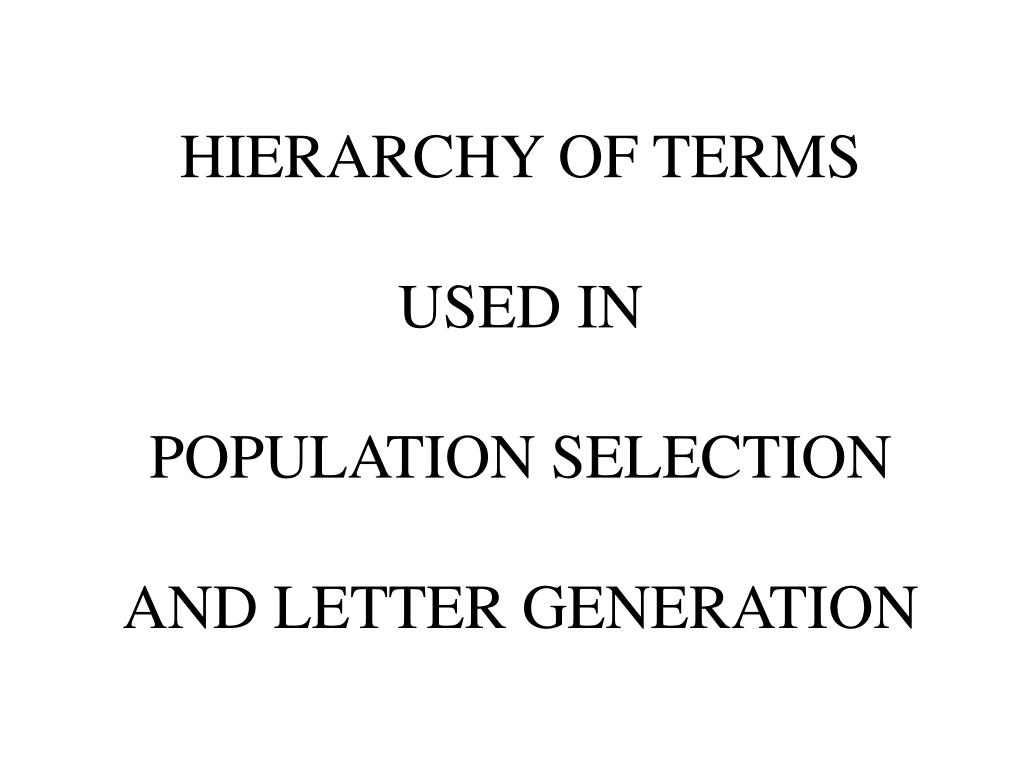

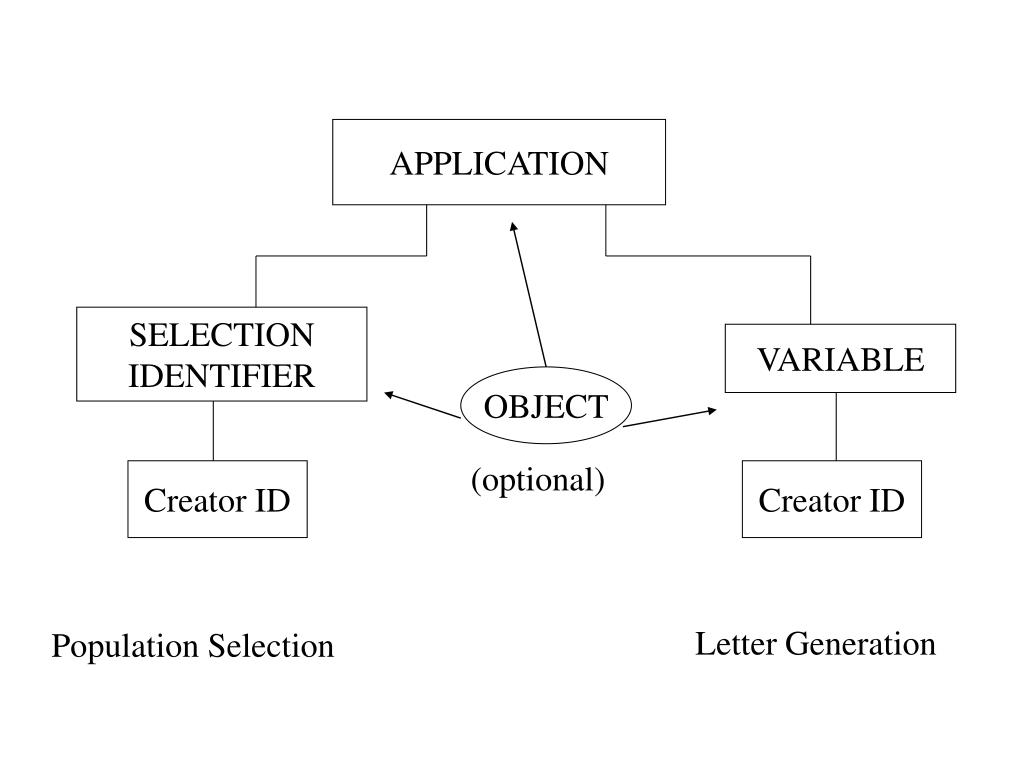

  22. HIERARCHY OF TERMSUSED INPOPULATION SELECTIONAND LETTER GENERATION

  23. APPLICATION SELECTION IDENTIFIER VARIABLE OBJECT (optional) Creator ID Creator ID Letter Generation Population Selection

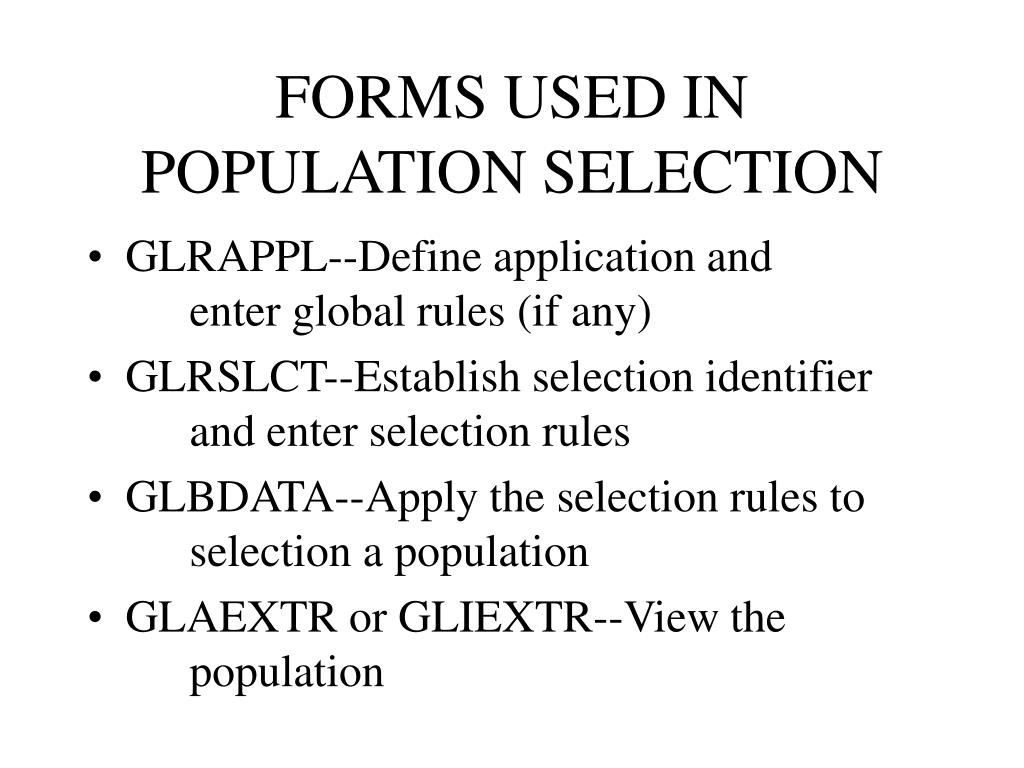

  24. FORMS USED IN POPULATION SELECTION • GLRAPPL--Define application and enter global rules (if any) • GLRSLCT--Establish selection identifier and enter selection rules • GLBDATA--Apply the selection rules to selection a population • GLAEXTR or GLIEXTR--View the population
