Performance Analysis of linear error correcting codes

This study evaluates the performance of various channel coding schemes, including Parity Check, Hamming, Cyclic, and BCH codes, against Bit Error Rate (BER) and Signal-to-Noise Ratio (SNR) across different parameters. Key factors analyzed include sampling frequency, code rates (k/n), and modulation schemes such as Amplitude Shift Keying (ASK) and Phase Shift Keying (PSK). Results show that as code rates increase for Parity and Cyclic codes, the BER rises, impacting the effectiveness of each coding strategy. The implications for bandwidth consumption and overall error correction capabilities are also discussed.

terena
Télécharger la présentation

Performance Analysis of linear error correcting codes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

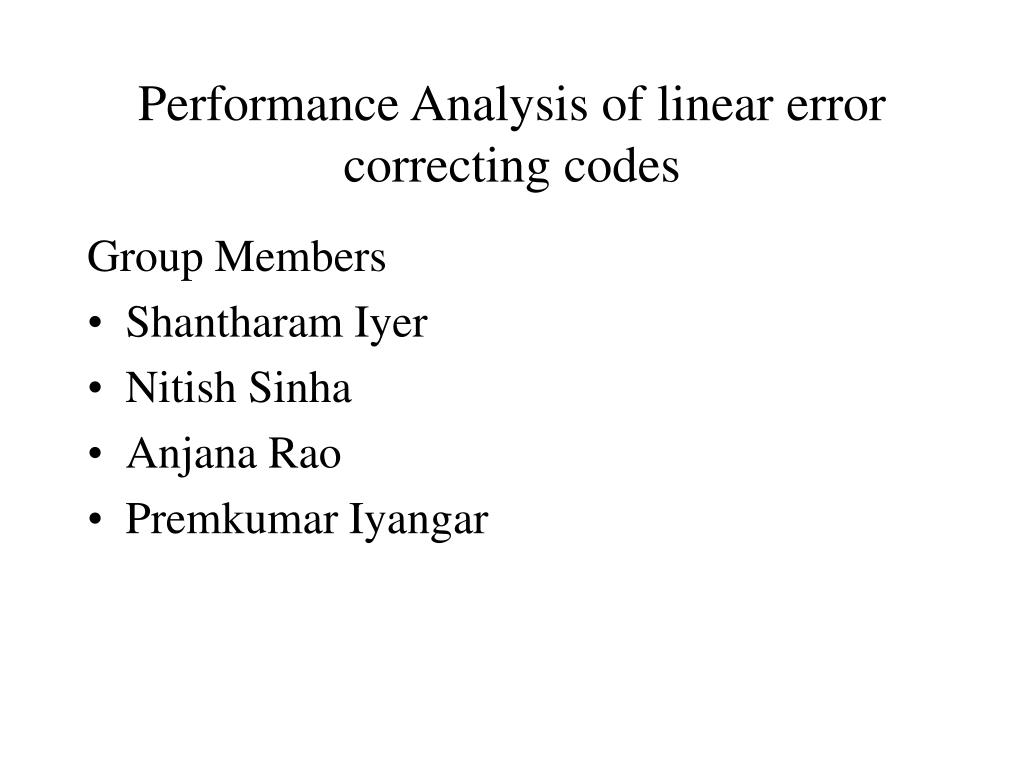

  1. Performance Analysis of linear error correcting codes Group Members • Shantharam Iyer • Nitish Sinha • Anjana Rao • Premkumar Iyangar

  2. Project Objective Comparison of the performance(BER v/s.SNR) of different channel coding schemes for varying: • A) Sampling Frequency • B) Code rate(k/n) • C)Modulation schemes for a AWGN channel

  3. Decode/ Error Correction Modulation Recovered Message Data Message Data Gaussian Noise Demodulation Experimental Setup Encode

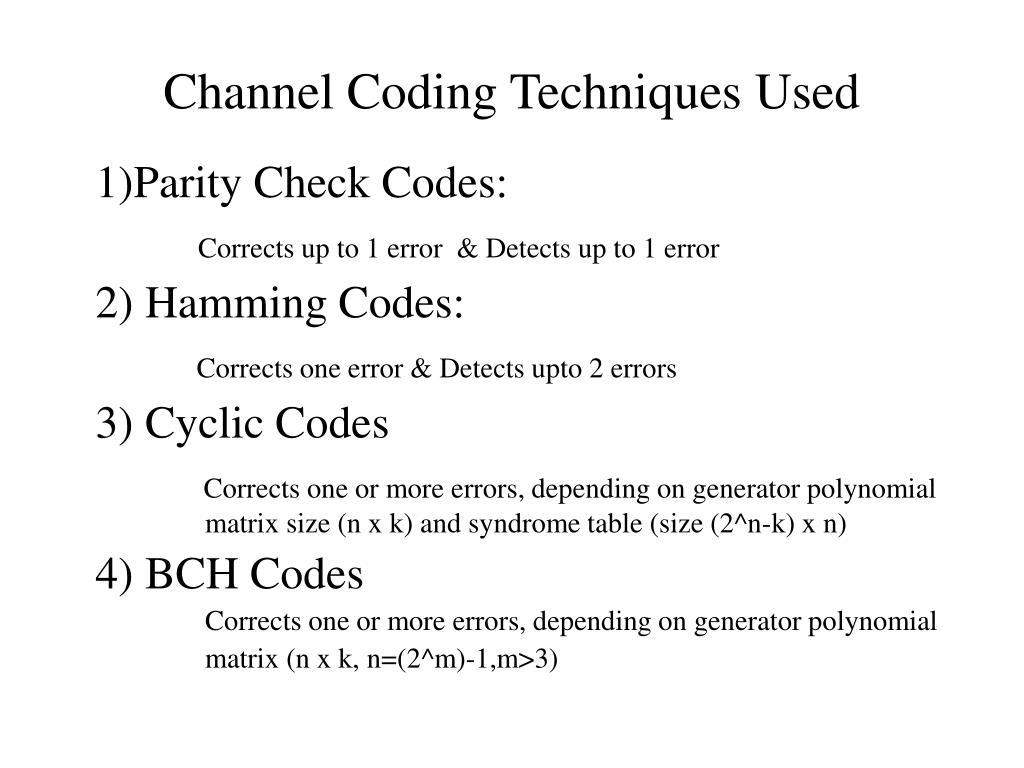

  4. Channel Coding Techniques Used 1)Parity Check Codes: Corrects up to 1 error & Detects up to 1 error 2) Hamming Codes: Corrects one error & Detects upto 2 errors 3) Cyclic Codes Corrects one or more errors, depending on generator polynomial matrix size (n x k) and syndrome table (size (2^n-k) x n) 4) BCH Codes Corrects one or more errors, depending on generator polynomial matrix (n x k, n=(2^m)-1,m>3)

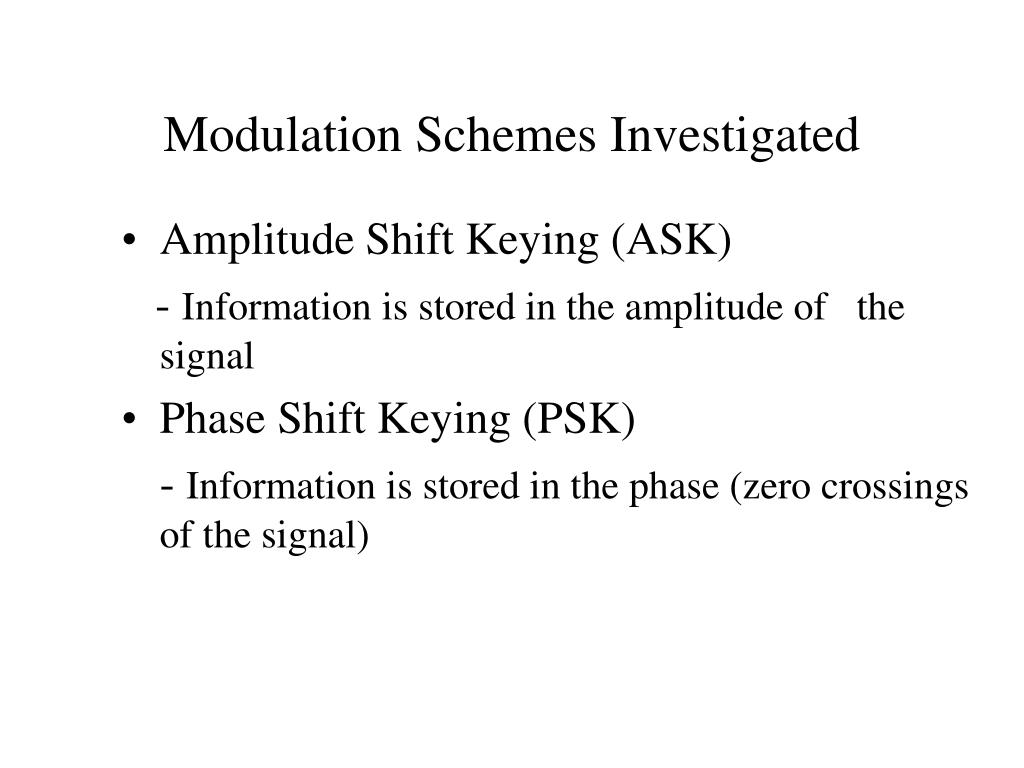

  5. Modulation Schemes Investigated • Amplitude Shift Keying (ASK) - Information is stored in the amplitude of the signal • Phase Shift Keying (PSK) - Information is stored in the phase (zero crossings of the signal)

  6. Results and conclusions

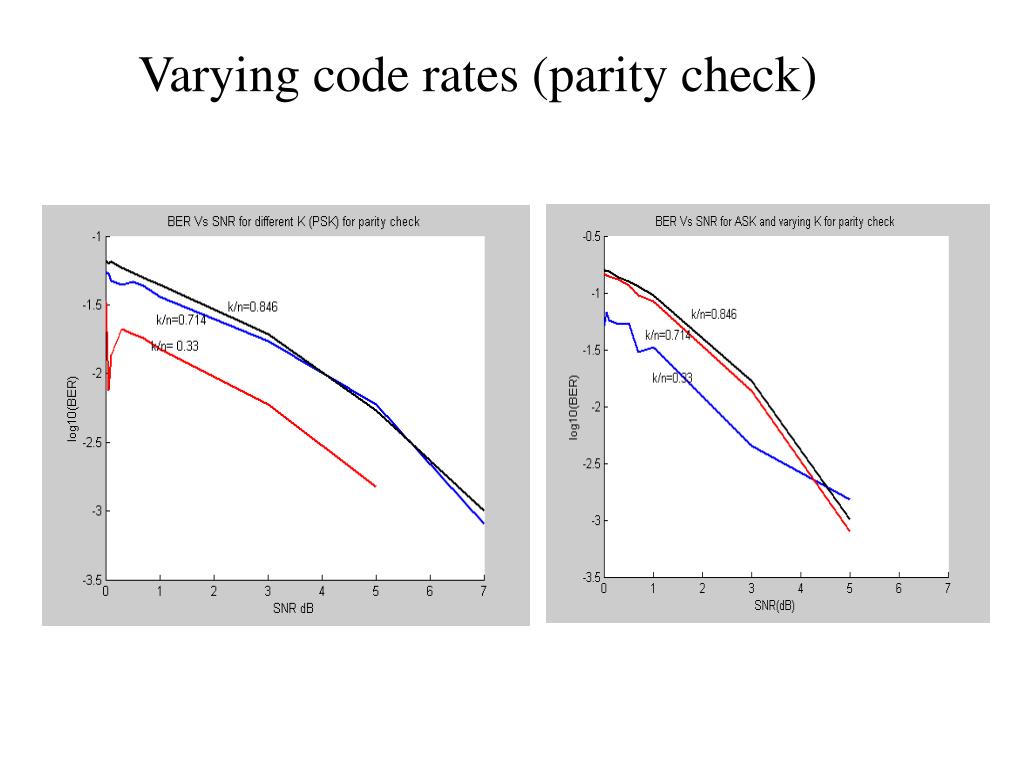

  7. Varying code rates (parity check)

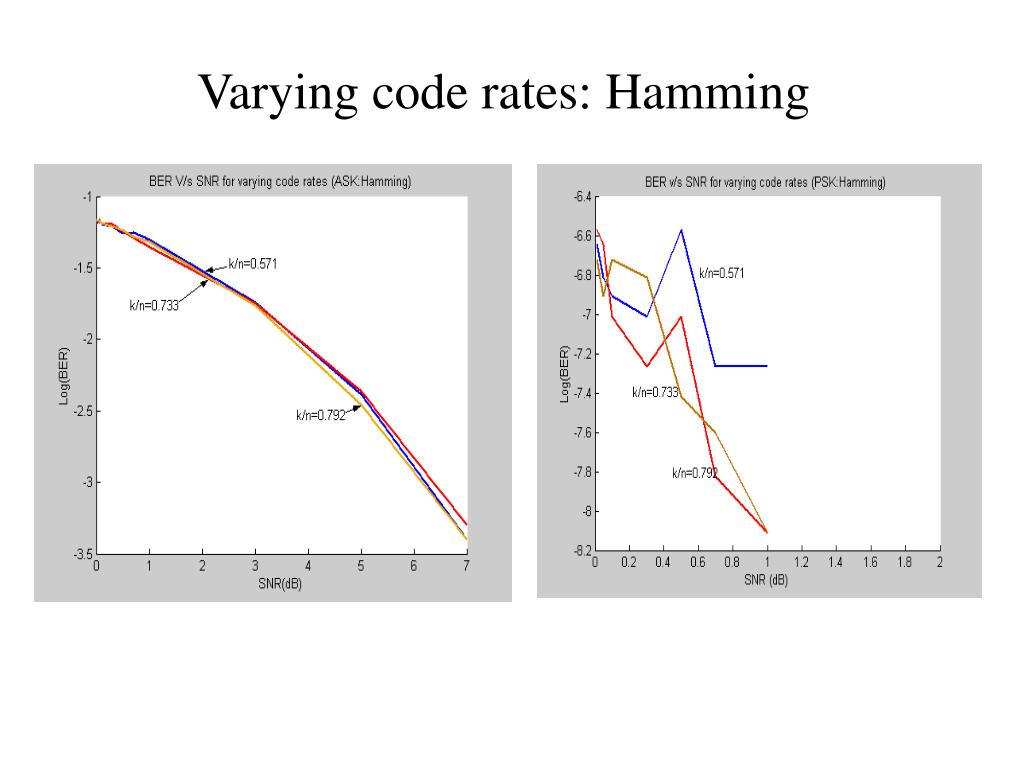

  8. Varying code rates: Hamming

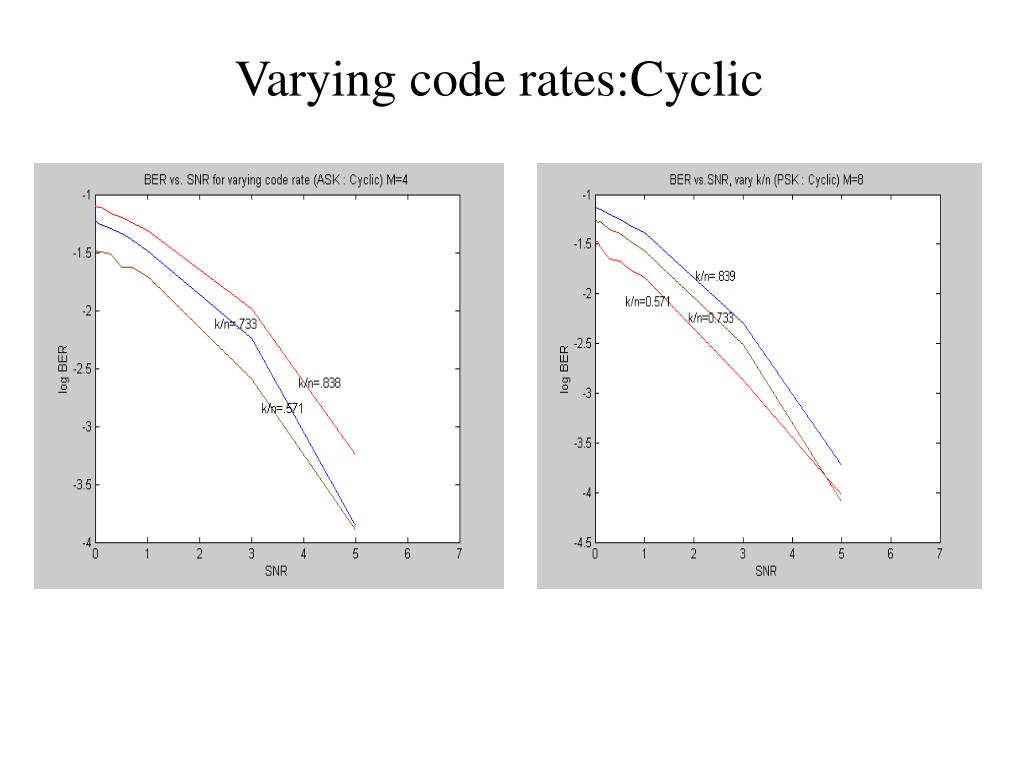

  9. Varying code rates:Cyclic

  10. Varying Code Rates -BCH

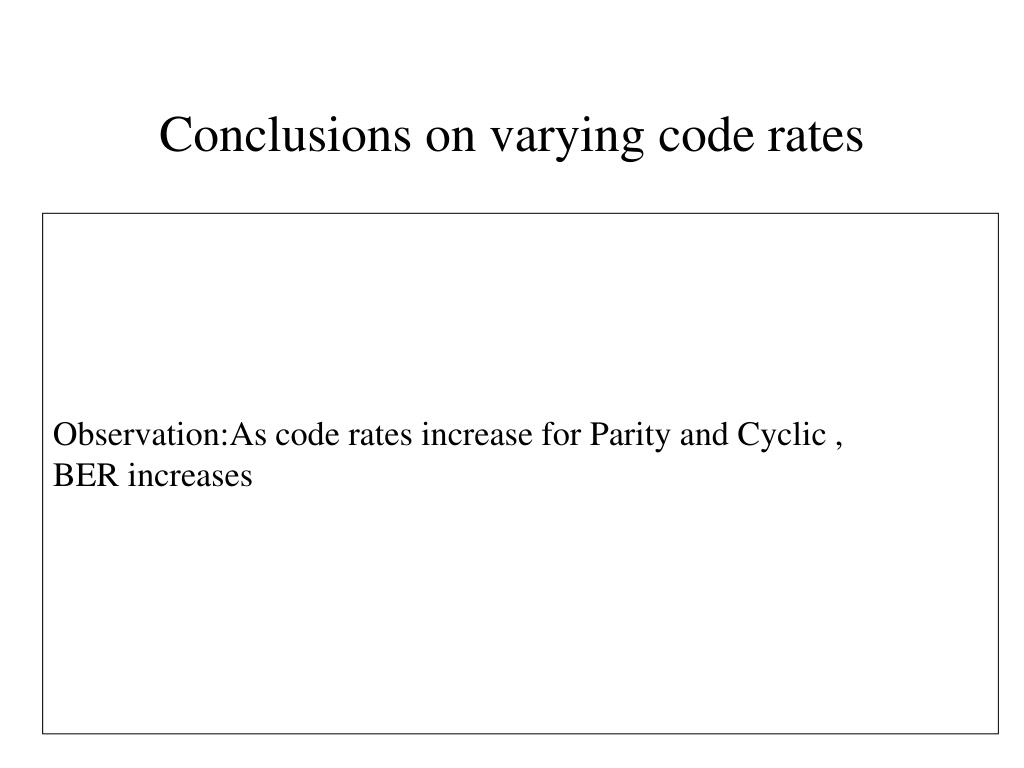

  11. Conclusions on varying code rates Observation:As code rates increase for Parity and Cyclic , BER increases

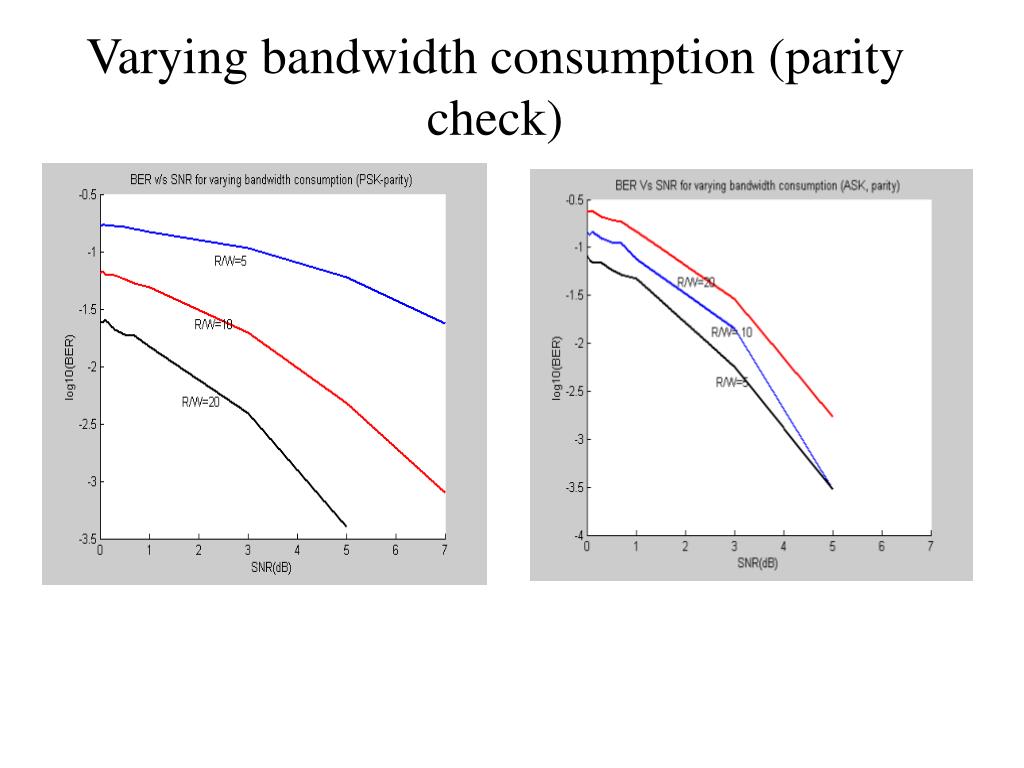

  12. Varying bandwidth consumption (parity check)

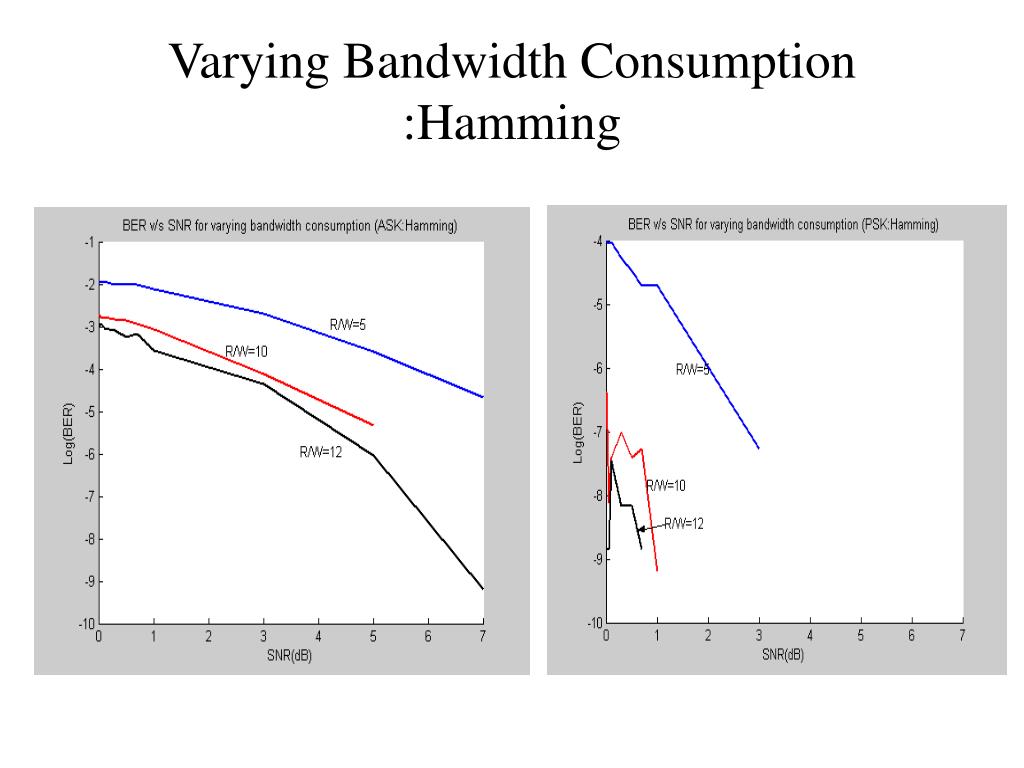

  13. Varying Bandwidth Consumption:Hamming

  14. Varying bandwidth consumption:Cyclic

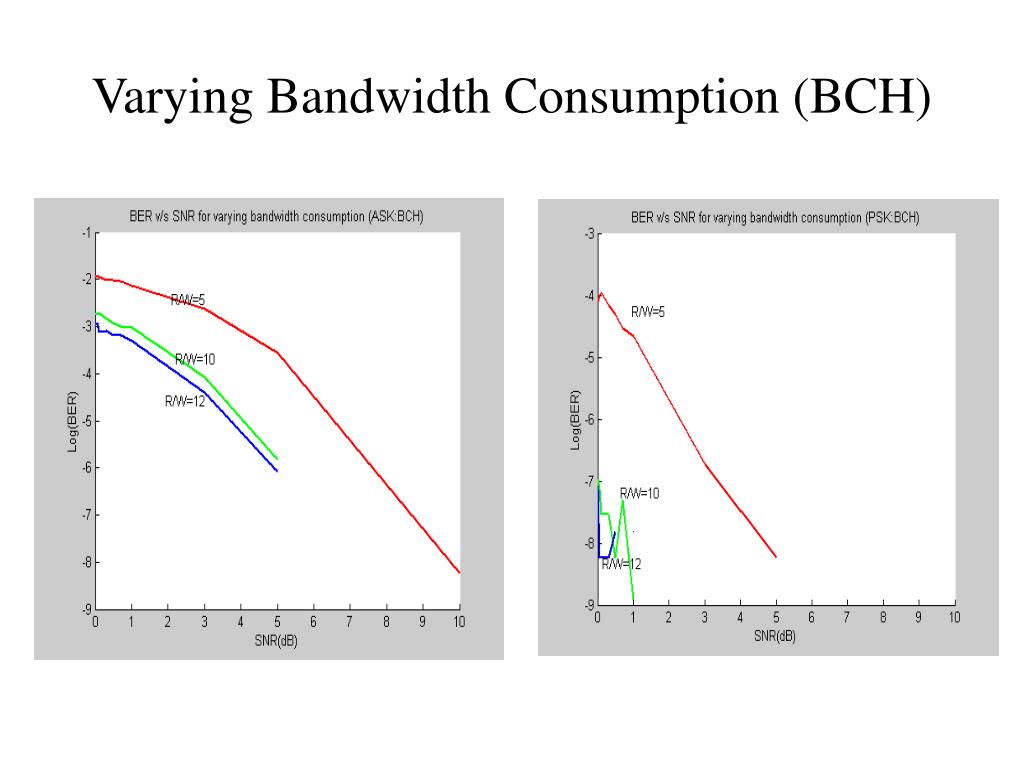

  15. Varying Bandwidth Consumption (BCH)

  16. Effect of coding

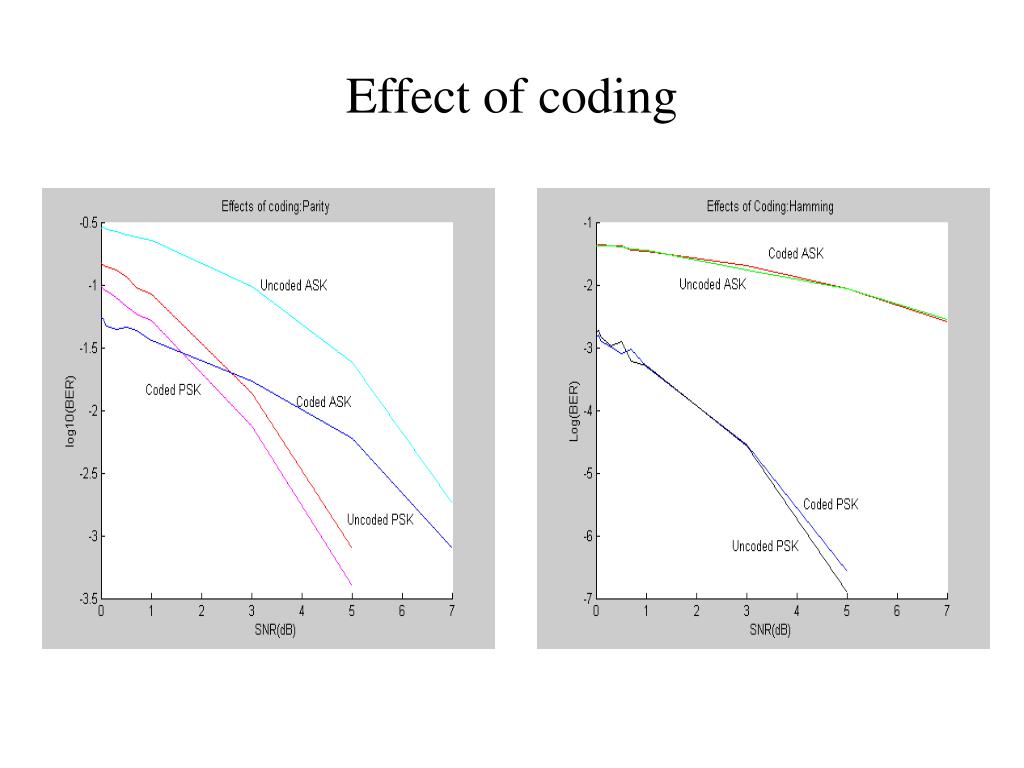

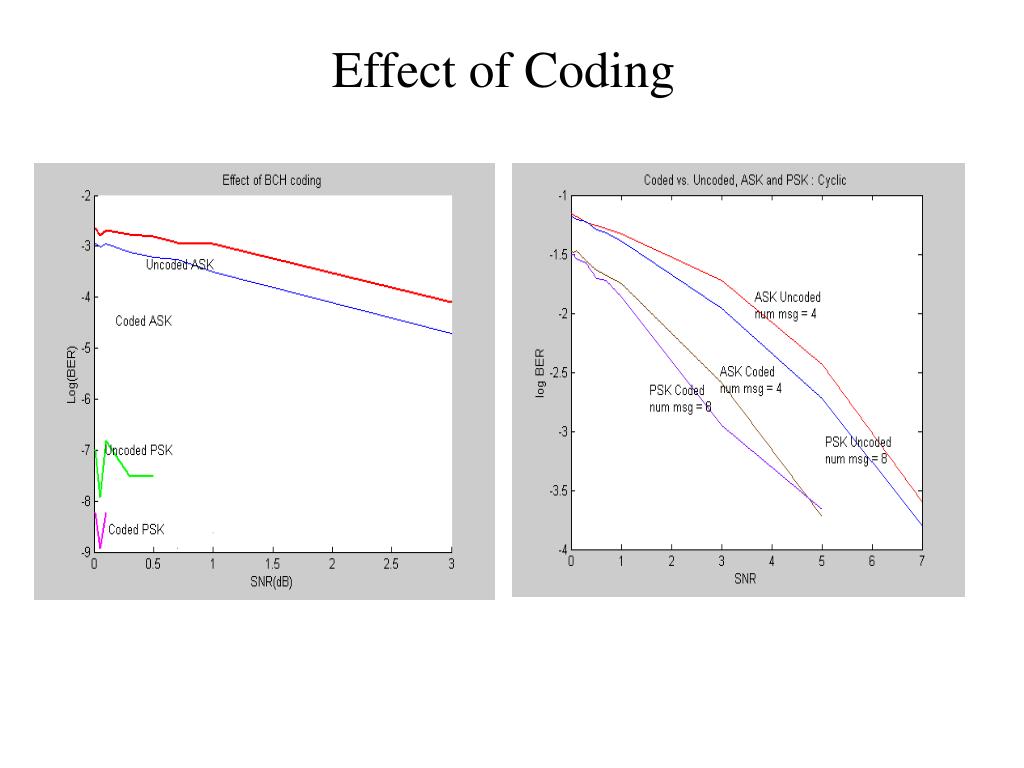

  17. Effect of Coding

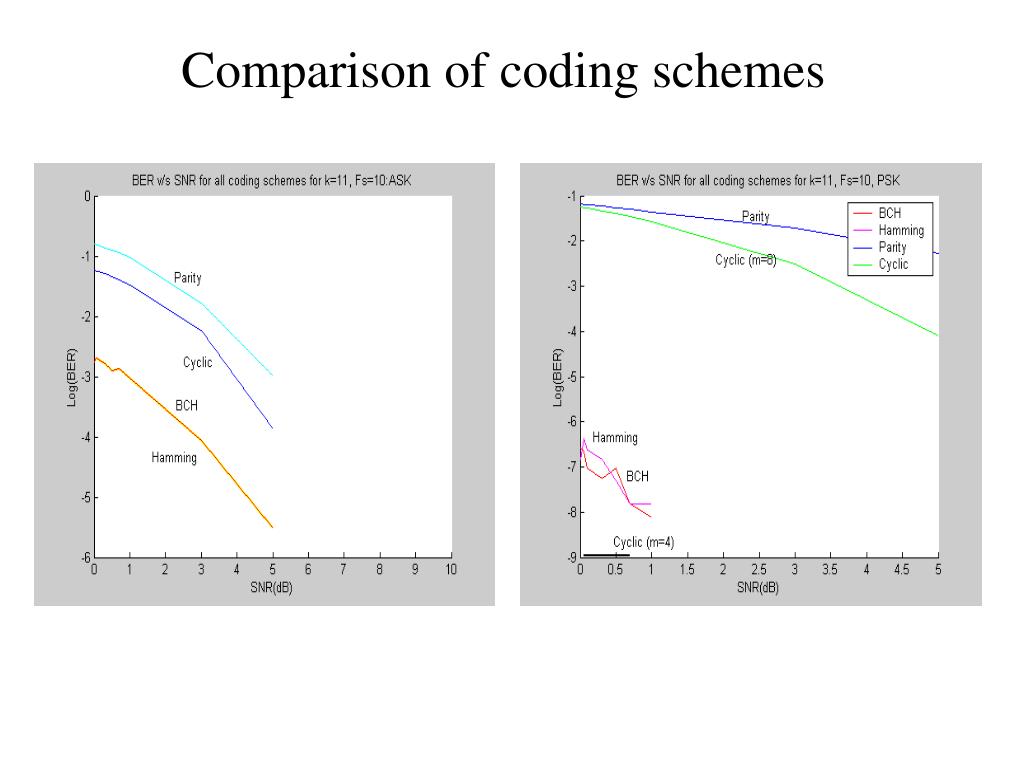

  18. Comparison of coding schemes
