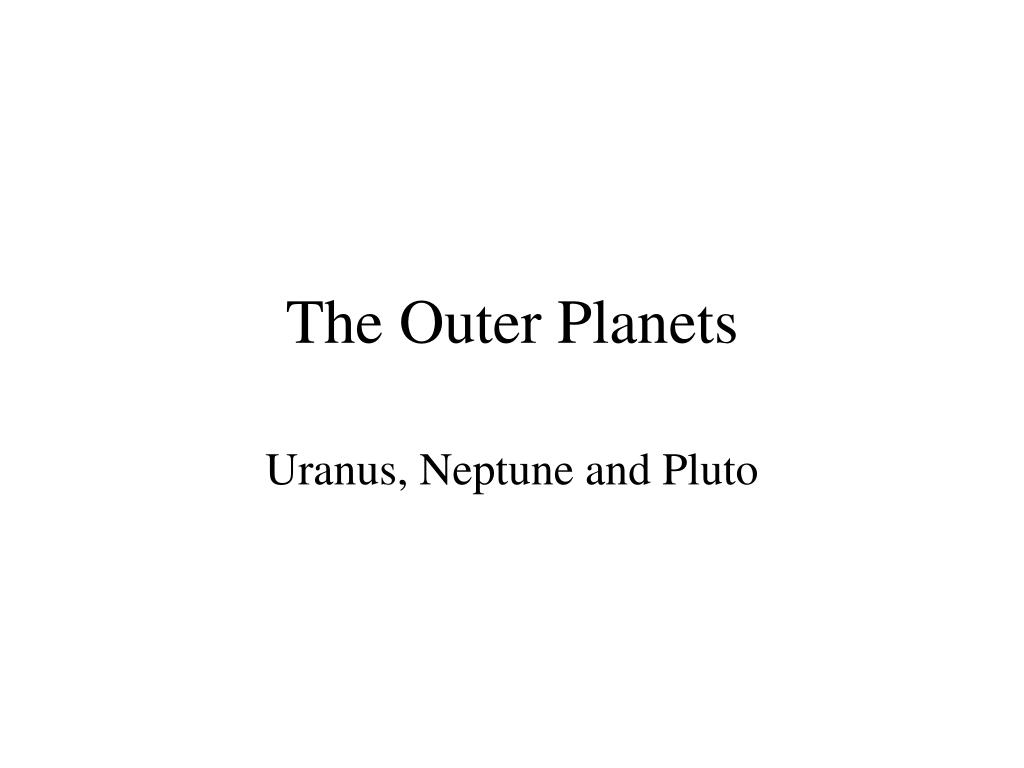

  1. The Outer Planets Uranus, Neptune and Pluto

  2. Uranus • About 4 times diameter of Earth • 3 billion km (1-3/4 billion miles) from Sun • 84 Years to Circle Sun • Rotates in 16 hours • Five large satellites (500-1500 km), ten smaller ones • Nine narrow rings

  3. Uranus

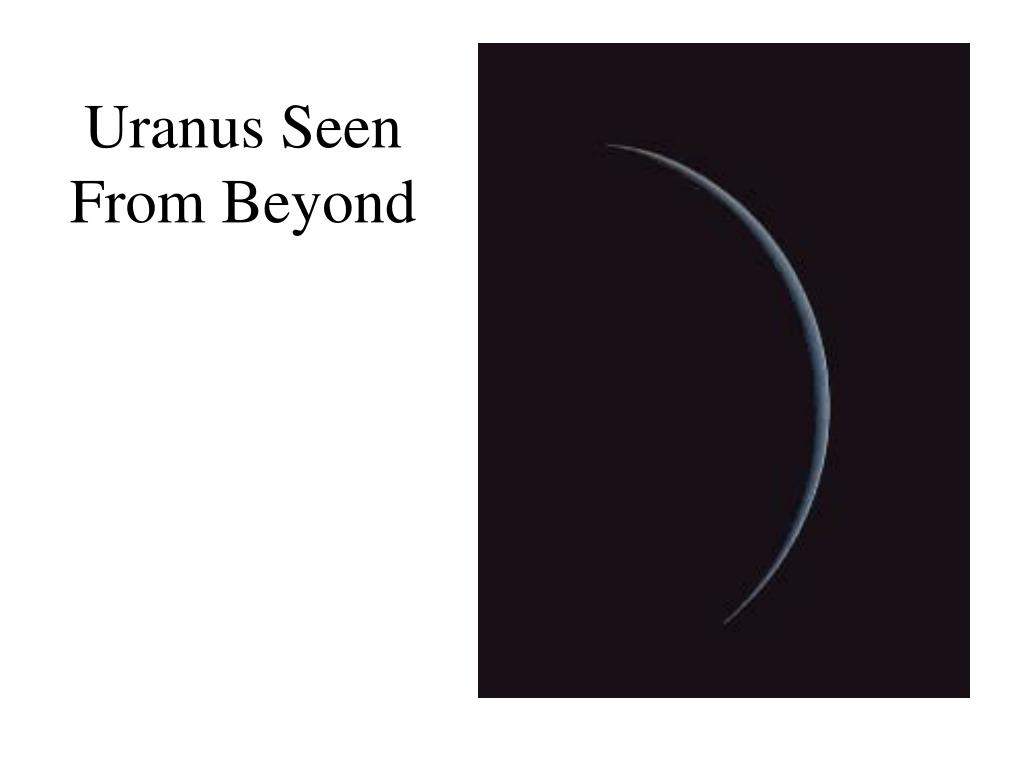

  4. Uranus Seen From Beyond

  5. Uranus Shows Little Detail

  6. Oberon

  7. Titania

  8. Umbriel

  9. Ariel

  10. Miranda

  11. Neptune • About 4 times diameter of Earth- a bit smaller than Uranus • 4.5 billion km (2.8 billion miles) from Sun • 165 Years to Circle Sun • Rotates in 18 hours • One large satellite (2700 km), seven smaller ones • Four narrow rings

  12. Neptune: A Twin of Uranus?No!

  13. The Great Dark Spot

  14. Neptune and Triton

  15. Neptune’s Rings

  16. Triton

  17. Pluto • At 2300 km, Pluto is the smallest planet • Has most elliptical orbit: ranges from 4.4 to 7.4 billion km from Sun (2.8-4.5 billion miles) • Actually crosses orbit of Neptune; closer to Sun than Neptune until 2009 • Orbits in 248 years, 1.5 times Neptune • Because of orbital tilt and resonance, cannot collide with Neptune

  18. Pluto and Charon • Pluto’s moon Charon is almost half as big as Pluto (1100 km) • Orbits only 20,000 km away • Pluto and Charon always keep same face to each other (rotation locked) • Pluto rotates, and Charon revolves, in 6.4 days

  19. Pluto and Charon

  20. Why We Have to Go There

  21. Plutinos and the Kuiper Belt • The Kuiper Belt is an outer ice asteroid belt, probably the source of most comets • Over 50 are now known orbiting beyond Neptune, some beyond Pluto • Pluto is probably just the biggest of these objects (not really a planet?) • Several dozen have periods similar to Pluto’s - 250 years - and have been dubbed “plutinos.”
