Electrical Wiring

Electrical Wiring. Single Pole Switches. Single Pole Switch. Connect Black wire in Control Panel. Connect White wire in control panel. Connect Ground wire in control panel. Connect Black wire to switch. Connect other black wire to other side of switch.

terrydavis
Télécharger la présentation

Electrical Wiring

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Electrical Wiring Single Pole Switches

  2. Single Pole Switch

  3. Connect Black wire in Control Panel

  4. Connect White wire in control panel

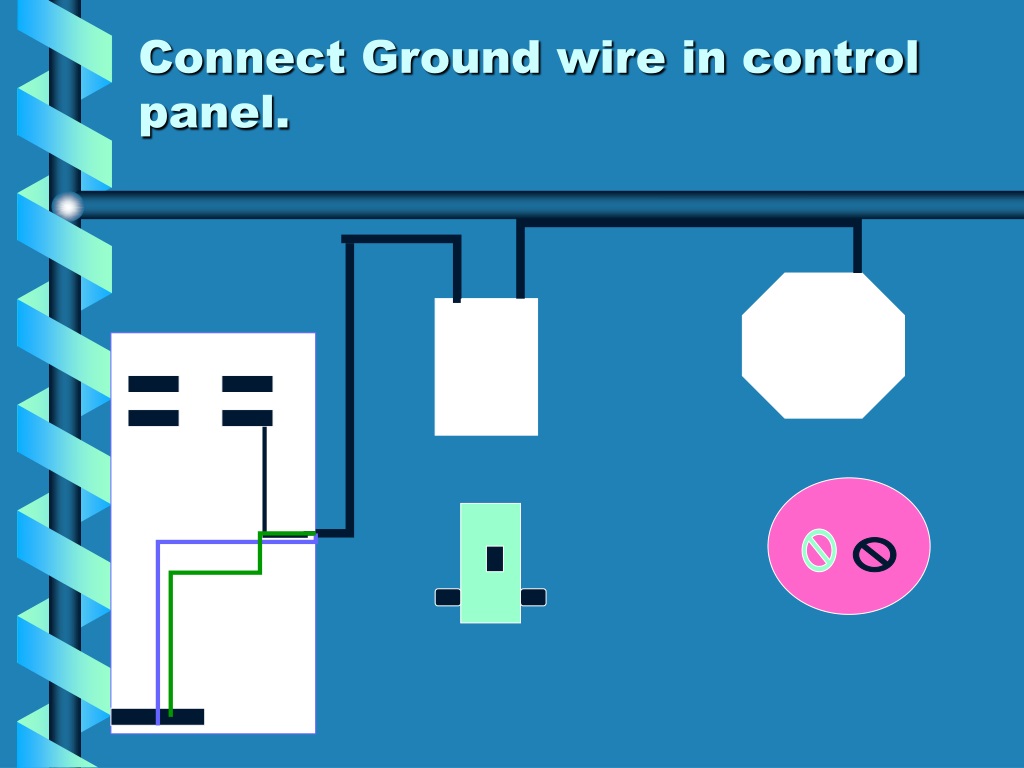

  5. Connect Ground wire in control panel.

  6. Connect Black wire to switch

  7. Connect other black wire to other side of switch.

  8. Connect Black wire to brass or dark colored screw on lamp.

  9. Run white wire to switch box.

  10. Connect White wires together.

  11. Run white wire to silver colored screw on lamp.

  12. Run Ground wire to box.

  13. Connect ground wires

  14. Splice third wire and attach to the box.

  15. Run ground wire to octagon shaped box and attach.

  16. Single Pole Switch (Loop) Mark white wire with black
