1. OPTIMIZING FOR PRODUCTION: KEY DESIGN FOR MANUFACTURING (DFM) PRINCIPLES Leveraging Strategic Design to Reduce Costs, Enhance Quality, and Accelerate Time-to-Market

2. THE DFM IMPERATIVE: BRIDGING DESIGN & PRODUCTION WHAT IS DESIGN FOR MANUFACTURING (DFM)? WHY IS DFM CRITICAL TO PRODUCT SUCCESS? DFM is a proactive engineering methodology focused on designing components and products for ease of manufacturing and assembly. Direct Cost Reduction: Directly attacks high-cost drivers like complex tooling, material waste, and assembly labor. Enhanced Product Quality: Simplifies processes, which reduces the potential for manufacturing defects and improves process capability (Cpk). It is a concurrent engineering approach, integrating process, material, and tooling constraints early in the design cycle not after a design is "complete." Accelerated Time-to-Market: Minimizes production ramp-up delays, eliminates costly redesign loops, and streamlines the supply chain.

3. FOUNDATION 1: SIMPLIFY AND STANDARDIZE TIP 1: SIMPLIFY THE DESIGN TIP 2: STANDARDIZE COMPONENTS Reduce Part Count: The most effective DFM principle. Actively seek to consolidate multiple components into a single, multifunctional part. Prioritize the use of standard, off-the-shelf (COTS) components over custom-designed ones. Applies to: Fasteners, connectors, bearings, springs, and other hardware. Application: A single injection-molded chassis vs. a multi- piece sheet metal assembly. Implement Modular Design: Design in self-contained, interchangeable sub-assemblies. Impact: Leverages proven component reliability, reduces procurement lead times, simplifies BOM management, and eliminates custom tooling costs. Impact: Simplifies final assembly, testing, and field service. Reduces inventory (WIP) complexity.

4. FOUNDATION 2: DESIGN FOR EASE OF ASSEMBLY (DFA) TIP 4: INCORPORATE POKA-YOKE (MISTAKE-PROOFING) TIP 3: OPTIMIZE FOR ASSEMBLY Assembly is a significant labor and time cost. Design to minimize it. Design features that make incorrect assembly physically impossible. Minimize Handling: Design parts with clear orientation (avoid subtle symmetries) and features for easy gripping. Examples: Asymmetrical hole patterns, non- interchangeable connectors, unique keying features. Incorporate Self-Locating Features: Use chamfers, lead-ins, and alignment pins to guide parts into their correct positions. Goal: Make the correct assembly the path of least resistance. Ensure Tool Access: Verify that standard assembly tools (drivers, wrenches, robotic end-effectors) have clear access to all fasteners and connection points.

5. FOUNDATION 3: ALIGNING MATERIAL & PROCESS TIP 5: SELECT APPROPRIATE MATERIALS TIP 6: ADHERE TO MANUFACTURING PROCESS CAPABILITIES Material selection must balance functional requirements (strength, thermal, etc.) with manufacturability. The design must respect the limitations of the chosen manufacturing process. Injection Molding: Uniform wall thickness, draft angles, avoidance of undercuts. Consider the entire process chain: Machinability: Harder materials (e.g., Inconel) drastically increase cycle time and tool wear vs. 6061-T6 Aluminum. CNC Machining: Tool access, minimum internal corner radii (dictated by end-mill diameter), work-holding strategy. Moldability: Factor in resin flow rate, shrinkage, and cooling time. 3D Printing (AM): Support structure requirements, build orientation, anisotropy (direction-dependent strength). Formability: Will the material tolerate the required bend radii in sheet metal?

6. FOUNDATION 4: TOLERANCING & FINISHING TIP 8: MINIMIZE SECONDARY OPERATIONS TIP 7: SPECIFY TOLERANCES WISELY Tolerances are a primary cost driver. Every tight tolerance adds process steps, inspection time, and potential for scrap. Secondary ops (painting, plating, polishing, re-drilling, deburring) add cost, time, and handling defects. Goal: Achieve the final form, texture, and color "in- process." Do not default to a standard title block tolerance. Apply tight tolerances only to critical functional interfaces and datums. Examples: Use pre-colored resins or "mold-in-color" to eliminate painting. Design for a "mold-in-texture" (e.g., MT-11010) instead of secondary bead blasting. Design "as-molded" or "as-cast" surfaces where possible. Utilize Geometric Dimensioning and Tolerancing (GD&T) to specify functional control, which is often less restrictive than simple +/- limits.

7. DFM in Practice: "BAD" VS. "GOOD" DESIGN "BAD" DESIGN (HIGH COST) "GOOD" DFM DESIGN (LOW COST) • 4-piece assembly (2 brackets, 2 fasteners) • 1-piece stamped and formed part • Requires 2x custom parts + 2x COTS parts • Single custom part, no fasteners • Multiple assembly steps & orientations • Integrated snap-fit or clinch • Tolerance stack-up issues • No tolerance stack-up • High labor and inventory cost • Minimal assembly and inventory cost

8. CRITICAL DFM TAKEAWAYS Key Principles for Your Next Design Review: Simplify & Standardize:The best part is no part. The best fastener is no fastener. The second best is a standard one. Design for Your Process: The manufacturing process capabilities must inform the design from day one. Optimize for Assembly:Every second of assembly time adds cost. Design for error-proofing and "no- look" insertion. Control Costs, Not Just Dimensions: Tolerances and secondary operations are hidden cost traps. Scrutinize every tight tolerance and extra process step are they truly required for function?

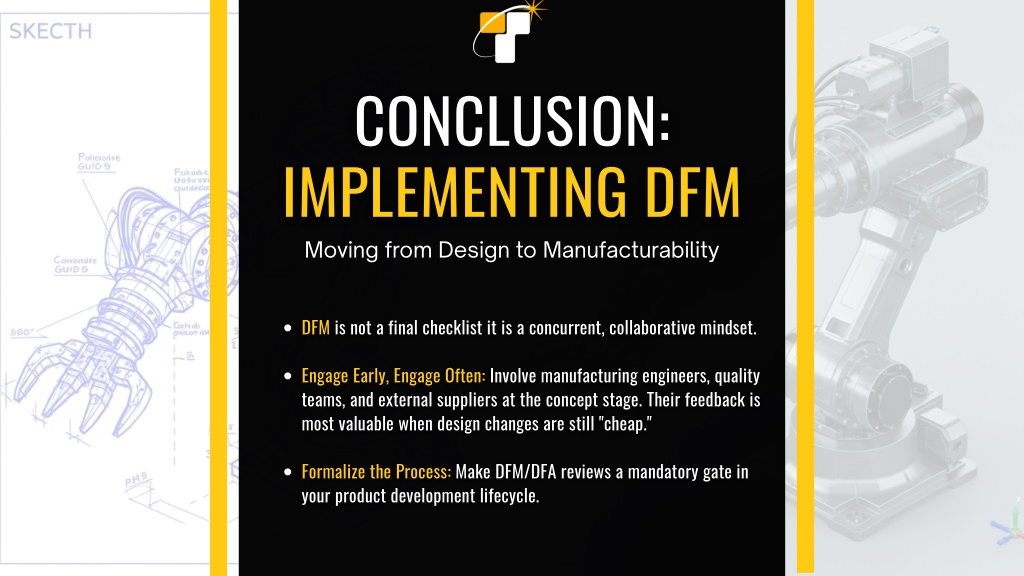

9. CONCLUSION: IMPLEMENTING DFM Moving from Design to Manufacturability DFM is not a final checklist it is a concurrent, collaborative mindset. Engage Early, Engage Often: Involve manufacturing engineers, quality teams, and external suppliers at the concept stage. Their feedback is most valuable when design changes are still "cheap." Formalize the Process: Make DFM/DFA reviews a mandatory gate in your product development lifecycle.
