Design Philosophy of the DARPA Internet Protocols

Design Philosophy of the DARPA Internet Protocols. CSCI 634, Fall 2010. Fundamental goals (top-level). High utilization by multiplex Packet switching Inter-connect heterogeneous networks Gateway: store and forward packets. These two determine the structure of Internet. Second level goals.

thane-wong
Télécharger la présentation

Design Philosophy of the DARPA Internet Protocols

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Design Philosophy of the DARPA Internet Protocols CSCI 634, Fall 2010

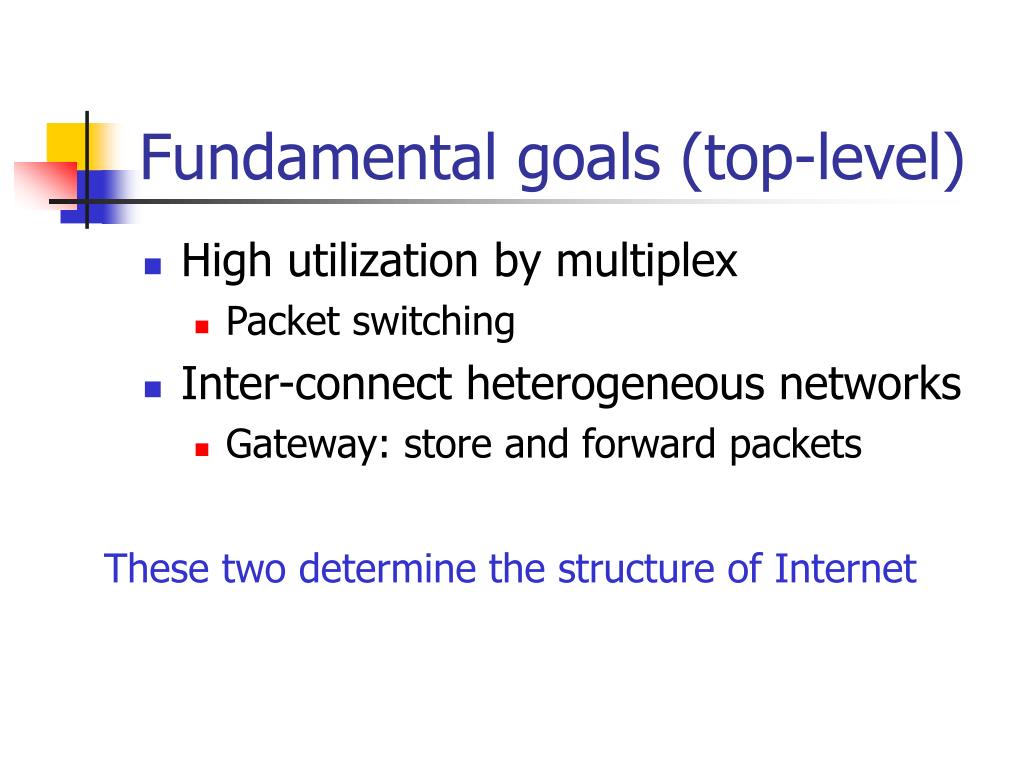

  2. Fundamental goals (top-level) • High utilization by multiplex • Packet switching • Inter-connect heterogeneous networks • Gateway: store and forward packets These two determine the structure of Internet

  3. Second level goals • Fault-tolerance (V) • Support multiple type of services (X) • Accommodate a variety of networks (V) • Distributed resource management (V) • Cost-effective (V) • Easy host attachment (V)) • Accountability (X)

  4. Fate-sharing • Only end-point maintains the states • We lose the state information associated with the end-host, only when the end-host itself is dead • Gateways are stateless • Tolerate any number of intermediate failures • Much easy to engineer than replication

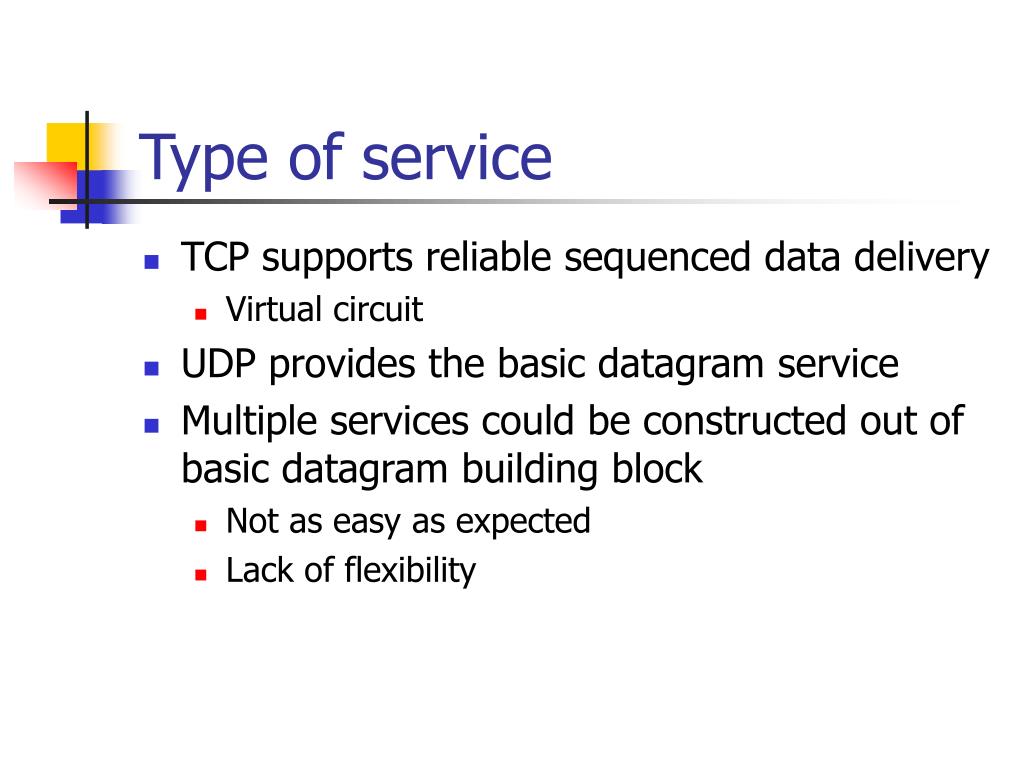

  5. Type of service • TCP supports reliable sequenced data delivery • Virtual circuit • UDP provides the basic datagram service • Multiple services could be constructed out of basic datagram building block • Not as easy as expected • Lack of flexibility

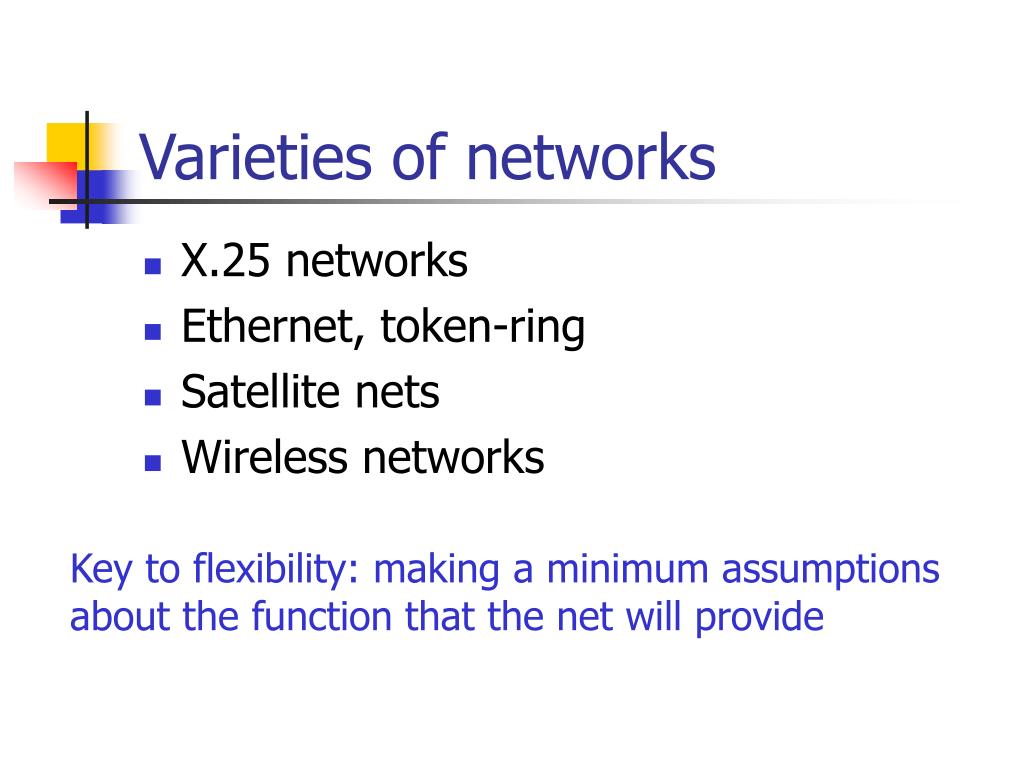

  6. Varieties of networks • X.25 networks • Ethernet, token-ring • Satellite nets • Wireless networks Key to flexibility: making a minimum assumptions about the function that the net will provide

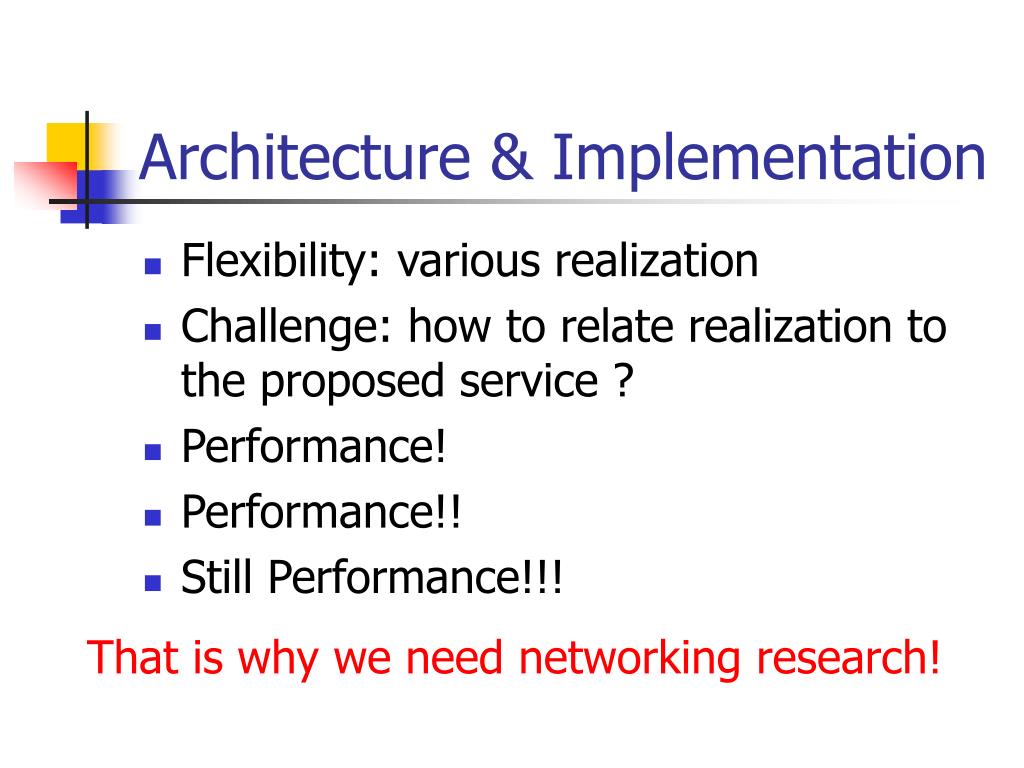

  7. Architecture & Implementation • Flexibility: various realization • Challenge: how to relate realization to the proposed service ? • Performance! • Performance!! • Still Performance!!! That is why we need networking research!

  8. Internet Architecture: Datagram • No individual connection state is maintained at routers • Datagram is a basic building block • Datagram represents the minimum network service assumption

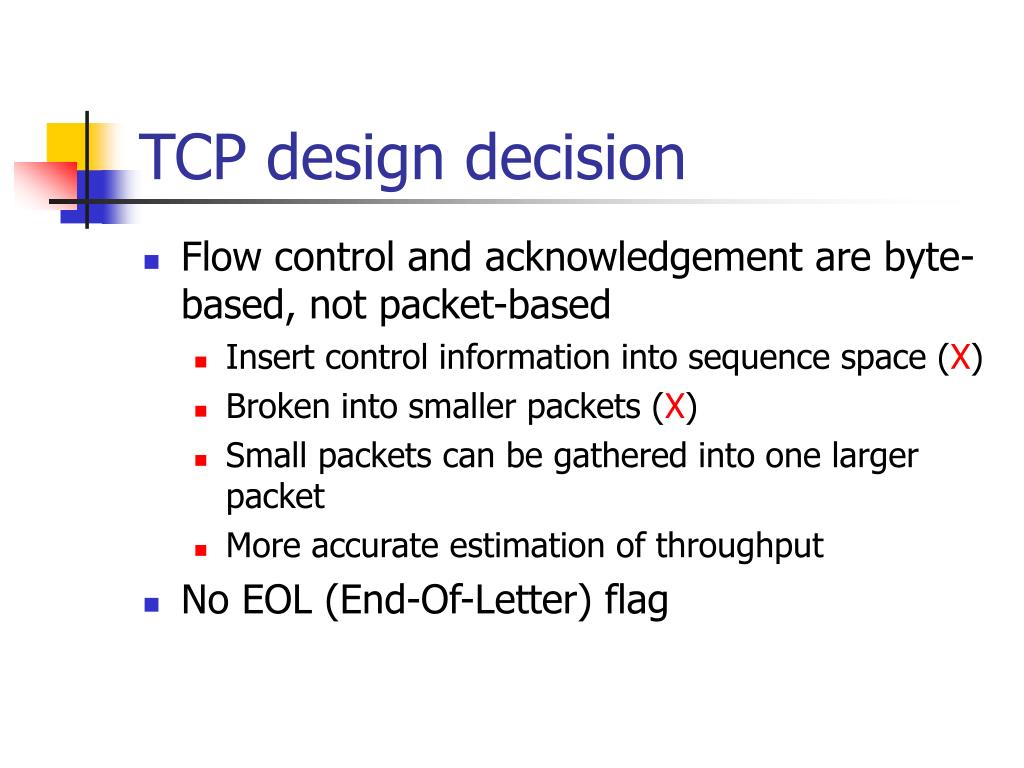

  9. TCP design decision • Flow control and acknowledgement are byte-based, not packet-based • Insert control information into sequence space (X) • Broken into smaller packets (X) • Small packets can be gathered into one larger packet • More accurate estimation of throughput • No EOL (End-Of-Letter) flag

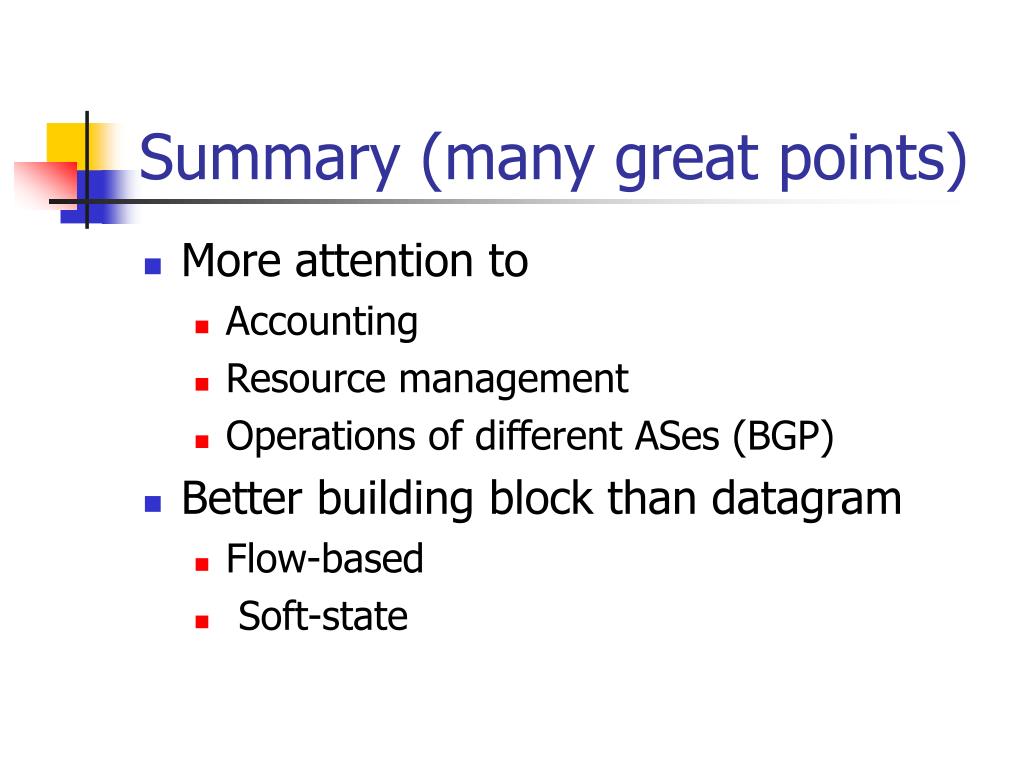

  10. Summary (many great points) • More attention to • Accounting • Resource management • Operations of different ASes (BGP) • Better building block than datagram • Flow-based • Soft-state
