1 / 14

CHARACTERIZATION OF SORPTION AND QUANTITATIVE ANALYSIS OF HYDROXYL COMPLEXES

MEDGEO 2013 Conference. CHARACTERIZATION OF SORPTION AND QUANTITATIVE ANALYSIS OF HYDROXYL COMPLEXES CHARACTERIZATION OF SORPTION AND QUANTITATIVE ANALYSIS OF HYDROXYL COMPLEXES OF Cu and Zn IN AQUEOUS SOLUTION: THE INTERACTIVE EFFECTS OF MINE WASTEWATER-MIXED MINERAL SYSTEMS

thane
Télécharger la présentation

CHARACTERIZATION OF SORPTION AND QUANTITATIVE ANALYSIS OF HYDROXYL COMPLEXES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

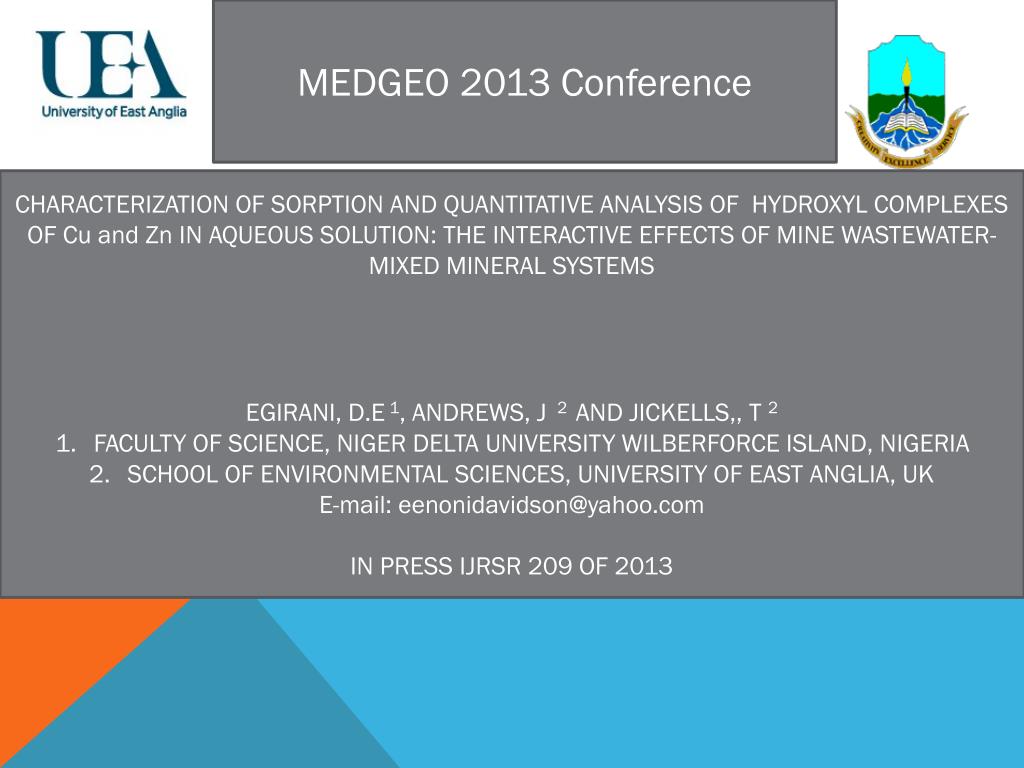

  1. MEDGEO 2013 Conference • CHARACTERIZATION OF SORPTION AND QUANTITATIVE ANALYSIS OF HYDROXYL COMPLEXES • CHARACTERIZATION OF SORPTION AND QUANTITATIVE ANALYSIS OF HYDROXYL COMPLEXES OF Cu and Zn IN AQUEOUS SOLUTION: THE INTERACTIVE EFFECTS OF MINE WASTEWATER-MIXED MINERAL SYSTEMS • EGIRANI, D.E 1, ANDREWS, J 2 AND JICKELLS,, T 2 • FACULTY OF SCIENCE, NIGER DELTA UNIVERSITY WILBERFORCE ISLAND, NIGERIA • SCHOOL OF ENVIRONMENTAL SCIENCES, UNIVERSITY OF EAST ANGLIA, UK • E-mail: eenonidavidson@yahoo.com • IN PRESS IJRSR 209 OF 2013

  2. HEALTH IMPLICATIONS • Cu and Zn are important in human body metabolism, • lead to poisoning at concentrations above safe limits. • a deficiency can cause growth depression, • in a community where Cu-Zn metal-mineral interaction exist, • there is need to investigate the behavior of these metals and their complexes as best revealed by sorption

  3. LOCATION OF STUDY SITE

  4. CHARACTERISTICS OF MINE WATER

  5. FLOW DIAGRAM OF STUDIES

  6. ISOTHERM and % SORPTION • where Kdtotal is the theoretical distribution coefficient for a 1:1 mixed suspension, • (a)kaolinite/montmorillonite,(b) kaolinite/goethite and (c)montmorillonite/goethite • Kdn is the distribution coefficient for n number of mineral suspensions, • n is the number of mineral suspensions,

  7. ISOTHERM and % SORPTION • % metal sorbed = • where C1 and Ce are the initial and equilibrium metal concentrations

  8. ASSUMPTIONS • differences between single and mixed mineral sorption are attributed to: • development of secondary mineral phase during sorbate-sorbent interaction • Activity of components minerals • as individual networks or chemisorbed species. • differential mass of mixed and single mineral phases

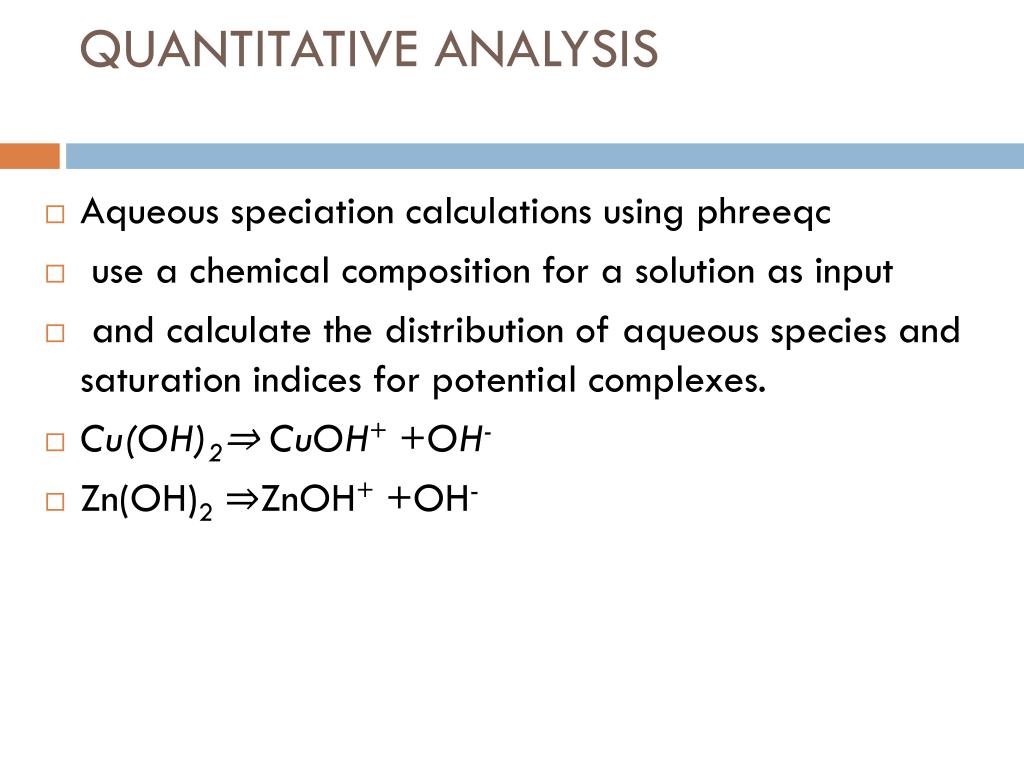

  9. QUANTITATIVE ANALYSIS • Aqueous speciation calculations using phreeqc • use a chemical composition for a solution as input • and calculate the distribution of aqueous species and saturation indices for potential complexes. • Cu(OH)2⇒ CuOH+ +OH- • Zn(OH)2 ⇒ZnOH+ +OH-

  10. :ISOTHERM - PARYS MOUNTAIN MINE WATER actual and theoretical % sorption difference vs. pH of mixed mineral systems (a.kaolinite-mont, b. kaol-goethite and c. mont-goethite

  11. ISOTHERM- CWMRHEIDOL MINE WATER • actual and theoretical % sorption difference vs. pH of mixed mineral systems (a.kaolinite-mont, b. kaol-goethite and c. mont-goethite

  12. Copper and Zinc hydroxylation Plot of saturation indices vs. pH of mine wastewater

  13. Conclusions • None of the mineral systems reduced contaminants to U.S EPA levels, • for humans and aquatic life, • Parys, mineral mixing favors Cu sorption than Zn, • Cwmrheidol, mixing favors Zn sorption than Cu, • Cu and Zn sorption was a function of the mineral systems, mine water composition and pH

  14. THE END Abstract-Presentation ID# 216877 Presented by Dr. Davidson E. Egirani, at the 2013 Conference of the International Medical Geology Association (25–29 August 2013), Arlington, Virginia, U.S.A
