  1. Search Patterns Boat Forces Center Coxswain “C” School Search Patterns -- Rev: Nov 05

  2. Objectives • Given the following instruction state common terms used in Search and Rescue • Given basic navigation tools plot and execute both precision and drifting patterns

  3. References • National Search and Rescue Manual Vol I & II COMDINST M16120.5 series • U.S. Coast Guard Addendum to the National Search and Rescue Supplement COMDINST M16130.2 series • Boat Crew Seamanship manual COMDINST M16114.5 series • CG Boat Operations and Training Manual VOL I & II COMDINST M 16114.32 series

  4. Value • The boat Coxswain must be able to execute the search pattern correctly, so that lives and property in distress have the best possible chance for survival

  5. Coxswain Responsibility • Keep crew alert and attentive • Execute the search pattern correctly • SOMEONE'S LIFE MAY DEPEND ON IT

  6. Search Planning • Is necessary when the location of a distress object is not known, or time has passed since the objects position was last known

  7. SAR Planning • Where does SAR planning come from? • The Coast Guard Addendum to the National Search and Rescue Supplement COMDTINST M16130.2(series)

  8. SAR Addendum • The primary search planning & rescue operations guidance and policy manual

  9. Pattern Nomenclature • Datum • The most probable location of a search • object corrected for movement over time

  10. Pattern Nomenclature • Explanation of movement: • To locate datum, Two major forces need to • be considered: • Total Water Current • Leeway

  11. Pattern Nomenclature • Total water current (TWC) • The sum of all water currents that might be acting upon a search object in any given locality Sea Current Wind Current Reversing Tidal Current River Current Lake Current Surf & Rip Current The best information on TWC is obtained from a Datum Marker Buoy.

  12. Pattern Nomenclature • Leeway: • The movement through the water caused by winds blowing against the exposed surfaces of the search object. The more exposed area the object has the greater the wind force on the object

  13. Pattern Nomenclature • Search Leg: • The track line of the SRU involved in a search pattern, or the long leg along the track of a parallel or creeping line search

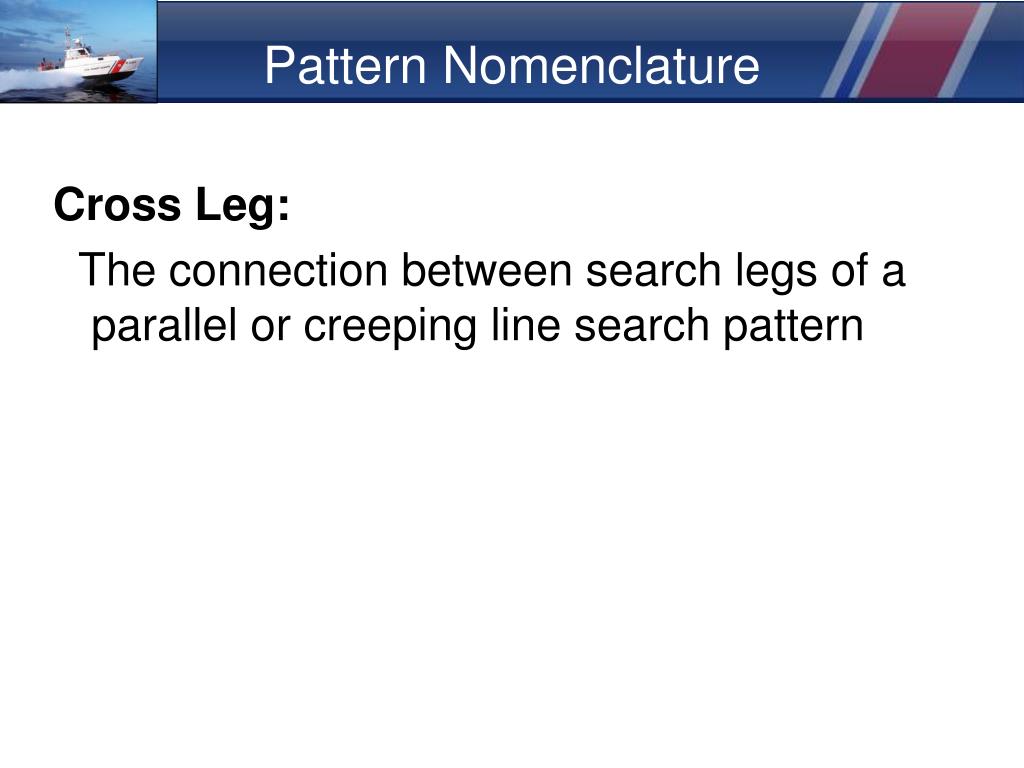

  14. Pattern Nomenclature • Cross Leg: • The connection between search legs of a parallel or creeping line search pattern

  15. Pattern Nomenclature • Sweep Width: • The corrected distance a SRU should be able to visually detect the search object on either side of the search leg

  16. Pattern Nomenclature • Track Spacing: • The distance between adjacent parallel legs • With the exception of the Sector search which will have a radius

  17. Pattern Nomenclature • Major Axis: • A bearing line used for the orientation of a rectangular search area from the center

  18. Pattern Nomenclature • Minor Axis: • A bearing line perpendicular to the major axis

  19. Pattern Nomenclature • Commence Search Point (CSP) • The location in the search area that the SRU starts the search pattern

  20. Pattern Nomenclature • Initial Response (PIW) • When searching for people in the water start a Sector Search ASAP: • Speed 6 knots • Track spacing: .1 NM • 1 minute search legs

  21. Pattern Nomenclature • Search Area: • The area most likely to contain the search object. • Start with determining datum • There are 7 different methods

  22. Corner Method BLDG ABAND LT HOU Point Comfort 37º20’26”N 076º13’57”W Corner Method: In this method the latitude and longitude (or geographic features) of each corner of the search area are given 37º19’00”N 076º15’00”W 37º19’36”N 076º12’05”W 37º18’17”N 076º13’19”W

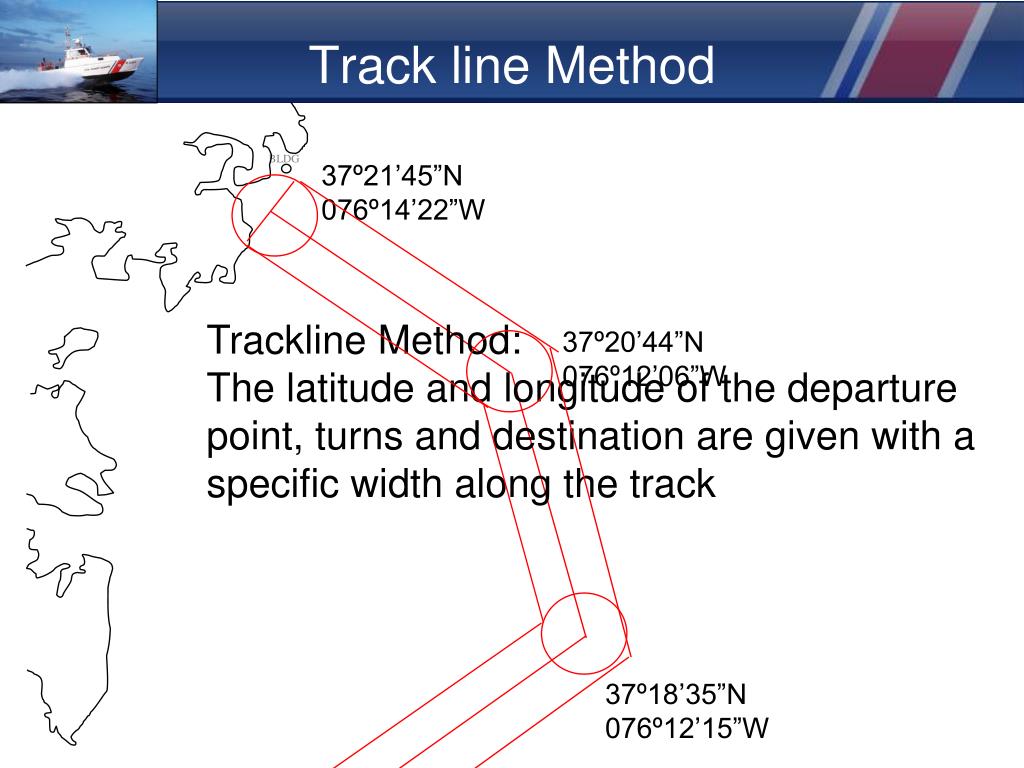

  23. Track line Method BLDG ABAND LT HOU Point Comfort 37º21’45”N 076º14’22”W Trackline Method: The latitude and longitude of the departure point, turns and destination are given with a specific width along the track 37º20’44”N 076º12’06”W 37º18’35”N 076º12’15”W

  24. Center Point Circular BLDG ABAND LT HOU Point Comfort Center Point, Circular Area:The latitude and longitude of the center point are given with a radius 37º21’00”N 076º13’38”W 0.75 NMradius

  25. Center Point BLDG ABAND LT HOU Point Comfort 37º21’00”N 076º13’38”W Center Point, Rectangular or Square Area:The latitude and longitude of the center point are given with the direction of the major axis and the length and width of the area

  26. Range and Bearing BLDG ABAND LT HOU Point Comfort 140ºT2 NM Range and Bearing to Center Point:The center point may also be designated bya range and bearing from a geographic landmark

  27. Landmark Boundary 3 NM BLDG Landmark Boundary:Two or more landmarks are given asboundaries of the search area along a shoreline Point Comfort

  28. Lat/Long Boundary BLDG ABAND LT HOU Point Comfort 37º21’00”N 076º14’30”W 076º11’30”W Latitude/Longitude Boundary:The sides of the search area are oriented North-Southand East-West and the latitude and longitude of thesides are given 37º18’00”N

  29. Pattern Designations • First Letter Designates Pattern: • “P” for Parallel • “C” for Creeping Line • “S” for Square • “V” for Sector • “T” for Track line • “B” for Barrier

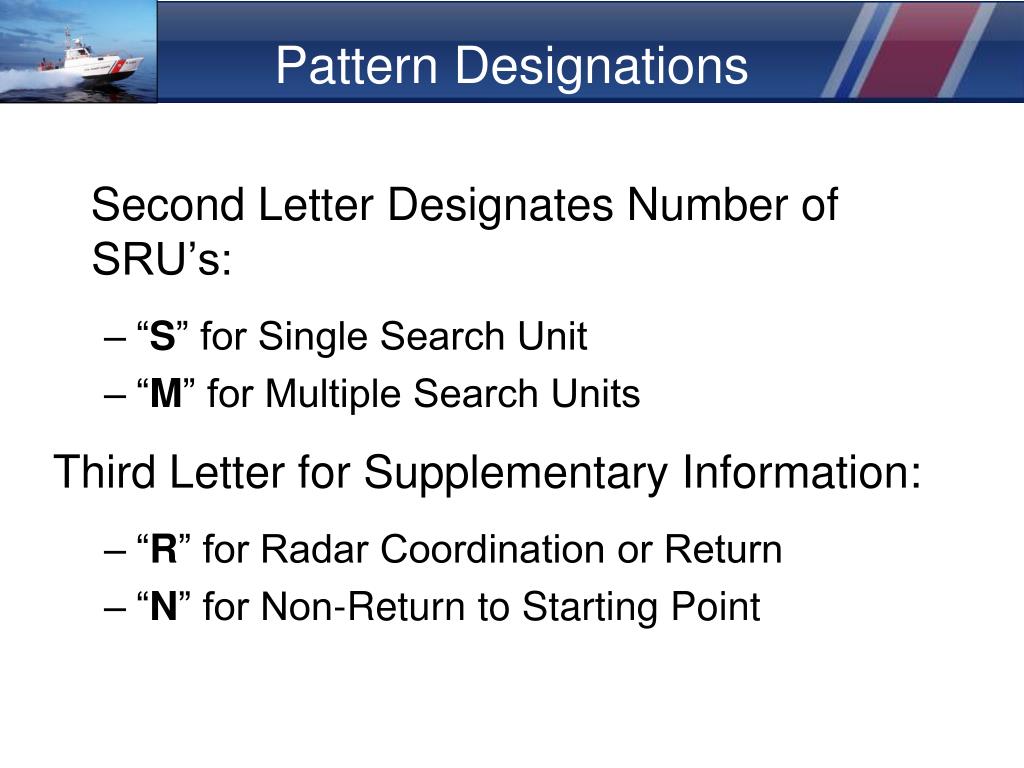

  30. Pattern Designations • Second Letter Designates Number of SRU’s: • “S” for Single Search Unit • “M” for Multiple Search Units • Third Letter for Supplementary Information: • “R” for Radar Coordination or Return • “N” for Non-Return to Starting Point

  31. Labeling Patterns • Plotted in true • Courses labeled in true and compass • Turns labeled with DR’s and DR times

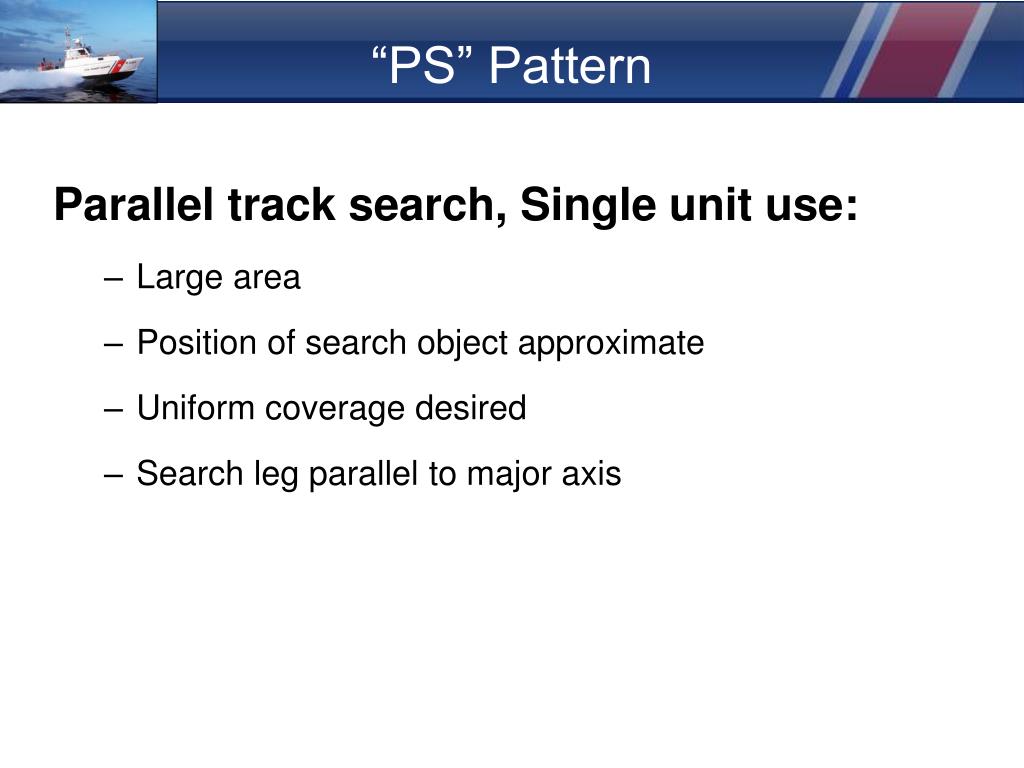

  32. “PS” Pattern • Parallel track search, Single unit use: • Large area • Position of search object approximate • Uniform coverage desired • Search leg parallel to major axis

  33. Plotting a “PS” 1 ½ 0 1 2 3 4 • Determine Search Area Search Area N (True)

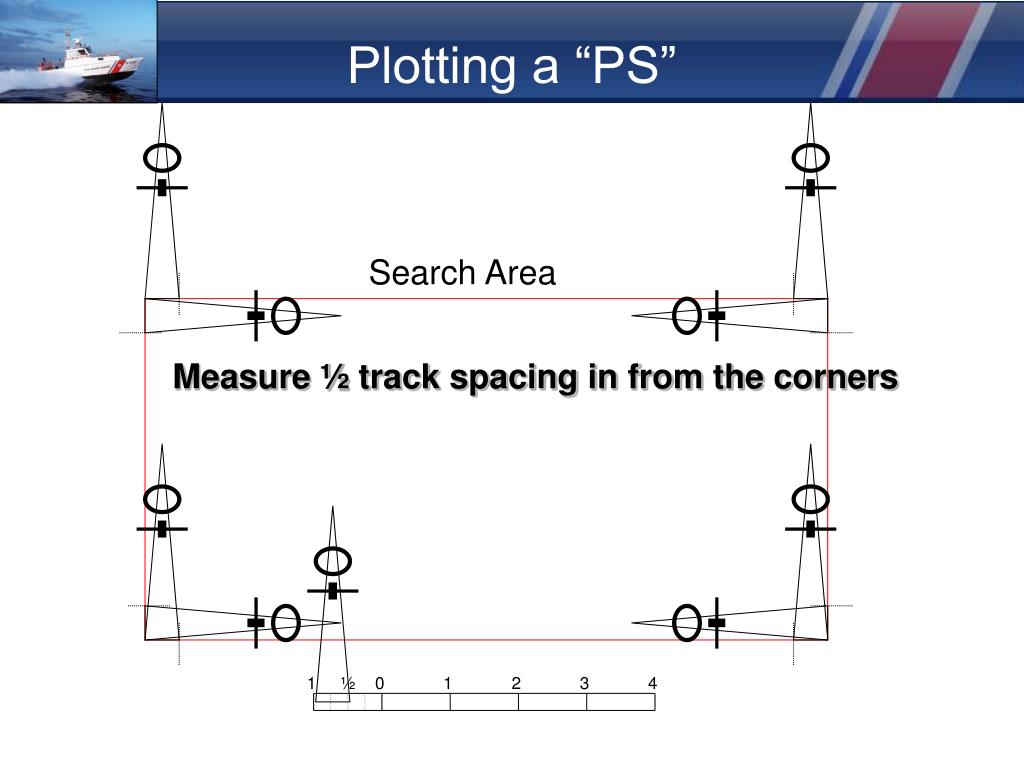

  34. Plotting a “PS” 1 ½ 0 1 2 3 4 Search Area Measure ½ track spacing in from the corners

  35. Plotting a “PS” 1 ½ 0 1 2 3 4 Connect the marks to make the patterns size

  36. Plotting a “PS” 1 ½ 0 1 2 3 4 Mark CSP, mark full track spacing and lay out cross legs CSP

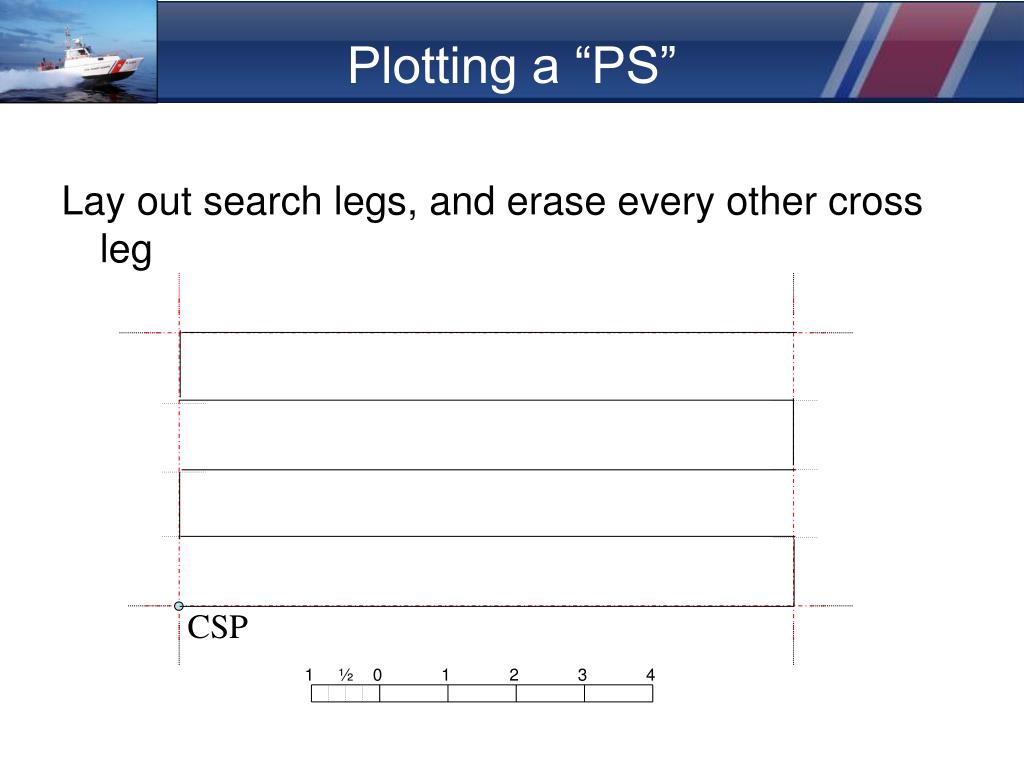

  37. Plotting a “PS” 1 ½ 0 1 2 3 4 • Lay out search legs, and erase every other cross leg CSP

  38. Plotting a “PS” 1 ½ 0 1 2 3 4 C- ºT/ ºC D- NM C- ºT ºC D- NM C- ºT/ ºC D- NM S- KN CSP Label a minimum of three legs a DR at all turns

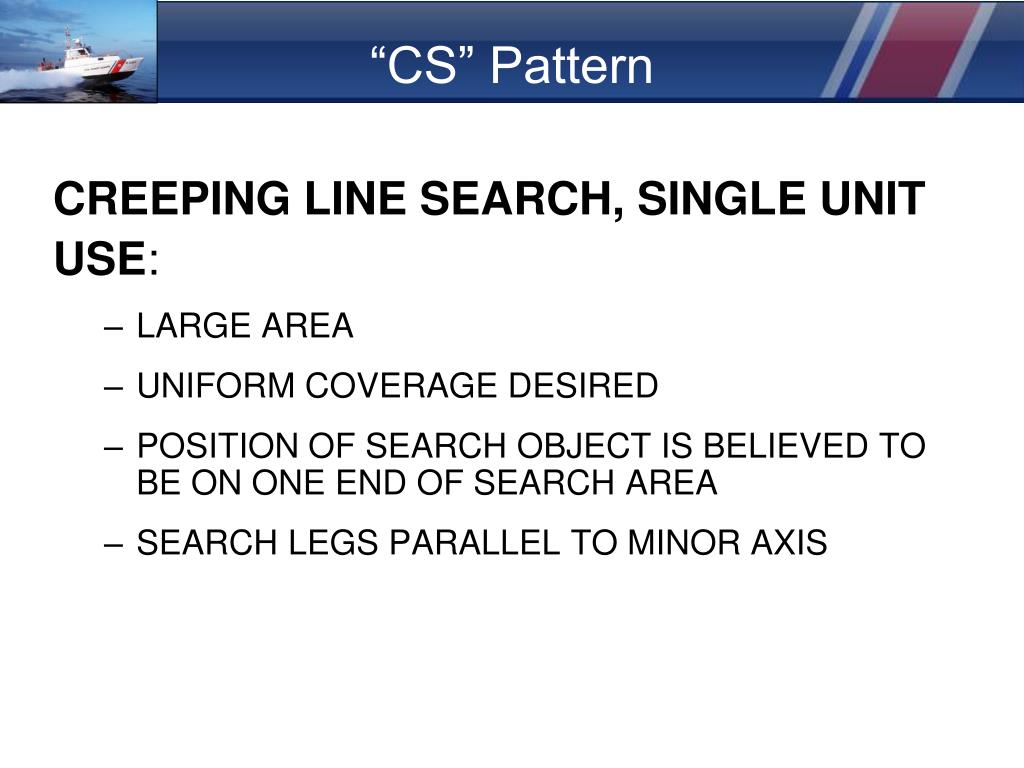

  39. “CS” Pattern • CREEPING LINE SEARCH, SINGLE UNIT • USE: • LARGE AREA • UNIFORM COVERAGE DESIRED • POSITION OF SEARCH OBJECT IS BELIEVED TO BE ON ONE END OF SEARCH AREA • SEARCH LEGS PARALLEL TO MINOR AXIS

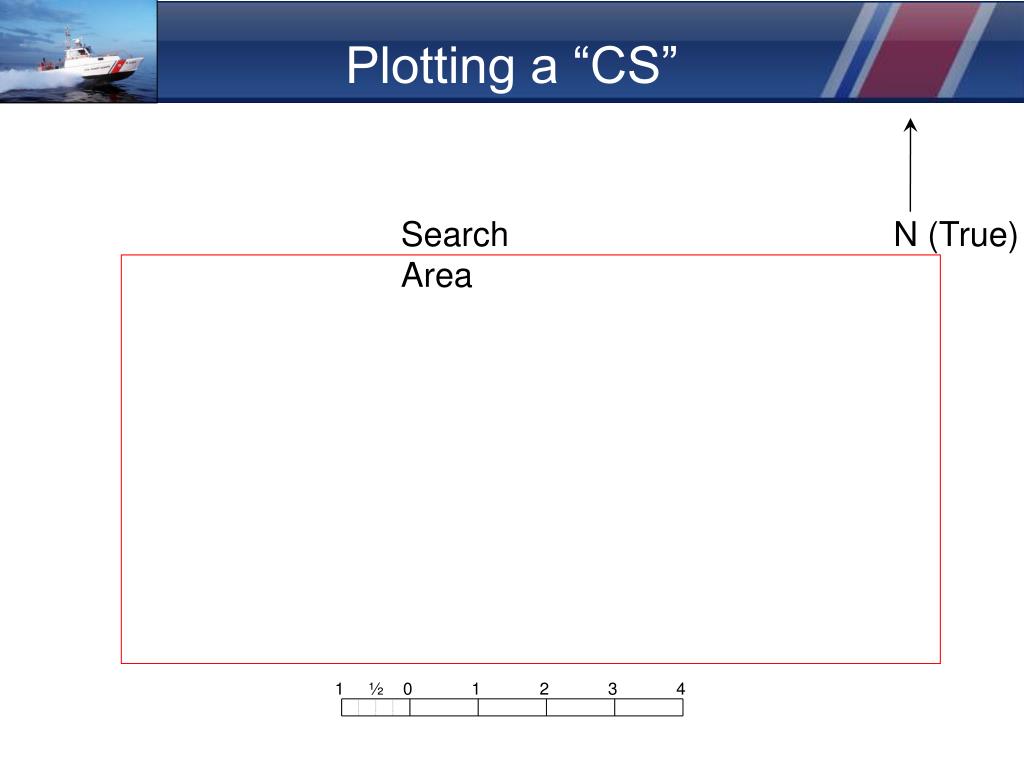

  40. Plotting a “CS” 1 ½ 0 1 2 3 4 Search Area N (True)

  41. Plotting a “CS” 1 ½ 0 1 2 3 4 Measure ½ track spacing in from the corners Search Area N (True)

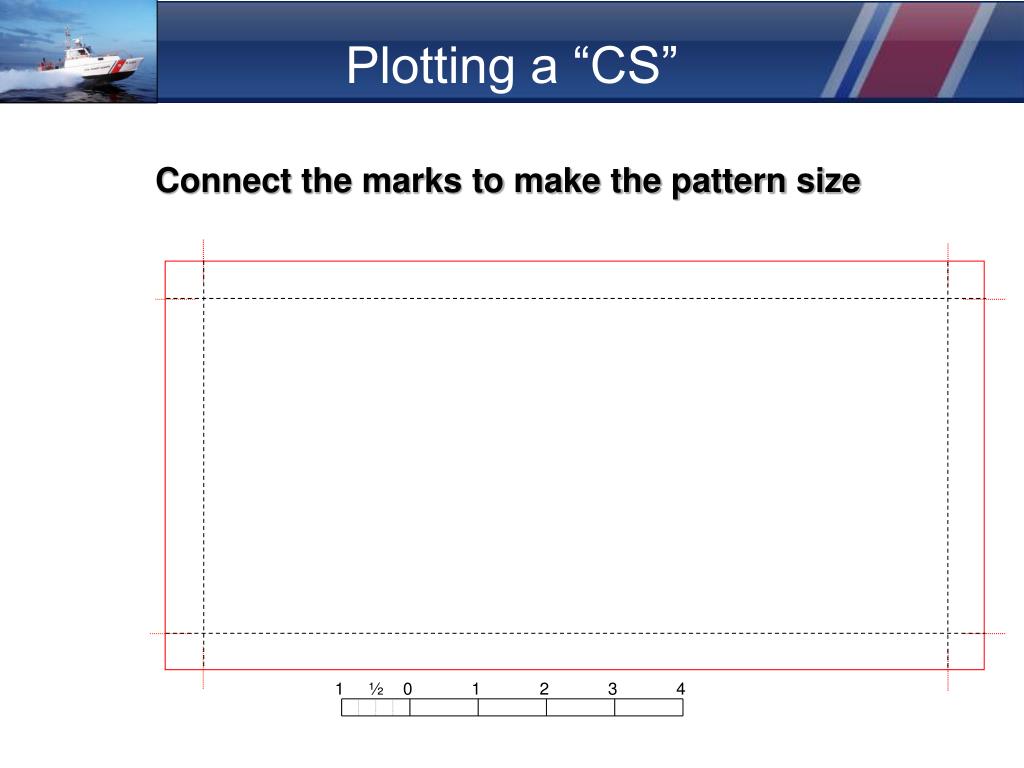

  42. Plotting a “CS” 1 ½ 0 1 2 3 4 Connect the marks to make the pattern size

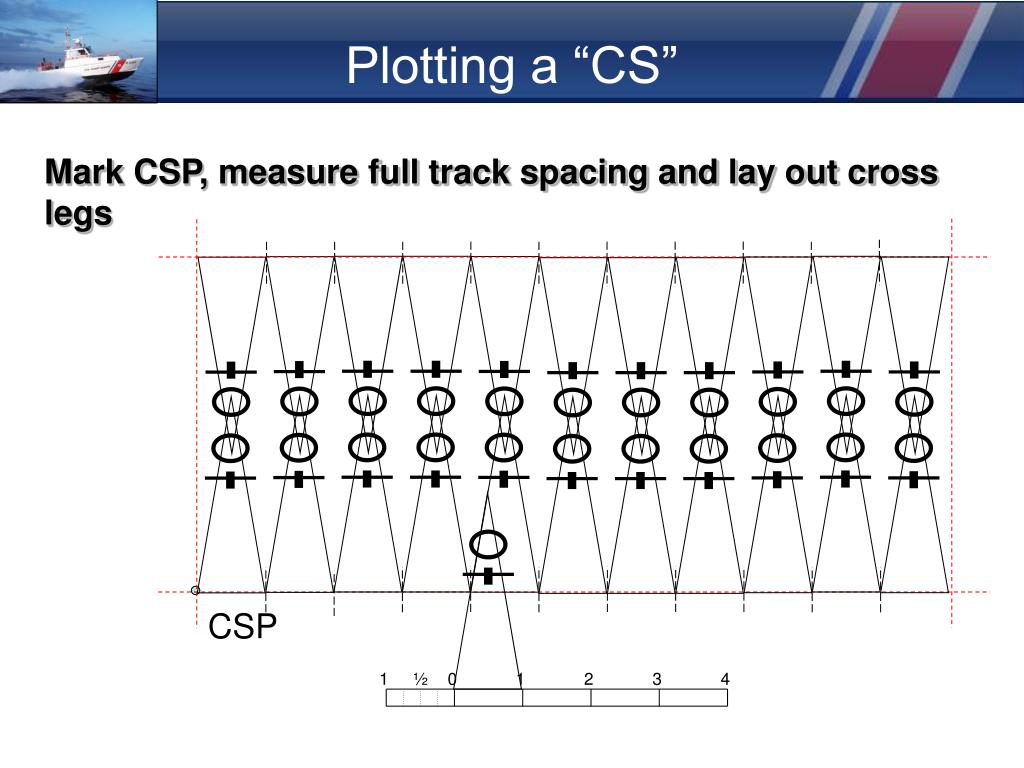

  43. Plotting a “CS” 1 ½ 0 1 2 3 4 Mark CSP, measure full track spacing and lay out cross legs CSP

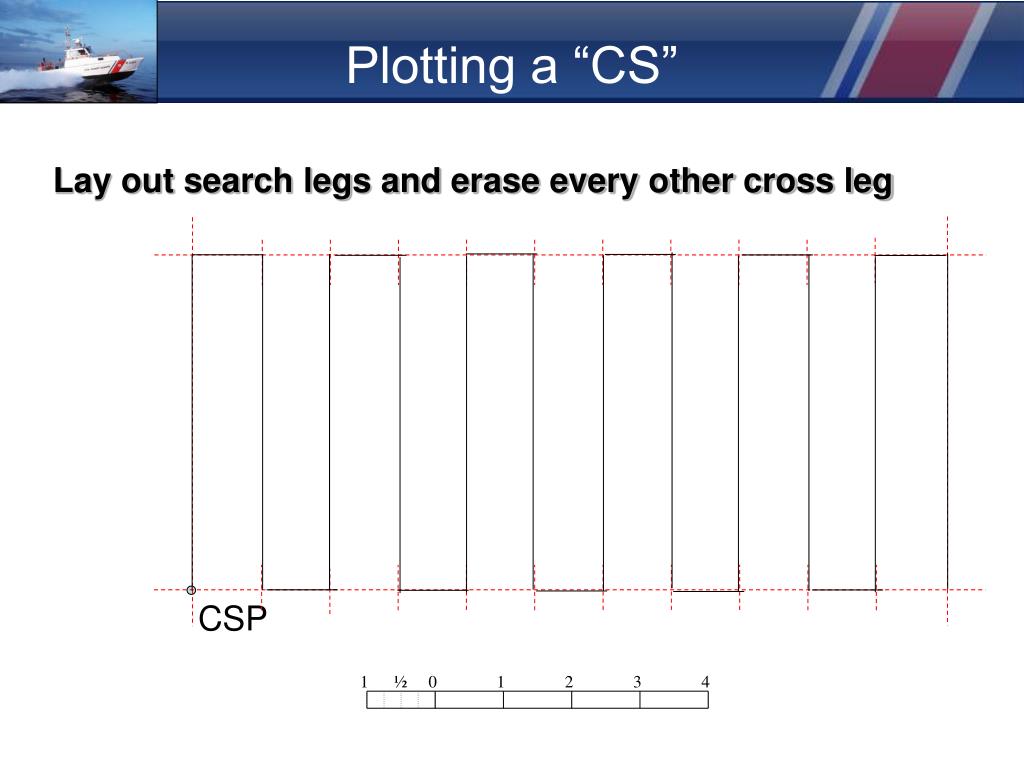

  44. Plotting a “CS” 1 ½ 0 1 2 3 4 Lay out search legs and erase every other cross leg CSP

  45. Plotting a “CS” 1 ½ 0 1 2 3 4 C- ºT/ ºC D- NM C- ºT ºC D- NM C- ºT/ ºC D- NM S- KN • Label a minimum of three legs and a DR at all turns CSP

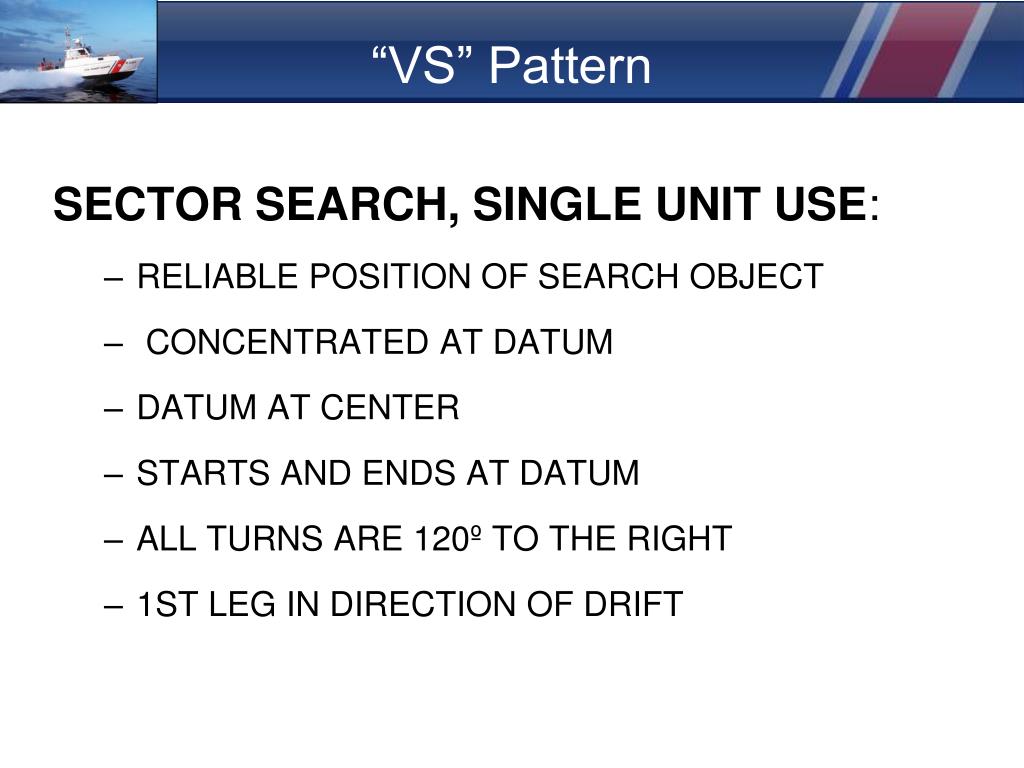

  46. “VS” Pattern • SECTOR SEARCH, SINGLE UNIT USE: • RELIABLE POSITION OF SEARCH OBJECT • CONCENTRATED AT DATUM • DATUM AT CENTER • STARTS AND ENDS AT DATUM • ALL TURNS ARE 120º TO THE RIGHT • 1ST LEG IN DIRECTION OF DRIFT

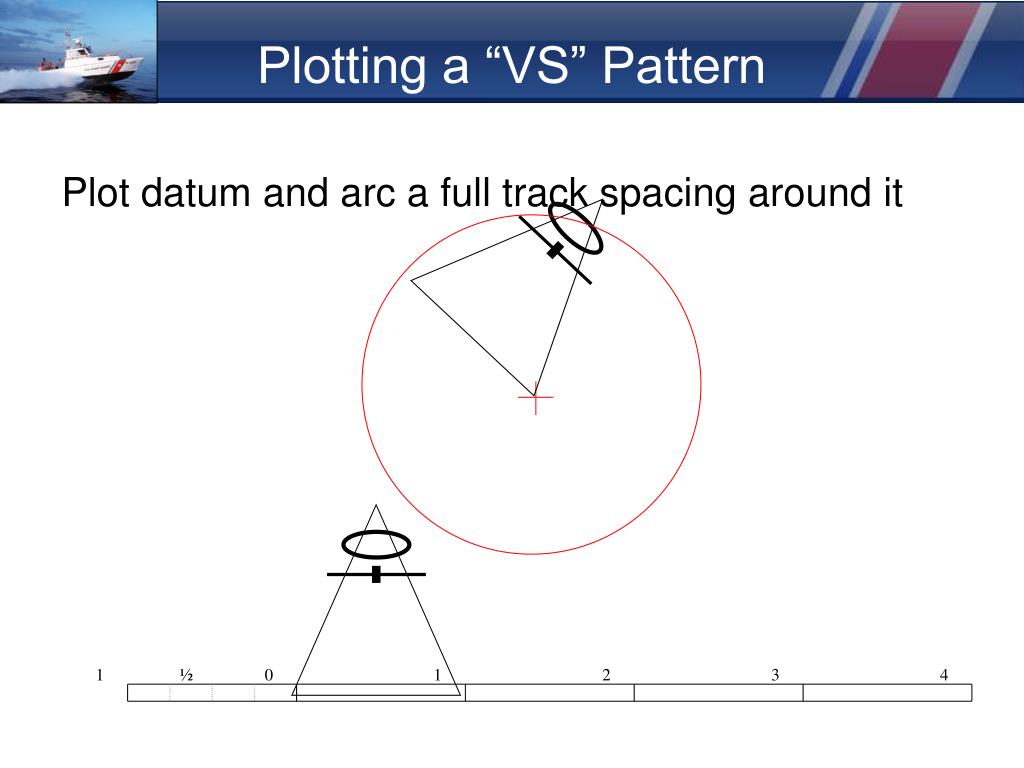

  47. Plotting a “VS” Pattern 1 ½ 0 1 2 3 4 • Plot datum and arc a full track spacing around it

  48. Plotting a “VS” Pattern 1 ½ 0 1 2 3 4 Datum • Lay down first track line, either 000 T or the direction of drift originating from datum

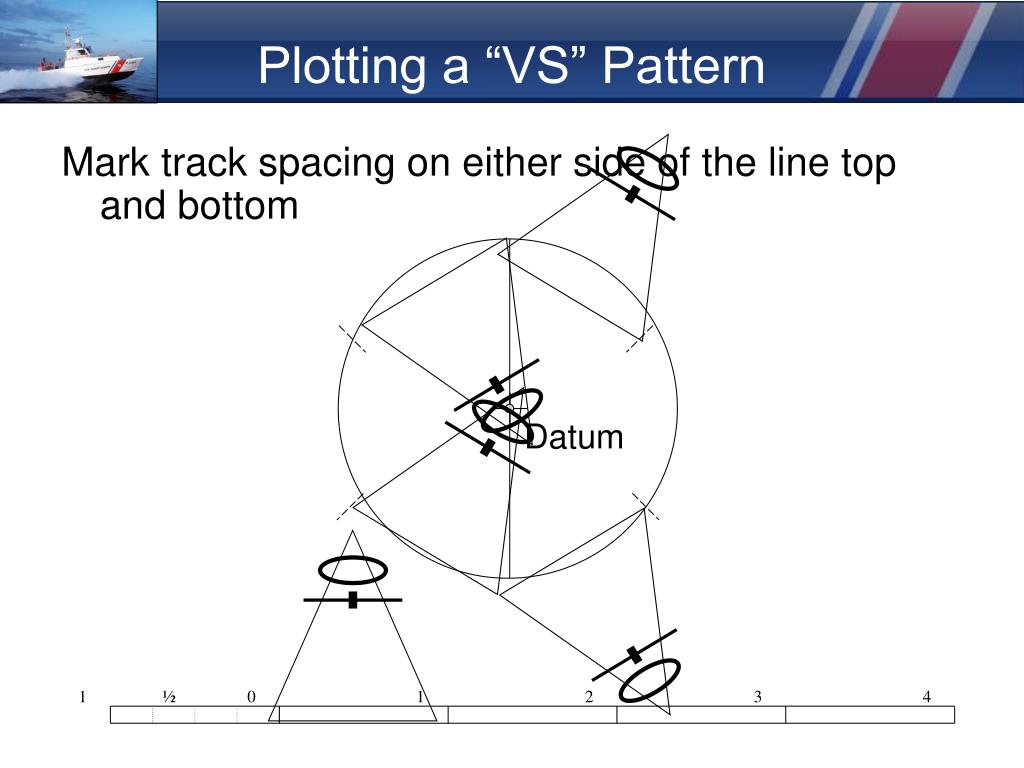

  49. Plotting a “VS” Pattern 1 ½ 0 1 2 3 4 Datum • Mark track spacing on either side of the line top and bottom

  50. Plotting a “VS” Pattern 1 ½ 0 1 2 3 4 Datum • Lay out the remaining track lines by connecting the marks
