  1. Chapter 13 SI System of Units

  2. 13.1 Background • SI System of Units = “metric system” • Used worldwide except in US, Liberia, Burma • Old Units • Bushel = 8 Gallons • Stone =14 pounds • Cubit = Length of the Pharaoh’s elbow to fingertip • Hand = 4 inches • Fortnight = 2 weeks

  3. History of the Meter? • Delambra and Mechain • 1792 to 1799 • “quadrant of meridian” • Pole to Equator of Earth -> 10 million parts • Scratches on Platinum Bar • Resurvey… • 10,002,288.3 meters

  4. SI Units • MKS • meters, kilograms, seconds • CGS • centimeters, grams, seconds • Miles? • 1 mile = 5280 ft • 1 nautical mile = 1852 m

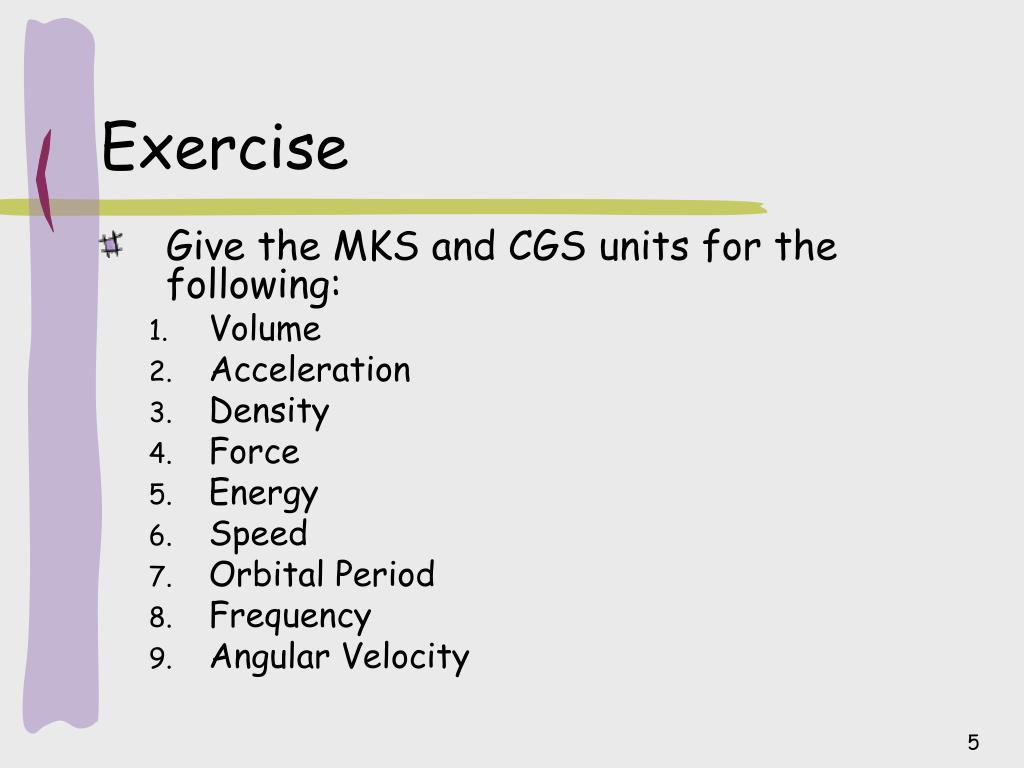

  5. Exercise • Give the MKS and CGS units for the following: • Volume • Acceleration • Density • Force • Energy • Speed • Orbital Period • Frequency • Angular Velocity

  6. Multiples and Prefixes tera (T) giga (G) mega (M) kilo (k) milli (m) micro (m) nano (n) pico (p) • 1012 • 109 • 106 • 103 • 10-3 • 10-6 • 10-9 • 10-12 Prefix Rule Use a prefix that will give you 1, 2, or 3 digits to the left of the decimal.

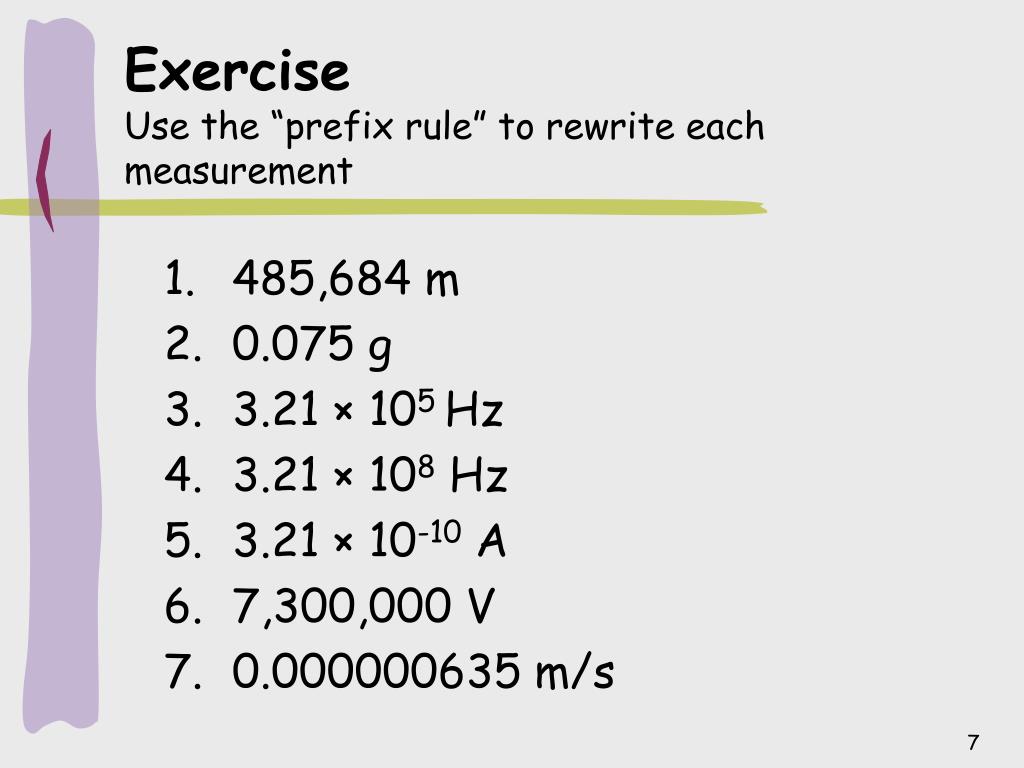

  7. ExerciseUse the “prefix rule” to rewrite each measurement • 485,684 m • 0.075 g • 3.21 × 105 Hz • 3.21 × 108 Hz • 3.21 × 10-10 A • 7,300,000 V • 0.000000635 m/s

  8. ExerciseRound the following numbers to three significant figures. • 485,684.001 • 0.0754834 • 0.03999999 • 3.5648 • 730999 • 600,001

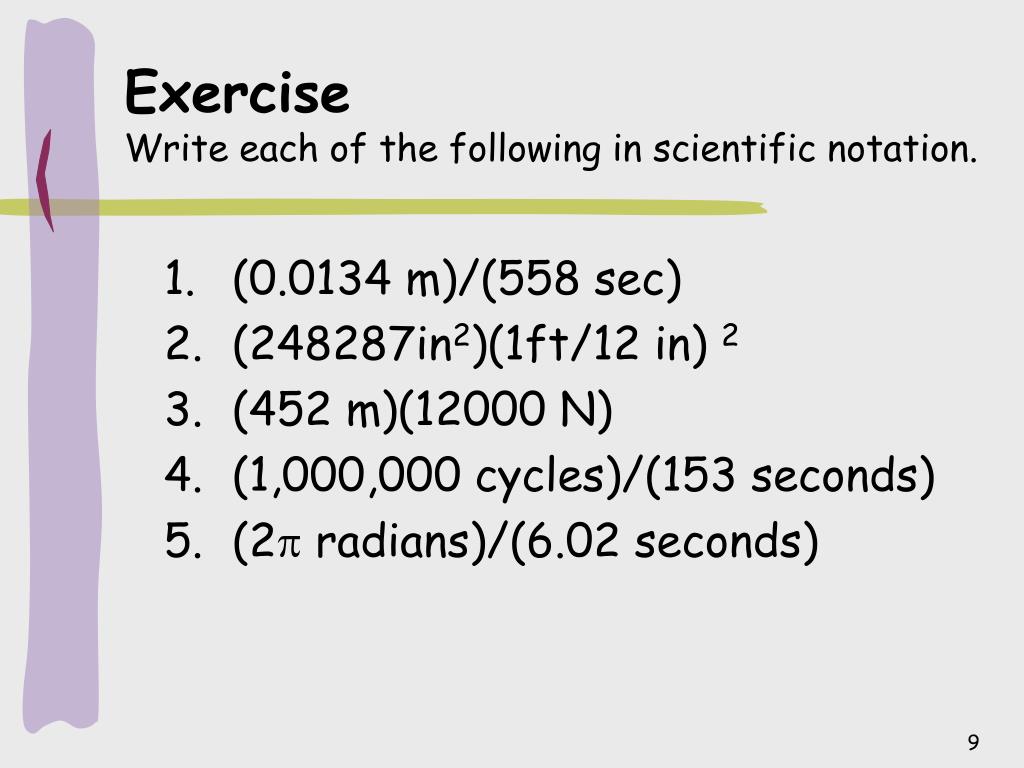

  9. ExerciseWrite each of the following in scientific notation. • (0.0134 m)/(558 sec) • (248287in2)(1ft/12 in) 2 • (452 m)(12000 N) • (1,000,000 cycles)/(153 seconds) • (2p radians)/(6.02 seconds)

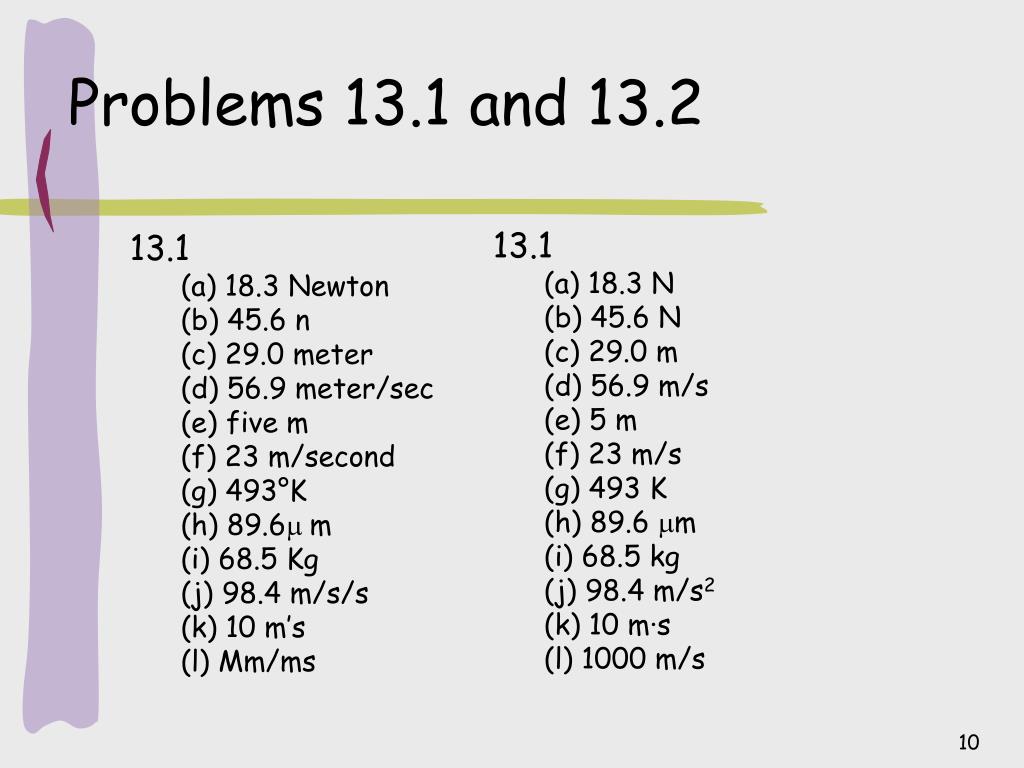

  10. Problems 13.1 and 13.2 13.1 (a) 18.3 N (b) 45.6 N (c) 29.0 m (d) 56.9 m/s (e) 5 m (f) 23 m/s (g) 493 K (h) 89.6 mm (i) 68.5 kg (j) 98.4 m/s2 (k) 10 m·s (l) 1000 m/s 13.1 (a) 18.3 Newton (b) 45.6 n (c) 29.0 meter (d) 56.9 meter/sec (e) five m (f) 23 m/second (g) 493°K (h) 89.6m m (i) 68.5 Kg (j) 98.4 m/s/s (k) 10 m’s (l) Mm/ms

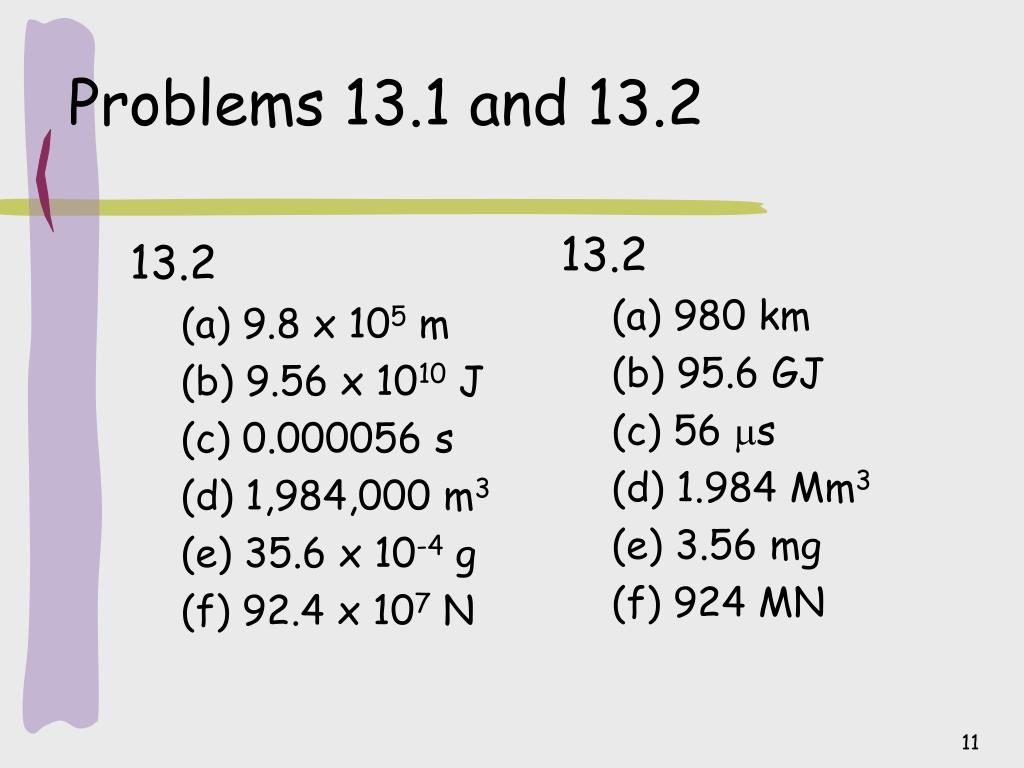

  11. Problems 13.1 and 13.2 13.2 (a) 980 km (b) 95.6 GJ (c) 56 ms (d) 1.984 Mm3 (e) 3.56 mg (f) 924 MN 13.2 (a) 9.8 x 105 m (b) 9.56 x 1010 J (c) 0.000056 s (d) 1,984,000 m3 (e) 35.6 x 10-4 g (f) 92.4 x 107 N

  12. Unit Jeopardy SPS

  13. Jet Propulsion Laboratory, Pasadena, CA RELEASE 99-113 MARS CLIMATE ORBITER TEAM FINDS LIKELY CAUSE OF LOSS “A failure to recognize and correct an error in a transfer of information between the Mars Climate Orbiter spacecraft team in Colorado and the mission navigation team in California led to the loss of the spacecraft, preliminary findings by NASA's Jet Propulsion Laboratory internal peer review indicate.” “The peer review preliminary findings indicate that one team used English units (e.g., inches, feet and pounds) while the other used metric units for a key spacecraft operation. This information was critical to the maneuvers required to place the spacecraft in the proper Mars orbit.” Uh oh…
