  1. SI Units

  2. Why is it important to have STANDARDS? Let’s say you go in the local Footlocker with some cash, tell the salesman that you want these in a size 10.

  3. So.. The salesman brings you back these instead… in size 10, of course. What happened?

  4. Standards • It is important to have a set STANDARD for measurements, so that no matter where or what you are measuring, the measurement MEANS the same thing. • In 1960, international scientists agreed to standards of measurements for use in the scientific community – System International d’Unites – also known as, SI Units

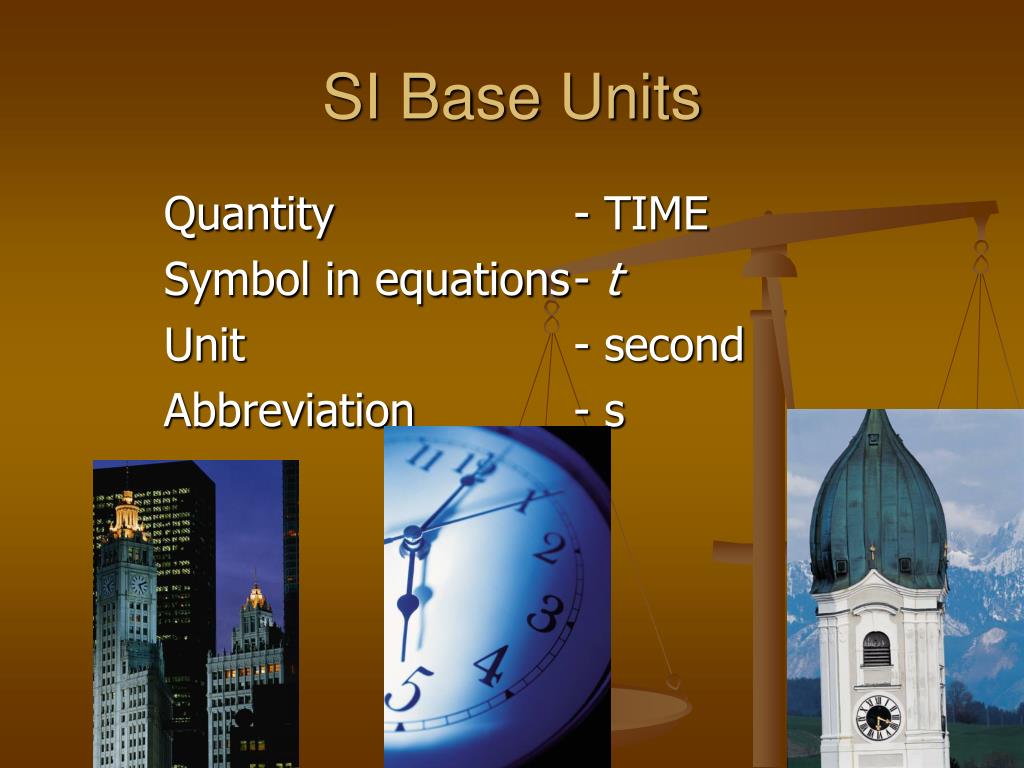

  5. SI Base Units Quantity - TIME Symbol in equations - t Unit - second Abbreviation - s

  6. SI Base Units • Quantity - Length • Symbol in Equations - l or d • Units - meters • Abbreviation - m

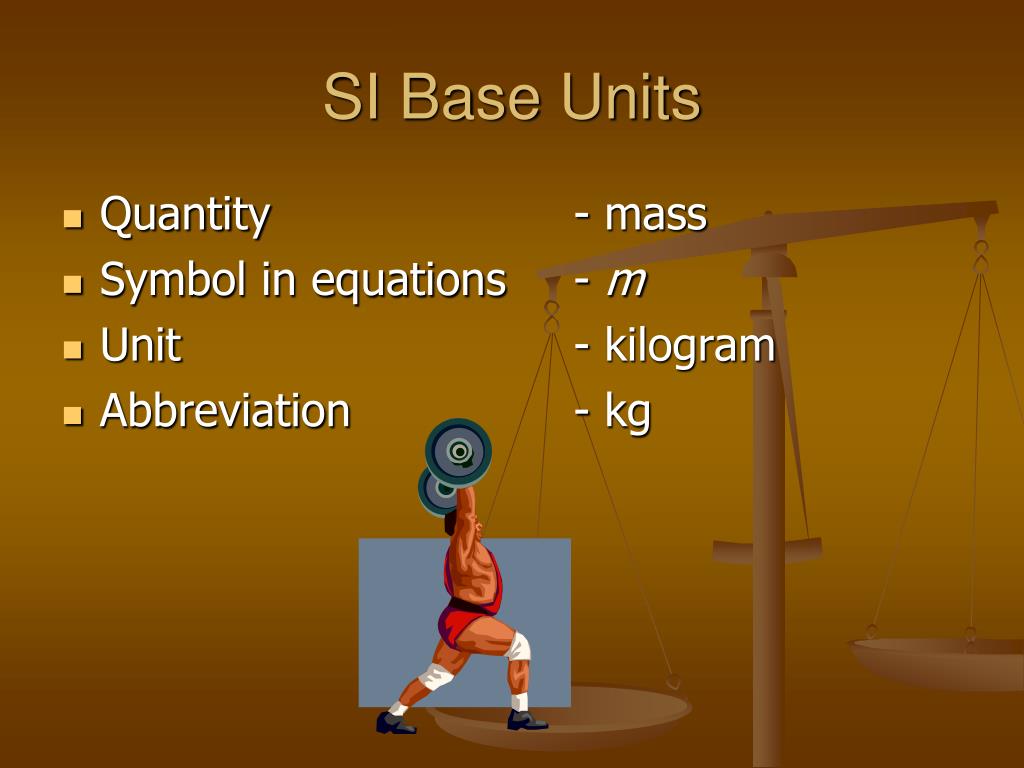

  7. SI Base Units • Quantity - mass • Symbol in equations - m • Unit - kilogram • Abbreviation - kg

  8. Apia 29° 24° Bangkok 31° 27° Brisbane 20° 11° Buenos Aires 15° 4° Cairo 37° 27° Dubai 38° 31° Johannesburg 26° 11° Los Angeles 21° 15° Melbourne 18° 7° Nadi 29° 22° New Delhi 34° 28° New York 32° 22° Nuku'alofa 28° 18° Rarotonga 29° 19° Rome 29° 18° Scott Base -28° -32° Shanghai 29° 26° Singapore 29° 25° Sydney 17° 12° Tokyo 34° 28° Vladivostok -68° -75° SI Base Units • Quantity - Temperature • Symbol in equations - T • Unit - kelvins • Abbreviation - K

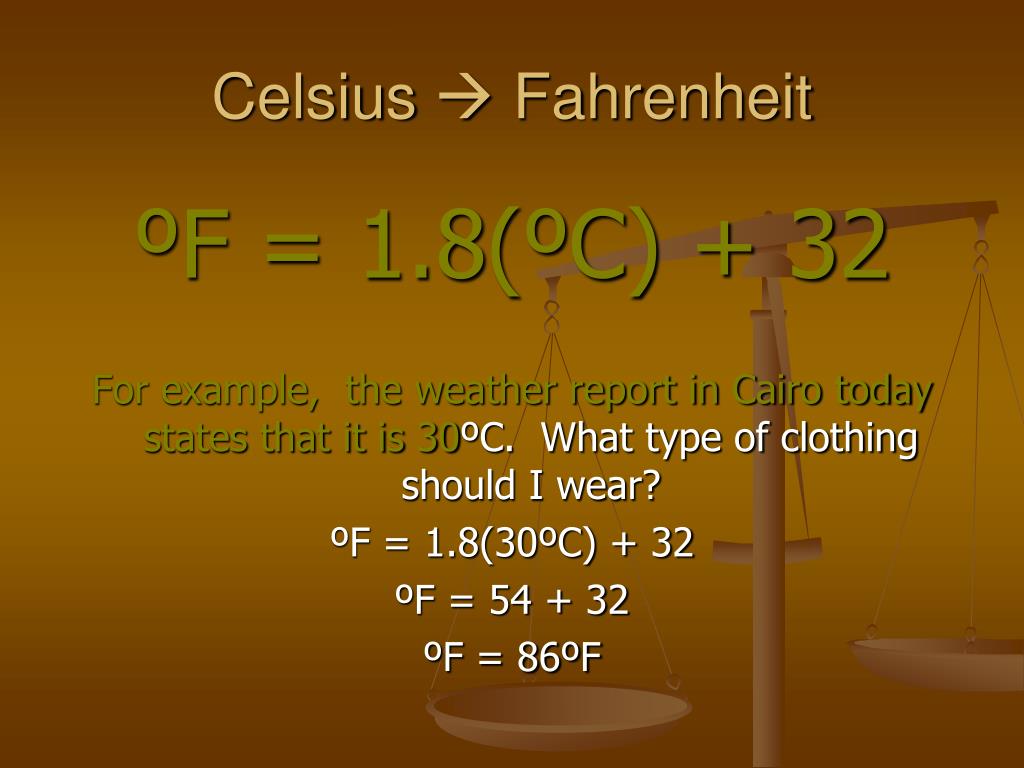

  9. Celsius  Fahrenheit ºF = 1.8(ºC) + 32 For example, the weather report in Cairo today states that it is 30ºC. What type of clothing should I wear? ºF = 1.8(30ºC) + 32 ºF = 54 + 32 ºF = 86ºF

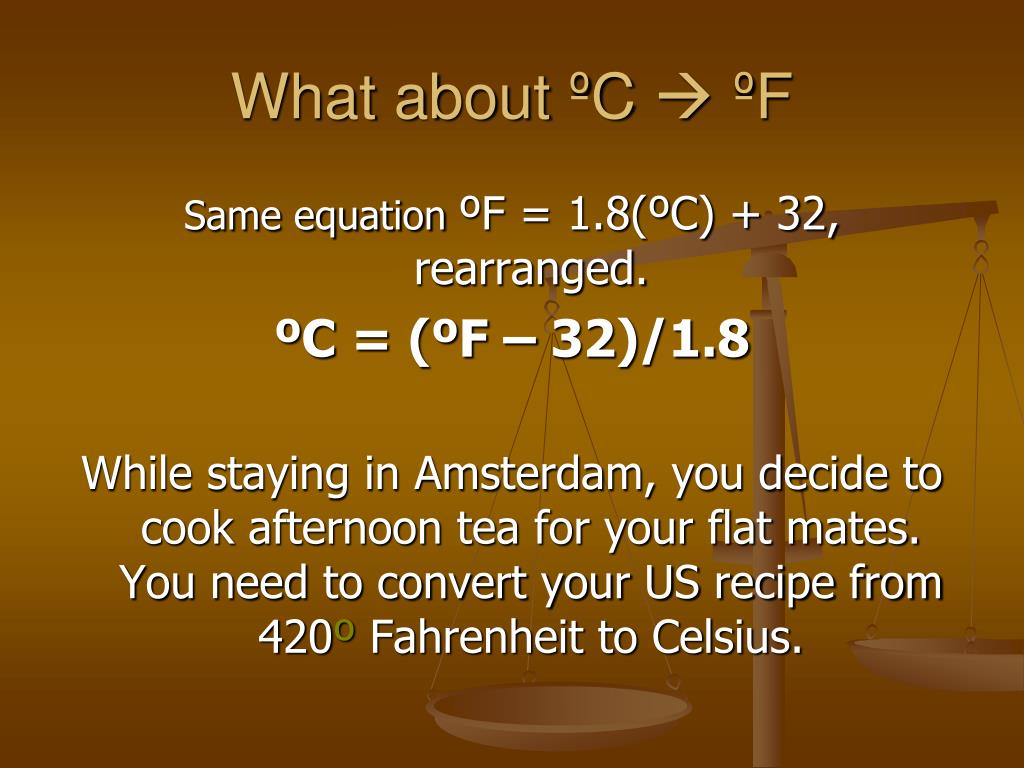

  10. What about ºC  ºF Same equation ºF = 1.8(ºC) + 32, rearranged. ºC = (ºF – 32)/1.8 While staying in Amsterdam, you decide to cook afternoon tea for your flat mates. You need to convert your US recipe from 420º Fahrenheit to Celsius.

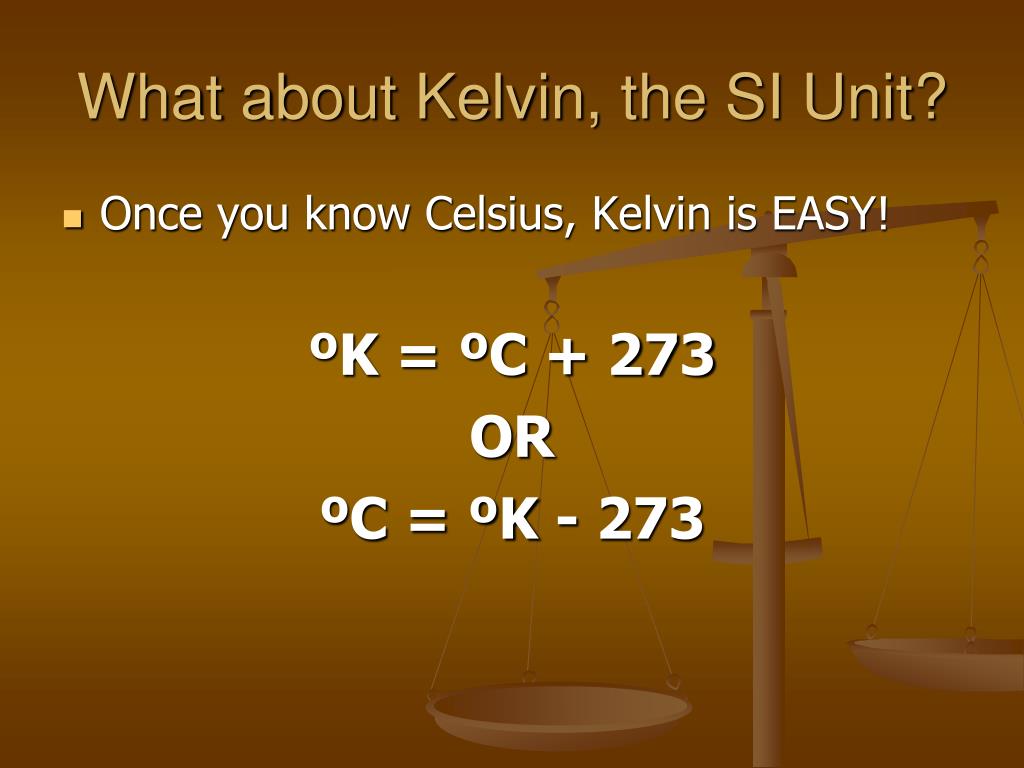

  11. What about Kelvin, the SI Unit? • Once you know Celsius, Kelvin is EASY! ºK = ºC + 273 OR ºC = ºK - 273

  12. SI Base Units • Quantity - mole • Symbol in equations - n • Unit - mole • Abbreviation - mol

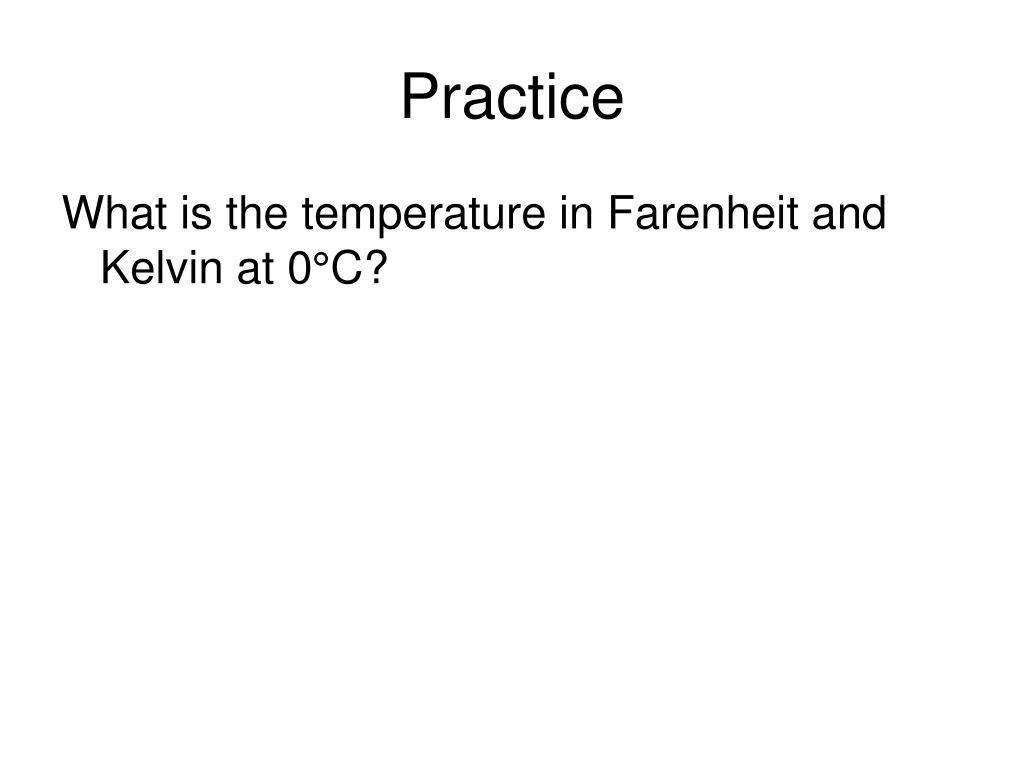

  13. Practice What is the temperature in Farenheit and Kelvin at 0°C?

  14. King Henry Died Monday Drinking Chocolate Milk Kilo- Hecto- Deka- <Meters> Deci- Centi- Milli- Prefixes

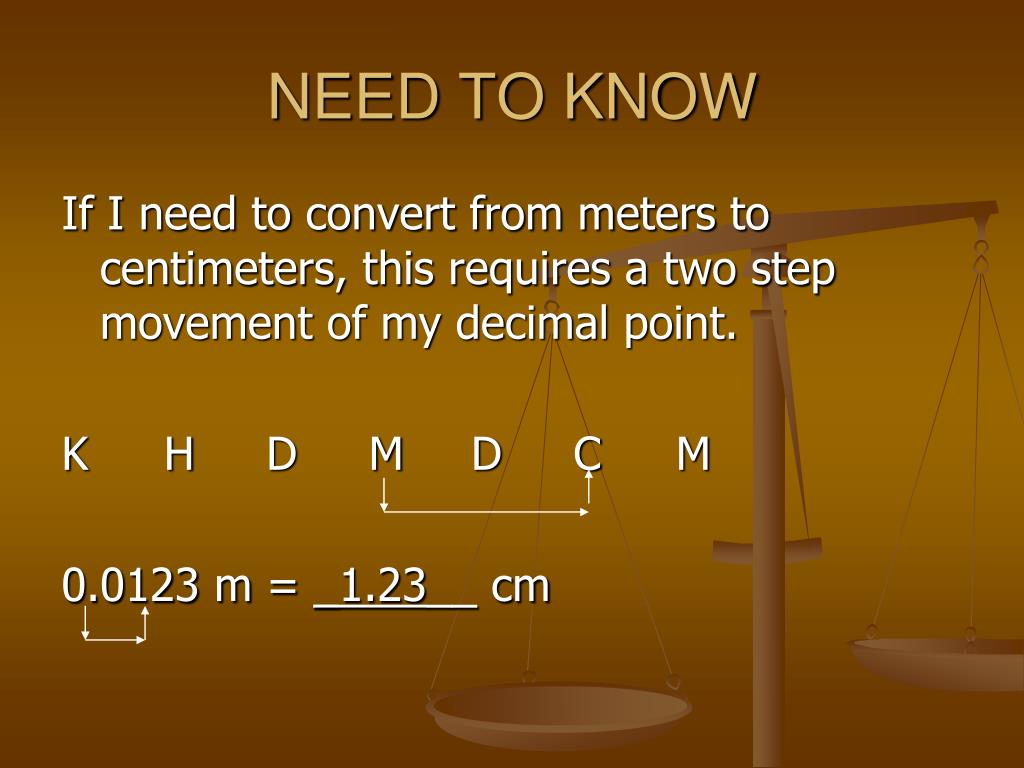

  15. NEED TO KNOW If I need to convert from meters to centimeters, this requires a two step movement of my decimal point. K H D M D C M 0.0123 m = _1.23__ cm

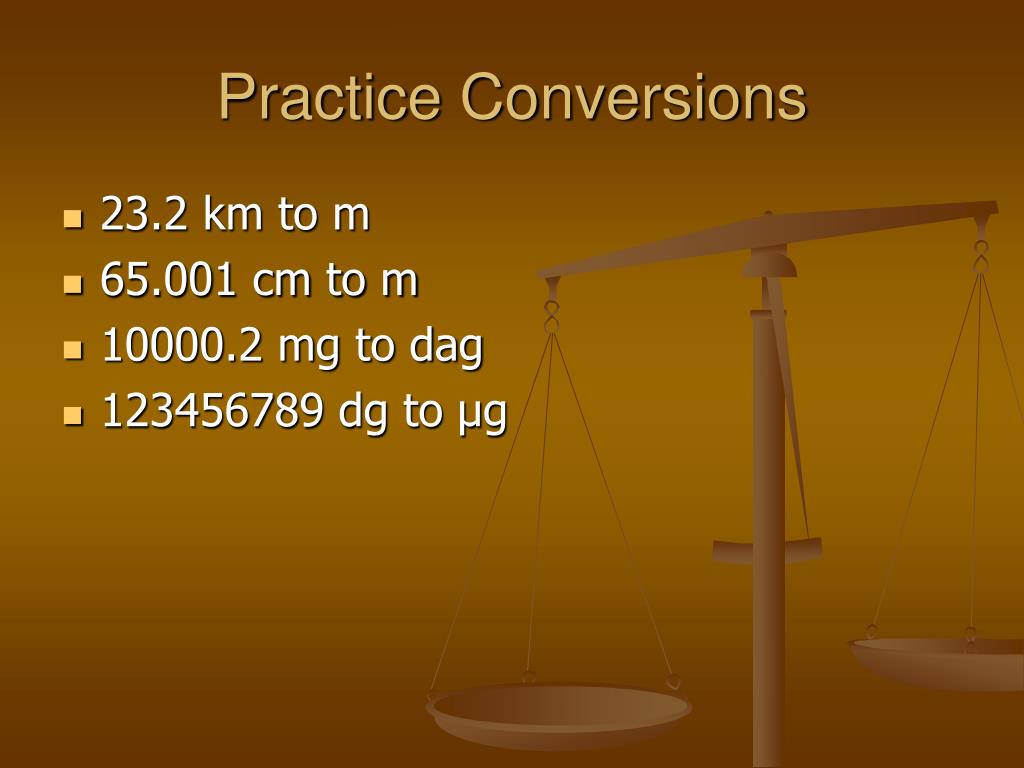

  16. Practice Conversions • 23.2 km to m • 65.001 cm to m • 10000.2 mg to dag • 123456789 dg to μg

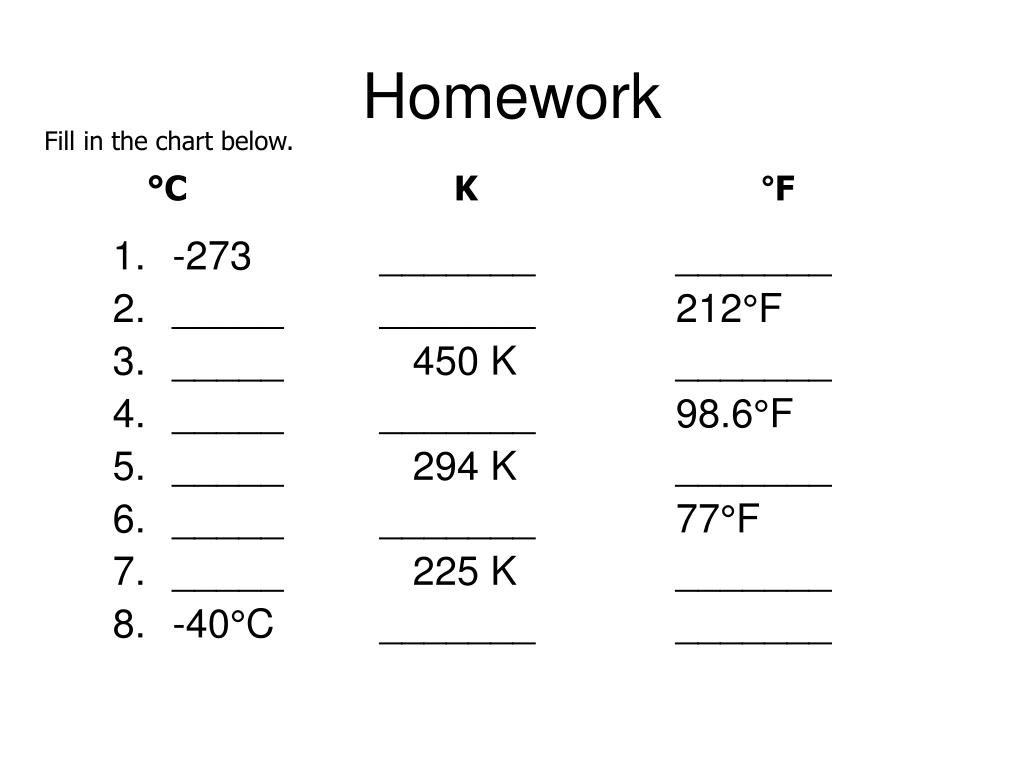

  17. Homework Fill in the chart below. °C K °F • -273 _______ _______ • _____ _______ 212°F • _____ 450 K _______ • _____ _______ 98.6°F • _____ 294 K _______ • _____ _______ 77°F • _____ 225 K _______ • -40°C _______ _______

  18. Homework Fill in the chart below. °C K °F • -273 _______ _______ • _____ _______ 212°F • _____ 450 K _______ • _____ _______ 98.6°F • _____ 294 K _______ • _____ _______ 77°F • _____ 225 K _______ • -40°C _______ _______

  19. Homework Fill in the chart below. °C K °F • -273 _______ _______ • _____ _______ 212°F • _____ 450 K _______ • _____ _______ 98.6°F • _____ 294 K _______ • _____ _______ 77°F • _____ 225 K _______ • -40°C _______ _______

  20. Homework Fill in the chart below. °C K °F • -273 _______ _______ • _____ _______ 212°F • _____ 450 K _______ • _____ _______ 98.6°F • _____ 294 K _______ • _____ _______ 77°F • _____ 225 K _______ • -40°C _______ _______

  21. Homework Fill in the chart below. °C K °F • -273 _______ _______ • _____ _______ 212°F • _____ 450 K _______ • _____ _______ 98.6°F • _____ 294 K _______ • _____ _______ 77°F • _____ 225 K _______ • -40°C _______ _______

  22. Homework Fill in the chart below. °C K °F • -273 _______ _______ • _____ _______ 212°F • _____ 450 K _______ • _____ _______ 98.6°F • _____ 294 K _______ • _____ _______ 77°F • _____ 225 K _______ • -40°C _______ _______
