  1. Status of Physics generators • QCD Models, Decay Models and Interfaces • What is already available • Fortran packages • Status of Pythia 6.1 • What will be available in “few” years from now • Transition to C++ • Development guidelines • Prospects for integration in GAUDI • Next talk (Gloria Corti)

  2. Requirements • Well assessed general purpose Q.C.D. models • Description of the event in terms of ds/dpT, ds/dh of pions, kaons, D hadrons, B hadrons etc. • Need tuning on data • Dedicated physics generators to simulate decays • Inclusive models (B semileptionic decays, B-->KX, B-->pX) • Need tuning on data • Exclusive models (ex. B-->J/yKs) • Take into account interference terms • Helicity approach • Amplitude approach • Knowledge of the probability density functions • Oscillations (?), CP violation (?) • Event Generator interfaces • Common physics inputs • Masses, charges, spins, branching ratios • Event record • Modularization of the physics generators • Input for the simulation step • Information for the analysis step

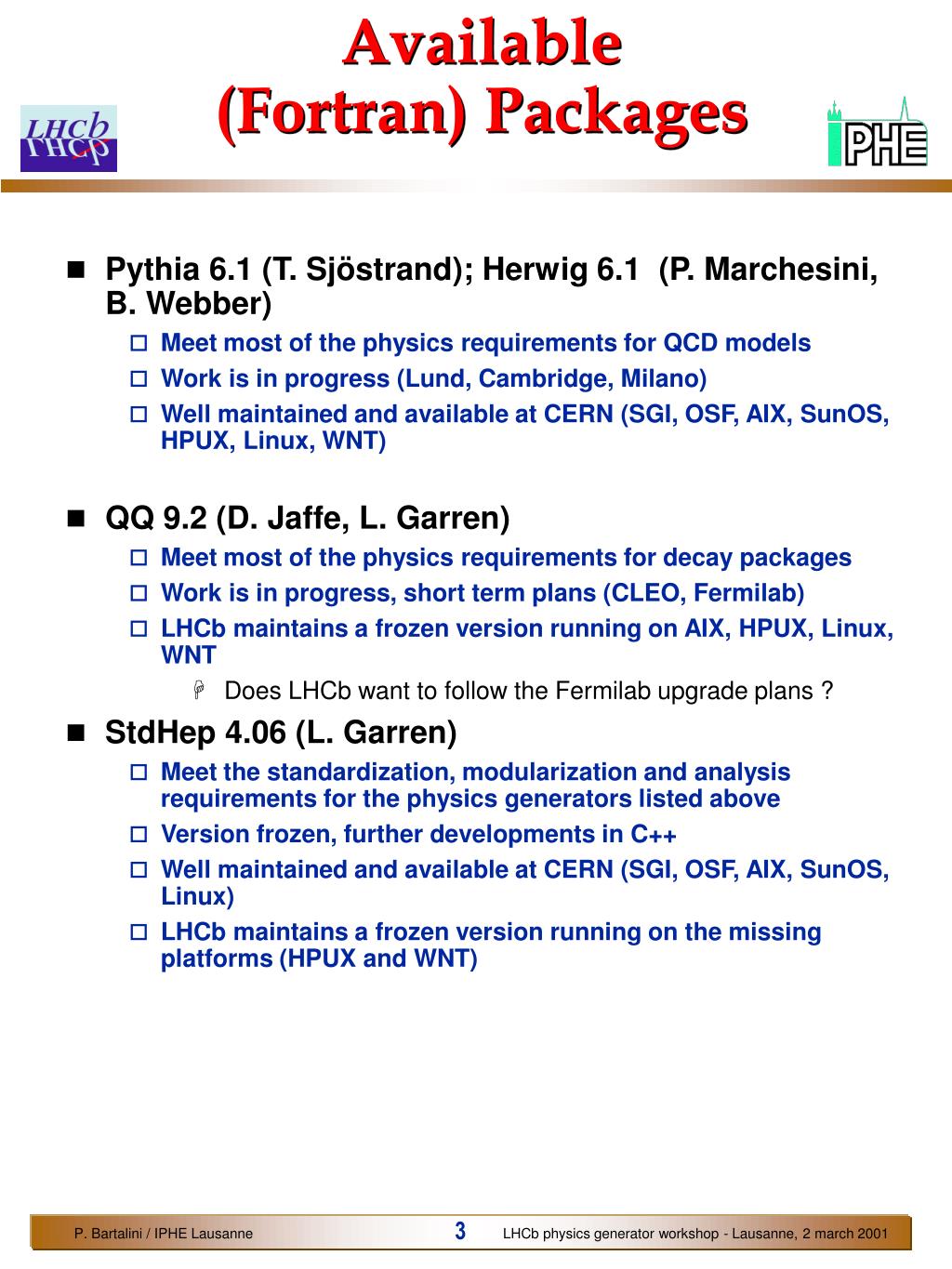

  3. Available (Fortran) Packages • Pythia 6.1 (T. Sjöstrand); Herwig 6.1 (P. Marchesini, B. Webber) • Meet most of the physics requirements for QCD models • Work is in progress (Lund, Cambridge, Milano) • Well maintained and available at CERN (SGI, OSF, AIX, SunOS, HPUX, Linux, WNT) • QQ 9.2 (D. Jaffe, L. Garren) • Meet most of the physics requirements for decay packages • Work is in progress, short term plans (CLEO, Fermilab) • LHCb maintains a frozen version running on AIX, HPUX, Linux, WNT • Does LHCb want to follow the Fermilab upgrade plans ? • StdHep 4.06 (L. Garren) • Meet the standardization, modularization and analysis requirements for the physics generators listed above • Version frozen, further developments in C++ • Well maintained and available at CERN (SGI, OSF, AIX, SunOS, Linux) • LHCb maintains a frozen version running on the missing platforms (HPUX and WNT)

  4. Status of Pythia 6.1 • Currently available Pythia 6.157 (5 february 2001) • LHCb uses Pythia 6.134 (10 October 1999) • Plans to switch soon to a more recent version • Pythia 6.1 main news (from 4 March 1997) • Jetset+Pythia+SPythia fusion • Double precision • Matching of initial and final state shower to matrix elements • New parton distribution functions • Energy dependent PT min. in multiple interactions • Published proceedings of the LHC Standard Model Workshop, B production [hep-ph 0003142] • Popcorn baryon production (optional) • Improvement of c & b prod. asymmetries (from Pythia 6.135) • Currently studied in LHCb (N.Brook, this workshop). • Interesting physics topic by itself • Need validation for most recent Pythia versions • c & b flavour excitation in mult. Int. (from Pythia 6.138) • new treatment of c & b radiation (from Pythia 6.154) • Forced Fragmentation (not available in official package) • Recently implemented by LHCb • [Presentation at the May 2000 LHCb week] • New entries in Susy, Higgs, Technicolour, Color Reconnection and  Physics. • Documentation • [hep-ph 0010017] (Pythia 6.154) • J.P.Guillaud (LAPP) “Pythia Mini-Guide”

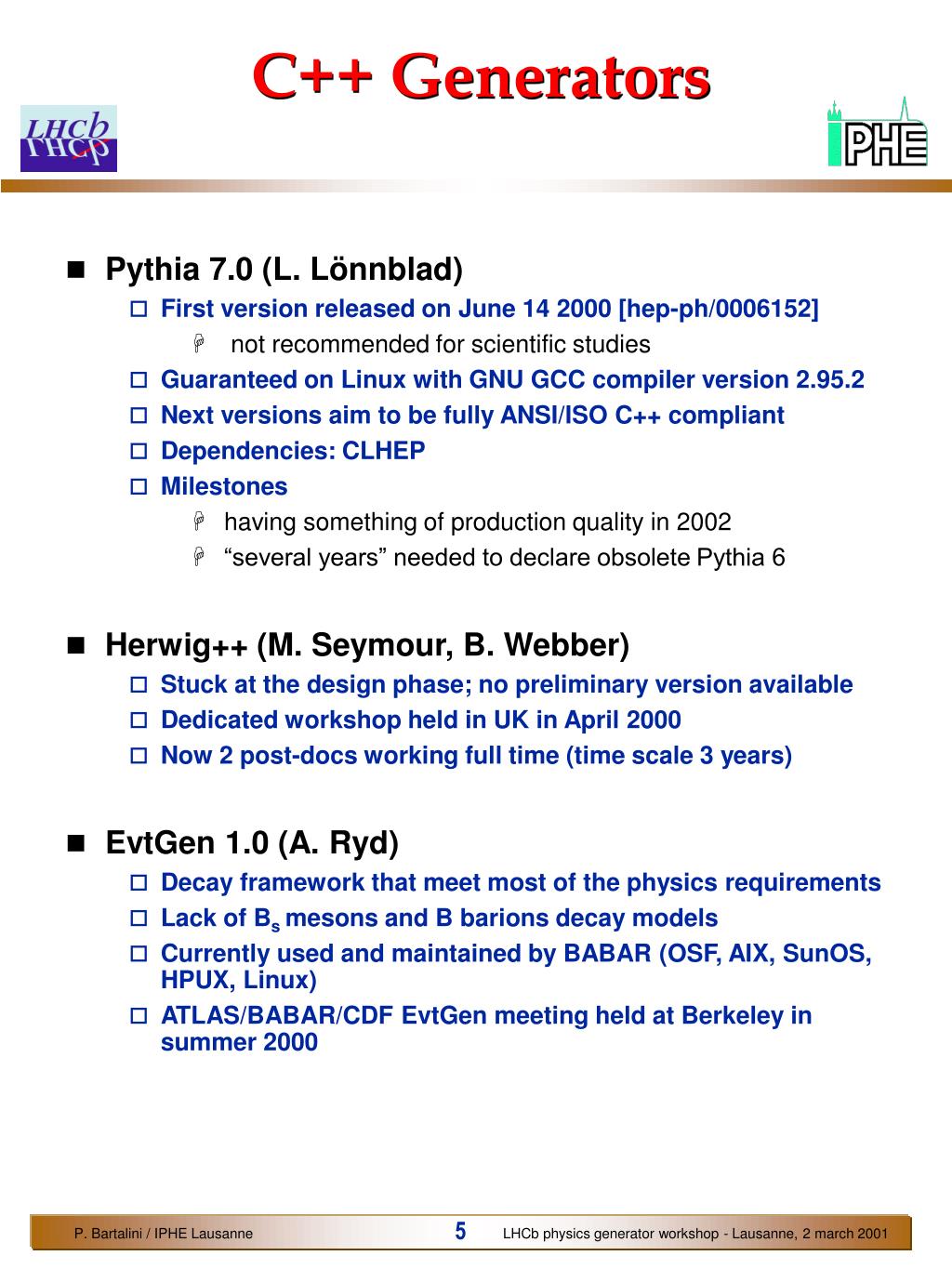

  5. C++ Generators • Pythia 7.0 (L. Lönnblad) • First version released on June 14 2000 [hep-ph/0006152] • not recommended for scientific studies • Guaranteed on Linux with GNU GCC compiler version 2.95.2 • Next versions aim to be fully ANSI/ISO C++ compliant • Dependencies: CLHEP • Milestones • having something of production quality in 2002 • “several years” needed to declare obsolete Pythia 6 • Herwig++ (M. Seymour, B. Webber) • Stuck at the design phase; no preliminary version available • Dedicated workshop held in UK in April 2000 • Now 2 post-docs working full time (time scale 3 years) • EvtGen 1.0 (A. Ryd) • Decay framework that meet most of the physics requirements • Lack of Bs mesons and B barions decay models • Currently used and maintained by BABAR (OSF, AIX, SunOS, HPUX, Linux) • ATLAS/BABAR/CDF EvtGen meeting held at Berkeley in summer 2000

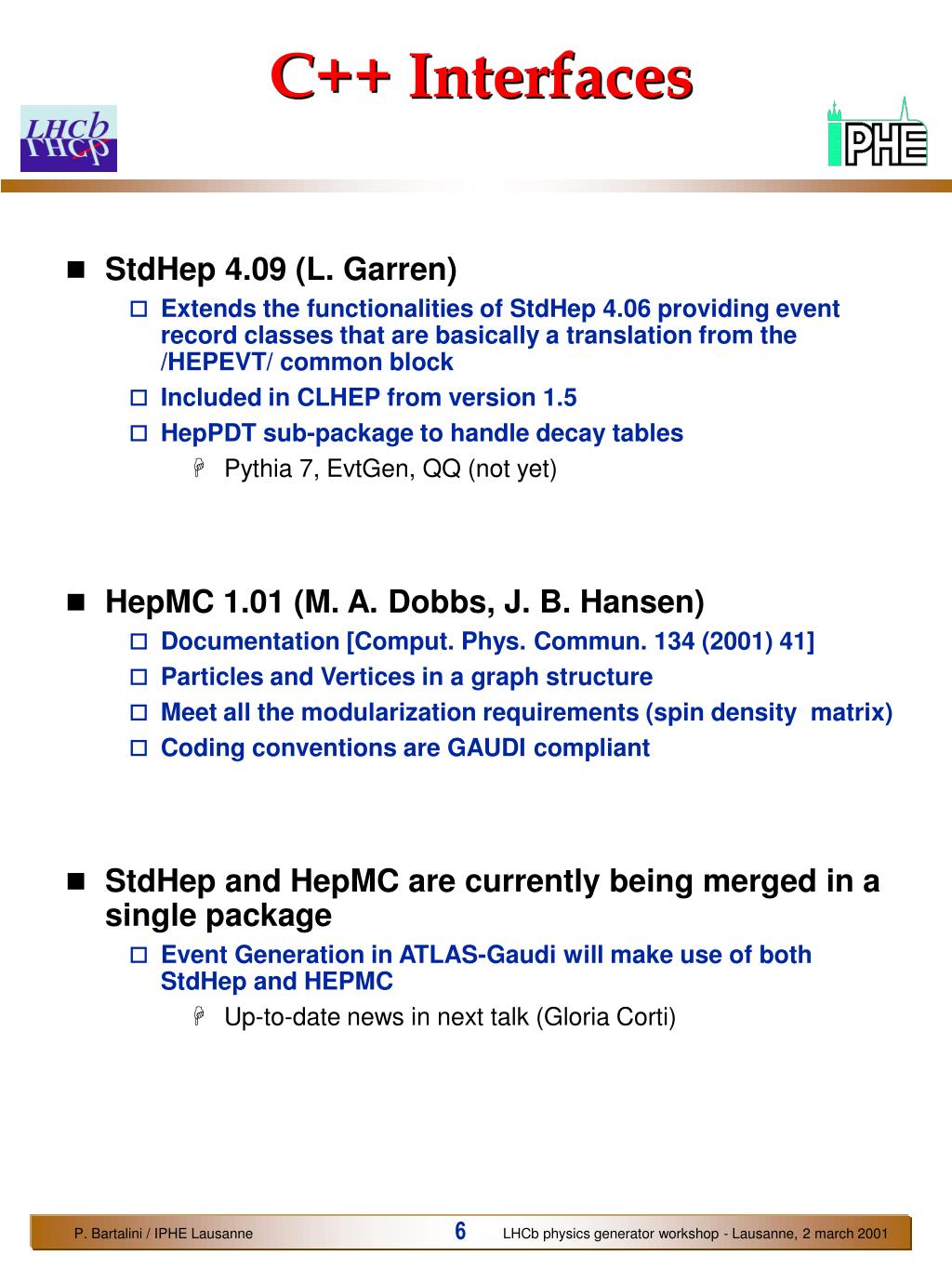

  6. C++ Interfaces • StdHep 4.09 (L. Garren) • Extends the functionalities of StdHep 4.06 providing event record classes that are basically a translation from the /HEPEVT/ common block • Included in CLHEP from version 1.5 • HepPDT sub-package to handle decay tables • Pythia 7, EvtGen, QQ (not yet) • HepMC 1.01 (M. A. Dobbs, J. B. Hansen) • Documentation [Comput. Phys. Commun. 134 (2001) 41] • Particles and Vertices in a graph structure • Meet all the modularization requirements (spin density matrix) • Coding conventions are GAUDI compliant • StdHep and HepMC are currently being merged in a single package • Event Generation in ATLAS-Gaudi will make use of both StdHep and HEPMC • Up-to-date news in next talk (Gloria Corti)

  7. Primary generation in GEANT 4 • Full primary decay chains can be specified in the generator step • GEANT 4 will only simulate the transport of particles defined as G4ParticleDefinition class objects • GEANT 4 will respect the decay channels and the center of mass kinematics simulated by the physics generator (forced decay channel) • Possible sources of problems • Tracking of particles which are not defined as G4ParticleDefinition class objects • B hits in VELO detector can happen! • Forced decay channel • Oscillations (is proper decay time preserved ?)

  8. BPACK (1999-2000) • Some activity at the end of 1999 • Workshop on Standard Model Physics at the LHC • Informal meeting with Marjorie Shapiro (CDF) to discuss plans for QQ maintenance • Idea of a common effort on a B decay package • Proposal of ATLAS to collaborate also with BABAR • Access to EvtGen • Access to recent data for tuning purposes • Further meetings at CERN and in Video-conference with Fermilab and LBL • Organizational issues • Collection of physics and software requirements • EvtGen seems to be the best candidate to start with • Identification of specific tasks • Discussion in LHCb at the December 1999 LHCb week and at the physics generator mini-Workshop held in Clermont Ferrnand • From January 2000 LHCb and CMS contribute to the project just as OBSERVER

  9. BPACK (future steps) • From 2000 the BPACK acronym indicates the ideal decay package LHCb wants to have… • ATLAS, CDF and BABAR decide to concentrate on EvtGen • Meeting in Berkley in the context of the summer ATLAS week • Recent Progresses on the following subjects • Treatment of Bs Mixing • Implementation of Bs and b decays (ex. Bs --> VV) • Implementation of spin 3/2 particles • Integration with Pythia 6, StdHep and HepMC interface • Further news ??? • LHCb strategy for BPACK (What do the LHCb physics requirements imply ?) • Join ATLAS/CDF/BABAR collaboration and stay with EvtGen ? • For now It may be worth to become at least EvtGen users • Have our own project ? • Need to start as soon as possible to be ready by 2005 • Need allocation of reasonable resources and manpower • Physicists will spontaneously contribute to the channel of their interest ?
