Design of a Diversified Router: Packet Formats

Design of a Diversified Router: Packet Formats. John DeHart jdd@arl.wustl.edu http://www.arl.wustl.edu/arl. Revision History. 6/2/06 (JDD): created. Internal Packet Format. DAddr (6B). SAddr (6B). Type=802.1Q (2B). VLAN (2B). Type=Substrate (2B). Ethernet Header.

theresawatson
Télécharger la présentation

Design of a Diversified Router: Packet Formats

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

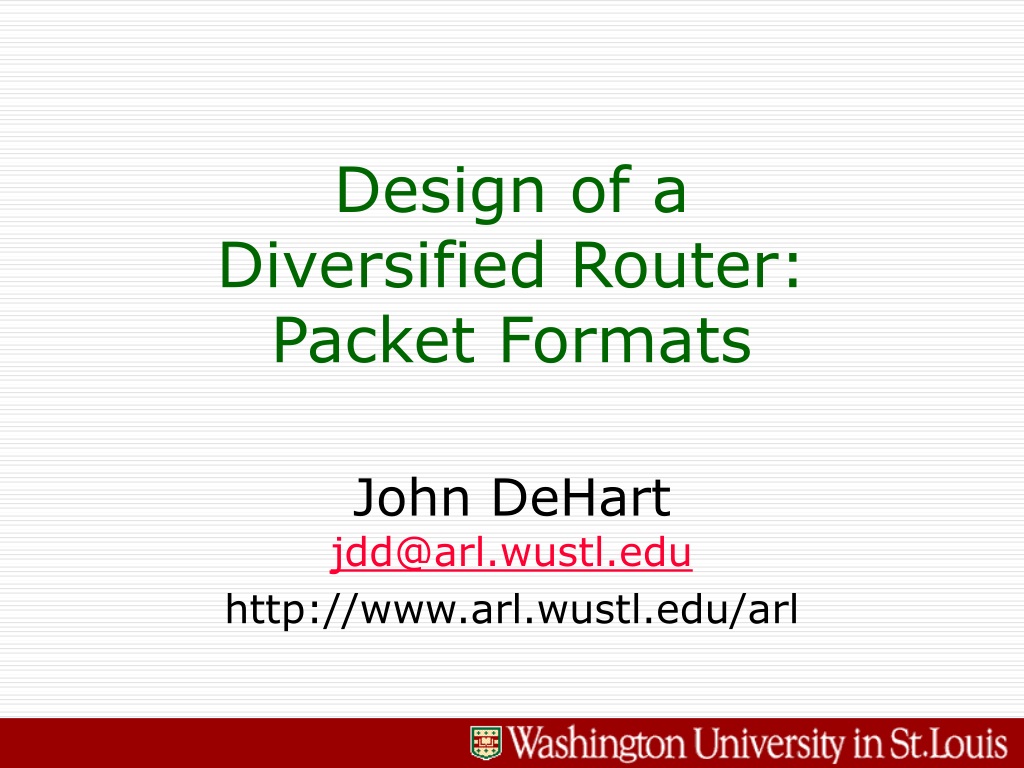

  1. Design of aDiversified Router:Packet Formats John DeHartjdd@arl.wustl.edu http://www.arl.wustl.edu/arl

  2. Revision History • 6/2/06 (JDD): • created

  3. Internal Packet Format DAddr (6B) SAddr (6B) Type=802.1Q (2B) VLAN (2B) Type=Substrate (2B) Ethernet Header Destination MPE/MI (2B) Substrate Header Source MPE/MI (2B) Shim Metanet Frame Len (2B) • MPE: Meta Processing Element • MI: Meta Interface • MetaNet Frame Length: Length of Metanet Frame in Bytes • Does not include Shim Metanet Frame (Metanet Frame Len Bytes) Flags (10b) Shim Data Length (6b) Ethernet Trailer (Pad+CRC) Shim Data (0-63B)

  4. DAddr (6B) SAddr (6B) Type=802.1Q (2B) VLAN (2B) Type=Substrate (2B) Destination MPE (2B) RxMI (2B) Metanet Frame Len (2B) Flags (10b) = 0 Shim Data Length (6b) = 0 Shim Data (0-63B) Metanet Frame (Metanet Frame Len Bytes) Ethernet Trailer (Pad+CRC) LC  MPE Internal Format LC MPE • Destination MPE: ID of receiving MPE • RxMI: Receive Meta Interface • Shim: So far, no uses of shim have been defined for LC  MPE • Flags = 0, Shim Data Length = 0  null/empty shim.

  5. DAddr (6B) SAddr (6B) Type=802.1Q (2B) VLAN (2B) Type=Substrate (2B) TxMI (2B) Source MPE (2B) Metanet Frame Len (2B) Flags (10b) Shim Data Length (6b) Shim Data (0-63B) Metanet Frame (Metanet Frame Len Bytes) Ethernet Trailer (Pad+CRC) MPE  LC Internal Format MPE LC • Source MPE: ID of sending MPE • TxMI: Transmit Meta Interface • Shim: May contain MN Address for ARP or Ethernet broadcast of multicast address

  6. DAddr (6B) SAddr (6B) Type=802.1Q (2B) VLAN (2B) Type=Substrate (2B) Destination MPE (2B) Source MPE (2B) Metanet Frame Len (2B) Flags (10b) Shim Data Length (6b) Shim Data (0-63B) Metanet Frame (Metanet Frame Len Bytes) Ethernet Trailer (Pad+CRC) MPE  MPE Internal Format MPE MPE • Destination MPE: ID of receiving MPE • Source MPE: ID of sending MPE • Shim: MR specific information, things like exception packet indicators, etc.

  7. Destination MPE (2B) RxMI (2B) Metanet Frame Len (2B) Flags (10b) Shim Data Length (6b) Shim Data (0-63B) Metanet Frame (Metanet Frame Len Bytes) Pkt Format Delivered by Substrate to MPE • In a shared NPU case: • MR will not receive the Ethernet header • Destination MPE should be id of MR MPE receiving packet

  8. Extra • The next set of slides are for templates or extra information if needed
