  1. AP SensingFiber Optic Temperature Sensing

  2. AP Sensing: Company History • 1939: Hewlett-Packard originates as a test and measurement company • 1999: HP’s measurement business is spun off creating Agilent Technologies • 2007: Agilent’s DTS business is spun off creating AP Sensing

  3. AP Sensing’s Locations Together with our global partners, AP Sensing is active around the world. Our partners and customers are supported by our regional offices located in: • Dallas, USA • Reading, UK • Boeblingen, Germany (HQ) • Shanghai, China • Seoul, Korea (AP Technologies) HQ - Boeblingen Dallas UK Shanghai Seoul

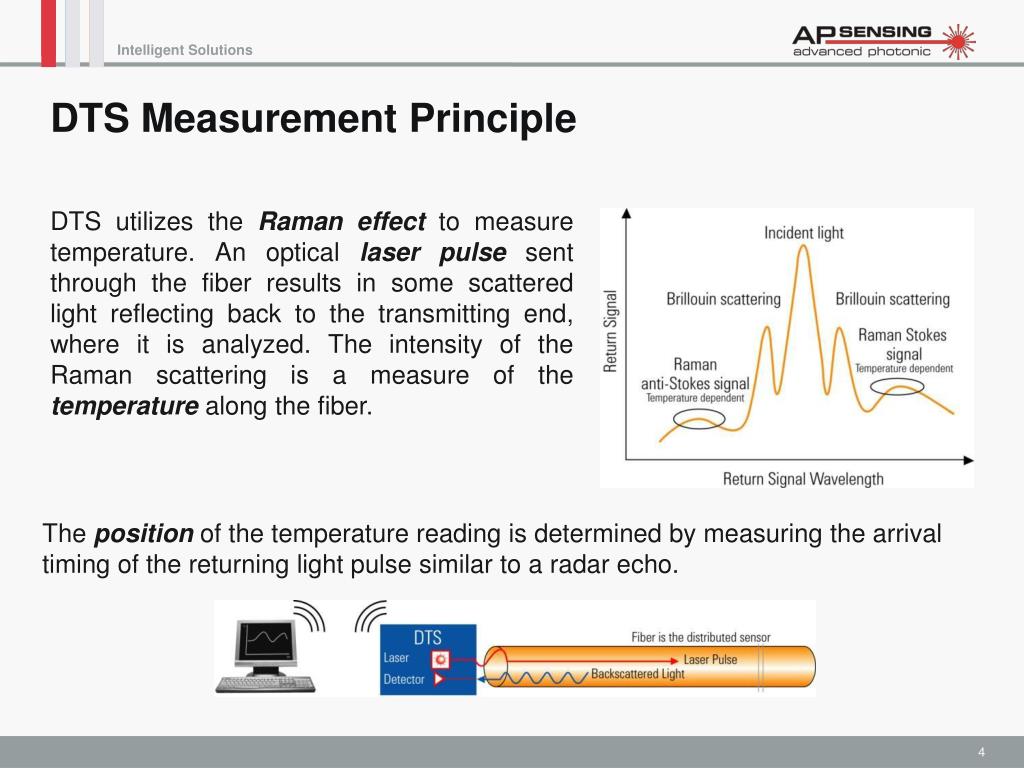

  4. DTS Measurement Principle DTS utilizes the Raman effect to measure temperature. An optical laser pulse sent through the fiber results in some scattered light reflecting back to the transmitting end, where it is analyzed. The intensity of the Raman scattering is a measure of the temperature along the fiber. The position of the temperature reading is determined by measuring the arrival timing of the returning light pulse similar to a radar echo.

  5. 1 Cabel = 1000th of Temperatur Points • Spatial Resolution of 1m • Up to 12km = 12.000 Temperatur Points • With an accuracy of up to 0.1°C • Temperature over Distance & Time • Simple Analysis

  6. Distributed Temperature Sensing Power Cable Monitoring Fire Detection & Monitoring Measurement and Calculation of Conductor Temperatures in HV and EHV Power Cables to Increase Safe Operation with Enhanced Capacity. Cutting Edge Linear Heat Detection to Protect Traffic Tunnels , Cable Trays and Special Hazard Applications. Oil & Gas / Geo & Hydrology Industrial Optimization of Oil & Gas Production Wells through Smart Temperature Monitoring. Hydrology and Geophysical applications to understand water flow and other geophysical effects. Extreme Wide Range of Applications that Improve Safety and Efficient Control of Pipelines, Dykes , Dams and LNG Facilities.

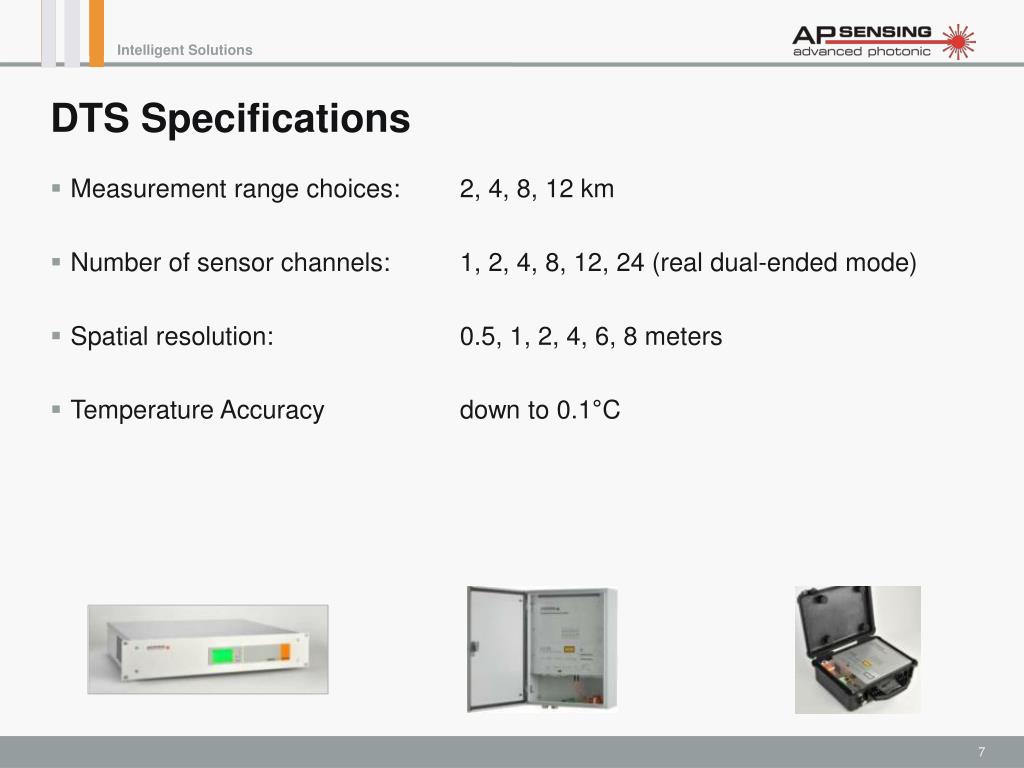

  7. DTS Specifications • Measurement range choices: 2, 4, 8, 12 km • Number of sensor channels: 1, 2, 4, 8, 12, 24 (real dual-ended mode) • Spatial resolution: 0.5, 1, 2, 4, 6, 8 meters • Temperature Accuracy down to 0.1°C

  8. Sensor Fiber Characteristics • Simple fiber optic cable • Flexible, light and easy to install • Mechanically robust • Completely passive • Long lifespan • Maintenance free

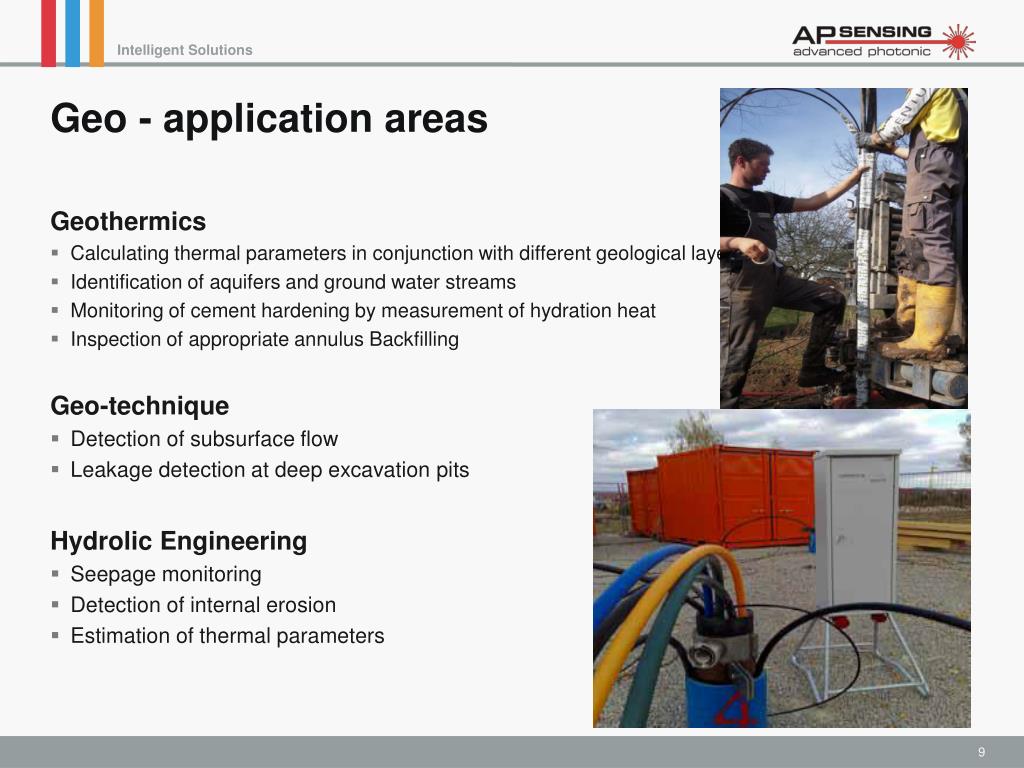

  9. Geo - application areas Geothermics • Calculating thermal parameters in conjunction with different geological layers • Identification of aquifers and ground water streams • Monitoring of cement hardening by measurement of hydration heat • Inspection of appropriate annulus Backfilling Geo-technique • Detection of subsurface flow • Leakage detection at deep excavation pits Hydrolic Engineering • Seepage monitoring • Detection of internal erosion • Estimation of thermal parameters

  10. EGRT – Enhanced Geothermal Response Test

  11. Customer References AP Sensing has hundreds of satisfied customers worldwide!

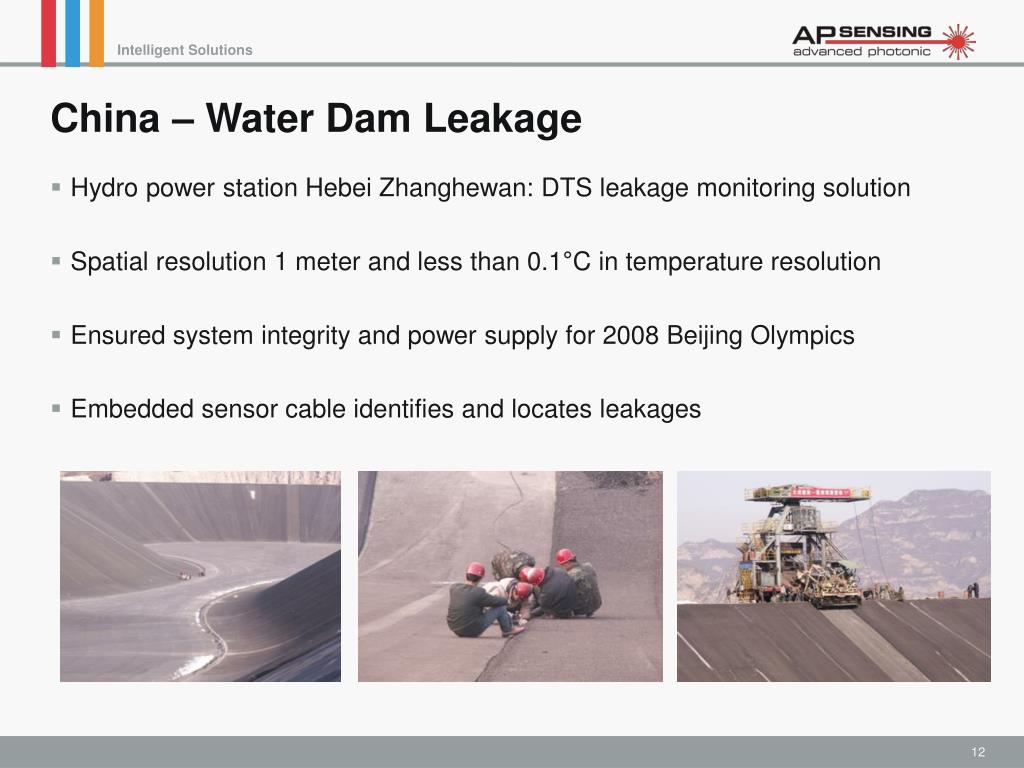

  12. China – Water Dam Leakage • Hydro power station HebeiZhanghewan: DTS leakage monitoring solution • Spatial resolution 1 meter and less than 0.1°C in temperature resolution • Ensured system integrity and power supply for 2008 Beijing Olympics • Embedded sensor cable identifies and locates leakages

  13. Germany – Brine Pipeline Leakage 8 km pipeline • The Linear Pro Series detects leakages down to 0.5 liters/minute (0.007 %), at a very small temperature difference of 5 °C between liquid and ambient temperature. • Sensor cable is installed beneath the pipeline over its entire length • Brine temperature 15 to 20 °C • 450 mm HDPE pipe, installed 1 m below surface

  14. Reference Projects – Fire Detection Eurotunnel GB - FRA Coal Mine Car park Europort II Coal Power Plant Italy Massino Visconti Road tunnel Tunnel Tests Norway, Sweden Coal storage Spain Airport Hong-Kong

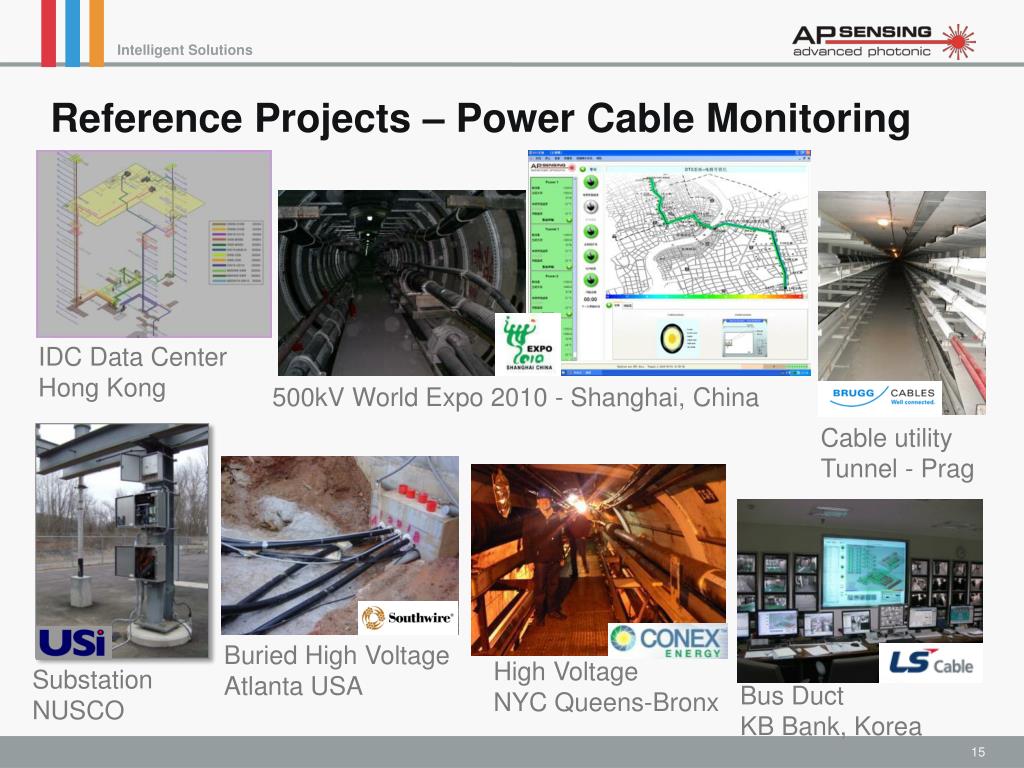

  15. Reference Projects – Power Cable Monitoring IDC Data Center Hong Kong 500kV World Expo 2010 - Shanghai, China Cable utility Tunnel - Prag Buried High Voltage Atlanta USA High Voltage NYC Queens-Bronx Substation NUSCO Bus Duct KB Bank, Korea

  16. Reference Projects – Oil & Gas / Hydrology Glacier – melting point Monitoring Matterhorn See temperature 1cm resolution Lake Geneva Down Hole Oil Well Oregon State University Geology / Hydrology Workshop Water dam China Leakage detection Köln Stadtarchiv Geohydrologie

  17. We seek for Partners, which … Have experience and customer reach in the following markets: • Geothermie • Geotechnic • Damms & Diches • …

  18. Thanks

  19. GeoDTS • The GeoDTS is a highly specialized system to conduct Enhanced Geothermal Response Tests (EGRT) automatically. • The system can be configured to run a fully automated measurement cycle and collect all the required data on a SD Card for easy transfer to a PC. • After the data has been transferred to the PC the data is analyzed and a report is easily generated by just a few clicks..

  20. Anwendungsbereiche Hydrologische & Geologische Forschung Wasserströmungen oder Gletscherschmelzungen zu verstehen und zu analysieren ist wichtig für die Wissenschaft. Die ortsverteilte Temperaturmessung (DTS) bringt neue Möglichkeiten, diese Naturvorgänge zu erkennen und zu bewerten. Mit einem vielfältigen Lösungsangebot erfüllt AP Sensing die Anforderungen der Wissenschaft, um den Zustand von Deichen und Dämmen zu überwachen sowie Leckagen und Wasserströmungen zu erkennen und zu analysieren. Geothermal Response Tests (GRT, EGRT) Der klassische Geothermal Response Test (GRT) ist eine weit verbreitete Methode zur Bestimmung der effektiven Wärmeleitfähigkeit des Bodens. Mit dem Enhanced Geothermal Response Test (EGRT) jedoch werden die geothermischen Parameter experimentell über die ganze Tiefe (oder Länge) des fertig eingebauten Wärmetauschersystems in-situ bestimmt. Mit der AP Sensing GeoDTS Technologie wird die Temperatur entlang der Erdwärmesonde an jedem Ort und zu jeder Zeit exakt gemessen, was die Bestimmung der thermischen Parameter in Abhängigkeit von der Bohrlochtiefe erlaubt. Leckagedetektion, Versickerungsüberwachung, Ermittlung von Grundwasserströmen Geothermie • Bestimmung der thermischen Parameter in Verbindung mit den verschiedenen geologischen Schichten • Erkennung von wasserführenden Schichten und Grundwasserströmen • Überwachung von Zementaushärtungen durch Messung der Hydratationswärme • Kontrolle der Dichtigkeit von Ringraumverfüllungen Geotechnik • Detektion unterirdischer Ströme • Leckagedetektion in tiefen Baugruben Hydrologie • Versickerungsanalysen • Erkennung innerer Abtragungen • Bewertung thermischer Parameter

  21. GeoDTS GeoDTS für Geothermal Response Tests (GRT), Versickerungsanalysen, Deiche und Dämme • Mit dem einzigartigen GeoDTS System speziell für die Geologie und Hydrologie bietet AP Sensing ein integriertes Lösungspaket für verschiedene Anwendungszwecke an, wie zum Beispiel • Enhanced Geothermal Response Tests - Geothermie • Überwachung von Grundwasserströmen - Dämme & Deiche • Leckageerkennung - Geotechnik • AP SensingsGeoDTS ermöglicht Messungen mit einer Ortsauflösung von 1 Meter und einer Messgenaugikeit von über 0,1°C und liefert damit tausende Temperaturdaten in einem einzigen Messzyklus. Das Messprinzip des GeoDTS AP SensingsGeoDTS schaltet automatisch Spannung auf den Leiter im LWL-Kabel, sodass eine definierte Heizleistung in den Boden geführt wird. Die daraus resultierende Veränderung des Temperaturprofils entlang der optischen Faser wird durch das GeoDTS gleichzeitig gemessen und aufgezeichnet. Der gesamte Aufheiz- und Messvorgang wird durch das GeoDTS kontrolliert – starten Sie einfach das Messprogramm! Das GeoDTS führt dann selbstständig die Messung und das Heizprogramm durch. Außerdem überwacht das GeoDTS die zur Aufheizung des LWL-Kabels benötigte Stromspannung und -stärke und kann zwei externen analoge Temperatursensoren registrieren.Jedes Gerät von AP SensingsGeoDTS-Serie wird mit einer Konfigurations- und Auswertesoftware für den PC ausgeliefert. Dieses leistungsfähige aber doch einfach zu bedienende Softwarepaket ermöglicht Ihnen nicht nur Ihre Messung zu konfigurieren und zu visualisieren, sondern berechnet auch wichtige Parameter wie die thermische Leitfähigkeit des Bodens als Ergebnis der durchgeführten Messung. Die Messdaten werden automatisch auf einer SD-Karte gespeichert, sobald der Messzyklus gestartet wurde. Nach Abschluss der Messung stecken Sie einfach die SD-Karte in Ihren Computer und Sie erhalten mit wenigen Klicks eine umfassende Analyse. Merkmale der Software (EGRT, Versickerungsanalysen und Leckagedetektion) • Visualisierung der Messdaten • Berechnung der effektiven Leitfähigkeit entlang der Erdwärmesonde im gesamten Bohrloch • Berechnung des thermischen Widerstands des Bohrlochs abhängig von der Bohrlochtiefe • Anzeigen der absoluten Bodentemperatur • Anzeigen der erhitzten Bodentemperatur zu bestimmten Zeitpunkten zur Identifikation von Grundwasserleiter • Berichtserstellung

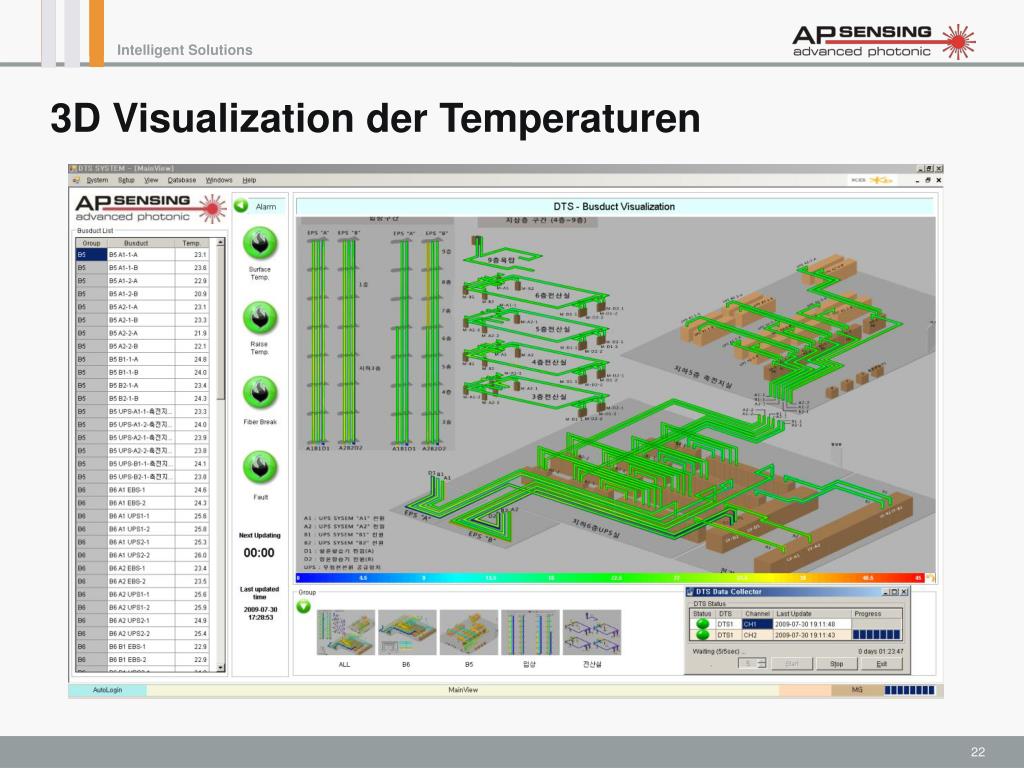

  22. 3D Visualization derTemperaturen

  23. Hybrid Cable - Installation • The cables are deployed with the tubes of the ground-coupled heat exchanger. At least half the length of the cable must be unrolled on site, in order to fix exactly the middle of the cable length to the bottom of the U-tubes. • Running meter marks are printed on the cable in order to identify the proper cable position (half the length). • At the bottom of the ground-coupled heat exchanger, the cable should be taped to the tubes with a smooth bend, as shown

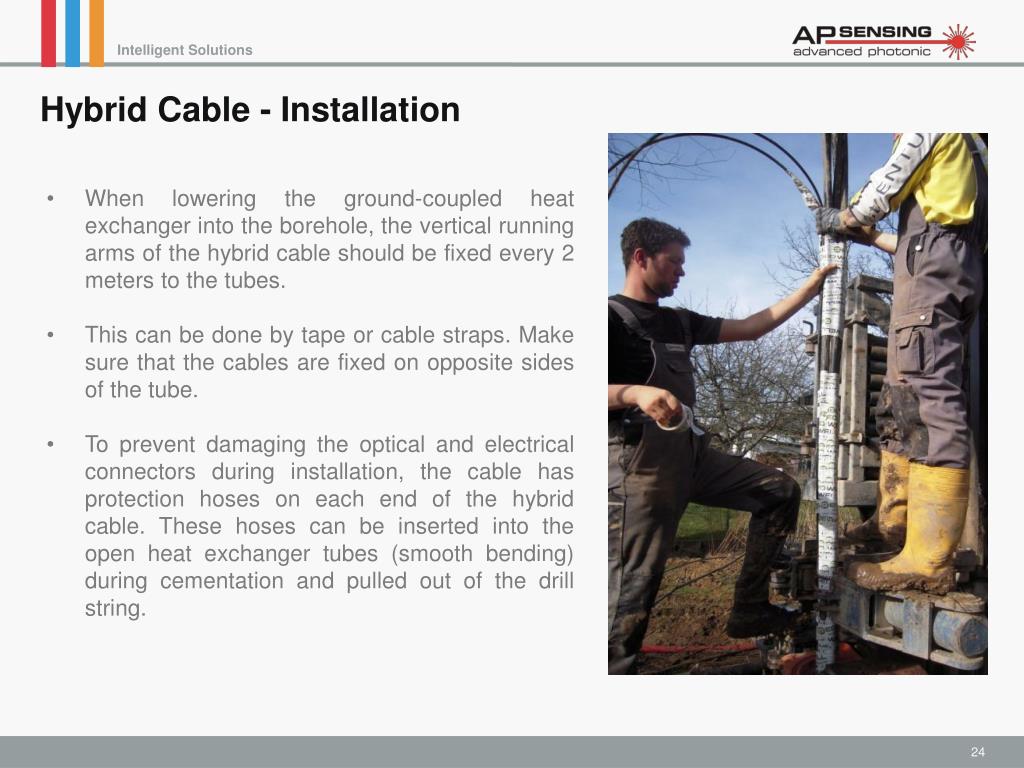

  24. Hybrid Cable - Installation • When lowering the ground-coupled heat exchanger into the borehole, the vertical running arms of the hybrid cable should be fixed every 2 meters to the tubes.   • This can be done by tape or cable straps. Make sure that the cables are fixed on opposite sides of the tube. • To prevent damaging the optical and electrical connectors during installation, the cable has protection hoses on each end of the hybrid cable. These hoses can be inserted into the open heat exchanger tubes (smooth bending) during cementation and pulled out of the drill string.
