  1. Delta PLC AH500 Series for High-End Automation System Applications Automation for a Changing World

  2. Product Concept • AH: Automation System for High-level Applications

  3. System Features High Performance • Dual-Core Processor Design • Operation Speed = 300 ns @ 1k steps • Program Memory Capacity = 256k Steps (1MB) • Max. DIO Points = 4,096+128,000 Points • Max. AIO Channels = 512+4,000 Channels

  4. System Features Local Extension • Extending easily for different requirements and applications. • Longer distance, and with no additional extension modules required. Main Max. 8 racks Max. 100m between 2 racks

  5. System Features Remote Extension • AH500 offers flexible remote I/O solution. • Modules have universal design for local & remote extension structure. This helps on module selection and spare parts cost. Device Net RIO Bus 63 panels RTU #2 RTU #1 Master Up to 8 remote master modules (10DNET) per CPU. Up to 63 remote terminal unit (RTU) modules per master. E7 E7 E7

  6. System Features Integrated Design AH500 CPU is designed with: • Mini-USB • Ethernet • Build-in RS-232/422/485 • SD Card (compatible with SD v1.0)

  7. System Features Module Type AH500 offers many functional modules for users’ requirements. • Standard： DI, DO, AI, AO, and Temperature Modules • Communication： Ethernet, DeviceNet, RTU, and SCM Modules • Motion： PM (Pulse) andMC (DMCNET) Modules

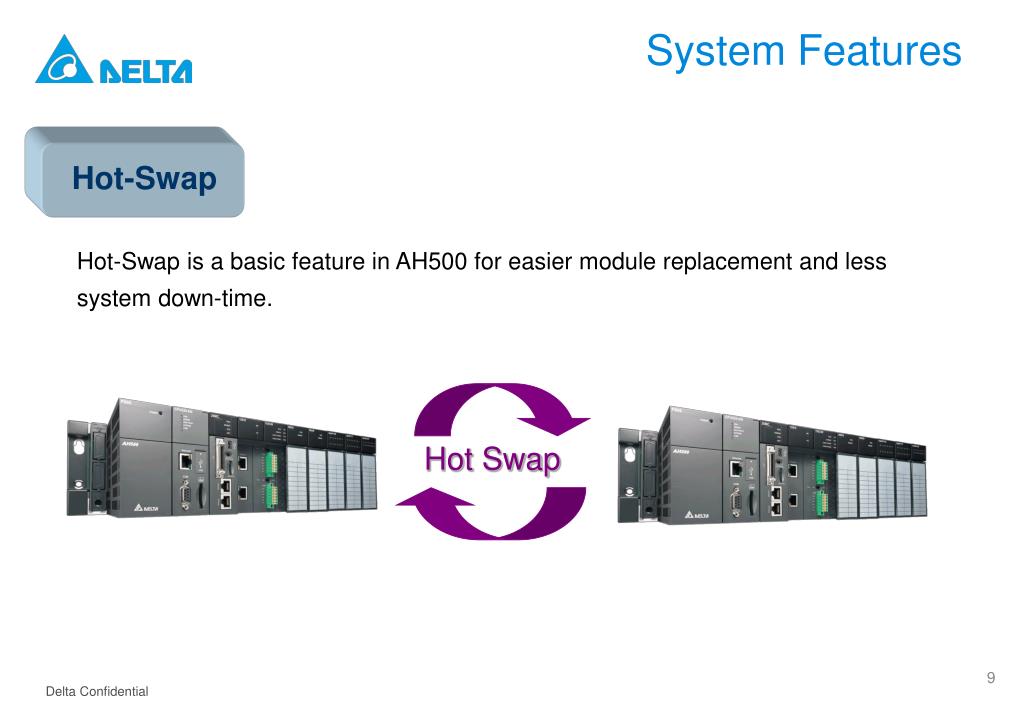

  8. System Features Hot-Swap Hot-Swap is a basic feature in AH500 for easier module replacement and less system down-time. Hot Swap

  9. Software Features Integration New version of ISPSoft includes HWCONFIG and NWCONFIG components. COMMGR (Communication manager for PC) ISPSoft (programming tool) NWCONFIG (Network configure tool) PLC Link Ether Link HWCONFIG (Hardware configure tool)

  10. Software Features 5 Languages New version of ISPSoft supports LD, FBD, SFC, IL, and ST ISPSoft ST LD FBD IL SFC

  11. Software Features FB ENO EN Out1 In1 In2 Out2 In3 Function Block New version of ISPSoft supports function blockobject. • Sub-function design for smaller compiled code size • Variables can be transferred (called) by value or by address • FB can be called in FB for 32 stack layers FB benefits • Less programming time • Easy-to-read • Smaller compiled code size Up to 32 stack layers

  12. Software Features HWCONFIG Diagnostics Module configuration Module Information Drag & Drop

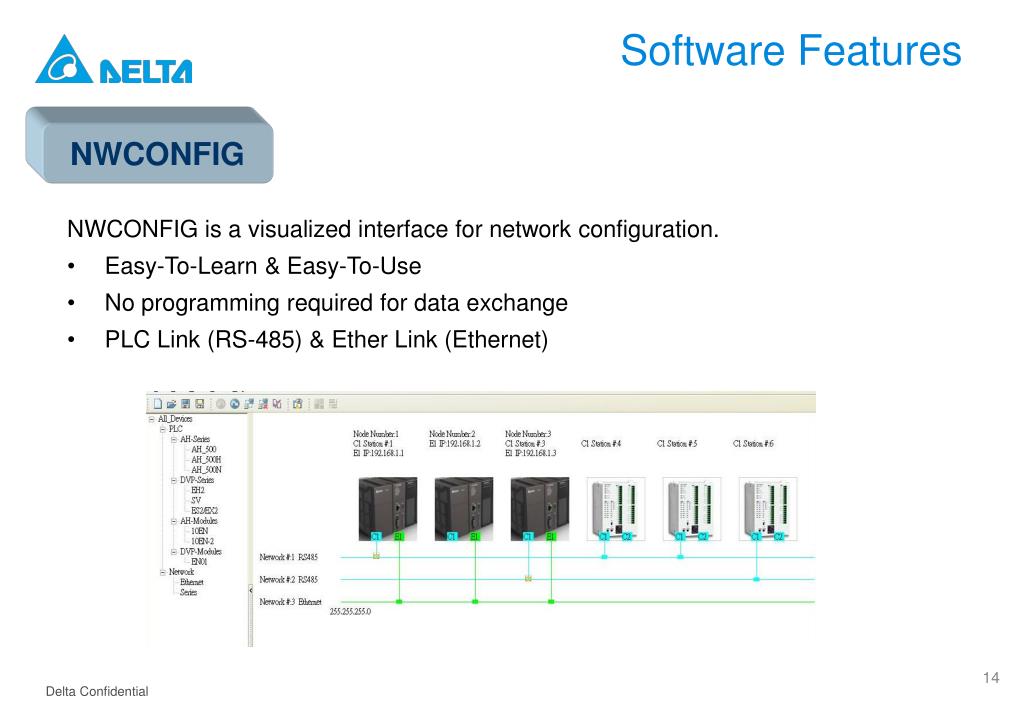

  13. Software Features NWCONFIG NWCONFIG is a visualized interface for network configuration. • Easy-To-Learn & Easy-To-Use • No programming required for data exchange • PLC Link (RS-485) & Ether Link (Ethernet)

  14. Ordering Information CPU/Backplane/Power

  15. Ordering Information Digital I/O

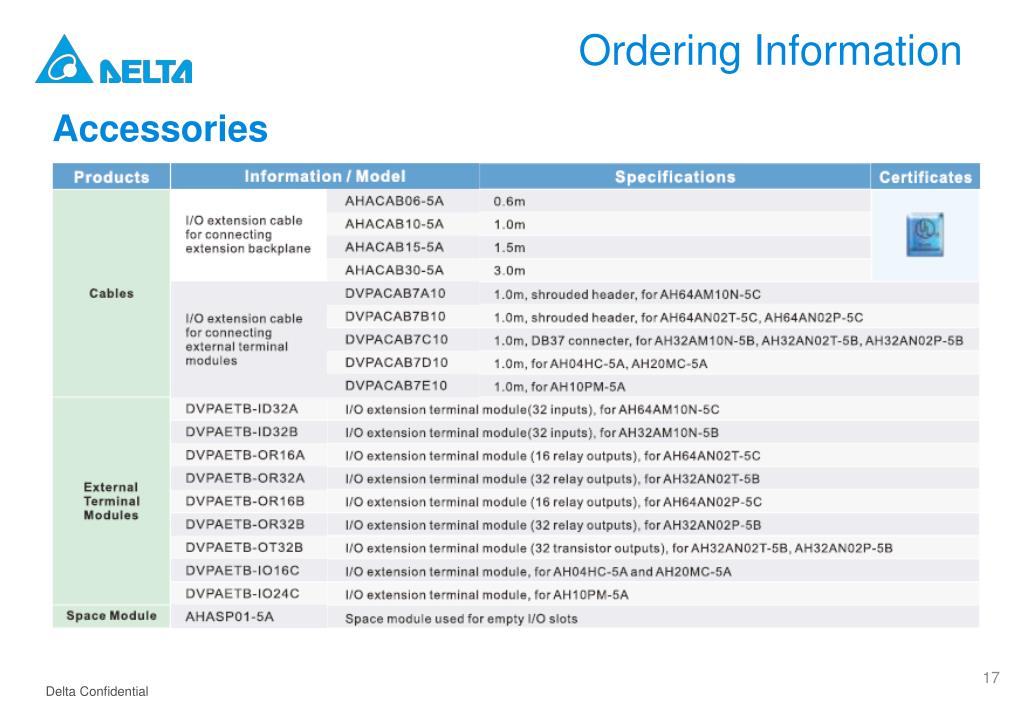

  16. Ordering Information Accessories

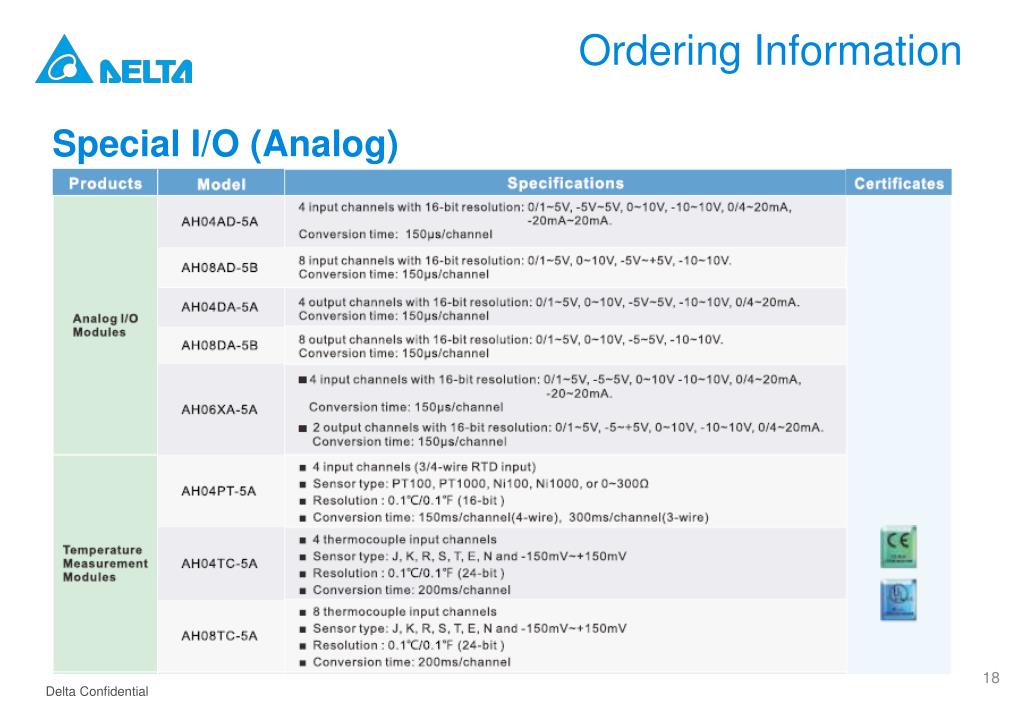

  17. Ordering Information Special I/O (Analog)

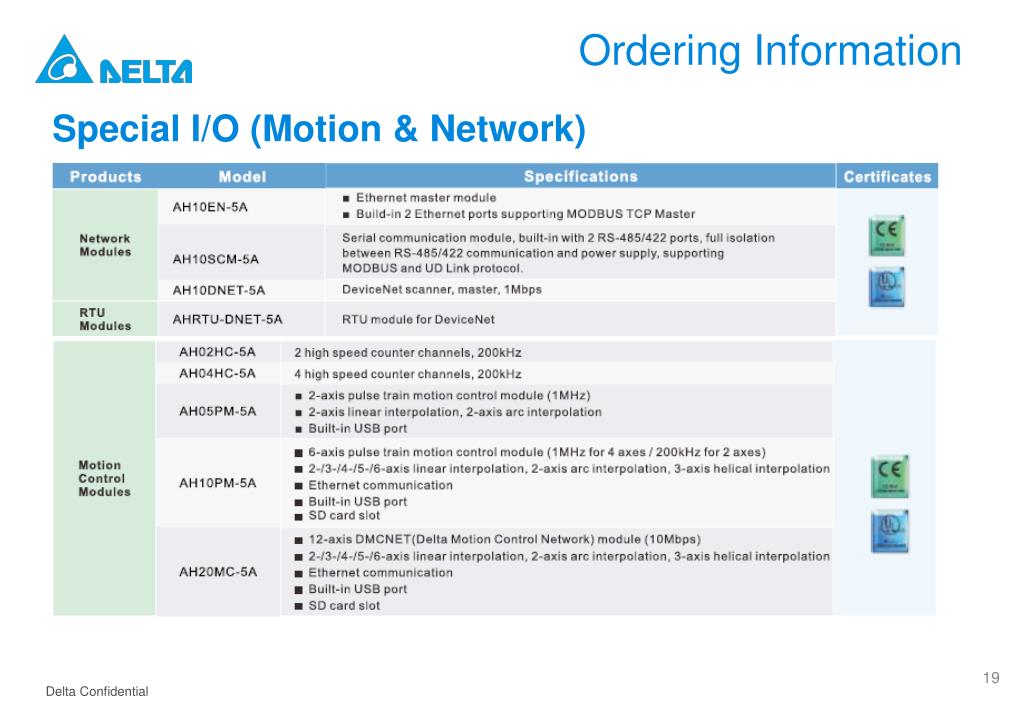

  18. Ordering Information Special I/O (Motion & Network)

  19. Delta PLC AH500 Series To learn more about Delta, please visit www.deltaww.com.
