  1. Industrial-SwitchProfi Line Modular MICROSENS GmbH & Co. KG

  2. Industrial solutions • ApplicationLevels CWDM / DWDMPlatform Modular Access Platform Fiber to the Office Industrial Ethernet

  3. Industrial Ethernet General requirements: Enviroment: • Harsh conditions • High level of EMI • Limited access • Long distances betwen locations Telecomunication system: • Integration of different services • Redundancy, efficiency, reliability • Cost effective and easy upgrade • Future-proof concept • Advanced management

  4. Industrial solutions 10 Port Gigabit Ethernet Ring-Switch • Redundanthighperformance Gigabit Ring forFault Tolerant Networks • Compliance to: IEC 61850-3 2002, IEEE 1613:2003, IEC 60870-2-2:1 • Extended Temperature Range-40 °C to +75 °C • 1x 10/100/1000Base-T • 7x 10/100Base-TX • 3 SFP uplinks • 24 VDC input, redundant • Optional PoE IEEE802.3af (48 VDC)

  5. Industrial solutions Fault tolerant Ethernet Ring – how does it work? • Enable Ring functionality on all switches • Choose the same Ring no. • Define all swtiches as slaves • Choose Master • Physically close the Ring

  6. Industrial solutions Redundant ring coupling

  7. Industrial solutions 10 Port Gigabit Ethernet Ring-Switch • Ring, Dual Ring, Redundat RingCoupling • IGMP Snooping • IEEE 802.1p QoS • Authentication with IEEE 802.1x • VLAN with IEEE 802.1Q • CDP, LLDP • Port Access Control • RapidSpanningTree • Telnetand web based management • DHCP option 82

  8. Industrial solutions Application specific standards Power Stations IEC 61000-6-5, IEEE 1613, IEC 61850-3 Immunity for power station and substation environments Railways EN 50121-4, EN 50125-3 Emission and immunity of the signaling and telecommunications apparatus Chemical/Mining Industry EN 50020 Electrical apparatus for potentially explosive atmospheres - Intrinsic safety "i"

  9. Industrial solutions DIN Rail Industrial Power Supplies • Compliance to IEC 61850 -3, IEEE 1613, EN50121-4:2006, EN50125-3:2003 • Extremecompactchassis, IP20 • Highefficiency • Integratedovervoltageprotection • Snap-on mounting on 35 mm hat-rails • Parallel operation of up to 5 power supplies • 24VDC and 48VDC versions • Optional DC/DC converter

  10. Industrial solutions Fiber GUARD • Physicalprotection of ring structuresincase of powerloss • Protectionagainstfailure of many devices • Seamlessinstallation • Relaibleoperation

  11. Industrial solutions Fiber GUARD Normal operation Failure

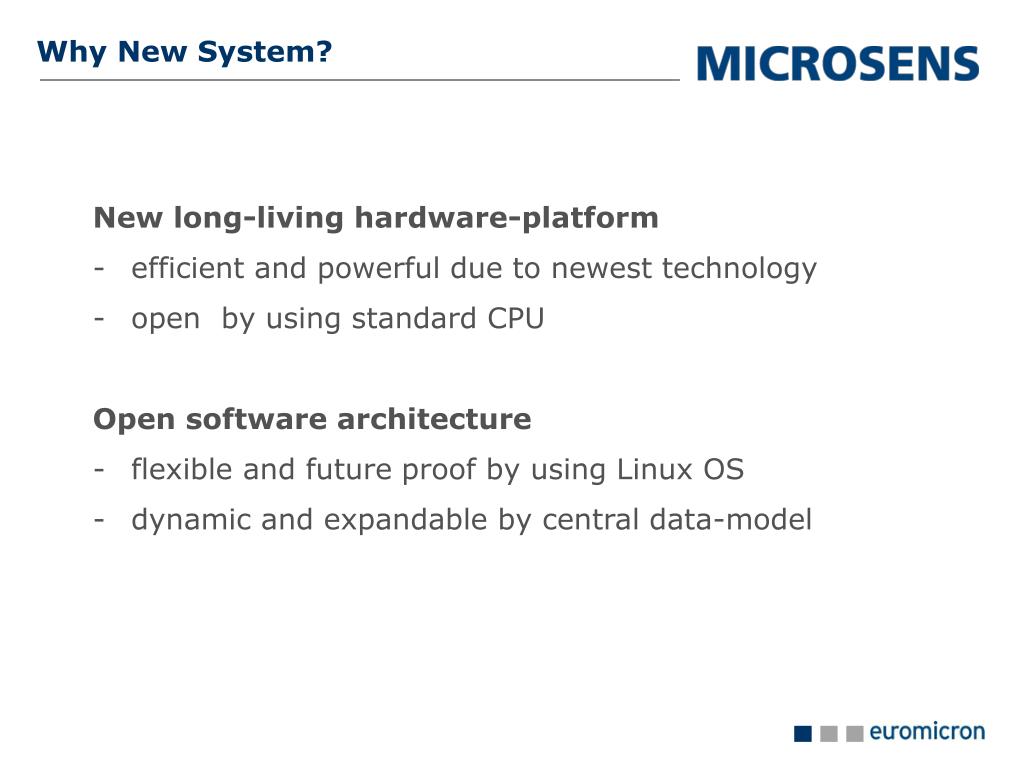

  12. Why New System? • New long-living hardware-platform • efficient and powerful due to newest technology • open by using standard CPU • Open software architecture • flexible and future proof by using Linux OS • dynamic and expandable by central data-model

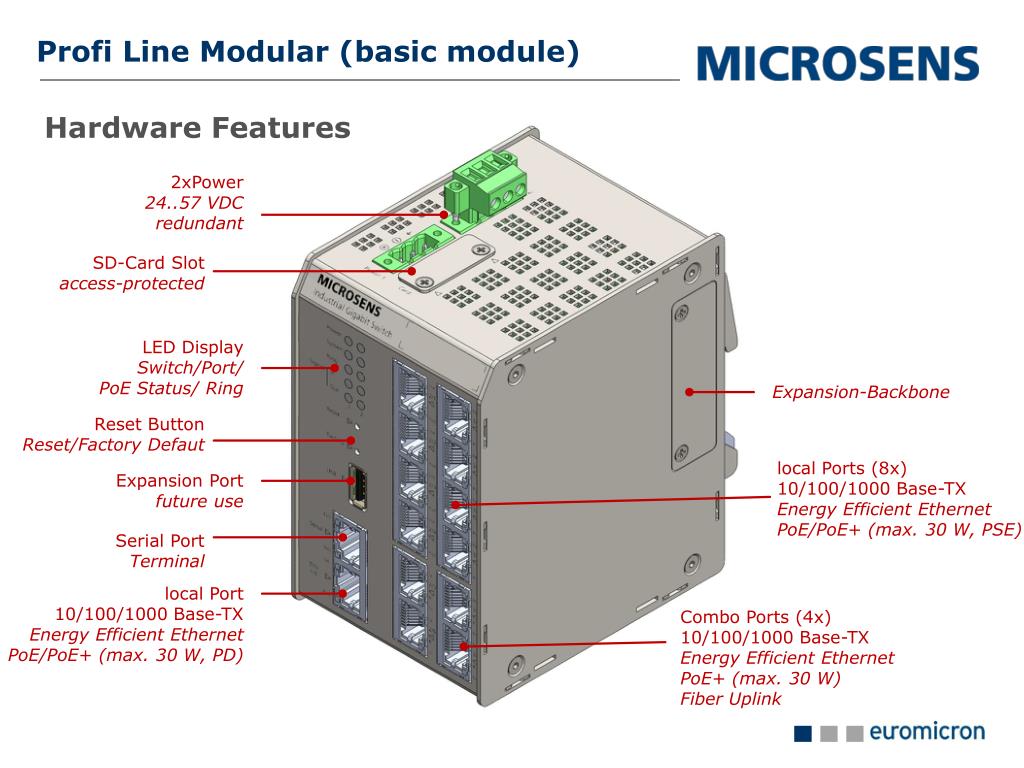

  13. Profi Line Modular (basicmodule) • Hardware Features 2xPower 24..57 VDCredundant SD-Card Slot access-protected LED Display Switch/Port/PoE Status/ Ring Expansion-Backbone Reset Button Reset/Factory Defaut local Ports (8x) 10/100/1000 Base-TX EnergyEfficient Ethernet PoE/PoE+ (max. 30 W, PSE) Expansion Port futureuse Serial PortTerminal local Port 10/100/1000 Base-TX EnergyEfficient Ethernet PoE/PoE+ (max. 30 W, PD) Combo Ports (4x) 10/100/1000 Base-TX EnergyEfficient Ethernet PoE+ (max. 30 W)Fiber Uplink

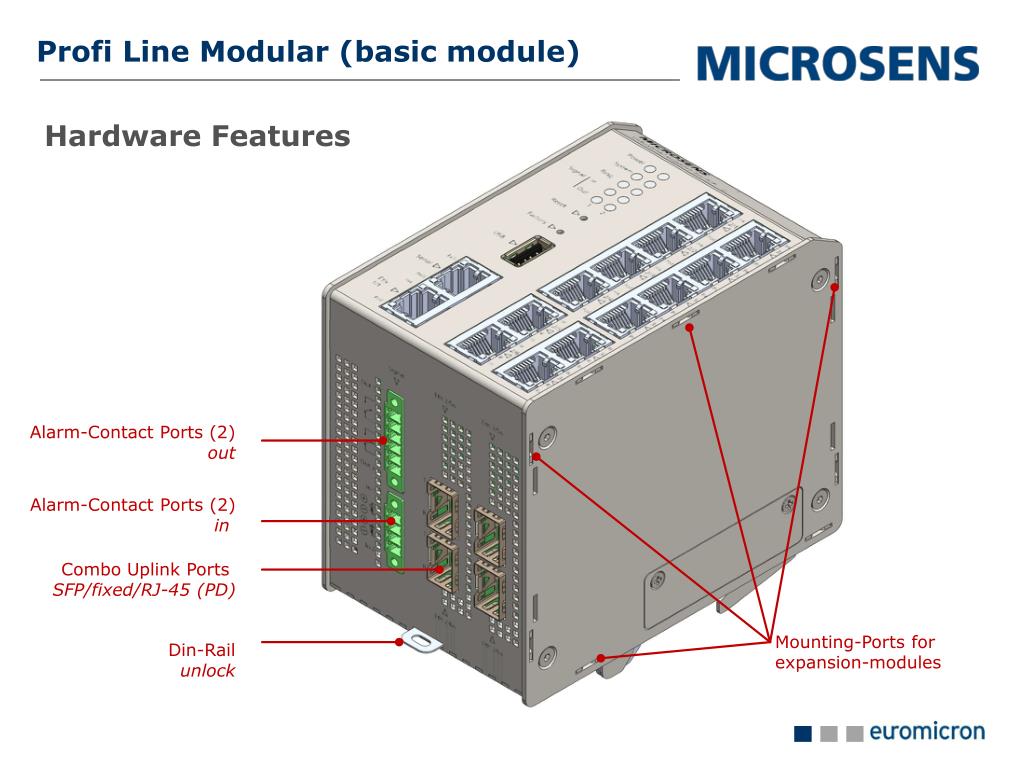

  14. Profi Line Modular (basicmodule) • Hardware Features Alarm-Contact Ports (2) out Alarm-Contact Ports (2) in Combo Uplink Ports SFP/fixed/RJ-45 (PD) Mounting-Ports forexpansion-modules Din-Railunlock

  15. Profi Line Modular (expansionmodule) • 4-Port expansionmodule local Ports (4x) 10/100/1000 Base-TX EnergyEfficient Ethernet PoE/PoE+ (max. 30 W, PSE) Combo Ports (2x) 10/100/1000 Base-TX EnergyEfficient Ethernet PoE+ (max. 30 W)Fiber Uplink Expansion-Backbone Combo Uplink Ports SFP/fixed/RJ-45 (PD) Din-Railmounting

  16. Profi Line Modular (expansionmodule) • 8-Port expansionmodule local Ports (8x) 10/100/1000 Base-TX EnergyEfficient Ethernet PoE/PoE+ (max. 30 W, PSE) Combo Ports (4x) 10/100/1000 Base-TX EnergyEfficient Ethernet PoE+ (max. 30 W)Fiber Uplink Expansion-Backbone Combo Uplink Ports SFP/fixed/RJ-45 (PD) Din-Railmounting

  17. Profi Line Modular • Hardware-Platform • - Newest switch-Technology, Energy Efficient Ethernet • Power-over-Ethernet+ (802.3at) on all copper-ports (max. 200W) • - microSD-Card for Firmware and configuration • Solid metal housing, clear port layout • DIN-Rail mounting • Temp. Range -40..+70°C • Red. power-supply • Additional expansion modules (ports, services etc.) available

  18. Profi Line Modular • Certificates • EN 60950-1 • CE Marking • EN 50121-4:2006 (railway applications - electromagnetic compatibility) • EN 50125-3:2003 (railway applications - environmental conditions) • IEC 61850-3 (electrical substation automation) • IEEE 1613 (electric power substations) • - Other (e.g. ABB etc.)

  19. Profi Line Modular • Firmware Profi Line Modular • open architecture

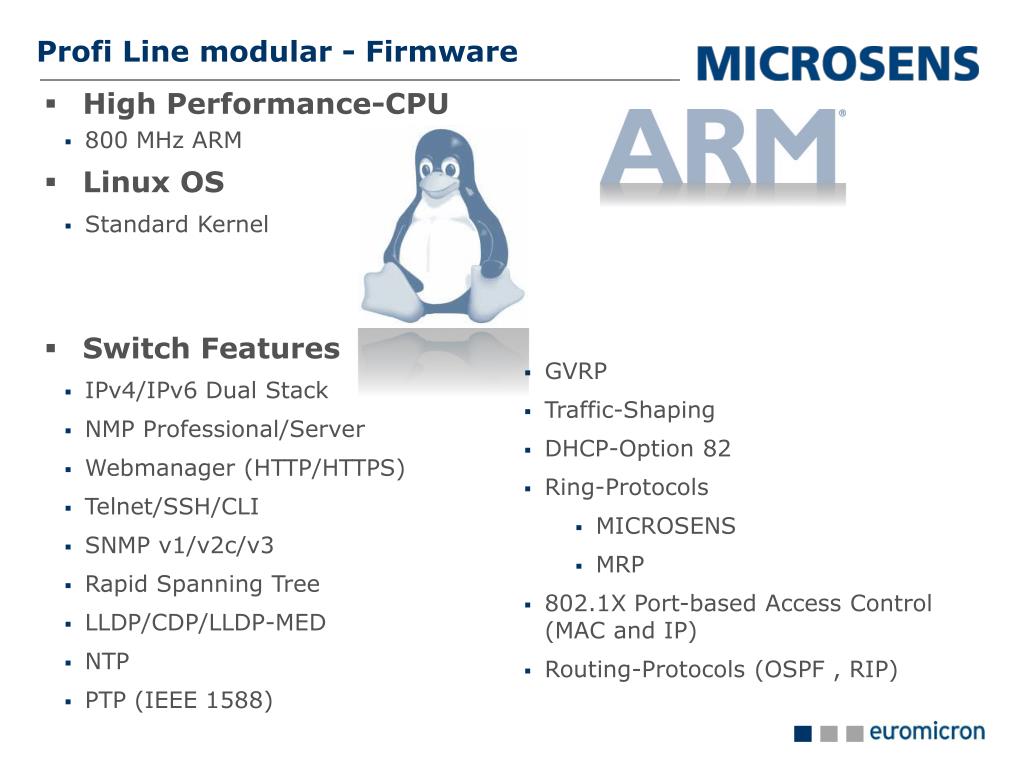

  20. Profi Line modular - Firmware • GVRP • Traffic-Shaping • DHCP-Option 82 • Ring-Protocols • MICROSENS • MRP • 802.1X Port-based Access Control(MAC and IP) • Routing-Protocols (OSPF , RIP) • High Performance-CPU • 800 MHz ARM • Linux OS • Standard Kernel • Switch Features • IPv4/IPv6 Dual Stack • NMP Professional/Server • Webmanager (HTTP/HTTPS) • Telnet/SSH/CLI • SNMP v1/v2c/v3 • Rapid Spanning Tree • LLDP/CDP/LLDP-MED • NTP • PTP (IEEE 1588)

  21. Users of Industrial Solutions • Production • Sensor andactorcommunication (robots, machines) • stableproductionenvironment • Security • Video surveillance (CCTV) • Access control • Railway / transport • Signalization, passenger information, ticketing • Plant datacollection • Energy • Measurement / Controlling / Regulation • Automation / Telecontrol • Defence • Mobile controlstations, monitoringsystems • Mining • Production, Control

  22. Industrial Ethernet Certification for RailwayApplications • Railwaycertificate EN 50121-4:2006 (EMC, electromagneticnoiseimmunity), EN 50125-3:2003 (Temperature, climate- vibration- and schockresistance • Installation closeto the tracks (until 1m) • Applicationsrailway: • Video surveillance of railwaystations • Control of passenger informationsystems • Connection of ticket machines and weatherstations • Barriercontrol • Track controlnetwork; Power management

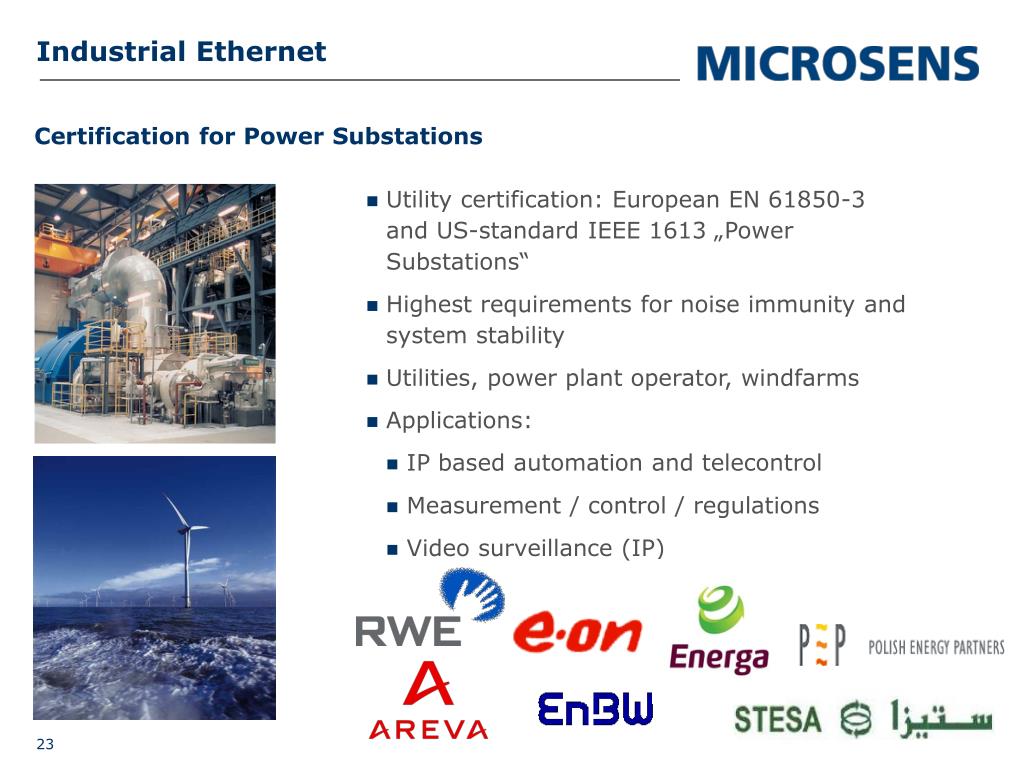

  23. Industrial Ethernet Certification for Power Substations • Utility certification: European EN 61850-3and US-standard IEEE 1613 „Power Substations“ • Highest requirements for noise immunity and system stability • Utilities, power plant operator, windfarms • Applications: • IP based automation and telecontrol • Measurement / control / regulations • Video surveillance (IP)

  24. Thankyou! MICROSENS GmbH & Co. KG
