  1. Wind • Wind is the general horizontal motion of air from one location to another based on differences in air pressure • Air speed is measured by an anemometer • Air movement is governed primarily by • Pressure gradient force • Coriolis force • Friction force

  2. What causes wind movement • Direction is governed by the path of least distance between high pressure and low pressure • Pressure gradient • Speed will increase if there is a larger difference between pressures • Steep pressure gradient

  3. RESULTANT WIND • FUNCTION OF 3 THINGS • PGF + CF + FRICTION • PGF AND CF ARE AT ODDS • FRICTION DEFLECTS WINDS SLIGHTLY IN FAVOR OF PGF • WHAT HAPPENS IN THE UPPER ATMOSPHERE?

  4. BIRD’S EYE VIEW NORTHERN HEMISPHERE H L

  5. H L Pressure gradient

  6. Pressure gradient

  7. The Coriolis Effect • When wind moves from zones of high pressure to zones of low pressure it veers due to earth rotation • To the right in the northern hemisphere • To the left in the southern hemisphere • Equator faster rotation than the poles • Demo – • http://www.classzone.com/books/earth_science/terc/content/visualizations/es1904/es1904page01.cfm?chapter_no=visualization

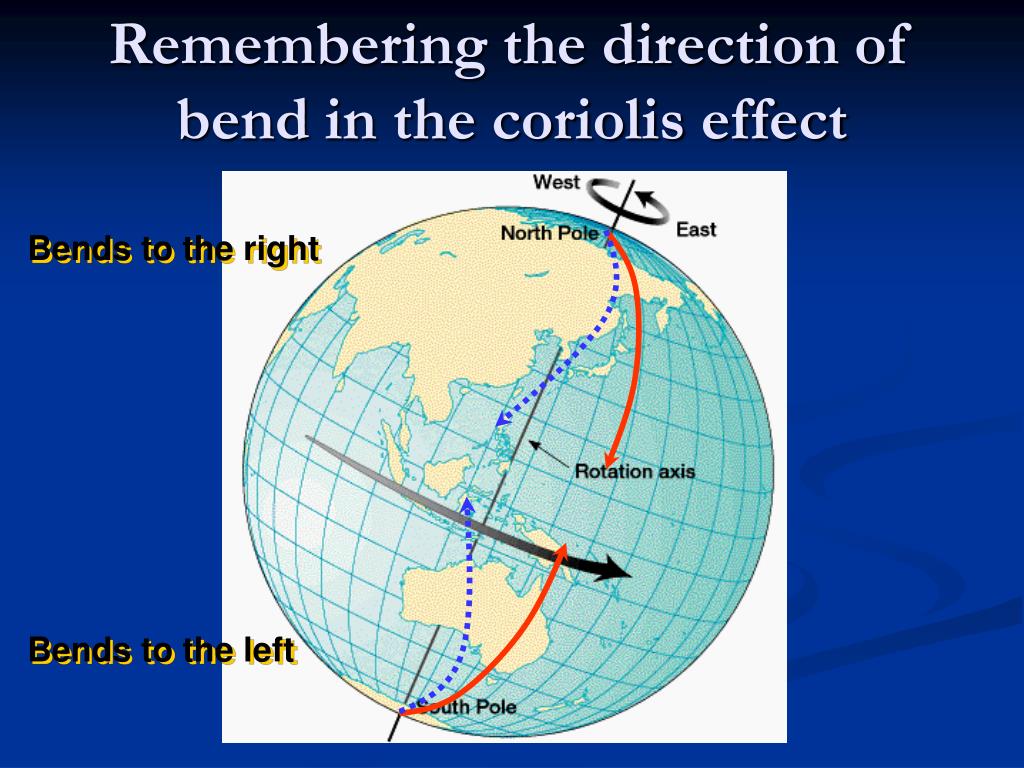

  8. Remembering the direction of bend in the coriolis effect Bends to the right Bends to the left

  9. Effect of coriolis force • Strongest at higher latitudes • Weakest at the equator • The effect of coriolis increases with increasing windspeed • The combined effect of coriolis and pressure gradient force makes winds travel parallel to isobars = • Geostrophic Wind

  10. Friction force • Effects of surface friction occur to ~ 5000 ft above the ground • Cause winds to slow down and generally move across isobars • More pronounced when wind speeds are higher
