  1. Jet ValidationofFast simulation Kittikul Kovitanggoon*, Chiyoung Jeog, Sung-Won Lee Texas Tech University 1

  2. Jet Collections with Algorithms • Icone5 Calo Jets • Icone5 Pflow • Kt4 Calo Jets • Kt6 Calo Jets • AntiKt5 Calo Jets • AntiKt5 JPT • AntiKt5 PFlow • AntiKt7 Calo Jets 2

  3. Validation Procedures • After the MC RelVals for new version of CMSSW are released and posted on HN. • We pick up the jet datasets like QCD and TTbar to be run on our validation module. • We compare the histograms between new version and previous version. • If no discrepancy is indicated, we report this version pass. • If discrepancy is indicated, we ask the experts what causes this discrepancy. • The validation result can be found at http://highenergy.phys.ttu.edu/~keng/validation 3

  4. Status and Update • Status of moving to central DQM - Jet validation module was tested with DQM sequence. • Update new features - Reduced the bin size and remove unnecessary plots. - pT scale Vs Phi - pT response 4

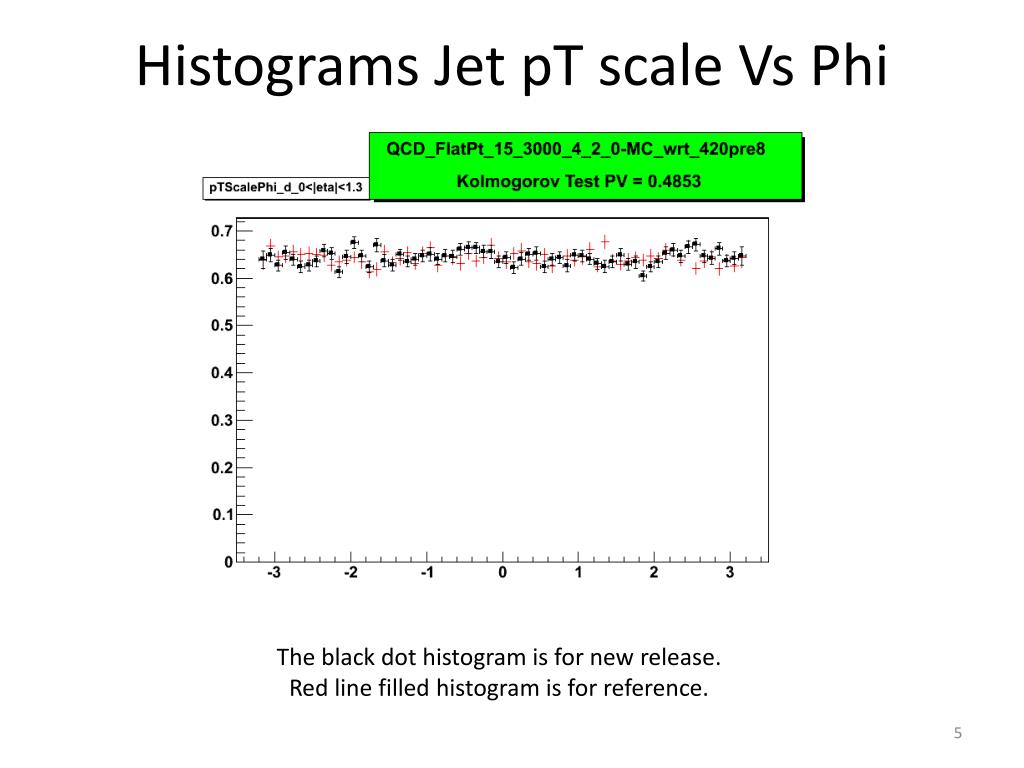

  5. Histograms Jet pT scale Vs Phi The black dot histogram is for new release.Red line filled histogram is for reference. 5

  6. Histograms pT respones pT Response = Corrected pT/Gen pT The black dot histogram is for new release.Red line filled histogram is for reference. 6

  7. Jet Validation in Spring 2011 7

  8. Jet Validation in Spring 2011 8

  9. 4_2_0_ pre7 • In this release: Had energy missing in fullsim and changing in fastsim FullSim FastSim • Improper HO status in DB, which prevents HO from being properly used in MC CaloTowers (fix already submitted to the next pre-release GloblTag). 9

  10. 4_2_0_ pre8 • In this release: Jet pt scale in 1.3<|eta|<3.0 changes in fastsim wrt full wrt 4_2_0 pre7 • The change is for better agreement with FullSim than 420pre7 10

  11. 4_2_1 • In this release: the recent global tag picks the old JEC • Waiting for the new global tag for 42X and above 11

  12. 4_1_4 • In this release: Discrepancies are found in the JEC (both pT ratio and pT response) • This is the JEC closure improvement. The new JEC is applied. 12

  13. JetMET Data validation We currently look at DQM plots created centrally and posted on DQM GUI • This validation using RelVal_run2010B dataset (previous valskim) for this validation • We do this validation for every new CMSSW version after MC RelVal validation The black line histogram is for new release.The filled histogram is for reference. 13

  14. JetMET Data validation 14

  15. Conclusion and Plans • Jet Validation is moving smoothly. • We have the JEC checked in DQM. • Waiting for the new global tags for 42X and above with the proper JEC. • The new tag for validation module will be submitted to CVS. 15

  16. Back up

  17. Jet Collections 17

  18. Types Histograms General parameters of jets Energy, Momentum, and pT Mass Eta and Phi Number of Calo towers pT scale pT scale wrt eta pT scale wrt pT Corrected jets pT pT ratio pT ratio wrt eta pT ratio wrt pT EM Energy EB and EE HF EM energy fraction of jets Histograms to Validate 18

  19. Types Histograms HAD Energy HB and HE HO and HF HAD energy fraction of jets HF Long Short Miscellaneous Leading jet energy, pT, eta, and phi Had and EM timing GenJet pT, pThat, Eta, and Phi Leading jet Eta and Phi Histograms to Validate 19
