  1. Cosc5/4730 Sign, convert, and install Android files on Blackberry Playbook.

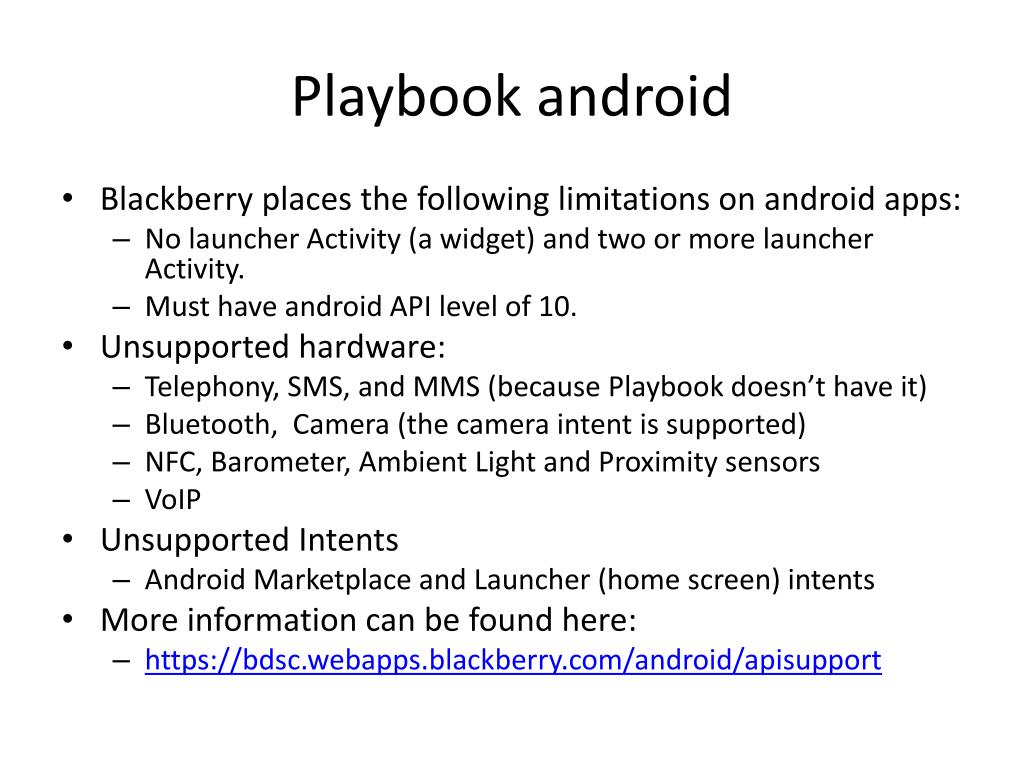

  2. Playbook android • Blackberry places the following limitations on android apps: • No launcher Activity (a widget) and two or more launcher Activity. • Must have android API level of 10. • Unsupported hardware: • Telephony, SMS, and MMS (because Playbook doesn’t have it) • Bluetooth, Camera (the camera intent is supported) • NFC, Barometer, Ambient Light and Proximity sensors • VoIP • Unsupported Intents • Android Marketplace and Launcher (home screen) intents • More information can be found here: • https://bdsc.webapps.blackberry.com/android/apisupport

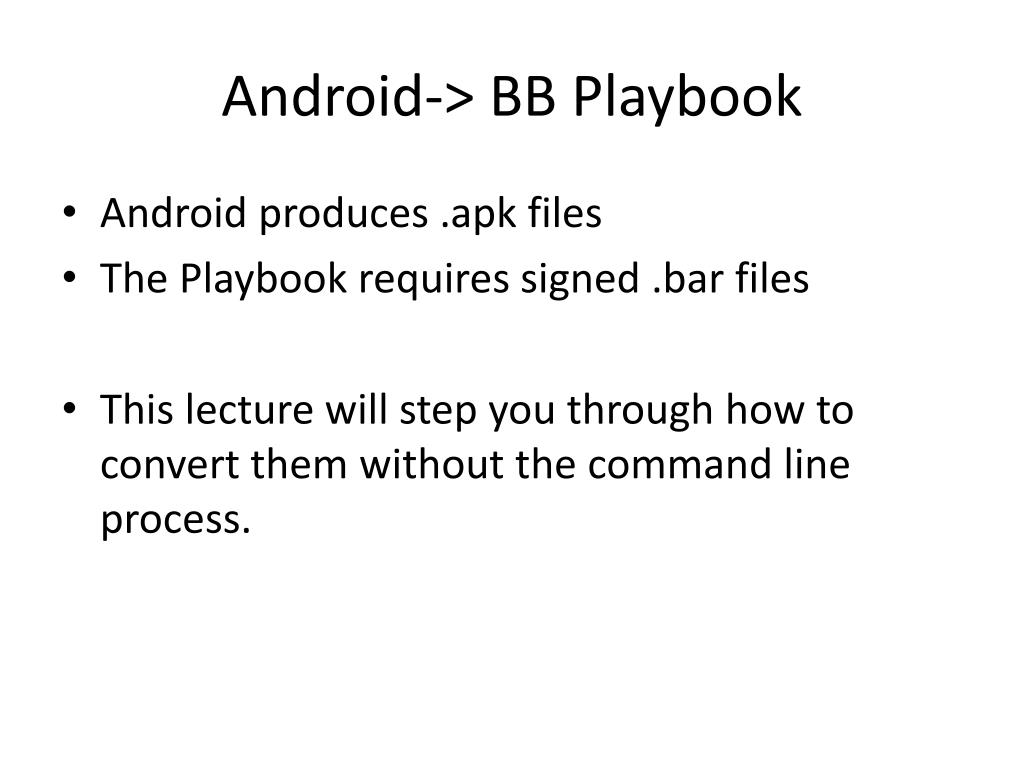

  3. Android-> BB Playbook • Android produces .apk files • The Playbook requires signed .bar files • This lecture will step you through how to convert them without the command line process.

  4. Prerequisites • Request code signing keys - You'll need these right away, so get them ASAP and store them somewhere safe. • Remember your PIN, this is not your device PIN. It's chosen by you and must be alpha-numeric, lowercase and contain 6-10 characters • the keys are free and could take up to a couple of hours before you receive it. • Download The Android Command Line Tools - Don't let the name scare you, you won't really need to use command line. • Download The Android SDK - Grab the version most compatible with your system. ie: Mac for Mac, Windows for Windows. Unzip it and go to the "Tools" folder where you will need to run the file named "Android" and grab the updates. • Download The BlackBerry Tablet OS Graphical Aid - This is the magic that makes it all happen. Make sure you grab the right version. ie: Mac for Mac, Windows for Windows. Unzip and install the file.

  5. Installing. • Open the commandline.zip and drop the folder somewhere you can remember • C:\program files\ is a good spot. • Assuming you already have the android sdk installed • Install the Blackberry Tablet OS graphical Aid • Configuration on the next slide.

  6. Blackberry Tablet OS graphical Aid • It is going to ask you to configure a lot of stuff. • Point the location Blackberry Commandline tools • For the Blackberry WebWorks SDK, Tablet OS SDK, and Blackberry SDK for Android Apps. • Point the location for Android SDK for • Android-SDK-windows directory.

  7. Developer Certificate • Click create Certificate • Follow the directions and finally click next • Register Tablet OS Code Signing keys • They should be in your email (hopefully at this point)

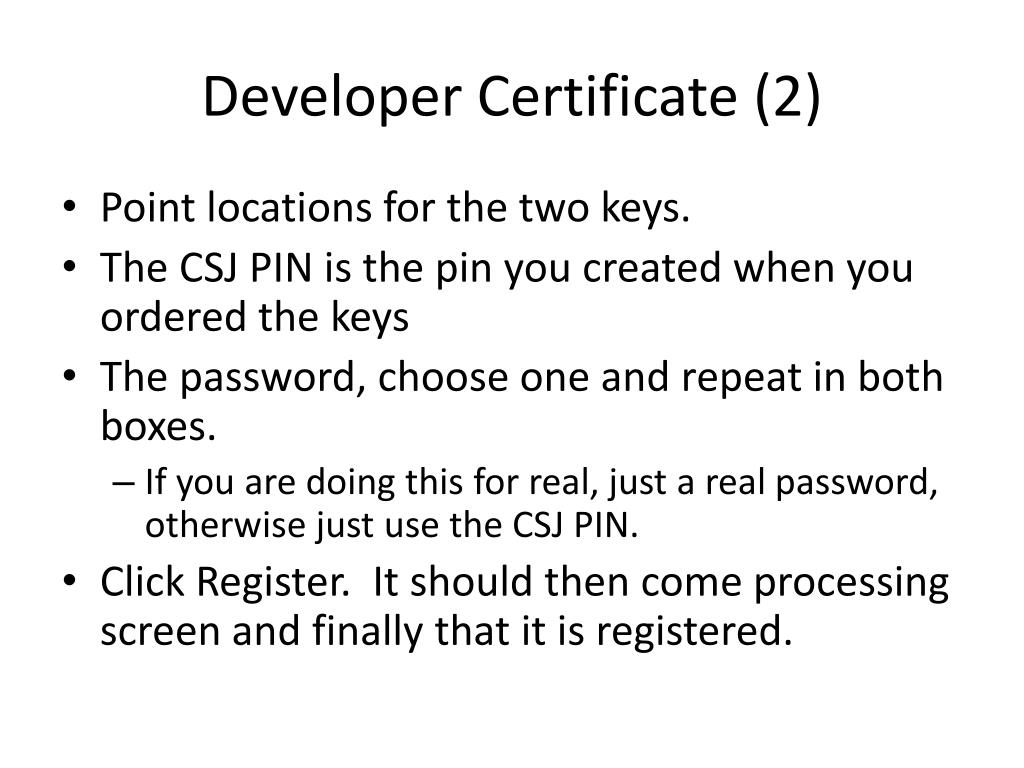

  8. Developer Certificate (2) • Point locations for the two keys. • The CSJ PIN is the pin you created when you ordered the keys • The password, choose one and repeat in both boxes. • If you are doing this for real, just a real password, otherwise just use the CSJ PIN. • Click Register. It should then come processing screen and finally that it is registered.

  9. The setup is now complete!

  10. Converting and signing an .apk • On the Build an Android tab

  11. Converting and signing an .apk • Click the “Choose APK File” • For the rest of this, I’m going to use the FormExampleA.zip from the beginning of the class • Make sure it is using Android 2.3.3 as well in eclipse. • The apk will be in the bin directory of the project.

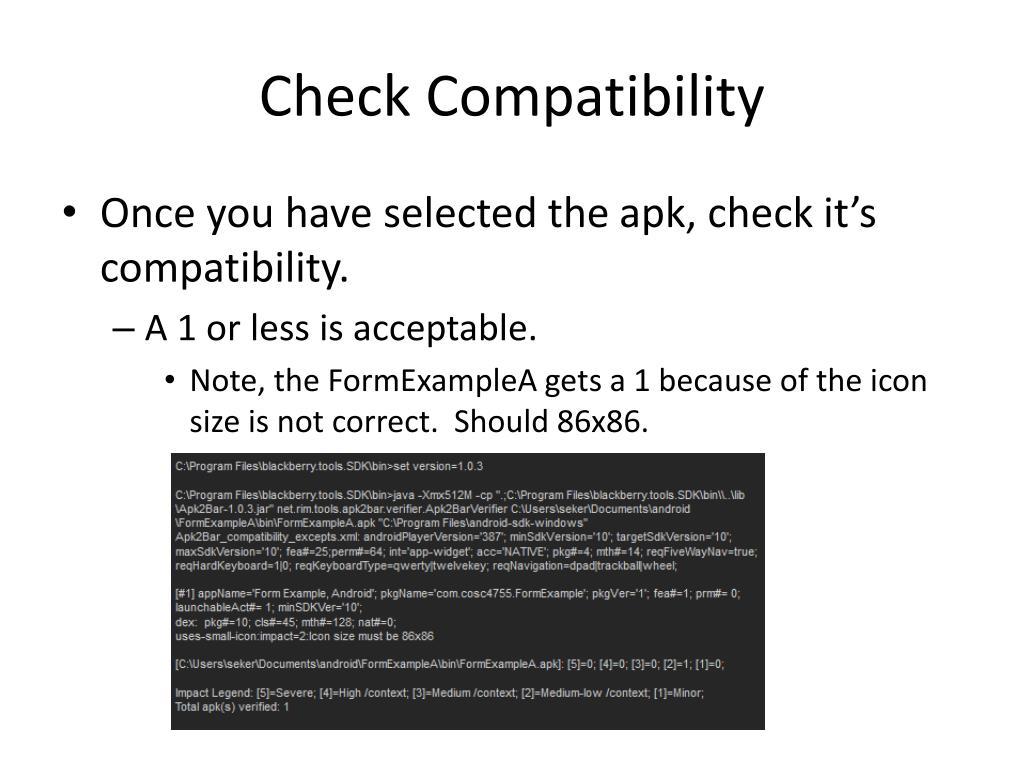

  12. Check Compatibility • Once you have selected the apk, check it’s compatibility. • A 1 or less is acceptable. • Note, the FormExampleA gets a 1 because of the icon size is not correct. Should 86x86.

  13. Now fill out the rest. • Enter an Author name • Click sign Application, enter the password you choose. • Finally click Build. After a Operation processing, you should hopefully get: • Note the bar created in the same directory as the apk.

  14. Installing. • While there are a lot of ways to install .bar files (side-loading). The aid comes with one. • You need to turn on development mode on the playbook (and set a password).

  15. Installing (2) • Get the IP address of playbook (found in development mode icon) • Enter the IP and password you set • Click install.

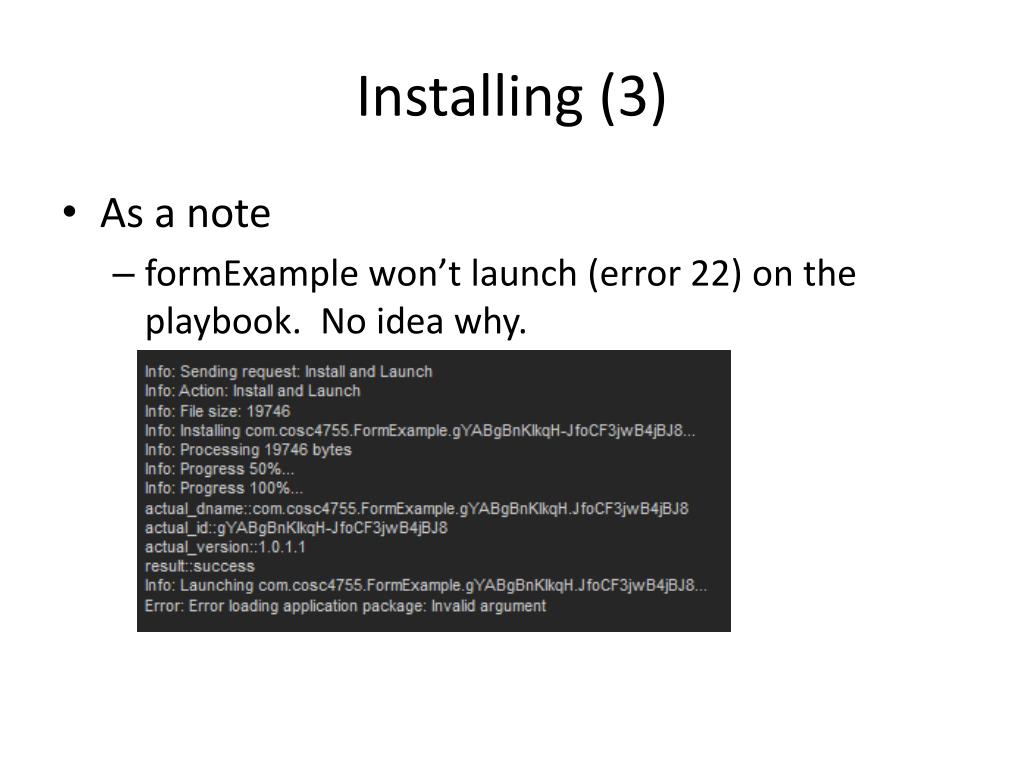

  16. Installing (3) • As a note • formExample won’t launch (error 22) on the playbook. No idea why.

  17. As a last note. • I switched a very simple and small app to get around UW’s wireless problems. • It’s called Helloplaybook.zip, which is on the handout page as well, if you want to give it a try.

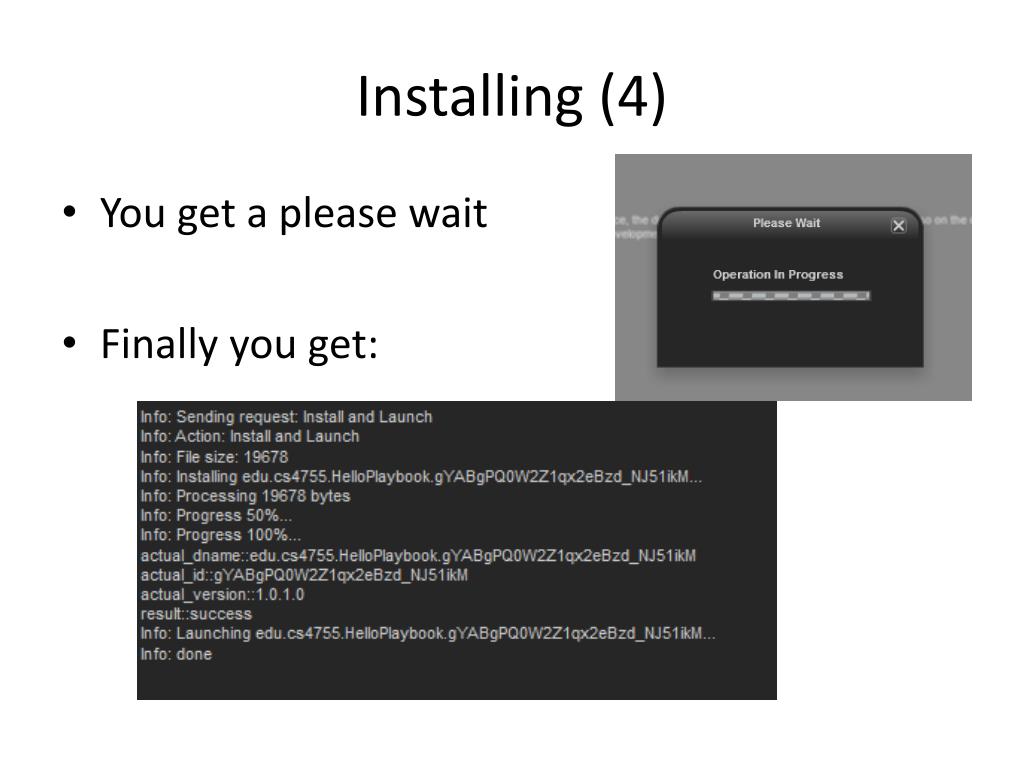

  18. Installing (4) • You get a please wait • Finally you get:

  19. Uninstall • On the same page as install, you can uninstall the app as well. • Note this is the only way to uninstall a “side-loaded” app.

  20. References • https://bdsc.webapps.blackberry.com/android/apisupport • http://crackberry.com/how-sign-convert-and-install-android-files-your-blackberry-playbook-using-windows-or-mac.

  21. Q A &
