  1. Pictorial Sketching STANDARD AC-IDD-5 -Create technical freehand sketches. 5.2 Demonstrate pictorial sketches.

  2. C). Oblique Drawing B). Axonometric (Isometric) Drawing D).Perspective Drawing A).Multiview Drawing Technical Sketches and Drawings • There are four common types of drawings that you need to learn. During Advanced Graphic Communications, you will be expected to use three of these four types. . B,C, D are pictorial drawings. These are drawings that show its figure in all three dimensions, (width, height and depth) in a single view. Note: The multiview drawing shows multiple flat views to a 3D object to represent its form in 2D. We will study this in a later unit.

  3. Axonometric Sketches .

  4. Today’s Focus – Isometric Sketches • An Isometric Sketch is a sketch that shows height, width, and depth of an object by using three axes set at 120˚ angles to one another. D D

  5. Isometric Axes-Three axes in tw0-dimensional space, equally spaced by 120˚ apart 120˚ 120˚ 120˚ D D

  6. Cube shown in Isometric

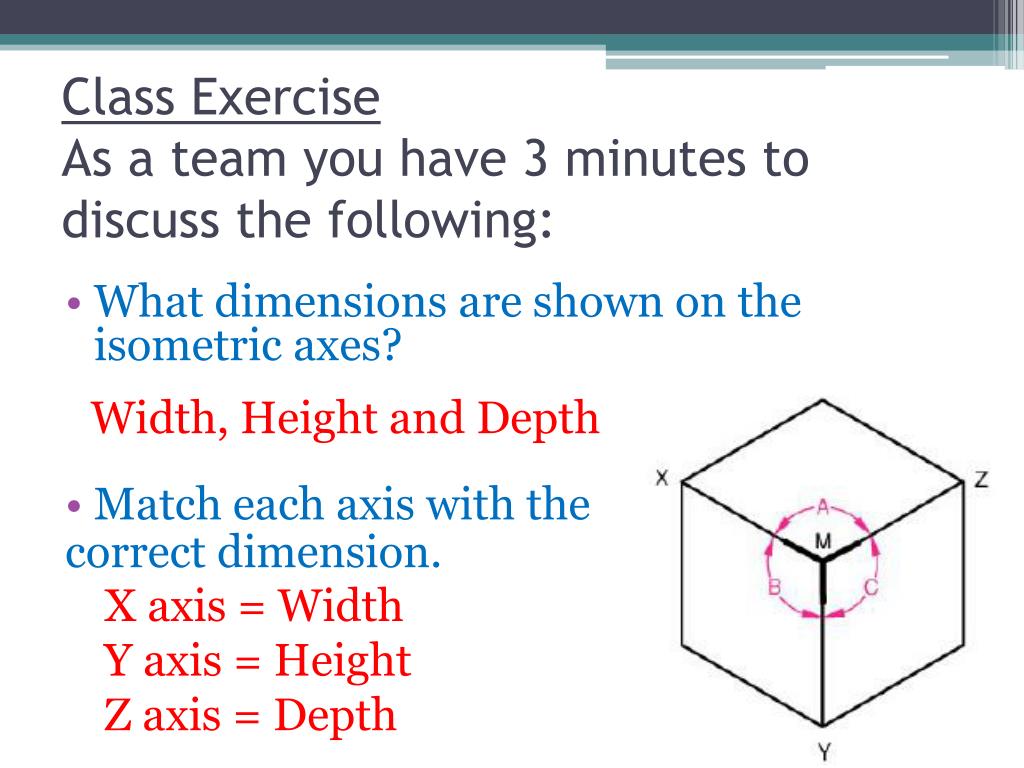

  7. Class ExerciseAs a team you have 3 minutes to discuss the following: • What dimensions are shown on the isometric axes? • Match each axis with the correct dimension. Width, Height and Depth X axis = Width Y axis = Height Z axis = Depth

  8. Sketching Exercises Use your isometric grid to sketch the regular and reversed isometric shapes

  9. Sketching Exercises Continue Sketches Figures #1 and #2 Figure #2 Figure #1

  10. #1

  11. #2

  12. Think-Pair-Share Sketching Exercises • In the next 5 minutes as an Individual • Sketch Isometric Figure #3 • Identify the isometric and non isometric lines • NOW take 2 minutes • to compare your figure with the person sitting next to you • THEN identify the isometric and non isometric planes • In the next 5 minutes • share the results with the another team, make any corrections needed.

  13. #3

  14. #4

  15. #5

  16. #6

  17. #7

  18. #8

  19. Think-Pair-Share • In the next 1 minute as an Individual • if you could ask a question . . . specifically what don’t you understand about today’s topic what would it be. [at least 3 items should be listed] • Now take 2 minutes • to merge your list with the person sitting next to you AND add 1 new item to the list • In the next 5 minutes • share the results with the other half of your team, delete questions that you can answer for each other, AND prioritize the remaining questions your list

  20. Figure #1 Figure #3 Figure #2 Figure #4 Figure #6 Figure #5

  21. Figure #7 Figure #8

  22. Figure #5 Figure #6

  23. Figure #7 Figure #8
