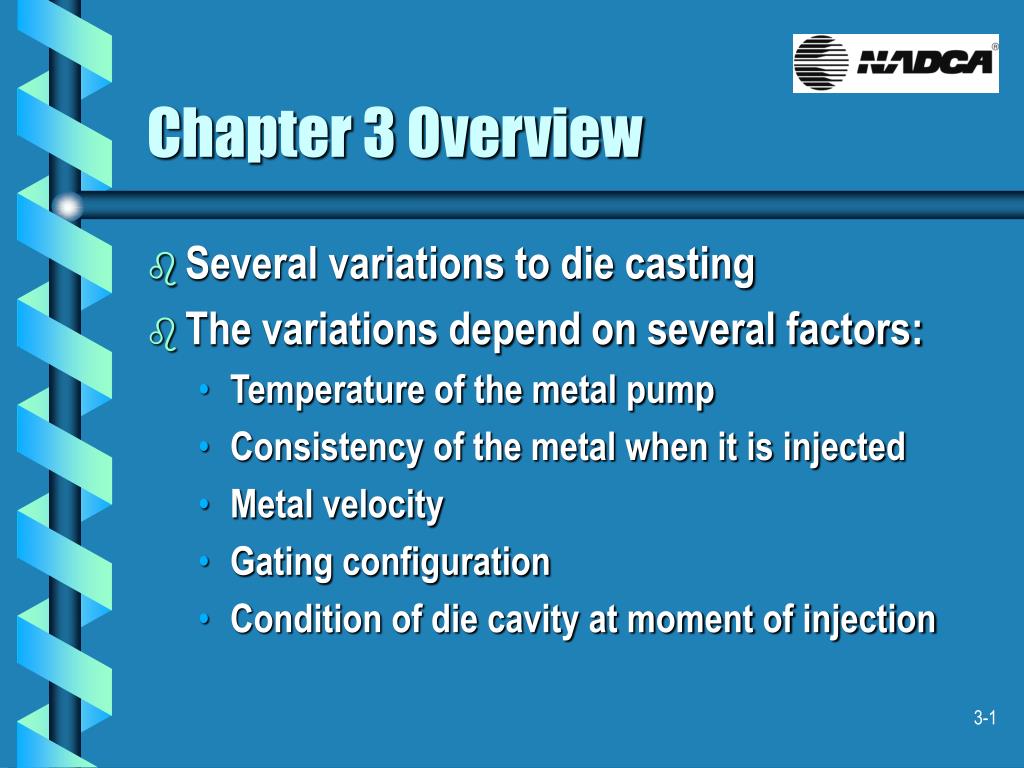

Chapter 3 Overview. Several variations to die casting The variations depend on several factors: Temperature of the metal pump Consistency of the metal when it is injected Metal velocity Gating configuration Condition of die cavity at moment of injection . Chapter 3 Objectives.

thy
Télécharger la présentation

Chapter 3 Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 3 Overview • Several variations to die casting • The variations depend on several factors: • Temperature of the metal pump • Consistency of the metal when it is injected • Metal velocity • Gating configuration • Condition of die cavity at moment of injection

  2. Chapter 3 Objectives • Identify the two major methods of injecting metal into the die • List advantages of hot chamber die casting • Explain why cold chamber die casting is used • Explain how vacuum die casting can reduce defects • List two emerging die casting technologies

  3. New Terms • Billet • A small metal bar • Static metal pressure • The metal pressure in the die cavity at the instant that the cavity is full • Thixotropy • The property of a fluid mixture to become more fluid as the mixture is agitated

  4. Two Major Processes • Hot chamber and cold chamber die casting • Get name from temperature of metal pump relative to temperature of the metal • In hot chamber, the metal pump is submerged in the metal and is same temperature as the metal • In cold chamber, the metal pump is outside the furnace and is cold relative to the metal ladled into it

  5. Hot Chamber Components • A Frame • Suspends shot components above and in the furnace; mounted to stationary platen • Shot cylinder • Actuates vertically; metal is injected with downward stroke of the shot cylinder

  6. Hot Chamber Components • Coupling • Connects shot cylinder to plunger rod and tip • Plunger rod and tip • Pumps the metal; piston tip has 2 or 3 grooves in it for piston rings

  7. Hot Chamber Components • Rings • Prevents metal from bypassing tip; helps maintain metal pressure after die cavity is filled • Gooseneck • Combination sleeve and metal path out of the metal pump

  8. Hot Chamber Components • Nozzle • Tube connecting gooseneck to die cast die; extends from gooseneck, through stationary platen, to die cast die; it’s heated to keep the metal liquid in the nozzle • Sprue bushing • What the nozzle seats against; cooled to assure the metal in it freezes

  9. Hot Chamber Machine Cycle 3-8

  10. Hot Chamber Process Uses • For low melting point alloys and alloys with a small aluminum constituent • These alloys include those made from: • Lead • Tin • The Zamak family of zinc alloys, ZA8 zinc alloy and a small amount of AZ91D magnesium alloy

  11. Cold Chamber Components • C-frame • Structural framework that supports the shot components; mounted to stationary platen • Shot cylinder • Mounted to the C-Frame; injects metal with its horizontal stroke

  12. Cold Chamber Components • Coupling • Connects the shot cylinder to the plunger rod and tip • Cold chamber • Shot sleeve or tube that the plunger slides in to pump the metal

  13. Cold Chamber Components • Plunger rod and tip • Pumps the metal; made from highly conductive material and is water-cooled • Conventional cold chamber plunger tips do not have rings; newest technology indicates that the tip may benefit from a design with rings

  14. Cold Chamber Machine Cycle 3-14

  15. Cold Chamber Process Uses • Used for high melting point alloys and alloys with a significant aluminum constituent: • Aluminum • Copper • Magnesium • Iron • Titanium • Composite materials

  16. Hot Chamber Advantages • Metal temperature control is better maintained • Metal transfer not required • Cooling of piston tip and sleeve not required • Fewer oxidation losses

  17. Process Limitations/Variations • Conventional process limited by internal porosity • Due to trapped gases or solidification shrinkage • New technologies developed to provide denser castings • Use vacuum, squeeze casting, or semi-solid and thixotropic melting/casting methods

  18. Vacuum Process • Die cavity evacuated using a vacuum pump • Several commercially available systems • Limitations to how complete a vacuum can be achieved; 26-27 inches of mercury seems adequate for most applications

  19. Squeeze Casting • Gate velocity is much lower • Gate thickness is much higher • Metal pressures at the end of cavity filling are much higher

  20. Semi-Solid Casting • Alloy cast is part liquid and part solid • Premise: defects form during solidification; solids therefore should be free of defects • Billet of material is preheated to casting temp. in a specially constructed induction heater • Billet placed in cold chamber, then injected • Uses low gate velocities and high metal pressures to make very dense castings

  21. Thixotropic Casting • Takes advantage of the thixotropy of alloy • When injected and forced through the gate, literally sheared and agitated, it flows like a plastic material • Injection system is a combination of the screw used in plastic injection and the plunger used in conventional die casting

  22. Summary • Two major processes • Components are similar • Process used is based on alloy’s melting point • Hot chamber process has several advantages • Process variations are based on new technologies • Try to overcome conventional die casting’s limitation of internal porosity
