  1. Adobe Photoshop CS5 – IllustratedUnit C: Working with Layers

  2. Objectives • Work with the Layers panel • Merge layers and manipulate opacity • Duplicate layers, delete layers, and paste new layers • Scale artwork Adobe Photoshop CS5 - Illustrated

  3. Objectives • Flip and rotate artwork • Add and Outer Glow layer style • Add a Drop Shadow layer style • Work with a layer mask Adobe Photoshop CS5 - Illustrated

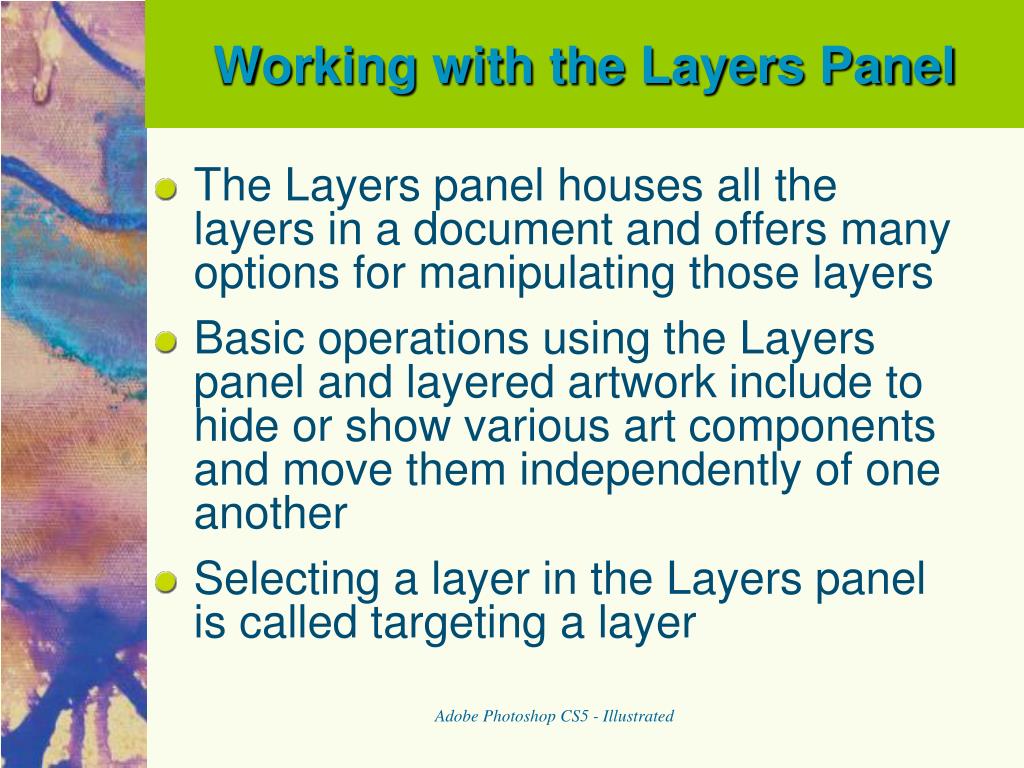

  4. Working with the Layers Panel • The Layers panel houses all the layers in a document and offers many options for manipulating those layers • Basic operations using the Layers panel and layered artwork include to hide or show various art components and move them independently of one another • Selecting a layer in the Layers panel is called targeting a layer Adobe Photoshop CS5 - Illustrated

  5. Working with the Layers Panel Viewing the visible layers Canvas with repositioned artwork Adobe Photoshop CS5 - Illustrated

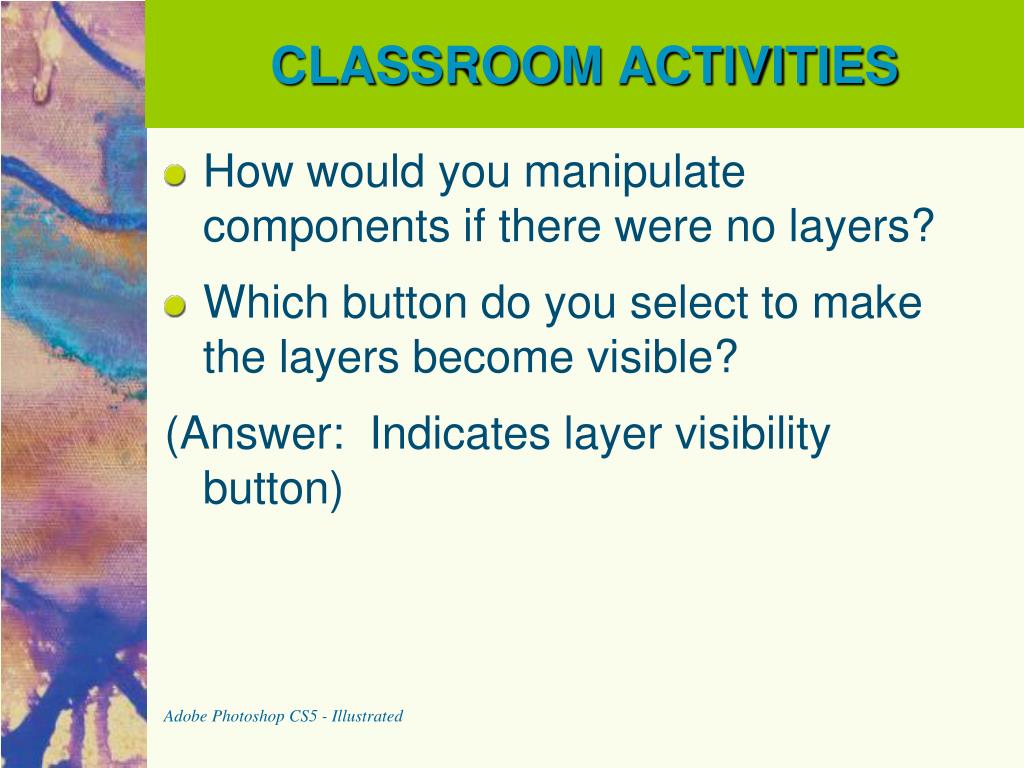

  6. CLASSROOM ACTIVITIES • How would you manipulate components if there were no layers? • Which button do you select to make the layers become visible? (Answer: Indicates layer visibility button) Adobe Photoshop CS5 - Illustrated

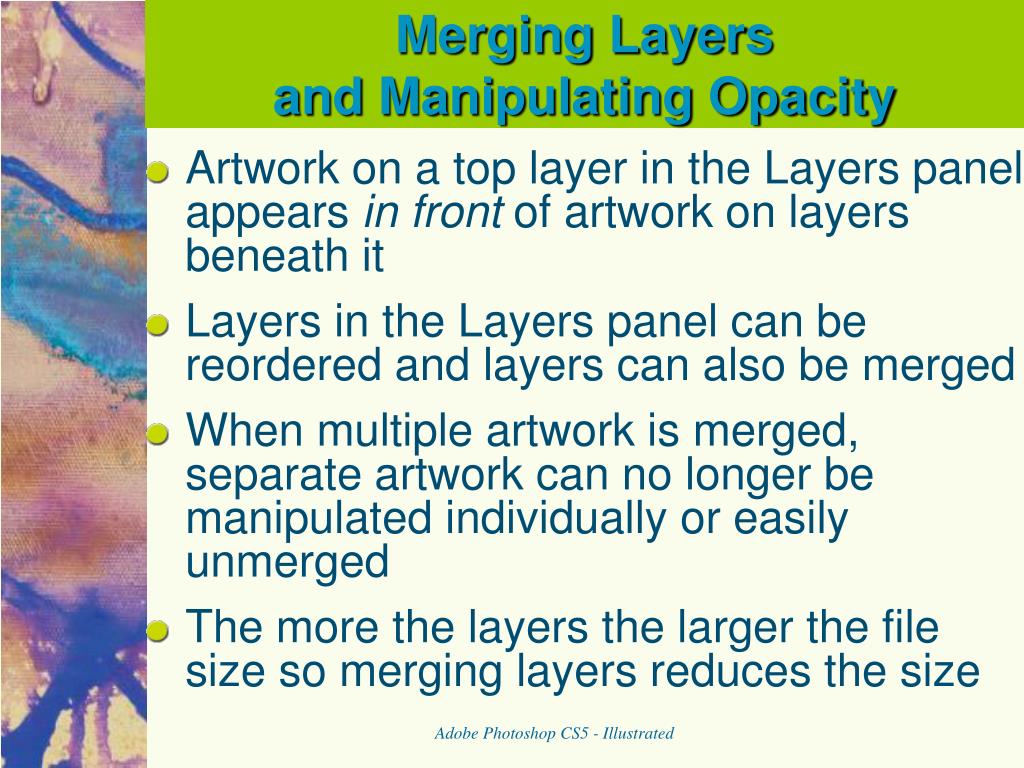

  7. Merging Layers and Manipulating Opacity • Artwork on a top layer in the Layers panel appears in front of artwork on layers beneath it • Layers in the Layers panel can be reordered and layers can also be merged • When multiple artwork is merged, separate artwork can no longer be manipulated individually or easily unmerged • The more the layers the larger the file size so merging layers reduces the size Adobe Photoshop CS5 - Illustrated

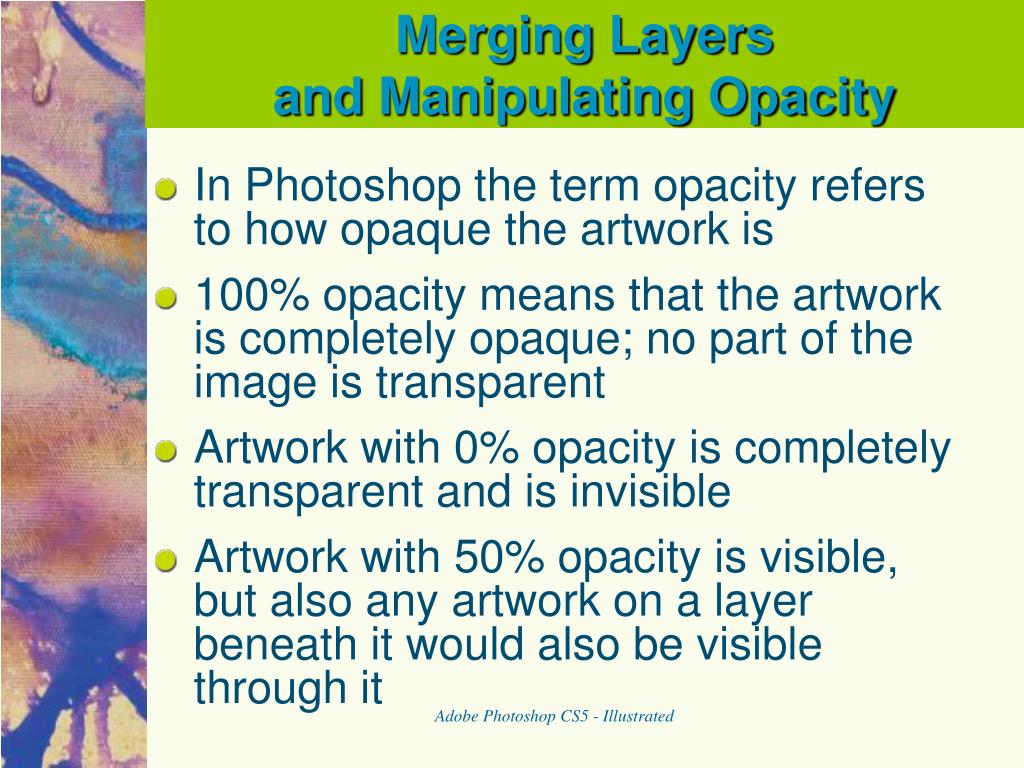

  8. Merging Layers and Manipulating Opacity • In Photoshop the term opacity refers to how opaque the artwork is • 100% opacity means that the artwork is completely opaque; no part of the image is transparent • Artwork with 0% opacity is completely transparent and is invisible • Artwork with 50% opacity is visible, but also any artwork on a layer beneath it would also be visible through it Adobe Photoshop CS5 - Illustrated

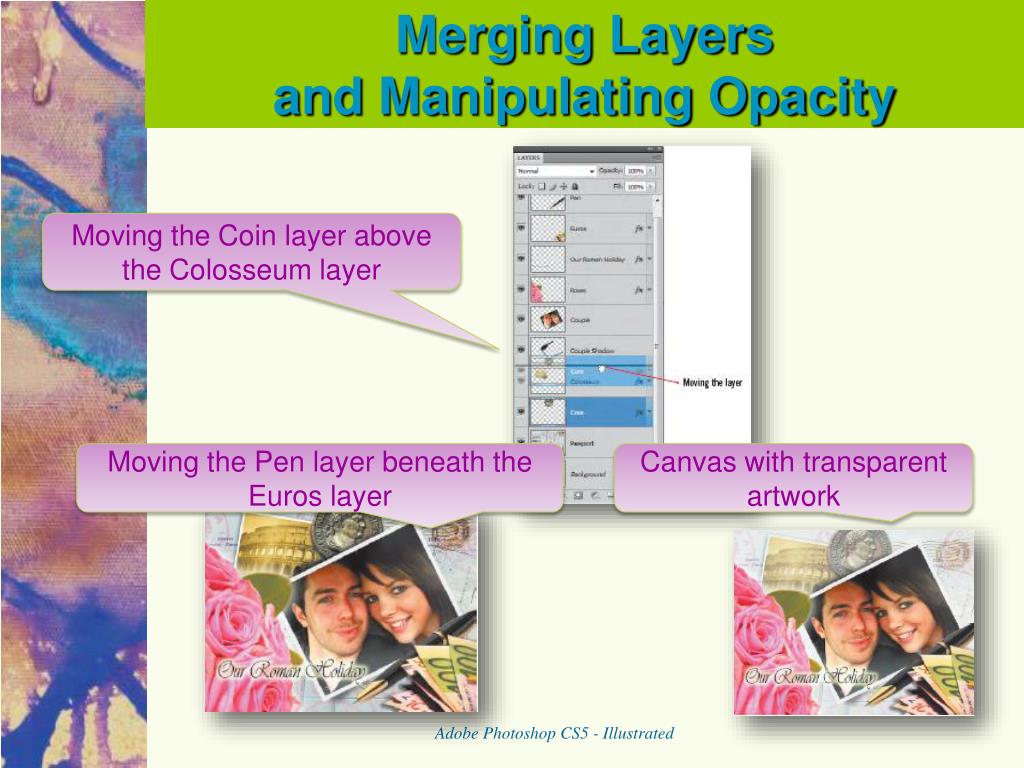

  9. Merging Layers and Manipulating Opacity Moving the Coin layer above the Colosseum layer Moving the Pen layer beneath the Euros layer Canvas with transparent artwork Adobe Photoshop CS5 - Illustrated

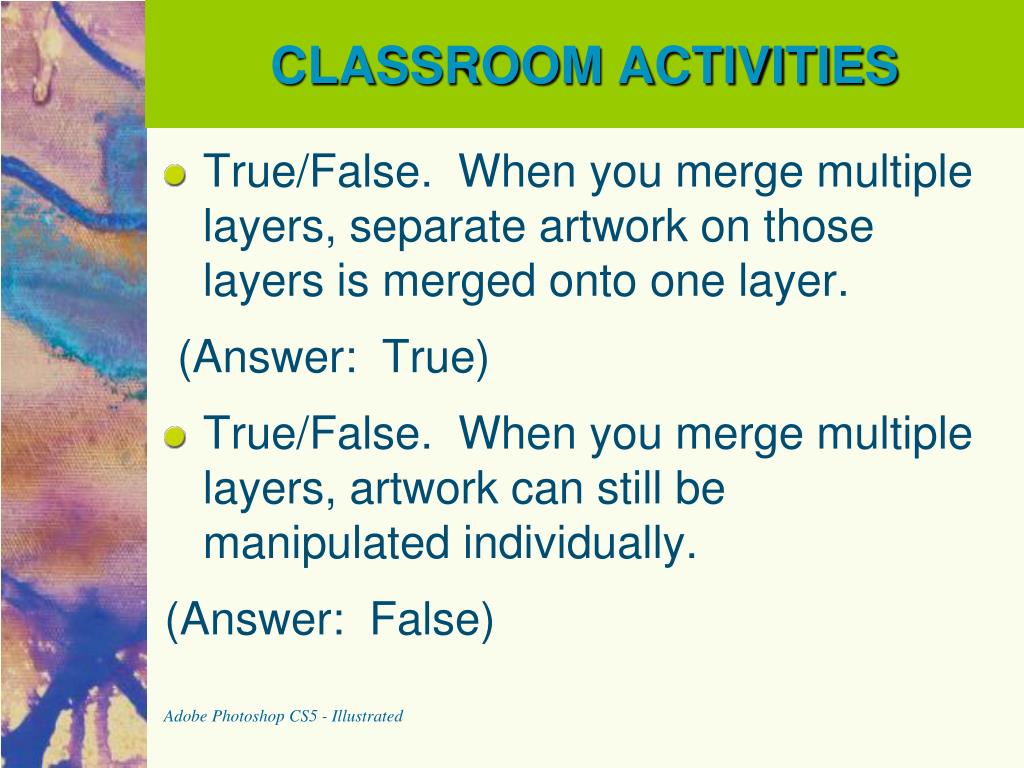

  10. CLASSROOM ACTIVITIES • True/False. When you merge multiple layers, separate artwork on those layers is merged onto one layer. (Answer: True) • True/False. When you merge multiple layers, artwork can still be manipulated individually. (Answer: False) Adobe Photoshop CS5 - Illustrated

  11. Duplicating, Deleting,and Pasting New Layers • Layers are created in Photoshop in a variety of ways, including: • click the Create a new layer button on the Layers panel • use the New Layer command on the Layers panel menu • duplicate an existing layer • paste artwork copied from another file • copied artwork is always pasted into a new layer that is above the targeted layer on the Layers panel Adobe Photoshop CS5 - Illustrated

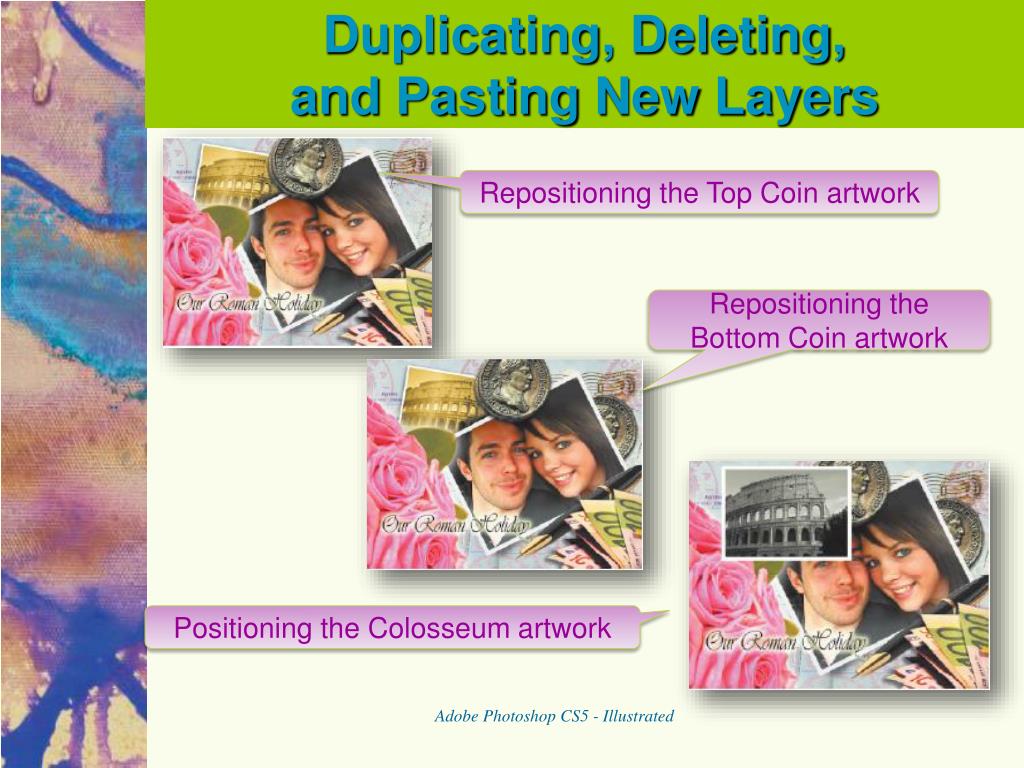

  12. Duplicating, Deleting,and Pasting New Layers Repositioning the Top Coin artwork Repositioning the Bottom Coin artwork Positioning the Colosseum artwork Adobe Photoshop CS5 - Illustrated

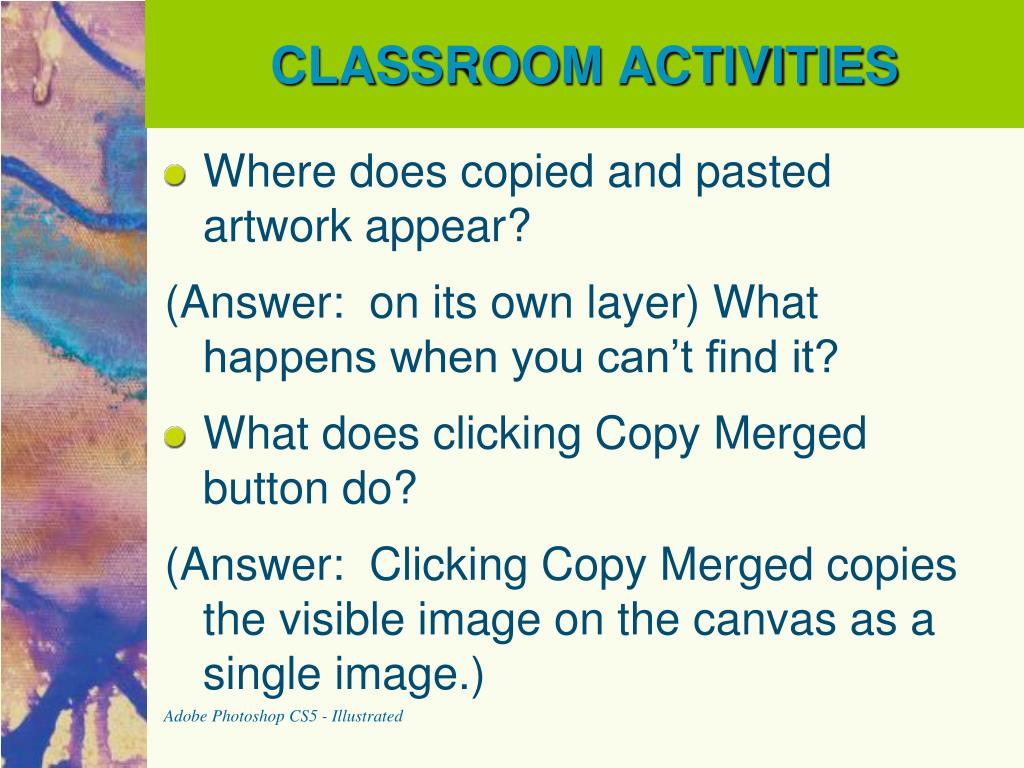

  13. CLASSROOM ACTIVITIES • Where does copied and pasted artwork appear? (Answer: on its own layer) What happens when you can’t find it? • What does clicking Copy Merged button do? (Answer: Clicking Copy Merged copies the visible image on the canvas as a single image.) Adobe Photoshop CS5 - Illustrated

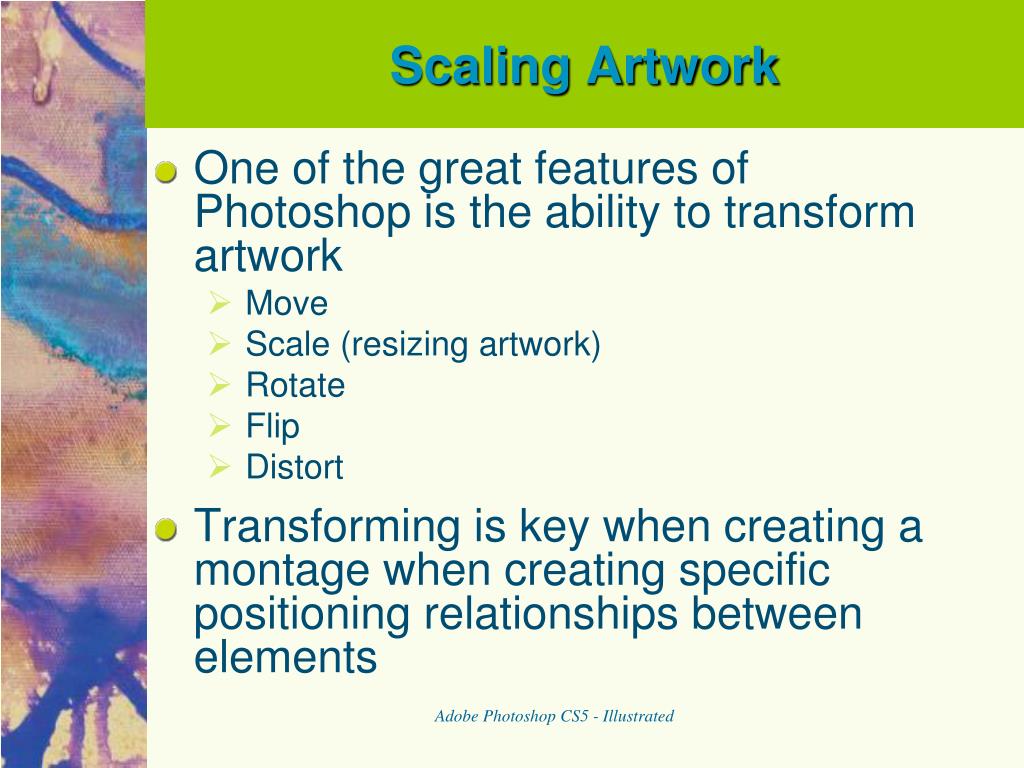

  14. Scaling Artwork • One of the great features of Photoshop is the ability to transform artwork • Move • Scale (resizing artwork) • Rotate • Flip • Distort • Transforming is key when creating a montage when creating specific positioning relationships between elements Adobe Photoshop CS5 - Illustrated

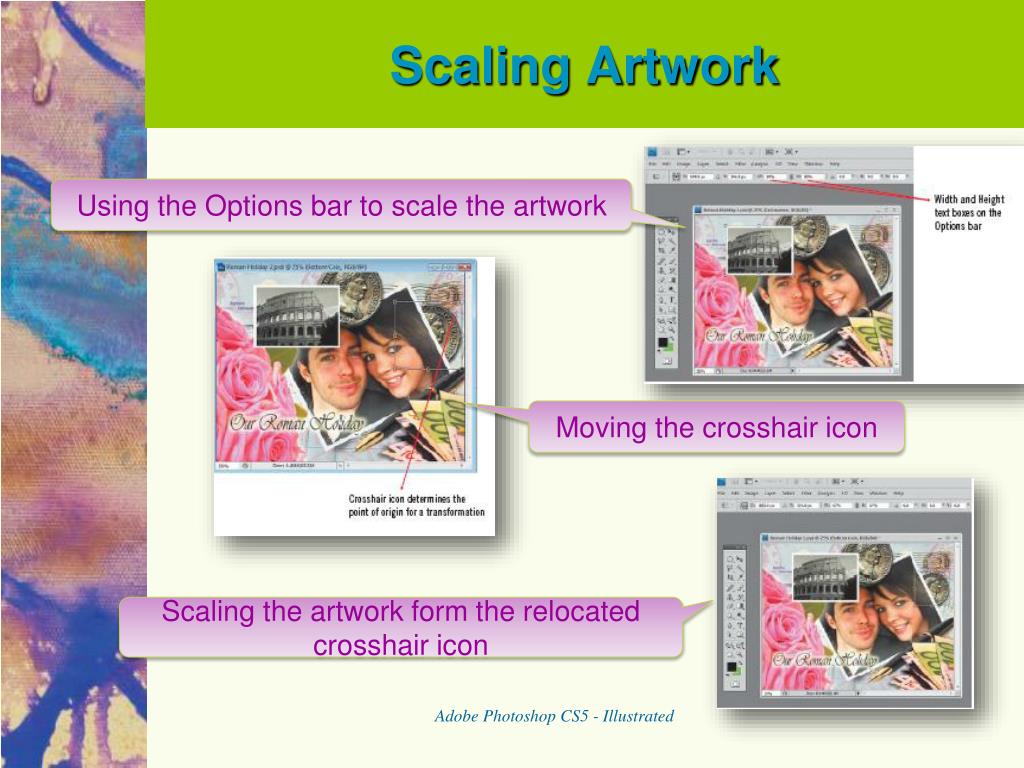

  15. Scaling Artwork Using the Options bar to scale the artwork Moving the crosshair icon Scaling the artwork form the relocated crosshair icon Adobe Photoshop CS5 - Illustrated

  16. CLASSROOM ACTIVITIES • What does transform mean in Photoshop? (Answer: move, scale, rotate, flip, and distort artwork) • True/False. Scaling is a term for resizing artwork. (Answer: True) Adobe Photoshop CS5 - Illustrated

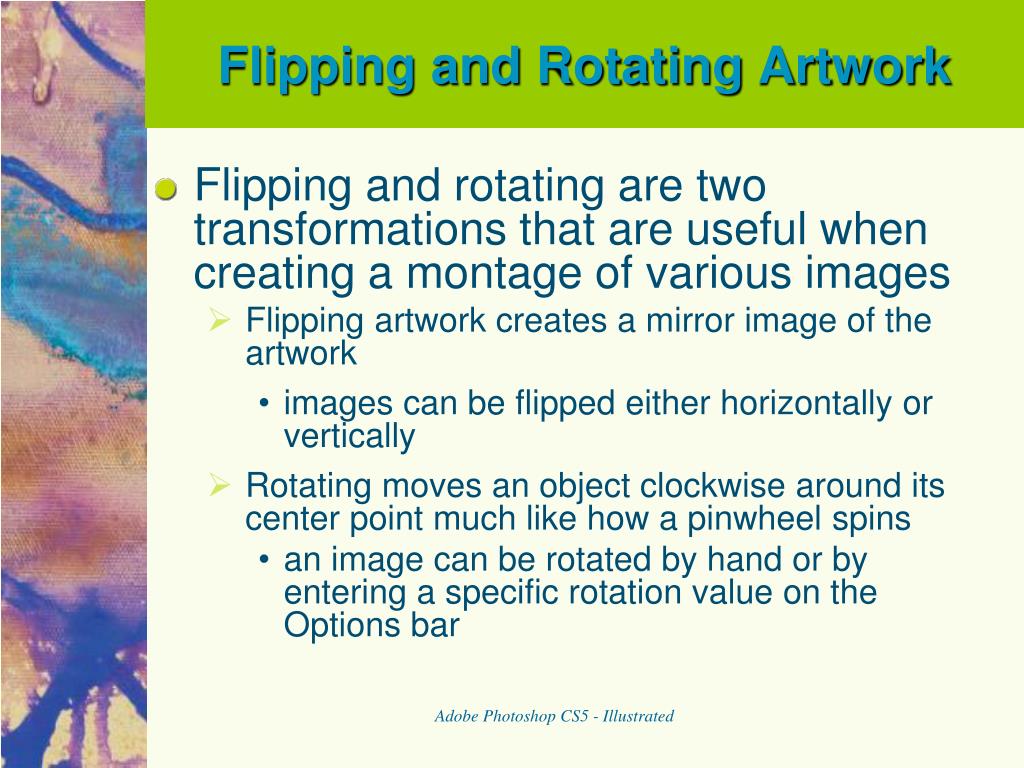

  17. Flipping and Rotating Artwork • Flipping and rotating are two transformations that are useful when creating a montage of various images • Flipping artwork creates a mirror image of the artwork • images can be flipped either horizontally or vertically • Rotating moves an object clockwise around its center point much like how a pinwheel spins • an image can be rotated by hand or by entering a specific rotation value on the Options bar Adobe Photoshop CS5 - Illustrated

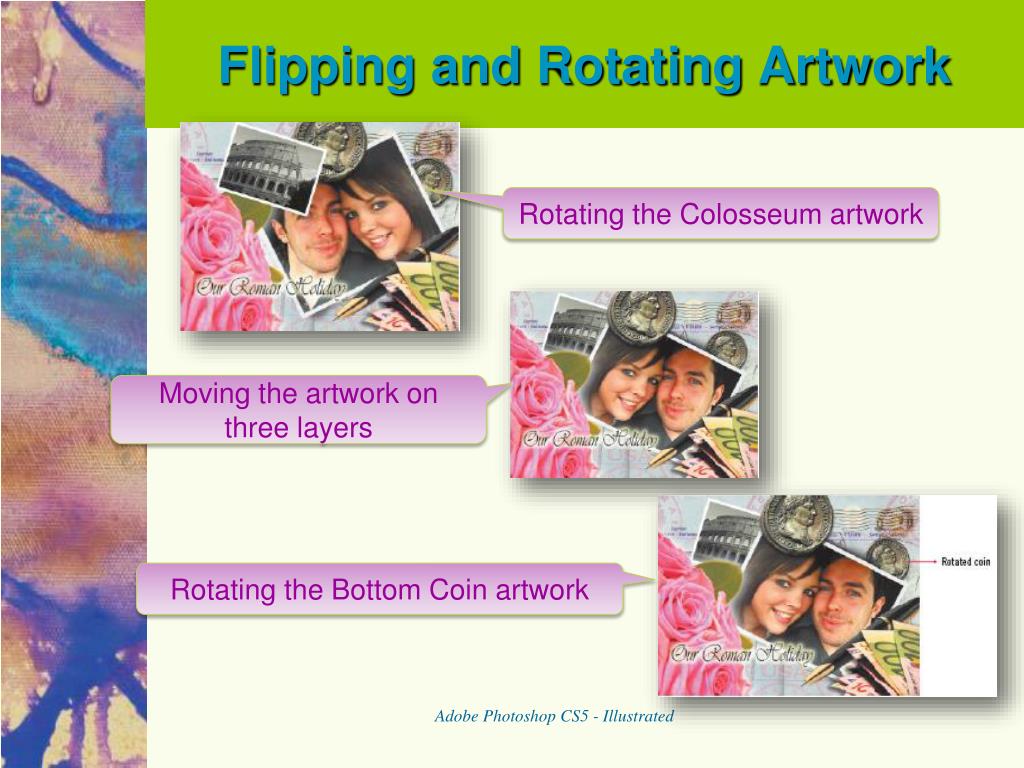

  18. Flipping and Rotating Artwork Rotating the Colosseum artwork Moving the artwork on three layers Rotating the Bottom Coin artwork Adobe Photoshop CS5 - Illustrated

  19. CLASSROOM ACTIVITIES • True/False. Rotate artwork creates a mirror image of the artwork. (Answer: False) • What is the difference between rotating and flipping. When might you use each one? Adobe Photoshop CS5 - Illustrated

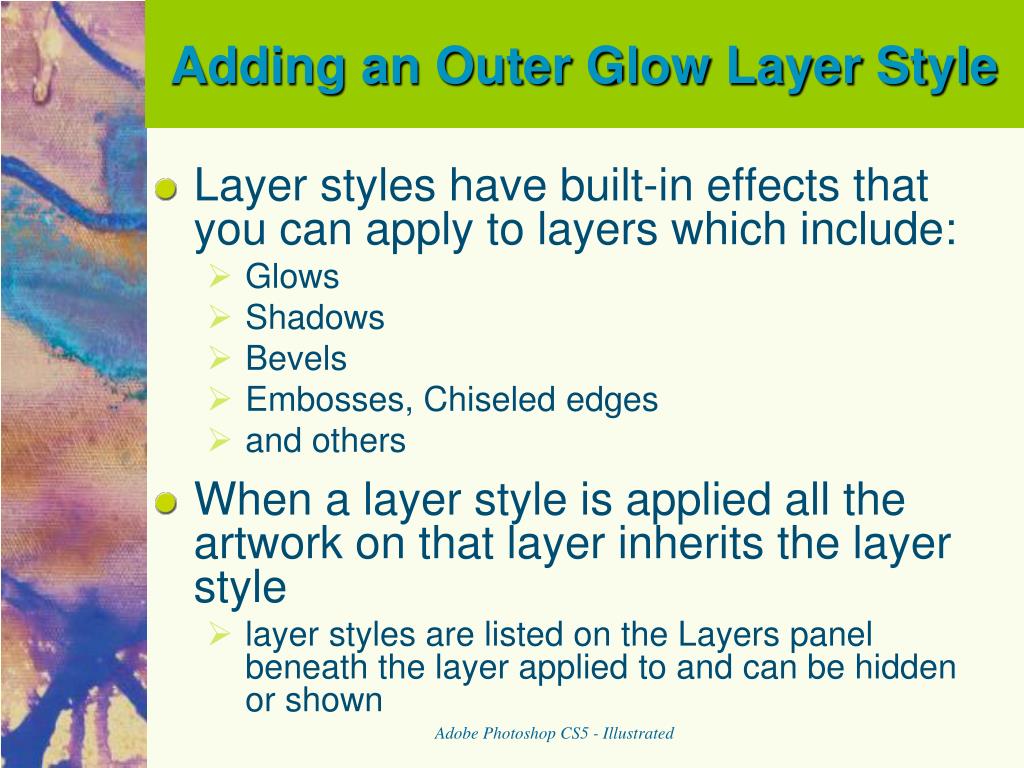

  20. Adding an Outer Glow Layer Style • Layer styles have built-in effects that you can apply to layers which include: • Glows • Shadows • Bevels • Embosses, Chiseled edges • and others • When a layer style is applied all the artwork on that layer inherits the layer style • layer styles are listed on the Layers panel beneath the layer applied to and can be hidden or shown Adobe Photoshop CS5 - Illustrated

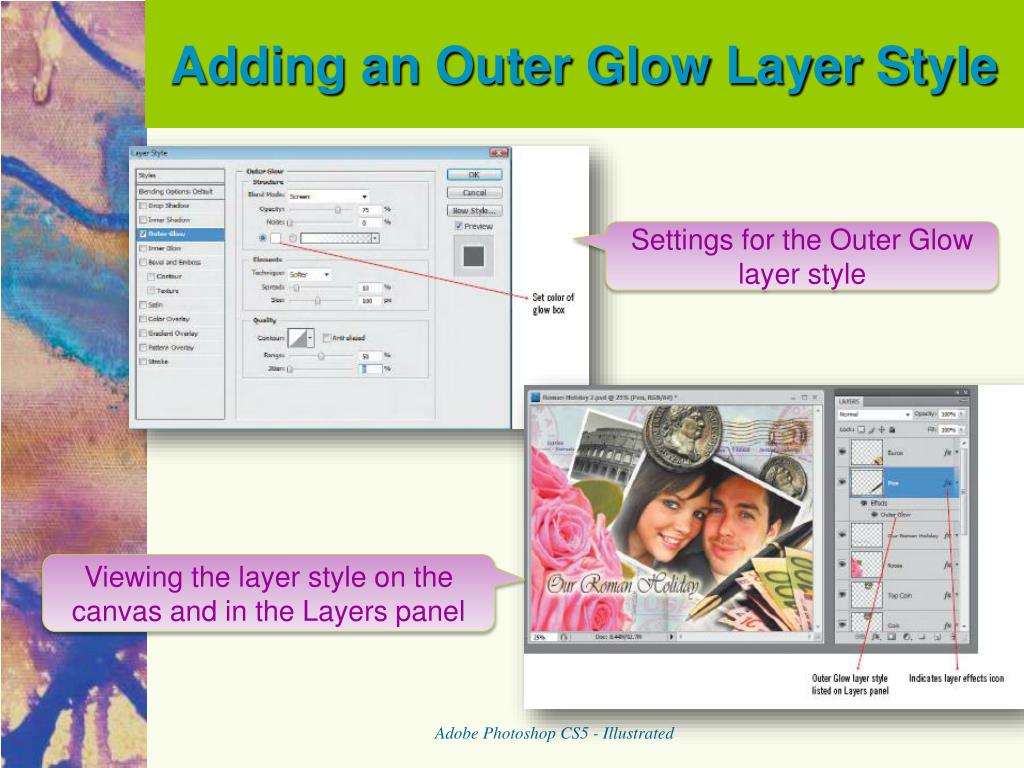

  21. Adding an Outer Glow Layer Style Settings for the Outer Glow layer style Viewing the layer style on the canvas and in the Layers panel Adobe Photoshop CS5 - Illustrated

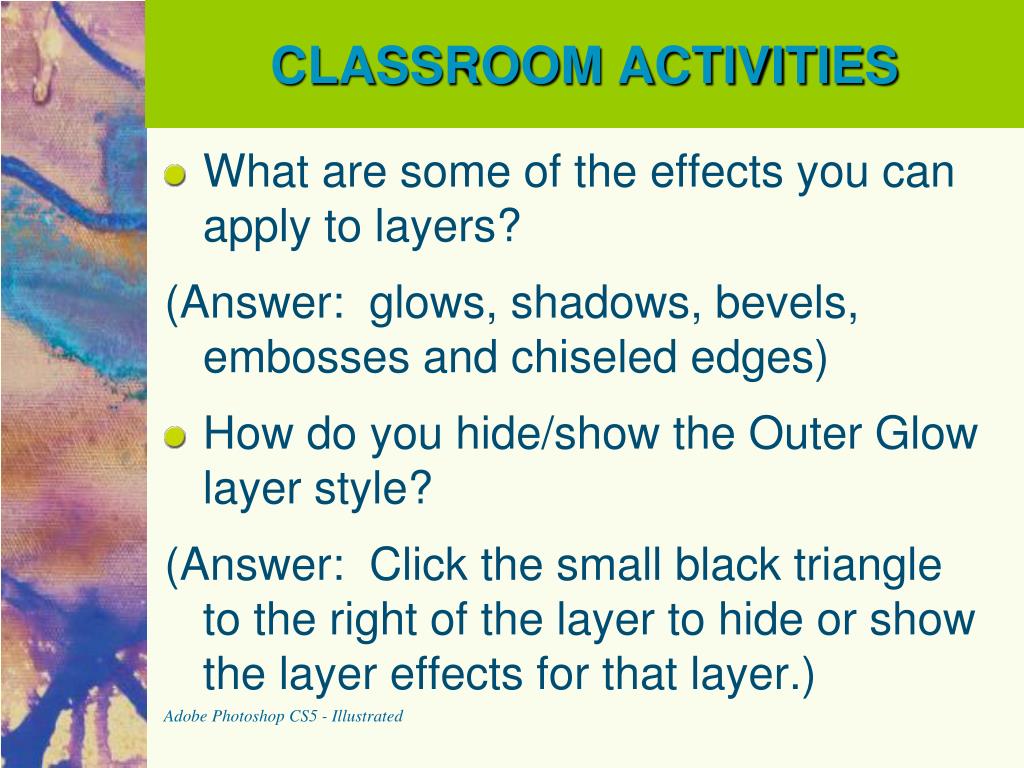

  22. CLASSROOM ACTIVITIES • What are some of the effects you can apply to layers? (Answer: glows, shadows, bevels, embosses and chiseled edges) • How do you hide/show the Outer Glow layer style? (Answer: Click the small black triangle to the right of the layer to hide or show the layer effects for that layer.) Adobe Photoshop CS5 - Illustrated

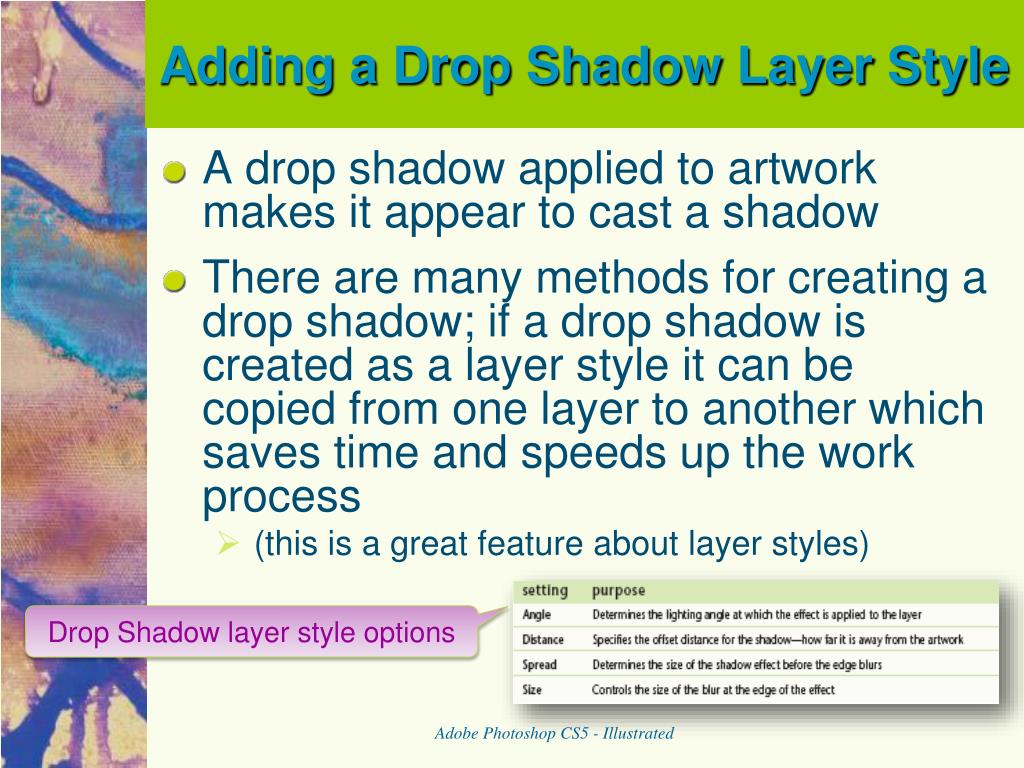

  23. Adding a Drop Shadow Layer Style • A drop shadow applied to artwork makes it appear to cast a shadow • There are many methods for creating a drop shadow; if a drop shadow is created as a layer style it can be copied from one layer to another which saves time and speeds up the work process • (this is a great feature about layer styles) Drop Shadow layer style options Adobe Photoshop CS5 - Illustrated

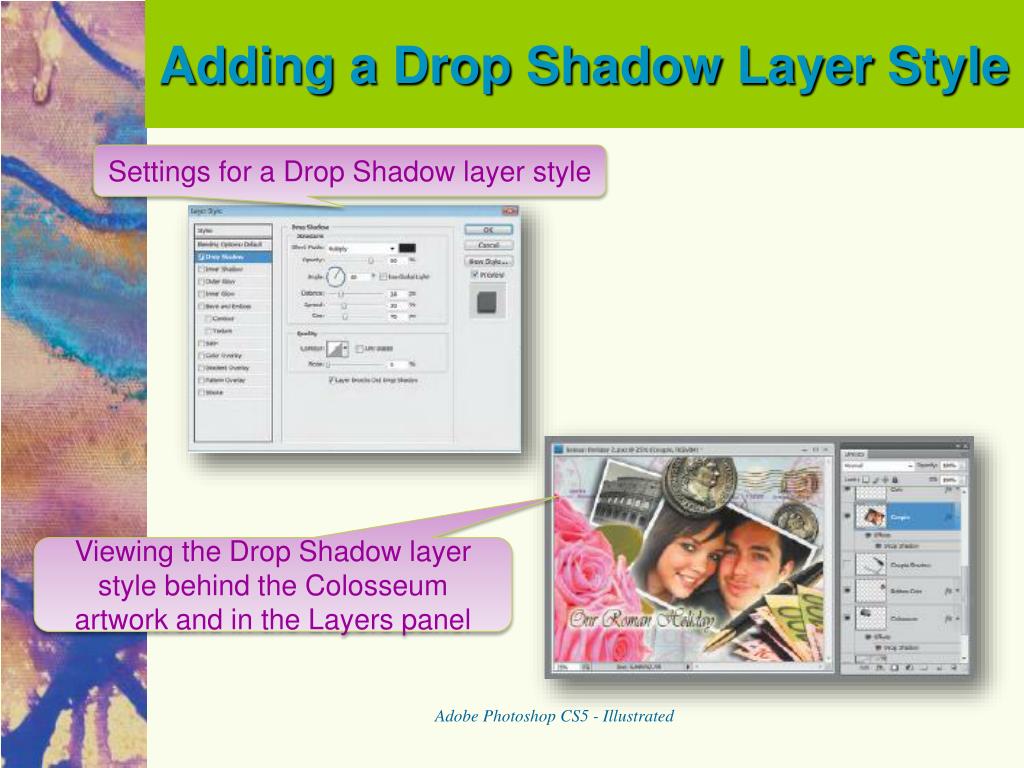

  24. Adding a Drop Shadow Layer Style Settings for a Drop Shadow layer style Viewing the Drop Shadow layer style behind the Colosseum artwork and in the Layers panel Adobe Photoshop CS5 - Illustrated

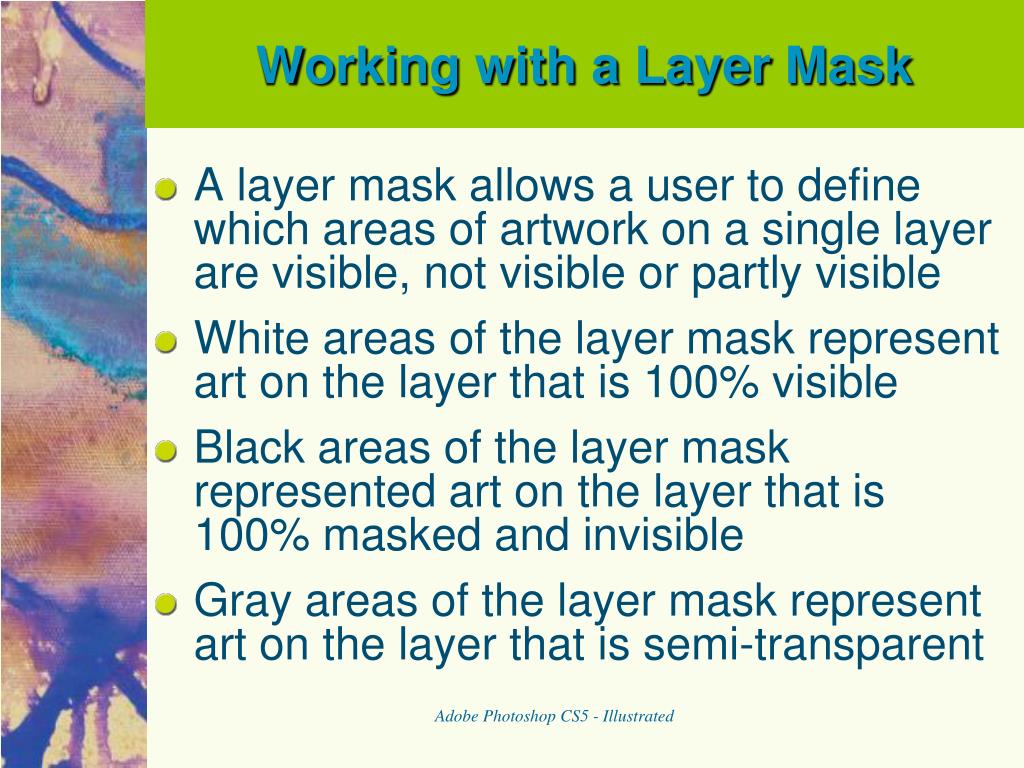

  25. Working with a Layer Mask • A layer mask allows a user to define which areas of artwork on a single layer are visible, not visible or partly visible • White areas of the layer mask represent art on the layer that is 100% visible • Black areas of the layer mask represented art on the layer that is 100% masked and invisible • Gray areas of the layer mask represent art on the layer that is semi-transparent Adobe Photoshop CS5 - Illustrated

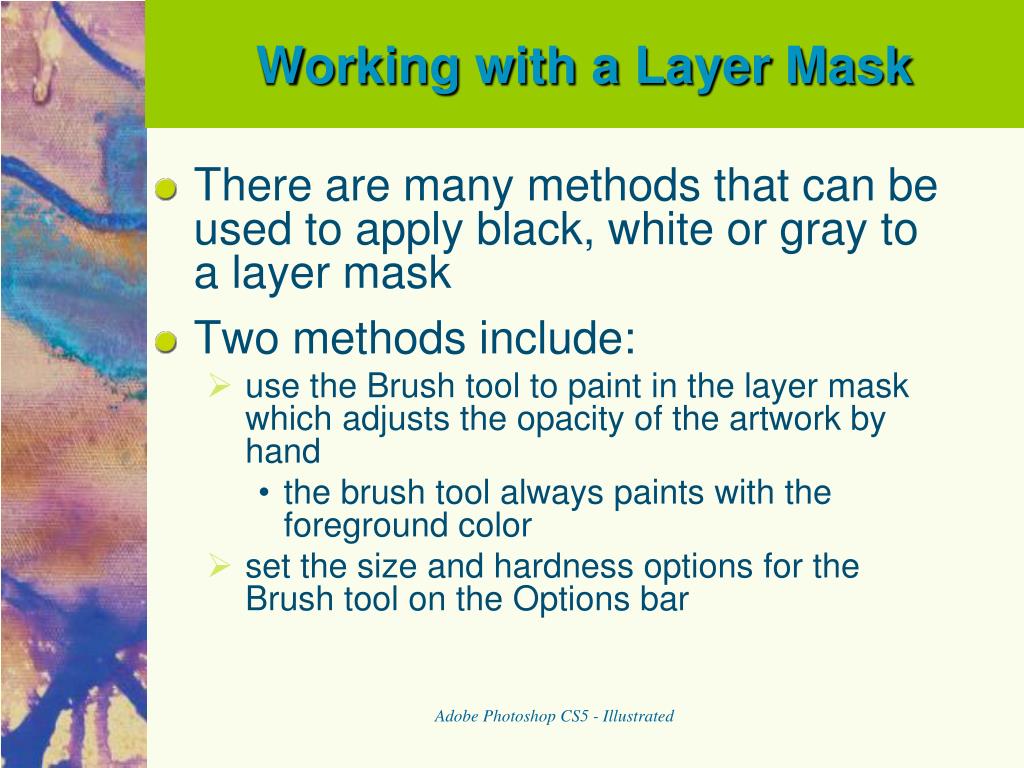

  26. Working with a Layer Mask • There are many methods that can be used to apply black, white or gray to a layer mask • Two methods include: • use the Brush tool to paint in the layer mask which adjusts the opacity of the artwork by hand • the brush tool always paints with the foreground color • set the size and hardness options for the Brush tool on the Options bar Adobe Photoshop CS5 - Illustrated

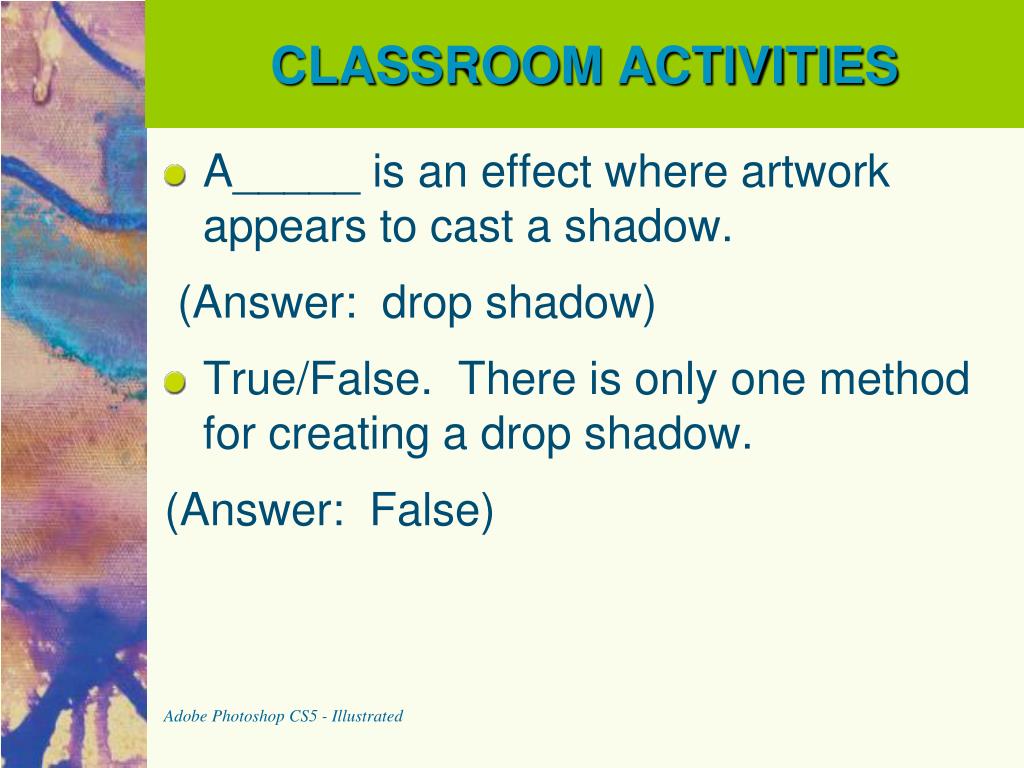

  27. CLASSROOM ACTIVITIES • A_____ is an effect where artwork appears to cast a shadow. (Answer: drop shadow) • True/False. There is only one method for creating a drop shadow. (Answer: False) Adobe Photoshop CS5 - Illustrated

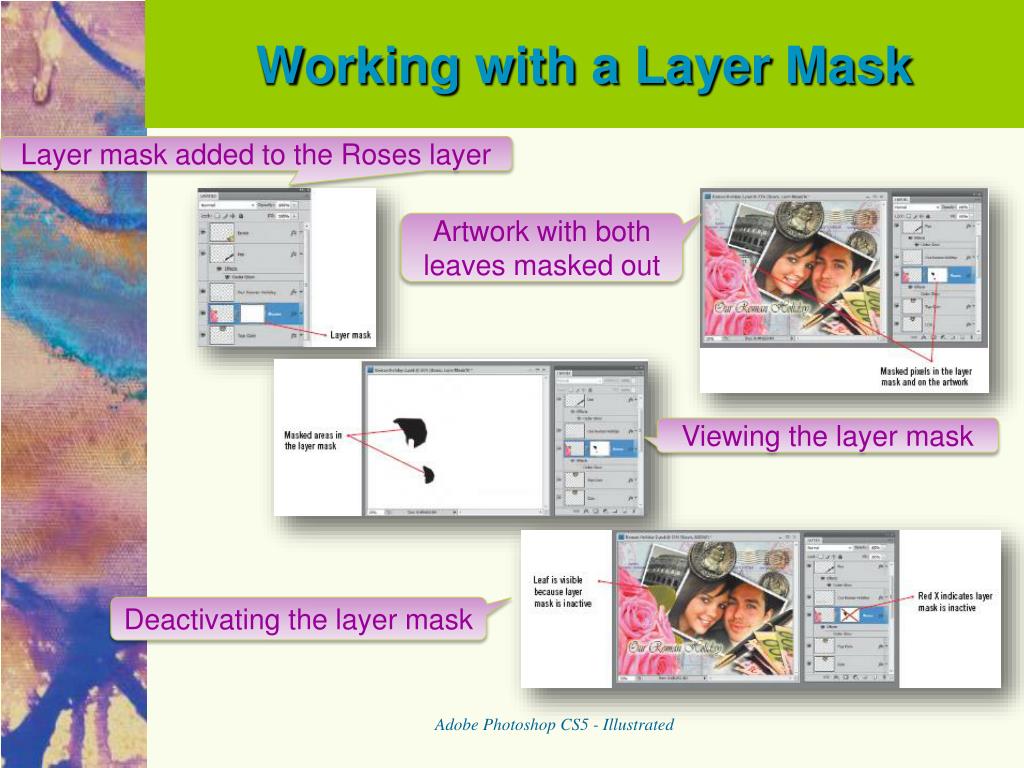

  28. Working with a Layer Mask Layer mask added to the Roses layer Artwork with both leaves masked out Viewing the layer mask Deactivating the layer mask Adobe Photoshop CS5 - Illustrated

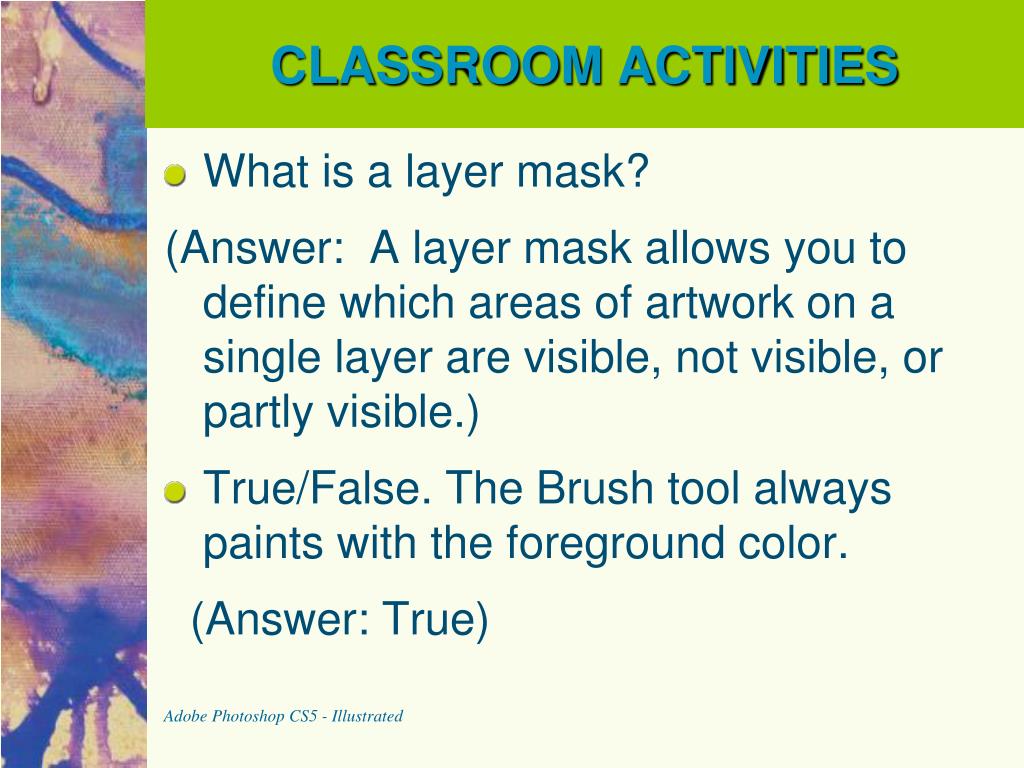

  29. CLASSROOM ACTIVITIES • What is a layer mask? (Answer: A layer mask allows you to define which areas of artwork on a single layer are visible, not visible, or partly visible.) • True/False. The Brush tool always paints with the foreground color. (Answer: True) Adobe Photoshop CS5 - Illustrated

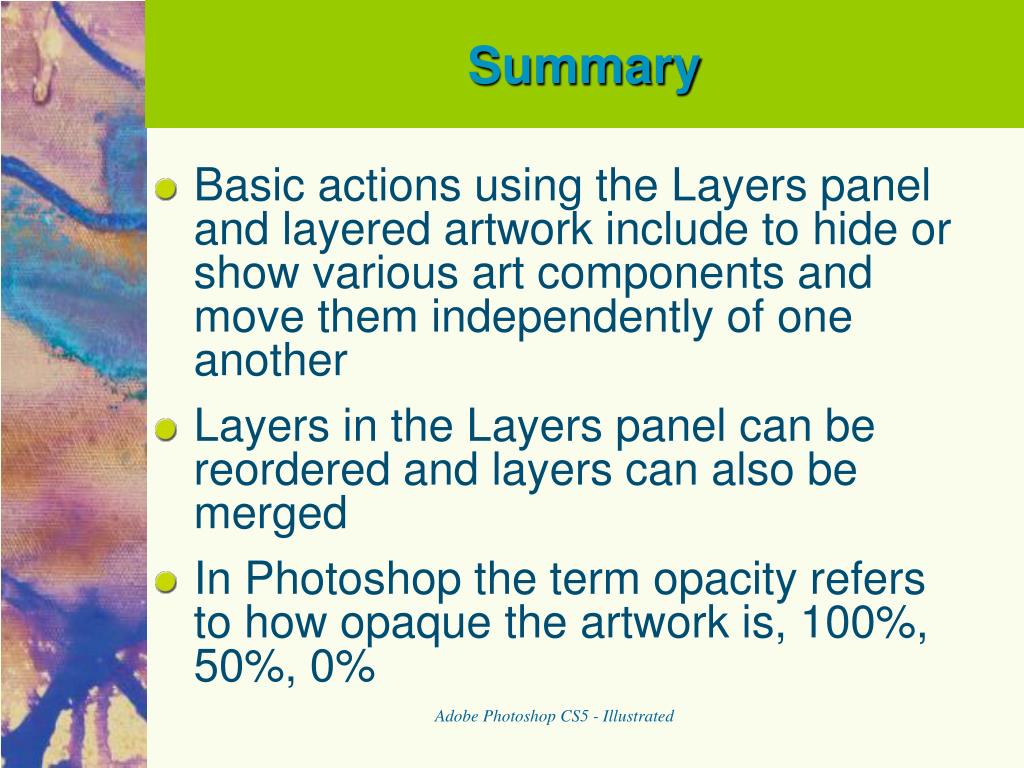

  30. Summary • Basic actions using the Layers panel and layered artwork include to hide or show various art components and move them independently of one another • Layers in the Layers panel can be reordered and layers can also be merged • In Photoshop the term opacity refers to how opaque the artwork is, 100%, 50%, 0% Adobe Photoshop CS5 - Illustrated

  31. Summary • One of the great features of Photoshop is the ability to transform artwork by moving, scaling, rotating, flipping or distorting the artwork • A drop shadow applied to artwork makes it appear to cast a shadow • A layer mask allows a user to define which areas of artwork on a single layer are visible, not visible or partly visible Adobe Photoshop CS5 - Illustrated
