XOR and XNOR Logic Functions: Truth Tables and Adders

Learn about XOR and XNOR logic functions, Boolean expressions, truth tables, and how they relate to half and full adders. Explore parallel binary adders and 4-bit parallel adders with example output.

timothymarshall
Télécharger la présentation

XOR and XNOR Logic Functions: Truth Tables and Adders

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

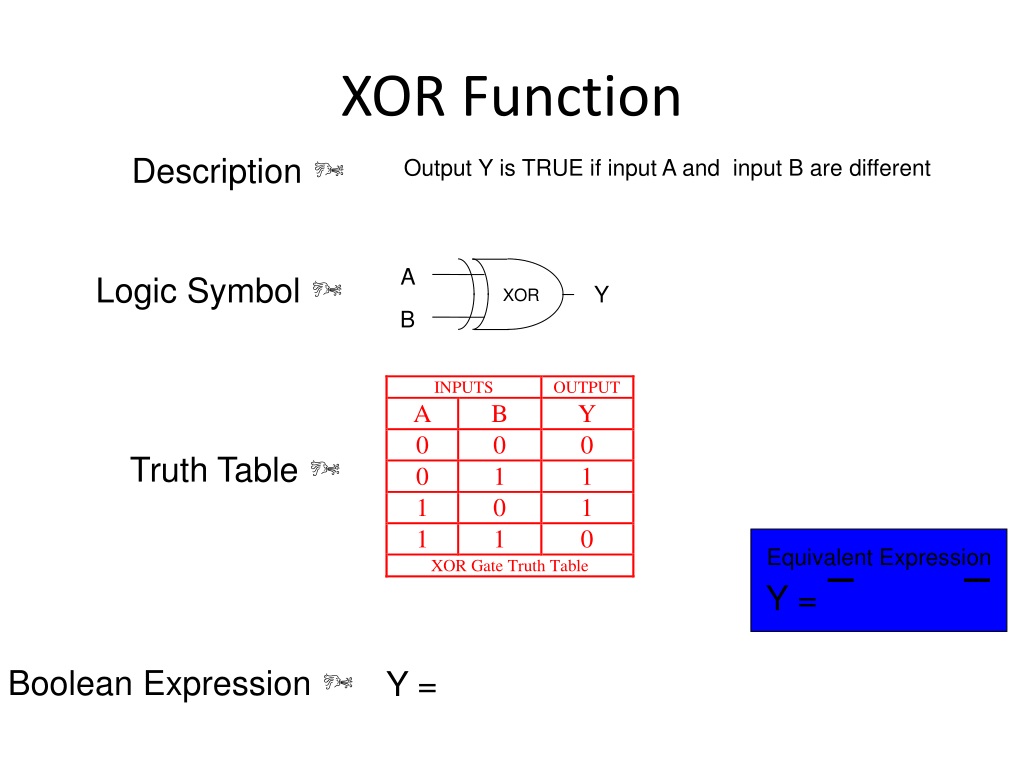

  1. Description  A Logic Symbol  Y XOR B Truth Table  Boolean Expression  XOR Function Output Y is TRUE if input A and input B are different Equivalent Expression Y = Y =

  2. Description  A Logic Symbol  Y XNOR B Truth Table  Boolean Expression  XNOR Function Output Y is FALSE if input A and input B are different. Equivalent Expression Y = Y =

  3. Half & Full Adders • Half Adder • Full Adder

  4. Half & Full Adders

  5. Half-Adder • Function Table • Expression • Logic Circuit

  6. Half-Adder Function Table

  7. Half-Adder Circuit

  8. Full-Adder • Function Table • Expression • Logic Circuit

  9. Full-Adder Function Table

  10. Sum Expression

  11. Carry Out Expression

  12. Full-Adder Circuit

  13. Full-Adder based on Two Half-Adders Full-Adder = Half-Adder + Half-Adder

  14. Parallel Binary Adder • Multiple Single bit Full-Adder connected in Parallel

  15. 4-bit Parallel Adder 1010 0011 ____________ 1101
