How do you know which version of a Proprietary Guardrail End Treatment KY is Using?

tiva avatar
tiva
78 diapositives · 1.1K Views · Jul 21, 2014

Session 4 KY Type 1 End Treatment ET-PLUS Slide 6 by Trinity Highway Products SKT-SP Slide 63 by Road Systems. How do you know which version of a Proprietary Guardrail End Treatment KY is Using?. Go to the KYTC Div of Design Home Page http://transportation.ky.gov/Highway-Design

#how do you know which version of a proprietary guardrail end treatment ky is using? #how do you know which version of a proprietary guardrail end treatment ky is using? ppt #powerpoint #presentation
How do you know which version of a Proprietary Guardrail End Treatment KY is Using? - slide 1
01 / 78How do you know which version of a Proprietary Guardrail End Treatment KY is Using?
1 / 17

Télécharger la présentation

How do you know which version of a Proprietary Guardrail End Treatment KY is Using?
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

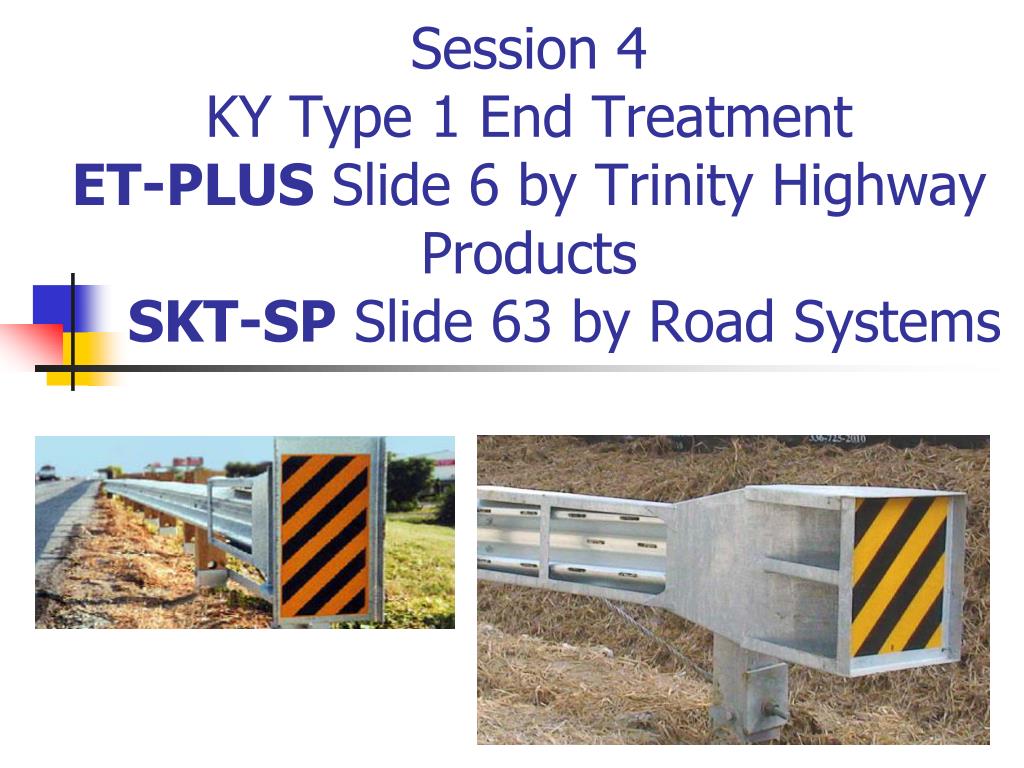

  1. Session 4KY Type 1 End TreatmentET-PLUS Slide 6 by Trinity Highway ProductsSKT-SP Slide 63 by Road Systems

  2. How do you know which version of a Proprietary Guardrail End Treatment KY is Using? • Go to the KYTC Div of Design Home Page http://transportation.ky.gov/Highway-Design • On the lower right click on Standard Drawing • Brings up: • Standard Drawings • Active Sepia List • Approved Shop Drawings - Click • The drawings show the version PLUS, SP, 27 etc. • Basic Info – very useful

  3. http://transportation.ky.gov/Highway-Design Design Home PageStandard Drawings Lower Right

  4. Standard DrawingsActive Sepia ListApproved Shop Drawings Click

  5. Approved Shop DrawingsClick “Alternate 1 Trinity ET Plus”

  6. Approved Shop Drawing “Alternate 1 Trinity ET Plus”

  7. The ET-Plus KY Uses is50’, 7 SYT Post & 1 HBA Post The Title Block Details which ET-Plus Model KY is using

  8. ET-Plus Parts ListYou can learn a lot just looking at the Parts List and the Drawing

  9. Standard Drawing RBR-020 Guardrail End Treatment Type 1

  10. Standard Drawing RBI-004Installation of Guardrail End Treatment Type 1

  11. Installation Instructions for Proprietary Guard Rail End Terminals • This Std Draw Note appears on each Proprietary End Treatment used in KY - “The Manufacturer SHALL furnish two (2) sets of shop plans to the contractor with each installation” • Each Proprietary End Treatment “see shop drawings” • Added to Sect 719.03 of 2012 Std Specs: “Proprietary end treatments SHALL be installed according to the manufacturer’s assembly or installation instructions” • SHOULD NOT LET THE CONTRACTOR BEGIN INSTALLATION BEFORE SUPPLYING YOU WITH THESE SHOP PLANS & INSTALLATION INSTRUCTIONS – Both you and the contractor need these documents to properly do your jobs of installing and inspection propriety guardrail end terminals

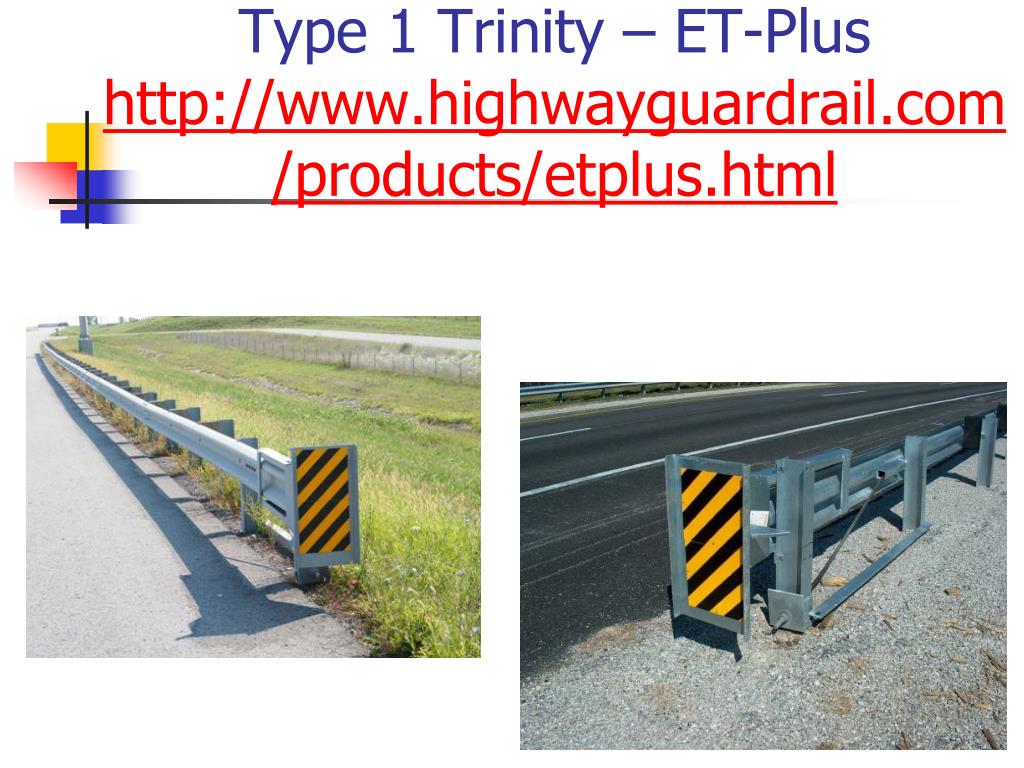

  12. Type 1 Trinity – ET-Plushttp://www.highwayguardrail.com/products/etplus.html

  13. Type 1 ET-PlusStandard Drawing Note • “The Manufacture Shall Furnish Two (2) Sets of Shop Plans to the Contractor with Each Installation” • For the ET-Plus this is on line at • http://www.highwayguardrail.com/products/pdfs/ETPlus-Manual.pdf Call 1-800-527-7976 if you do NOT Understand Manual • This Manual is cumbersome and somewhat hard to follow

  14. http://www.highwayguardrail.com/products/pdfs/ETPlus-Manual.pdfhttp://www.highwayguardrail.com/products/pdfs/ETPlus-Manual.pdf

  15. ET-Plus - Absorbs Energy by Extruding the Rail Thru Impact Head and Knocking Down Post

  16. Hit ET-Plus with SYT Post that Bend (Yield) upon Impact

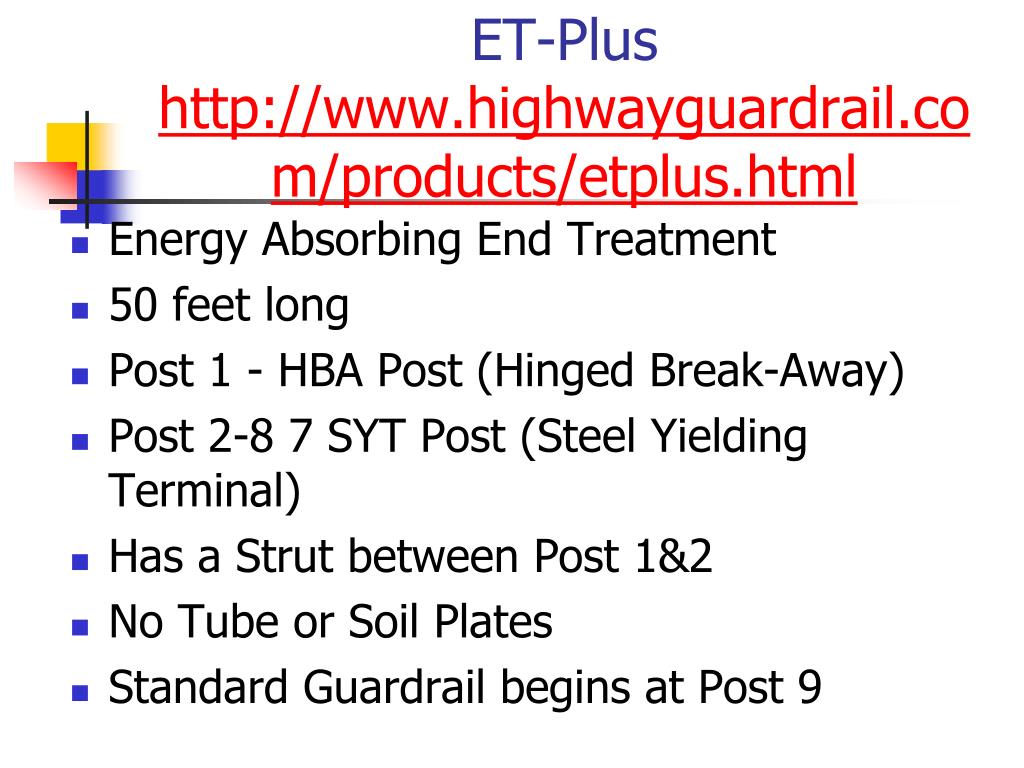

  17. ET-Plushttp://www.highwayguardrail.com/products/etplus.html • Energy Absorbing End Treatment • 50 feet long • Post 1 - HBA Post (Hinged Break-Away) • Post 2-8 7 SYT Post (Steel Yielding Terminal) • Has a Strut between Post 1&2 • No Tube or Soil Plates • Standard Guardrail begins at Post 9

  18. ET-Plushttp://www.highwayguardrail.com/products/etplus.html • Do Not attach Guardrail to Post 1 • Under no circumstances shall the guardrail within the ET-Plus Pay Limit be Curved – see Installation Instructions

  19. ET-Plus Installing HBA Post-Bottom Post 1 Install the Bottom of the HBA Post such that the large hole 13/16” is placed downstream (away from the Impact Head)

  20. ET-Plus Installing HBA Post-Top Post 1 • Align the Holes of the Post Plates (either side of Ears) on the Top and Bottom Post • Insert a 3/8” x 2” Hex Head Bolt through the 7/16” hole in the Post Plates (Ears) with washer and lockwasher under the 3/8” Nut (one bolt assembly on each side of Post) • Note 3/8” Bolts can be installed with nuts inside or outside of Post Plates

  21. ET-Plus Installing HBA - Top Post 1 Are Lock Washer & Washer on??

  22. ET-Plus Installing HBA Post-Top Post 1 • On the side opposite the Strut - Insert a ¾” x 2 ½ ” Hex Head Bolt through the 13/16” hole in the Post Plates with washer and lockwasher under the ¾” Nut • Note ¾ ” Bolts can be installed with nuts inside or outside of Post Plates • DO NOT install the ¾” Bolt on the Strut Side until installing the Strut

  23. ET-Plus Installing HBA Post - Top Post 1Are Lockwasher & Washers on??

  24. Final Assembly @ Base of Post 1From ET-Plus Shop Drawing

  25. Final Assembly @ Base of Post 1Washer but does not have Lockwasher

  26. Proper assembly with Washer & LockWasher

  27. ET-PlusPost 2 – 8 SYT Post • If properly Graded, drive all the 6’ SYT Post to the optimum depth where centers of the 4 Yielding Holes through the Flanges are at the Ground Line • Note: Post 2 does NOT have an offset block • Note: Post 3-8 receive 8” offset blocks

  28. Drive SYT Post at Post 2-8. Careful SYT Post and SP (Std Post) look very similar – DO NOT INTERMIX SYT Post have 4 holes near Ground Line DO NOT INTERMIX SYT Post and SP Post

  29. Center of the Yielding Holes in the Post is Approx. @ Finished Grade

  30. ET-PlusInstalling the Strut Post 1 • Place Angle Strut on the Flange of the HBA Post 1 with ¾” Hex Head Bolt placed through the top and bottom Post Plates and connect with a ¾” Washer and Lockwasher under the ¾” Nut. • Note: Strut can be placed with one of the leg flat or leg edge on the ground • Note: Strut can be installed on traffic side or field side of the Post

  31. Installing the Strut Post 1Again where is the Washer & Lockwasher??

  32. ET-PlusInstalling the Strut Post 2 • Place 2 – 7/16” Hex head Bolts with Washer into the two Slotted Holes of the Strut • Place a Lockwasher and Nut on the ends of each of the Inserted Bolts • Tighten Nuts to snug position

  33. ET-PlusInstalling the Strut Post 2 Washers are Important Incorrect - Loose Fit Without Washer & Lockwasher Correct Tight Fit With Washer

  34. ET-PlusInstall Offset Blocks & Rail PanelsPost 3 - 8 • 25’ or 12’6” Rail Panels are acceptable • Splice the rail Panels with 8 - 5/8” x 1 ¼” HGR Splice Bolts and Nuts • Do NOT connect Rail Panel @ Post 1 • NO Offset Blocks @ Post 1 or 2 • Post 3-8 Insert 5/8” x 10” HGR Bolt thru Rail Panel, 8” Offset Block and SYT Post • Connect with 5/8” Round Washer and HGR Nut

  35. Post 2 No Offset BlockPost 3-8 8” Offset BlockComposite or Wood

  36. ET-Plus Installing Rail Panel to Post 2 • NO Offset Block @ post 2 • Insert 5/8” x 1 ¼” HGR Bolt through the Rail Panel and SYT Post @ Post 2 • Connect with 5/8” Round Washer and HGR Nut

  37. ET-Plus Installing Rail Panel to Post 2

  38. ET-PlusInstalling the Cable Anchor Assembly • Secure Cable Anchor Assembly to the Rail by Inserting the Square Protruding Hooks/Lugs into Square Holes in Rail Panel toward Post 1. Secure by pulling the Bracket toward the Impact head insuring the Hooks/Lugs are well Seated into the Square Holes.

  39. Protruding Hooks /Lugs on ET-Plus Cable bracket

  40. ET-PlusInstalling the Cable Anchor AssemblyCable Bracket

  41. Protruding Hooks /Lugs on ET-Plus Cable bracket Post 1

  42. ET-PlusInstalling the Cable Anchor Assembly • Slide one end of Cable into the Cable Anchor Bracket and the other end into Post 1 • Place a 1” Washer and Hex Nut on the Bracket End near Post 2 and tighten until at least 2 Threads are showing • Place Bearing Plate on Impact Side of Post 1 where Cable extends through Post 1 • Bearing Plate must have Long Dimension (5”) Up

  43. Bearing Plate with Tabs on both sides to keep Bearing Plate Oriented with 5” UP

  44. ET-PlusInstalling the Cable Anchor Assembly • Place 1” Washer and Hex Nut on the end of the Cable extending through Post 1 • Restrain the Cable with locking pliers at the end of the Cable being tightened • Tighten the Hex Nuts on the Cable Ends until TAUT – it is considered TAUT when Cable does not deflect more than 1” when pressure is applied

  45. Tighten Anchor Cable – Using Vice Grips on Shank not on the Cable

  46. ET-PlusInstalling the Cable Anchor Assembly • Shank portion of Anchor Cable MUST BE positioned so it bears on the bottom edge of the web of the HBA Post (Post 1) • Shank portion of Cable must also be centered Horizontally so the Bearing Plate bears uniformly on both Fingers of Post 1

  47. Shank Portion of the Cable Bears on Bottom Edge of HBA Post

  48. ET-PlusInstalling the Cable Anchor Assembly

  49. Why use an anchor??? Third Post hit contained vehicle

  50. What happened here???Impacting Vehicle NOT Contained
