1. Group 5: Daryl, Etkin, Supartha, Rajendra and Aarthi The RSA Algorithm and Reed-Solomon Codes

2. Introduction • Two Information Coding Schemes • RSA Algorithm • Privacy • Authenticity • Reed-Solomon Codes • (Bursty) Noise Tolerance

3. Welcome to the Matrix

4. Privacy

5. Authenticity Trinity? Yes, it’s me.

6. Shared Key Cryptography • Encrypt messages with a symmetric-key cryptosystem (e.g. DES, AES, etc…) • Requires prior agreement on a shared key over a secure channel • What if Neo and Trinity have yetto meet?

7. Public Key Cryptography • Mathematically-related public/private key pairs are generated • Messages encrypted with public key • Can only be decrypted with private key • Infeasible to compute private key from public key alone • No need to agree on a shared key!

8. RSA Algorithm • Rivest, Shamir and Adleman (1977) • Based on difficulty of computing prime factors of large integers

9. RSA Algorithm • Pick two distinct primes p and q • Compute n =pqandɸ(n)= (p – 1)(q – 1) • Pick e where 1 < e < ɸ(n) andgcd(e, ɸ(n)) = 1 • Compute d wherede≡ 1 (mod ɸ(n)) • Public key is (n, e), private key is (n, d) • Encrypt with C ≡Me (mod n) • Decrypt with M ≡Cd (mod n) Setup Usage

10. RSA Algorithm • Pick two distinct primes p and q • Compute n =pqandɸ(n)= (p – 1)(q – 1) • Pick e where 1 < e < ɸ(n) andgcd(e, ɸ(n)) = 1 • Compute d wherede≡ 1 (mod ɸ(n)) • Public key is (n, e), private key is (n, d) • Encrypt with C ≡Me (mod n) • Decrypt with M ≡Cd (mod n)

11. Modular Multiplicative Inverse • Let e, d, n be integers with n ≠ 0 • Fact: If gcd(e, n) = 1(i.e. e and n are coprime) then there exists d such that de≡1 (mod n) • In other words, the multiplicative inverseof e(mod n) exists when gcd(e, n) = 1

12. RSA Algorithm • Pick two distinct primes p and q • Compute n =pqandɸ(n)= (p – 1)(q – 1) • Pick e where 1 < e < ɸ(n) andgcd(e, ɸ(n)) = 1 • Compute d wherede≡ 1 (mod ɸ(n)) • Public key is (n, e), private key is (n, d) • Encrypt with C ≡Me (mod n) • Decrypt with M ≡Cd (mod n)

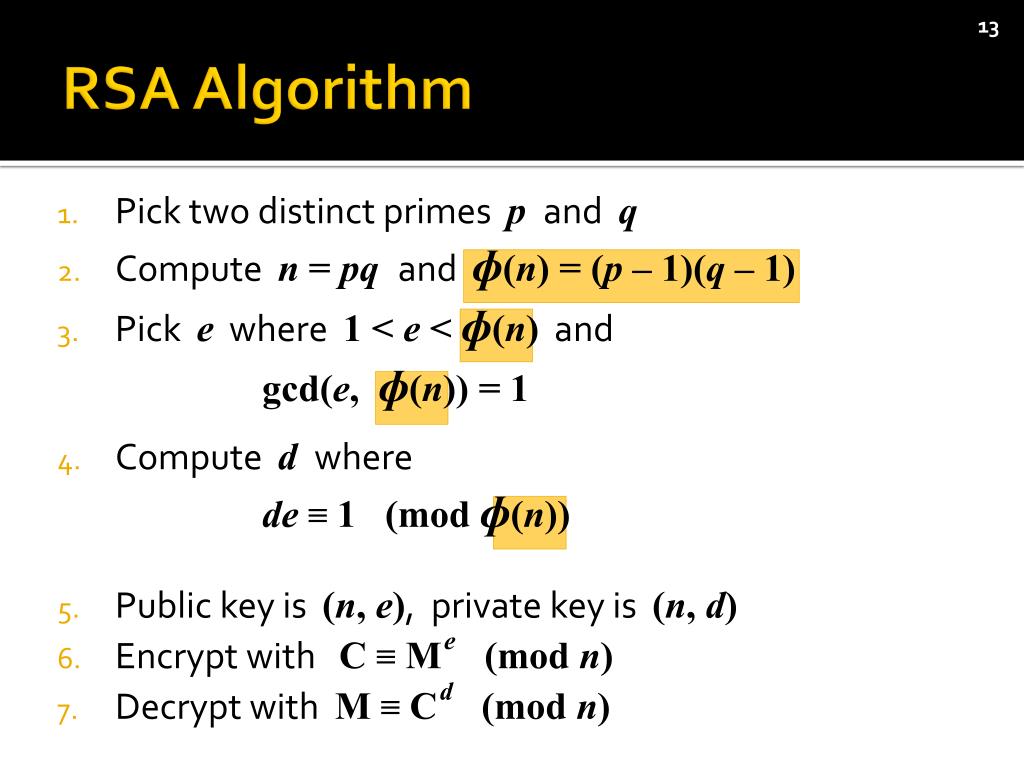

13. RSA Algorithm • Pick two distinct primes p and q • Compute n =pqandɸ(n)= (p – 1)(q – 1) • Pick e where 1 < e < ɸ(n) andgcd(e, ɸ(n)) = 1 • Compute d wherede≡ 1 (mod ɸ(n)) • Public key is (n, e), private key is (n, d) • Encrypt with C ≡Me (mod n) • Decrypt with M ≡Cd (mod n)

14. Euler’s Totient Function ɸ(n) • Definition: no. of integers 1 ≤a ≤ n with gcd(a, n) = 1 • Formula: • For n =pqwhere p and q are primes

15. Modular Exponentiation • Let x, y, m, n be integers with n ≥ 0 • Fact:If x ≡ y (mod ɸ(n)) , then mx≡my(mod n) • In other words, working in mod n requires that we work mod ɸ(n) in the exponent

16. RSA Algorithm • Pick two distinct primes p and q • Compute n =pqandɸ(n)= (p – 1)(q – 1) • Pick e where 1 < e < ɸ(n) andgcd(e, ɸ(n)) = 1 • Compute d wherede≡ 1 (mod ɸ(n)) • Public key is (n, e), private key is (n, d) • Encrypt with C ≡Me (mod n) • Decrypt with M ≡Cd (mod n)

17. RSA Algorithm • Pick two distinct primes p and q • Compute n =pqandɸ(n)= (p – 1)(q – 1) • Pick e where 1 < e < ɸ(n) andgcd(e, ɸ(n)) = 1 • Compute d wherede≡ 1 (mod ɸ(n)) • Public key is (n, e), private key is (n, d) • Encrypt with C ≡Me (mod n) • Decrypt with M ≡Cd (mod n) (Me)d≡ M (mod n) and (Md)e≡ M (mod n)

18. Example: M = 1234 • Pick p = 37and q =43 • Compute n = 1591 andɸ(n) = 1512 • Pick e= 71gcd(e, ɸ(n)) = gcd(71, 1512) = 1 • Compute d = 575 (Extended Euclidean Algorithm)de = 40825 ≡1 (mod 1512) • Public key is (n, e), private key is (n, d) • Encrypt: C ≡ Me ≡ 123471 ≡ 908 (mod 1591) • Decrypt: M ≡ Cd ≡ 908575 ≡ 1234 (mod 1591)

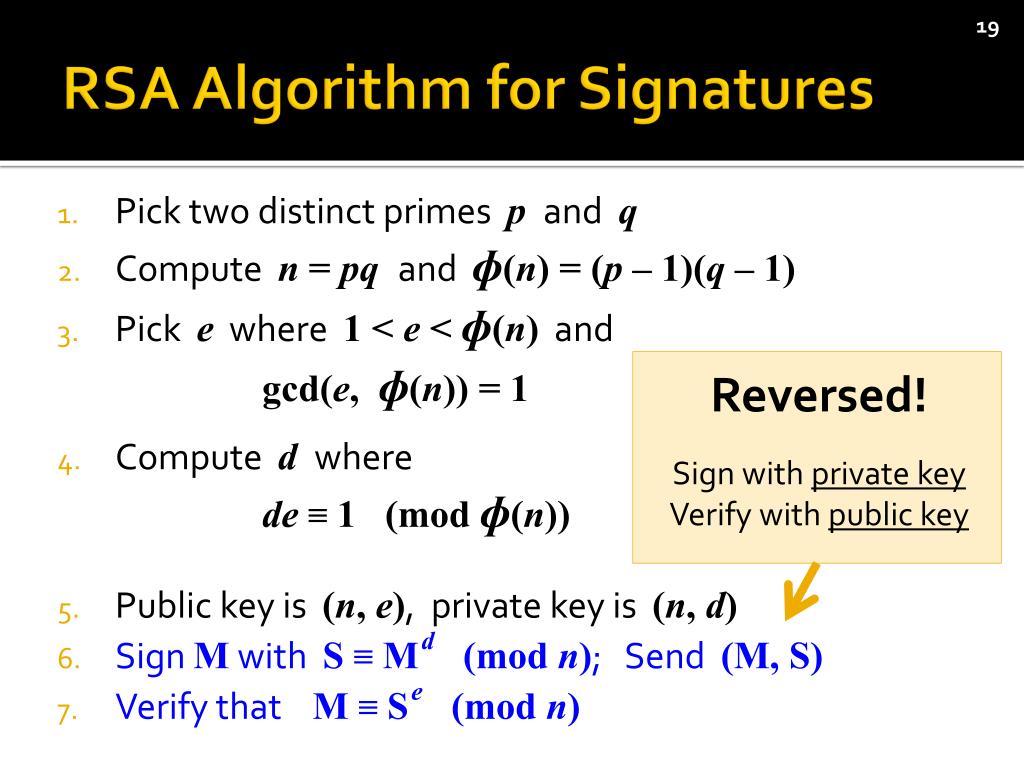

19. RSA Algorithm for Signatures • Pick two distinct primes p and q • Compute n =pqandɸ(n)= (p – 1)(q – 1) • Pick e where 1 < e < ɸ(n) andgcd(e, ɸ(n)) = 1 • Compute d wherede≡ 1 (mod ɸ(n)) • Public key is (n, e), private key is (n, d) • Sign M with S ≡ Md (mod n); Send (M, S) • Verify that M ≡ Se (mod n) Reversed! Sign with private key Verify with public key

20. Implementing… • Modular exponentiation • Successive-Squaring • Computing d from e and ɸ(n) • Extended Euclidean Algorithm • Finding large primes

21. Modular Exponentiation Algo. • Successive-Squaring to Compute C ≡ Me (mod n) Let e = ekek–1 … e0 (binary representation of e) C := 1 Fori := k, k – 1, …, 0 C := (C * C) mod n If ei = 1 Then C := (C * M) mod n End For • Performance: O(log e) • Memory: O(1)

22. Computing d from e and ɸ(n) • Extended Euclidean Algorithm: • Since eandɸ(n)are coprime, solving yields d = y satisfying Find max. qi satisfying and xiand yisatisfying When rk = 0, stop and output gcd(a, b) = rk-1 andx = xk-1and y= yk-1 Similar to Euclidean Algorithm for gcd(a, b), but retain quotients qi at each step ito compute xiand yi

23. Generating Large Primes • Generate a large random integer • Apply primal test repeatedly • Primality Tests: • Miller-Rabin • Solovay-Strassen • Fermat Primality Test • Euler Witness, Euler Liar

24. Algorithm 1: Pick a large random integer 2: If for any small prime (Sieving) 3: go back to step 1 4: repeat times(Miller-Rabin) 5:pick random integer 6:do a primality test on (,) 7: if test fails 8: go back to step 1 9: is probably prime

25. Sieving • Sieve of Eratosthenes 1: Pick a large random integer 2: If for any small prime 3: go back to step 1

26. Miller-Rabin Primality Test 4: repeat times 5: pick random integer 6: do a primality test on (, ) 7: if test fails 8: go back to step 1 9: is probably prime

27. Miller-Rabin Primality Test • divides or or • By Euclid’s Lemma

28. Fermat’s Little Theorem • If is prime and for any integer such that doesn’t divide

29. Miller-Rabin Primality Test • : prime candidate • : random integer • is odd

30. Miller-Rabin Primality Test or

31. Psuedocode

32. Example • prime candidate • random integer

33. Example • Either is a prime or is an Euler liar • Now, we try another a

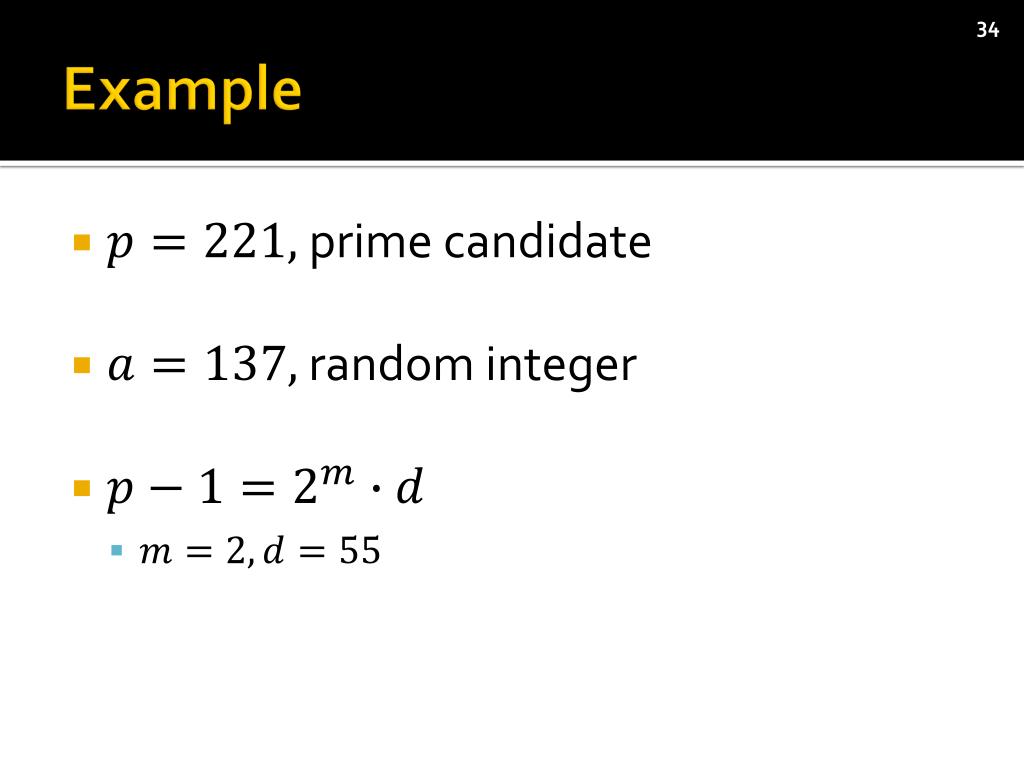

34. Example • prime candidate • random integer

35. Example • is a composite • is an Euler liar • is an Euler witness

36. Deterministic Miller-Rabin • Trying all possible witnesses below a limit • Not used in practice • if p< 341,550,071,728,321, it is enough to test a = 2, 3, 5, 7, 11, 13, and 17.

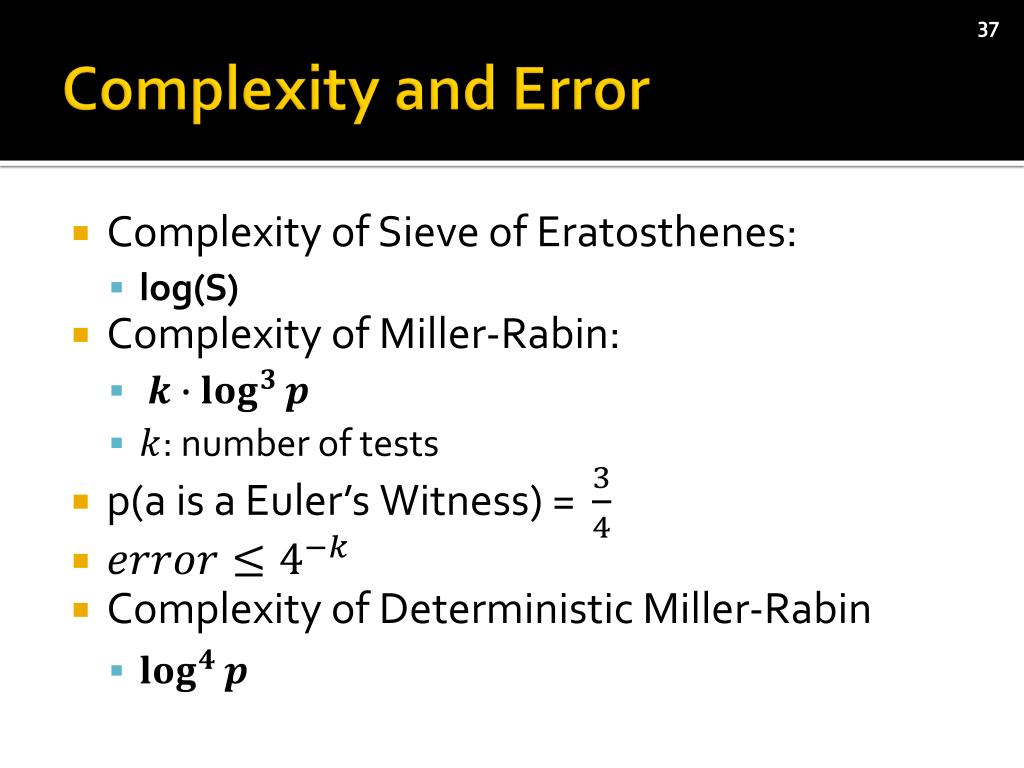

37. Complexity and Error • Complexity of Sieve of Eratosthenes: • log(S) • Complexity of Miller-Rabin: • : number of tests • Complexity of Deterministic Miller-Rabin

38. Reed-Solomon Codes

39. Agent Smith is Frustrated ???

40. Disrupts Channel

41. Noisy Channel Noise is Natural Studied models in general • Binary Symmetric Channel • Binary Erasure Channel • Noisy Typewriter Channel • Continuous Output Channel …

42. Error Correction (Toy Example)

43. Error Correction • A • Code M C 00 000 01 001 10 010 11 011 100 101 110 111

44. Code Distance (Toy Example)

45. Hamming Distance d Distance between ∆ For example, 10100 10001∆ Code Distance

46. Linear Codes M C 00 000 01 001 10 010 11 011 100 101 110 111 No Structure??Have to store the whole mapping in a codebook Linear Code: If is a field and , is a subspace of then is said to be a linear code

47. Linear Codes Linear Code: If is a field and , is a subspace of then is said to be a linear code • As is a subspace, there exists a basis where is the dimension of the subspace • Any code word can be expressed as a linear combination of these basis vectors. for example, Hamming Code is Linear = G = n x k, where n =7, k=4

48. Singleton Bound • a code over alphabet of length and min distance • How many code words possible? • Singleton Bound

49. Reed Solomon Code • Applications: CDs, Space Communication, … • Robust against Burst errors [1960] Reed Solomon Code From left: GustaveSolomon & Irving S. Reed

50. Reed Solomon Code (Original View) Given Create a polynomial p • p has degree at most • A non zero polynomial of degree with coefficients from field has at most roots in .
