Volume of Cylinders

tiva avatar
tiva
15 diapositives · 645 Views · Jul 29, 2014

Volume of Cylinders. Unit 3: Geometric Applications of Exponents. Cylinder. A cylinder is a three-dimensional figure that has two congruent circular bases. Height. Base. Volume of Cylinders. V = Bh. = (  r 2 ) h.

#volume of cylinders #volume of cylinders ppt #powerpoint #presentation
Volume of Cylinders - slide 1
01 / 15Volume of Cylinders
1 / 17

Télécharger la présentation

Volume of Cylinders
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

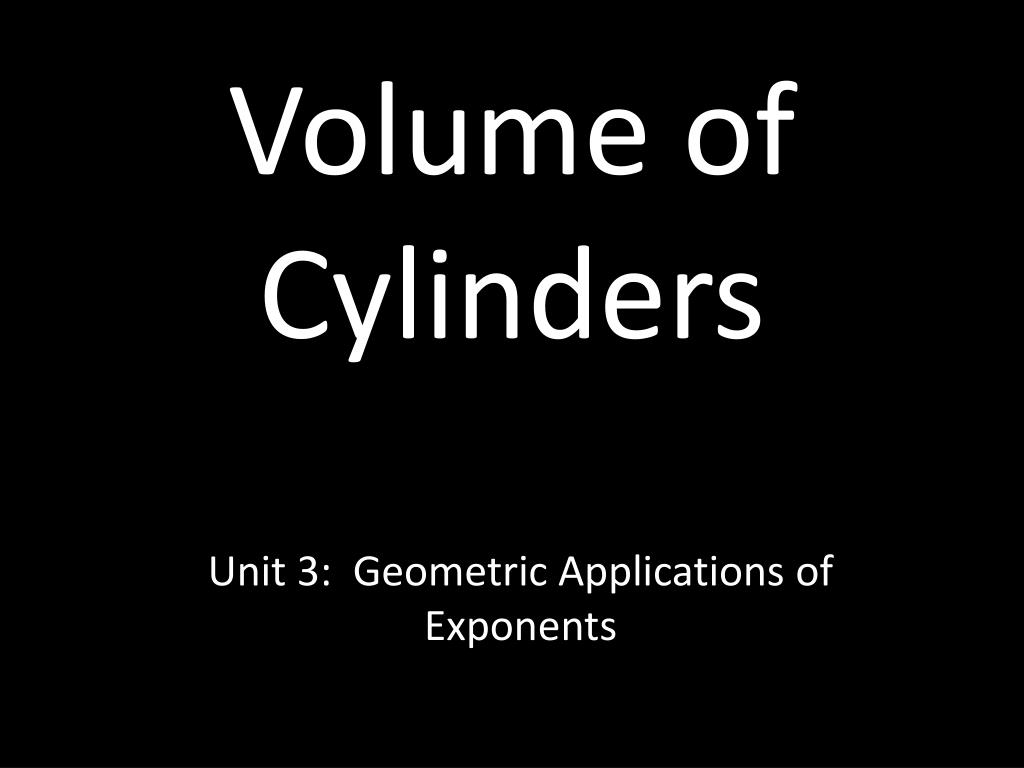

  1. Volume of Cylinders Unit 3: Geometric Applications of Exponents

  2. Cylinder A cylinder is a three-dimensional figure that has two congruent circular bases. Height Base

  3. Volume of Cylinders V = Bh = (r2)h Area is measured in square units. Volume is measured in cubicunits.

  4. Volume of Cylinders - To find the volume of a cylinder, multiply the area of the base by the height. • volume of a cylinder =

  5. Volume of Cylinders V = r2h 1. Find the volume V of the cylinder to the nearest cubic unit.

  6. Volume of Cylinders 2. Find the volume V of the cylinder to the nearest cubic unit.

  7. Volume of Cylinders 3. Find the volume V of the cylinder to the nearest cubic unit. 8 cm V = Bh 15 cm

  8. Volume of Cylinders A juice can has a radius of 2 in. and a height of 5 in. Explain whether tripling the height of the can would have the same effect on the volume as tripling the radius. By tripling the height, you would triple the volume. By tripling the radius, you would increase the volume to nine times the original.

  9. Volume of Cylinders 4. Find the volume V of the cylinder to the nearest cubic unit. 6 ft 5 ft

  10. Volume of Cylinders 5. Find the volume V of the cylinder to the nearest cubic unit. 8 cm 6 cm

  11. Volume of Cylinders Cylinder 2 has the greater volume because 169.56 cm3 > 84.78 cm3. V3.141.5212 V = r2h V 84.78 cm3 V3.14326 V =r2h V 169.56 cm3 Find which cylinder has the greater volume. Cylinder 1: Cylinder 2:

  12. Volume of Cylinders 10 cm 2.5 cm 4 cm 4 cm Cylinder 1 has the greater volume because 196.25 cm3 > 50.24 cm3. V3.142.5210 V = r2h V 196.25 cm3 V3.14224 V = r2h V 50.24 cm3 Find which cylinder has the greater volume. Cylinder 1: Cylinder 2:

  13. Homework: • WT pg. 227 (#2 & 6) • WT pg. 235 (#2, 5, & 8) Change the directions to finding the VOLUME not surface area.

  14. Volume of Cylinders Insert Lesson Title Here Lesson Quiz: Part I Find the volume of each cylinder to the nearest cubic unit. Use 3.14 for . 1. radius = 9 ft, height = 4 ft 2. radius = 3.2 ft, height = 6 ft • 3. Which cylinder has a greater volume? • a. radius 5.6 ft and height 12 ft • b. radius 9.1 ft and height 6 ft

  15. Volume of Cylinders Insert Lesson Title Here Lesson Quiz: Part II 4. Jeff’s drum kit has two small drums. The first drum has a radius of 3 in. and a height of 14 in. The other drum has a radius of 4 in. and a height of 12 in. Estimate the volume of each cylinder to the nearest cubic inch. a. First drum b. Second drum
