  1. Section 2 Concurrent Programming Abstraction & Java Threads

  2. 2.1: Concurrent Programming Abstraction • The execution of a concurrentprogramconsists of multiple processes active at the same time. Each process is the execution of a sequential program. • If the computer has multiple PEs then there is parallel or realconcurrentexecution. • However, with a single PE the processor is switched among the processes. This interleaving is referred to as pseudo-concurrentexecution.

  3. 2.1: Concurrent Programming Abstraction • Without loss of generality, we will always model concurrent execution as interleaved whether or not implementations run on multiple PEs. l1 Sequences are interleaved. l2 l1 l2

  4. l1 l2 load add mult store l1 l2 load add store mult 2.1: Concurrent Programming Abstraction • In most systems absolute time is unimportant. • Systems are frequently upgraded with faster components. Correctness should not depend on absolute time. • Time is ignored only sequences are important. Arbitrary interleaving is allowed. Program must be correct under all interleavings.

  5. 2.1: Concurrent Programming Abstraction • In our abstraction, whether on multiple PEs or a single PE, each process is considered to be operating on its own processor, executing its own program. Only two possible interactions to consider: • contention - competing for a shared resource; • communication - synchronise (agree that a certain event has to take place).

  6. 2.1: Concurrent Programming Abstraction • The absolute time taken by an atomic instruction is ignored. • Arbitrary interleavings are allowed. • The interleaving must be fair i.e. no process is deferred forever. • A concurrent program is required to be correct under all fair interleavings. Note: Conventional ‘debugging’ to detect and correct errors is impossible Concurrent programming abstraction is the study of interleaved execution of the atomic instructions of sequential processes.

  7. process P1 p1a; p1b; end P1; process P2 p2a; p2b; end P2; 2.1.1: Interleaving Consider the following program: What are the possible interleavings ? (an interleaving is sometimes referred to as a history or trace) p1a; p1b; p2a; p2b; p2a; p2b; p1a; p1b; p1a; p2a; p1b; p2b; p2a; p1a; p2b; p1b; p1a; p2a; p2b; p1b; p2a; p1a; p1b; p2b;

  8. (n.m)! ____ n (m!) 2.1.1: Interleaving The number of interleavings in a concurrent program is generally enormous. Suppose a concurrent program contains n processes and that each executes a sequence of m atomic actions. The number of different interleavings is: Threeprocesses each having two atomic actions will result in 90 possible interleavings.

  9. int c1 = 2; int c2 = 3; process P1 p1: c1 = c1 * c2; endP1; process P2 p2: c1 = c1 + c2; end P2; 2.1.1: Interleaving Consider the following program: What is the meaning of this program? That is, what are the values of c1 and c2 after execution of the program? Two possible answers: c1 == 9; c2 == 3 if p1 executes before p2 c1 == 15; c2 == 3 if p2 executes before p1

  10. bool continue=true; process P2 p2: while (continue); end P2; 2.1.1: Interleaving Consider the following program: process P1 p1: continue = false; endP1; When there is contention among processes a scheduling policy determines which will execute next. Suppose a scheduling policy assigns a processor to a process until that process either terminates or delays? If there is only one processor, is the scheduler fair ?

  11. int n=0; process P1 p1: n=n+1; end P1; process P2 p2: n=n+1; end P2; 2.1.2: Atomic instructions It is extremely important to define exactly which instructions are being interleaved i.e. which instructions are atomic. An atomic action makes an indivisible state transition. Consider the following simple program which is being executed on a 2-processor computer. Each PE has its own set of registers.

  12. p2: INC n p1: INC n n==2 p1: INC n p2: INC n n==2 2.1.2: Atomic instructions If the compiler translates n=n+1 into a single INCmachine languageinstruction, any interleaving will give the correct result.

  13. p1: load n into R p2: load n into R p1: R=R+1 p2: R=R+1 p1: store R into n p2: store R into n n == 1 2.1.2: Atomic instructions However, if the computation is performed using a load-store architecture some interleavings will give an incorrect result. In a load-store architecture values are manipulated by loading them into registers, operating on them and then storing the results back into memory.

  14. 2.1.2: Atomic instructions The previous example illustrates the lost update problem. This is an example of a race condition. Race conditions occur when two or more processes share data and the final result, which may be erroneous, depends on the interleaving of the processes’ atomic actions. Problem: A bank has 10,000 accounts. Each account has exactly £1,000. Periodically, an ATM process picks two accounts at random and moves a random amount of money from one to the other. Periodically, an Auditor process totals the banks assets to check for embezzlement of funds. What might happen ?

  15. 2.1.2: Atomic instructions Assuming a load-store architecture i.e. Instruction 1a is implemented as: Load y into R Add z to R Store R into x what are the possible final values of x in the following program ? int y=0; int z=0; process P2 2a: y=1; 2b: z=2; end P2; process P1 int x; 1a: x=y+z; end P1;

  16. 2.1.2: Atomic instructions 2a;2b;1a;1b;1c 2a;1a;2b;1b;1c 2a;1a;1b;2b;1c 2a;1a;1b;1c;2b 1a;2a;2b;1b;1c 1a;2a;1b;2b;1c 1a;2a;1b;1c;2b 1a;1b;2a;2b;1c 1a;1b;2a;1c;2b 1a;1b;1c;2a;2b int y=0; int z=0; process P1 int x; 1a: R=y; 1b: R=R+z; 1c: x=R; end P1; process P2 2a: y=1; 2b: z=2; end P2; We could enumerate all 10 interleavings and evaluate x at the end of each. Alternatively we could try and reason about the program.

  17. 2.1.2: Atomic instructions int y=0; int z=0; The shared variable y is only modified in one place in P2 (2a) and only used in one place in P1 (1a). We must therefore consider two cases: 2a..1a and 1a..2a The shared variable z is only modified in one place in P2 (2b) and only used in one place in P1 (1b). Therefore, within the cases above we must also consider: 2b..1b and 1b..2b process P1 int x; 1a: R=y; 1b: R=R+z; 1c: x=R; end P1; process P2 2a: y=1; 2b: z=2; end P2; <-2b-> 2a...1a…1b x=3 (2 interleavings) 2a...1a…1b..2b x=1 (2 interleavings) <-1b-> 1a...2a…2b x=0 (? interleavings) 1a...2a…2b..1b x=2 (1 interleaving)

  18. 2.1.3: Correctness Partial correctness and total correctness are appropriate for concurrent programs which terminate just as they are for sequential programs. • Partial correctness: a program is partially correct if the final state is correct assuming the program terminates. • Total correctness: a program is totally correct if it always terminates with a correct answer. • In addition, the correctness of concurrent programs is defined in terms of properties of execution sequences. There are two types of correctness properties: • safety properties; • liveness properties.

  19. 2.1.3: Correctness • Safety properties:the property must always be true (nothing bad will ever happen). • Mutual exclusion: processes may not interleave certain sub-sequences of instructions e.g. at most one process is permitted to access a printer at any one instance. • Absence of deadlock: deadlock occurs when all processes are blocked and are unable to proceed. • Liveness properties:the property must eventually be true(something good will eventually happen). • Absence of starvation e.g. if a process posts a request to print, eventually it will be assigned a printer.

  20. 2.2: Java Threads In Java a process is represented by a thread. To make a thread run you call its start() method. This registers the thread with the thread scheduler. The scheduler, which may be part of the JVM or the host operating system, determines which thread is actually running in the CPU at any given time. Calling the start() method does not cause the thread to run immediately; it only makes it eligible to run. The thread must contend with other threads for the CPU. When a thread gets to execute, it executes a run() method: • either its own run() method; • or the run() method of a some other object.

  21. 2.2.1: Executing a Thread class Interleave { publicstatic int c1 = 2; publicstatic int c2 = 3; publicstaticvoid main (String[] args) { Thread p1 = new P1 (); Thread p2 = new P2 (); p1.start (); p2.start (); } } class P1 extends Thread { publicvoid run () { Interleave.c1 = Interleave.c1 *Interleave .c2; } } class P2 extends Thread { publicvoid run () { Interleave.c1 = Interleave.c1 +Interleave.c2; } } Extend the Thread class and override its run() method.

  22. 2.2.1: Executing a Thread class Interleave { publicstatic int c1 = 2; publicstatic int c2 = 3; publicstatic void main (String[] args) { Thread p1 = new Thread(new P1()); Thread p2 = new Thread(new P2()); p1.start (); p2.start (); } } class P1 implements Runnable { publicvoid run () { Interleave.c1 = Interleave.c1 *Interleave .c2; } } class P2 implements Runnable { public void run () { Interleave.c1 = Interleave.c1 +Interleave.c2; } } Sometimes it is desirable to implement the run() method in a class not derived from Thread but from the interface Runnable.

  23. 2.2.1: Executing a Thread • A dead thread cannot be restarted. • A dead thread’s methods can be called. When the run() method ends the thread is considered dead. A dead thread cannot be started again, but it still exists and, like any other object, its methods and data can still be accessed.

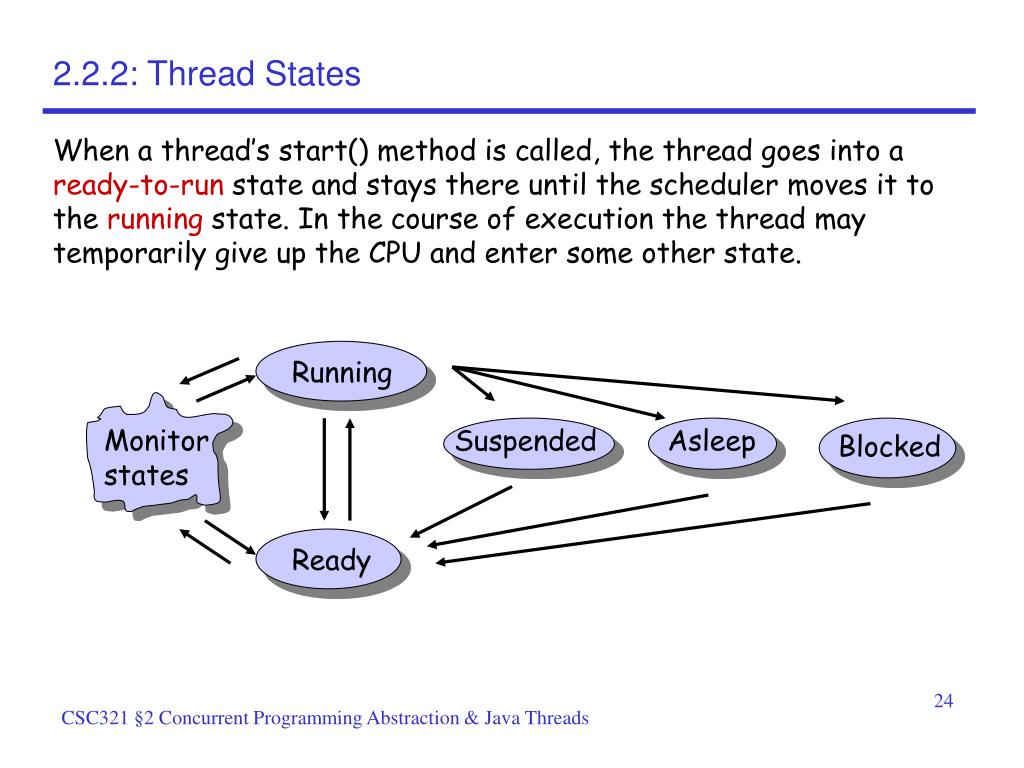

  24. Running Monitor states Suspended Asleep Blocked Ready 2.2.2: Thread States When a thread’s start() method is called, the thread goes into a ready-to-run state and stays there until the scheduler moves it to the running state. In the course of execution the thread may temporarily give up the CPU and enter some other state.

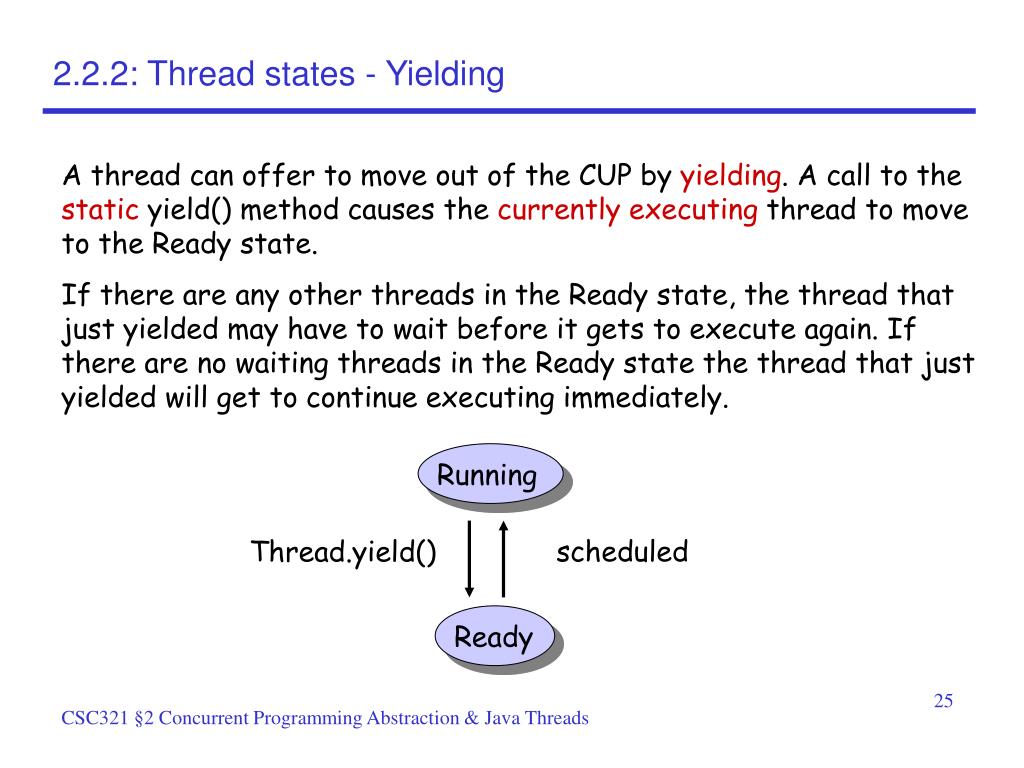

  25. Running Thread.yield() scheduled Ready 2.2.2: Thread states - Yielding A thread can offer to move out of the CUP by yielding. A call to the staticyield() method causes the currentlyexecuting thread to move to the Ready state. If there are any other threads in the Ready state, the thread that just yielded may have to wait before it gets to execute again. If there are no waiting threads in the Ready state the thread that just yielded will get to continue executing immediately.

  26. Running Thread.sleep(20) scheduled Asleep time expires or interrupted Ready 2.2.2: Thread states - Sleeping A call to the staticsleep() method requests the currently executing thread to cease executing for an approximately specified period in milliseconds. Note: when the thread finishes sleeping (20 milliseconds) it does not continue execution directly. The Thread class has an interrupt() method. A sleeping thread that receives an interrupt() call moves immediately into the Ready state; when it gets to run it will execute its InterruptedException handler.

  27. Running blocking method scheduled Blocked Blocking condition changes or interrupted Ready 2.2.2: Thread states - Blocking If a method needs to wait for an indeterminable amount of time until some I/O occurrence takes place it should step out of the Running state. This is know as blocking. All Java I/O methods behave this way. A thread can also become blocked if it fails to acquire the lock for a monitor or if it issues a wait() call. This will be explained later.

  28. 2.2.2: Thread states - Suspending, Resuming and Stopping The suspend() method allows any arbitrary thread to make another thread un-runnable for an indefinite period of time. The suspended thread becomes runnable when some other thread resumes it using the resume() method. The stop() method allows any arbitrary thread to kill another thread. These three methods are now deprecated. They should be avoided as they are unsafe and can easily lead to deadlock.

  29. Note: The way thread priorities affect scheduling is platform dependent. int oldPriority = aThread.getPriority(); int newPriority = Math.min(oldPriority+1, Thread.MAX_PRIORITY); aThread.setPriority(newPriority); 2.2.3: Thread Priorities and Scheduling Every thread has a priority (from 1..10). All newly created threads have their priority set to that of the creating thread. Higher priority threads get preference over lower priority threads. The scheduler generally chooses the the highest-priority waiting thread. If there is more than one waiting thread the scheduler chooses one of them: there is no guarantee that the one chosen is the one that has been waiting longest.

  30. 2.2.3: Thread Priorities and Scheduling Historically, two approaches have emerged for implementing thread schedulers. • Preemptive scheduling (Solaris, Windows pre JDK1.0.2) - A thread runs until: • it leaves the Running state by yielding, blocking, sleeping etc; • it gives way to a higher-priority thread. • Time-sliced (Mac, Windows with JDK 1.0.2) - A thread is allowed to execute for a limited amount of time (approximately 100 milliseconds). It is then moved into the Ready state where it must contend with all other ready threads.
