The SPA Project GOLF and ESP

1. The SPA ProjectGOLF and ESP Manuvir Das Microsoft Research (joint work with Manuel Fahndrich, Jakob Rehof)

2. SPA Group Mentor

3. Software Productivity Tools • Jim Larus runs the group • research.microsoft.com/spt • SLAM, Vault, Behave, PipelineServer … • Focus on software reliability

4. What’s wrong with analysis? • A: We don’t write or look at real code • B: We don’t solve real problems

5. Why does this happen? • Analysis is a mix of theory and practice • But • Math and theory are elegant • experimentation needs infrastructure • engineering is boring

6. Today we’ll talk about … • Doing analysis research the right way • My day job • Slicing and Partial Evaluation • Pointer analysis • Error detection

7. Slicing and Partial Evaluation • PE: Which computations depend only on known inputs? Do these early. • Or, which computations may depend on unknown inputs? Don’t do these early. • Insight: If a computation depends on unknown input, there must be an unknown input in its slice.

8. Forward slicing and BTA • Binding-time analysis • identify static computations • BTA via slicing • mark all unknown input nodes • forward slice from marked nodes and mark • all unmarked nodes are static computations

9. Why is this interesting? • Slicing incorporates control dependence • Previous work used reaching definitions read(y); x = 0; while (y != 0) { y--; x++; } z = x; read(y); x = 0; while (y != 0) { y--; x++; } z = x; read(y); x = 0; while (y != 0) { y--; x++; } z = x; • We can now prove correctness

10. This project had flaws … • A: We don’t write or look at real code • cubic algorithm, ran on 2k lines in 30 minutes • only one benchmark (ray tracer) • B: We don’t solve real problems • who uses PE in practice? • was the lack of safety critical? • why not use a timer?

11. Then I visited MSR … • Daniel Weise – 1.5 million lines of real code • Real problems – software reliability • I was hooked! • find buffer overflows using static analysis • oops, need pointer analysis

12. Papers don’t tell the whole truth! • Implemented Ste96, engineered it • lightning fast, but poor results • Lots of papers on how to improve • structures, signatures, SH97 • Tried it all, nothing worked on real code • Needed Andersen (subtyping) on real code

13. Frameworks are good • A spectrum from Ste96 to And94 • DGC POPL 98 : unification vs flow • SH POPL 97 : buckets within ECRs • Frameworks • give us a way of tuning precision vs efficiency • help us understand the problem

14. Frameworks are bad • The real issue: how do you find the best trade-off point in a principled manner? • What if the parameter being varied is not the key concept? • CFA varies control depth rather than data • SH 97 picks random categories • DGC 98 alters the behaviour of the same statement

15. Back to pointer analysis … • No way to run Andersen on MLOC

16. So, I hid in my office … • Stared at SPEC code, wrote perl scripts • every feature is used • code is idiomatic • pointers are never assigned, except heap • most pointers arise through parameter passing • some code is just too hard for any analysis • Result: new algorithm driven by real code

17. FSCS: Flow-sensitive Context-sensitive FICS: Flow-insensitive Context-sensitive FSCI: Flow-sensitive Context-insensitive Precision Cost FICI: Flow-insensitive Context-insensitive Pointer Analysis Landscape

18. Imprecise Precise Andersen (cubic) Expensive 500 KLOC in several minutes, 2GB Steensgaard (almost linear) Cheap 1.5 MLOC in 1 minute, 100 MB FICI Pointer Analysis One level flow (quadratic)

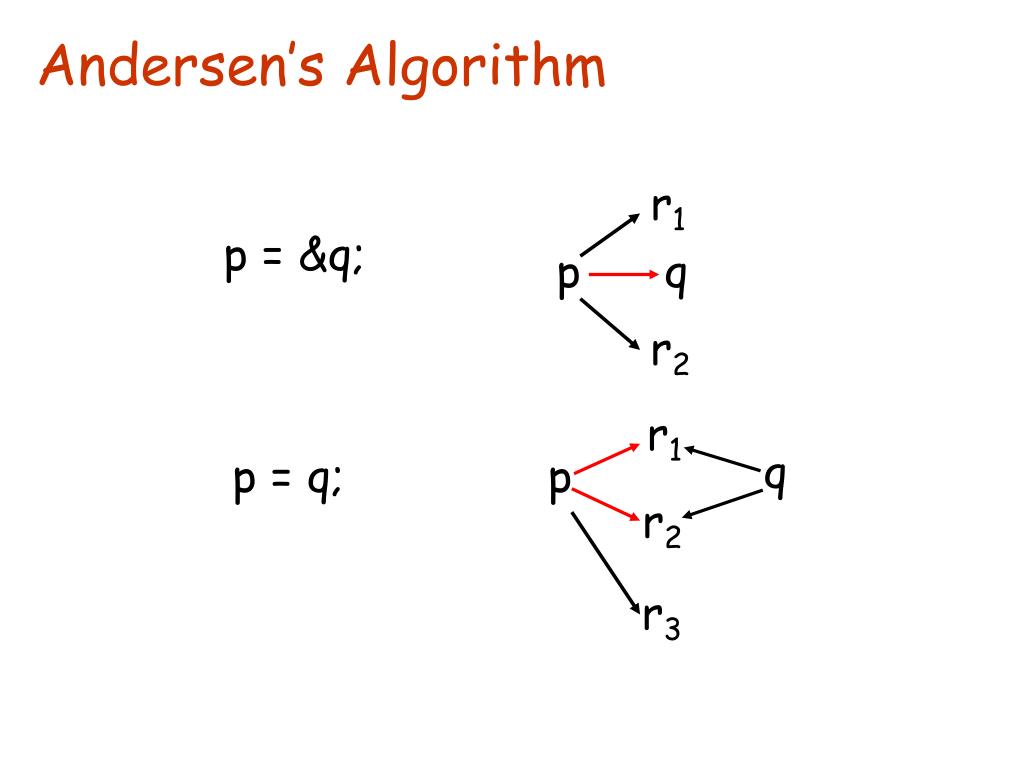

19. r1 p q r2 r1 q p r2 r3 Andersen’s Algorithm p = &q; p = q;

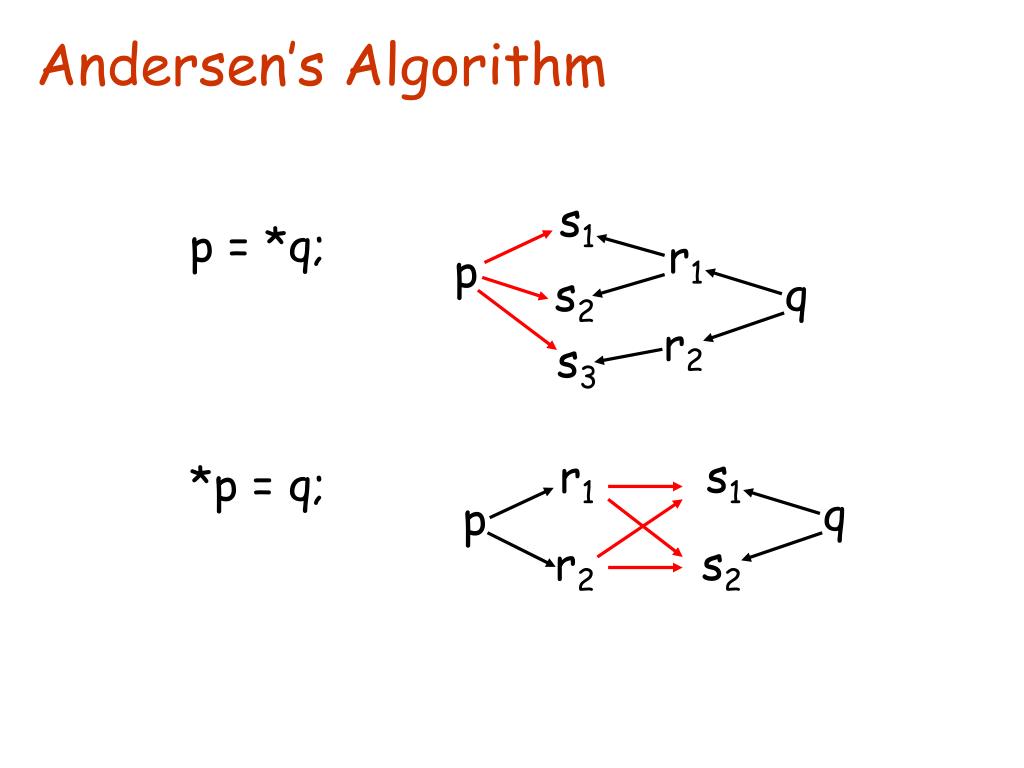

20. s1 r1 p s2 q r2 s3 r1 s1 q p r2 s2 Andersen’s Algorithm p = *q; *p = q;

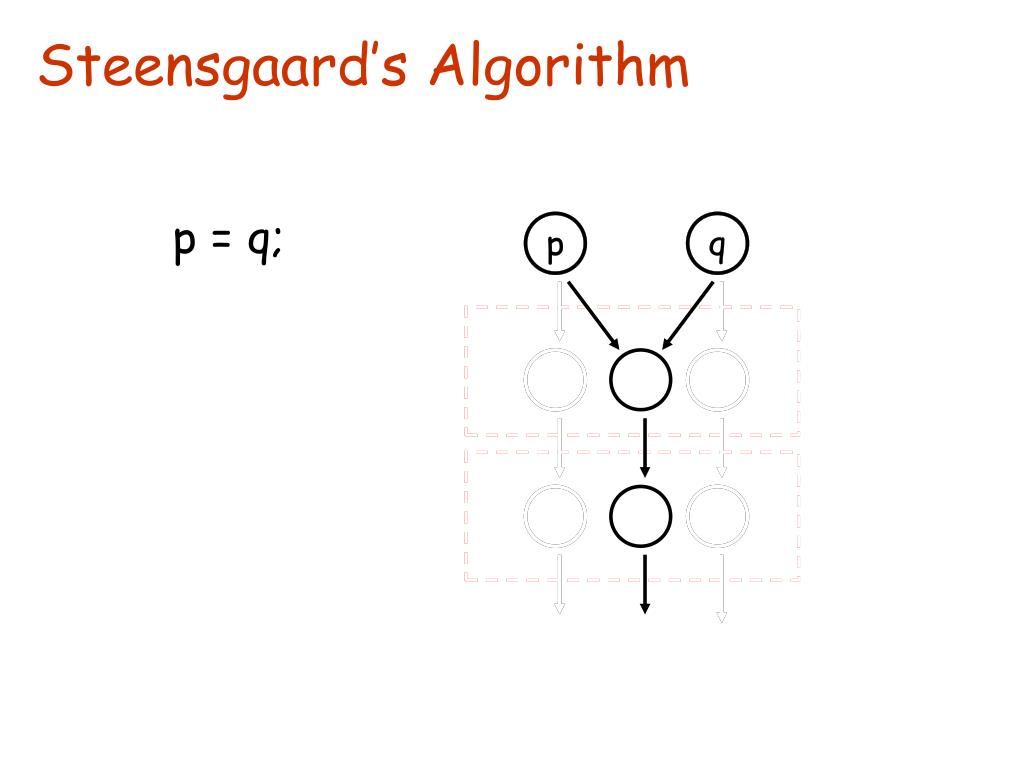

21. p q p p q q Steensgaard’s Algorithm p = q;

22. Motivation for One Level Flow foo(&s1); foo(&s2); bar(&s3); foo(struct s *p) { *p.a = 3; bar(p);} bar(struct s *q) { *q.b = 4;}

23. p q p q s1 s2 s3 s1,s2,s3 Simplified Example p = &s1; p = &s2; q = &s3; q = p; *p.a = 3; *q.b = 4;

24. p p q q One Level Flow p = q;

25. p = &s1; p = &s2; q = &s3; q = p; *p.a = 3; *q.b = 4; p = &s1; p = &s2; q = &s3; q = p; *p.a = 3; *q.b = 4; p = &s1; p = &s2; q = &s3; q = p; *p.a = 3; *q.b = 4; p = &s1; p = &s2; q = &s3; q = p; *p.a = 3; *q.b = 4; p p q q s1 s1 s3 s3 s2 s2 Simplified Example p = &s1; p = &s2; q = &s3; q = p; *p.a = 3; *q.b = 4;

26. e OLF: Simple Reachability Single query: Linear All queries: Quadratic

27. x y OLF: Cached Reachability MAX MS Word : From 1 hour to 30 seconds for all queries

28. Running time (seconds)

29. Average sizes of points-to sets

30. This project had flaws too … • B: We don’t solve problems • solved an open problem in pointer analysis • But • never got around to buffer overflow • didn’t use PTA for optimization • addressed these issues later, but • should have been driven by the problem

31. Since then … • Others have made And94 fast • Heintze PLDI 01 • suggested by OLF results • But what about context-sensitivity? • crucial for value flow analysis • GOLF (DLFR SAS 01) • combines OLF and one level of instantiation constraints (Rehof’s lecture) • context-sensitive value flow on MLOC

32. OLF: Call Example id(r) {return r;} p = id(&x); q = id(&y); *p = 3; r = &x; p = r; r = &y; q = r; *p = 3;

33. r p x *r *p y *q q OLF: Call Example r = &x; p = r; r = &y; q = r; *p = 3;

34. r p x ( ) *r *p y [ *q ] q GOLF: Call Example id(r) {return r;} p = id(&x); q = id(&y); *p = 3;

35. We have an analysis that is … • fast enough to run on MLOC • good enough for static optimization • who cares; leave it to the chip makers! • not good enough for dynamic optimization (MDCE PASTE 01) • not good enough to track interesting correctness properties in real code

36. Correctness: the killer app • Hardware can • speed up programs • enforce correctness at run-time • Hardware cannot • enforce correctness before product is shipped • Testers can • find errors on some paths • Testers cannot • find errors on all paths • So, use static analysis to find errors

37. ESP Vision • Error Detection via Scalable Program Analysis • Must be driven by real code • Must be sound (report all errors) • Must report few false positives • Use knowledge of tradeoffs in analysis • Let user help the analysis

38. Step 1: Identify the problem • Solve a realistic problem: • partial correctness • user specified, finite-state properties • Solve a non-trivial problem: • don’t check uninits, NULL pointers • check locking protocols, resource usage

39. INIT(l) Ret Lock(l) Unlock(l) LOCKED(l) Lock(l) Ret ERROR(l) Parameterized Protocol Tracking • User specified • FSM with parameterized actions • patterns • Rest is automatic

40. Step 2: Examine real code • Find common idioms • Understand level of precision needed • Windows device drivers • mostly control dominated protocols • global data flow needs CS, but not FS/PS • path feasibility seems to matter

41. Sample driver code STATUS Initialize(Object o) { Object p = o; if (p->needLock) KeAcquireSpinLock(p); p->data = 0; if (p->needLock) KeReleaseSpinLock(p); return OK; }

42. Step 3: Break up the problem • Three distinct entities to be tracked • the temporal sequence of actions along a particular control flow path • the data involved in the actions • the data involved in path feasibility • Can use different levels of static analysis to track each entity

43. Data analysis vs control analysis • RHS 95: Cost is Ο(ED3). What is D? • dataflow: D is generally related to program size • program size grows because of pointers, globals • What if there is only a single global FSM? • D is just the #states in the FSM! • Control is cheap, data is expensive

44. Step 4: Design static analyses • track the temporal sequence of actions along a particular control flow path • cannot use flow-insensitive analysis • RHS95 is too expensive • eliminate the data involved in the actions • use GOLF value flow • now we have a control property, use RHS95 • both analyses are context-sensitive

45. Data elimination STATUS Initialize(Object o) { Object p = o; if (p->needLock) KeAcquireSpinLock(p); p->data = 0; if (p->needLock) KeReleaseSpinLock(p); return OK; }

46. I L E Data elimination Initialize() { if (*) Lock; if (*) Unlock; }

47. Do we need context-sensitivity? • What if GOLF cannot provide MUST info? void Initialize(Object o1, Object o2) { LockWrapper(o1); LockWrapper(o2); KeReleaseSpinLock(o1); KeReleaseSpinLock(o2); } void LockWrapper(Object p) { KeAcquireSpinLock(p); }

48. Interface nodes • Limit scope of value flow to interface nodes • Produce RHS summaries for interface nodes void LockWrapper(Object p) { KeAcquireSpinLock(p); } p: INIT -> LOCKED, LOCKED -> ERROR • Copy summaries to callers

49. i o1 p j o2 Back to our example … void Initialize(Object o1, Object o2) { i: LockWrapper(o1); j: LockWrapper(o2); KeReleaseSpinLock(o1); KeReleaseSpinLock(o2); } void LockWrapper(Object p) { KeAcquireSpinLock(p); }

50. Consider the abstraction! • ESP makes an upfront abstraction • interface nodes in the GOLF graph • Plus: linear size, controls overall cost • Minus: may be too coarse • SLAM allows tuning of abstraction • but now we are back in the framework game
