GEOL 208 Lecture 4

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

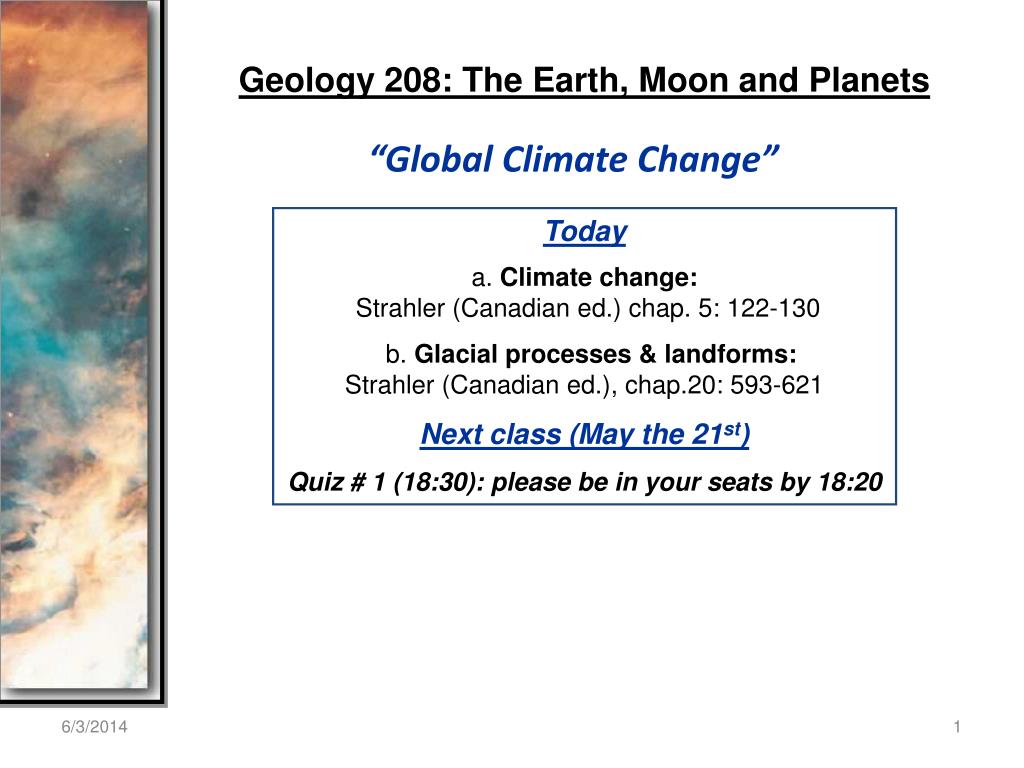

  1. Geology 208: The Earth, Moon and Planets Today a. Climate change: Strahler (Canadian ed.) chap. 5: 122-130 b.Glacial processes & landforms: Strahler (Canadian ed.), chap.20: 593-621 Next class (May the 21st) Quiz # 1 (18:30): please be in your seats by 18:20 “Global Climate Change”

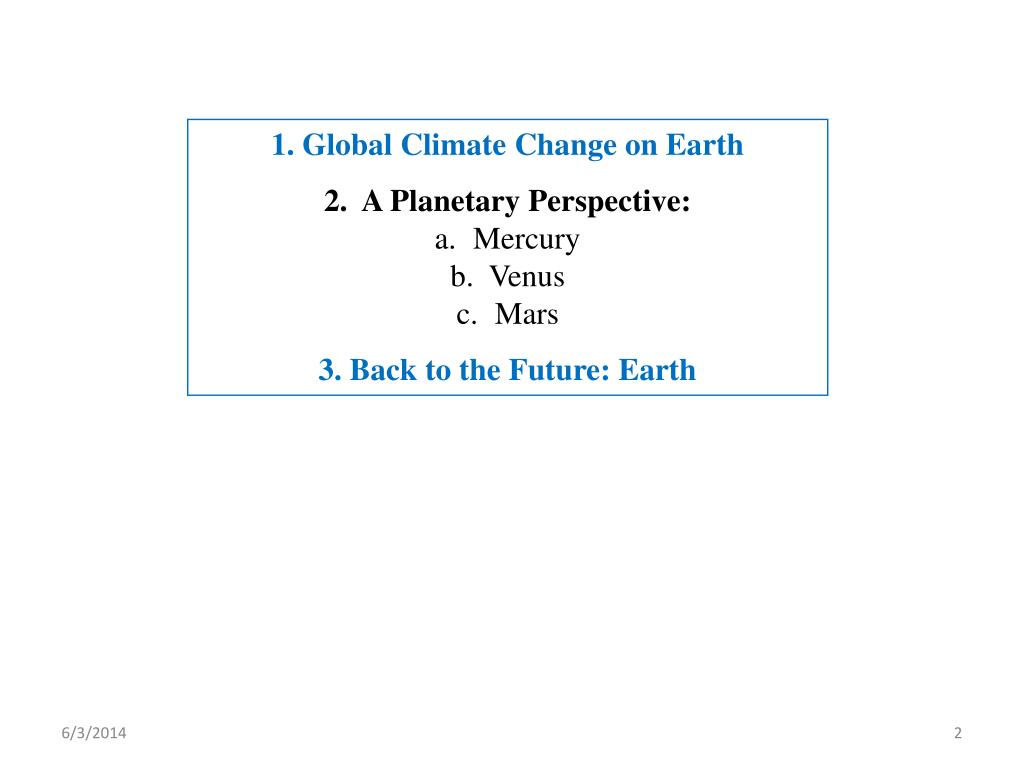

  2. 1. Global Climate Change on Earth • 2. A Planetary Perspective: • Mercury • Venus • Mars • 3. Back to the Future: Earth

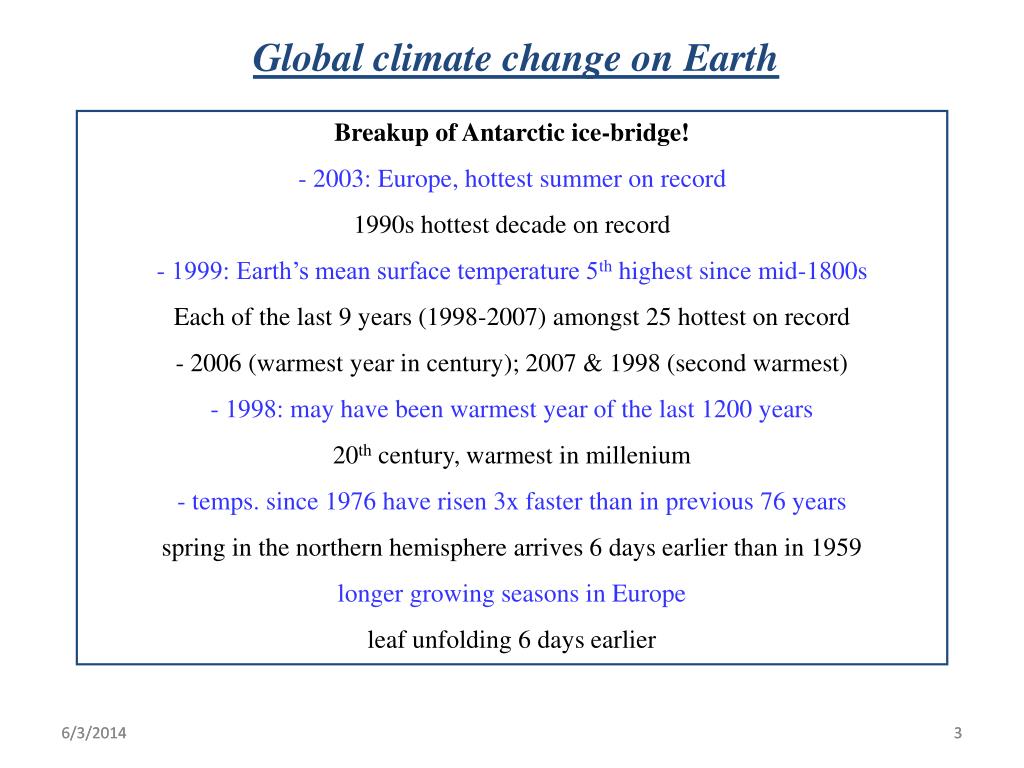

  3. Global climate change on Earth • Breakup of Antarctic ice-bridge! • - 2003: Europe, hottest summer on record • 1990s hottest decade on record • - 1999: Earth’s mean surface temperature 5th highest since mid-1800s • Each of the last 9 years (1998-2007) amongst 25 hottest on record • - 2006 (warmest year in century); 2007 & 1998 (second warmest) • - 1998: may have been warmest year of the last 1200 years • 20th century, warmest in millenium • temps. since 1976 have risen 3x faster than in previous 76 years • spring in the northern hemisphere arrives 6 days earlier than in 1959 • longer growing seasons in Europe • leaf unfolding 6 days earlier 6/3/2014 3

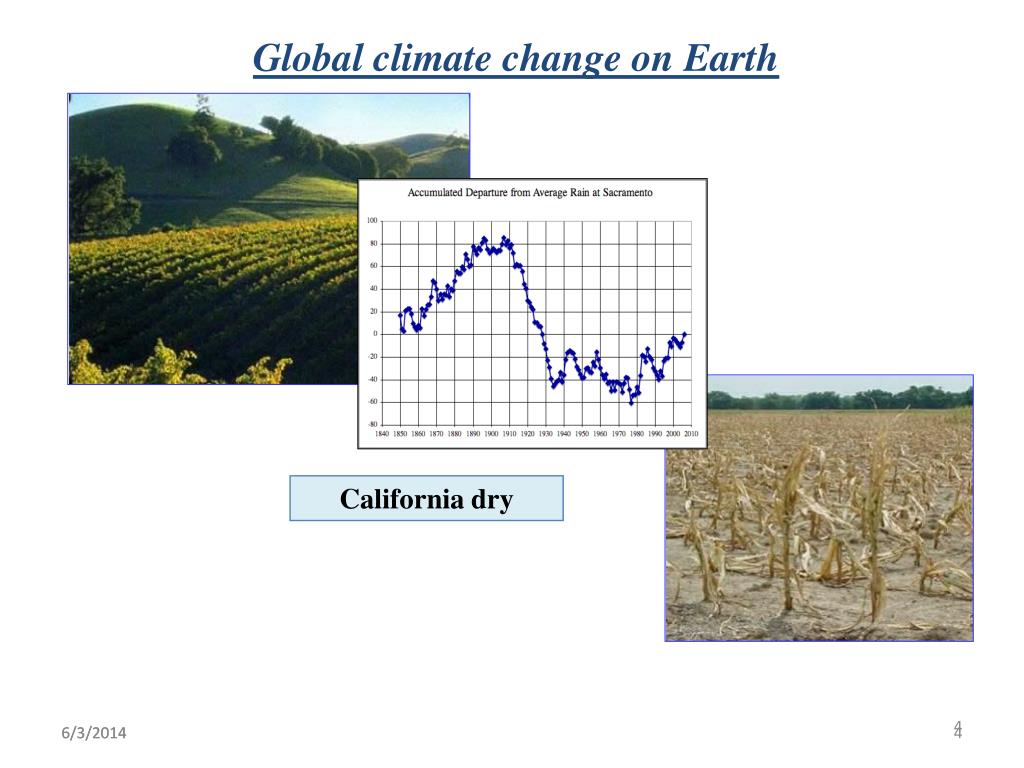

  4. Global climate change on Earth California dry 4 6/3/2014 4

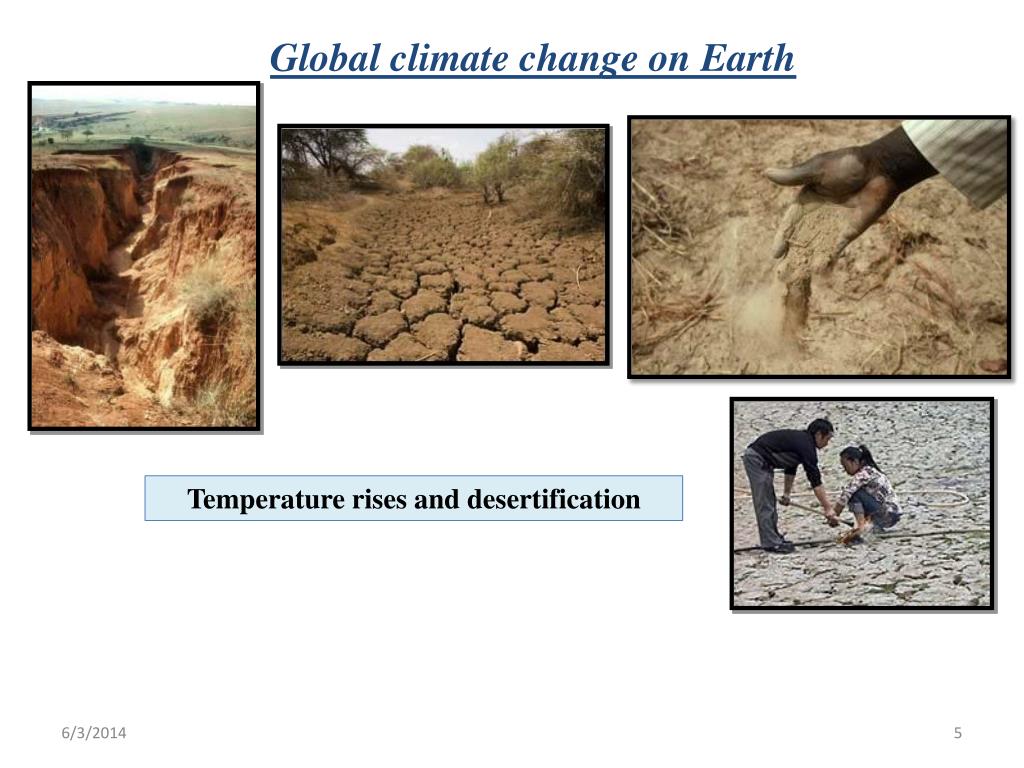

  5. Global climate change on Earth Temperature rises and desertification

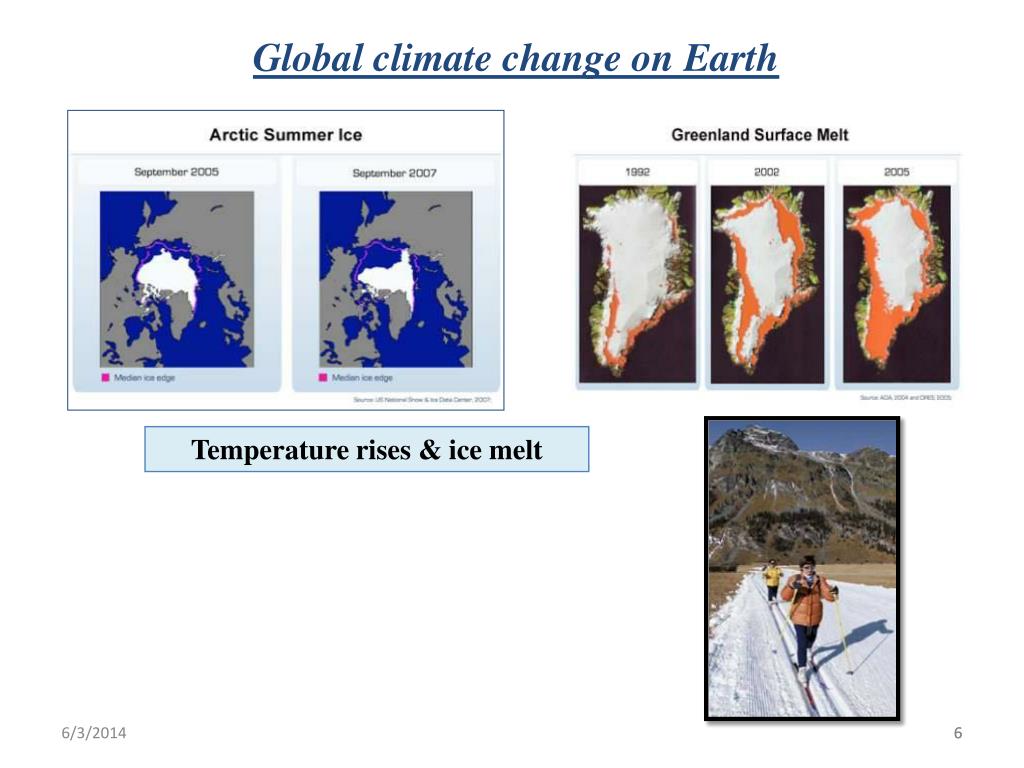

  6. Global climate change on Earth Temperature rises & ice melt 6

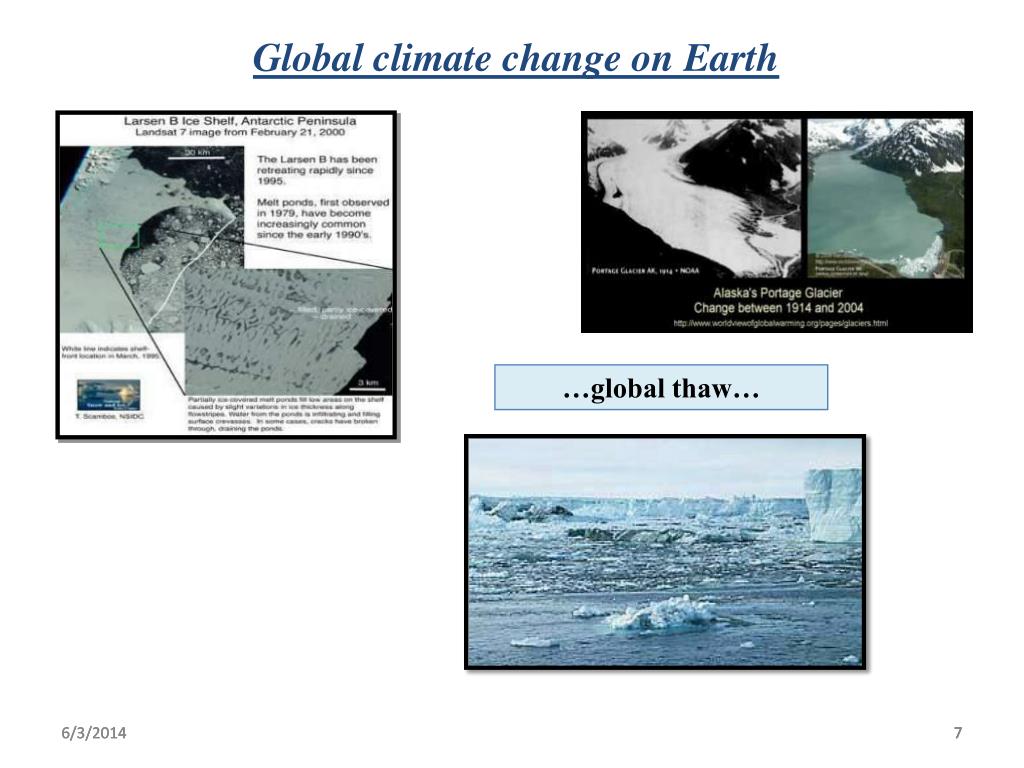

  7. Global climate change on Earth …global thaw… 6/3/2014 6/3/2014 7 7 7

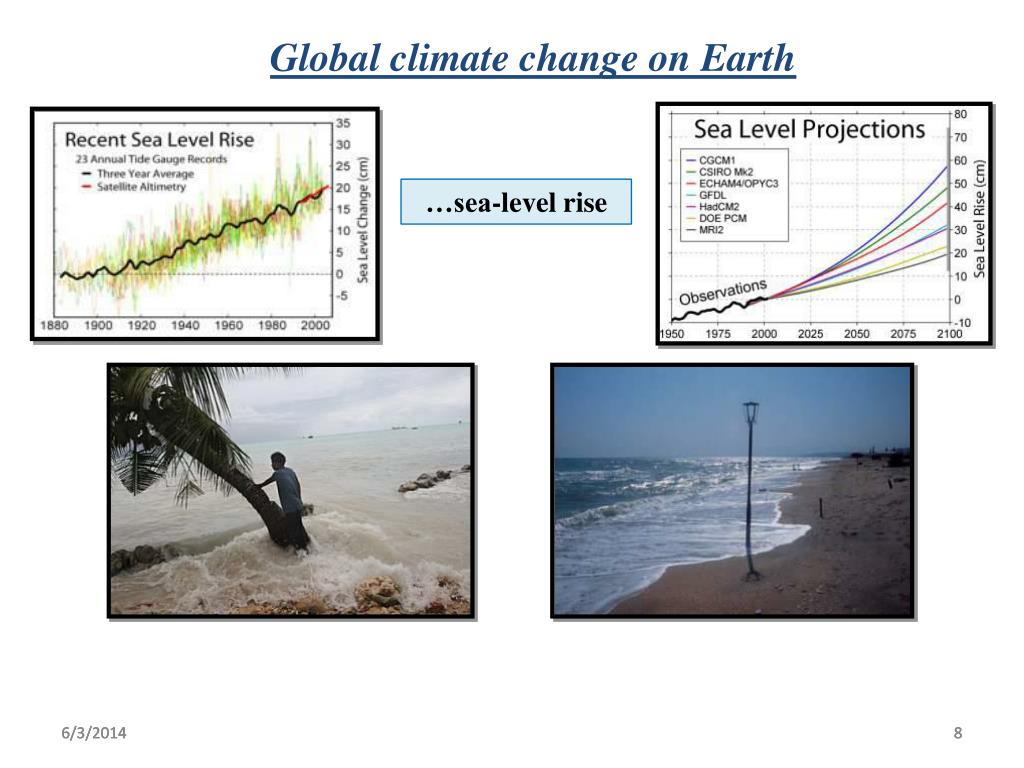

  8. Global climate change on Earth …sea-level rise 6/3/2014 6/3/2014 8 8

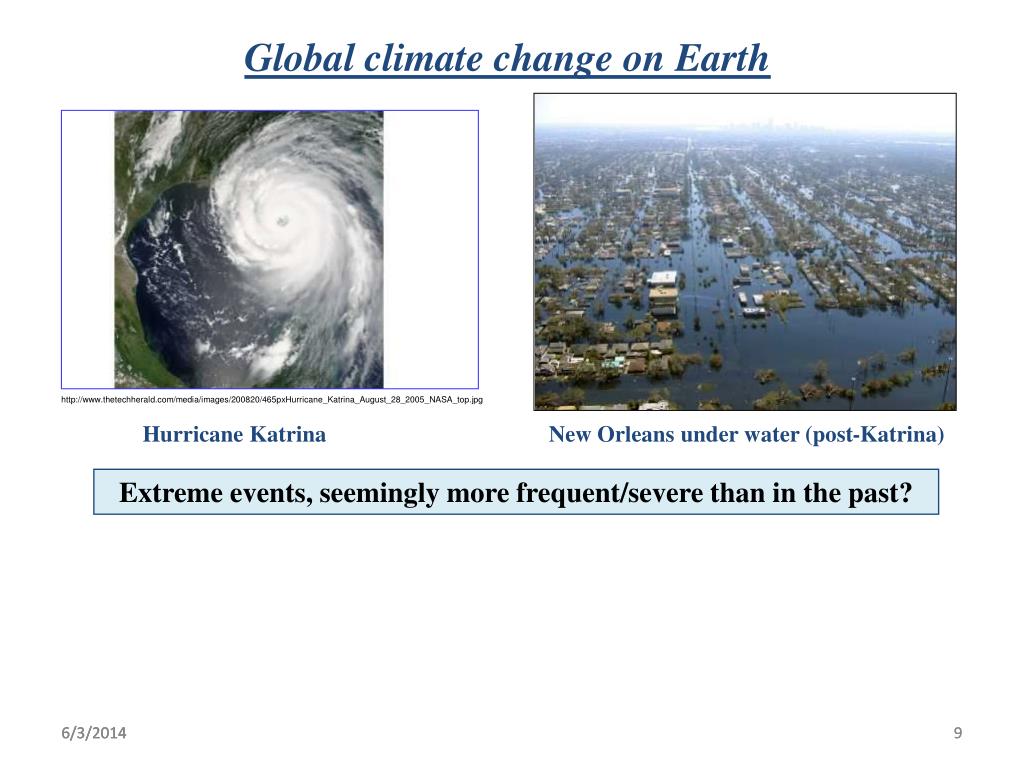

  9. http://www.thetechherald.com/media/images/200820/465pxHurricane_Katrina_August_28_2005_NASA_top.jpghttp://www.thetechherald.com/media/images/200820/465pxHurricane_Katrina_August_28_2005_NASA_top.jpg Global climate change on Earth Hurricane Katrina New Orleans under water (post-Katrina) Extreme events, seemingly more frequent/severe than in the past? 6/3/2014 6/3/2014 9

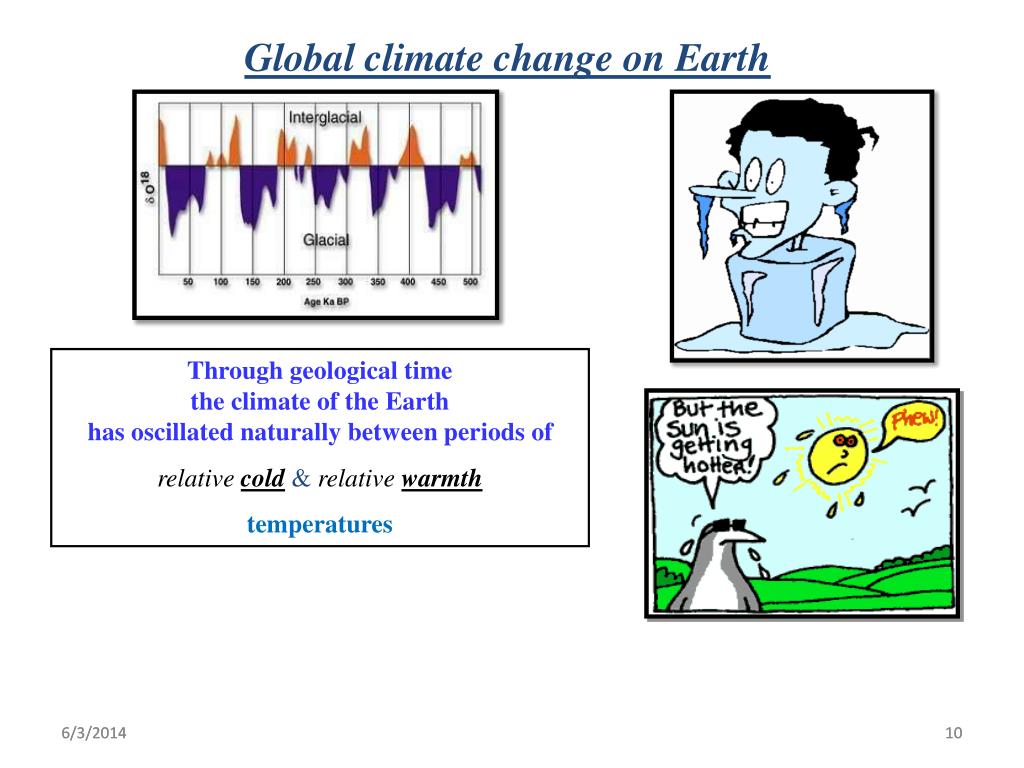

  10. Global climate change on Earth Through geological time the climate of the Earth has oscillated naturally between periods of relative cold & relativewarmth temperatures 6/3/2014 10

  11. “Icehouse” Earth • Pre-Cambrian Eon: 850-630 mya • except for areas around volcanoes, the entire planet was frozen - 11 6/3/2014

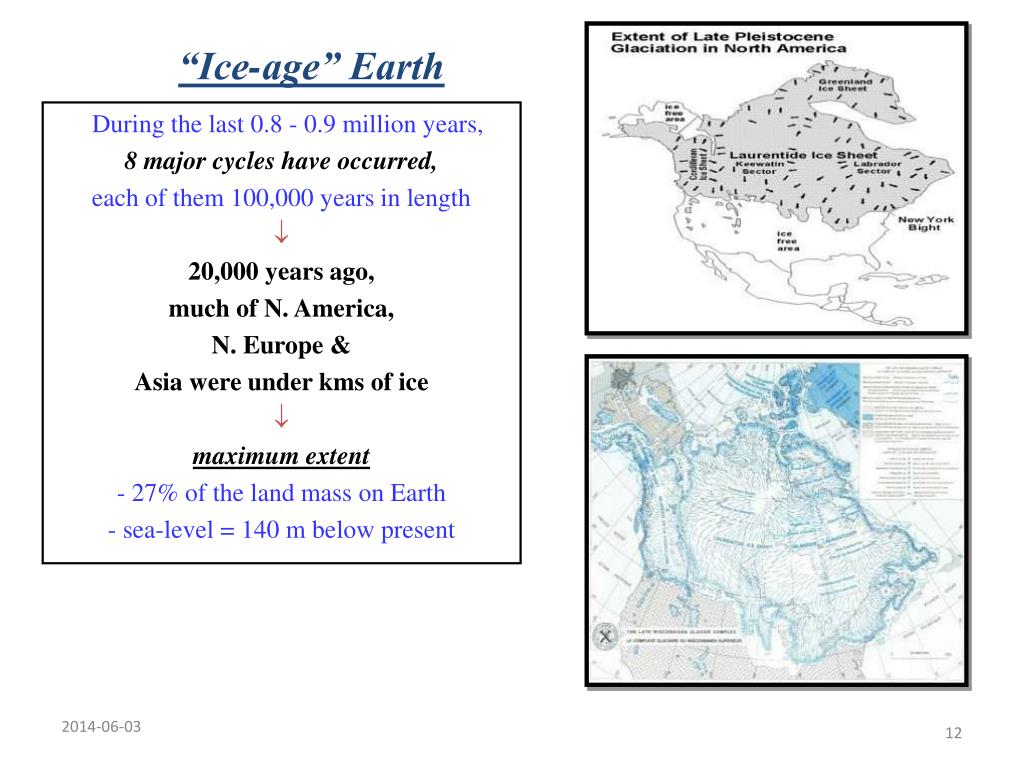

  12. “Ice-age” Earth During the last 0.8 - 0.9 million years, 8 major cycles have occurred, each of them 100,000 years in length  20,000 years ago, much of N. America, N. Europe & Asia were under kms of ice  maximum extent - 27% of the land mass on Earth - sea-level = 140 m below present 2014-06-03

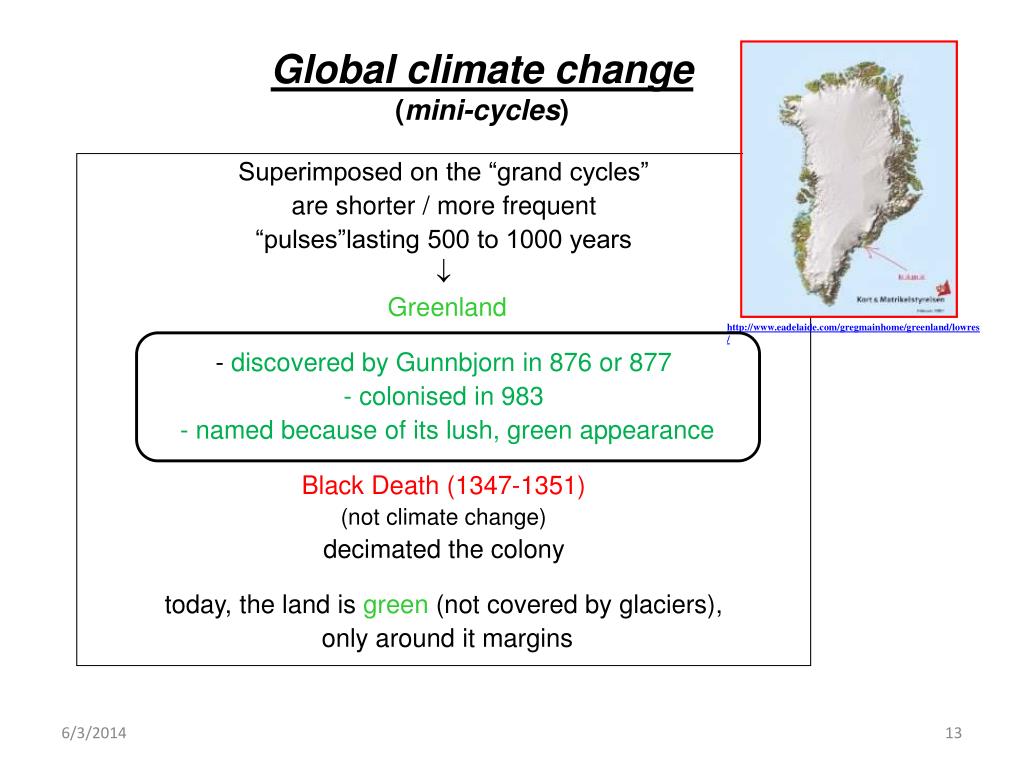

  13. Global climate change(mini-cycles) Superimposed on the “grand cycles” are shorter / more frequent “pulses”lasting 500 to 1000 years  Greenland - discovered by Gunnbjorn in 876 or 877 - colonised in 983  - named because of its lush, green appearance Black Death (1347-1351) (not climate change) decimated the colony today, the land is green (not covered by glaciers), only around it margins http://www.eadelaide.com/gregmainhome/greenland/lowres /

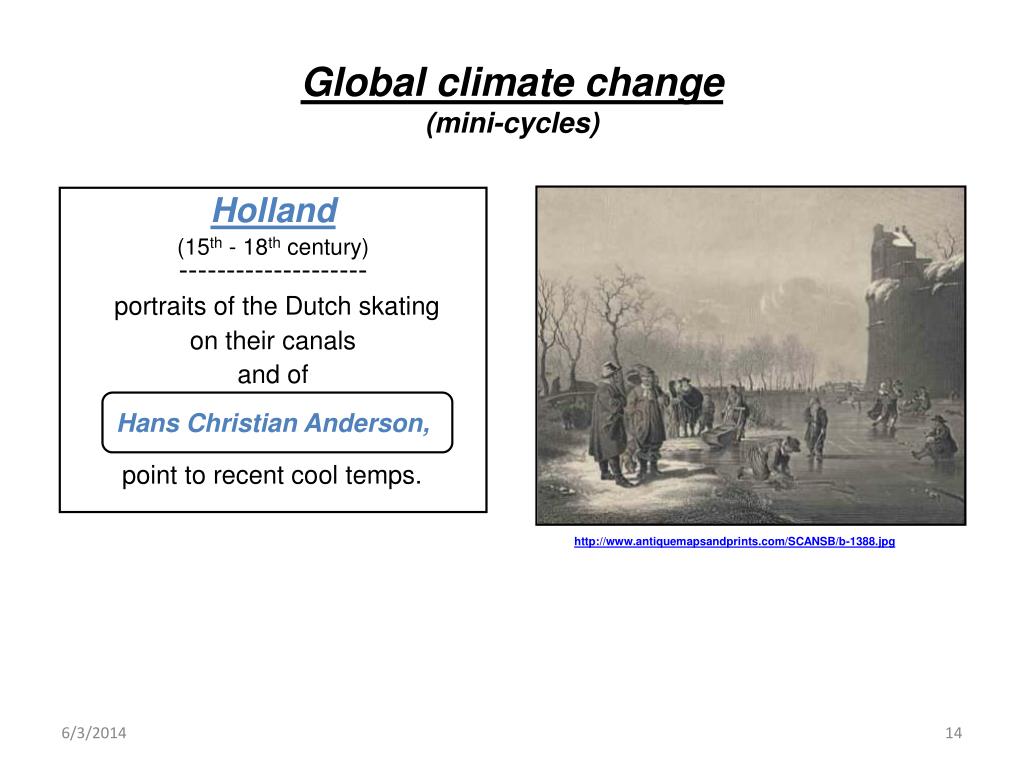

  14. Global climate change(mini-cycles) Holland (15th - 18th century) -------------------- portraits of the Dutch skating on their canals and of Hans Christian Anderson, point to recent cool temps. e” http://www.antiquemapsandprints.com/SCANSB/b-1388.jpg

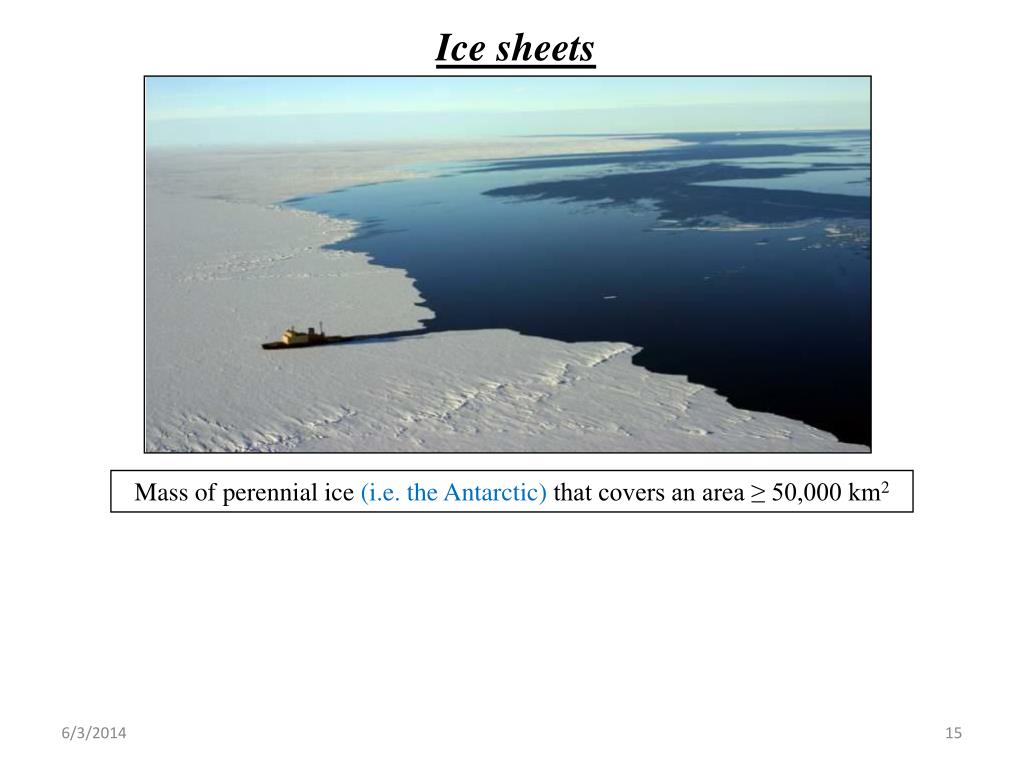

  15. Ice sheets Mass of perennial ice (i.e. the Antarctic) that covers an area ≥ 50,000 km2

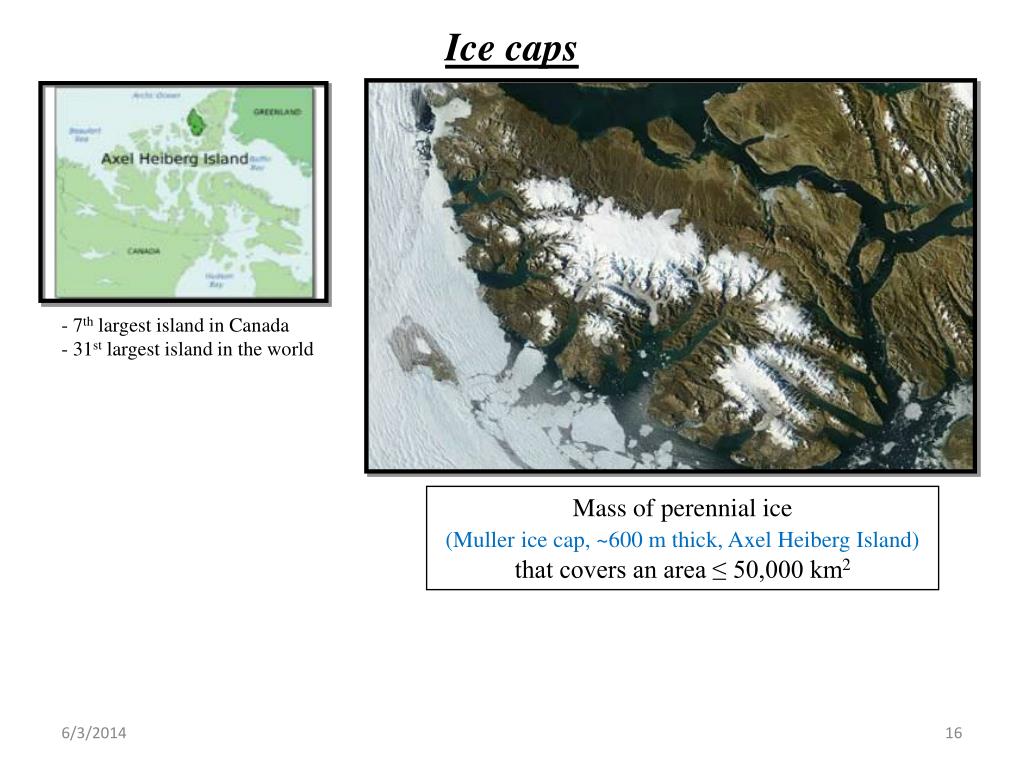

  16. Ice caps • 7th largest island in Canada • 31st largest island in the world Mass of perennial ice (Muller ice cap, ~600 m thick, Axel Heiberg Island) that covers an area ≤ 50,000 km2

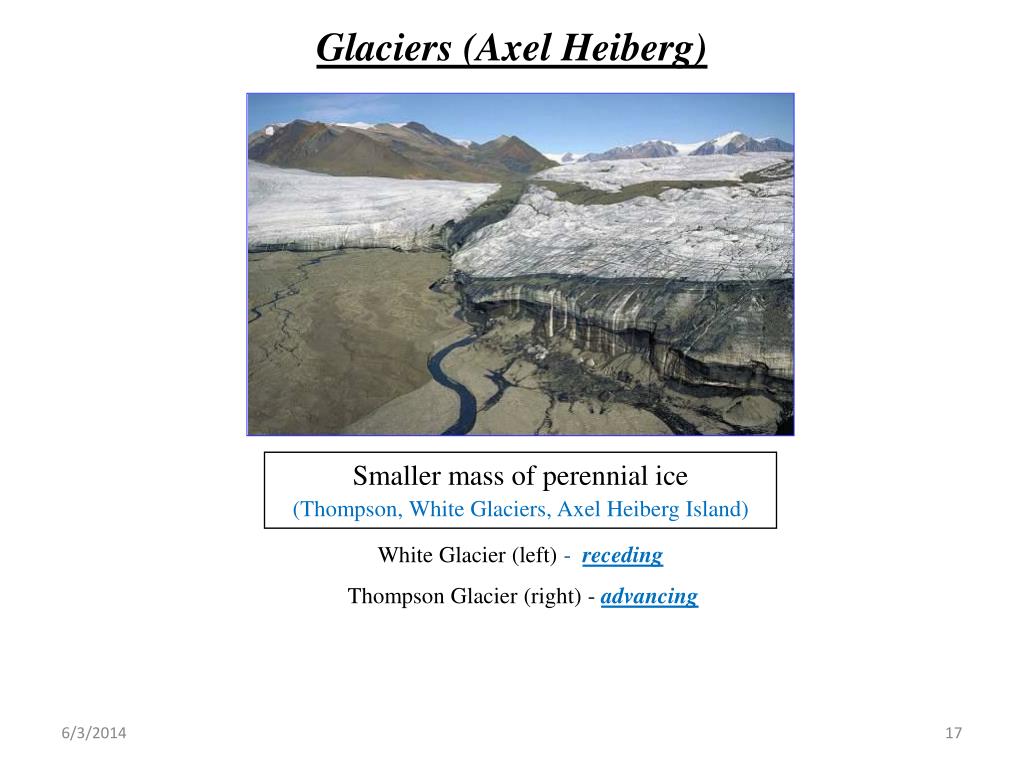

  17. Glaciers (Axel Heiberg) Smaller mass of perennial ice(Thompson, White Glaciers, Axel Heiberg Island) White Glacier (left) - receding Thompson Glacier (right) - advancing

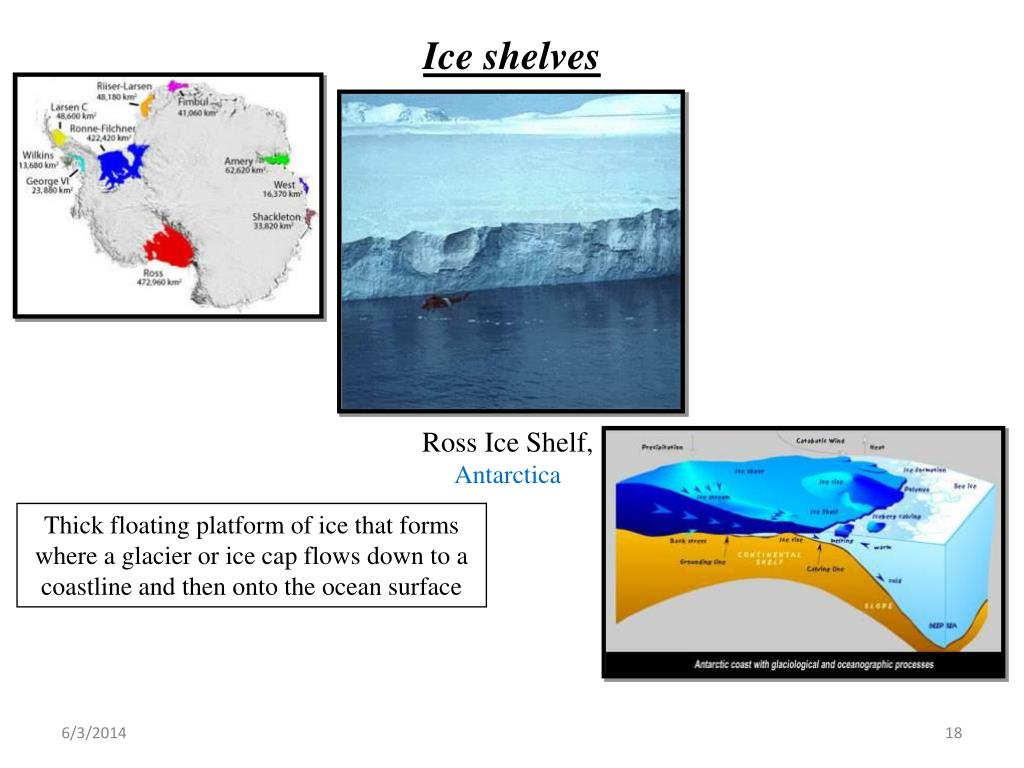

  18. Ice shelves Ross Ice Shelf,Antarctica Thick floating platform of ice that forms where a glacier or ice cap flows down to a coastline and then onto the ocean surface

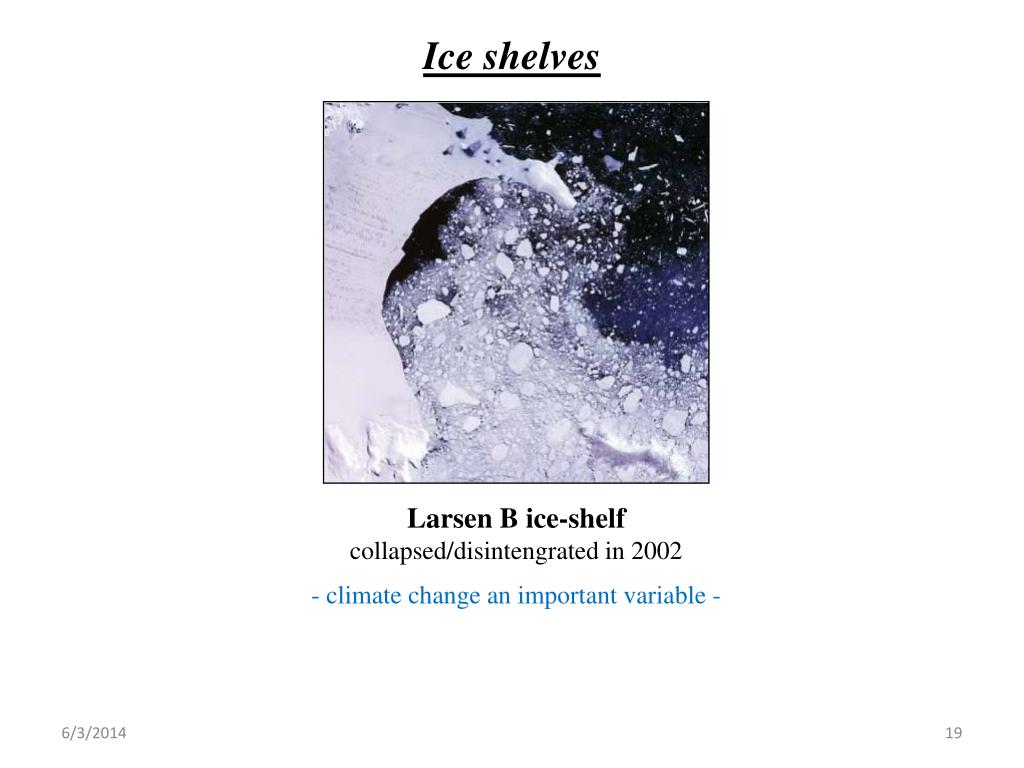

  19. Ice shelves Larsen B ice-shelf collapsed/disintengrated in 2002 - climate change an important variable -

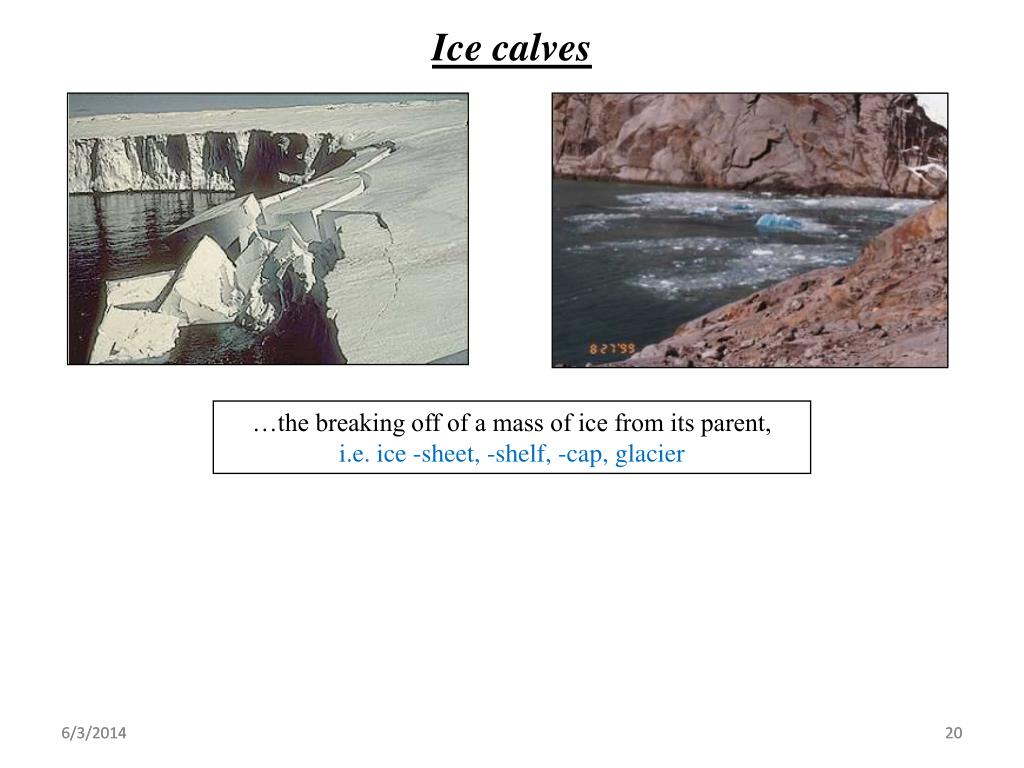

  20. Ice calves …the breaking off of a mass of ice from its parent, i.e. ice -sheet, -shelf, -cap, glacier 6/3/2014 20

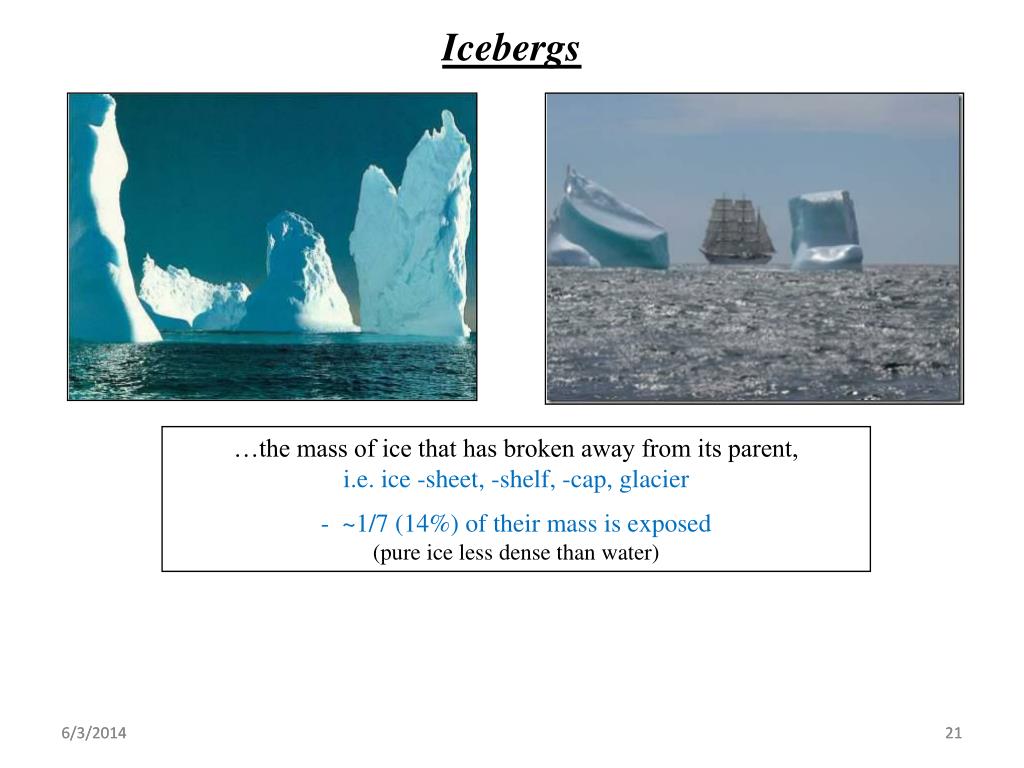

  21. Icebergs …the mass of ice that has broken away from its parent, i.e. ice -sheet, -shelf, -cap, glacier - ~1/7 (14%) of their mass is exposed (pure ice less dense than water) 6/3/2014 21

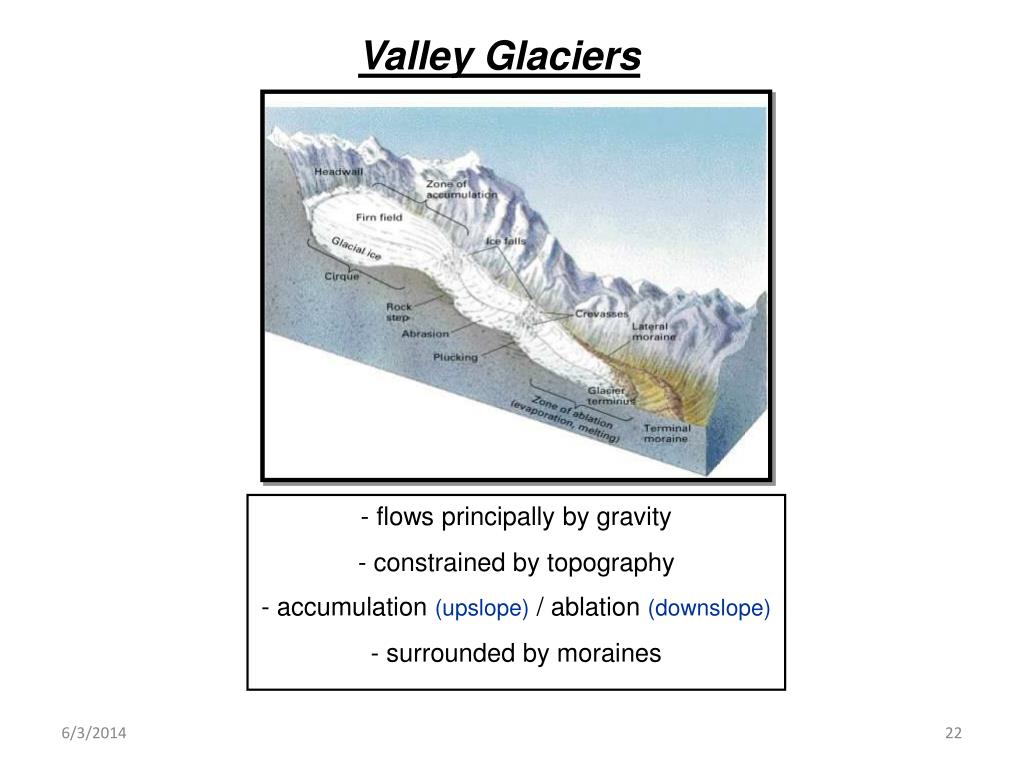

  22. Valley Glaciers • flows principally by gravity • constrained by topography • accumulation (upslope) / ablation (downslope) • surrounded by moraines

  23. Valley Glaciers • zone of accumulation (new snow) • material added • zone of ablation • ice lost by melting & evaporation ablation - loss from melting and evaporation

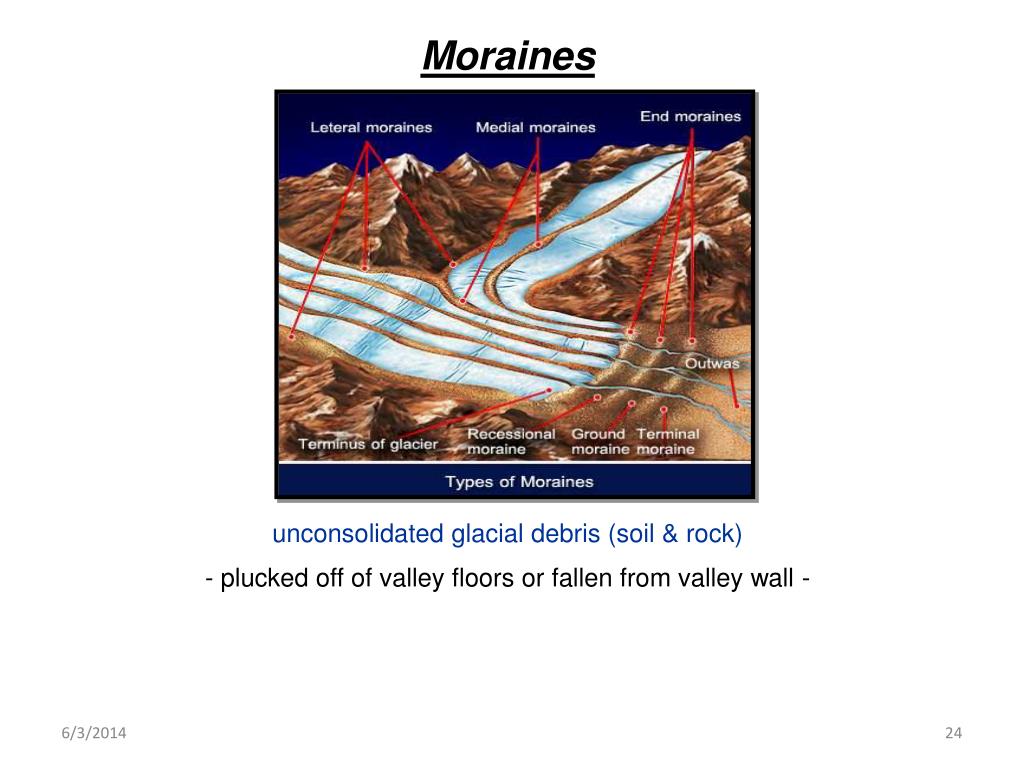

  24. Moraines unconsolidated glacial debris (soil & rock) - plucked off of valley floors or fallen from valley wall -

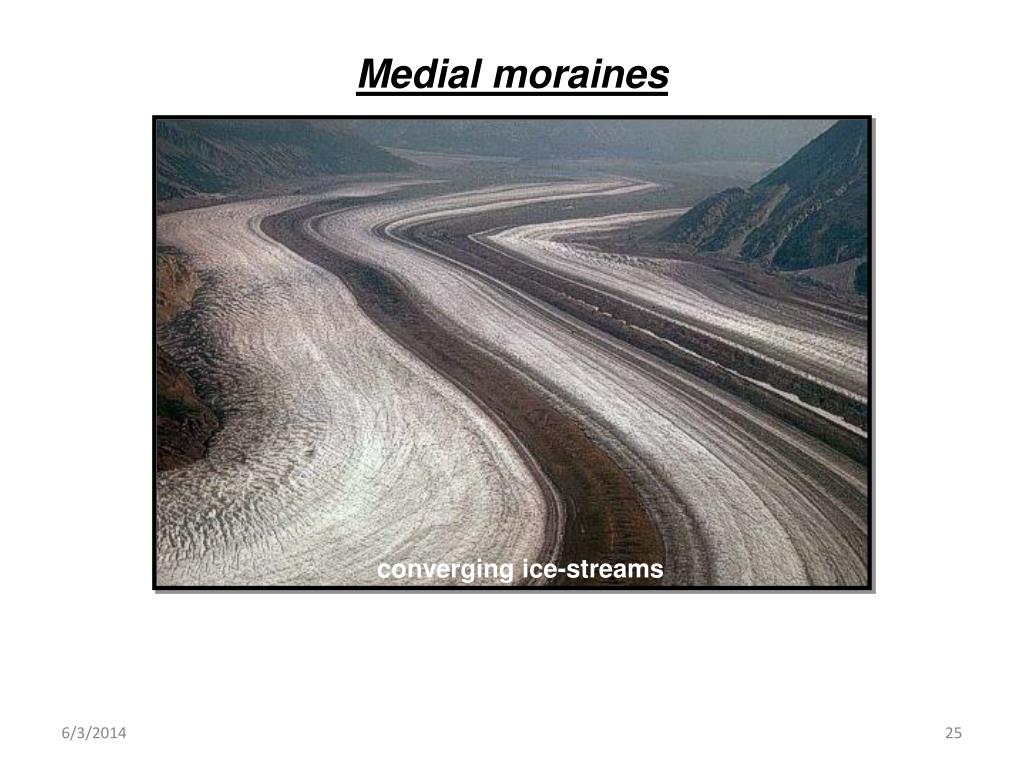

  25. Medial moraines converging ice-streams

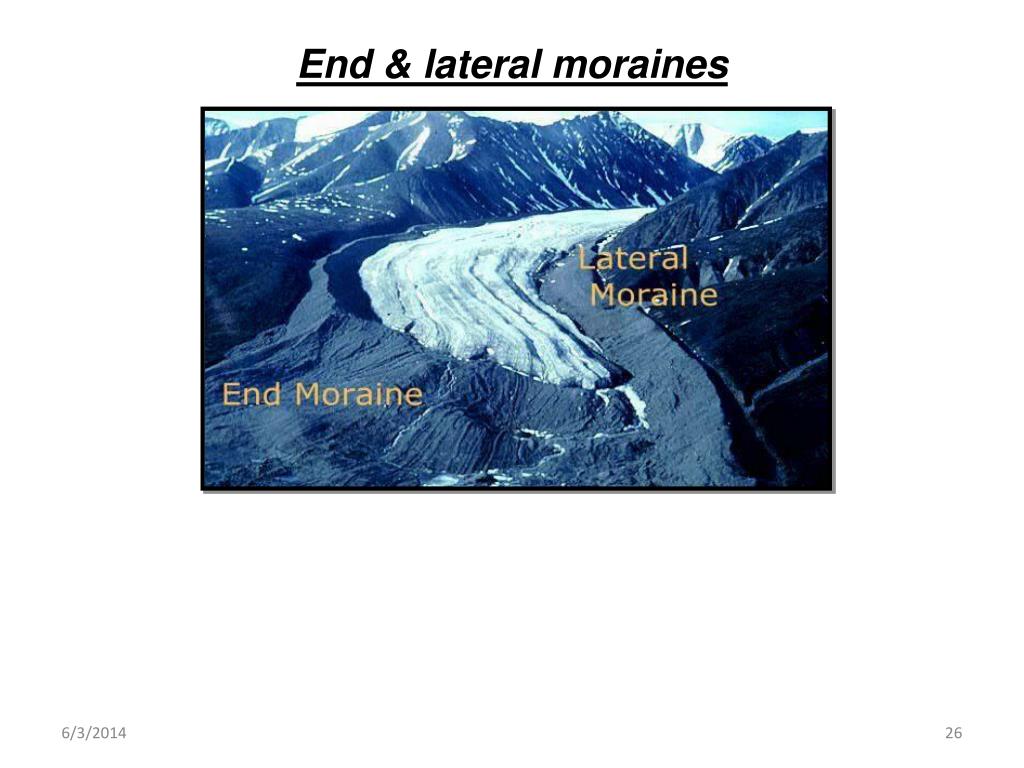

  26. End & lateral moraines

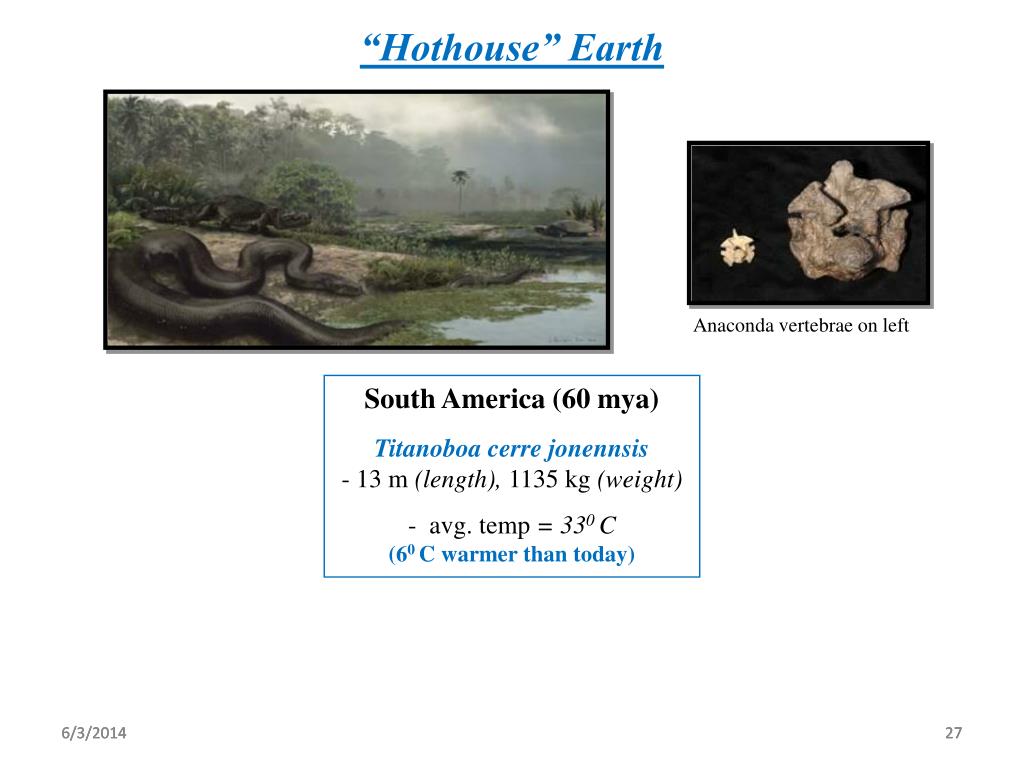

  27. “Hothouse” Earth Anaconda vertebrae on left • South America (60 mya) • Titanoboa cerre jonennsis • 13 m (length), 1135 kg (weight) • avg. temp = 330 C (60 C warmer than today) 6/3/2014 6/3/2014 27 27

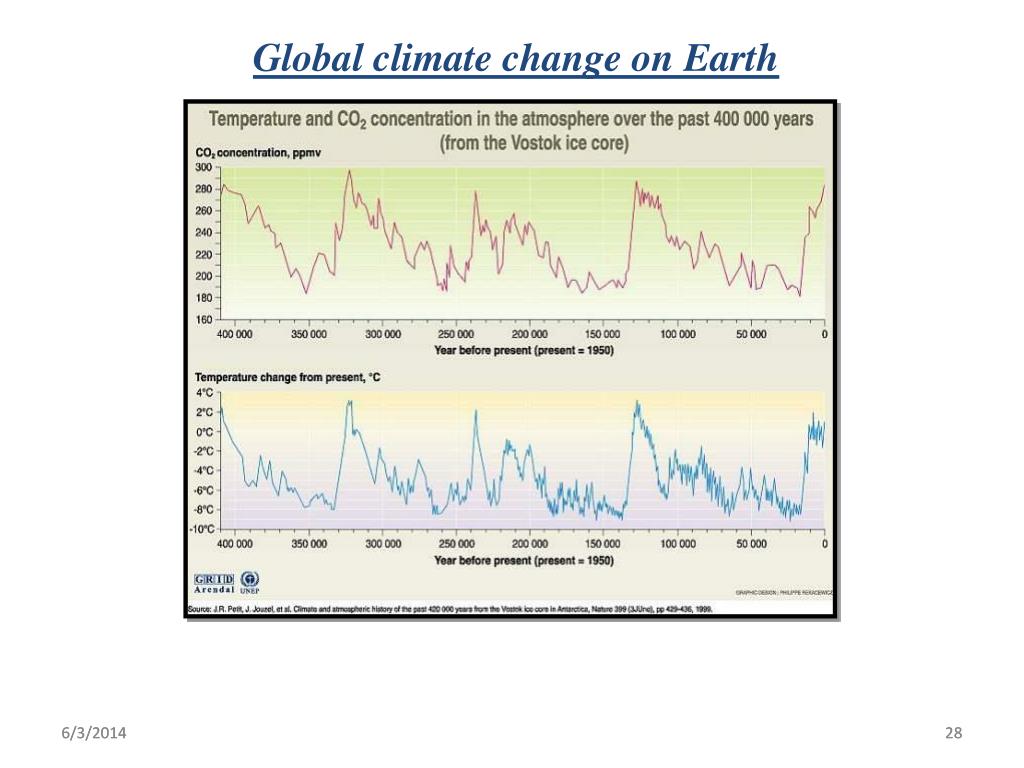

  28. Global climate change on Earth 6/3/2014 28

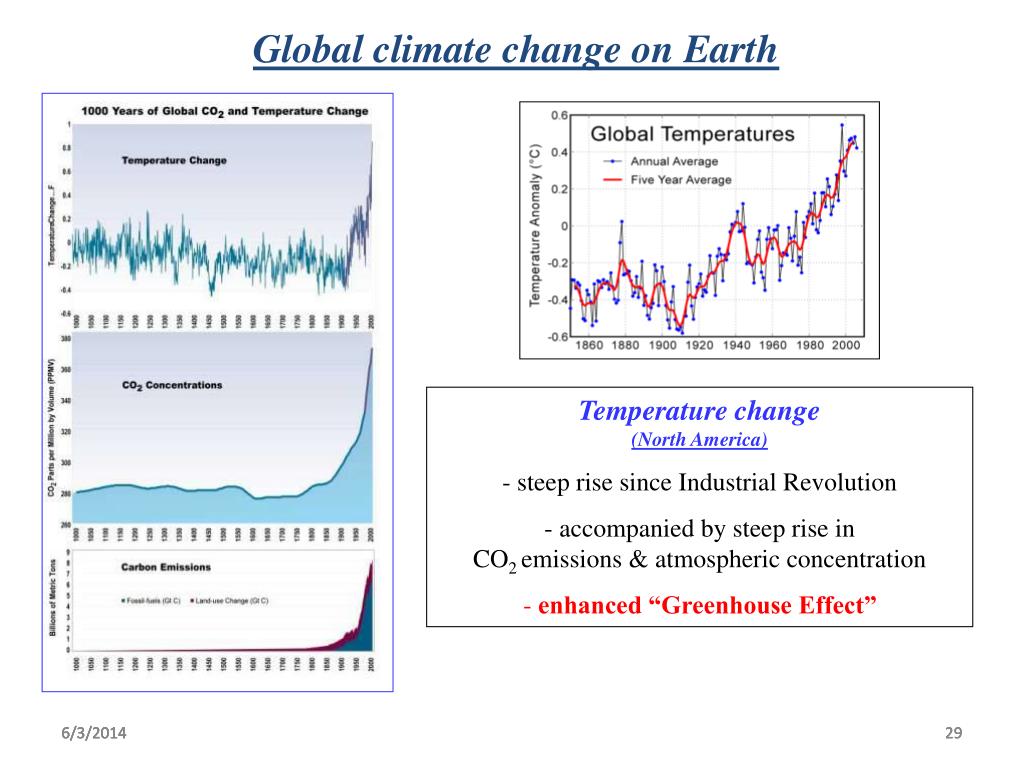

  29. Global climate change on Earth • Temperature change (North America) • steep rise since Industrial Revolution • accompanied by steep rise in CO2 emissions & atmospheric concentration • enhanced “Greenhouse Effect” 6/3/2014 6/3/2014 6/3/2014 6/3/2014 29 29 29

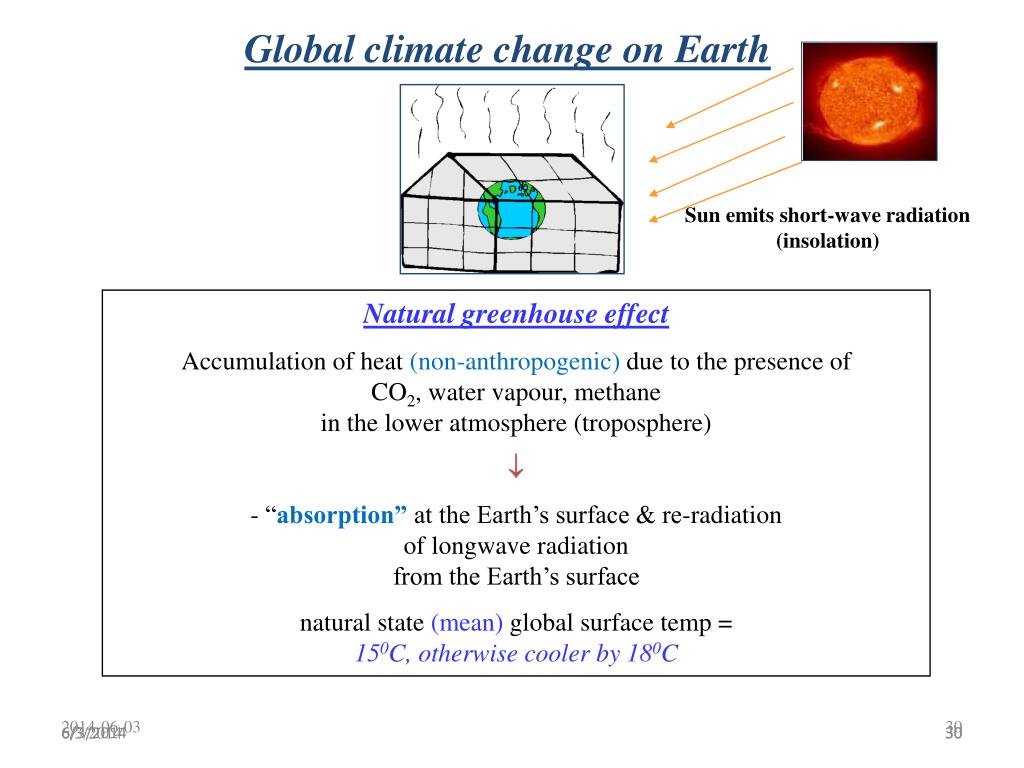

  30. Global climate change on Earth Sun emits short-wave radiation (insolation) • Natural greenhouse effect • Accumulation of heat (non-anthropogenic) due to the presence of CO2, water vapour, methane in the lower atmosphere (troposphere) •  • “absorption” at the Earth’s surface & re-radiation of longwave radiation from the Earth’s surface • natural state (mean) global surface temp = 150C, otherwise cooler by 180C 2014-06-03 30 6/3/2014 30

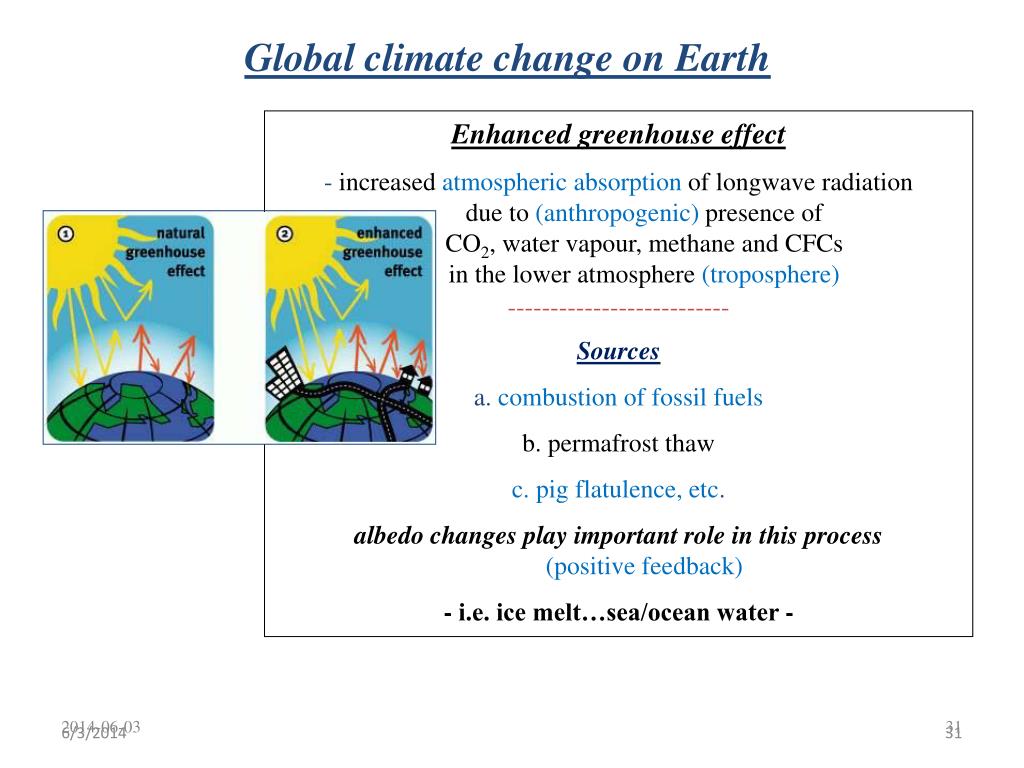

  31. Global climate change on Earth Enhanced greenhouse effect - increased atmospheric absorption of longwave radiation due to (anthropogenic) presence of CO2, water vapour, methane and CFCs in the lower atmosphere (troposphere) -------------------------- Sources a. combustion of fossil fuels b. permafrost thaw c. pig flatulence, etc. albedo changes play important role in this process(positive feedback) - i.e. ice melt…sea/ocean water - 2014-06-03 31

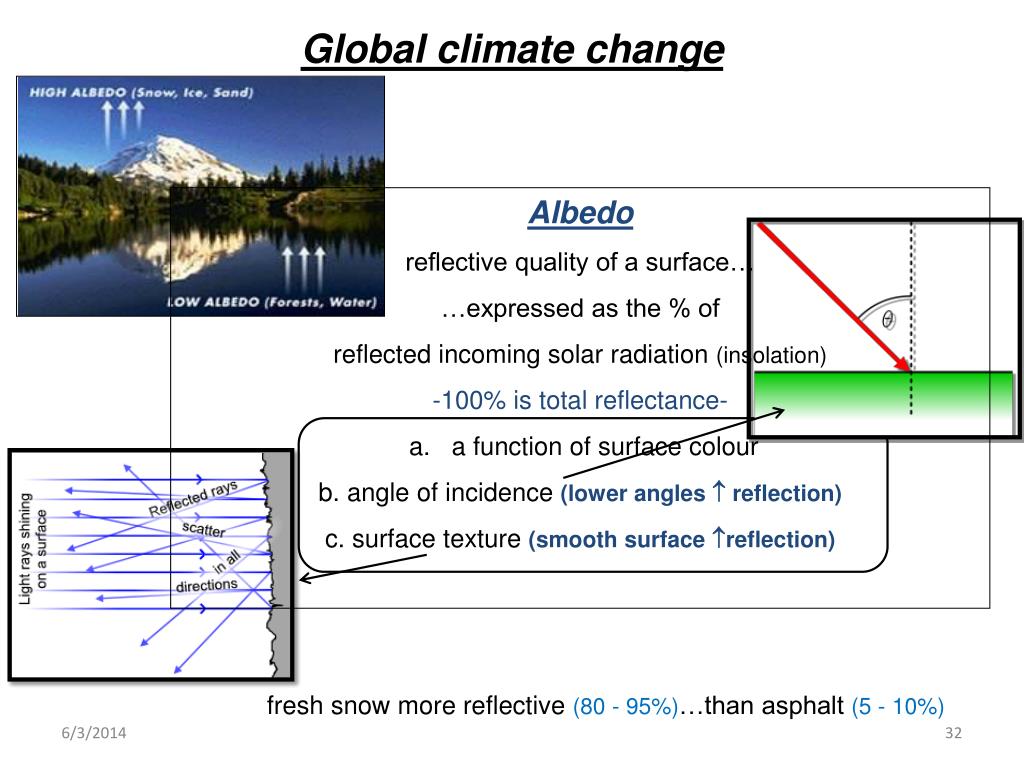

  32. Global climate change Albedo reflective quality of a surface… …expressed as the % of reflected incoming solar radiation (insolation) -100% is total reflectance-  a.   a function of surface colour b. angle of incidence (lower angles  reflection) c. surface texture (smooth surface reflection) fresh snow more reflective (80 - 95%)…than asphalt (5 - 10%)

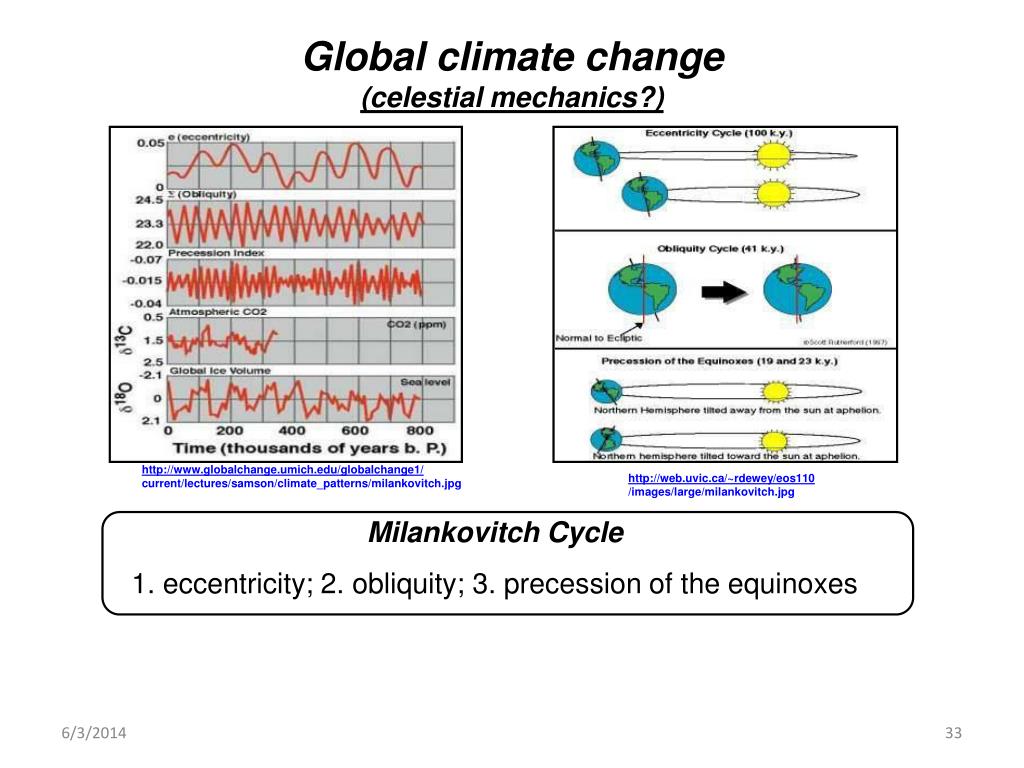

  33. Global climate change(celestial mechanics?) http://www.globalchange.umich.edu/globalchange1/ current/lectures/samson/climate_patterns/milankovitch.jpg http://web.uvic.ca/~rdewey/eos110 /images/large/milankovitch.jpg Milankovitch Cycle 1. eccentricity; 2. obliquity; 3. precession of the equinoxes

  34. Global climate change on Earth Much ado about something...? ...on a cosmological scale!

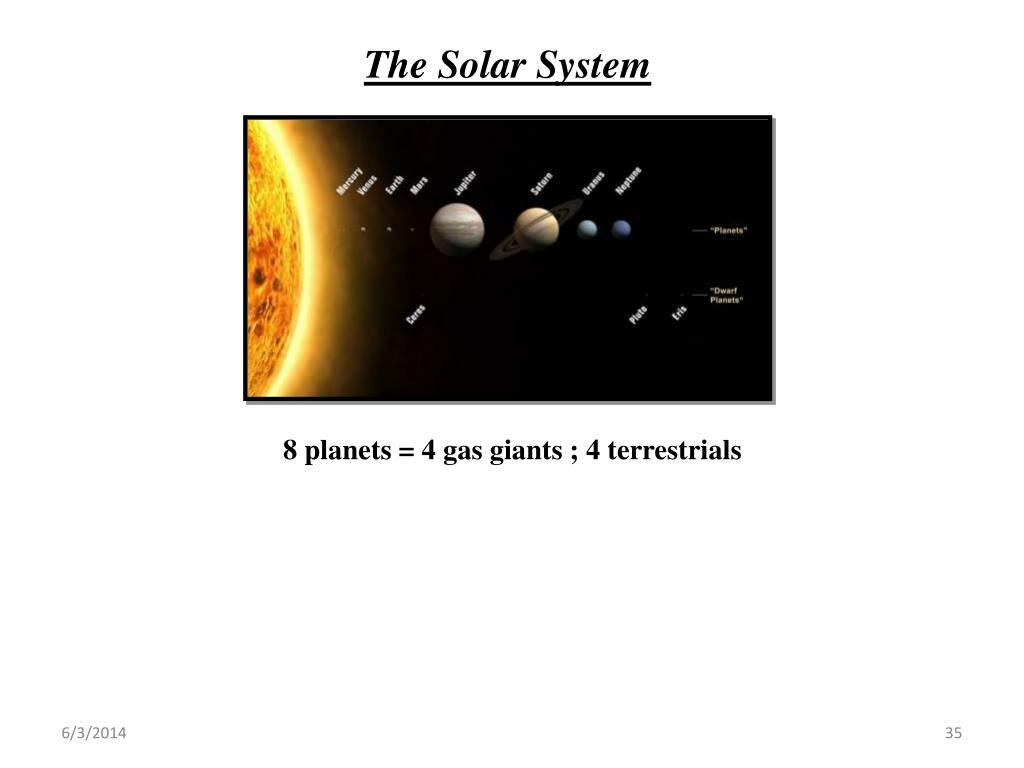

  35. The Solar System 8 planets = 4 gas giants ; 4 terrestrials

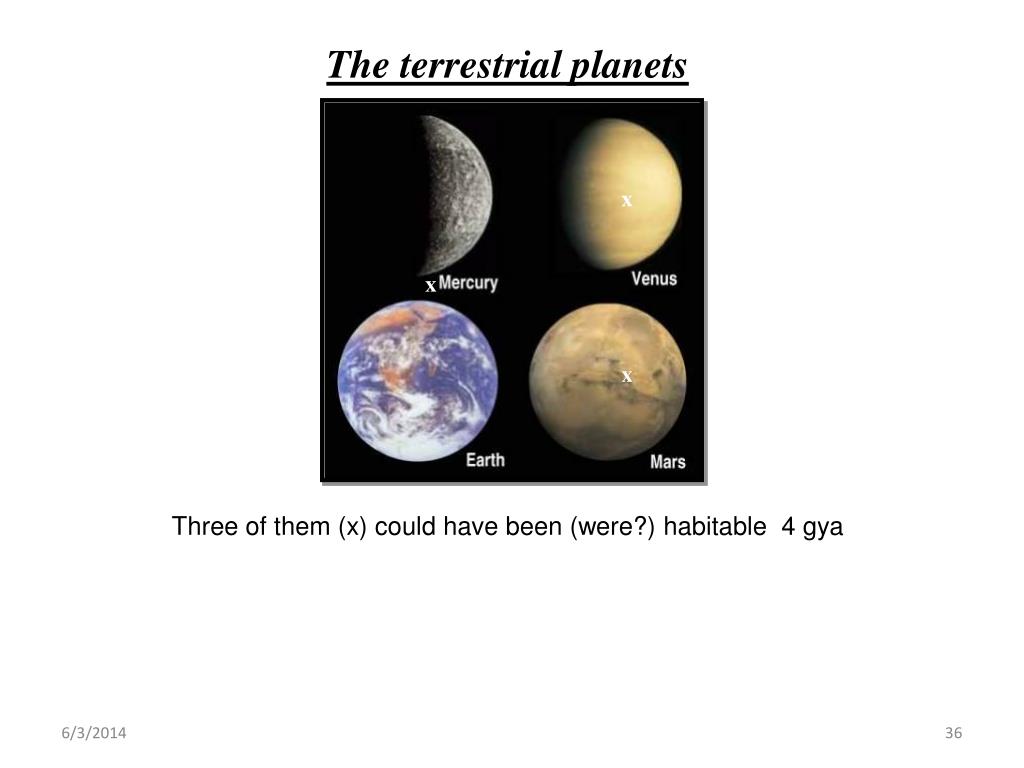

  36. The terrestrial planets x x x Three of them (x) could have been (were?) habitable 4 gya

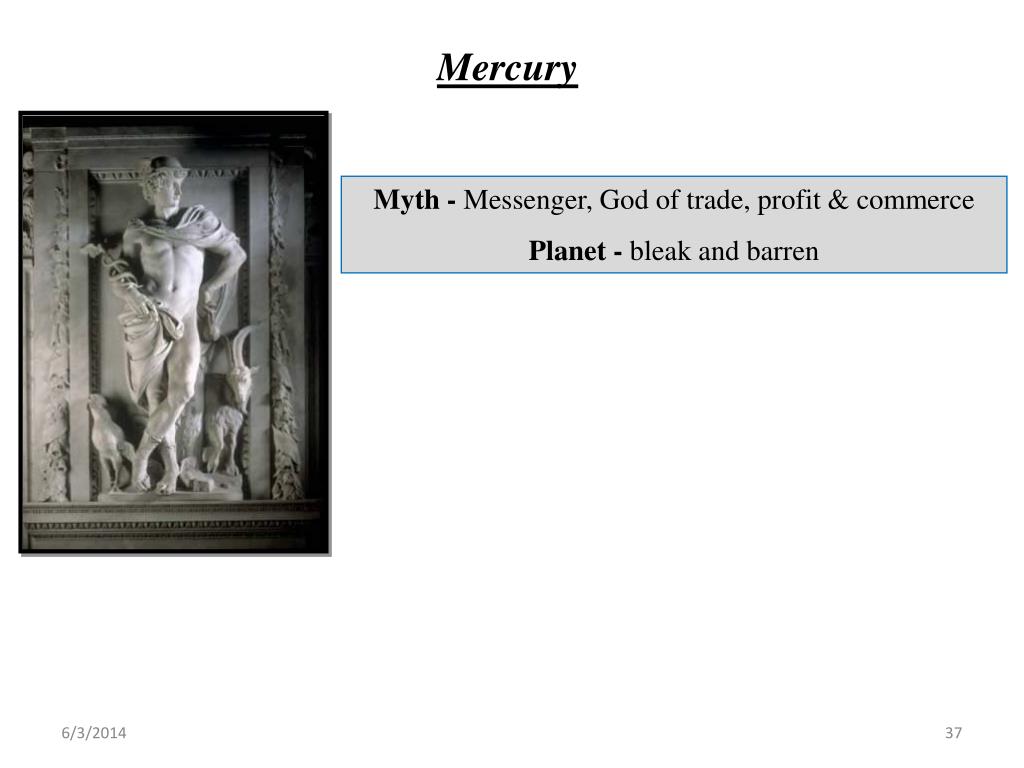

  37. Mercury Myth - Messenger, God of trade, profit & commerce Planet - bleak and barren

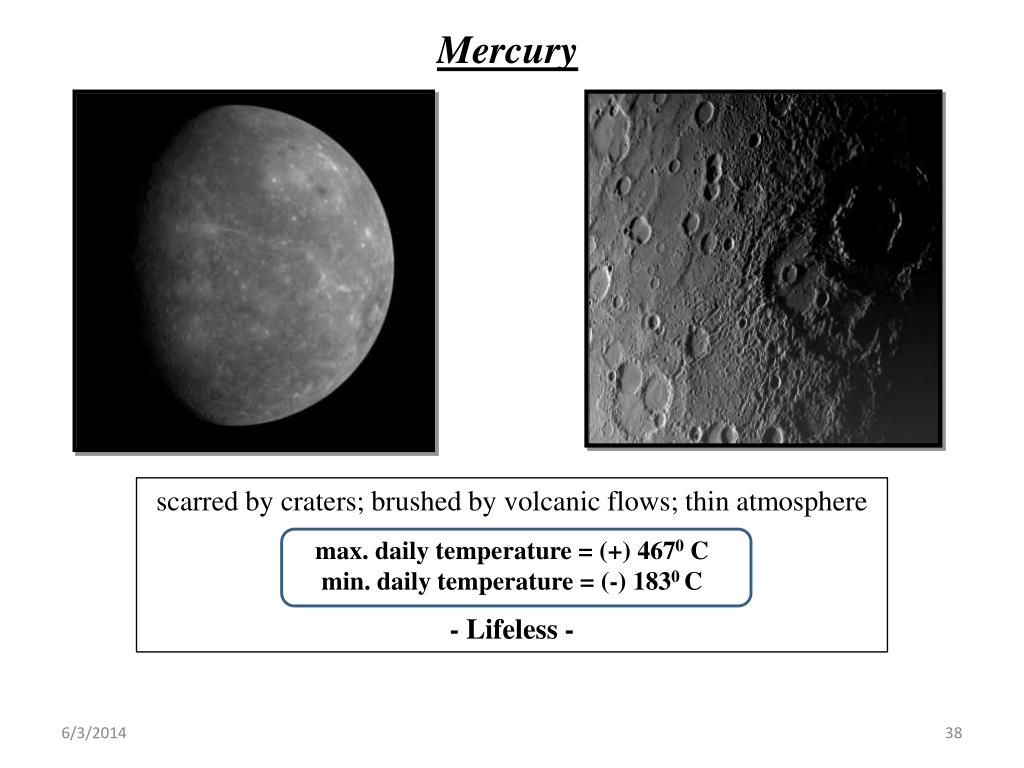

  38. Mercury • scarred by craters; brushed by volcanic flows; thin atmosphere • max. daily temperature = (+) 4670 C • min. daily temperature = (-) 1830 C • - Lifeless -

  39. Venus • Myth • Goddess of love & beauty • stirred passions amongst the gods • Planet • - mysterious, veiled by thick clouds

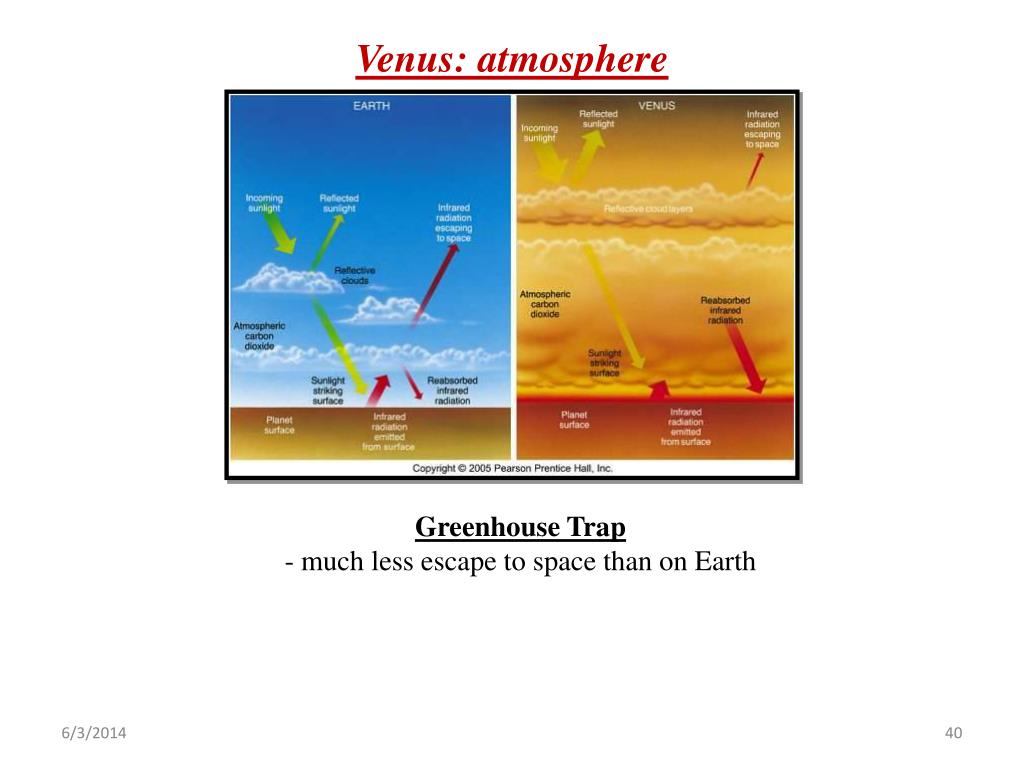

  40. Venus: atmosphere Greenhouse Trap - much less escape to space than on Earth

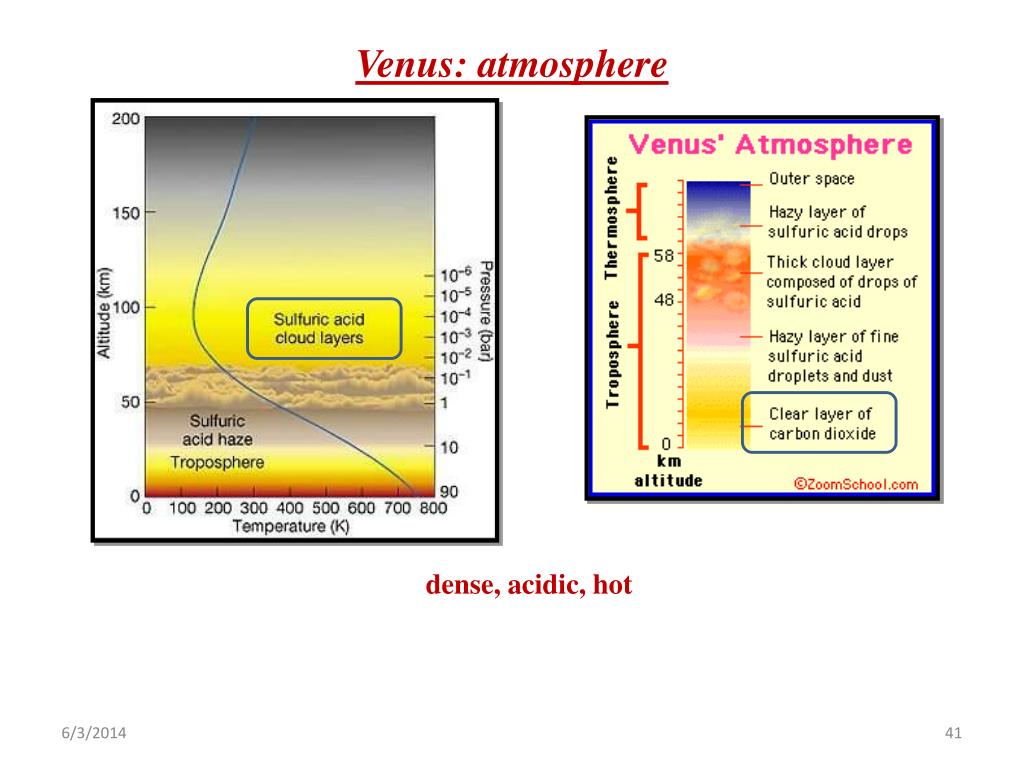

  41. Venus: atmosphere dense, acidic, hot

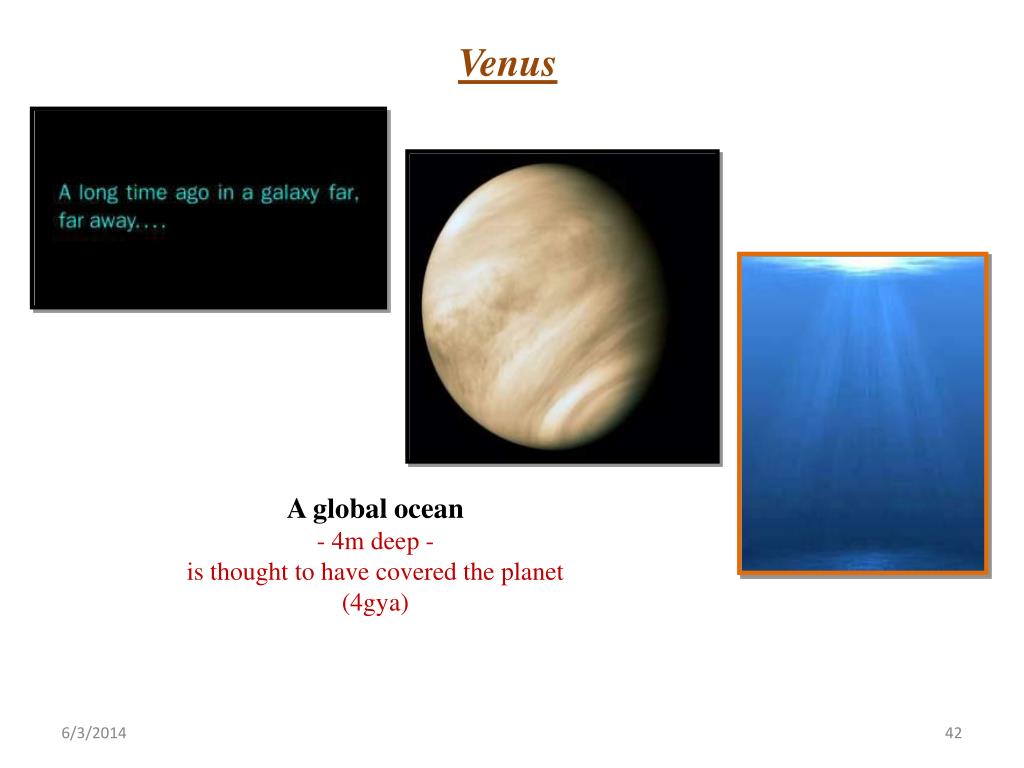

  42. Venus A global ocean- 4m deep - is thought to have covered the planet (4gya)

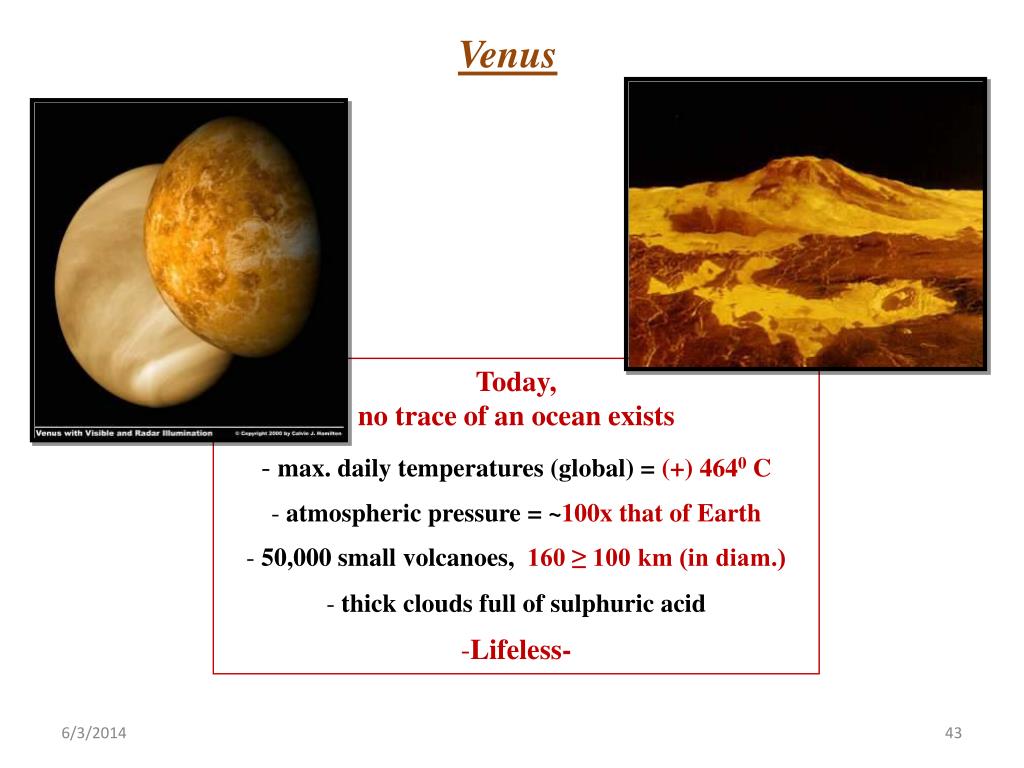

  43. Venus • Today, • no trace of an ocean exists • max. daily temperatures (global) = (+) 4640 C • atmospheric pressure = ~100x that of Earth • 50,000 small volcanoes, 160 ≥ 100 km (in diam.) • thick clouds full of sulphuric acid • Lifeless-

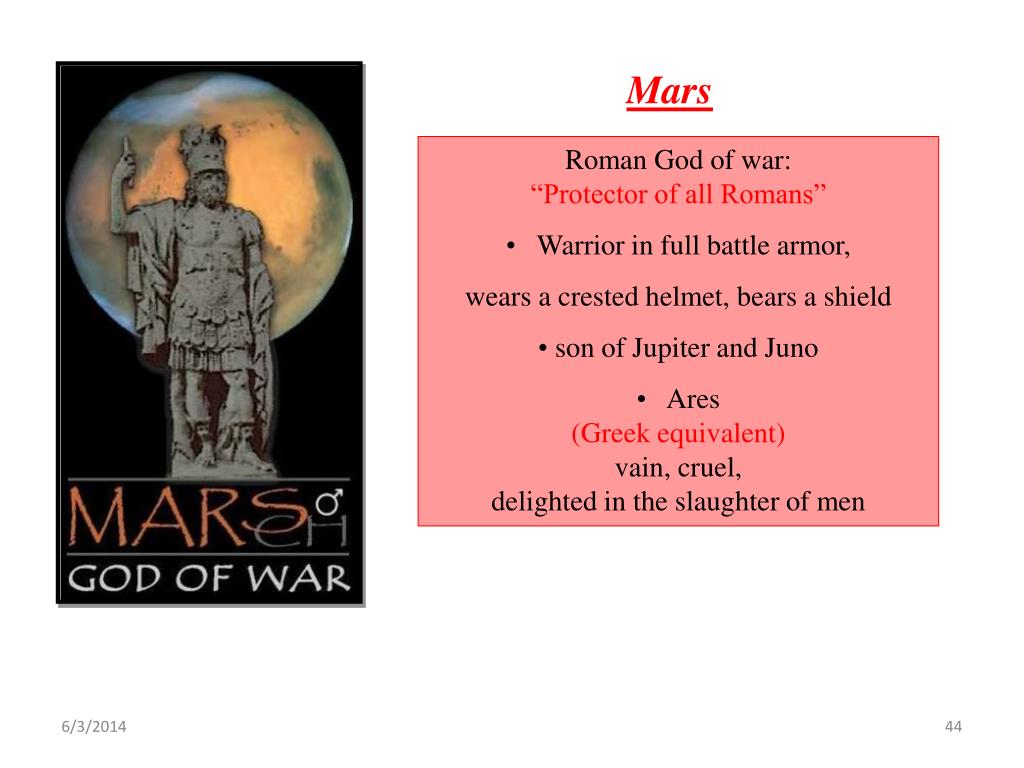

  44. Mars • Roman God of war: “Protector of all Romans” • Warrior in full battle armor, • wears a crested helmet, bears a shield • son of Jupiter and Juno • Ares (Greek equivalent) vain, cruel, delighted in the slaughter of men

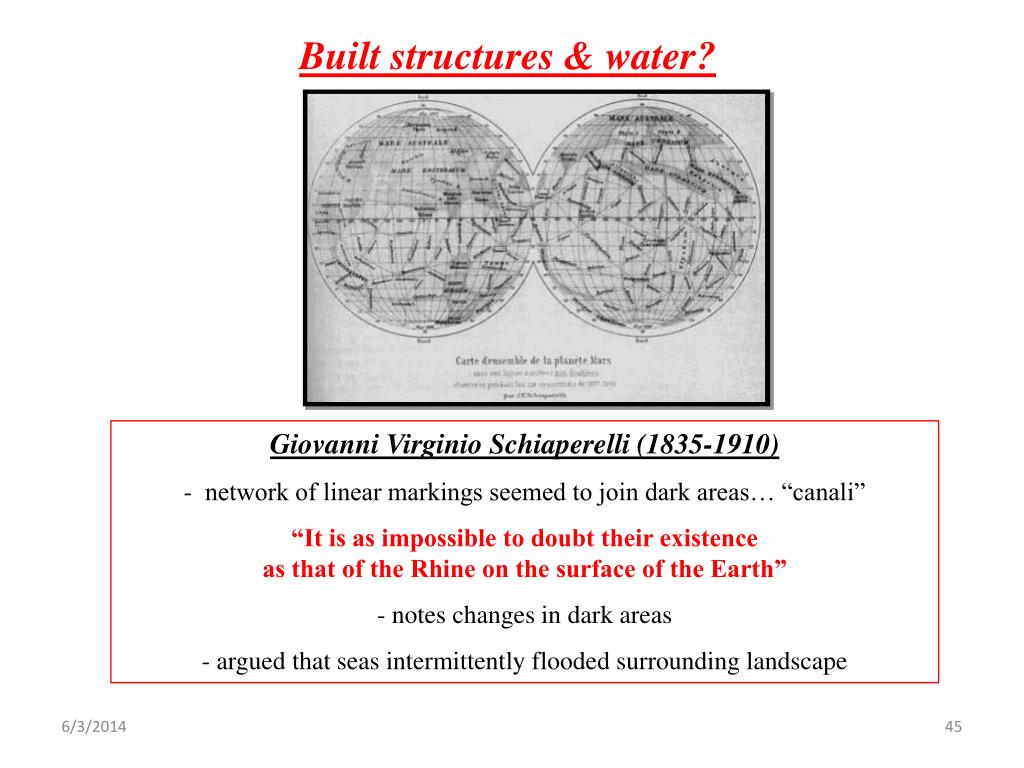

  45. Built structures & water? • Giovanni Virginio Schiaperelli (1835-1910) • - network of linear markings seemed to join dark areas… “canali” • “It is as impossible to doubt their existence as that of the Rhine on the surface of the Earth” • notes changes in dark areas • - argued that seas intermittently flooded surrounding landscape 6/3/2014 45

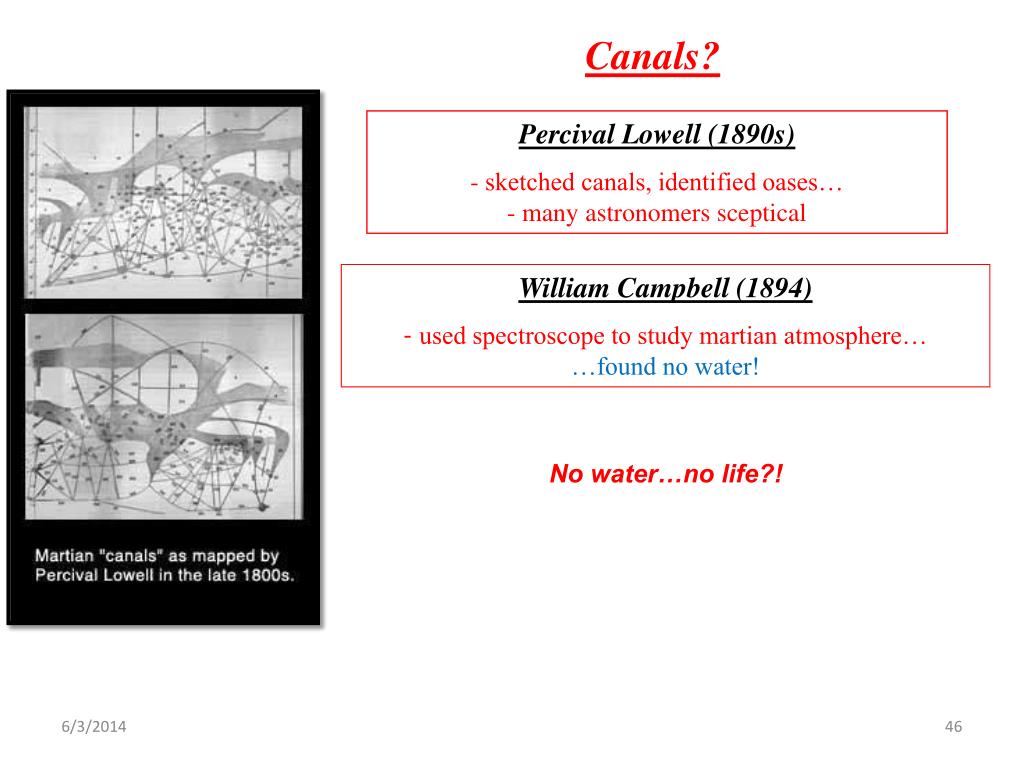

  46. Canals? Percival Lowell (1890s) - sketched canals, identified oases… - many astronomers sceptical • William Campbell (1894) • used spectroscope to study martian atmosphere… …found no water! No water…no life?! 6/3/2014 46

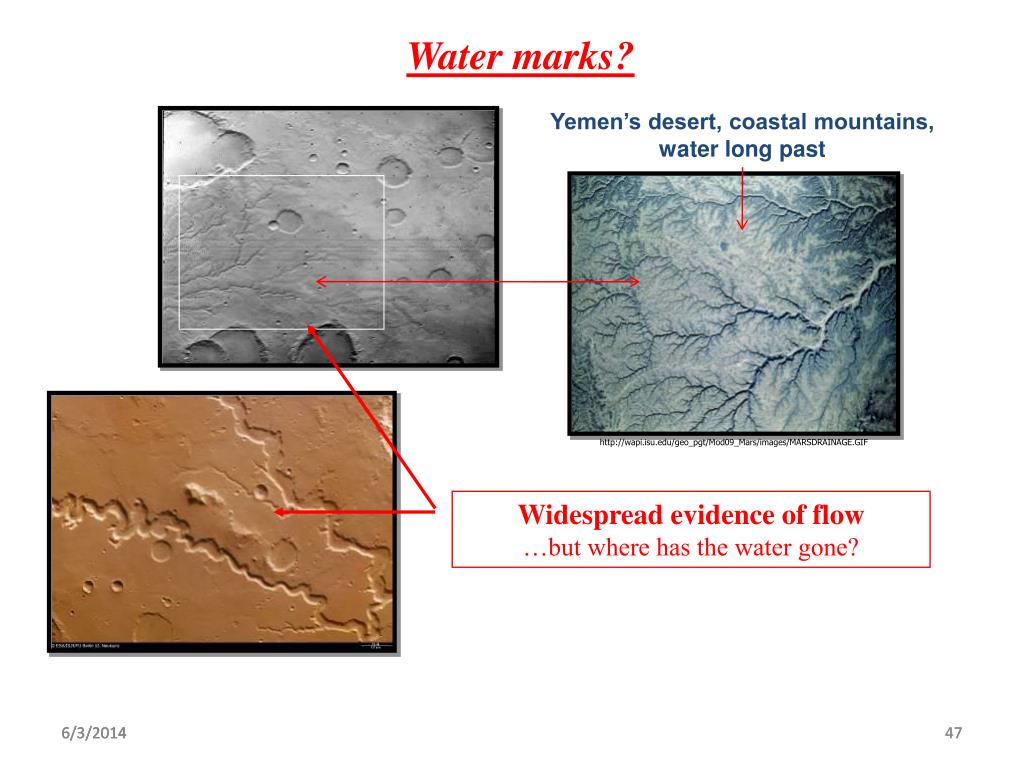

  47. Water marks? Yemen’s desert, coastal mountains, water long past http://wapi.isu.edu/geo_pgt/Mod09_Mars/images/MARSDRAINAGE.GIF Widespread evidence of flow …but where has the water gone? 6/3/2014 6/3/2014 47

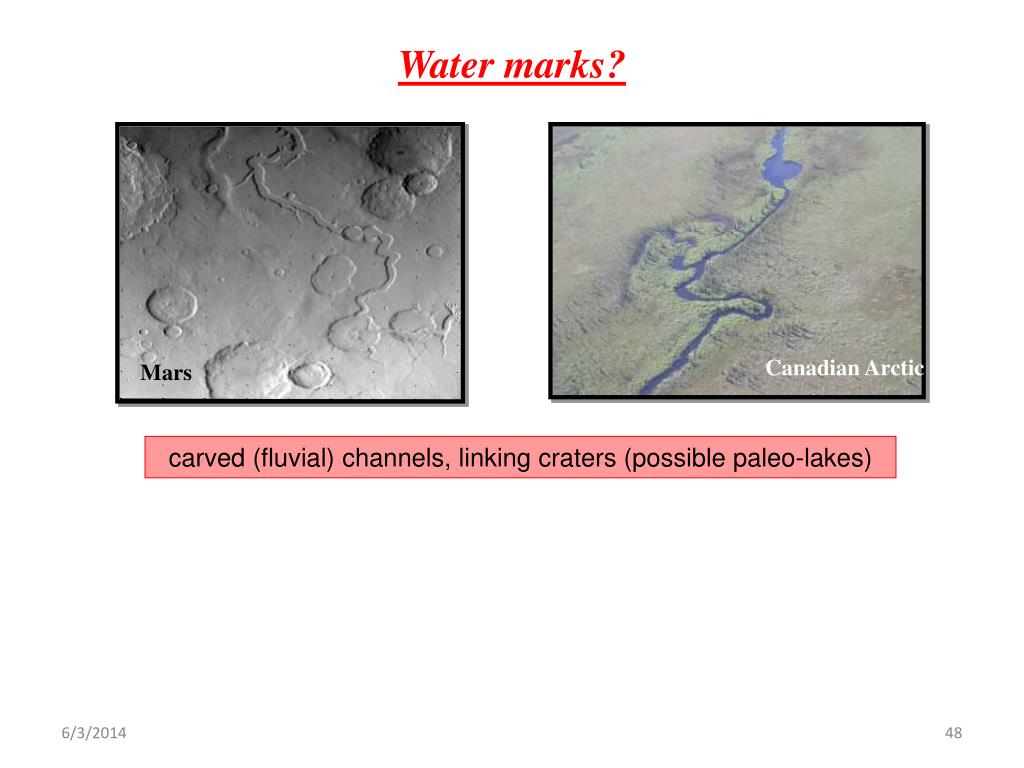

  48. Water marks? Canadian Arctic Mars carved (fluvial) channels, linking craters (possible paleo-lakes) 48

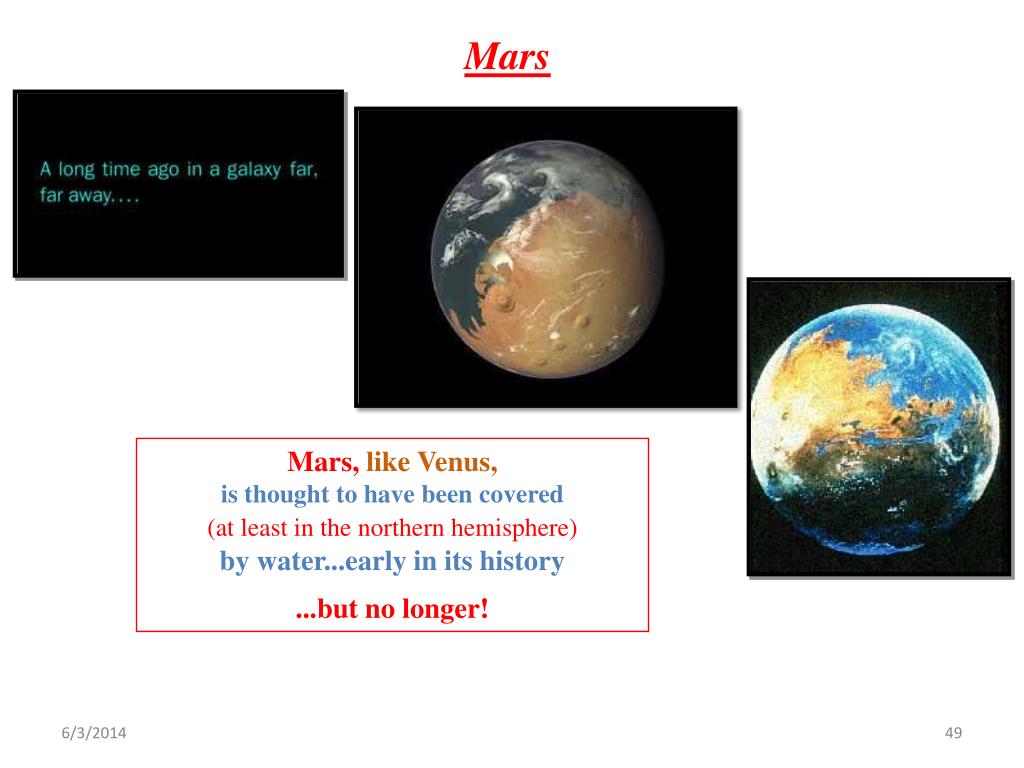

  49. Mars Mars,like Venus,is thought to have been covered (at least in the northern hemisphere)by water...early in its history ...but no longer!

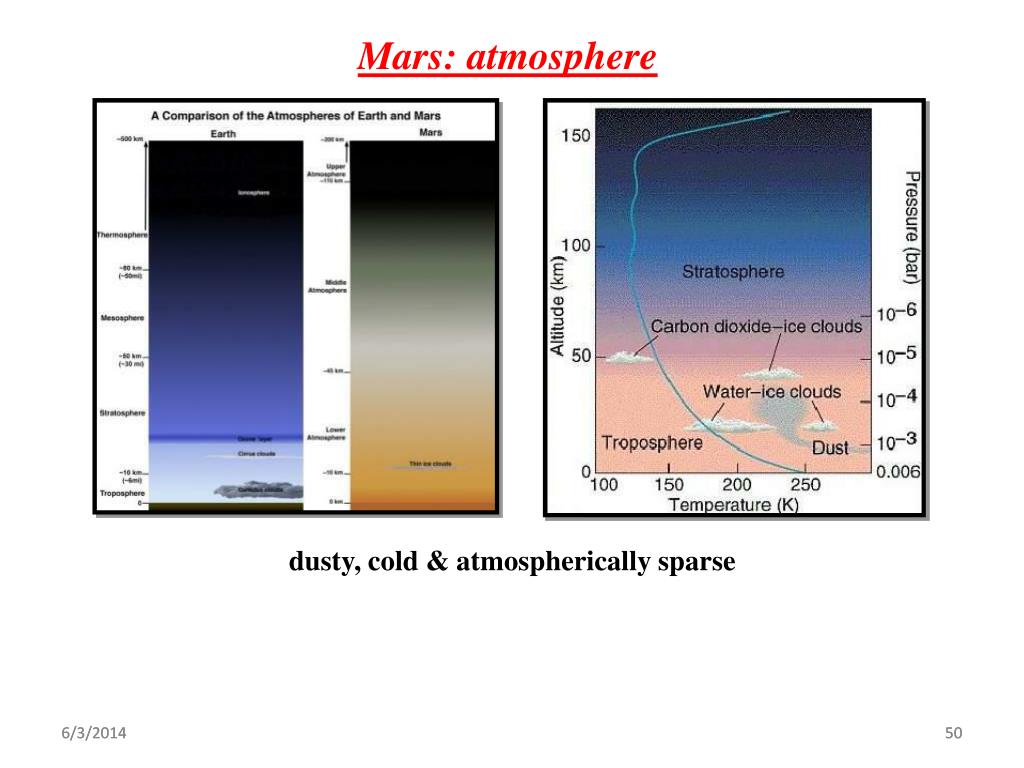

  50. Mars: atmosphere dusty, cold & atmospherically sparse 6/3/2014 50
