VAQ 3

VAQ 3. Helen Parker & James Taylor Sandringham Hospital 2014. VAQ 3 An 80 year old lady from high level care presents with shortness of breath. Her observations are as follows: Temp 38.2 PR 120 BP 110/70 RR 30 Sats 92% on 10L O2 Describe and interpret her CXR (100%).

toki
Télécharger la présentation

VAQ 3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

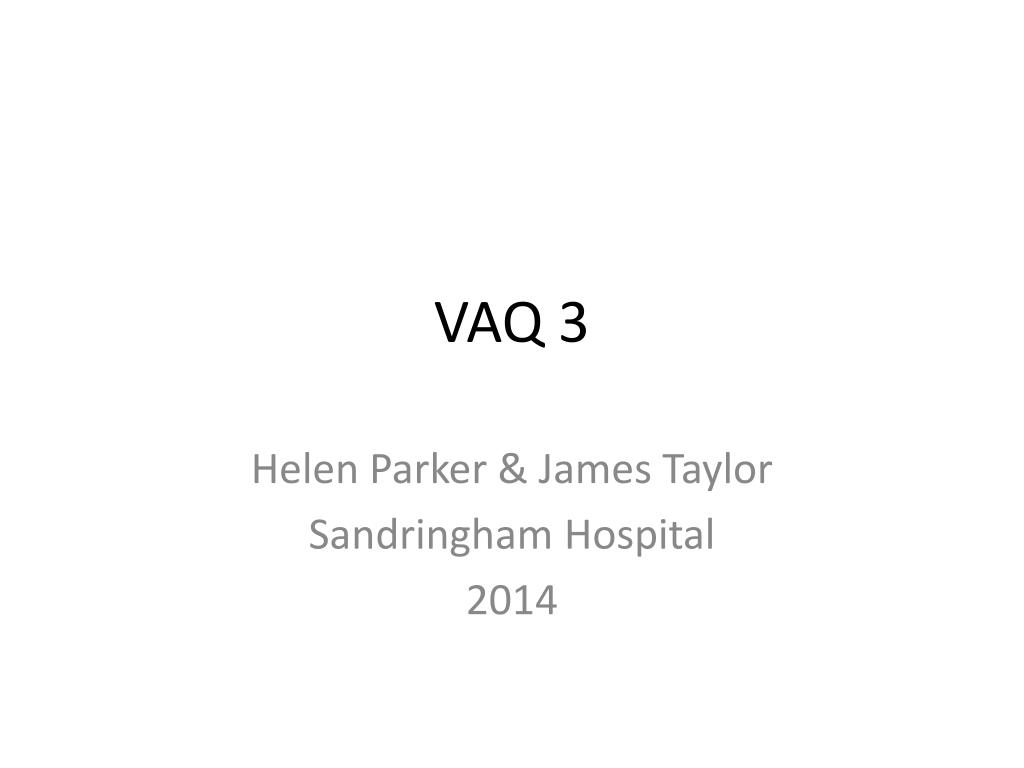

  1. VAQ 3 Helen Parker & James Taylor Sandringham Hospital 2014

  2. VAQ 3 • An 80 year old lady from high level care presents with shortness of breath. Her observations are as follows: • Temp 38.2 • PR 120 • BP 110/70 • RR 30 • Sats 92% on 10L O2 • Describe and interpret her CXR (100%)

  3. Positive findings on CXR • RUL consolidation/collapse- extensive • - some air bronchograms • - upward bowing of fissure • RLL consolidation medially • RML sparing- R heart border preserved • LLL – some incr markings. Left heart border indistinct – lingular lobe. • LU zone relatively clear

  4. Positive findings continued.. • Likely/possible cardiomegaly (even allowing for AP view) • Likely/possible LVF – prominent upper lobe vessels, possible small effusions as blunted costophrenic angles

  5. Relevant negatives…. • No evidence cavitation/ abscess radiographically • No large effusion/ empyema • No pneumothorax

  6. Interpretation • Elderly HLC nursing home pt with significant hypoxia and septic clinical picture • Multilobar pneumonia • Aetiol: bacterial • Consider aspiration as RUL/RLL • Concurrent LVF • HIGH MORTALITY RATE • NOT a candidate for aggressive resuscitation/ intubation/inotropic support

  7. Interpretation continued.. • Consider any advanced care directives • Involve NOK in end-of-life care discussion • May be appropriate to treat with antibiotics but likely terminal illness regardless • Palliation/ comfort measures only , a reasonable option

  8. Pitfalls in answers • Lack of knowledge of normal CXR anatomy!! • (R heart border is visible= RML spared) • - not pass/fail point but diminished overall mark

  9. Right heart border

  10. If RML consolidation present- lose R heart border as solid:solid interface rather than air:solid interface

  11. Pitfalls in answers cont’d…. • Over-calling/ over-analyzing • Eg tracheal deviation to R plus RUL mass plus prominent hilar region ?LN’s

  12. Unfolded aorta displacing trachea

  13. Pitfalls • Failure to comment on severity of illness and high mortality • Failure to consider option of comfort/ palliation measures • Failure to consider treatment limits/ advanced care directives

  14. Suggested method(s) to improve interpretation • Look at the stem (in this case an elderly lady with significant hypoxia/ sepsis), then examine the prop (the xray) and ask yourself “how does this CXR support what is going on clinically?” • (and is there anything which is at odds with the clinical picture?)

  15. Suggested method(s) to improve interpretation • Try changing the age group of the patient to see if it changes your “take” on the situation – for example – change the patient to a 40 yo female and imagine yr interpretation– now, how does your answer change given its an 80 yo from HLC??

  16. Make the negatives RELEVANT • Clinical picture and xray suggest PNEUMONIA • So, look for common complications of pneumonia • Empyema • Abscess • Pneumothorax
