Maximizing Multitemporal Satellite Data for Dynamic Monitoring Tasks

1. Beyond Spectral and Spatial data:Exploring other domains of information GEOG3010 Remote Sensing and Image Processing Lewis RSU

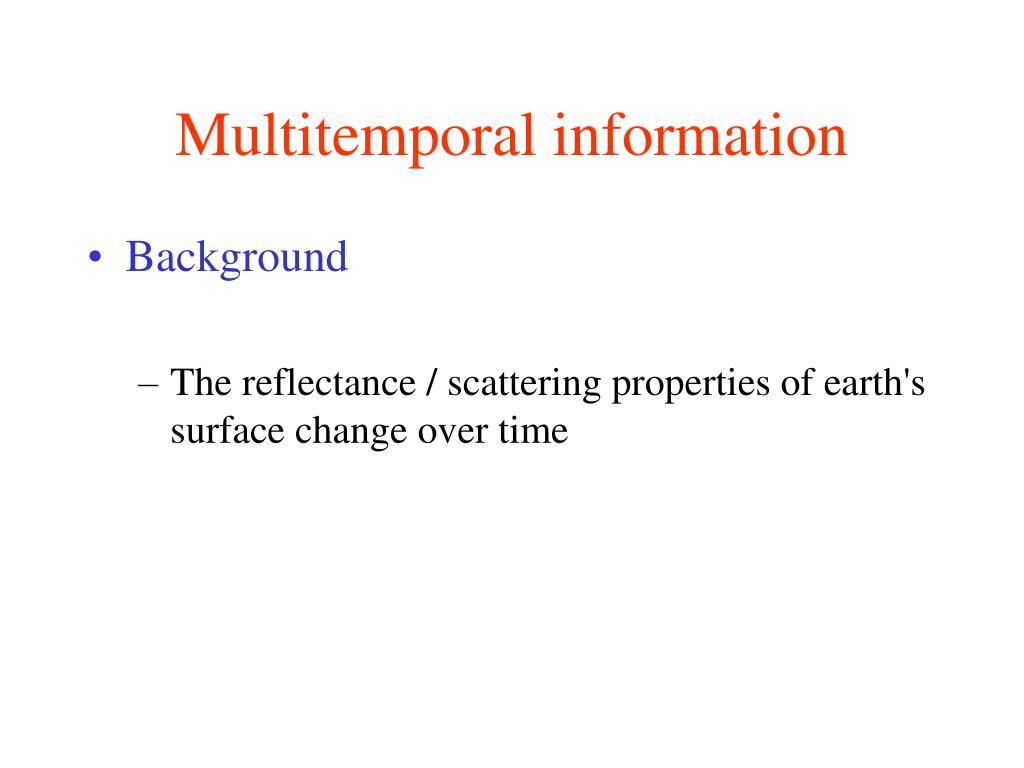

2. Multitemporal information • Background • The reflectance / scattering properties of earth's surface change over time

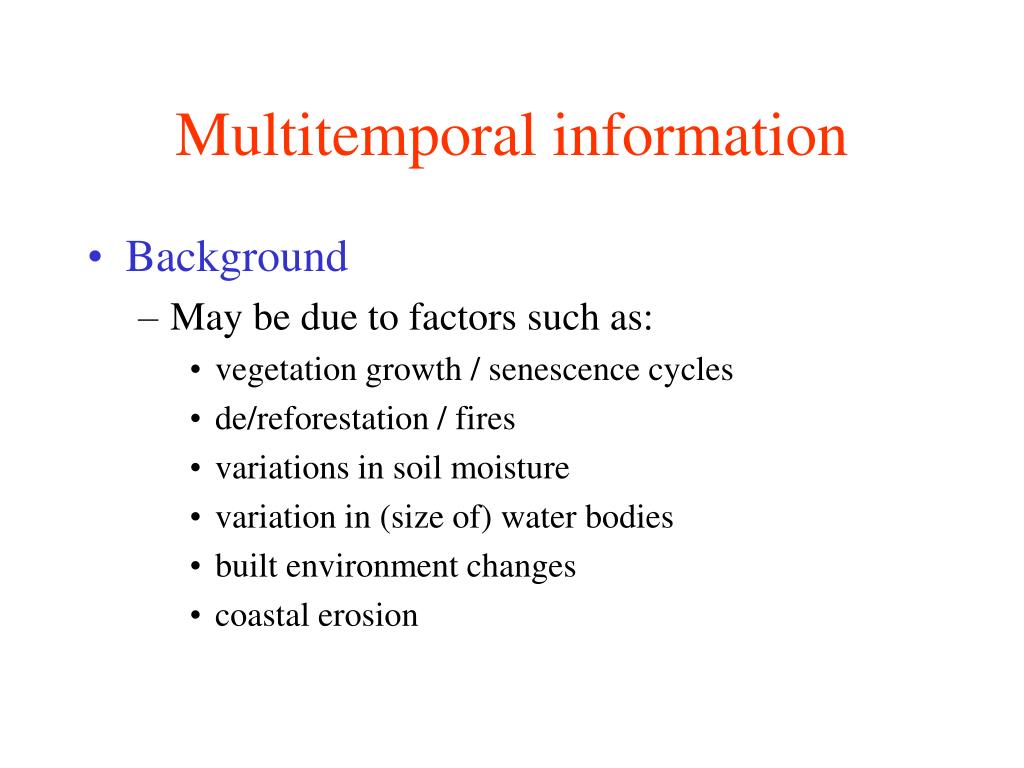

3. Multitemporal information • Background • May be due to factors such as: • vegetation growth / senescence cycles • de/reforestation / fires • variations in soil moisture • variation in (size of) water bodies • built environment changes • coastal erosion

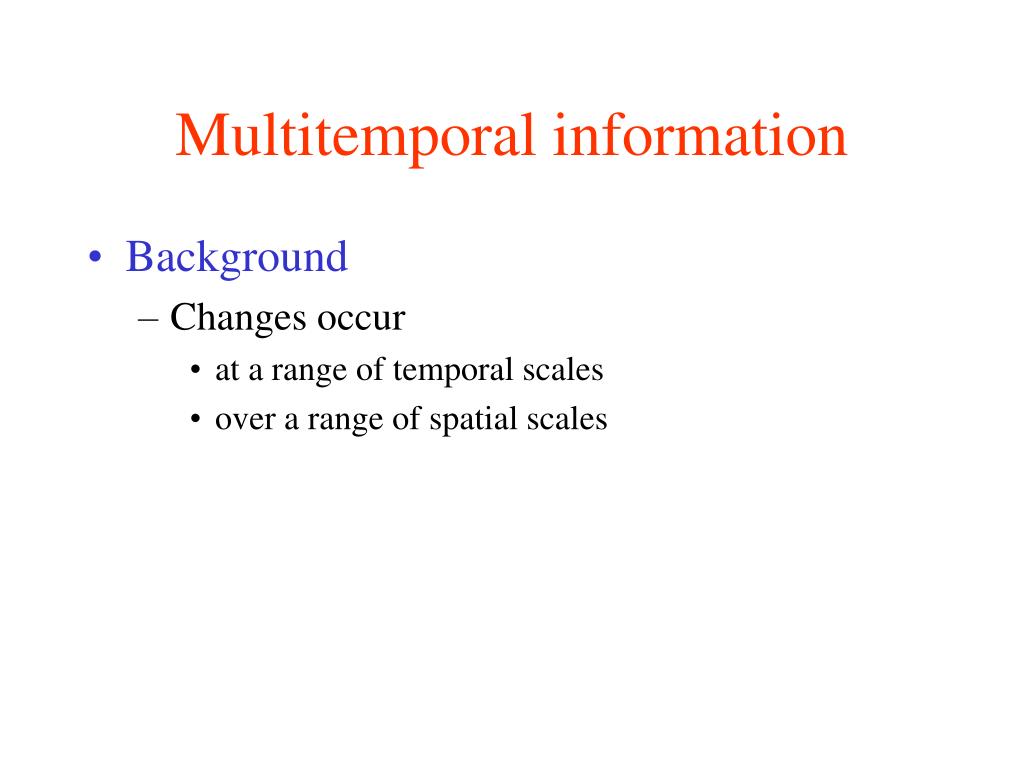

4. Multitemporal information • Background • Changes occur • at a range of temporal scales • over a range of spatial scales

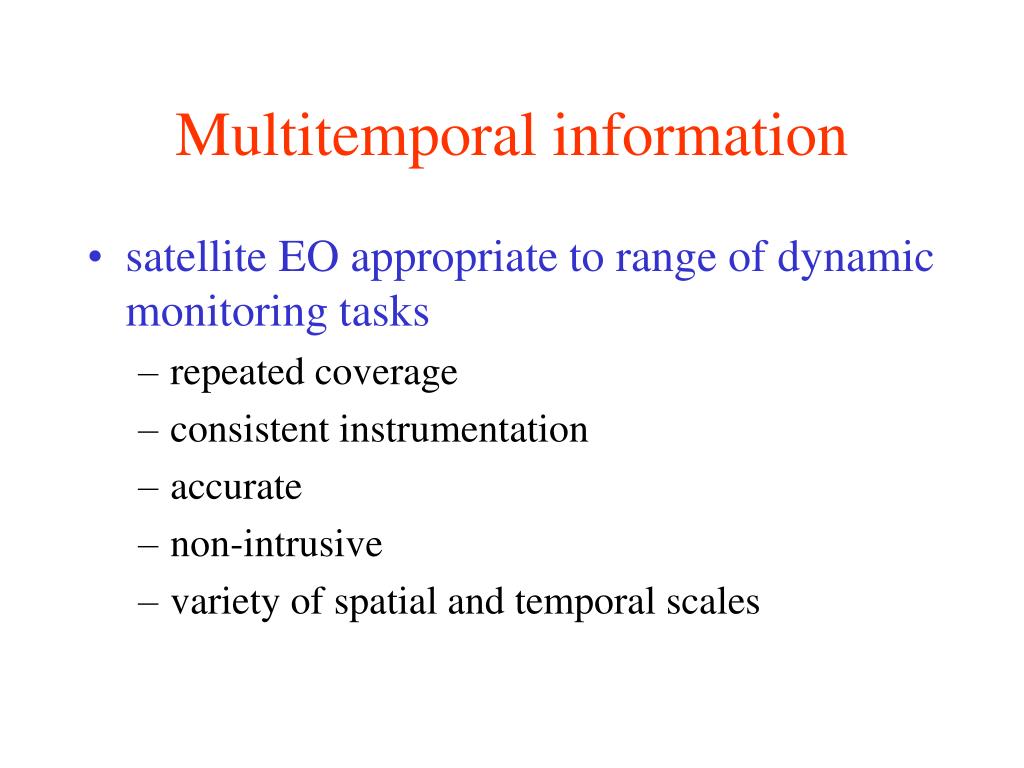

5. Multitemporal information • satellite EO appropriate to range of dynamic monitoring tasks • repeated coverage • consistent instrumentation • accurate • non-intrusive • variety of spatial and temporal scales

6. Multitemporal information • satellite EO appropriate to range of dynamic monitoring tasks • monitoring vegetation dynamics over course of a year • link to (crop) growth models to provide yield estimates • distinguish cover types (classification)

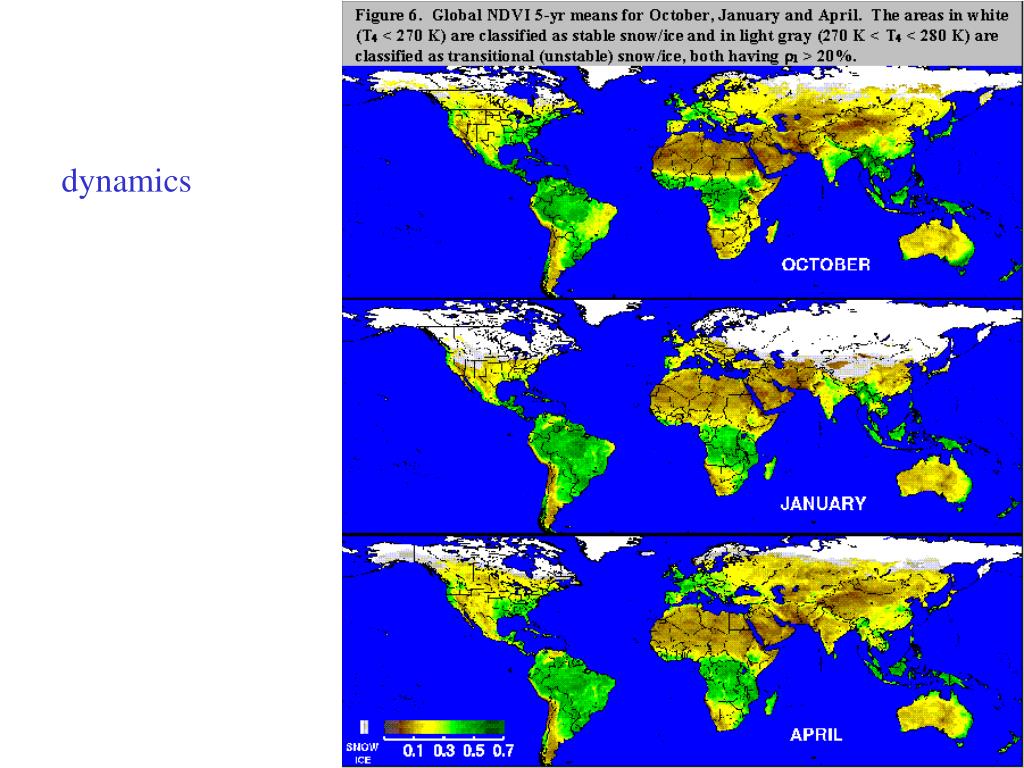

7. dynamics

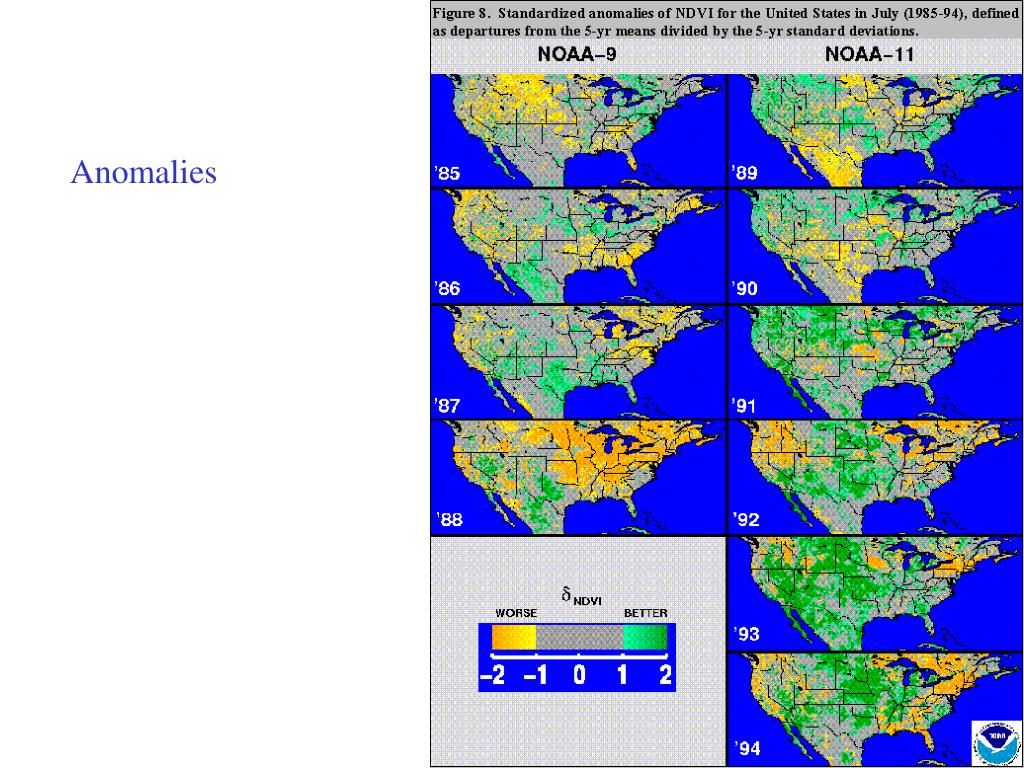

8. Anomalies

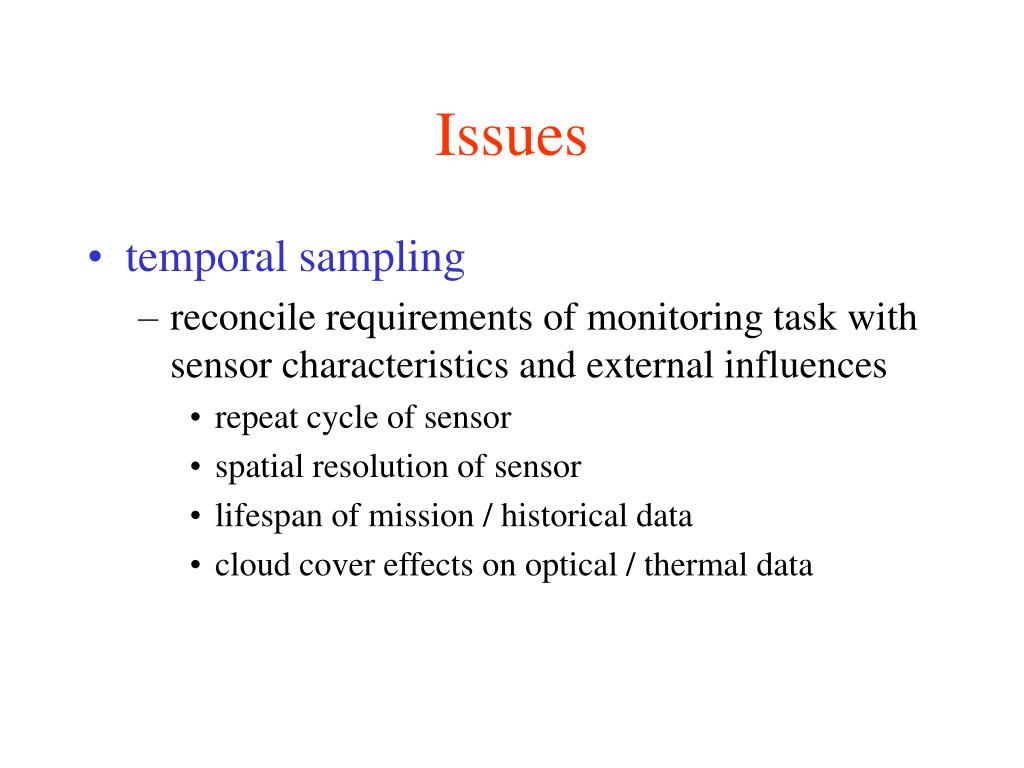

9. Issues • temporal sampling • reconcile requirements of monitoring task with sensor characteristics and external influences • repeat cycle of sensor • spatial resolution of sensor • lifespan of mission / historical data • cloud cover effects on optical / thermal data

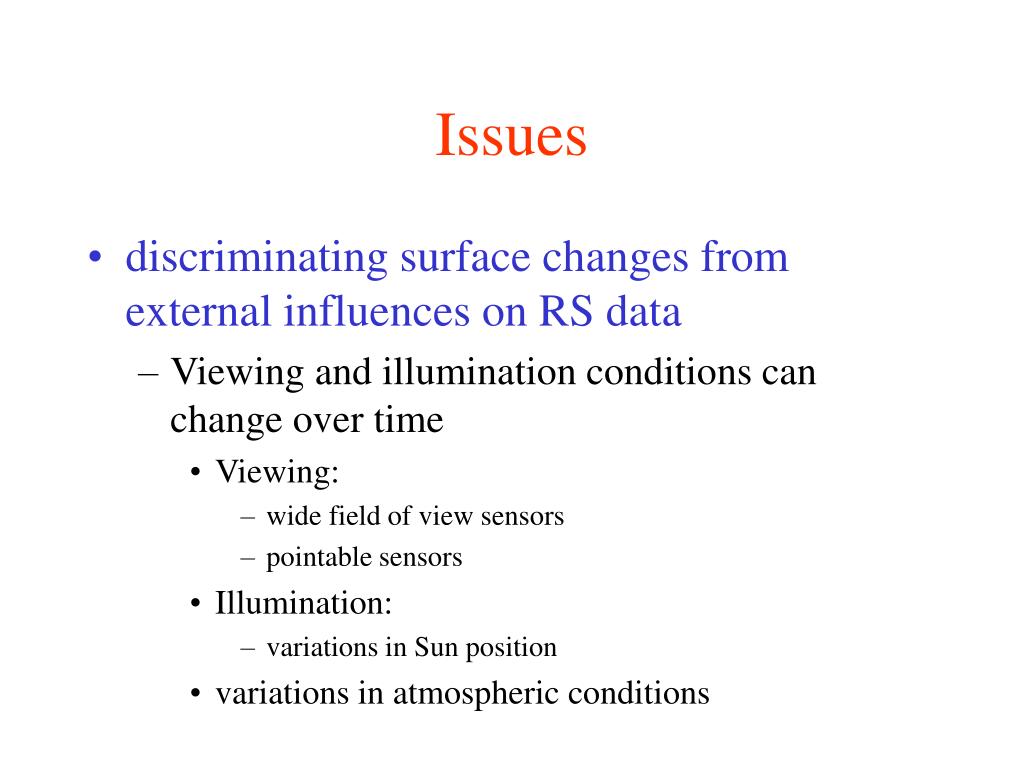

10. Issues • discriminating surface changes from external influences on RS data • Viewing and illumination conditions can change over time • Viewing: • wide field of view sensors • pointable sensors • Illumination: • variations in Sun position • variations in atmospheric conditions

11. Issues • cloud cover

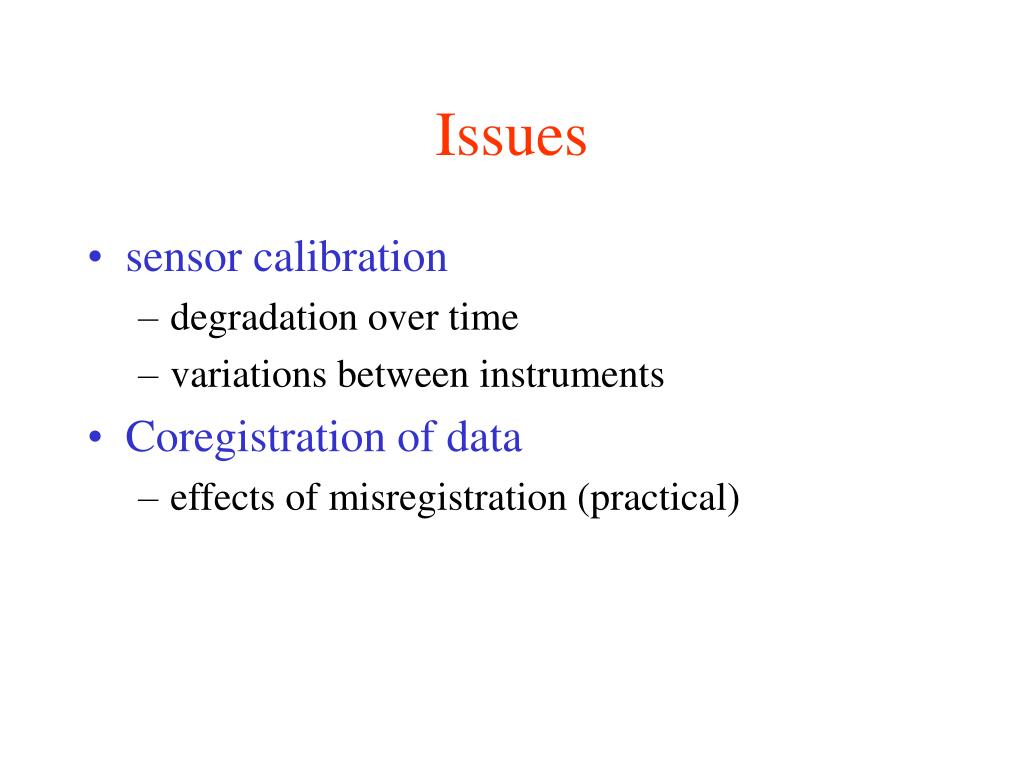

12. Issues • sensor calibration • degradation over time • variations between instruments • Coregistration of data • effects of misregistration (practical)

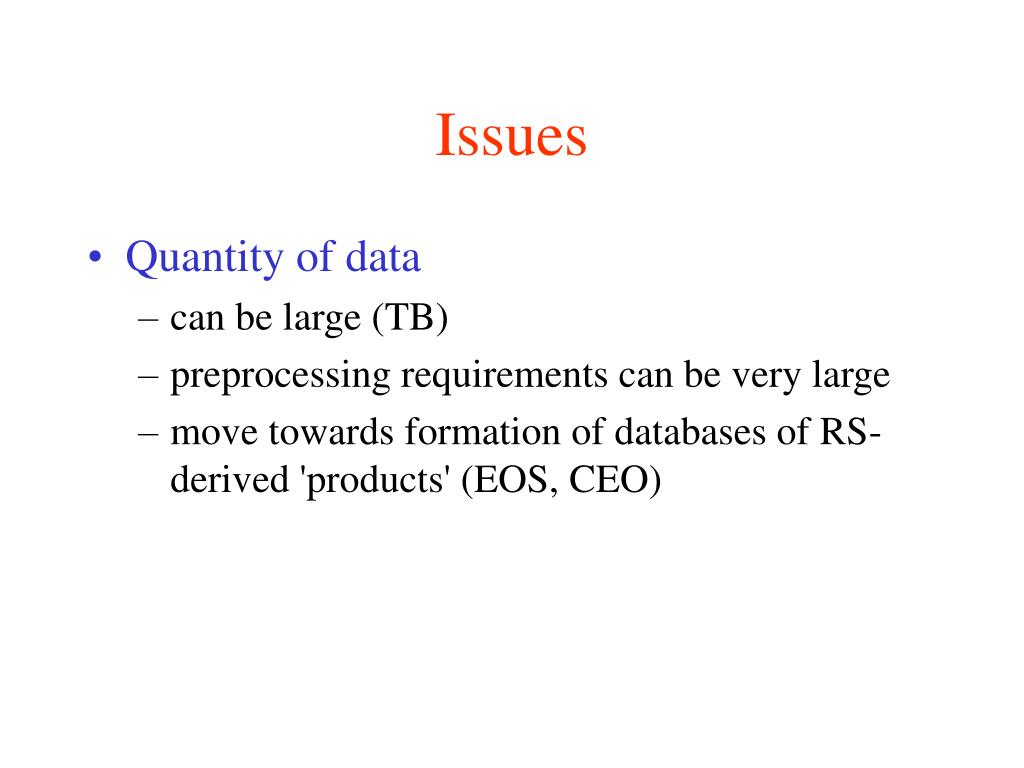

13. Issues • Quantity of data • can be large (TB) • preprocessing requirements can be very large • move towards formation of databases of RS-derived 'products' (EOS, CEO)

14. Dealing with issues • Vegetation Indices (VIs) • measured reflectance / radiance sensitive to variations in vegetation amount • BUT also sensitive to external factors • want contiguous data (clouds) • Typically take VI compositing approach

16. Use of VIs • direct: • attempt to find (empirical) relationship to biophysical parameter (e.g. LAI) • indirect: • look at timing of vegetation events (phenology)

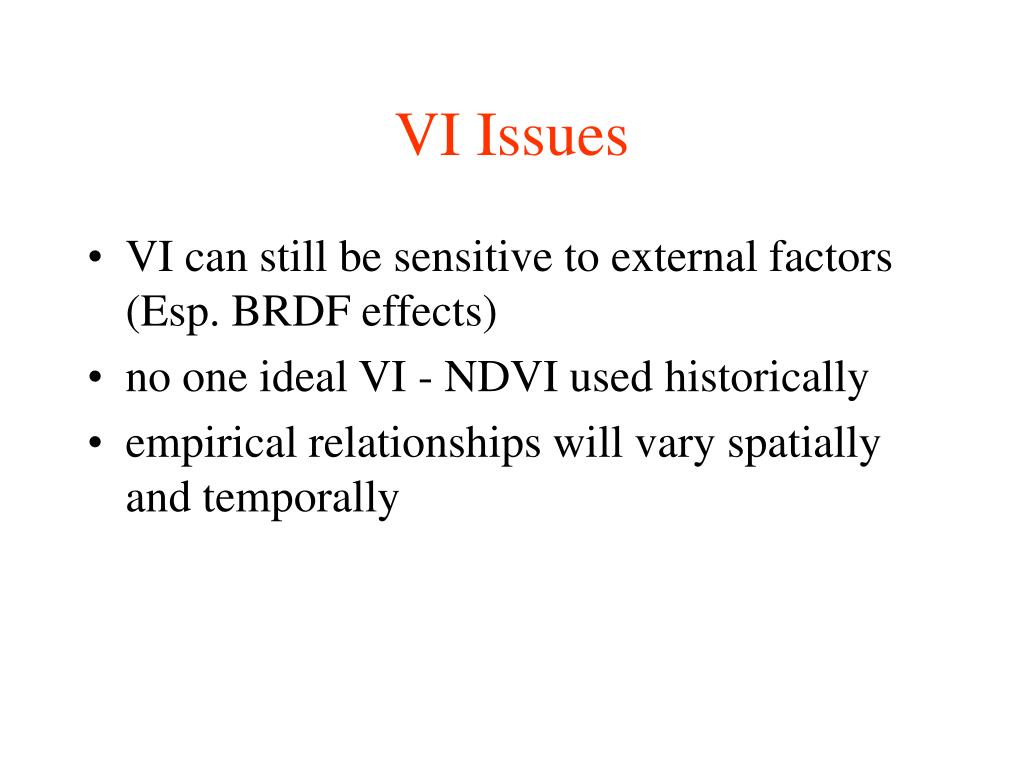

17. VI Issues • VI can still be sensitive to external factors (Esp. BRDF effects) • no one ideal VI - NDVI used historically • empirical relationships will vary spatially and temporally

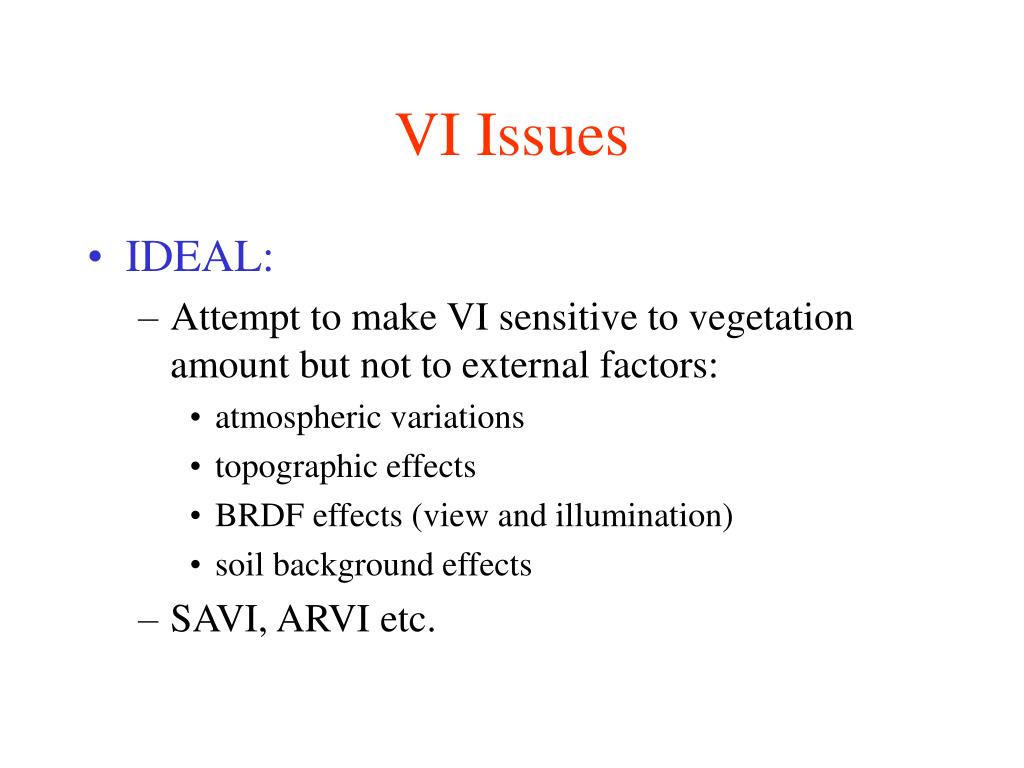

18. VI Issues • IDEAL: • Attempt to make VI sensitive to vegetation amount but not to external factors: • atmospheric variations • topographic effects • BRDF effects (view and illumination) • soil background effects • SAVI, ARVI etc.

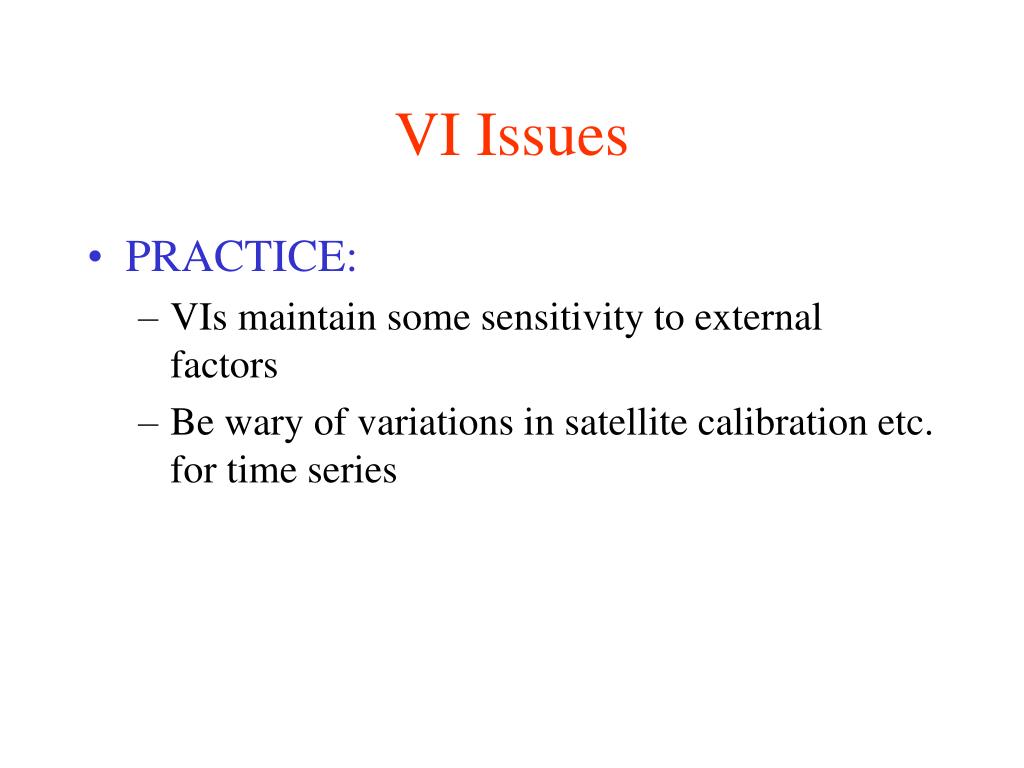

19. VI Issues • PRACTICE: • VIs maintain some sensitivity to external factors • Be wary of variations in satellite calibration etc. for time series

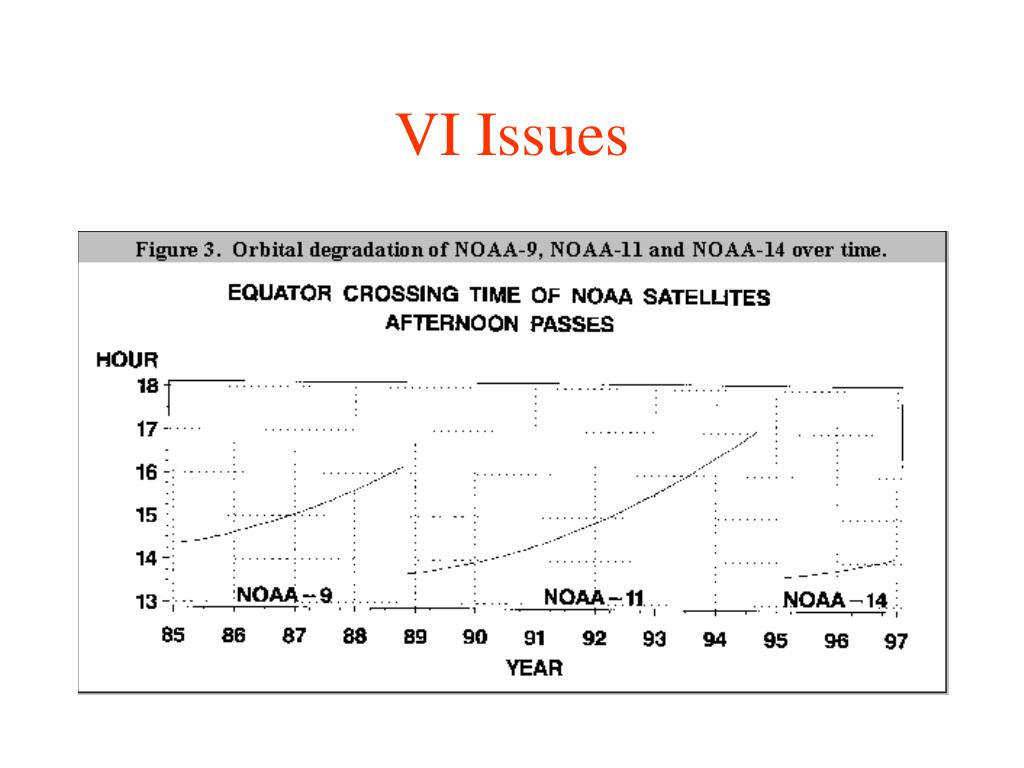

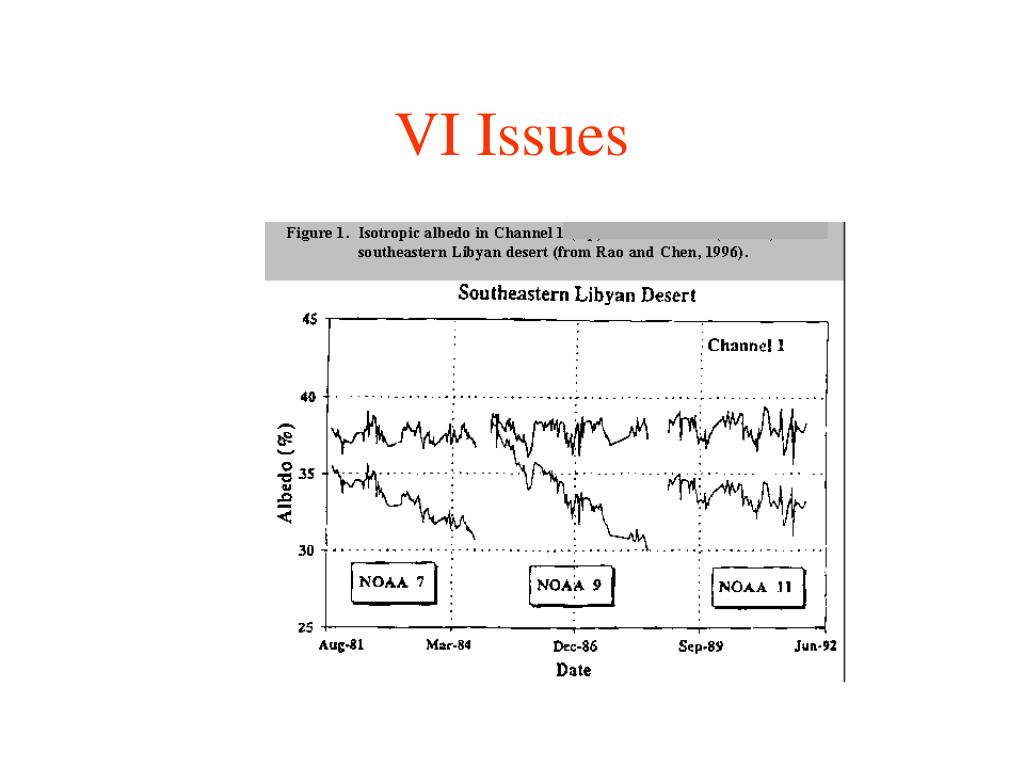

20. VI Issues

21. VI Issues

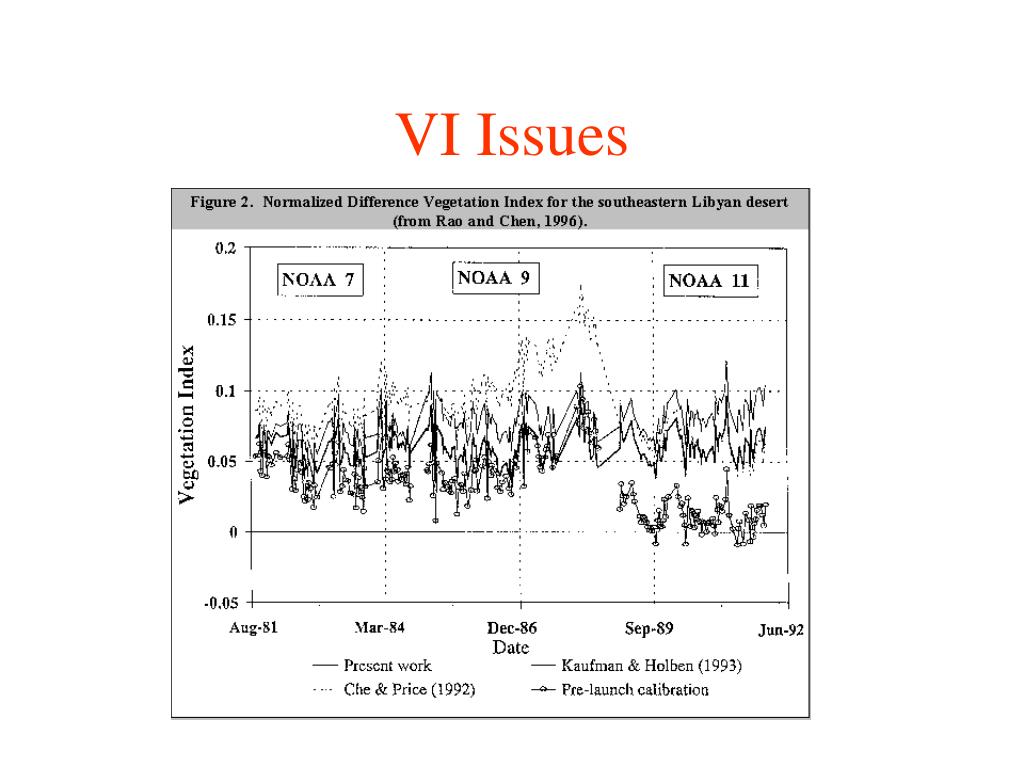

22. VI Issues

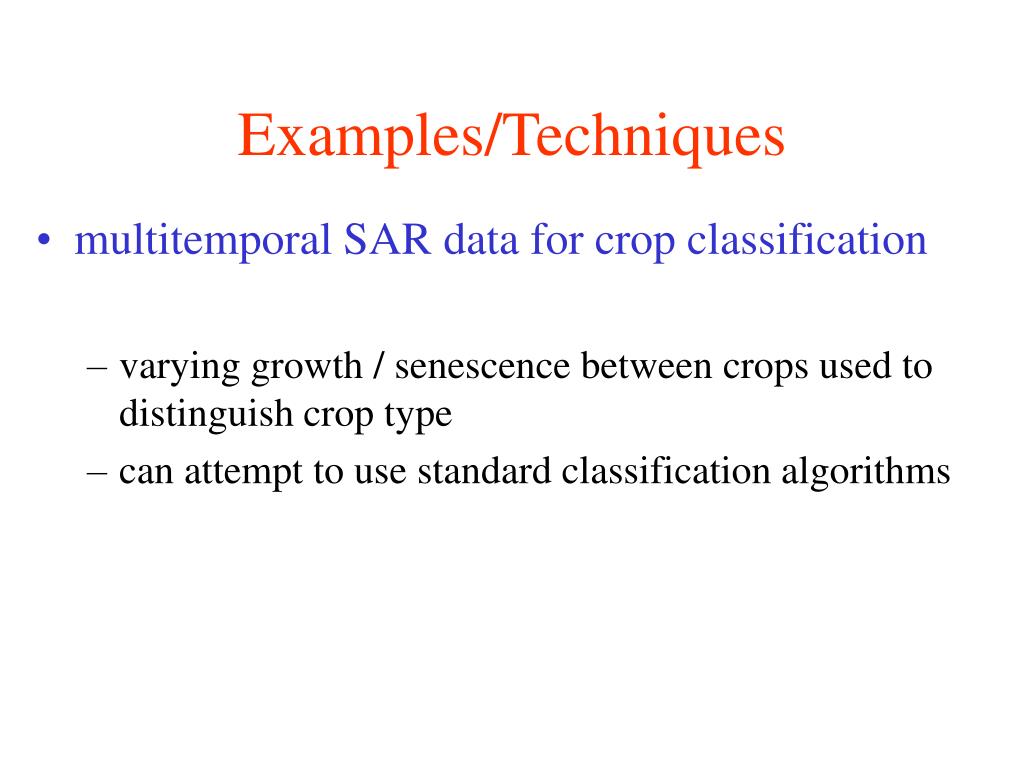

23. Examples/Techniques • multitemporal SAR data for crop classification • varying growth / senescence between crops used to distinguish crop type • can attempt to use standard classification algorithms

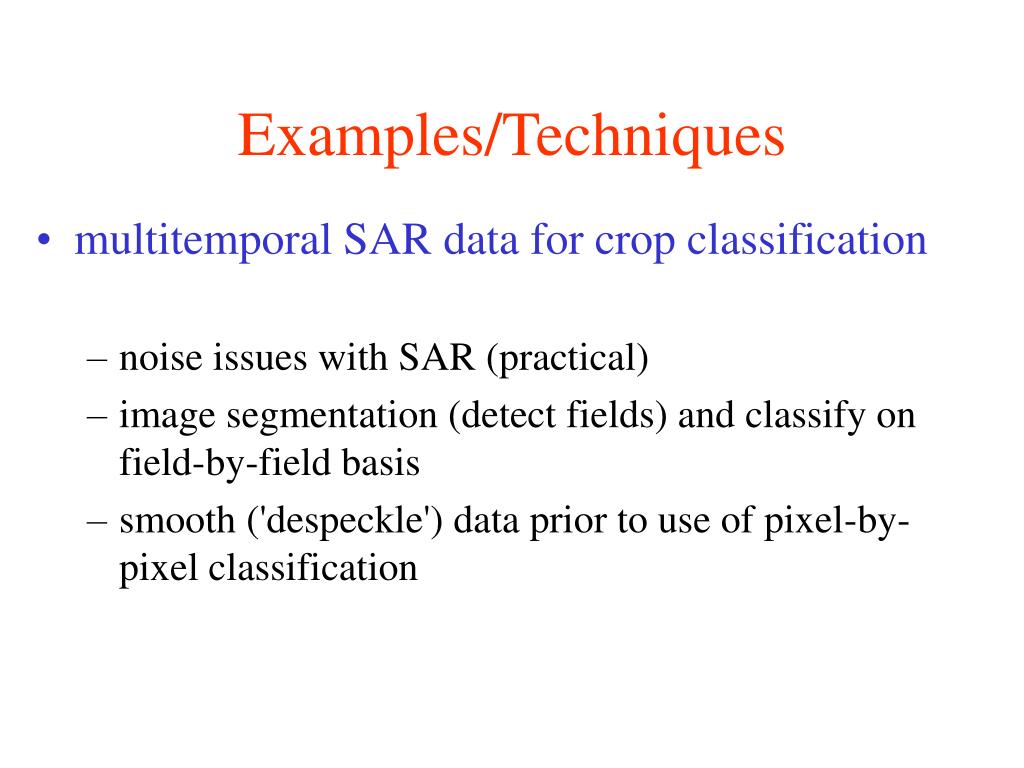

24. Examples/Techniques • multitemporal SAR data for crop classification • noise issues with SAR (practical) • image segmentation (detect fields) and classify on field-by-field basis • smooth ('despeckle') data prior to use of pixel-by-pixel classification

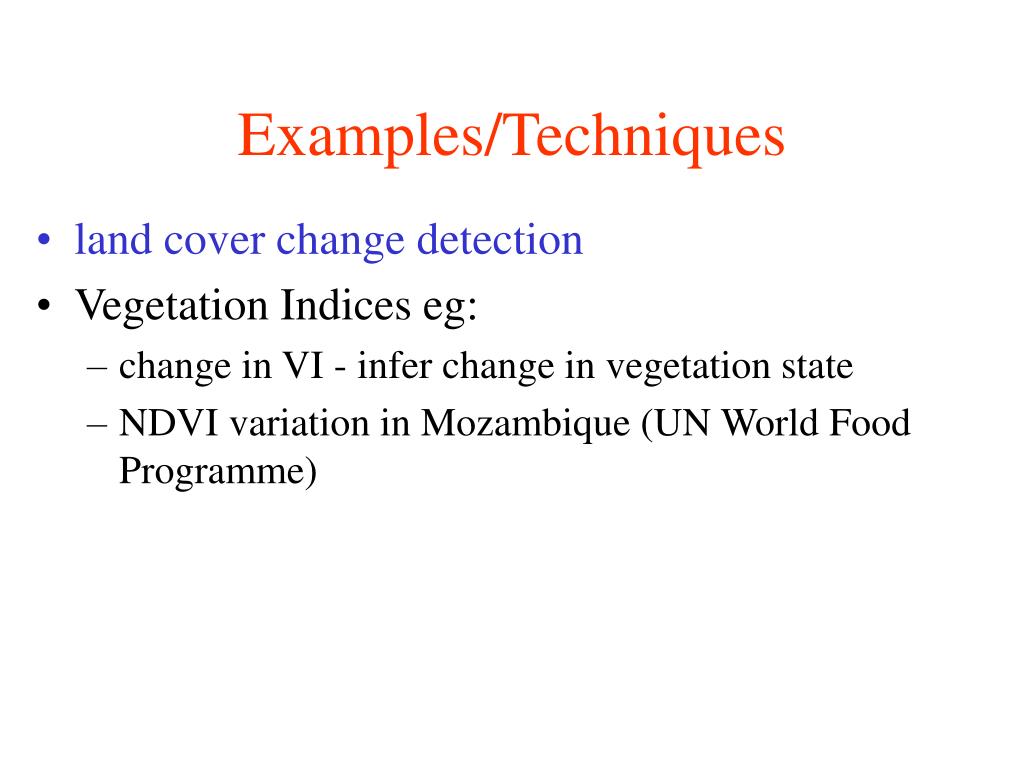

25. Examples/Techniques • land cover change detection • Vegetation Indices eg: • change in VI - infer change in vegetation state • NDVI variation in Mozambique (UN World Food Programme)

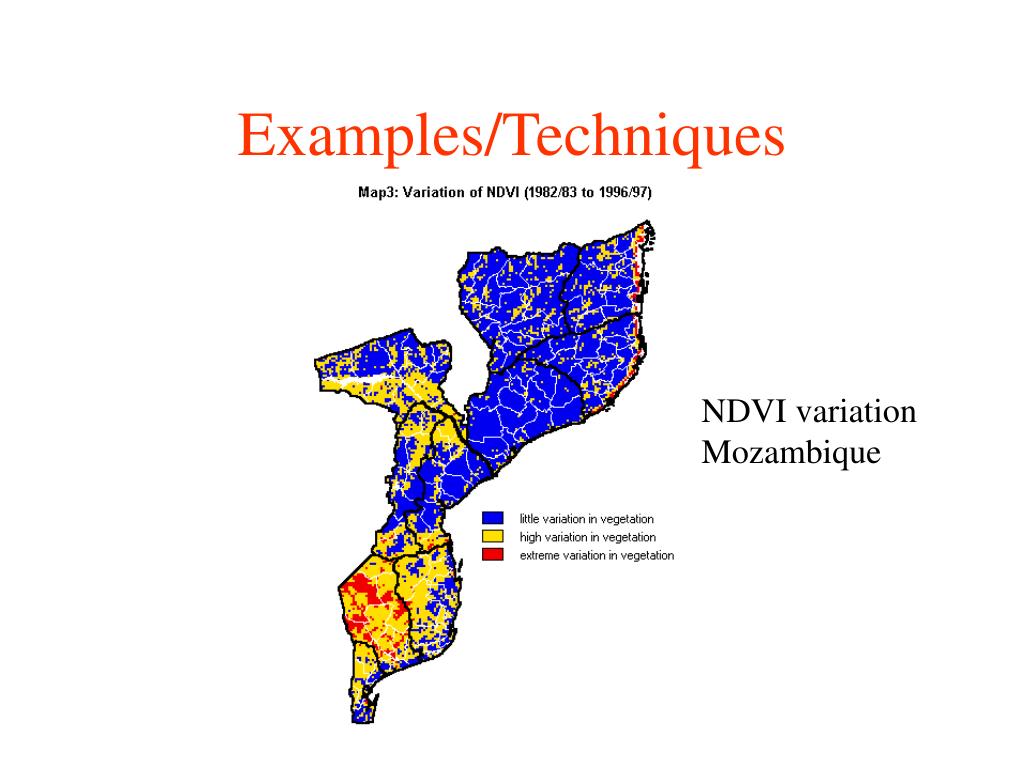

26. Examples/Techniques NDVI variation Mozambique

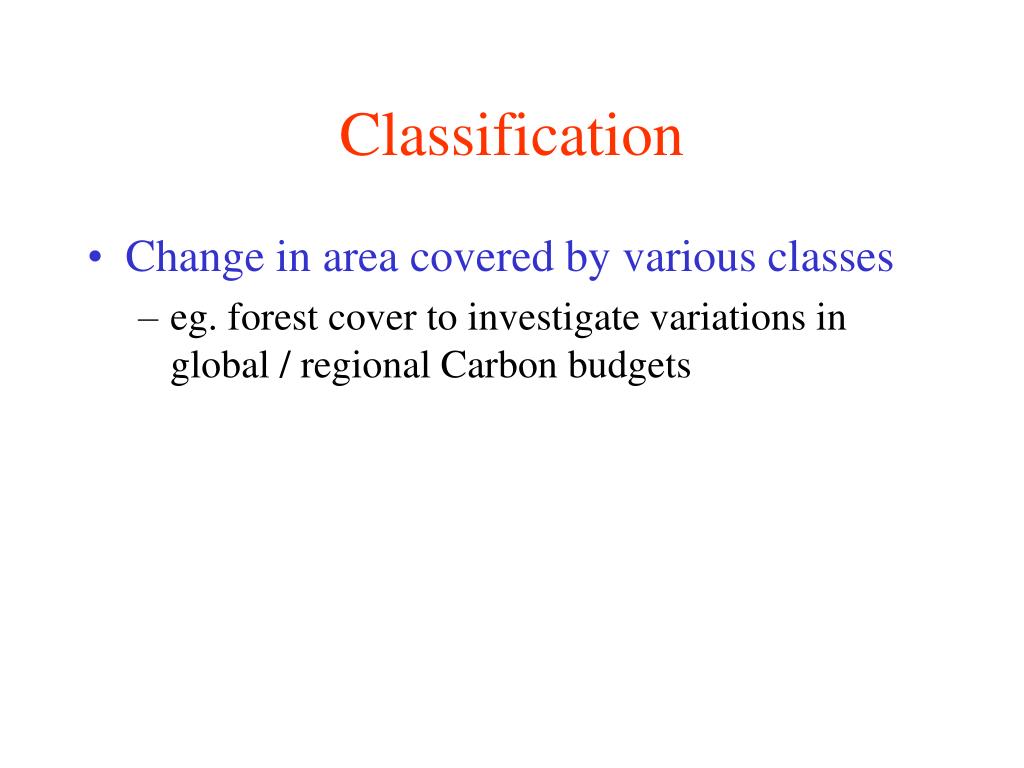

27. Classification • Change in area covered by various classes • eg. forest cover to investigate variations in global / regional Carbon budgets

28. Forest cover 1973

29. Forest cover 1985

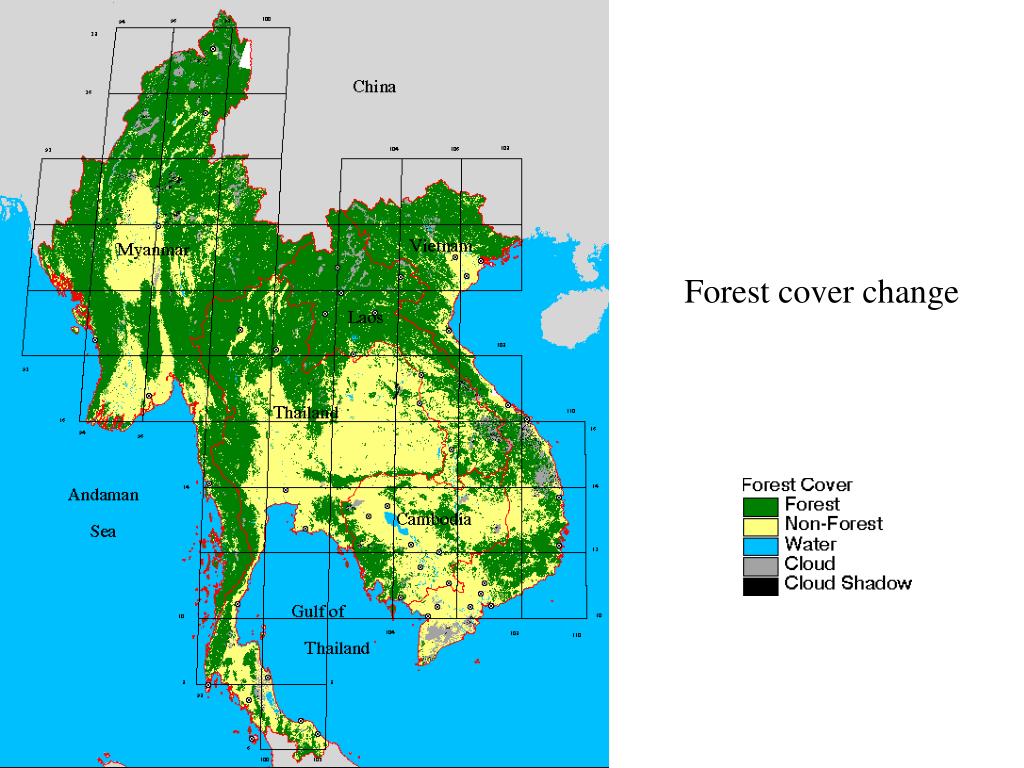

30. Forest cover change

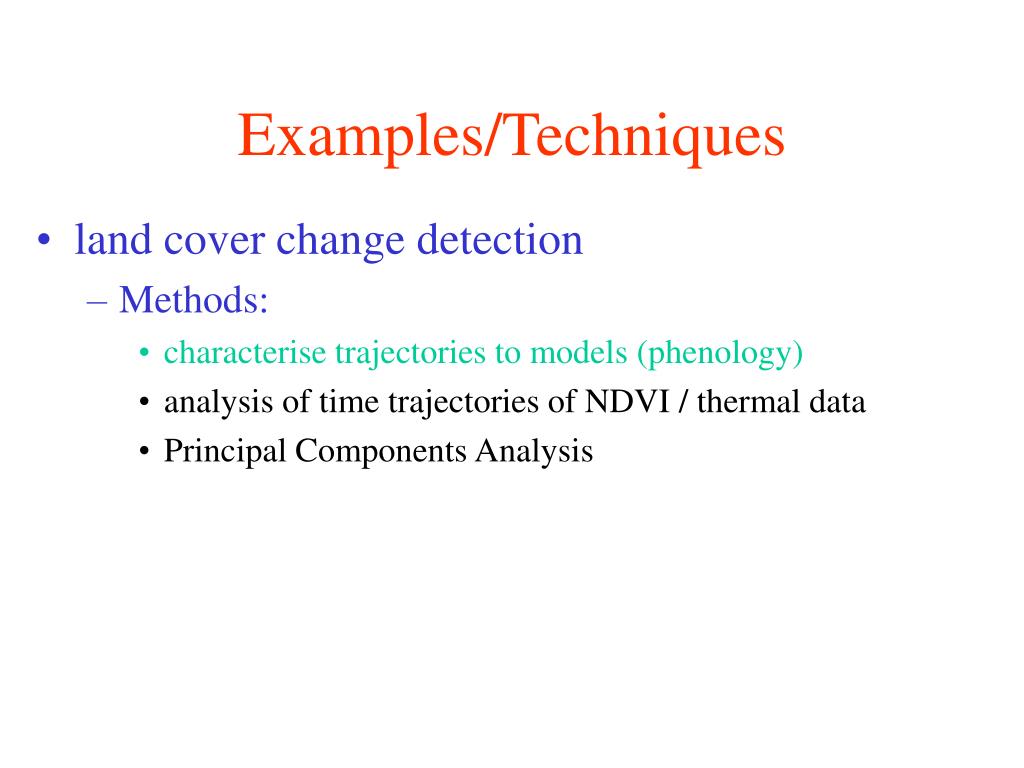

31. Examples/Techniques • land cover change detection • Methods: • characterise trajectories to models (phenology) • analysis of time trajectories of NDVI / thermal data • Principal Components Analysis

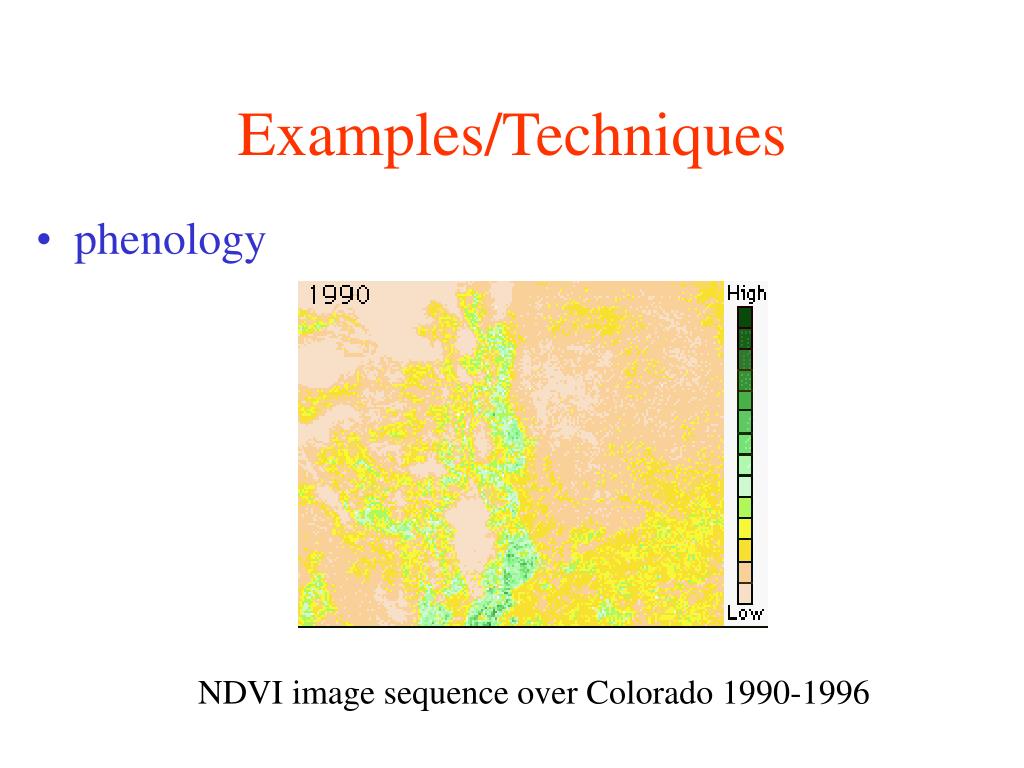

32. Examples/Techniques • phenology NDVI image sequence over Colorado 1990-1996

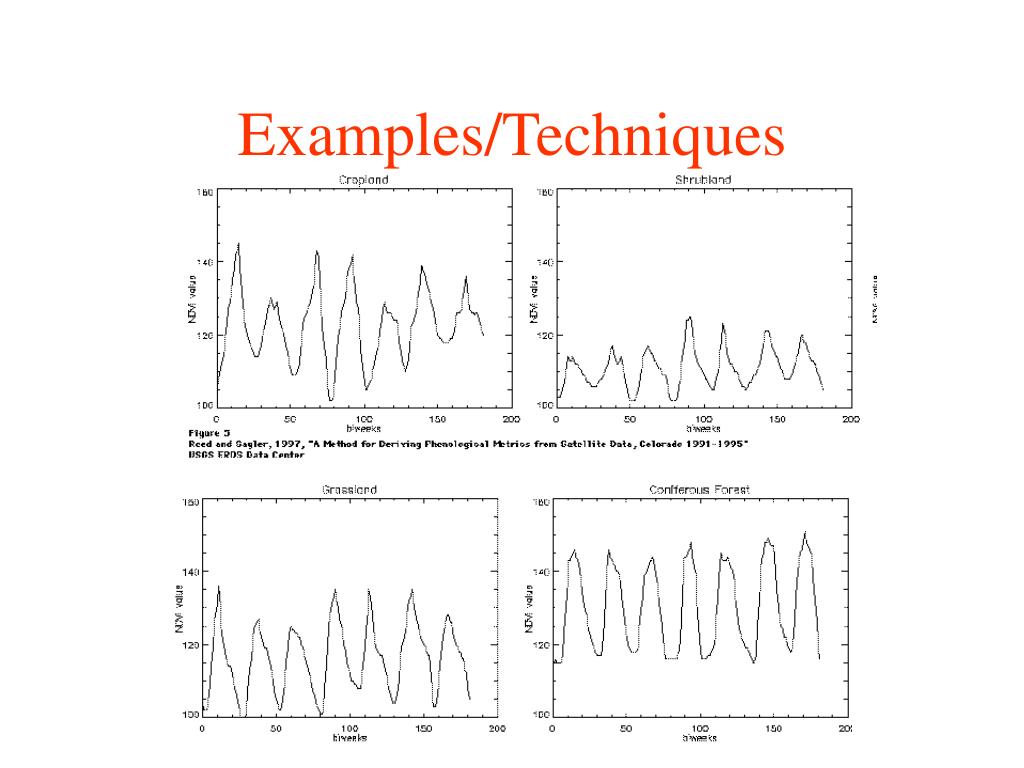

33. Examples/Techniques NDVI time series

34. Examples/Techniques

35. Examples/Techniques

36. Examples/Techniques

37. Time of greenness onset

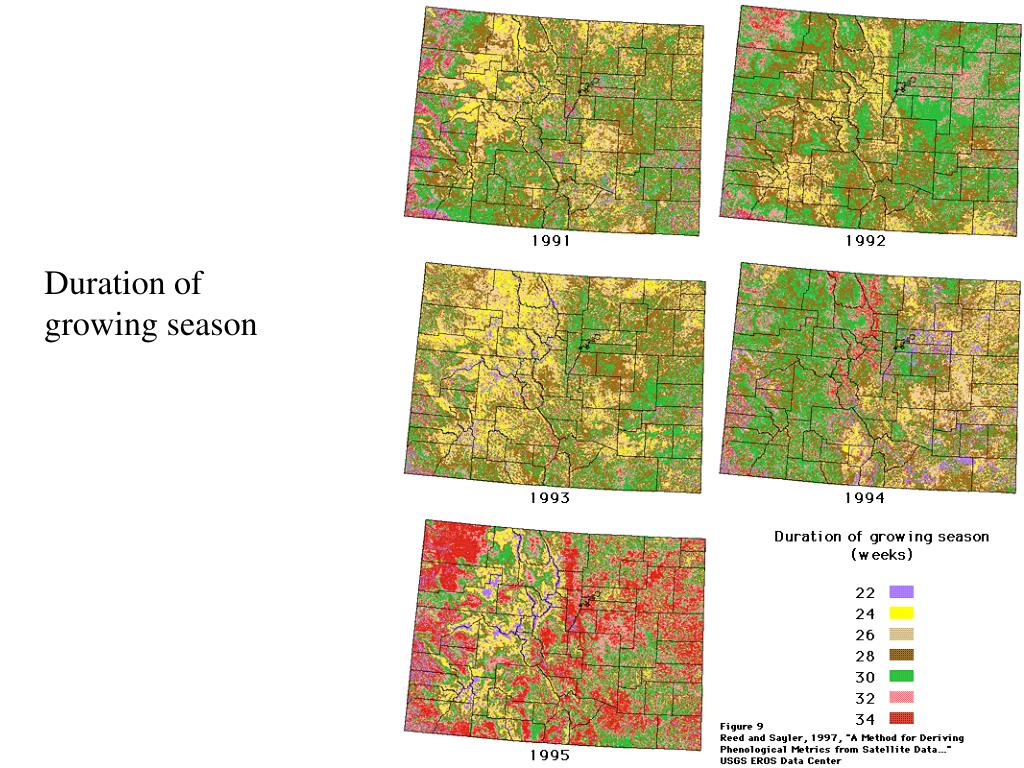

38. Duration of growing season

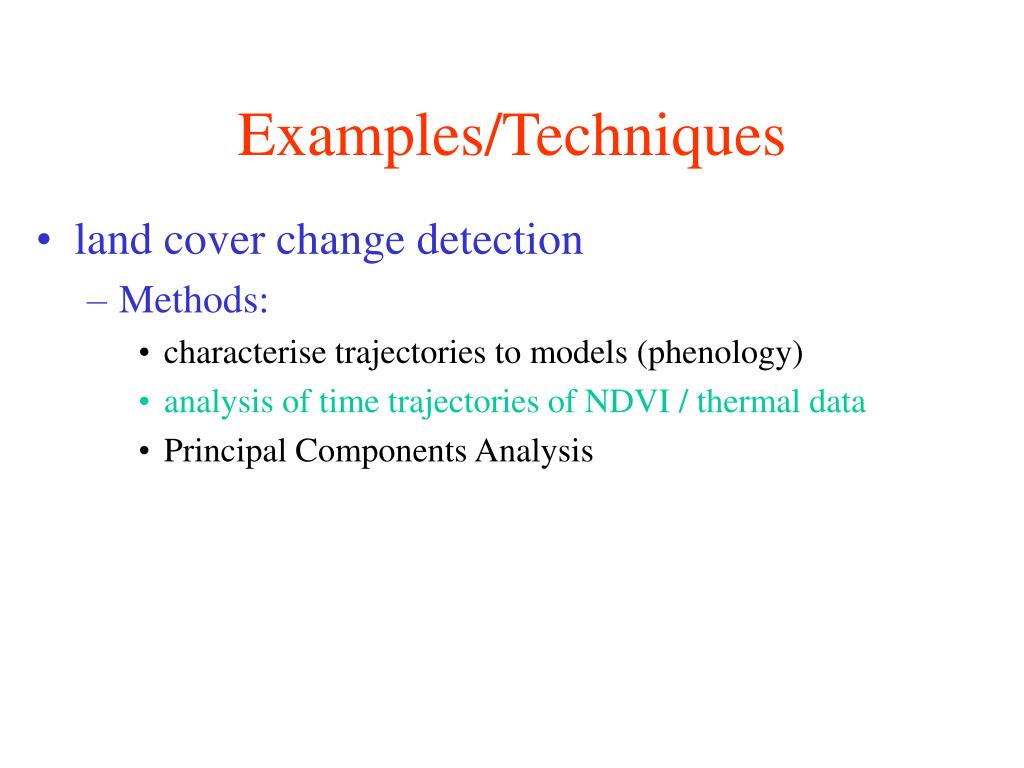

39. Examples/Techniques • land cover change detection • Methods: • characterise trajectories to models (phenology) • analysis of time trajectories of NDVI / thermal data • Principal Components Analysis

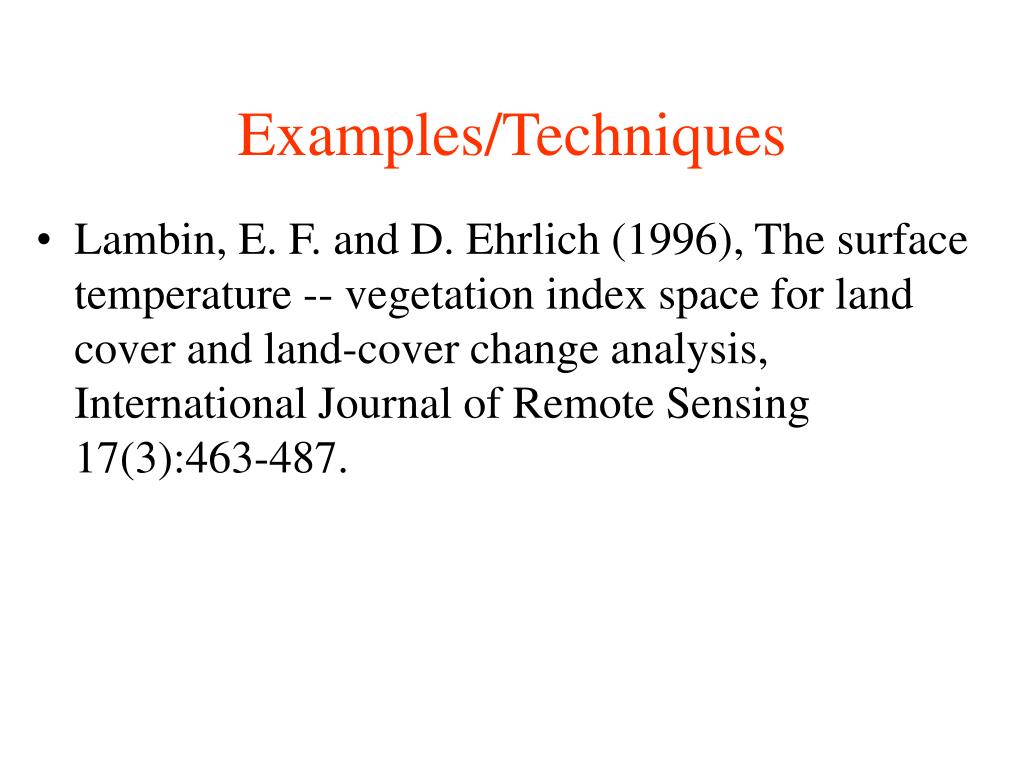

40. Examples/Techniques • Lambin, E. F. and D. Ehrlich (1996), The surface temperature -- vegetation index space for land cover and land-cover change analysis, International Journal of Remote Sensing 17(3):463-487.

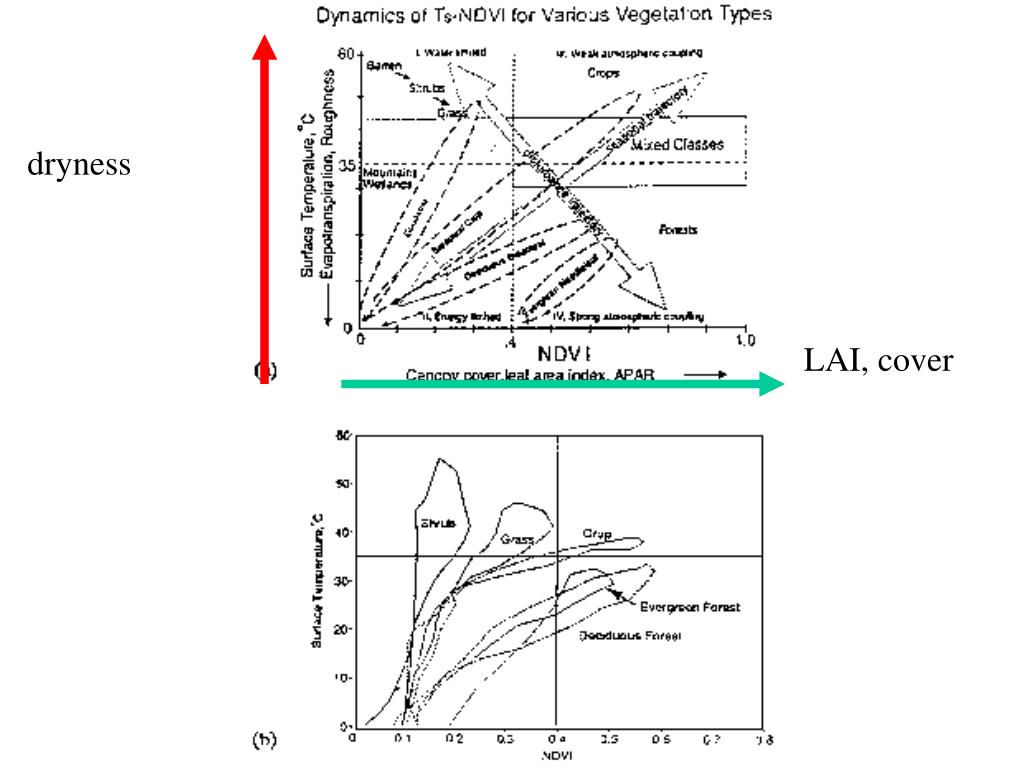

41. dryness LAI, cover

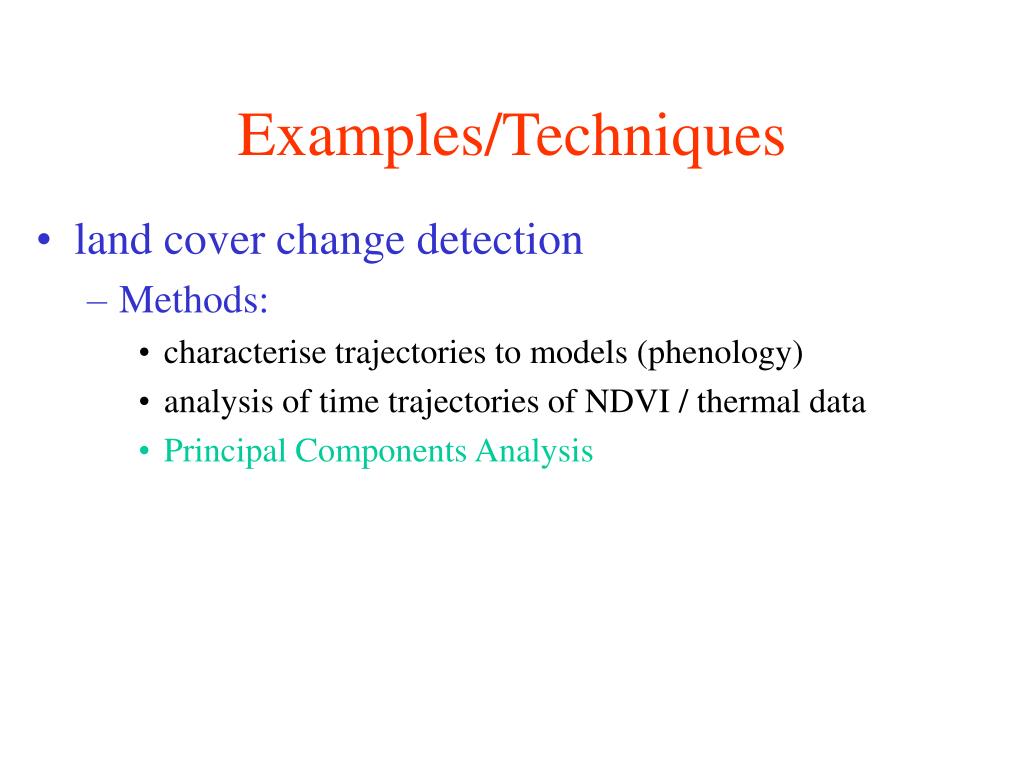

42. Examples/Techniques • land cover change detection • Methods: • characterise trajectories to models (phenology) • analysis of time trajectories of NDVI / thermal data • Principal Components Analysis

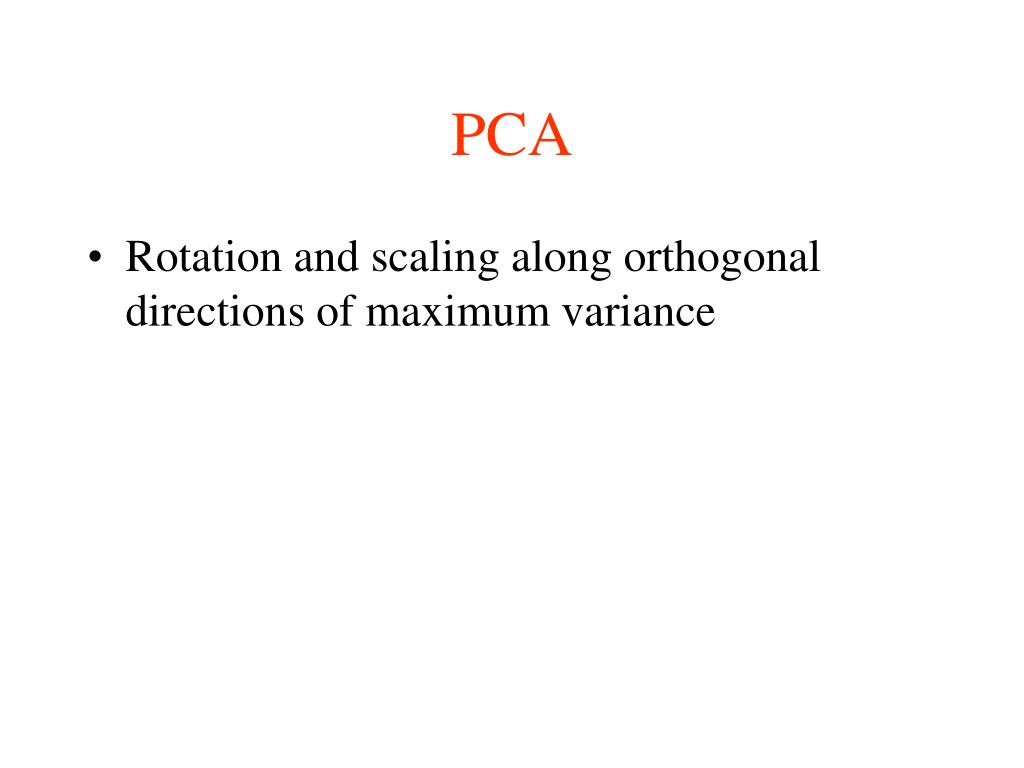

43. PCA • Rotation and scaling along orthogonal directions of maximum variance

44. PC2 PC1

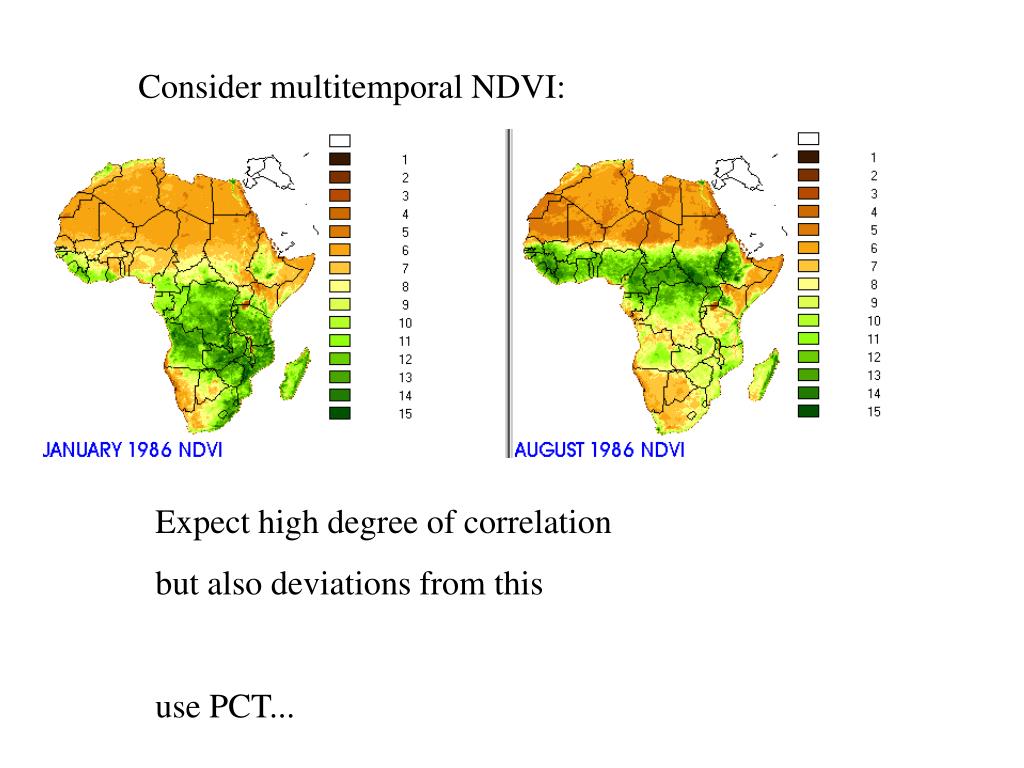

45. Consider multitemporal NDVI: Expect high degree of correlation but also deviations from this use PCT...

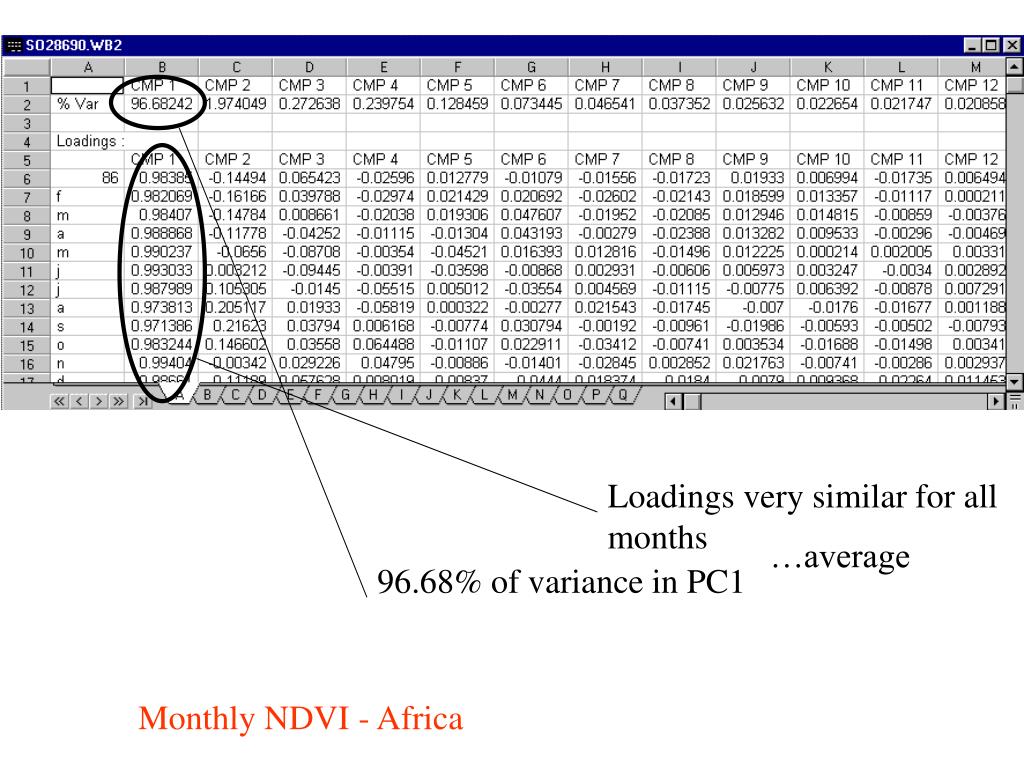

46. Loadings very similar for all months 96.68% of variance in PC1 …average Monthly NDVI - Africa

48. Dec-March minus April-Nov 2% of variance in PC2 Monthly NDVI - Africa

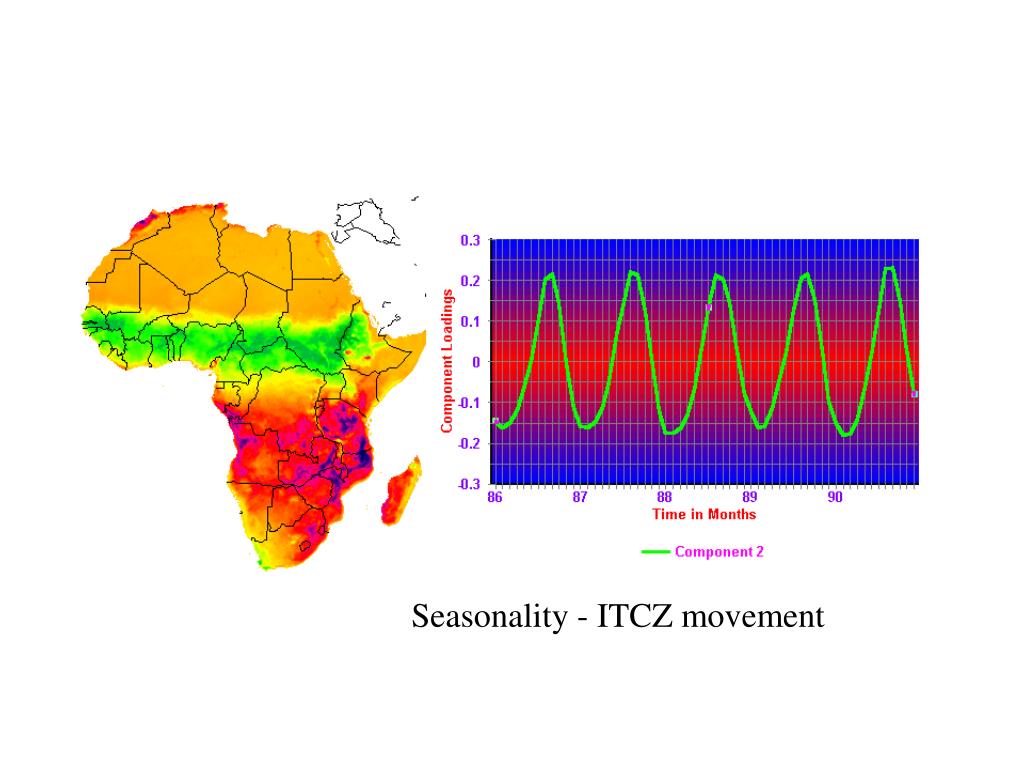

49. Seasonality - ITCZ movement
