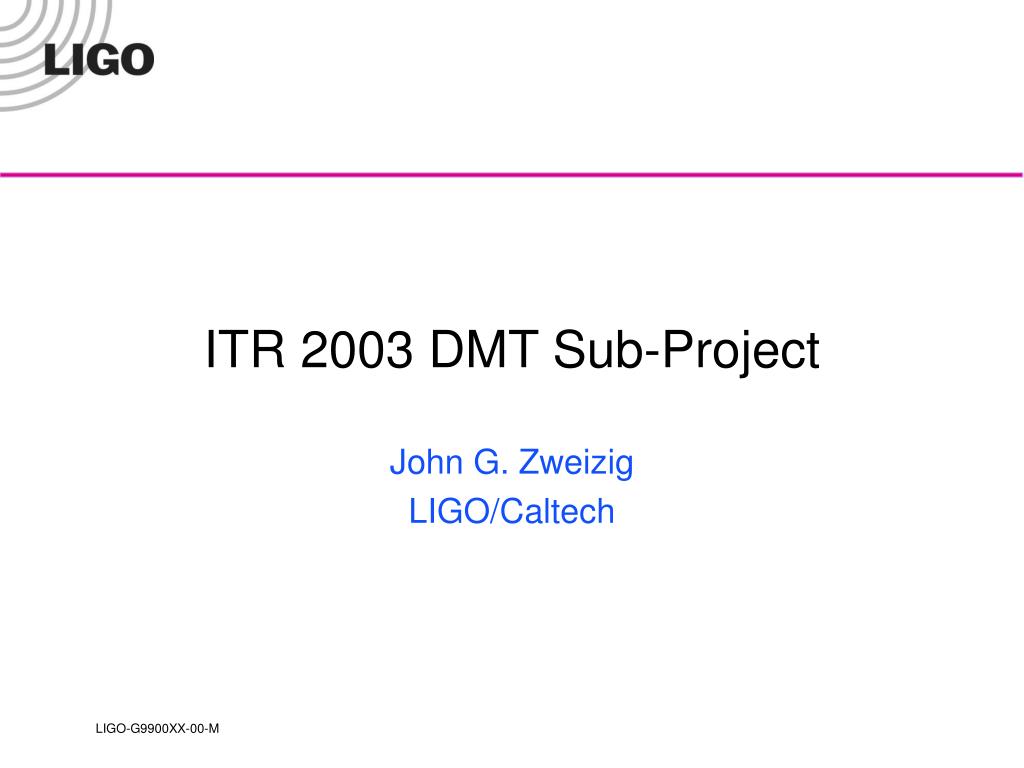

  1. ITR 2003 DMT Sub-Project John G. Zweizig LIGO/Caltech

  2. DMT Overview • DMT – Detector characterization platform in C++ • Written for monitoring IFO state, sensitivity, noise, etc. • Signal processing, detector characterization class libraries. • Online use (in LIGO control room) • Run continuously on ~10 Solaris SMP nodes (reference platform) • Stream of current IFO data received directly from DAQ. • Real-time, low latency response • Operator feedback: alarms, IFO state, sensitivity, noise/transient summaries • Output: real-time triggers (transient descriptors), Statistics trends

  3. Online DMT Data Flow

  4. Growing Use – Offline Analysis • Offline analysis uses • Run “monitors” with different configurations on entire raw data samples. • Data quality investigations • Transient detection • Use detector specific codes in offline GW search pipelines. • Impediments to offline use • Linux installation difficult (no binary distribution, no reference platform). • Impacts development as well as universal use • No standard offline environment defined • Unable to use LSC computational clusters • Global data access and publication not provided • Sensitive data – administrative nightmare • Local job submission only • Single data stream input (multiple inputs useful for IFO correlations). • ITR2003 DMT sub-project will enable this use

  5. Offline DMT Data Flow

  6. ITR2003 Mission • Grid enable DMT • Improve portability • Interface to Globus tools and LDR • Condor enable • Develop remote submission capabilities • Install on LSC clusters • Without adversely affecting the primary DMT mission • Maintain Solaris compatibility • Transparent access to DAQ broadcast stream • Interface to ROOT Graphics • Operator feedback, Database Interfaces

  7. Participants • Erik Katsavounidis (MIT PI) • Lee Samuel Finn (PSU PI) • John G. Zweizig (Caltech) • Junwei Cao (MIT, ITR2003) • Anonymous Hire (PSU) • Part time hire (UWM) • 25% for deployment, other time as available

  8. Technical • Linux portability • Autoconfigure/automake • Rpm generation • Periodic build • Standardize offline runtime environment. • Decouple from CERN Root package • Data access transparency • Interface to directory / LDR • Running on the grid • Use Condor features (checkpointing, etc) • Process management • Remote submission

  9. Technical 2 • Maintaining clusters • Installation / maintenance • Usage prioritization. • Clusters at observatories & tier 2 centers. • Validation • Component tests for nightly build • Nuts ‘n Bolts • Multiple data streams • Rationalize dependencies (fftw-3, …) • Etc?

  10. Stakeholders • LSC • Extend DMT availability to LSC offline analysis. • Improve portability. • Formalize use of DMT on LSC Linux clusters • Enable remote submission. • Protect data access. • Grid community • Demonstrate gridification of an existing Scientific software package • Grid middleware use in real scientific applications allows feedback to grid community e.g. which tools/features are useful/needed • Productive readjustment of priorities, more useful middleware

  11. Plans (2004) • Improve portability & versioning of DMT software • Implement build procedure using autoconfigure, automake. • Automate periodic builds & tests of current version. • Build & maintain binary RPMs (APTs?) for LSC reference platform. • Define standard execution environment. • Interface DMT to grid utilities • Data access / publishing • User certification? • Verification • Build library of component tests for periodic verification. • Cluster support (MIT, PSU, UWM) • Installation

  12. Plans (2005) • Set up DMT to use Condor features • Disable message system (alarms, graphics) • Set up to run as “standard” Condor job • Remote submission architecture • Wrapper/supervisor? for condor jobs • Web interface for submission. • Cluster support (PSU, UWM, MIT)

  13. Plans (2006-7) • Continue development of remote submission architecture • Wrapper/supervisor? for condor jobs • Web interface for submission • Cluster support (MIT, PSU, UWM)
