IAT 265 Objects

1. IAT 265 Objects IAT 265

2. Outline • Object-oriented programming • Object components • Rocket • Primitive types and Object References • Objects, another metaphor • Why objects? IAT 265

3. Classes vs Objects • A Class is a blueprint for a bicycle • An Object is a bicycle • Many bicycles, one blueprint IAT 265

4. Parts of a class • Classes define fields, constructors and methods • Fields are the variables that will appear inside every instance of the class • Each instance has its own values • Constructors are special methods that define how to build instances (generally, how to set the initial values of fields) • Methods are how you do things to instances IAT 265

5. Defining the rocket class class Rocket { // fields float rotation = 0; float xPos; float yPos; final inthalfWidth = 10; final inthalfHeight= 10; // constructor Rocket( intinitialX, intinitialY, float initialRot ) { xPos = initialX; yPos = initialY; rotation = initialRot; } void draw() { pushMatrix(); translate(xPos, yPos); rotate(rotation); triangle(0, -halfHeight, -halfWidth, halfHeight, halfWidth, halfHeight); rectMode(CORNERS); rect(-halfWidth + 5, halfHeight, -halfWidth + 8, halfHeight + 3); rect(halfWidth - 8, halfHeight, halfWidth - 5, halfHeight + 3); popMatrix(); } } IAT 265

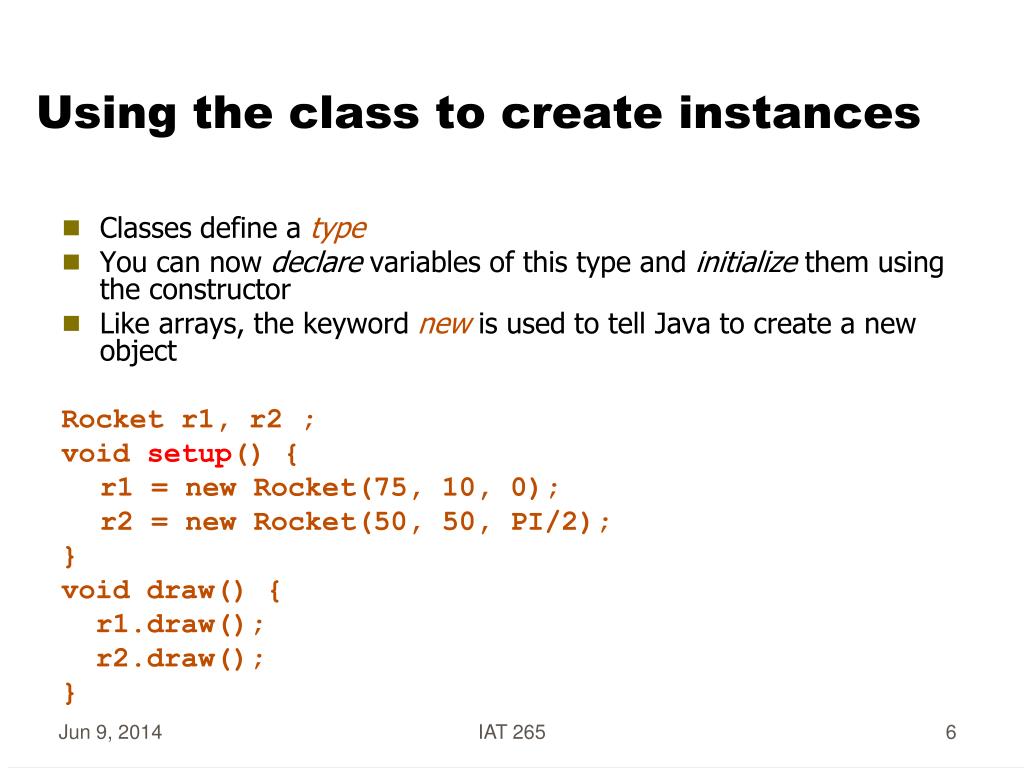

6. Using the class to create instances • Classes define a type • You can now declare variables of this type and initialize them using the constructor • Like arrays, the keyword new is used to tell Java to create a new object Rocket r1, r2 ; void setup() { r1 = new Rocket(75, 10, 0); r2 = new Rocket(50, 50, PI/2); } void draw() { r1.draw(); r2.draw(); } IAT 265

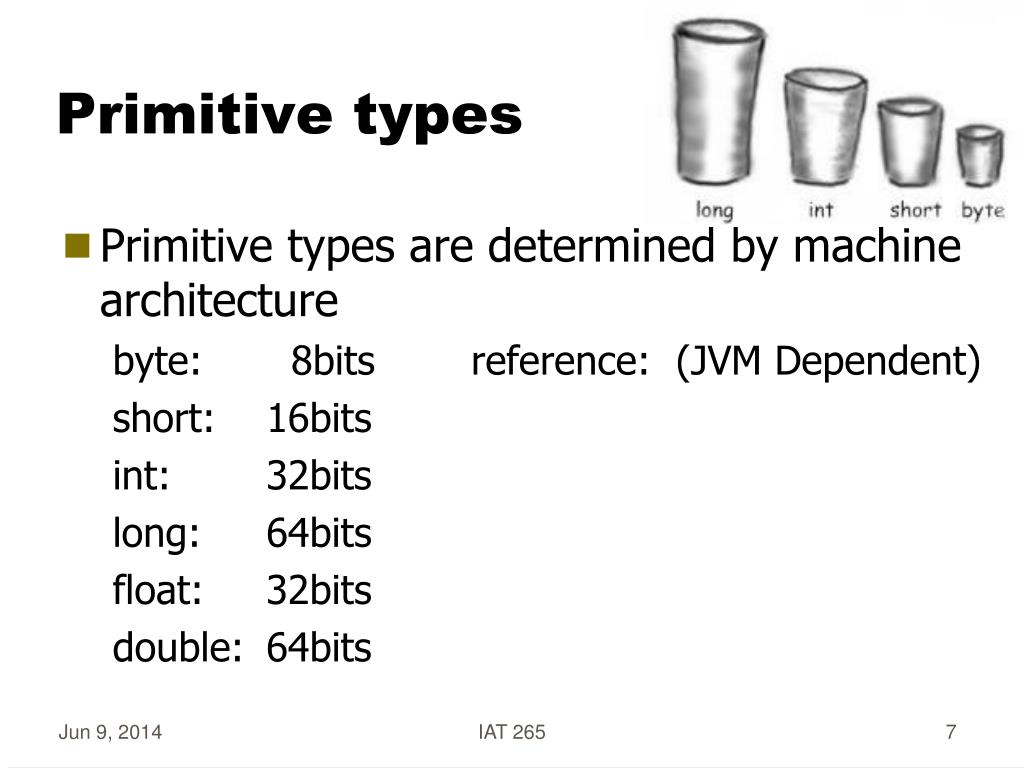

7. Primitive types • Primitive types are determined by machine architecture byte: 8bits reference: (JVM Dependent) short: 16bits int: 32bits long: 64bits float: 32bits double: 64bits IAT 265

8. Reference • Like a remote control • a reference is a primitive thing that points at objects • the new keyword causes the reference to point at a new instance of the object IAT 265

9. IAT 265

10. Arrays • int[] nums = new int[7] ; IAT 265

11. Array of objects • Dog[] pets = new Dog[7]; • It starts as an array of null references IAT 265

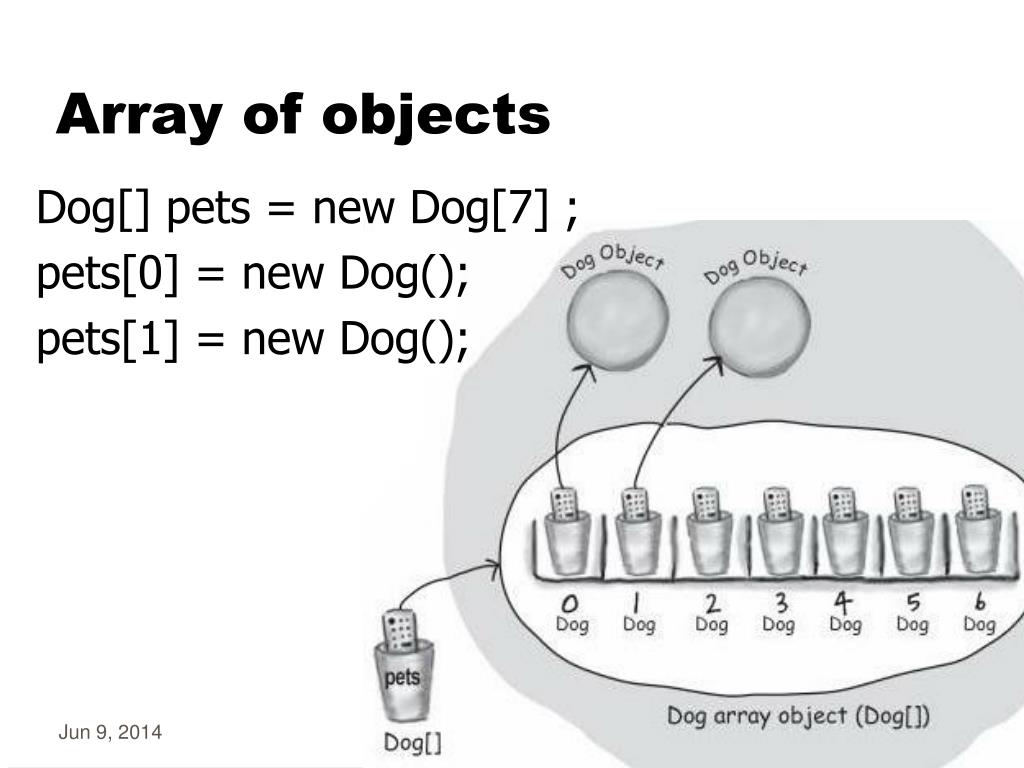

12. Array of objects Dog[] pets = new Dog[7] ; pets[0] = new Dog(); pets[1] = new Dog(); IAT 265

13. Objects IAT 265

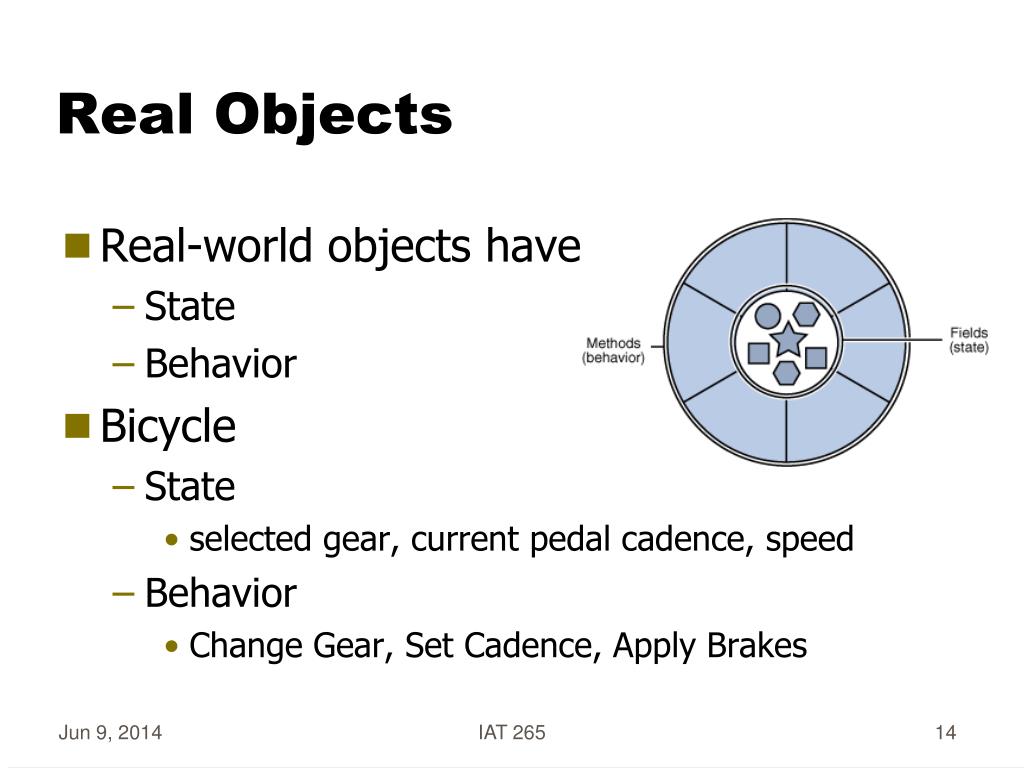

14. Real Objects • Real-world objects have • State • Behavior • Bicycle • State • selected gear, current pedal cadence, speed • Behavior • Change Gear, Set Cadence, Apply Brakes IAT 265

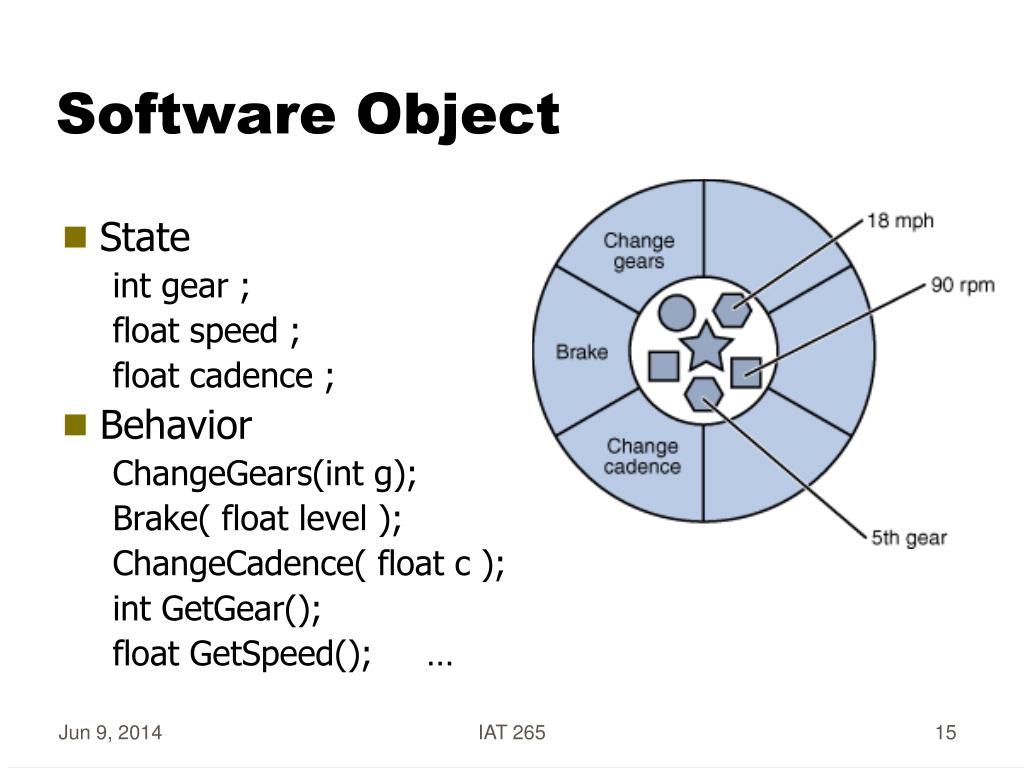

15. Software Object • State int gear ; float speed ; float cadence ; • Behavior ChangeGears(int g); Brake( float level ); ChangeCadence( float c ); int GetGear(); float GetSpeed(); … IAT 265

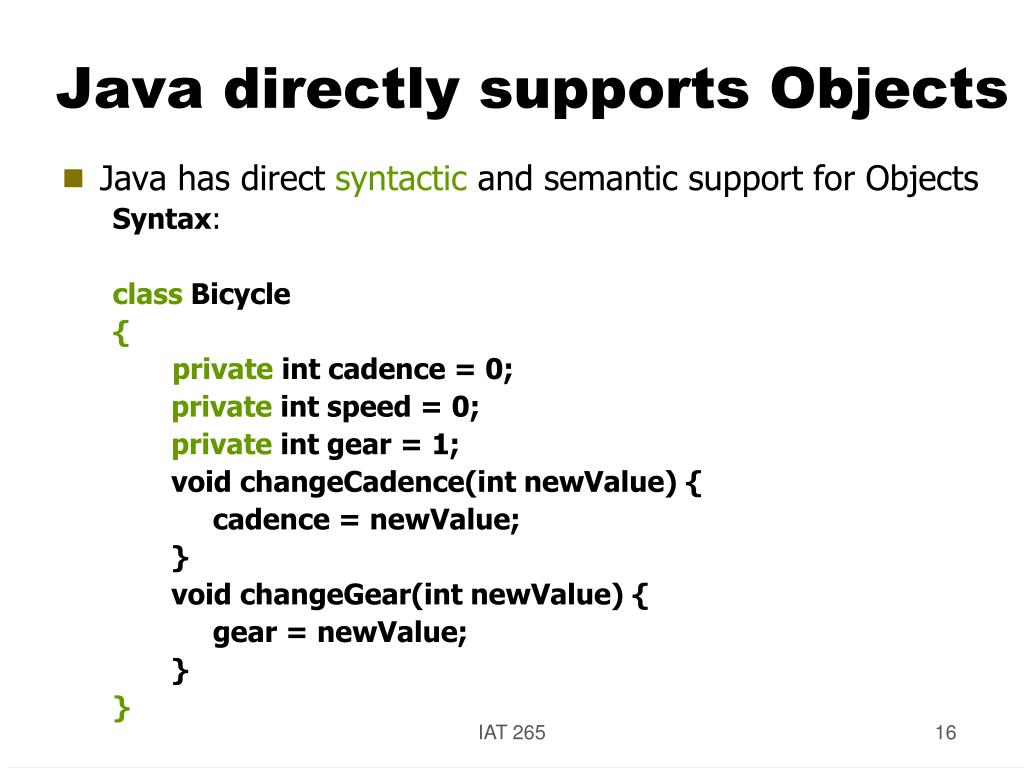

16. Java directly supports Objects • Java has direct syntactic and semantic support for Objects Syntax: class Bicycle { privateint cadence = 0; privateint speed = 0; privateint gear = 1; void changeCadence(intnewValue) { cadence = newValue; } void changeGear(intnewValue) { gear = newValue; } } IAT 265

17. Java directly supports Objects • Java has direct syntactic and semantic support for Objects Semantics: class Bicycle { privateint cadence = 0; privateint speed = 0; privateint gear = 1; void changeCadence(intnewValue) { cadence = newValue; } void changeGear(intnewValue) { gear = newValue; } } Only these methods can read or write Bicycle private data IAT 265

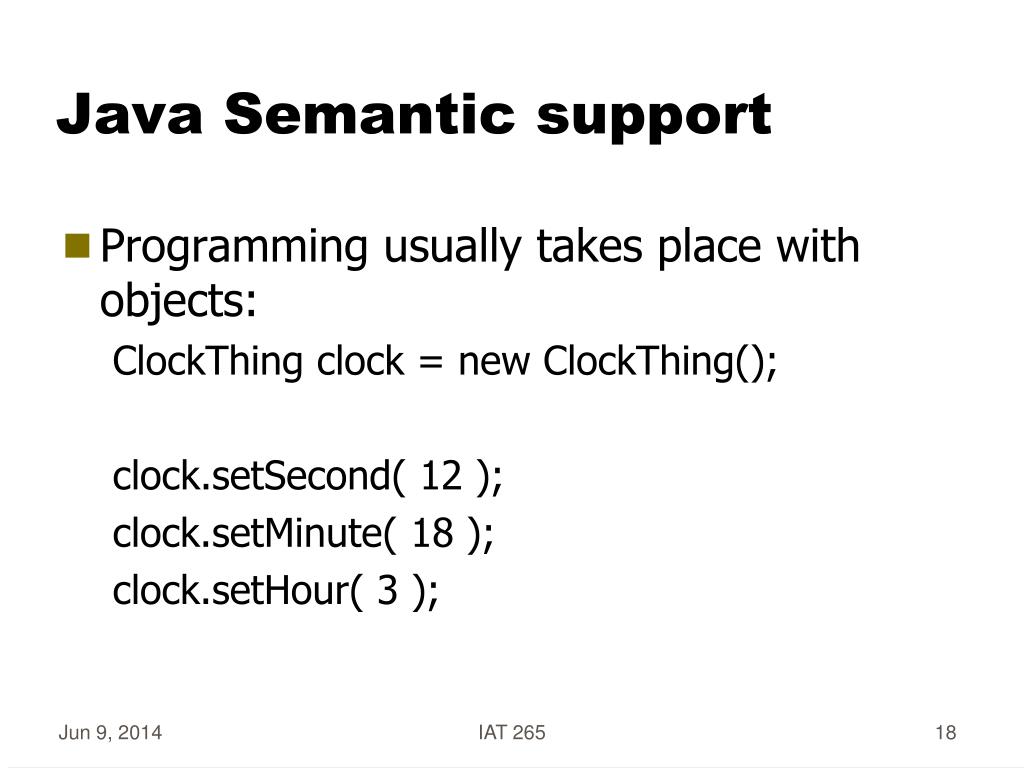

18. Java Semantic support • Programming usually takes place with objects: ClockThingclock = new ClockThing(); clock.setSecond( 12 ); clock.setMinute( 18 ); clock.setHour( 3 ); IAT 265

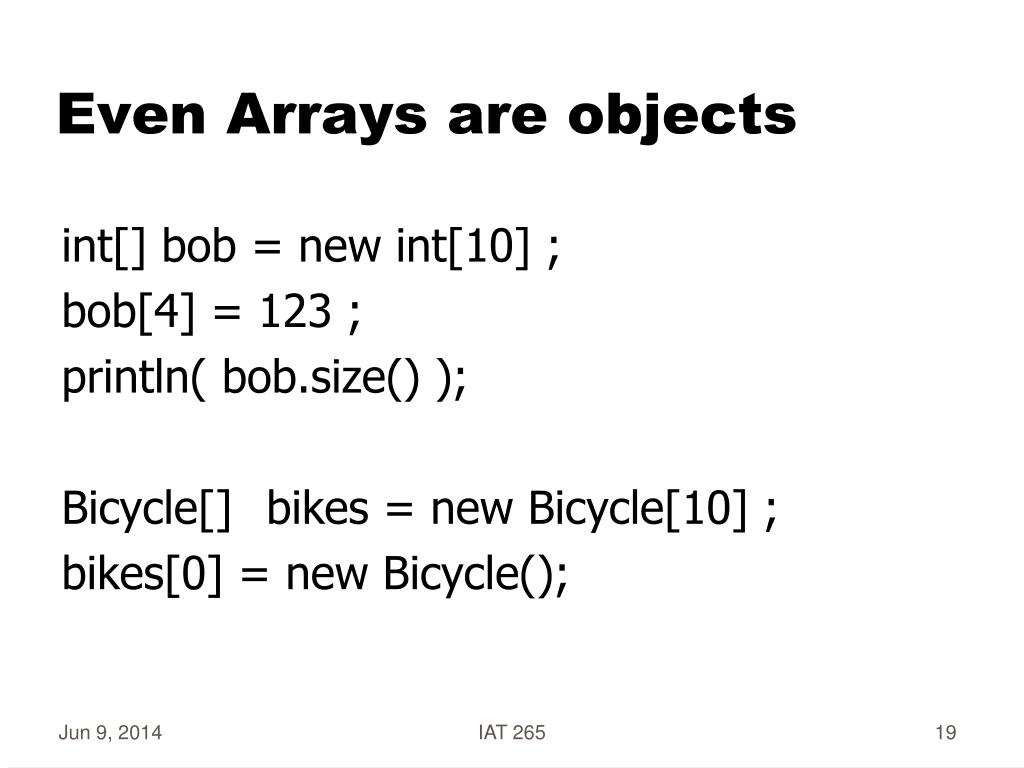

19. Even Arrays are objects int[] bob = new int[10] ; bob[4] = 123 ; println( bob.size() ); Bicycle[] bikes = new Bicycle[10] ; bikes[0] = new Bicycle(); IAT 265

20. Sets and Gets • what can you do with private data? • to set it: setVarName( varType newValue) • to get it: varType getVarName() • Why? IAT 265

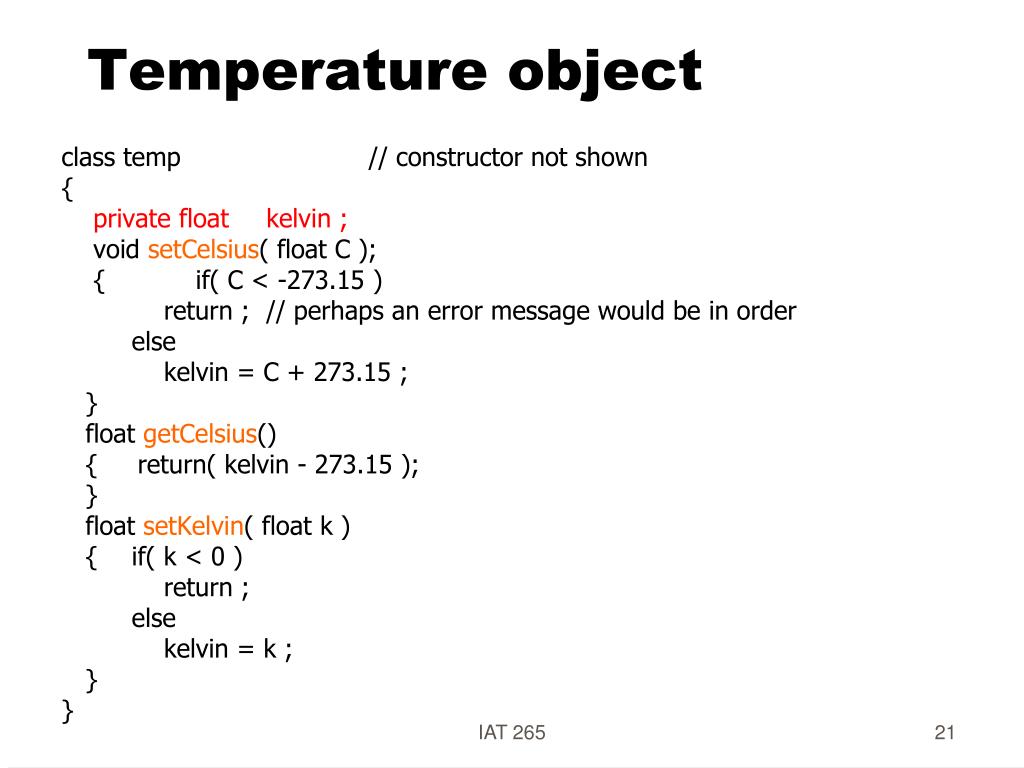

21. Temperature object class temp // constructor not shown { private float kelvin ; void setCelsius( float C ); { if( C < -273.15 ) return ; // perhaps an error message would be in order else kelvin = C + 273.15 ; } float getCelsius() { return( kelvin - 273.15 ); } float setKelvin( float k ) { if( k < 0 ) return ; else kelvin = k ; } } IAT 265

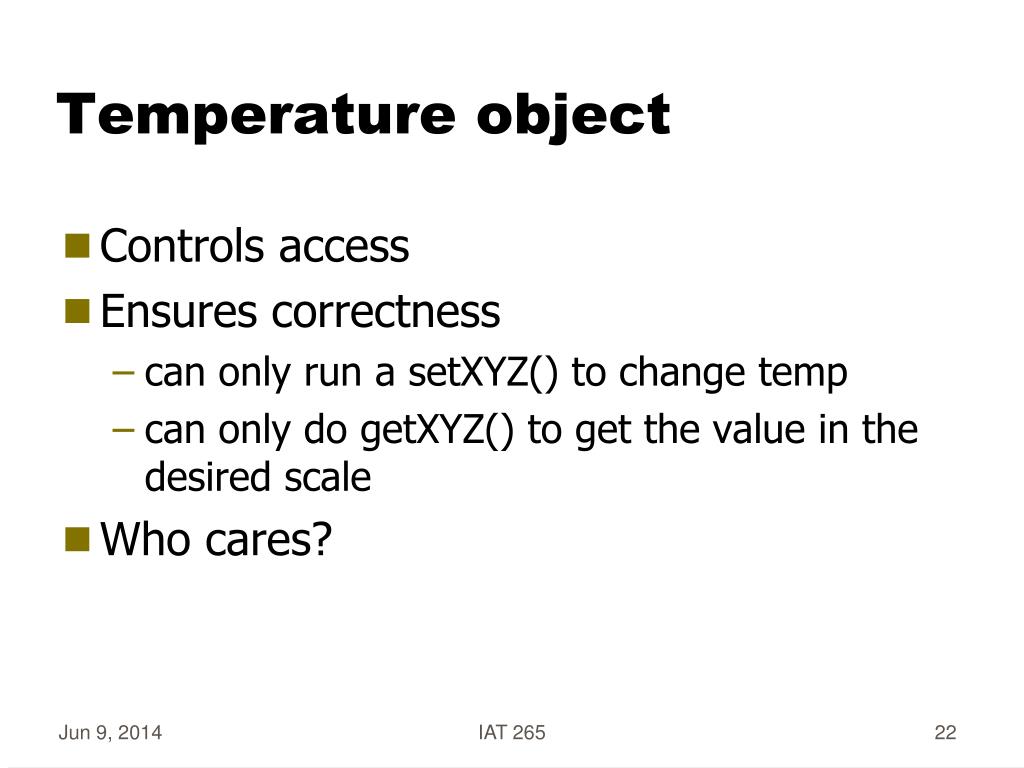

22. Temperature object • Controls access • Ensures correctness • can only run a setXYZ() to change temp • can only do getXYZ() to get the value in the desired scale • Who cares? IAT 265

23. Who cares? • When you want to: • Solve the problem once and forget it • Reuse the solution elsewhere • Establish rules for use and change of data • The principle: • Information hiding • By interacting only with an object's methods, the details of its internal implementation remain hidden from the outside world. IAT 265

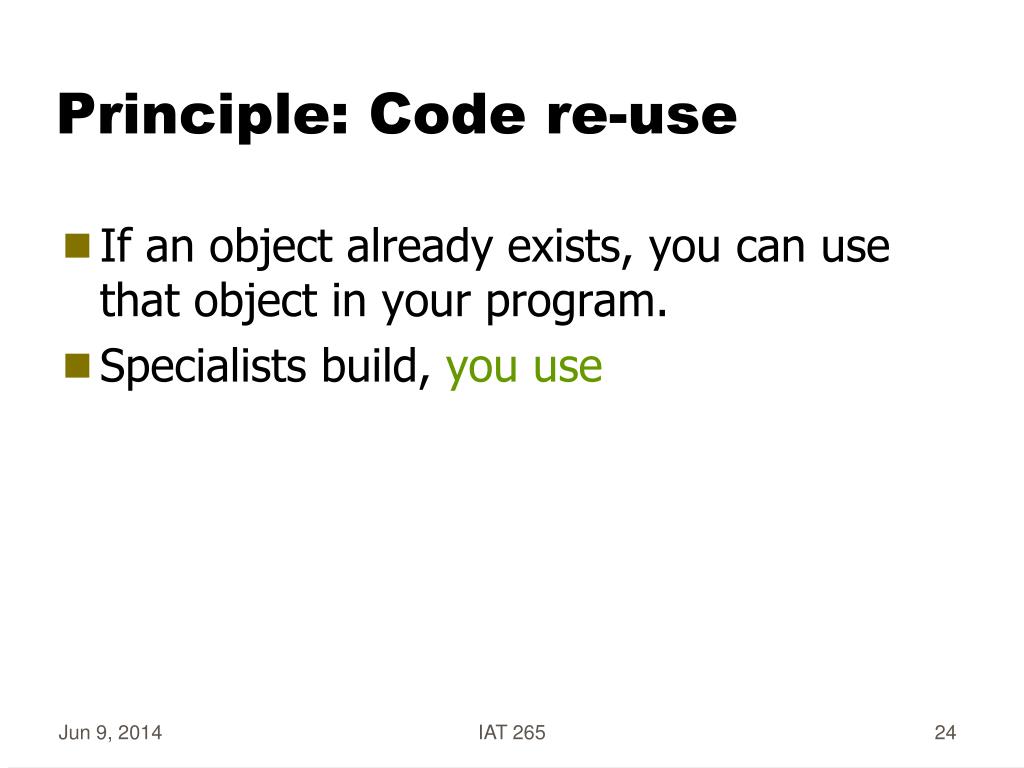

24. Principle: Code re-use • If an object already exists, you can use that object in your program. • Specialists build, you use IAT 265

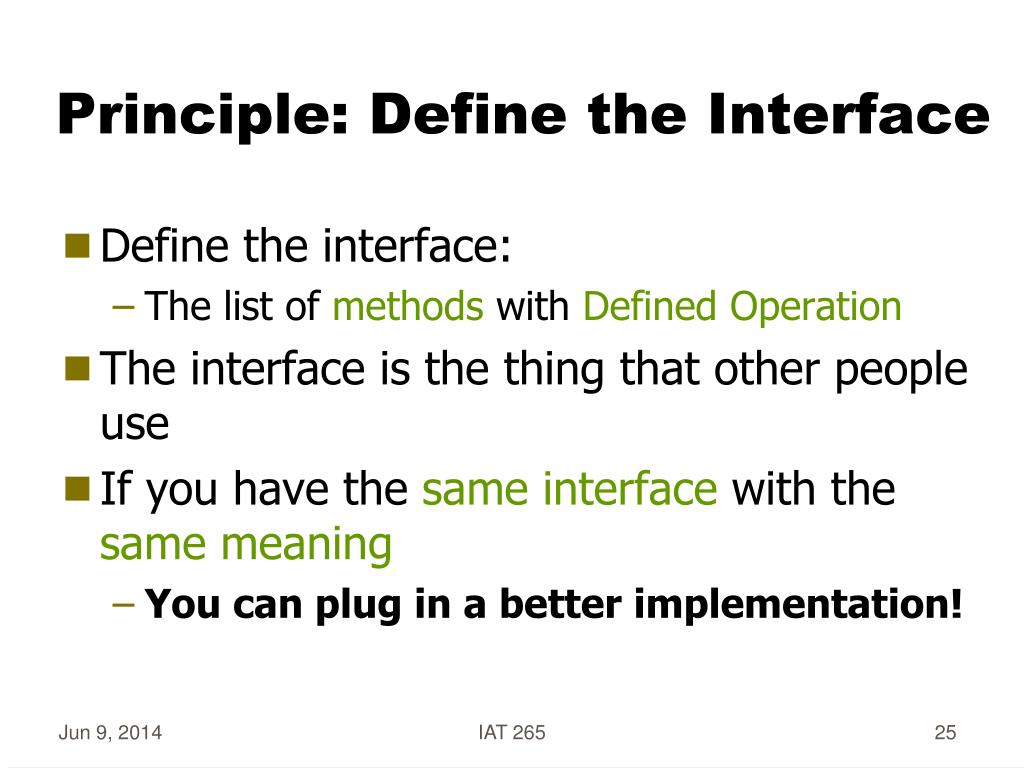

25. Principle: Define the Interface • Define the interface: • The list of methods with Defined Operation • The interface is the thing that other people use • If you have the same interface with the same meaning • You can plug in a better implementation! IAT 265

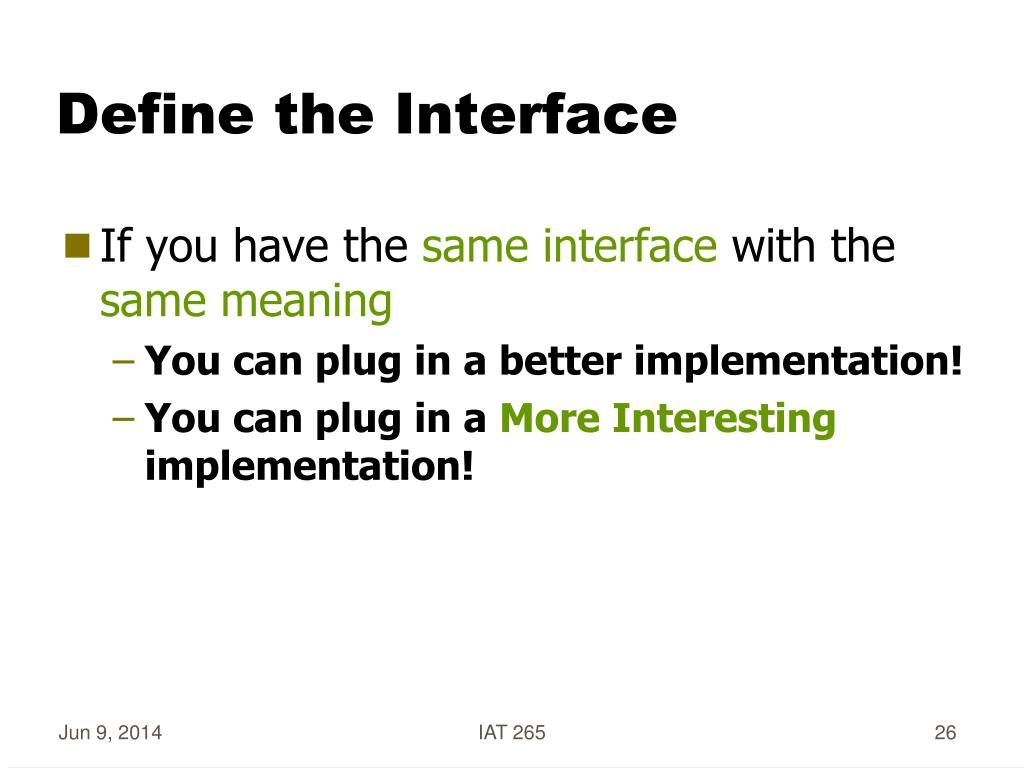

26. Define the Interface • If you have the same interface with the same meaning • You can plug in a better implementation! • You can plug in a More Interesting implementation! IAT 265

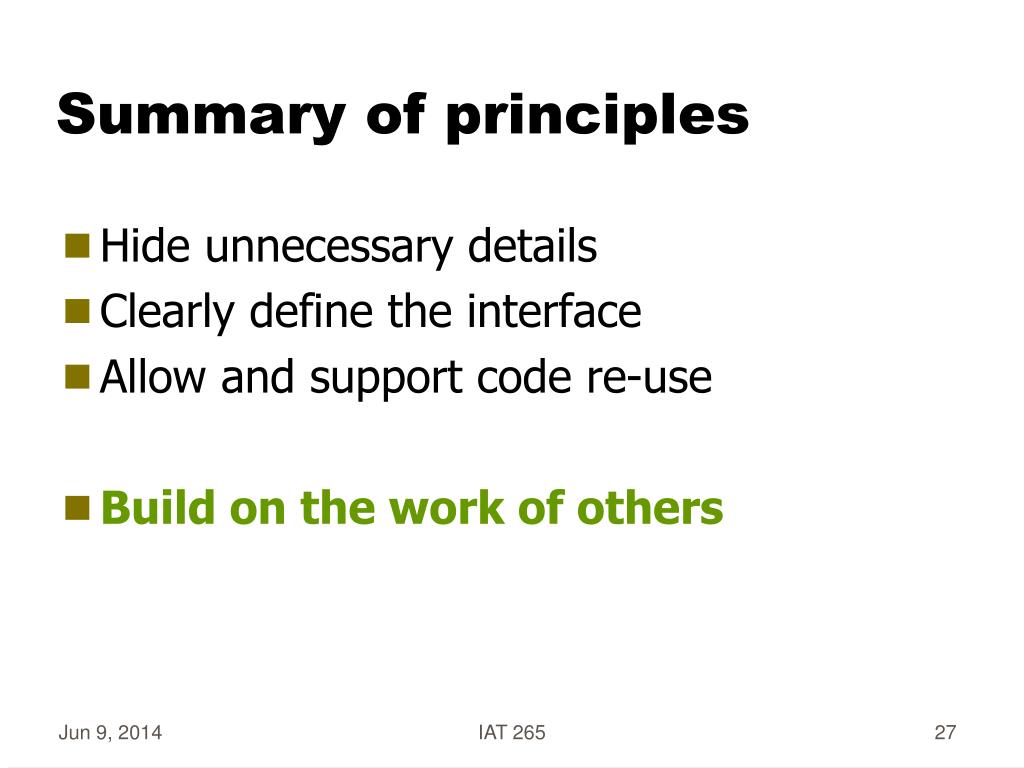

27. Summary of principles • Hide unnecessary details • Clearly define the interface • Allow and support code re-use • Build on the work of others IAT 265
