  1. Multimedia Need high Bandwidth Analog vs. Digital Multi-modality Real-Time MM T.Sharon-A.Frank

  2. Major Issues 1. Size of Data Frame 2. Need High Bandwidth 3. Digital vs. Analog Representation 4. Multi-Modality Integration/Blending 5. Soft Real-Time Constraints 6. Need Group Communication 7. Need Synchronization 8. Need for Standards T.Sharon-A.Frank

  3. 2. Need High Bandwidth PC RUN MICROBROOK LAN CREEK VIDEO RIVER DATA STREAM BANDWIDTH RIVER IMAGE RIVER BROADBAND RAY T.Sharon-A.Frank VOICE RIVER

  4. Channel Rates (Bits/Second) Video conferencing Graphical user interfaces Video phone Peripheral sharing Compressed video File transfer Information, e-mail, voice mail Inquiry Remote file system Fax Telemetry Alarm, pager Voice CD TV HDTV 1Kbps 1Mbps 1Gbps T.Sharon-A.Frank

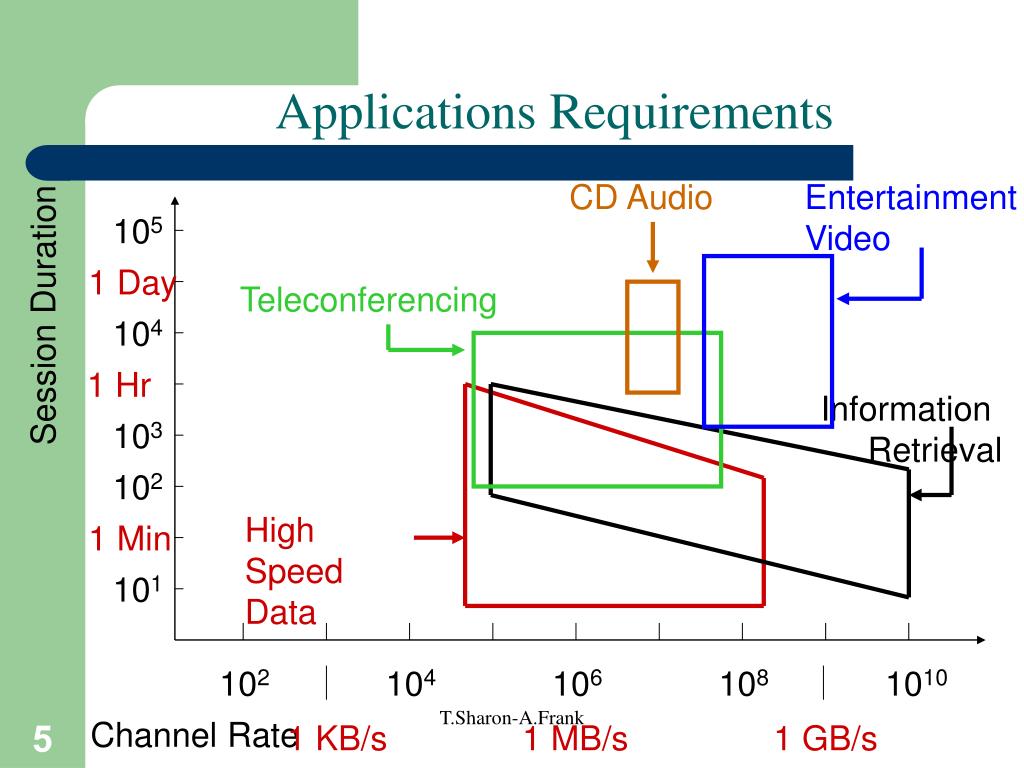

  5. Applications Requirements CD Audio Entertainment Video 105 1 Day Teleconferencing Session Duration 104 Information Retrieval 1 Hr 103 102 High SpeedData 1 Min 101 102 104 106 108 1010 T.Sharon-A.Frank Channel Rate 1 KB/s 1 MB/s 1 GB/s

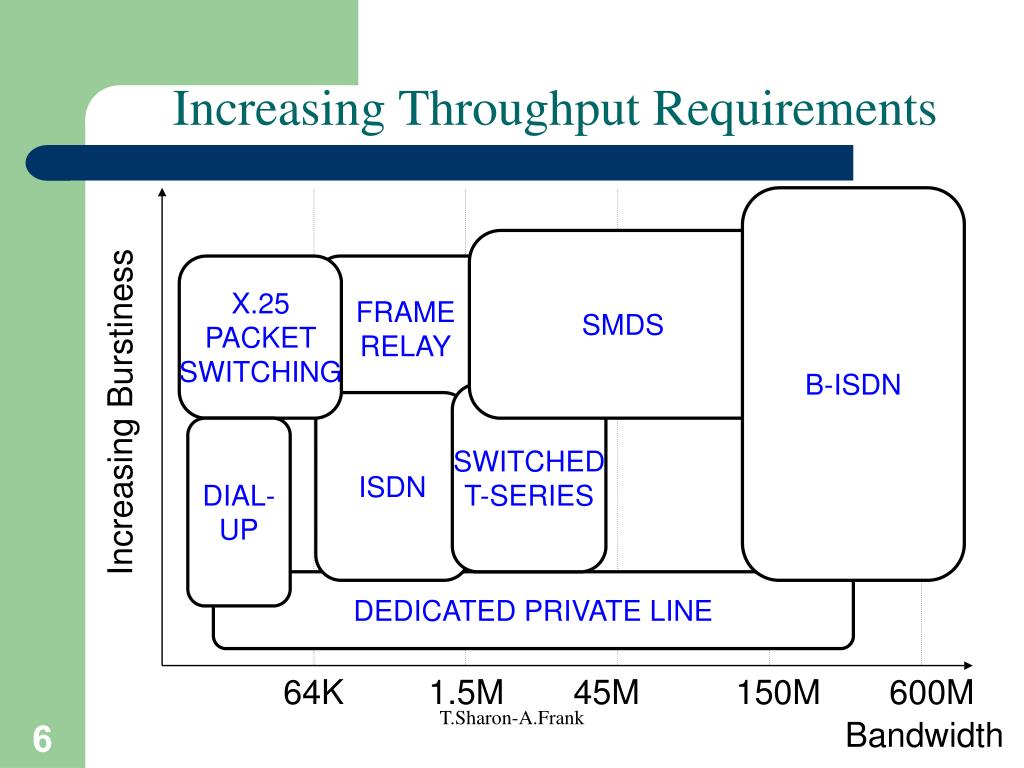

  6. Increasing Throughput Requirements B-ISDN SMDS X.25 PACKET SWITCHING FRAME RELAY SWITCHED T-SERIES ISDN DIAL- UP Increasing Burstiness DEDICATED PRIVATE LINE 64K 1.5M 45M 150M 600M T.Sharon-A.Frank Bandwidth

  7. LAN/WAN fit for MM? Slow Fast LAN/WAN MM Need Fiber Optics, Broadband,High-Speed Networks (HSN) T.Sharon-A.Frank

  8. Solutions Use Lossy Compression Show/See Flash! Use High Speed Networks (HSNs) T.Sharon-A.Frank

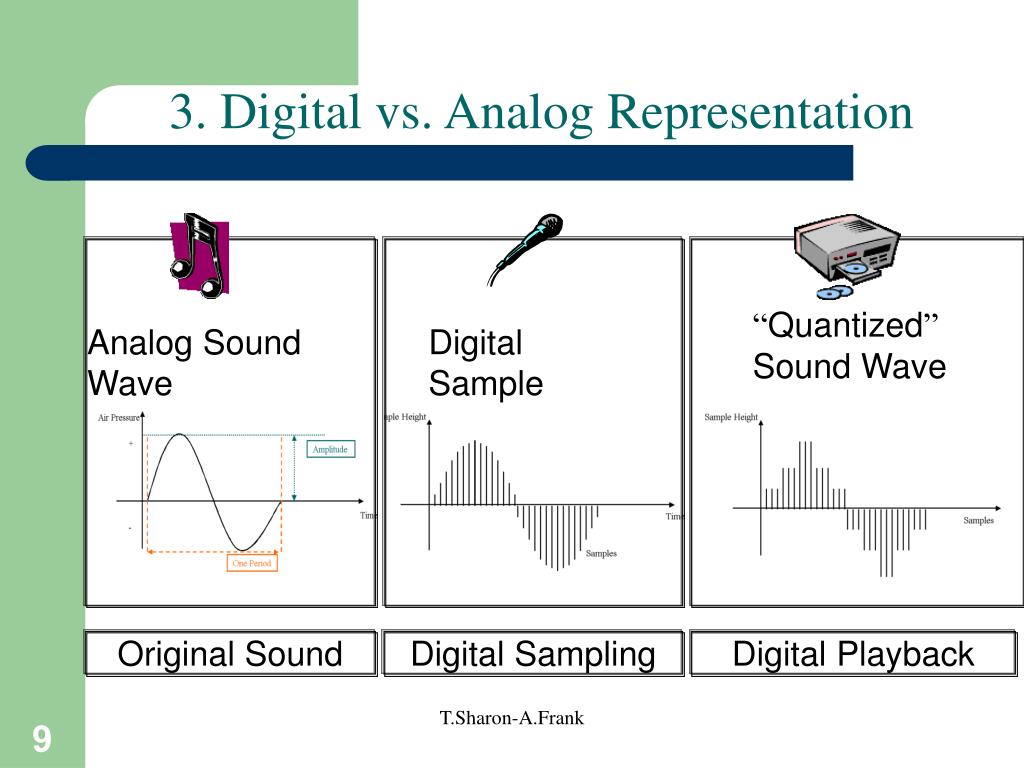

  9. 3. Digital vs. Analog Representation “Quantized”Sound Wave Analog Sound Wave Digital Sample Original Sound Digital Sampling Digital Playback T.Sharon-A.Frank

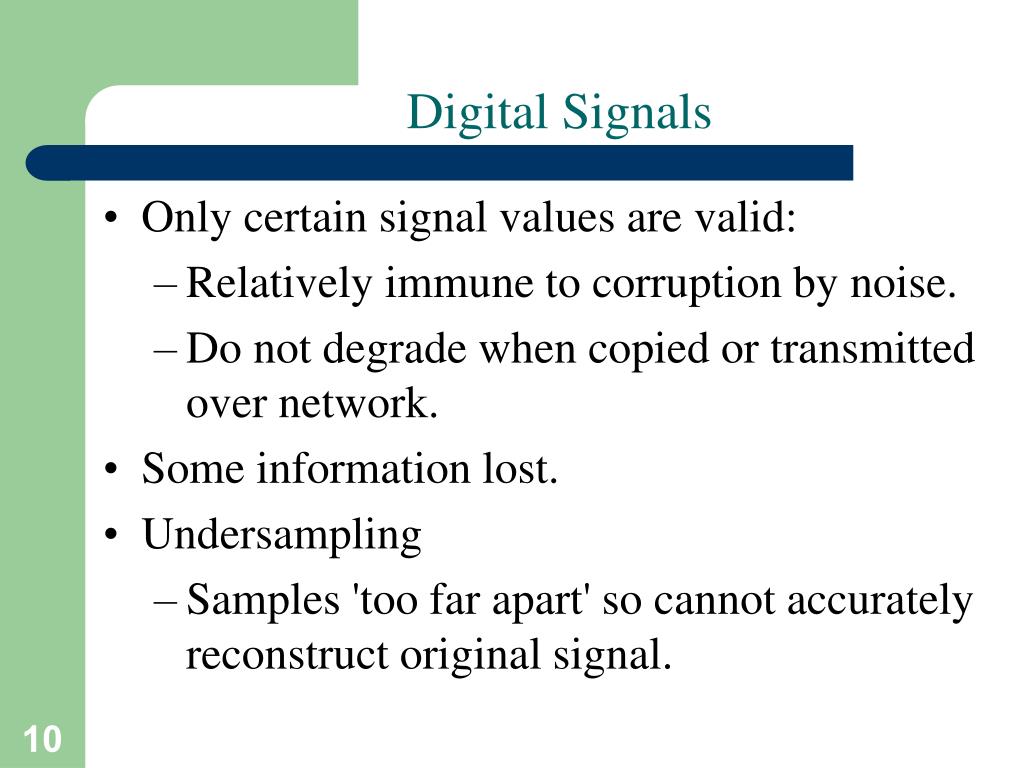

  10. Digital Signals • Only certain signal values are valid: • Relatively immune to corruption by noise. • Do not degrade when copied or transmitted over network. • Some information lost. • Undersampling • Samples 'too far apart' so cannot accurately reconstruct original signal.

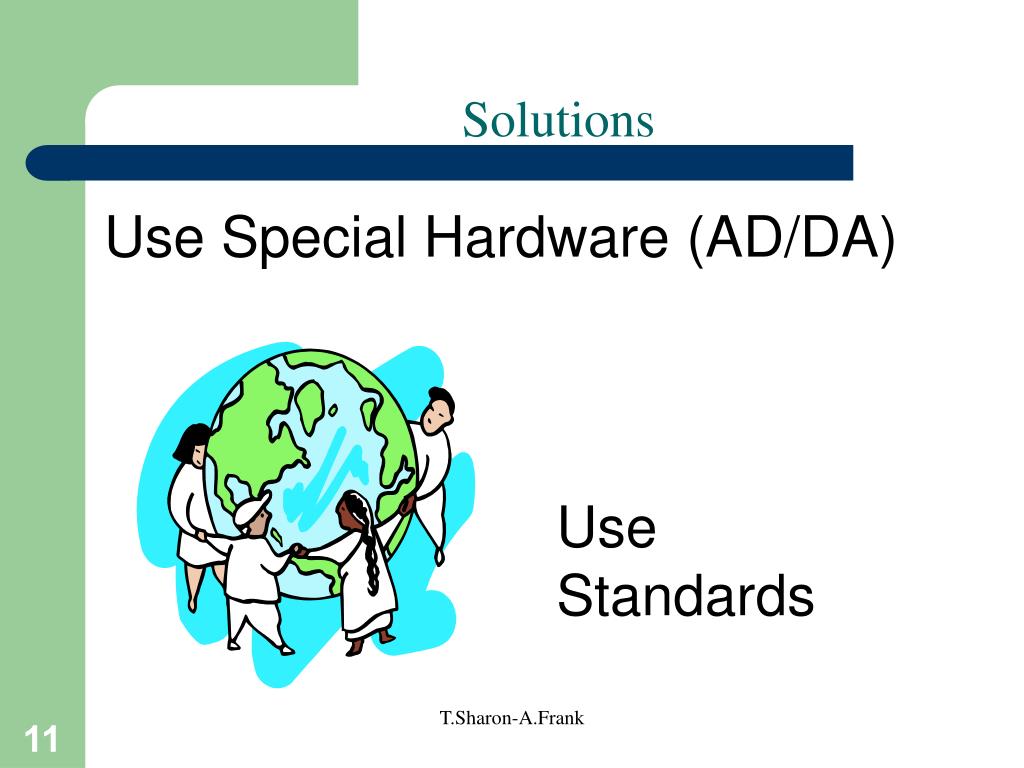

  11. Solutions Use Special Hardware (AD/DA) Use Standards T.Sharon-A.Frank

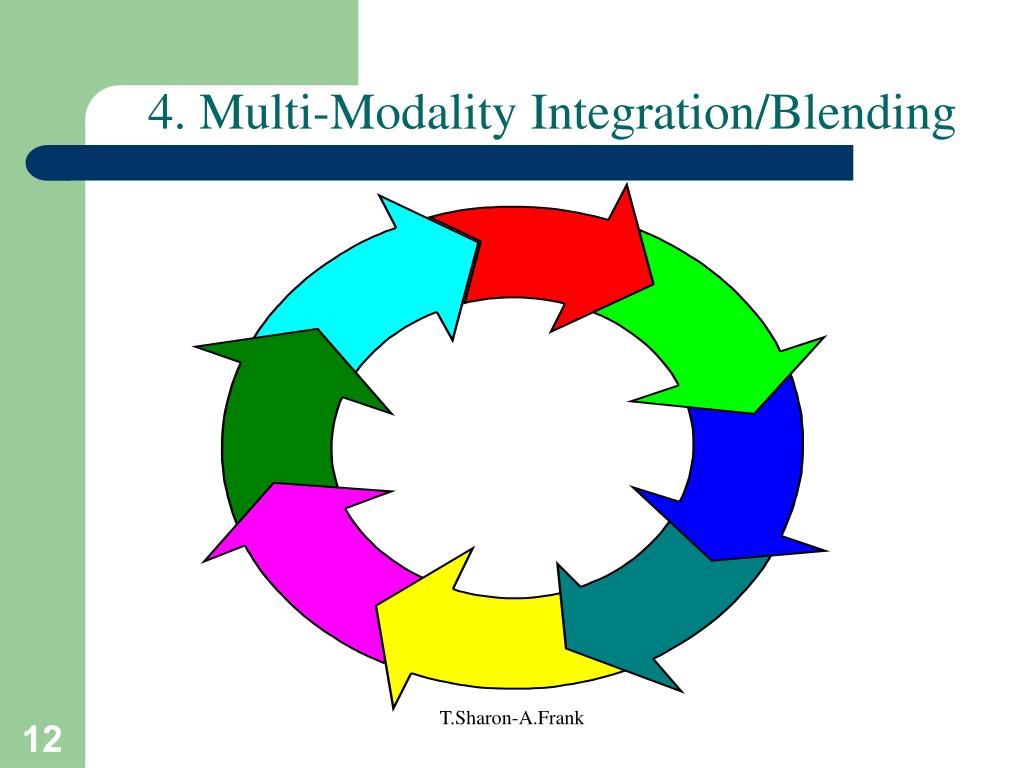

  12. 4. Multi-Modality Integration/Blending T.Sharon-A.Frank

  13. Multimedia Input Put that there! Eye Tracker Speech Recognizer Data Glove T.Sharon-A.Frank

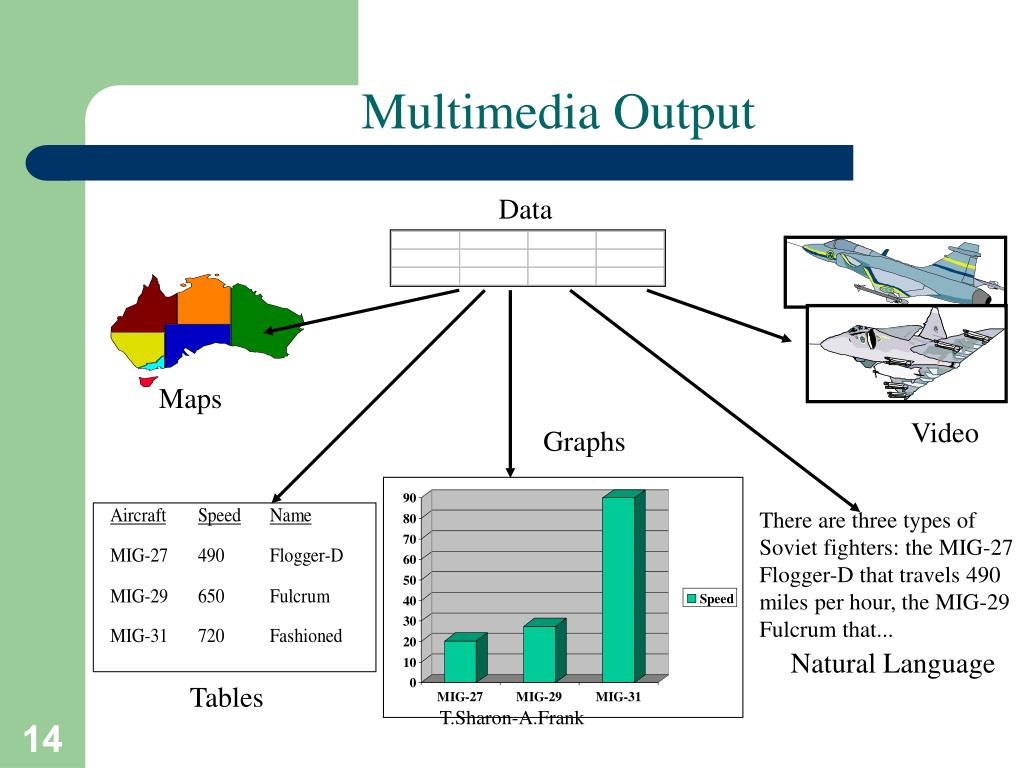

  14. Multimedia Output Data Maps Video Graphs There are three types of Soviet fighters: the MIG-27 Flogger-D that travels 490 miles per hour, the MIG-29 Fulcrum that... Natural Language Tables T.Sharon-A.Frank

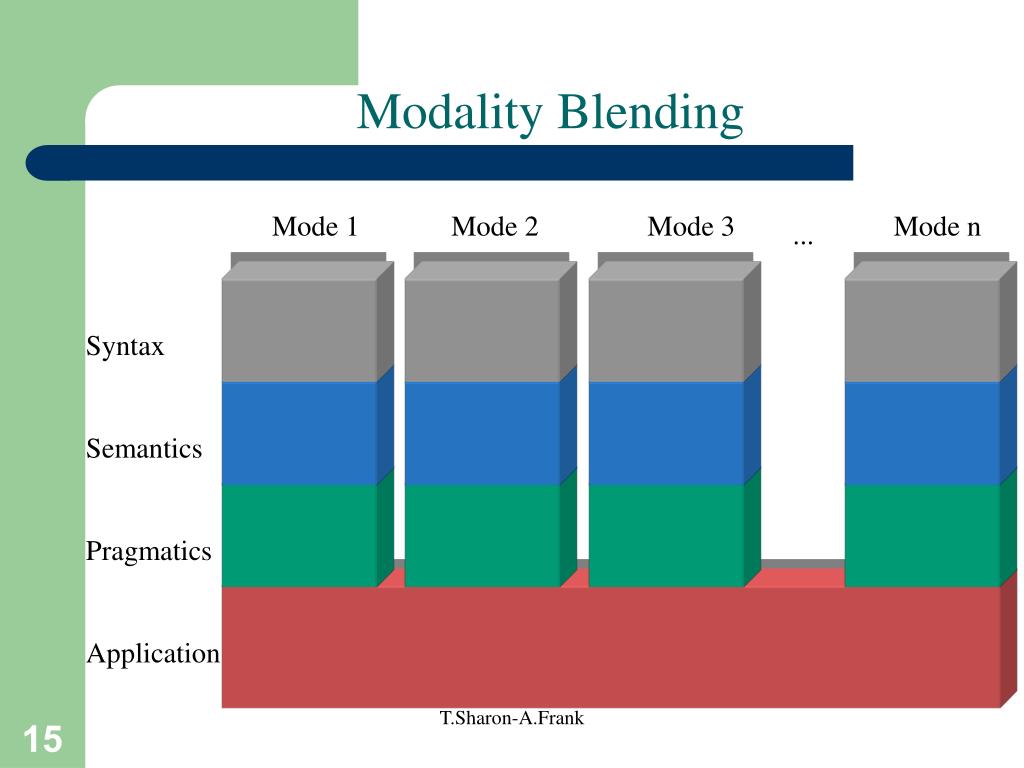

  15. Modality Blending Mode 1 Mode 2 Mode 3 Mode n ... Syntax Semantics Pragmatics Application T.Sharon-A.Frank

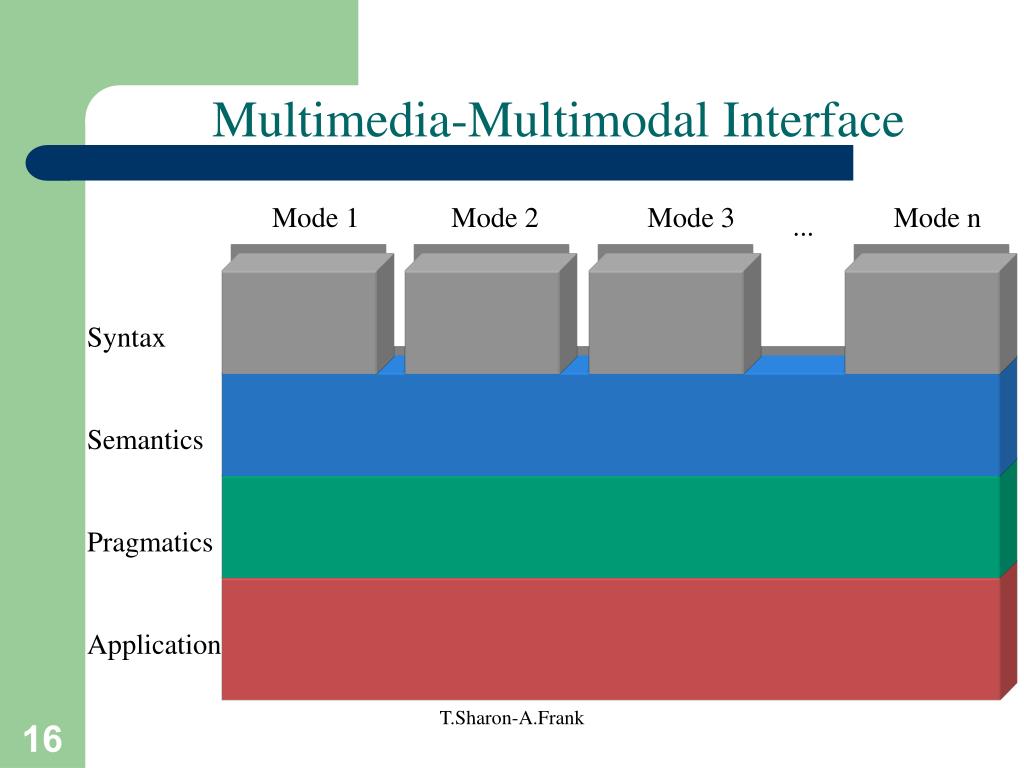

  16. Multimedia-Multimodal Interface Mode 1 Mode 2 Mode 3 Mode n ... Syntax Semantics Pragmatics Application T.Sharon-A.Frank

  17. 5. Soft Real-Time Constraints T.Sharon-A.Frank

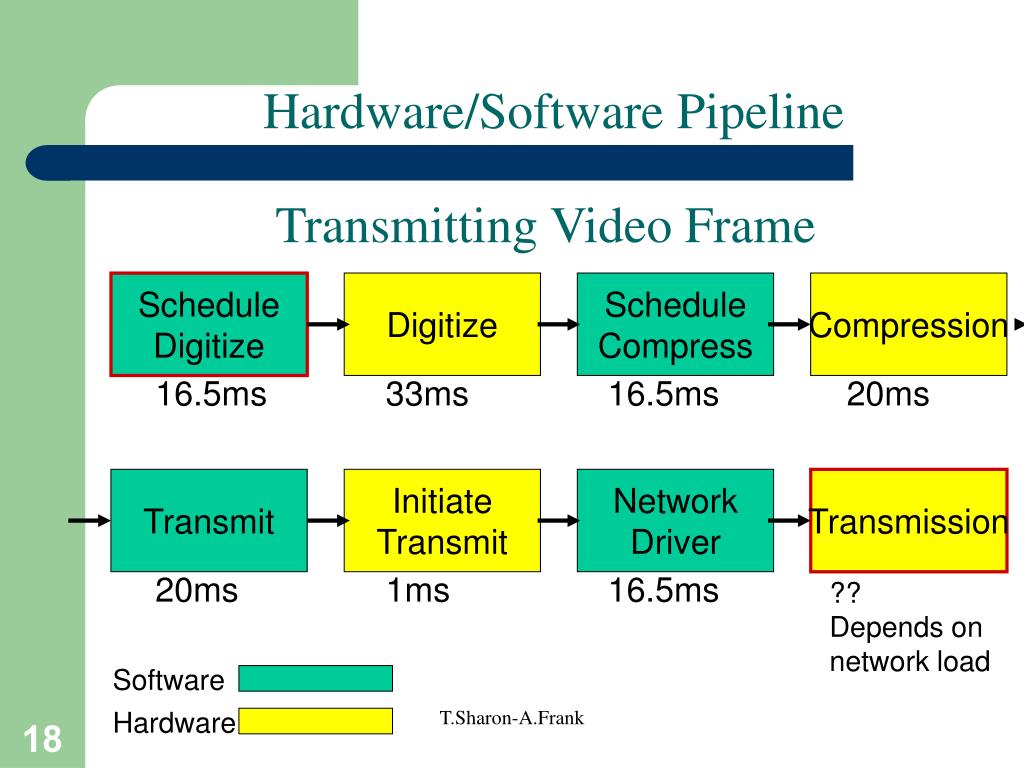

  18. Hardware/Software Pipeline Transmitting Video Frame ScheduleDigitize Digitize ScheduleCompress Compression 16.5ms 33ms 16.5ms 20ms Transmit InitiateTransmit NetworkDriver Transmission 20ms 1ms 16.5ms ??Depends on network load Software Hardware T.Sharon-A.Frank

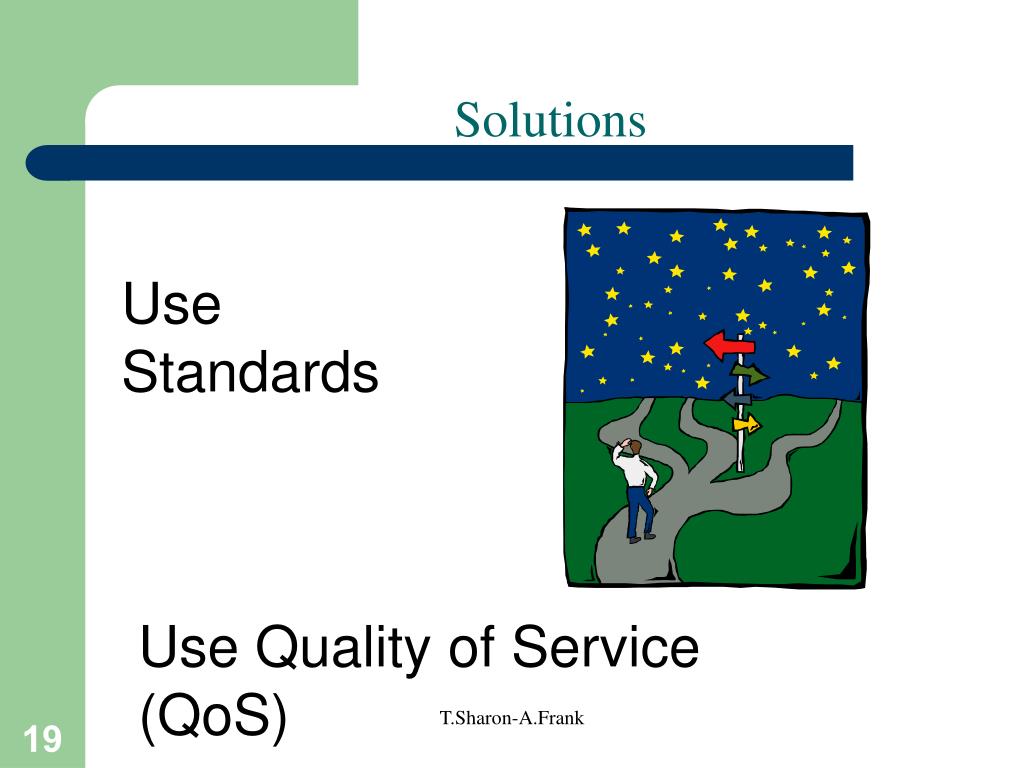

  19. Solutions Use Standards Use Quality of Service (QoS) T.Sharon-A.Frank
