  1. The Study of Ad Hoc Network アドホックネットワークの研究

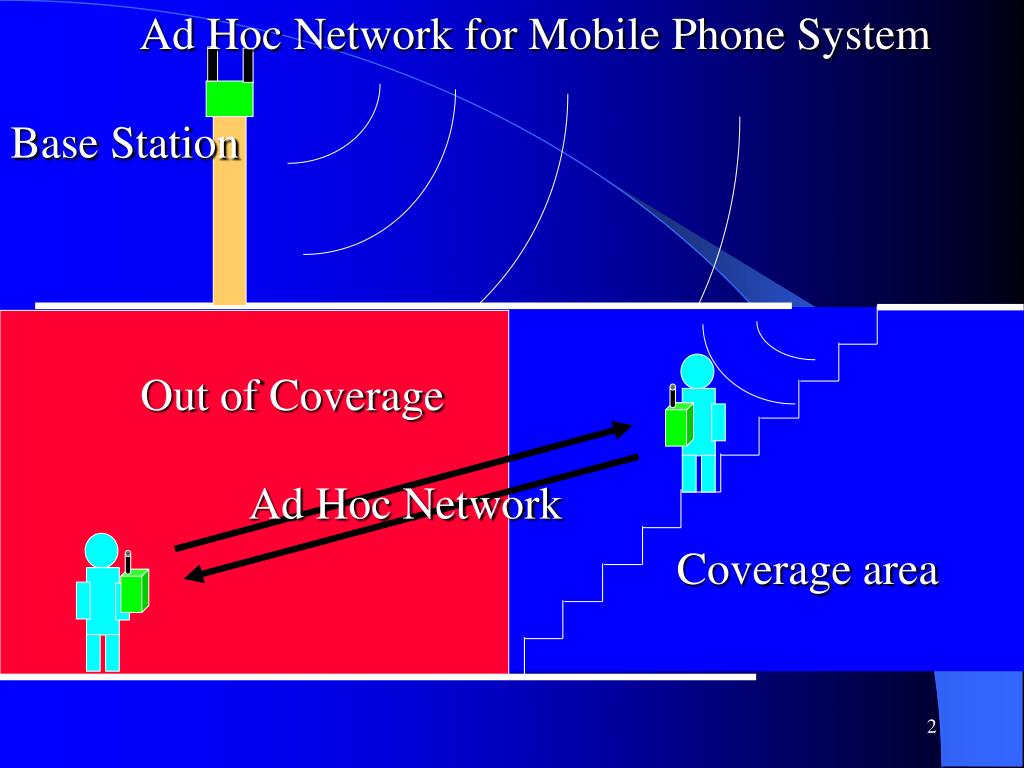

  2. Ad Hoc Network for Mobile Phone System Base Station Out of Coverage Ad Hoc Network Coverage area

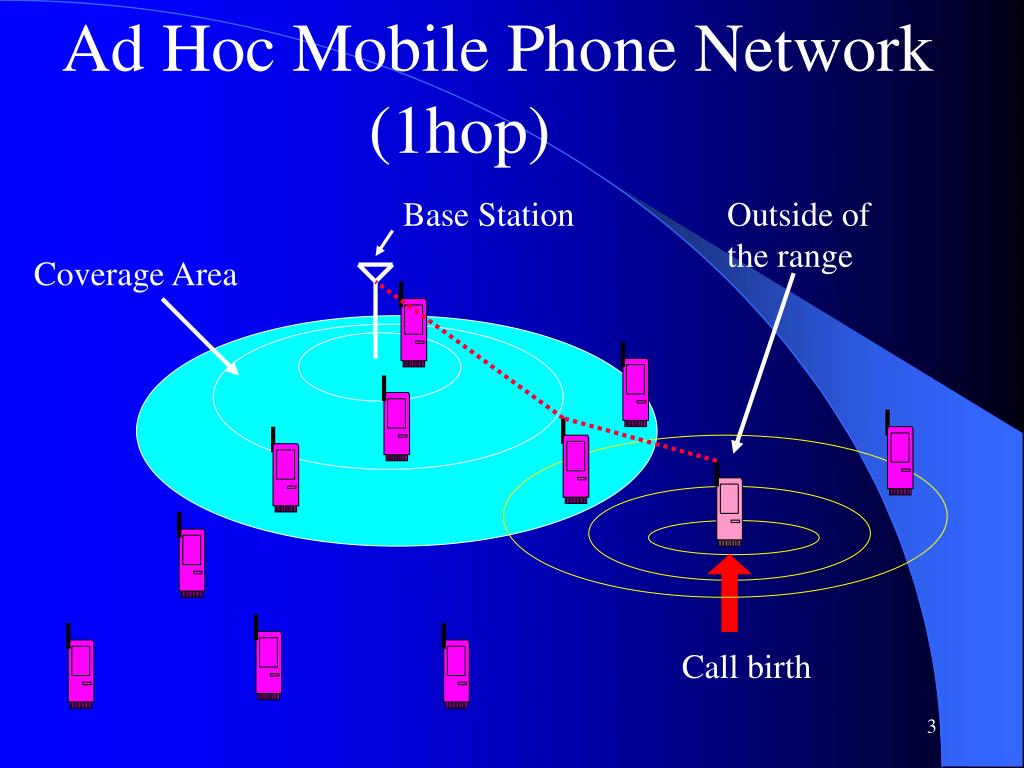

  3. Ad Hoc Mobile Phone Network (1hop) Base Station • Outside of the range Coverage Area Call birth

  4. Ad Hoc Mobile Phone Network (2hop) Coverage Area Base Station Call birth

  5. Ad Hoc Mobile Phone Network (2hop) Coverage Area Base Station Call birth

  6. Call Birth E F G D R ・　RREQをユニキャスト B C H I A ：RREQ Mapping Virtual Map Model ・　マップ上で近い端末同士をグルーピング ・　推奨受信電力距離だけ離れている端末を依頼端末に決定する Desired received power distance Grouping

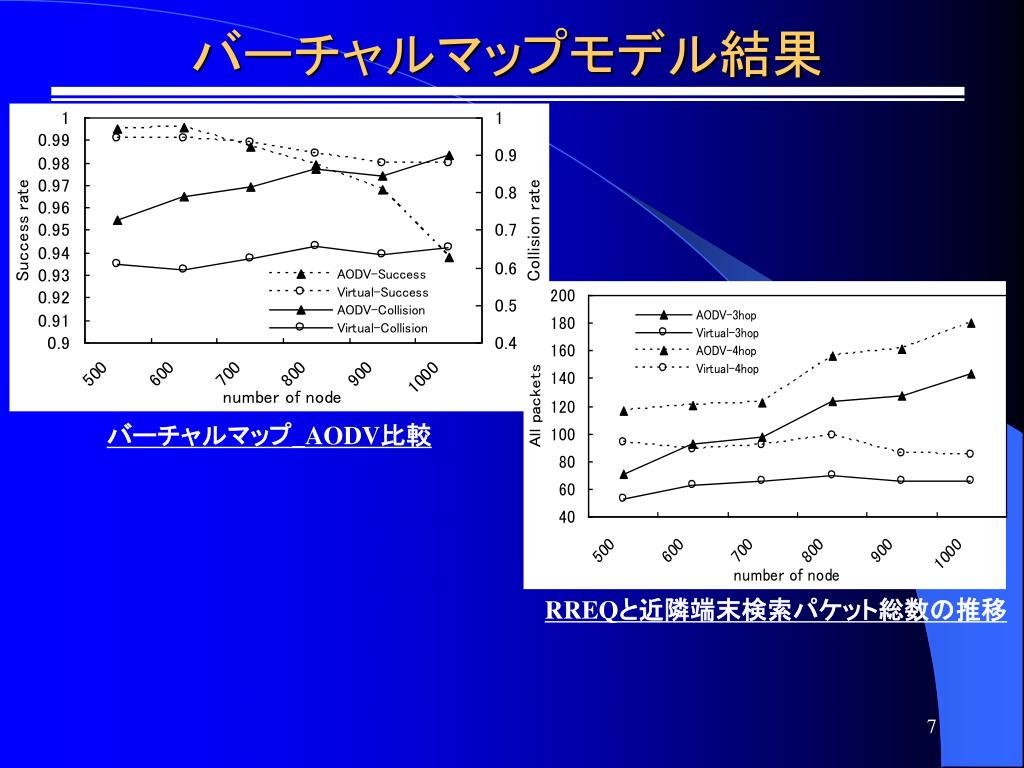

  7. バーチャルマップモデル結果 バーチャルマップ_AODV比較 RREQと近隣端末検索パケット総数の推移

  8. Ad Hoc Air Network Study of VDL(VHF Digital Link) Study of Oceanic Ad Hoc Air Network 実験用航空機 B-99 飛行ルート/見通し距離

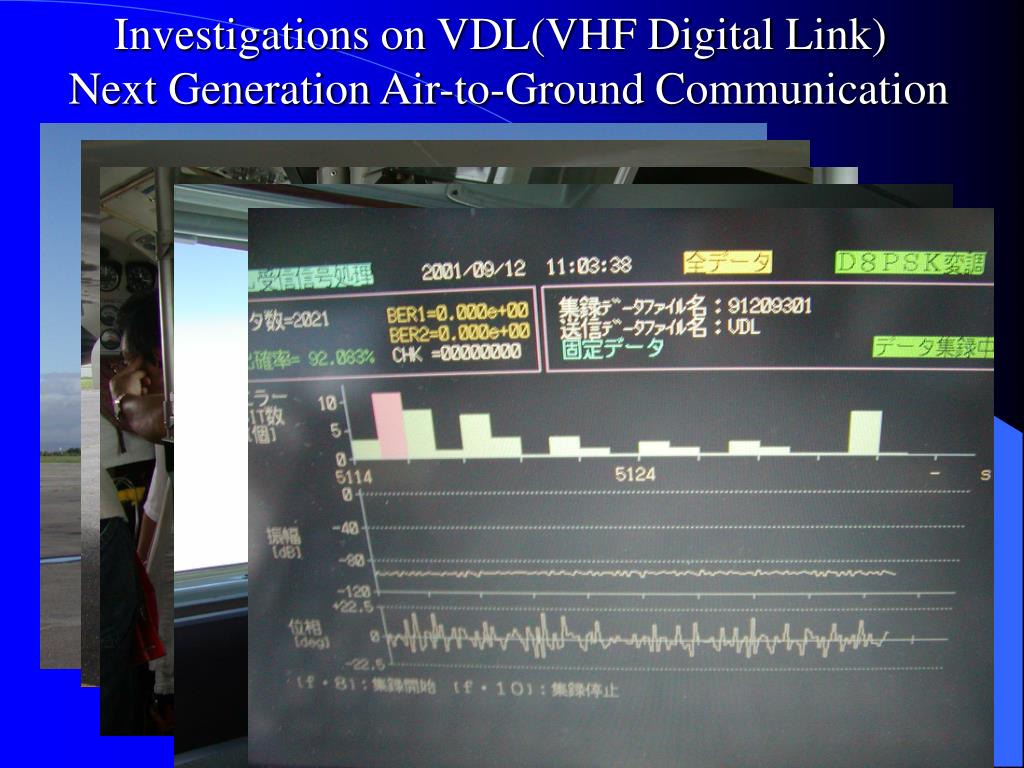

  9. Investigations on VDL(VHF Digital Link) Next Generation Air-to-Ground Communication

  10. Frequency136.9 MHz TX RF Power+42 dBm ModulationD8PSK Data Rate31.5 Kbps FECRS(255 249) TX ANTGain2.15 dBi Height23m DirectionNone (H-Plane) PolarizationVertical RX ANTGain0 dBi (Typical) DirectionNone (H-Plane) PolarizationVertical RX Sensitivity　　 －102 dBm Aircraft Speed120 m/s Results of Experiments VDL-2　飛行実験(Air to Ground) 実験諸元 伝搬特性　(1NM=1.8) Km

  11. Results of Experiments 空対空伝搬実験（Air to Aiｒ） Frequency123.45 MHz TX RF Power+45 dBm ModulationAM RX Sensitivity　　　　－98 dBm TX/RX ANT Gain0 dBi DirectionNone (H-Plane) PolarizationVertical Aircraft Speed250 m/s 実験諸元 受信信号レベルvs距離特性
