  1. 18739A: Foundations of Security and Privacy Course Review Anupam Datta CMU Fall 2007-08

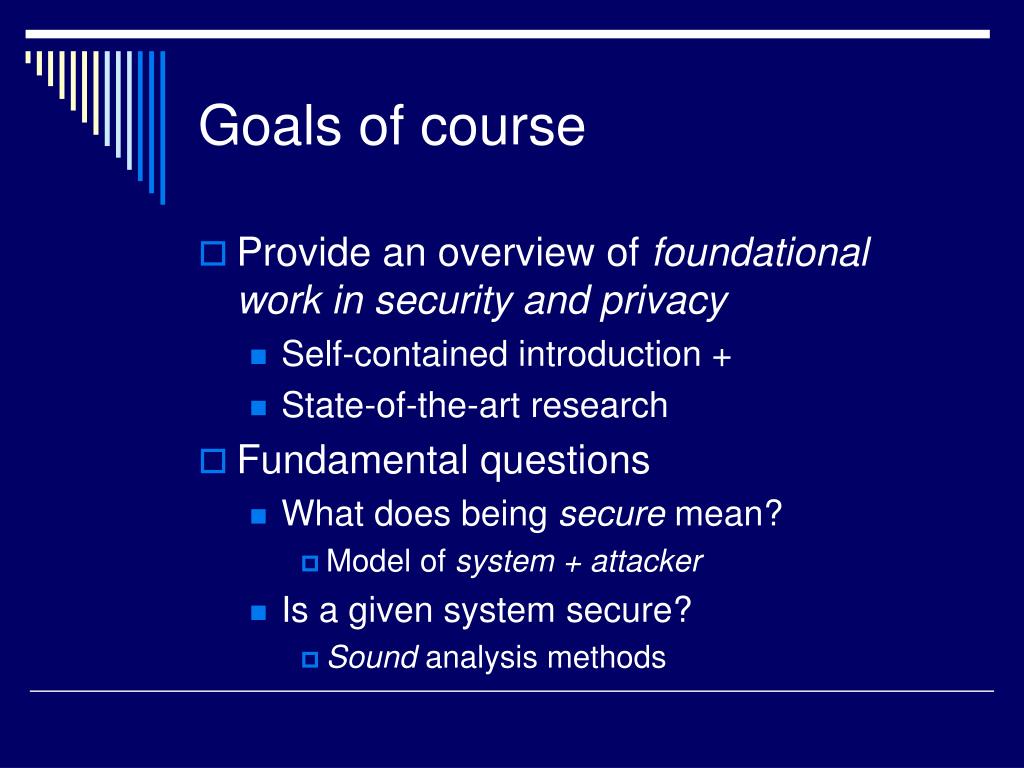

  2. Goals of course • Provide an overview of foundational work in security and privacy • Self-contained introduction + • State-of-the-art research • Fundamental questions • What does being secure mean? • Model of system + attacker • Is a given system secure? • Sound analysis methods

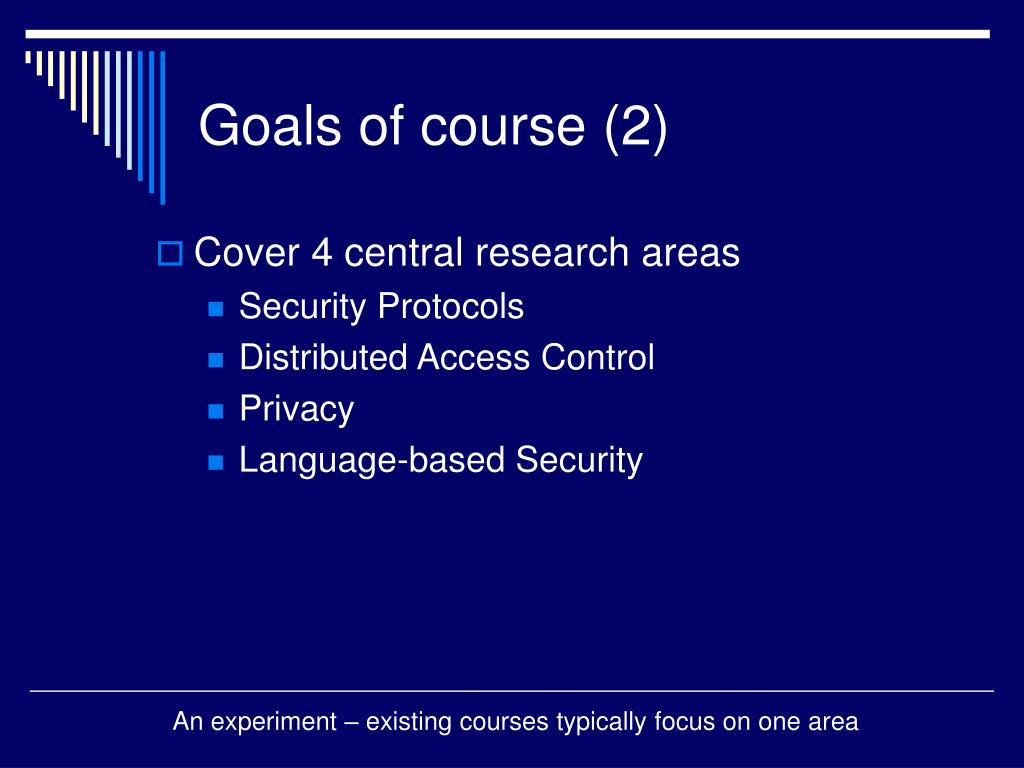

  3. Goals of course (2) • Cover 4 central research areas • Security Protocols • Distributed Access Control • Privacy • Language-based Security An experiment – existing courses typically focus on one area

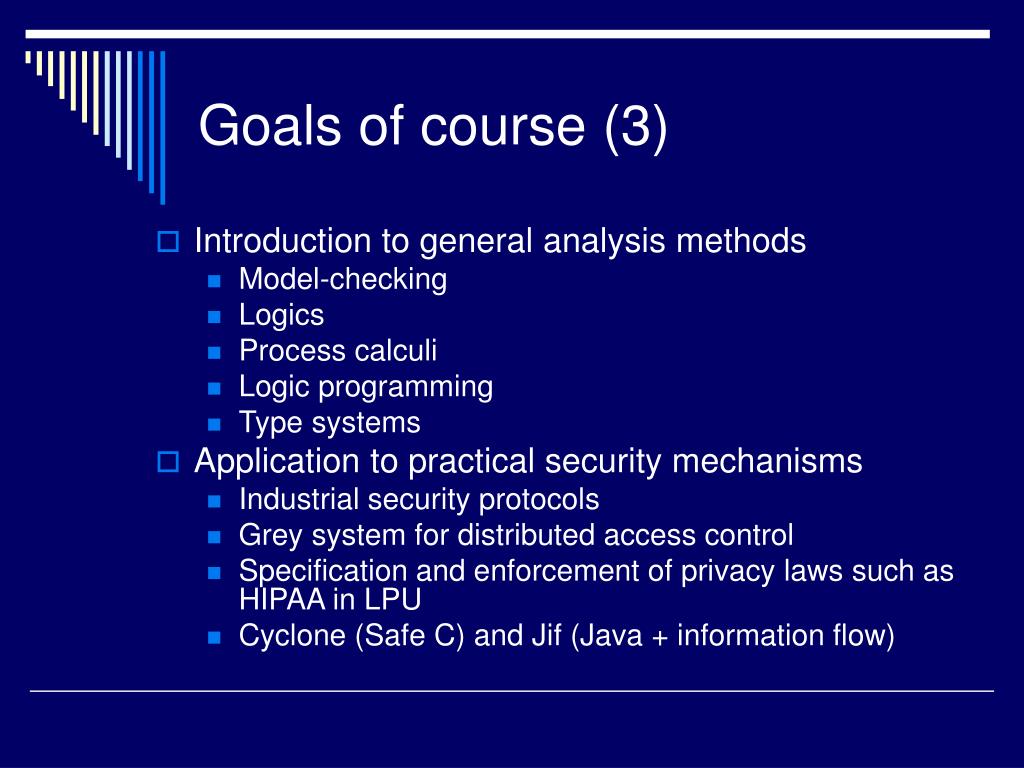

  4. Goals of course (3) • Introduction to general analysis methods • Model-checking • Logics • Process calculi • Logic programming • Type systems • Application to practical security mechanisms • Industrial security protocols • Grey system for distributed access control • Specification and enforcement of privacy laws such as HIPAA in LPU • Cyclone (Safe C) and Jif (Java + information flow)

  5. Goals of course (4) • Provide breadth in area • Lectures and homeworks • Provide some depth in area • Course project • Largely successful!

  6. Four broad topics • Security Protocols • Distributed Access Control • Privacy • Language-based Security

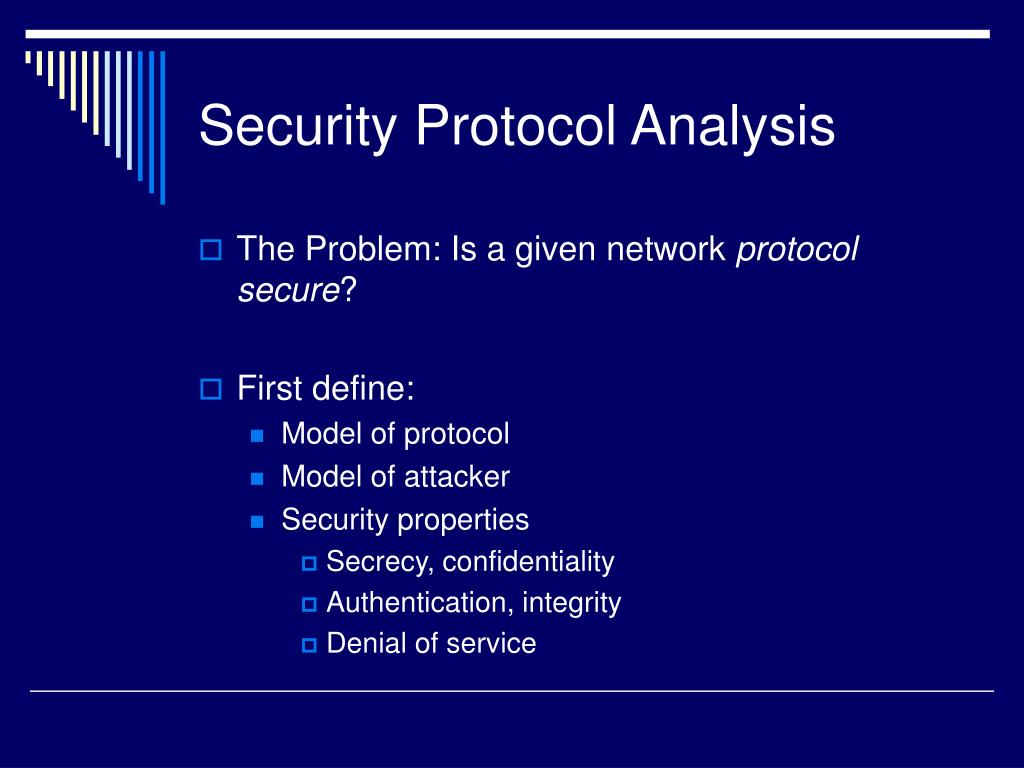

  7. Security Protocol Analysis • The Problem: Is a given network protocolsecure? • First define: • Model of protocol • Model of attacker • Security properties • Secrecy, confidentiality • Authentication, integrity • Denial of service

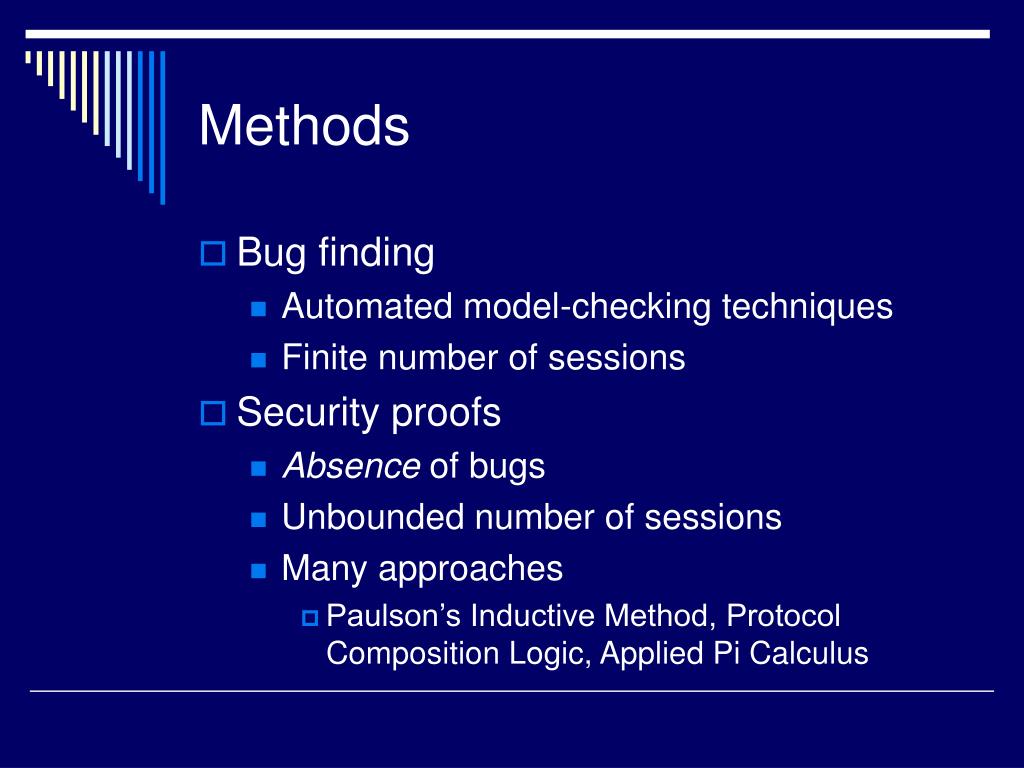

  8. Methods • Bug finding • Automated model-checking techniques • Finite number of sessions • Security proofs • Absence of bugs • Unbounded number of sessions • Many approaches • Paulson’s Inductive Method, Protocol Composition Logic, Applied Pi Calculus

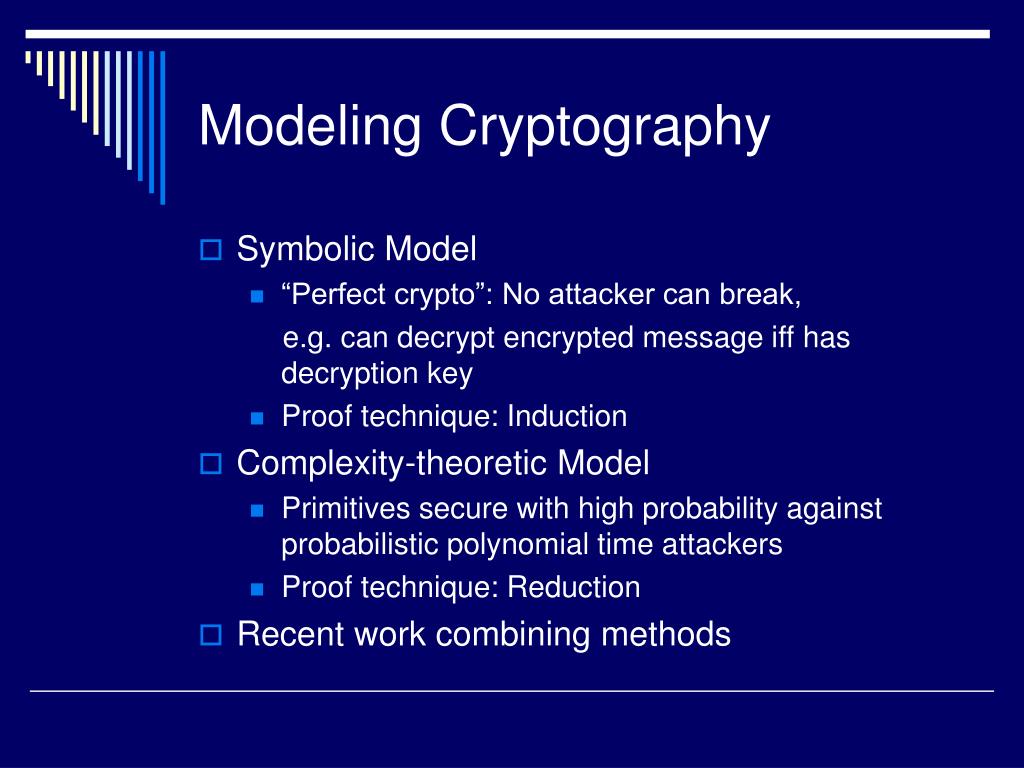

  9. Modeling Cryptography • Symbolic Model • “Perfect crypto”: No attacker can break, e.g. can decrypt encrypted message iff has decryption key • Proof technique: Induction • Complexity-theoretic Model • Primitives secure with high probability against probabilistic polynomial time attackers • Proof technique: Reduction • Recent work combining methods

  10. Specifying security • Trace-based • Every execution satisfies desired security property • Model-checking, inductive method, PCL • Equivalence-based • Real protocol indistinguishable from “ideal” protocol • Applied pi calculus (observational equivalence), cryptography (pseudorandomness, …)

  11. Example: Authentication • Authentication protocol A  B {i}k B  A {i+1}k A  B “Ok” • “Ideal” protocol A  B {random1}k B  A {random2}k B  A random1, random2 on a magic secure channel A  B “Ok” if numbers on real & magic channels match Real protocol is secure if it is observationally equivalent to ideal protocol

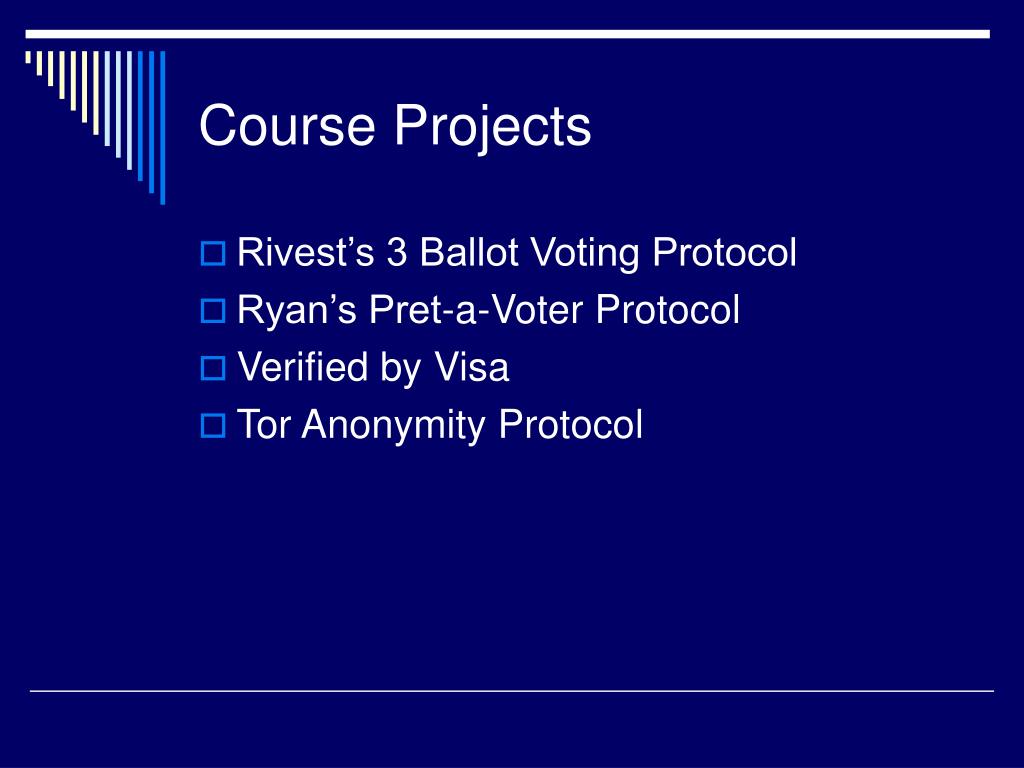

  12. Course Projects • Rivest’s 3 Ballot Voting Protocol • Ryan’s Pret-a-Voter Protocol • Verified by Visa • Tor Anonymity Protocol

  13. Four broad topics • Security Protocols • Distributed Access Control • Privacy • Language-based Security

  14. Access Control Picture

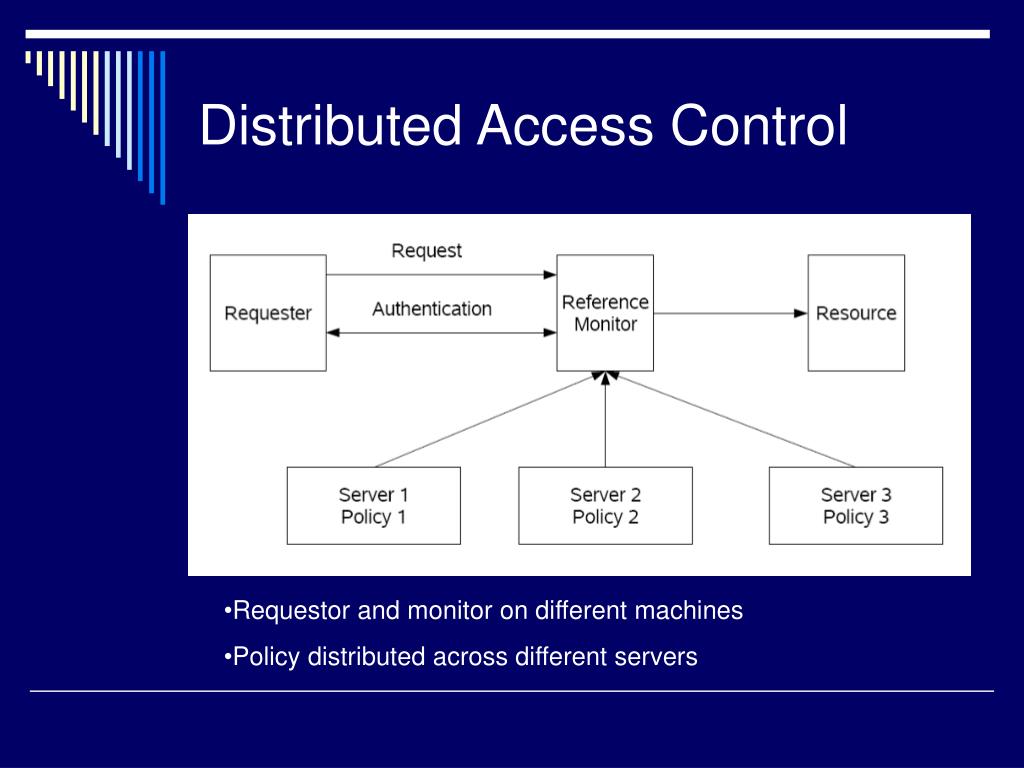

  15. Distributed Access Control • Requestor and monitor on different machines • Policy distributed across different servers

  16. We covered • Access control logics • Lampson et al “speaks-for” logic • Proof Carrying Authorization (PCA) and the Grey System • Constructive Authorization Logic • Trust Management • RT – Role-based Trust Management

  17. EPub Alice Grants access to university students Trusts universities to certify students Trusts ABU to certify universities Alice is a student StateU is a university StateU ABU

  18. Main issues • How to represent policies • Naming, delegation • Syntax of logic/language (Lampson+, PCA, Constructive Logic, RT) • How to reason by combining policies • Proof system for logics • Algorithms for RT (decision procedures for Datalog) • How to collect relevant credentials • Distributed proof-search using heuristics in Grey • Provably correct credential chain discovery in RT

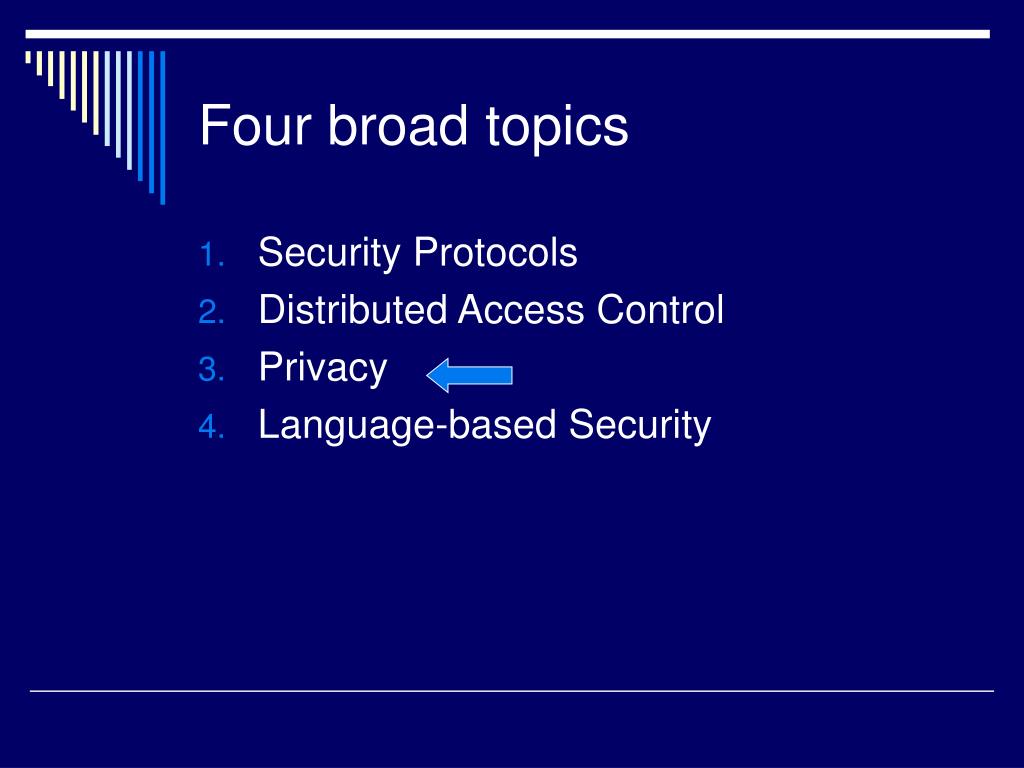

  19. Four broad topics • Security Protocols • Distributed Access Control • Privacy • Language-based Security

  20. Privacy Research Space What is Privacy? [Philosophy, Law, Public Policy] Formal Model, Policy Language, Compliance-check Algorithms [Programming Languages, Logic] Implementation-level Compliance [Software Engg, Formal Methods] Data Privacy [Databases, Cryptography]

  21. Privacy • Scenarios: • Enterprises collect personal information – email and postal addresses – in many cases through web sites • Organizations such as hospitals and financial institutions hold sensitive personal information • Fundamental questions: • Policy: Under what conditions is the collected information used and distributed? • Enforcement: Do organizational processes actually enforce the stated policy? • Privacy Laws: • HIPAA, GLBA, COPPA

  22. Privacy Policy Languages • P3P • Privacy policy specification for web sites. • E-P3P/EPAL • Enterprise privacy policy specification and enforcement • Contextual Integrity and LPU • Philosophical theory of privacy • Formalization in temporal logic (specification and enforcement) • Expressing privacy laws, e.g. HIPAA, GLBA, COPPA

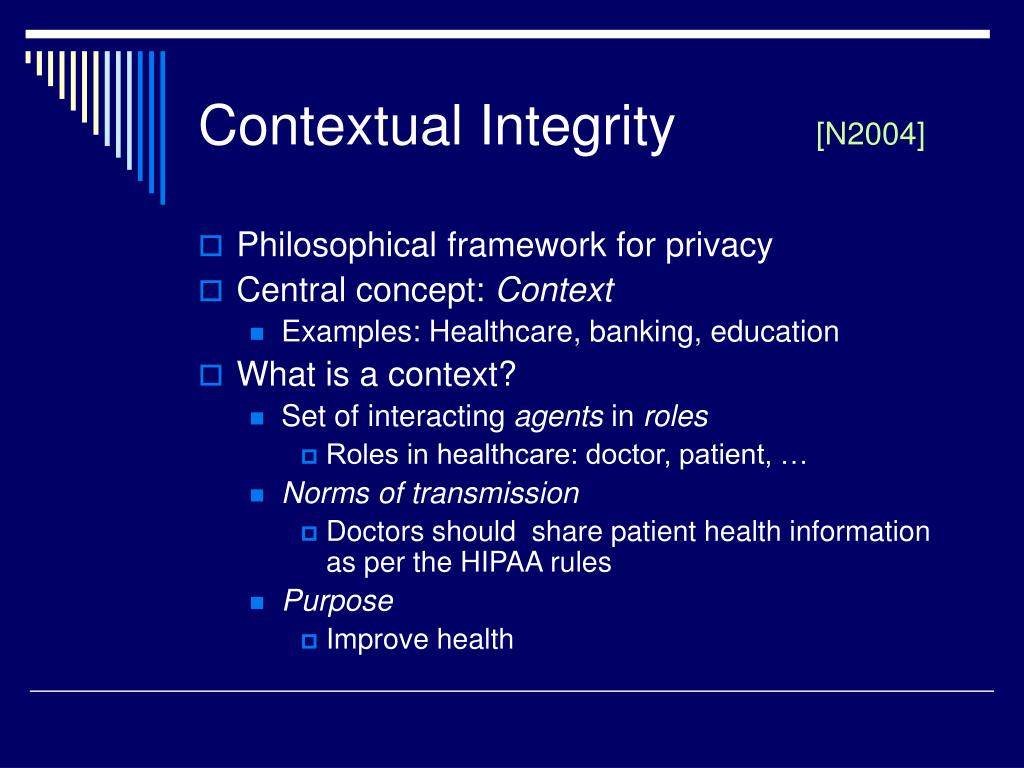

  23. Contextual Integrity [N2004] • Philosophical framework for privacy • Central concept: Context • Examples: Healthcare, banking, education • What is a context? • Set of interacting agents in roles • Roles in healthcare: doctor, patient, … • Norms of transmission • Doctors should share patient health information as per the HIPAA rules • Purpose • Improve health

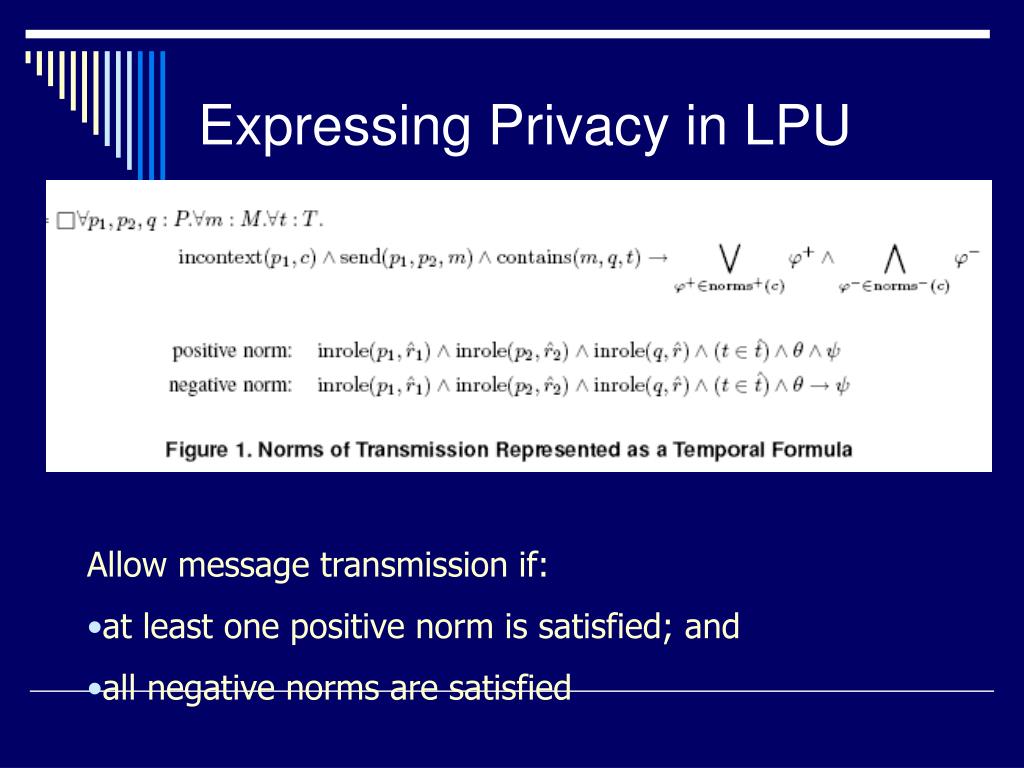

  24. Expressing Privacy in LPU • Allow message transmission if: • at least one positive norm is satisfied; and • all negative norms are satisfied

  25. HIPAA – Healthcare Privacy • HIPAA consists primarily of positive norms: share phi if some rule explicitly allows it (2), (3), (5), (6) • Exception: negative norm about psychotherapy notes (4)

  26. COPPA – Children Online Privacy • COPPA consists primarily of negative norms • children can share their protected info only if parents consent (7) (condition) • (8) (obligation – future requirements)

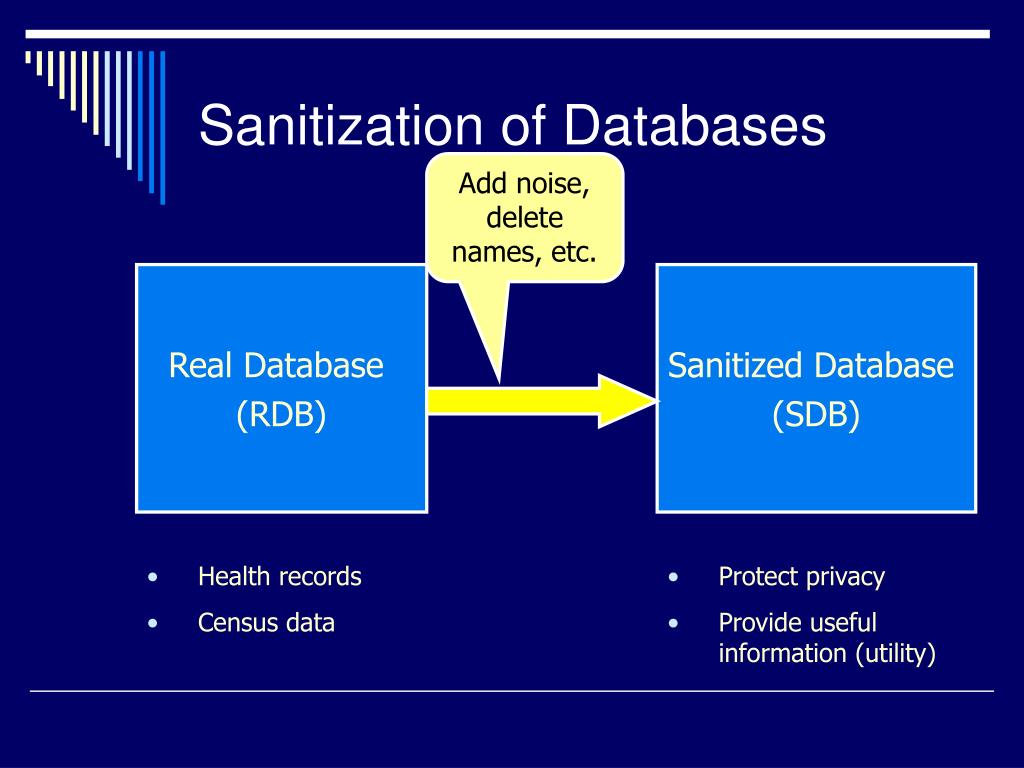

  27. Sanitization of Databases Add noise, delete names, etc. Real Database (RDB) Sanitized Database (SDB) • Health records • Census data • Protect privacy • Provide useful information (utility)

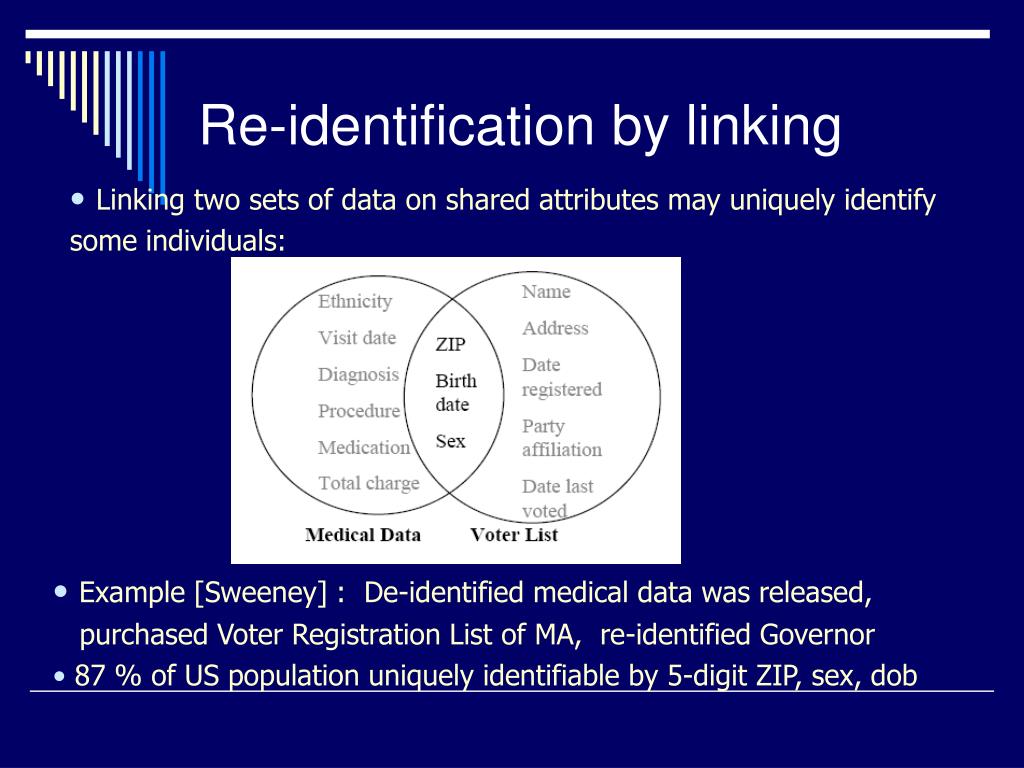

  28. Re-identification by linking • Linking two sets of data on shared attributes may uniquely identify some individuals: • Example [Sweeney] : De-identified medical data was released, • purchased Voter Registration List of MA, re-identified Governor • 87 % of US population uniquely identifiable by 5-digit ZIP, sex, dob

  29. K-anonymity (1) • Quasi-identifier: Set of attributes (e.g. ZIP, sex, dob) that can be linked with external data to uniquely identify individuals in the population • Make every record in the table indistinguishable from at least k-1 other records with respect to quasi-identifiers • Linking on quasi-identifiers yields at least k records for each possible value of the quasi-identifier

  30. K-anonymity and beyond • Provides some protection: linking on ZIP, age, nationality yields 4 records • Limitations: lack of diversity in sensitive attributes, background knowledge, • subsequent releases on the same data set • Utility: less suppression implies better utility

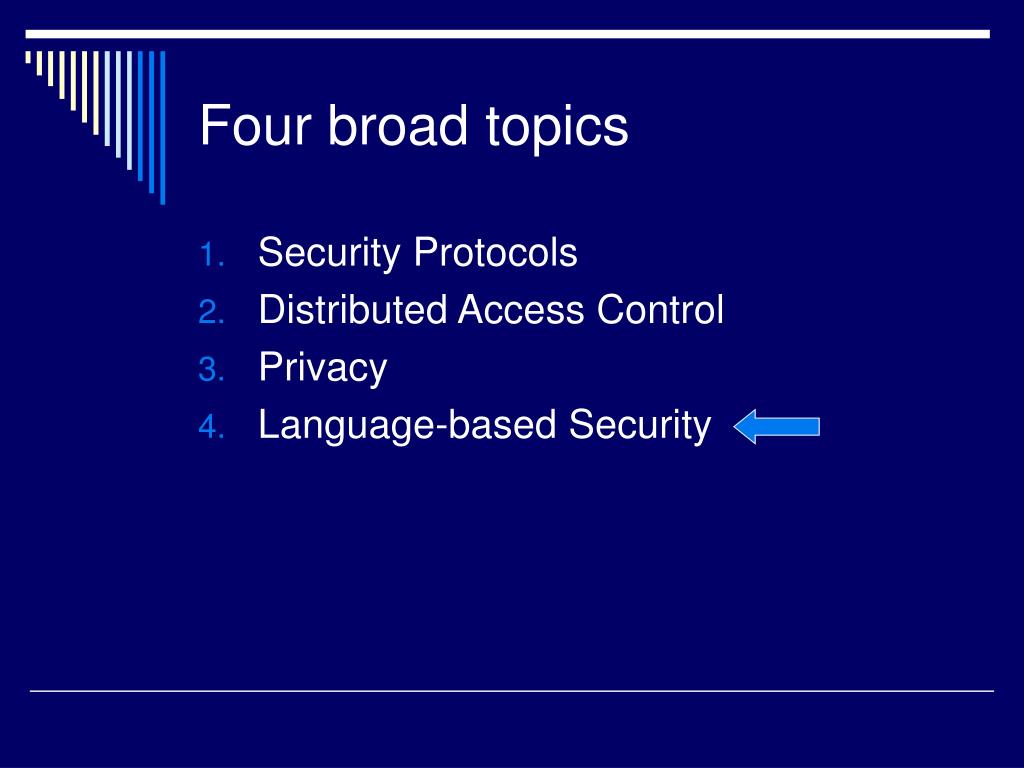

  31. Four broad topics • Security Protocols • Distributed Access Control • Privacy • Language-based Security

  32. Type Systems for Security • Focus on the use of type systems to improve software security • Two representative projects • Cyclone: Memory safe dialect of C, i.e. no buffer overflow attacks, format string vulnerabilities etc (or Ccured) • Jif: Enforcing information flow security properties (non-interference and variants)

  33. Definition of Security • Non-interference (idea) HO HO’ HI HI’ Program LI LO No information flows from high inputs to low outputs

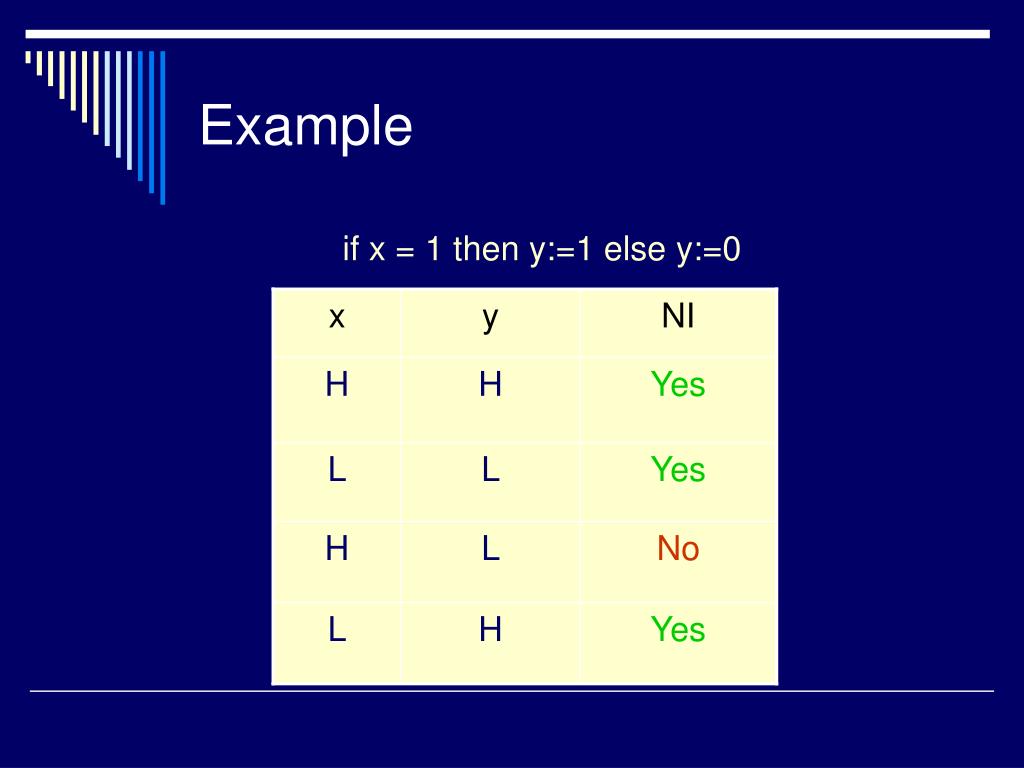

  34. Example if x = 1 then y:=1 else y:=0 x y NI H H Yes L L Yes H L No L H Yes

  35. Language definition • Syntax • Type system (static semantics) • Operational semantics (dynamic semantics) • Type safety (soundness) theorem

  36. Soundness Theorem

  37. What next? • Security courses@CMU • 18730 – Introduction to Computer Security • Some overlap in topics; presentation focuses more on attacks and mechanisms, not security models and analysis • 18731 – Network Security • Not much overlap, except network security protocols • 18732 - Secure Software Systems • Complementary course on software security • 18733 – Applied Cryptography • Complementary course; details of crypto that we treated as black boxes (offered next semester) • 15-819 - Languages and Logics for Security • Reading seminar focused primarily on language-based security

  38. The End
