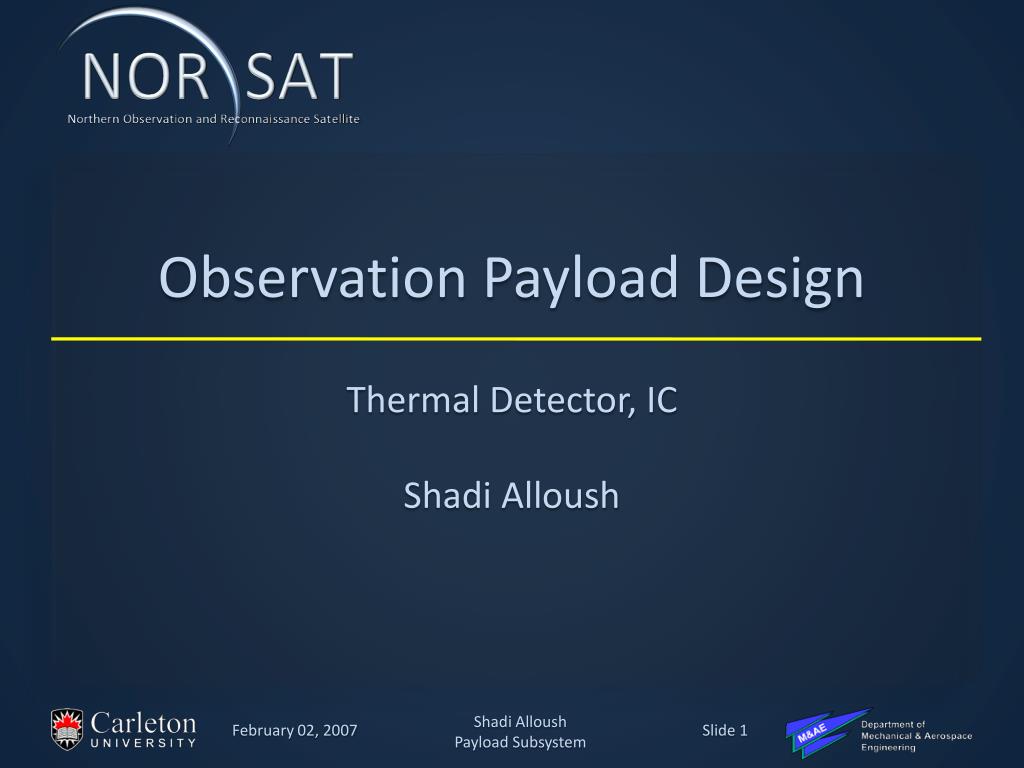

Observation Payload Design

Observation Payload Design. IRM160A Properties. 19,200 Pixels (160 x 120) Biases: 5 V & 75 mA Consumption: 0.375 Watts Operating Temperatures(TEC): 4  40 +/- 0.05K Thermal Conductance: 1E-05 W/K Heat Capacitance: 1E-07 J/K Accuracy: +/- 1 K Storage Temperatures: - 30  + 50 C.
