  1. UP - Series The next step in SSR Rotary Screw Air Compressor Technology MoveUPto a new standard of performance and value.

  2. The UP-Series has taken another step UP. Stage 1 - Original Range Available : 50Hz: UP5-15-7.5, 8.5, 10, 14 UP5-18-7.5, 8.5, 10, 14 UP5-22-7.5, 8.5, 10, 14 60Hz: UP6-20-125, 150, 200 UP6-25-125, 150, 200 UP6-30-125, 150, 200

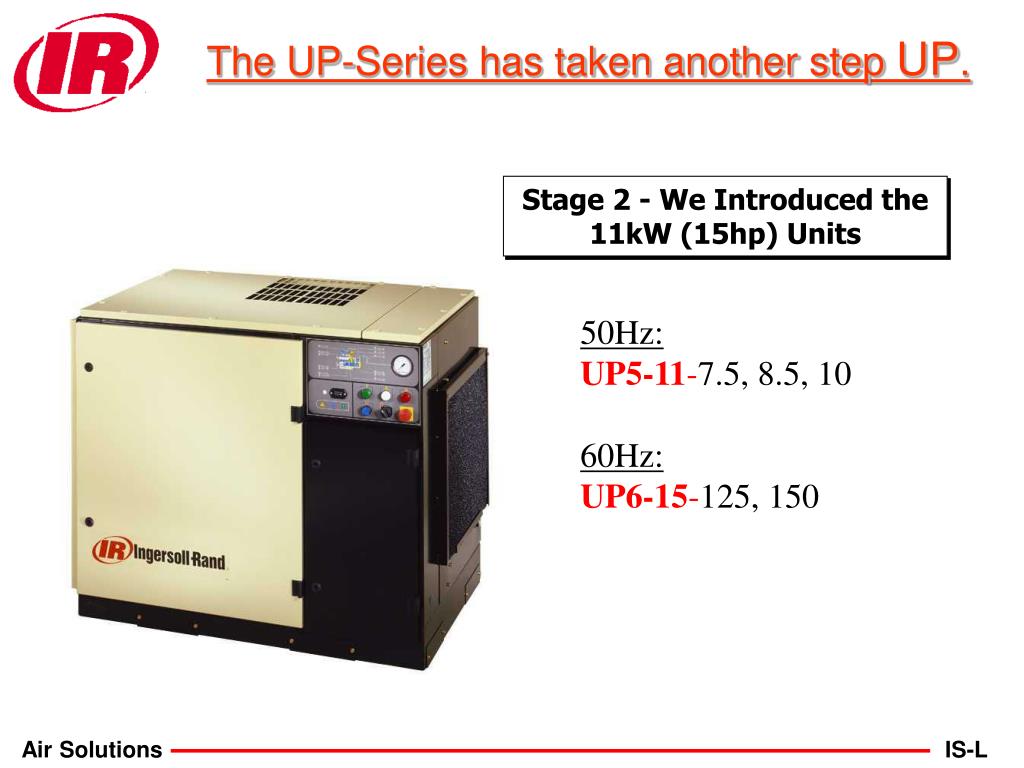

  3. The UP-Series has taken another step UP. Stage 2 - We Introduced the 11kW (15hp) Units 50Hz: UP5-11-7.5, 8.5, 10 60Hz: UP6-15-125, 150

  4. New Additions to the Range - Same Standard of Performance and Value: UP-Series has moved UP to the 30kW (40hp) range - Stage 3 - New Additions to Range Available 50Hz: UP5-22E-7.5, 8.5, 10, 14 UP5-30-7.5, 8.5, 10, 14 60Hz: UP6-30E-115,125, 150, 200 UP6-40-115,125, 150, 200

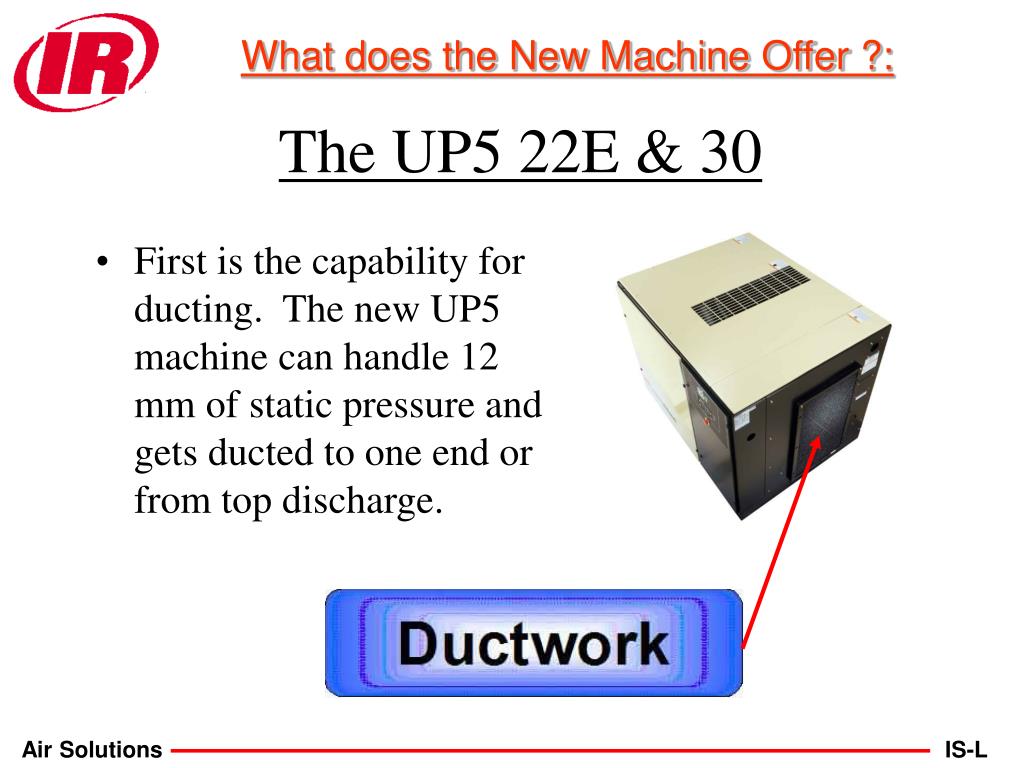

  5. What does the New Machine Offer ?: The UP5 22E & 30 • First is the capability for ducting. The new UP5 machine can handle 12 mm of static pressure and gets ducted to one end or from top discharge.

  6. The UP5 22E & 30 • Second is the Hot Box/Cold Box design of the UP5. • Cold Side • Motor • Cooling Circuit • Hot Side • Compression Circuit

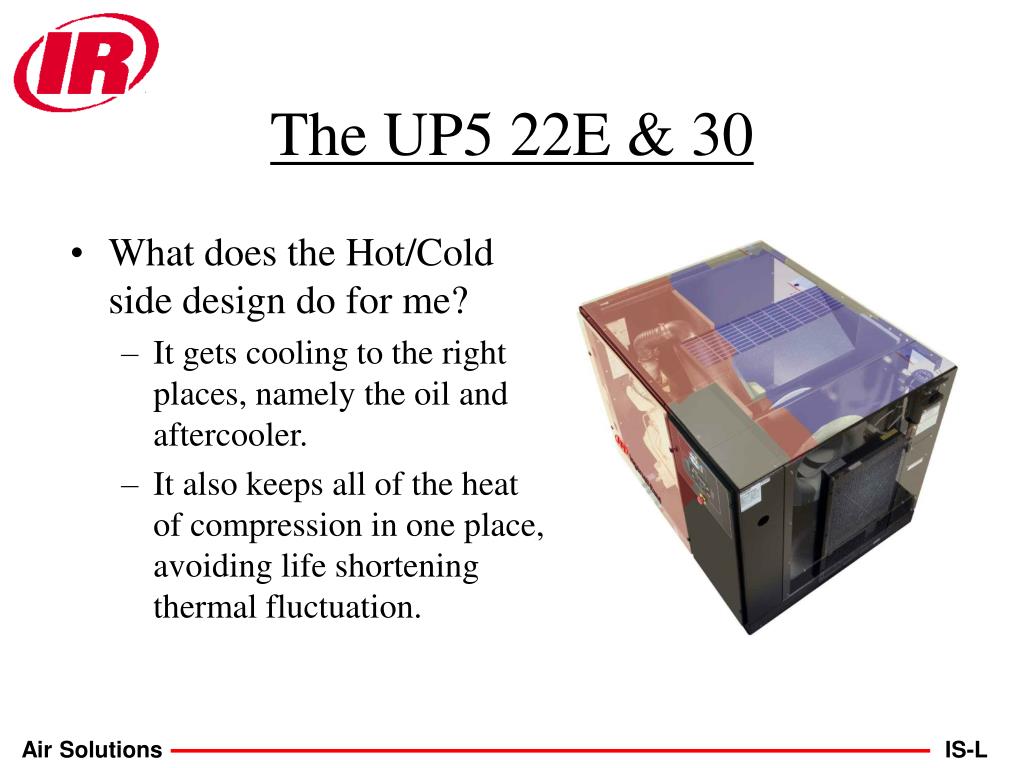

  7. The UP5 22E & 30 • What does the Hot/Cold side design do for me? • It gets cooling to the right places, namely the oil and aftercooler. • It also keeps all of the heat of compression in one place, avoiding life shortening thermal fluctuation.

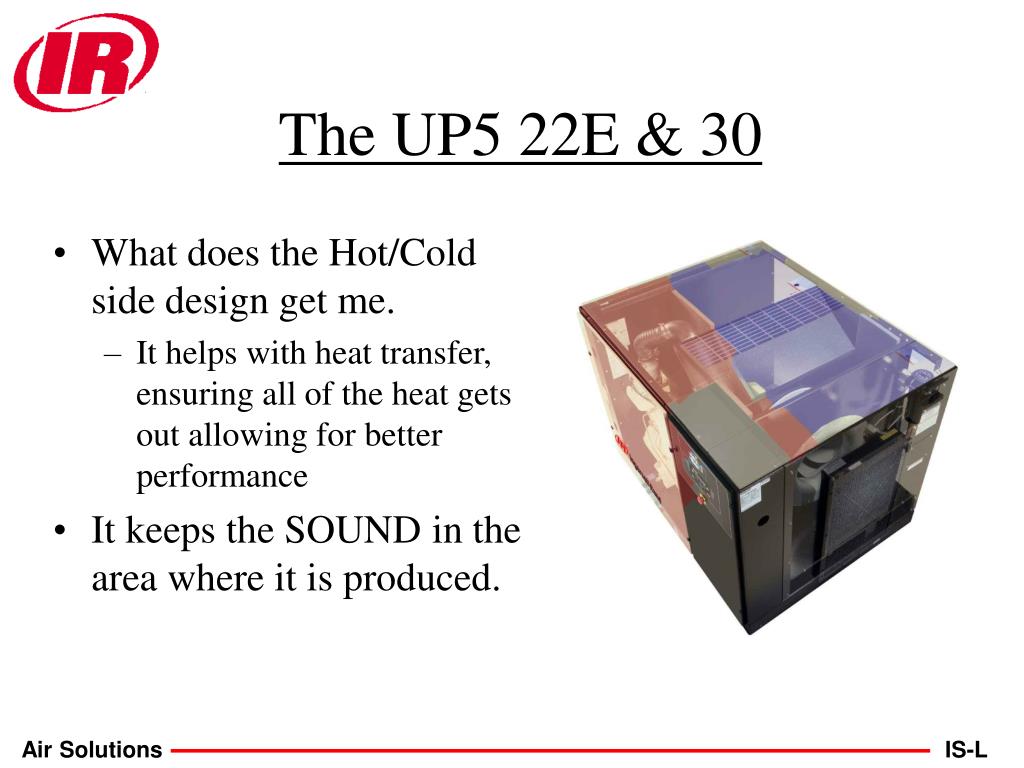

  8. The UP5 22E & 30 • What does the Hot/Cold side design get me. • It helps with heat transfer, ensuring all of the heat gets out allowing for better performance • It keeps the SOUND in the area where it is produced.

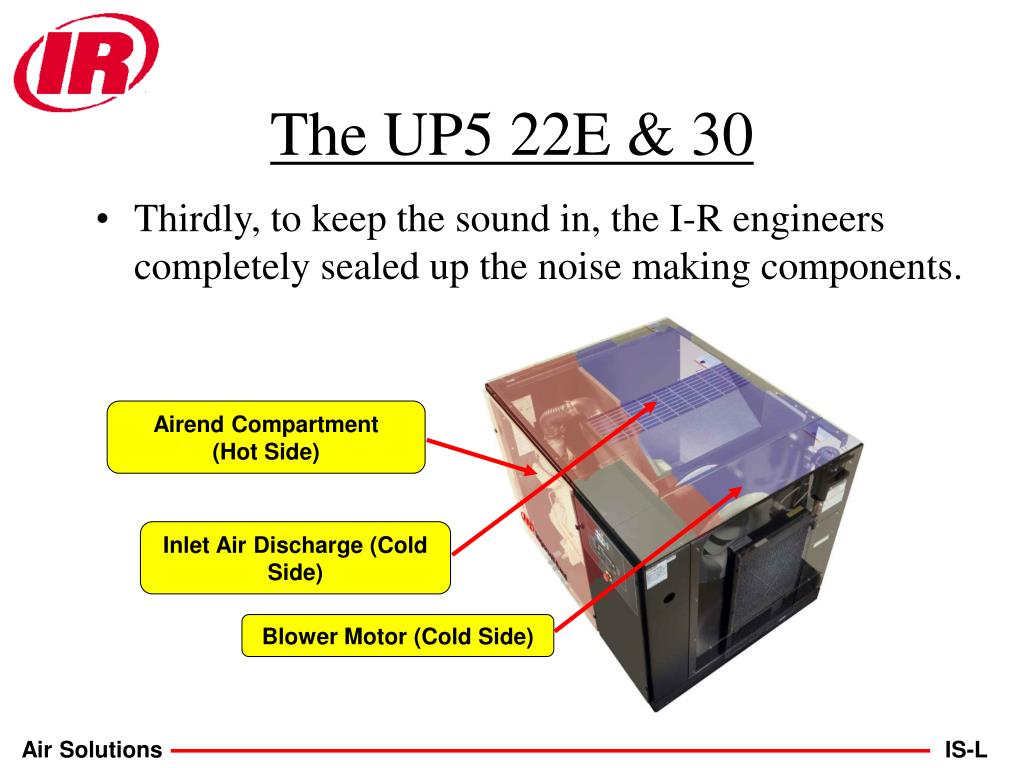

  9. The UP5 22E & 30 • Thirdly, to keep the sound in, the I-R engineers completely sealed up the noise making components. Airend Compartment (Hot Side) Inlet Air Discharge (Cold Side) Blower Motor (Cold Side)

  10. The UP5 22E & 30 • Remember the dB(A) rule of thumb? • For every 3 dB(A) reduction, the sound level is halved 69 dB(A) 73 dB(A) Less than HALF the SOUND LEVEL!

  11. UP - Series: • Class-leading Performance. • Lower Cost of Installation, Operation and Ownership. • Superior Efficiency and Reliability. • Reduced Maintenance. • Easy Service Access - Less Space Required. • Among the Quietest in its Class (69 dB(A) or less). • High Performance, Value Package. • Standardised 50 & 60 Hz Units. • Ultra-Plus Coolant. • Extension to the range - now 11 to 30 Kw. • I/R Award Winning. Presidents Award 2003

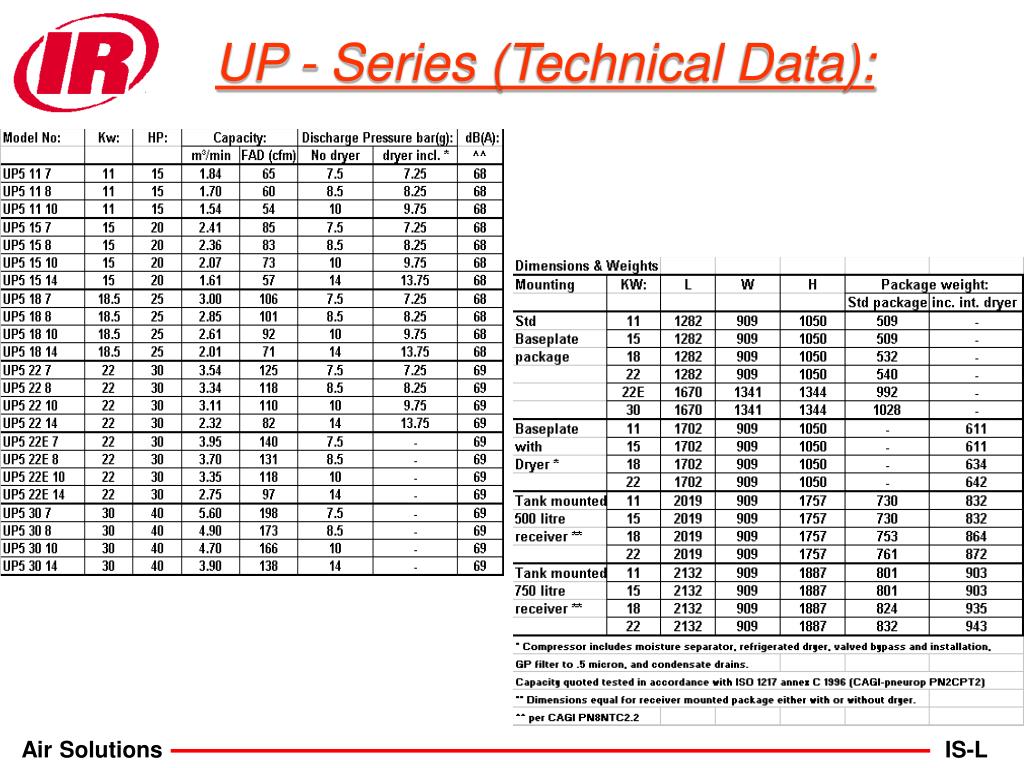

  12. UP - Series (Technical Data):

  13. UP - Series: Standard units as Launched • Base or Receiver Mounted Options (22E & 30 Base mounted only). • High Effy Motor EEF1. • 40°C Ambient (104°F). • High Ambient 50 °C (122 °F). Options Introduced • Outdoor Enclosure. • Frost Protection -10 °C. • Intellisys Controller. • Integrated dryer (11 - 22 Kw). • Modulation control • Power-out restart option

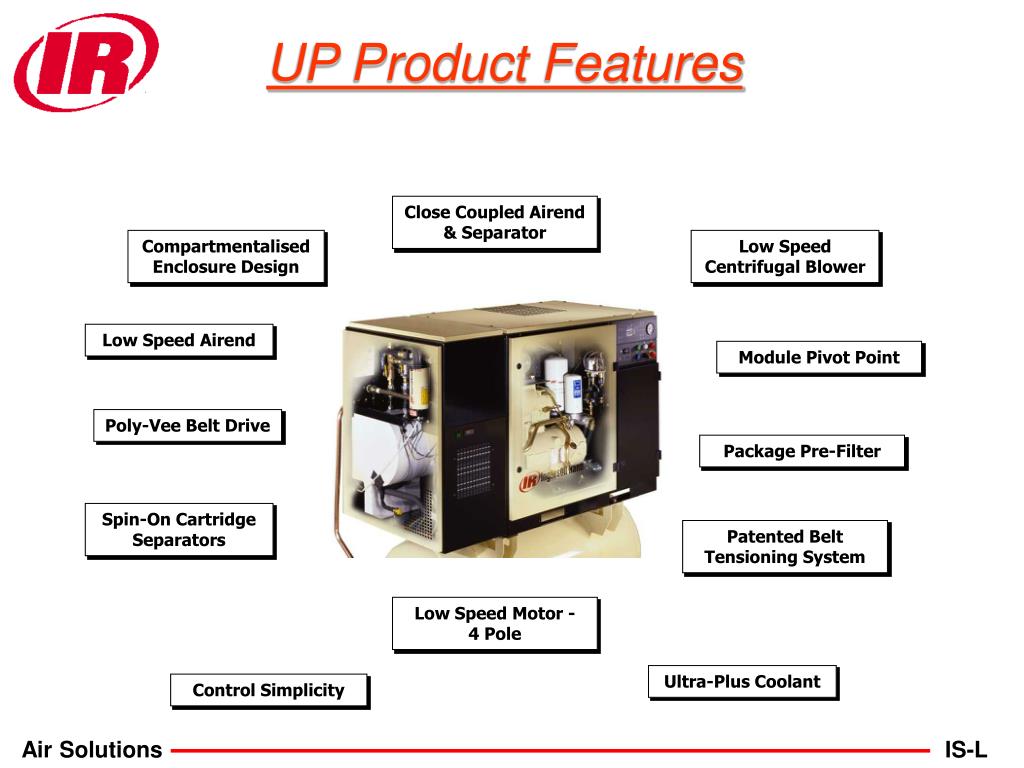

  14. UP Product Features Close Coupled Airend & Separator Compartmentalised Enclosure Design Low Speed Centrifugal Blower Low Speed Airend Module Pivot Point Poly-Vee Belt Drive Package Pre-Filter Spin-On Cartridge Separators Patented Belt Tensioning System Low Speed Motor - 4 Pole Ultra-Plus Coolant Control Simplicity

  15. Product Features : Low Speed Air-end Low Speed Motor Close Coupled Air-end and Separator Module Pivot Point

  16. Product Features : • Rigid flange bolted assembly with combination manifold for cartridge separator, oil filter, minimum pressure and thermostatic valve • Eliminates troublesome discharge pipes Close Coupled Air-end and Separator • Less pipe joints to maintain • Lower pressure loss improves efficiency Reduced Maintenance Costs

  17. Product Features : • Quiet in operation • High electrical efficiency (EFF1) Low Speed Motor - 4 pole. • Long bearing and insulation life Reduced Cost of Ownership

  18. Product Features : • High Volumetric Efficiency Low Speed Air-end • Large, low speed, low stress • Low noise operation • Reduced bearing loads • Built to last Reduced Cost of Ownership

  19. Product Features : Operational Reliability • Assured parallel shaft orientation • Low vibration levels • IR Patent belt tension control system (maintenance free) • Easy to service and install Module Pivot Point

  20. Product Features : Patented Belt Tensioning System High-Efficiency, Low Speed Air-end Poly-Vee Belt Drive Belts

  21. Product Features : Patented Belt Tensioning System • Maintenance free tensioning • Non-overloading, ensures long life motor and air-end bearings • No fall off in compressor performance

  22. Product Features : Poly-Vee Drive Proven Drive Technology • Single Belt • Automatic Tension • High Service Factor • Long life • Low noise • Separate enclosure

  23. Product Features : Single point cooling air intake and discharge Easy to duct cooling air Reduced total installation footprint High package efficiency Very Low Noise Levels LOWER INSTALLATION COST

  24. Product Features : Package Pre-Filter Protects machine from airborne particle contamination. Avoids cooler blockage. Easy to clean or replace. Reduces cost of maintenance. AVOIDS UNSCHEDULED DOWNTIME

  25. Cartridge Separator Cooler Cleaning Belt Change Pressure Switch Coolant Filter Air Filter & Indicator Electric Enclosure UP Coolant fill, drain & level Product Features : Easy access to all areas for service LOW FACILITY AND MAINTANENCE COSTS

  26. Cartridge Separator Belt Drive shafts Blower Cooler Pre-Filter Separator Blower intake cone Product Features :

  27. Product Features : Cartridge Separator High separation efficiency Simple and quick to change No pressure vessel or pipe work disruption Low pressure losses REDUCED MAINTENANCE COST

  28. Product Features : Cooling air flow segregated from machinery space Quiet in operation High-efficiency cooling ambient air passes through cooler directly out of package ‘Compartmentalised’ Enclosure Design

  29. Product Features : Low Speed Centrifugal Blower • Low Fan Noise • High back pressure capability • Simplifies ducting when required • Resistant to partial blockage of cooler • Managed, dedicated cooling air flow for machine space • Cooling air can easily be ducted RELIABILITY, EASE OF INSTALLATION, LOW NOISE

  30. Noise Levels : Among the quietest in its class - Power (kW) dB(A) 11 68 15 68 18.5 68 22 69 30 69

  31. Product Features : Control Simplicity • Electro Pneumatic Control • Auto Dual Control • Shutdown Protection • Discharge temperature • Motor Overload SIMPLE AND RELIABLE

  32. Product Features : Control Simplicity Run/Stop Selector Emergency Stop Re-set Button Pressure Gauge Signal Lights - Power on, auto-restart, alarm. Hour Meter Intake Filter (in Package) PORO Option Modulation Option

  33. Product Features : Control Simplicity Optional Intellisys Electronic Customer interface available • 2 Unit Sequence Interface • PCS Power Conservation • Management information • PORO Option SIMPLE AND RELIABLE

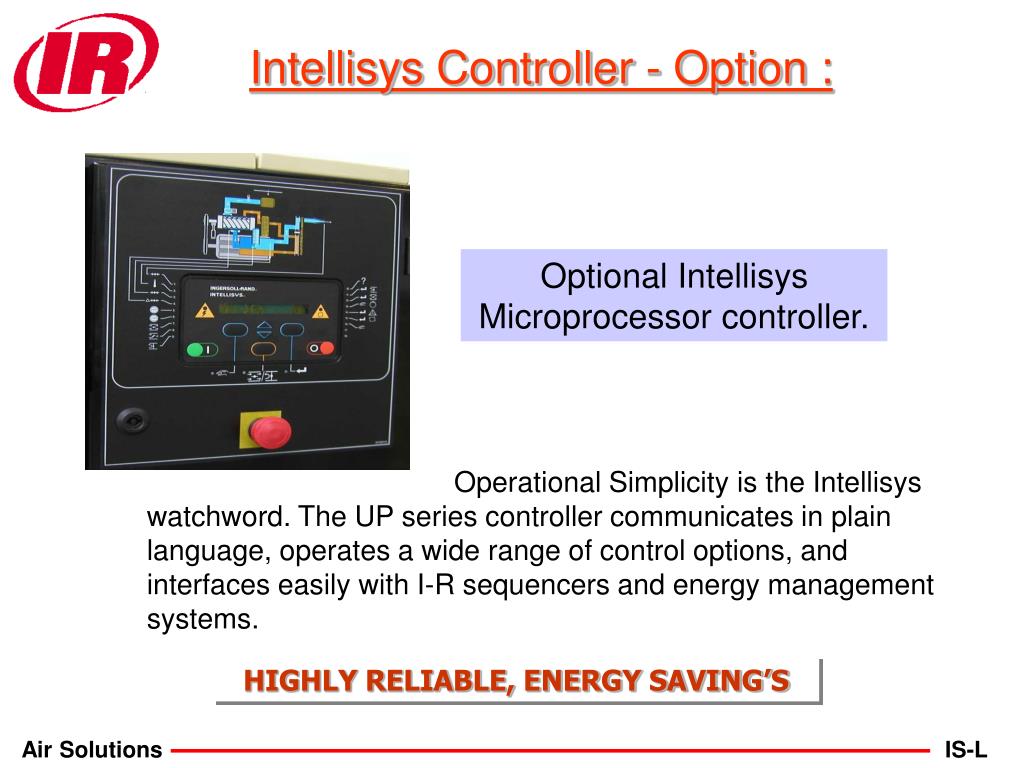

  34. Intellisys Controller - Option : Optional Intellisys Microprocessor controller. Operational Simplicity is the Intellisys watchword. The UP series controller communicates in plain language, operates a wide range of control options, and interfaces easily with I-R sequencers and energy management systems. HIGHLY RELIABLE, ENERGY SAVING’S

  35. Intellisys Control: Energy Saving with Intellisys Control Standard UP series load control is on/off line with auto stop and re-start. Intellisys option adds to value of this power saving control by allowing machine to stop 2 mins after unloading - provided total run time is sufficient to avoid excessive start on the motor. Also, two machines can be programmed to allow for sequencing, etc.. 100% on-line Power Off-line 0% Time

  36. UP-Series Taking the power of air to a new level.
