Fully Miscible Solution

Fully Miscible Solution. Simple solution system (e.g., Ni-Cu solution). Both have the same crystal structure (FCC) and have similar electronegativities and atomic radii ( W. Hume – Rothery rules ) suggesting high mutual solubility.

trory
Télécharger la présentation

Fully Miscible Solution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Fully Miscible Solution Simple solution system (e.g., Ni-Cu solution) • Both have the same crystal structure (FCC) and have similar electronegativities and atomic radii (W. Hume – Rothery rules) suggesting high mutual solubility. • Ni and Cu are totally miscible at all mixture compositions – isomorphous

  2. Copper-Nickel Binary Equilibrium Phase Diagram • Solid solutions are typically designated by lower case Greek letters: a, B, g, etc. • Liquidus line separates liquid from two phase field • Solidus line separates two phase field from a solid solution • Pure metals have melting points • Alloys have melting ranges What do we have? What’s the composition?

  3. T(°C) tie line liquidus L (liquid) 1300 a + L B solidus T B a a + L (solid) 1200 S R 20 3 0 4 0 5 0 C C C a L o wt% Ni The Lever Rule • Draw Tie line – connects the phases in equilibrium with each other - essentially an isotherm Derived from Conservation of Mass: (1) Wa + WL = 1 (2) WaCa + WLCL = Co Let W = mass fraction (amount of phase) Adapted from Fig. 9.3(b), Callister 7e.

  4. Example Calculation Cu-Ni system T(°C) C = 35 wt% Ni o liquidus L (liquid) 1300 a + L B T solidus B a a + L (solid) 1200 a At T : Both and L B 32 35 4 3 20 3 0 4 0 5 0 S = WL C C C a L o wt% Ni R + S R = = 27 wt% Wa R + S tie line S R

  5. Equilibrium Cooling in a Cu-Ni Binary • Phase diagram: Cu-Ni system. • System is: --binary i.e., 2 components: Cu and Ni. --isomorphous i.e., complete solubility of one component in another; a phase field extends from 0 to 100 wt% Ni. • Consider Co = 35 wt%Ni.

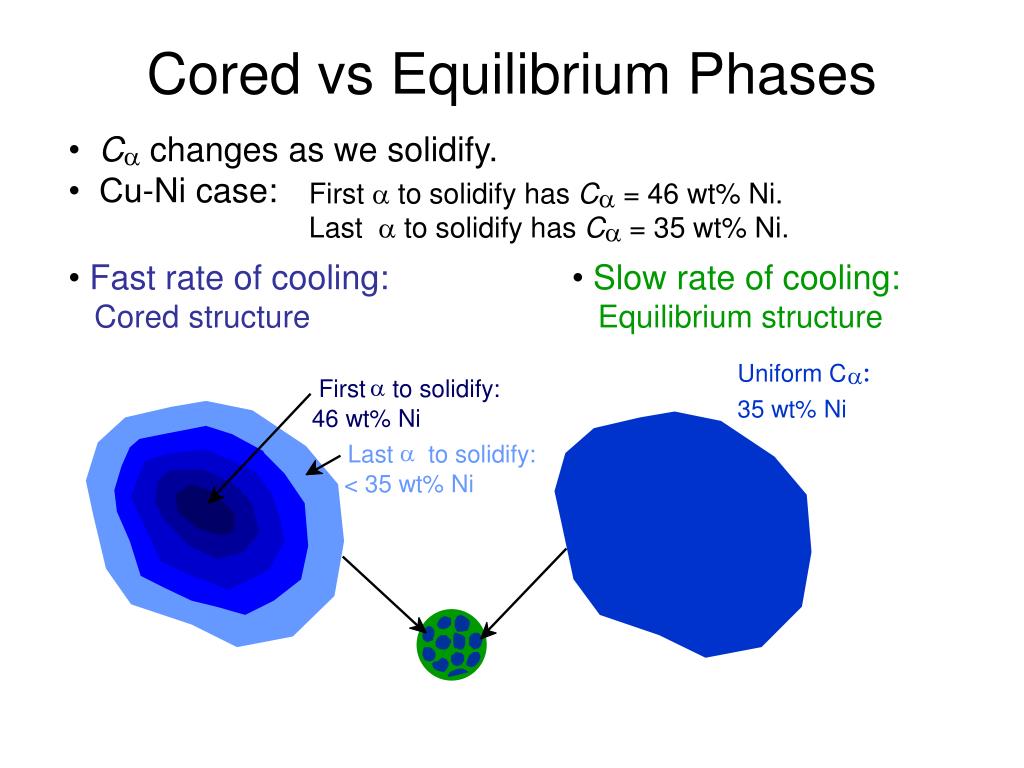

  6. Cored vs Equilibrium Phases Uniform C : a a First to solidify: 35 wt% Ni 46 wt% Ni a Last to solidify: < 35 wt% Ni • Ca changes as we solidify. • Cu-Ni case: First a to solidify has Ca = 46 wt% Ni. Last a to solidify has Ca = 35 wt% Ni. • Fast rate of cooling: Cored structure • Slow rate of cooling: Equilibrium structure

  7. 60 %EL for pure Cu 400 %EL for 50 pure Ni TS for Elongation (%EL) 40 pure Ni Tensile Strength (MPa) 300 30 TS for pure Cu 200 20 0 20 40 60 80 100 0 20 40 60 80 100 Cu Ni Cu Ni Composition, wt% Ni Composition, wt% Ni Mechanical Properties:Cu-Ni System • Effect of solid solution strengthening on: --Tensile strength (TS) --Ductility (%EL,%AR) --Peak as a function of Co --Min. as a function of Co

  8. Consider Pb-Sn System Simple solution system (e.g., Pb-Sn solution) 13.7% • W. Hume – Rothery Rules: • Atomic size is within 15% • Same electronegativity • Do not have same crystal structure Will have some miscibility, but will not have complete miscibility

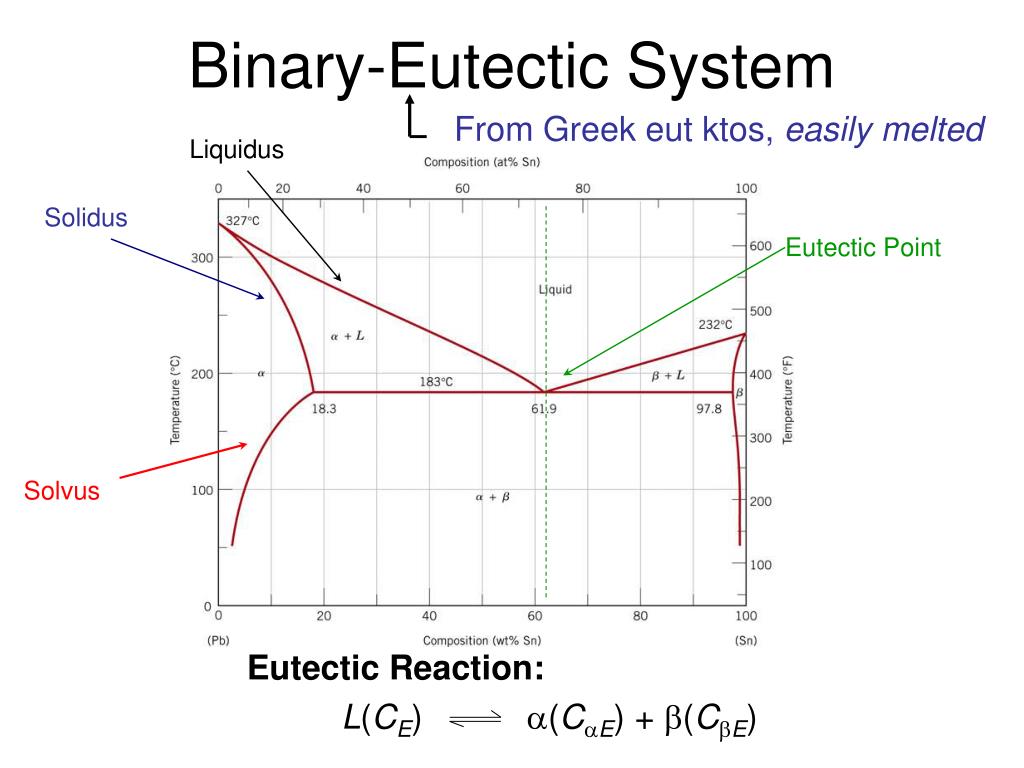

  9. Binary-Eutectic System Eutectic Reaction: L(CE) (CE) + (CE) From Greek eut ktos, easily melted Liquidus Solidus Eutectic Point Solvus

  10. Microstructural Evolution in Eutectic T(°C) L: Cowt% Sn 400 L a L 300 L a + a 200 (Pb-Sn a: Cowt% Sn TE System) 100 b + a 0 10 20 30 Co , wt% Sn Co 2 (room T solubility limit) Consider (1): Co < 2 wt% Sn Result: --at extreme ends --polycrystal of a grains i.e., only one solid phase.

  11. Microstructural Evolution in Eutectic L: Co wt% Sn T(°C) 400 L L 300 a L + a a: Cowt% Sn a 200 TE a b 100 b + a Pb-Sn system 0 10 20 30 Co , wt% Sn Co 2 (sol. limit at T ) 18.3 room (sol. limit at TE) • Consider (2): • 2 wt% Sn < Co < 18.3 wt% Sn • Result: • Initially liquid +  • then  alone • finally two phases • a polycrystal • fine -phase inclusions

  12. Microstructural Evolution in Eutectic Micrograph of Pb-Sn T(°C) eutectic L: Co wt% Sn microstructure 300 L Pb-Sn system a L + a b L 200 183°C TE 100 160m a : 97.8 wt% Sn : 18.3 wt%Sn 0 20 40 60 80 100 97.8 18.3 CE C, wt% Sn 61.9 Consider (3): Co = CE • Result: Eutectic microstructure (lamellar structure) --alternating layers (lamellae) of a and b crystals.

  13. Lamellar Eutectic Structure

  14. Microstructural Evolution in Eutectic L a L a R S S R a b + a primary a eutectic b eutectic 18.3 61.9 97.8 Consider (4): 18.3 wt% Sn < Co < 61.9 wt% Sn T(°C) L: Co wt% Sn Result: a crystals and a eutectic microstructure 300 L Pb-Sn system a L + a b b L + 200 TE 100 0 20 40 60 80 100 Co, wt% Sn

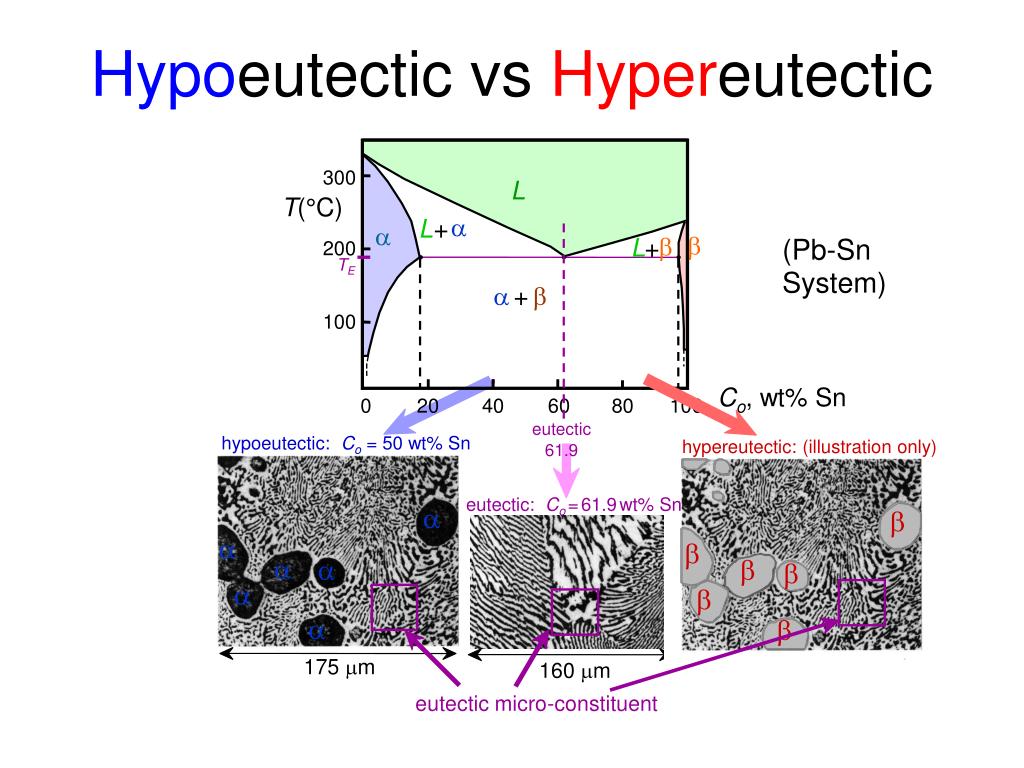

  15. Hypoeutectic vs Hypereutectic 300 L T(°C) a L + a b b L + (Pb-Sn 200 TE System) a + b 100 Co, wt% Sn 0 20 40 60 80 100 eutectic hypoeutectic: Co = 50 wt% Sn hypereutectic: (illustration only) 61.9 eutectic: Co=61.9wt% Sn a b a b a a b b a b a b 175 mm 160 mm eutectic micro-constituent
