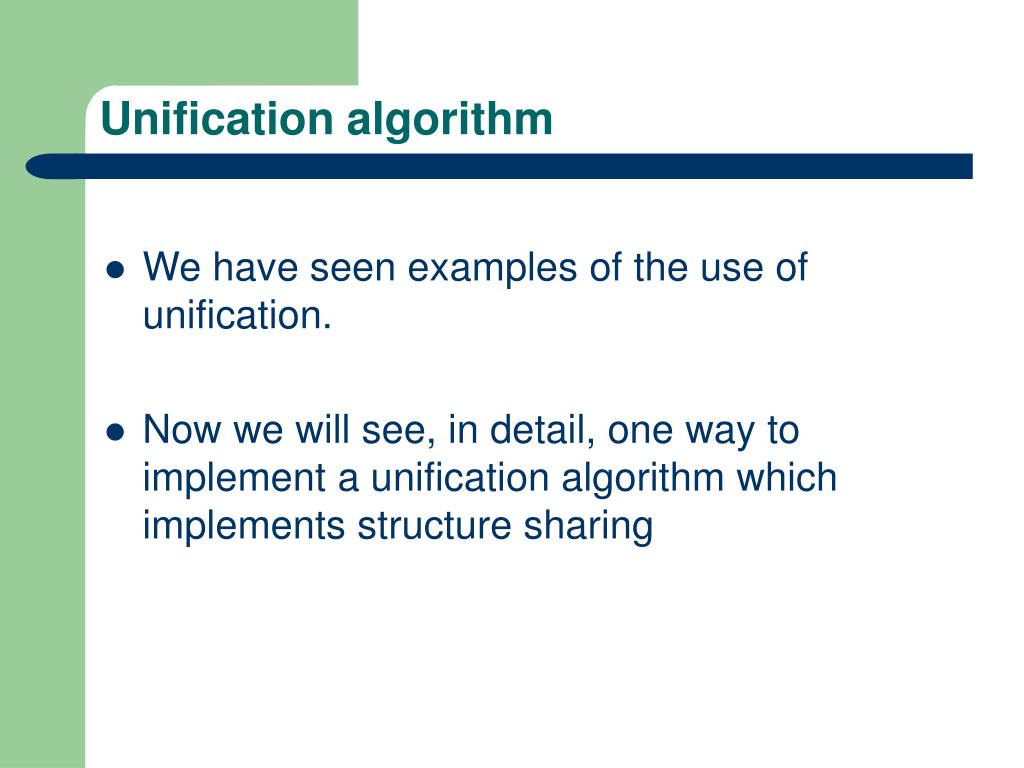

  1. Unification algorithm • We have seen examples of the use of unification. • Now we will see, in detail, one way to implement a unification algorithm which implements structure sharing

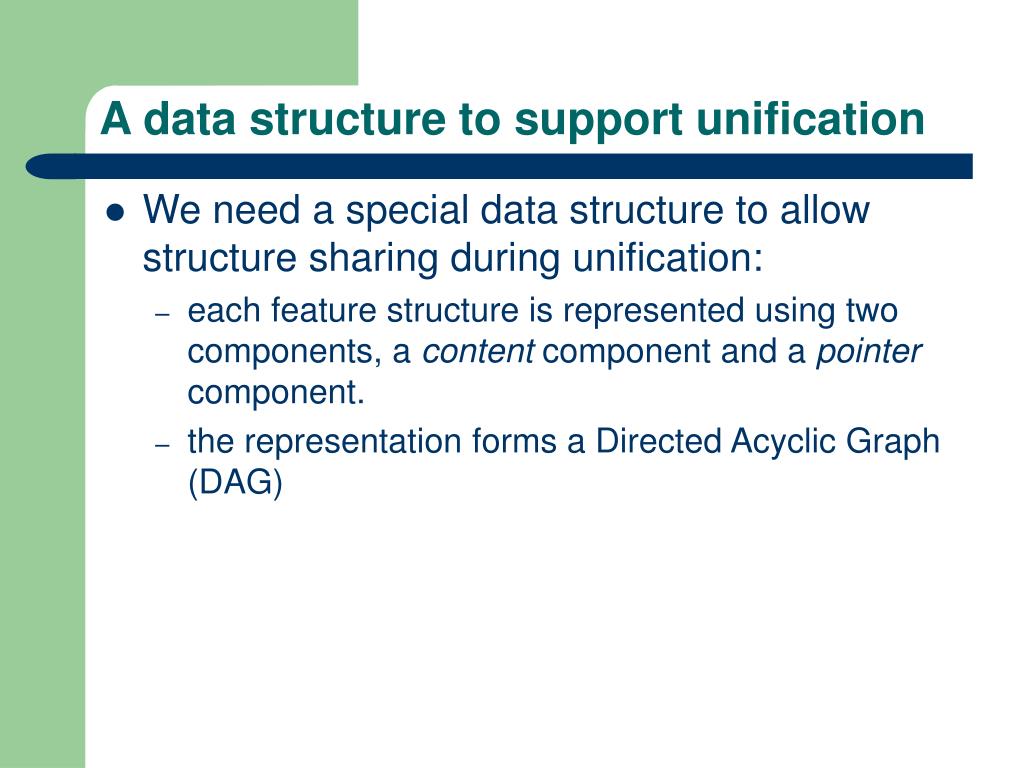

  2. A data structure to support unification • We need a special data structure to allow structure sharing during unification: • each feature structure is represented using two components, a content component and a pointer component. • the representation forms a Directed Acyclic Graph (DAG)

  3. CONTENT POINTER Example 1 • The DAG representation for a simple feature structure: [Number SG, Person 3] • Expand first to: [Content [Number [Content SG, Pointer NULL], Person [Content 3, Pointer NULL]], Pointer NULL] SG CONTENT NULL NUMBER POINTER PERSON CONTENT 3 POINTER NULL NULL

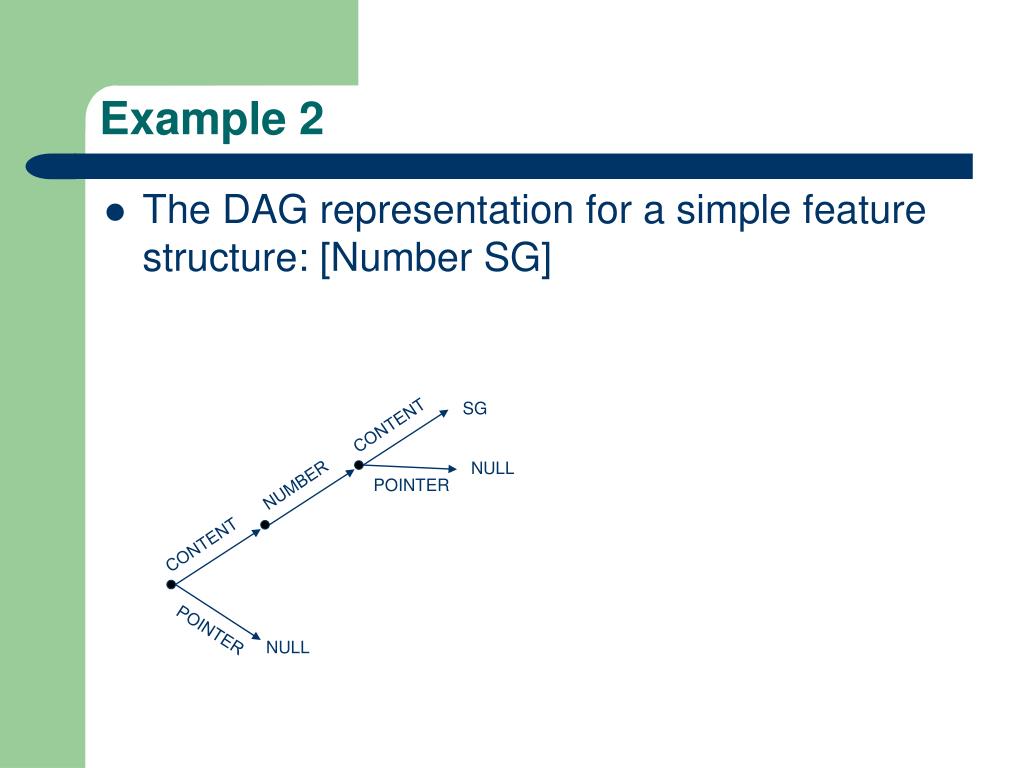

  4. CONTENT POINTER Example 2 • The DAG representation for a simple feature structure: [Number SG] SG CONTENT NULL NUMBER POINTER NULL

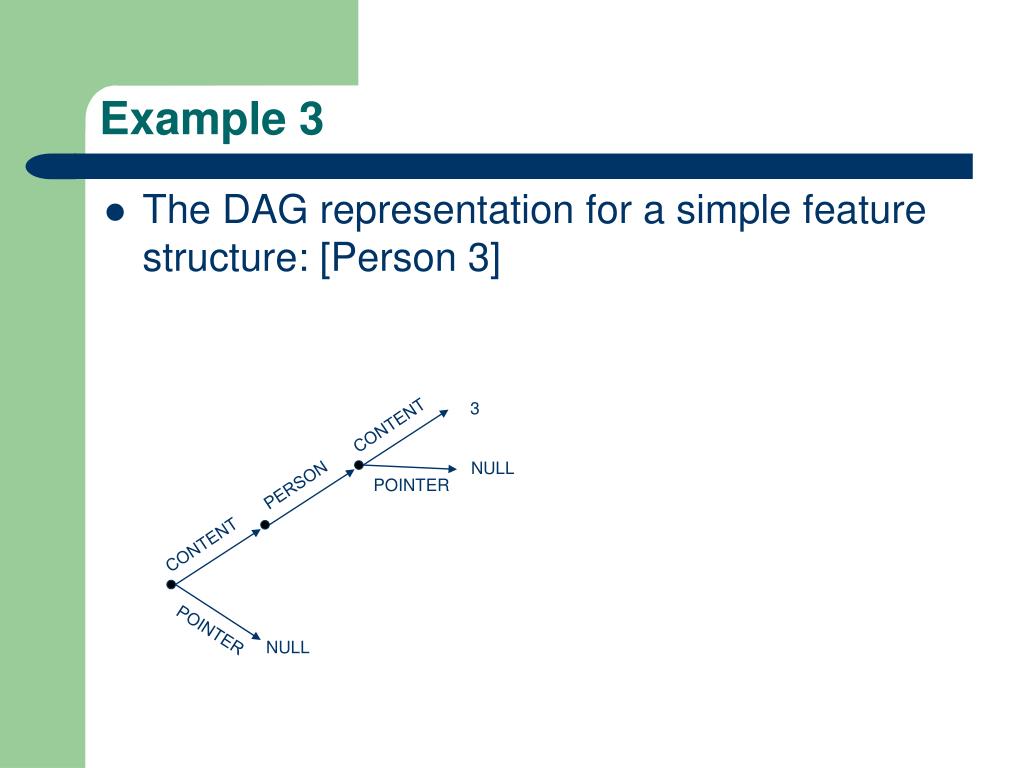

  5. CONTENT POINTER Example 3 • The DAG representation for a simple feature structure: [Person 3] 3 CONTENT NULL PERSON POINTER NULL

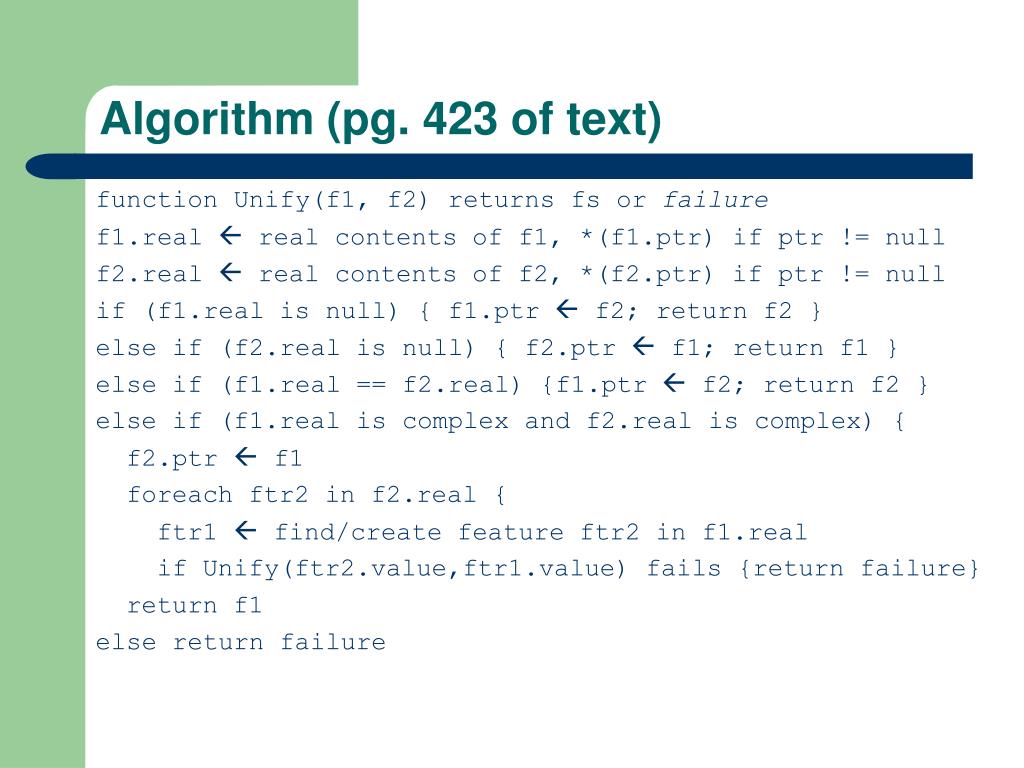

  6. Algorithm (pg. 423 of text) function Unify(f1, f2) returns fs or failure f1.real  real contents of f1, *(f1.ptr) if ptr != null f2.real  real contents of f2, *(f2.ptr) if ptr != null if (f1.real is null) { f1.ptr  f2; return f2 } else if (f2.real is null) { f2.ptr  f1; return f1 } else if (f1.real == f2.real) {f1.ptr  f2; return f2 } else if (f1.real is complex and f2.real is complex) { f2.ptr  f1 foreach ftr2 in f2.real { ftr1  find/create feature ftr2 in f1.real if Unify(ftr2.value,ftr1.value) fails {return failure} return f1 else return failure

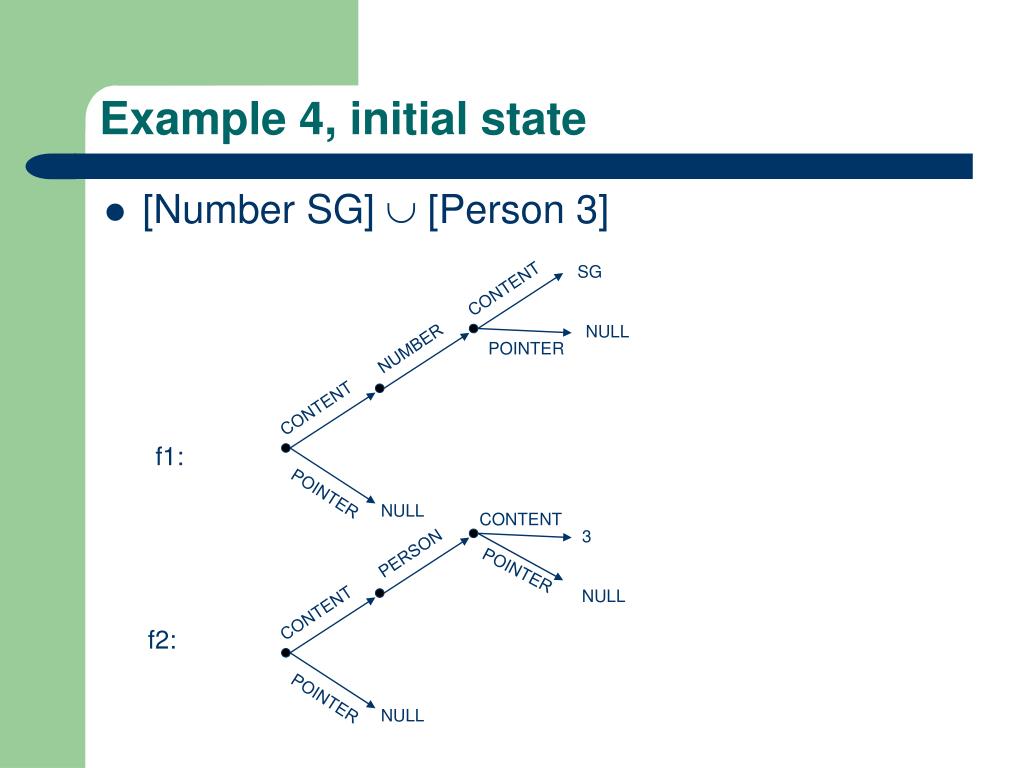

  7. CONTENT CONTENT POINTER POINTER Example 4, initial state • [Number SG]  [Person 3] SG CONTENT NULL NUMBER POINTER f1: NULL CONTENT 3 PERSON POINTER NULL f2: NULL

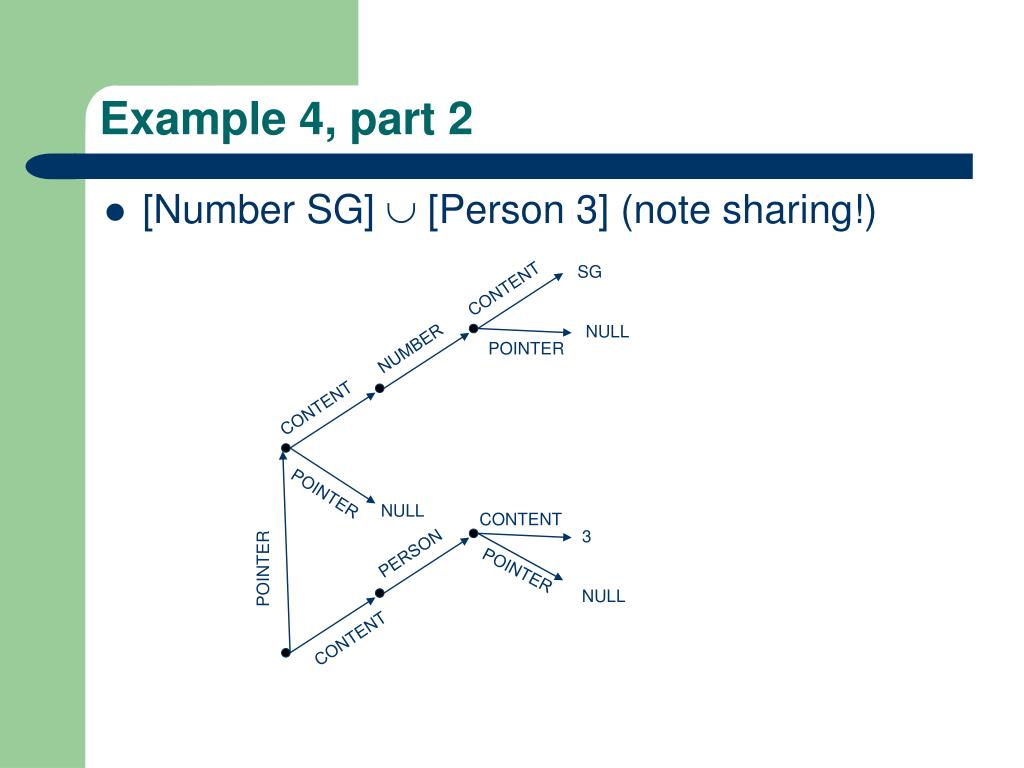

  8. Example 4, part 2 • [Number SG]  [Person 3] (note sharing!) SG CONTENT NULL NUMBER POINTER CONTENT POINTER NULL CONTENT 3 PERSON POINTER POINTER NULL CONTENT

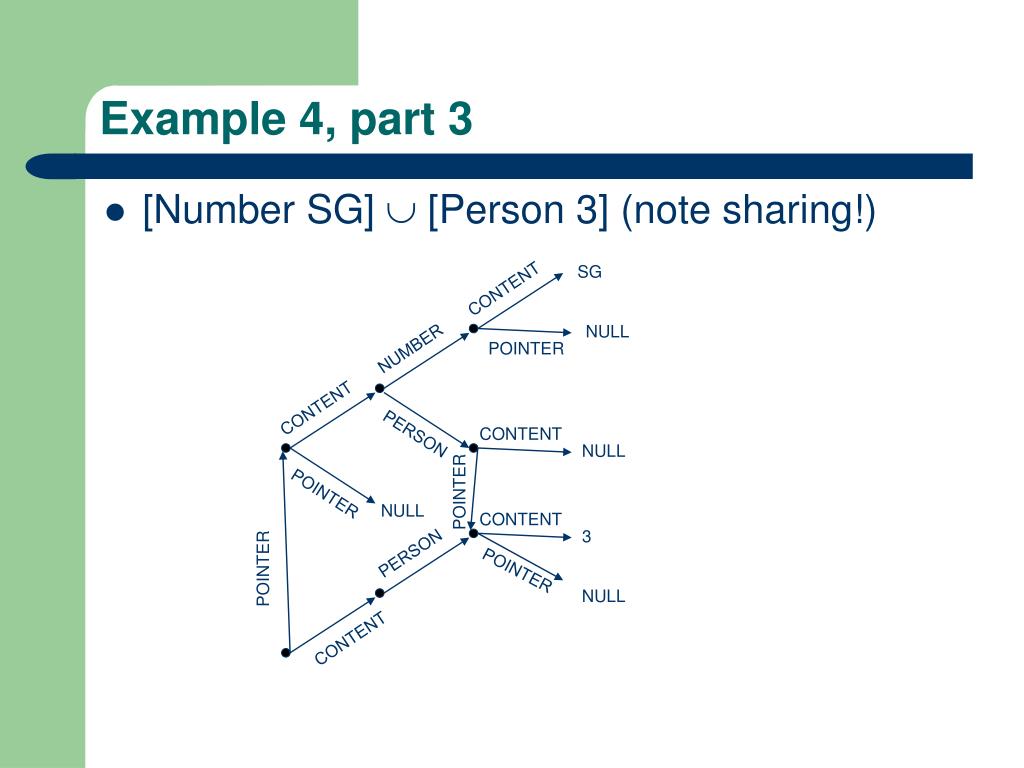

  9. Example 4, part 3 • [Number SG]  [Person 3] (note sharing!) SG CONTENT NULL NUMBER POINTER CONTENT PERSON CONTENT NULL POINTER POINTER NULL CONTENT 3 PERSON POINTER POINTER NULL CONTENT

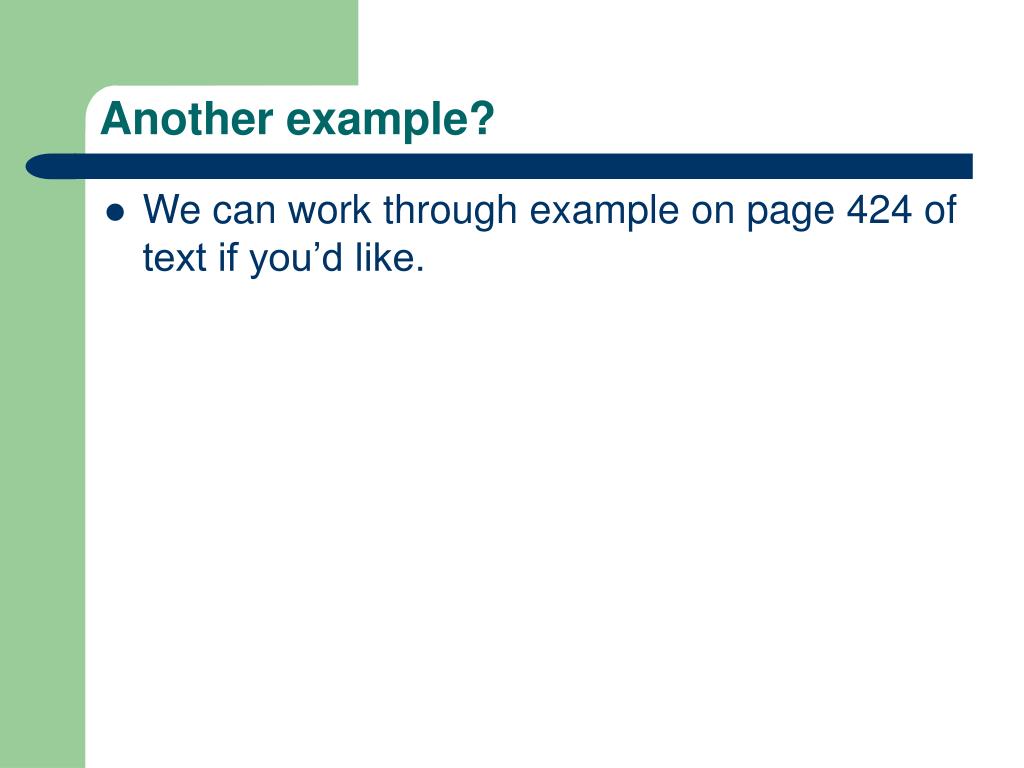

  10. Another example? • We can work through example on page 424 of text if you’d like.
