  1. Geometry of Bentsand Instrumentationfor Dynamic Tests Joshua Black and Sharon Wood Department of Civil, Architectural and Environmental Engineering University of Texas at Austin

  2. Overview • Bent Geometry • Instrumentation for Dynamic Tests

  3. Bent Geometry • Elevations of Bent 1 • Elevations of Bent 2 • Coordinate systems • Terminology

  4. Bent 1 Bent 2 Shaft 1W Shaft 1E Shaft 2S Shaft 2N

  5. Bent 1 24" 10'-0" 18" 12" 12" 6'-0" ~18" ~18" 12'-0" 6'-3" (a) Transverse Elevation (b) Longitudinal Elevation

  6. Bent 2 24" 10'-0" 18" 3'-0" 12" 12" ~18" ~18" 12'-0" 6'-3" (a) Transverse Elevation (b) Longitudinal Elevation

  7. Coordinate System – Bent 1 Project North 1W 1E x  z y z = 0 is at ground level

  8. Coordinate System – Bent 2 Project North x  2N z y 2S z = 0 is at ground level

  9. Terminology Longitudinal Response of Bridge Transverse Response of Bridge

  10. Instrumentation • Accelerometers and geophones • Strain gages

  11. Bent 1 Geo1E Geo1W Acc1W Acc1E 3D Accelerometer 3D Geophone GeoG1 Geophone 15 Geophone 23 Geophone 14 Geophone 24 Shaft 1W Shaft 1E

  12. Bent 2 Geo2S Geo2N Acc2N Acc2S 3D Accelerometer GeoG2 3D Geophone Geophone 17 Geophone 27 Geophone 26 Geophone 18 Shaft 2N Shaft 2S

  13. 3D Accelerometers (±2g)

  14. Local axes of accelerometers are shown. Data are presented in terms of the global coordinates in data files. z y 1W 1E x Acc1E x x z y z y z z Acc1W y x y Orientation of Accelerometers Acc2N x Project North 2N 2S x Acc2S y z

  15. 3D Geophones (Bent 1) Geo1W Geo1E

  16. 3D Geophones (Bent 2) Geo2N Geo2S

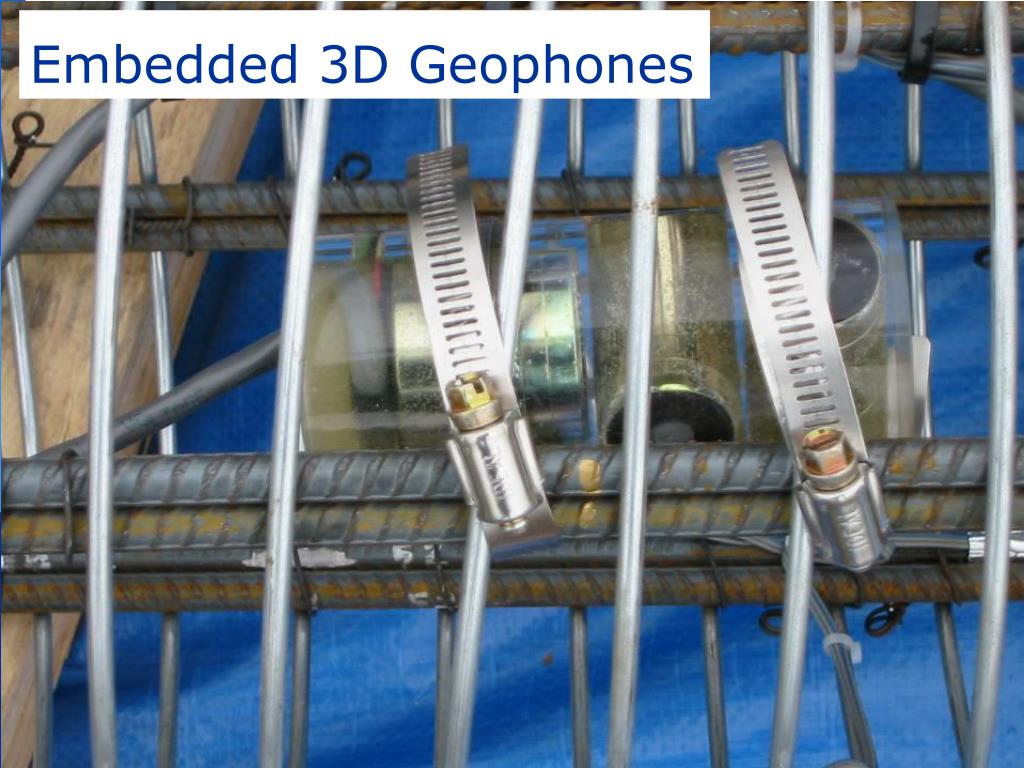

  17. Embedded 3D Geophones

  18. T 2N L Geo2N 1W 1E x L L x T T z z y Geo1W Geo1E y 2S L Geo2S T Orientation of Geophones Project North • Local axes of geophones are shown. • Data are expressed in terms of the global coordinates in data files.

  19. Strain Gages • Strain gages were attached to the surface of the longitudinal reinforcing bars. • Each strain gage is located using three parameters: • Column • Orientation of longitudinal reinforcement • Vertical distance from grade • Example: • Strain gage 2S:225:024 • Column 2S, Bar orientation 225°, 24 in. below grade

  20. 270 315 225 0 x 180 z  135 45 90 y Orientation of Reinforcement • Coordinate system used to define orientation of reinforcement is same as coordinate system used to define configuration of bent. • Each pair of longitudinal bars is defined byangle θ.  x 0 45 315 z 90 y 270 135 225 180 Bent 1 Bent 2

  21. Instrumented Reinforcement

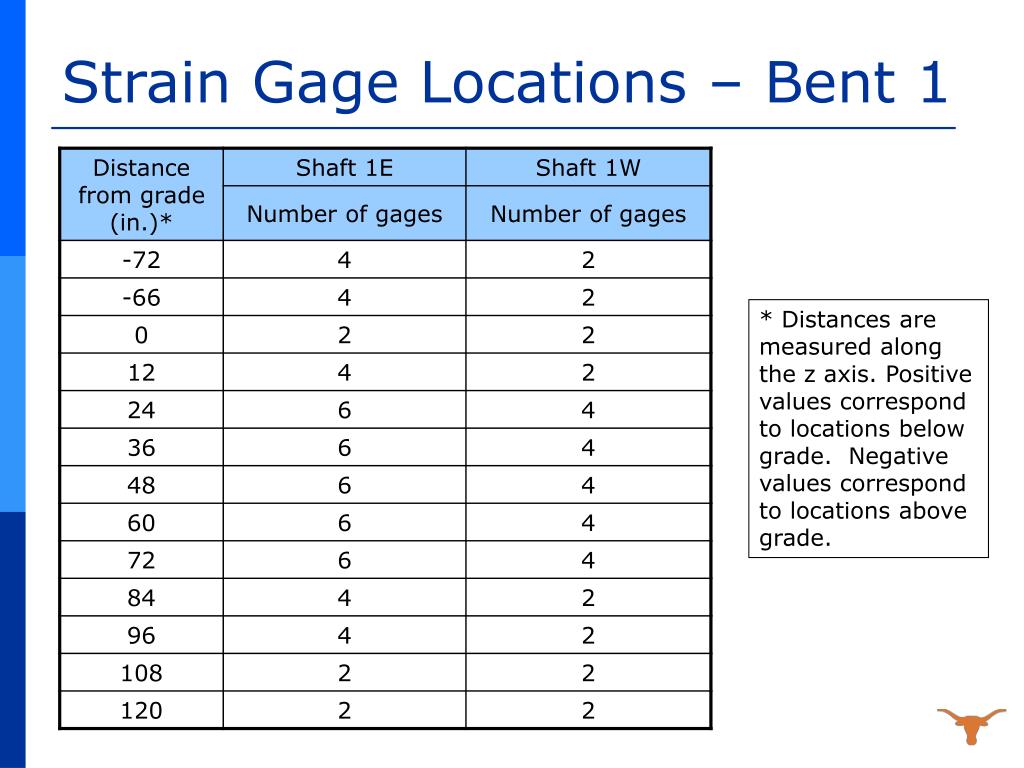

  22. Strain Gage Locations – Bent 1 * Distances are measured along the z axis. Positivevalues correspond to locations below grade. Negative values correspondto locations above grade.

  23. Instrumented Reinforcement

  24. Strain Gage Locations – Bent 2 * Distances are measured along the z axis. Positivevalues correspond to locations below grade. Negative values correspondto locations above grade.
