  1. Chapter 6.5 Distributed File Systems Summary JunfeiWen Fall 2013

  2. Outline • 6.1 Characteristics of DFS • 6.2 DFS Design and Implementation • 6.3 Transaction and Concurrency Control • 6.4 Data and File Replication • Current Work • Future Work

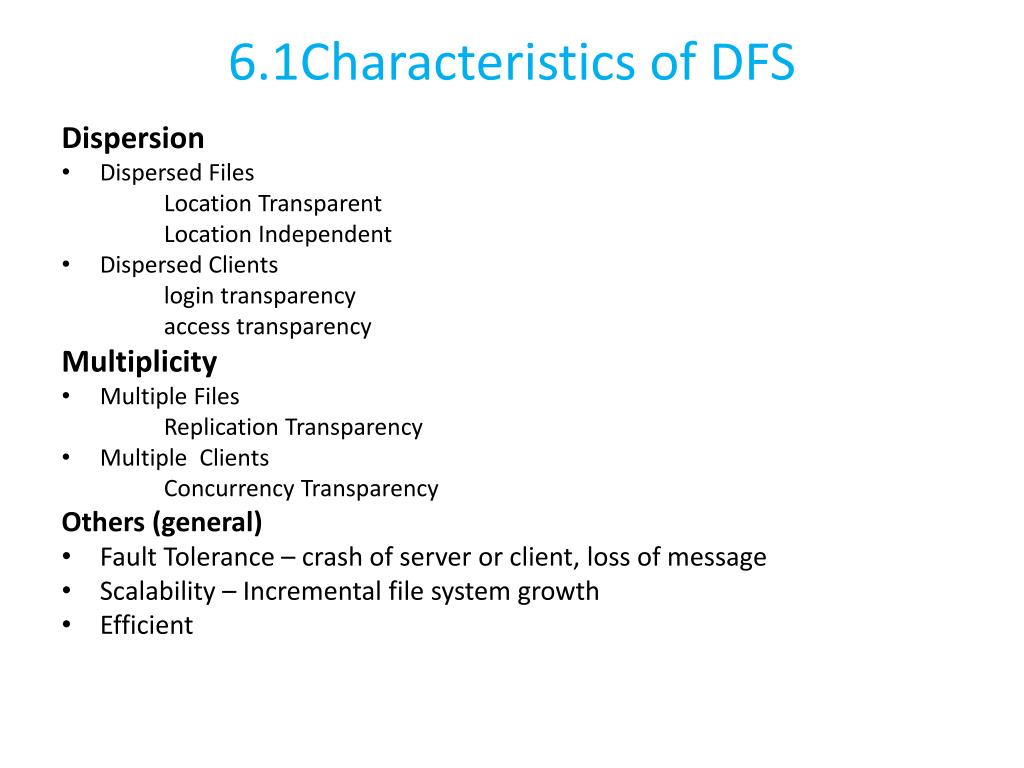

  3. 6.1Characteristics of DFS Dispersion • Dispersed Files Location Transparent Location Independent • Dispersed Clients login transparency access transparency Multiplicity • Multiple Files Replication Transparency • Multiple Clients Concurrency Transparency Others (general) • Fault Tolerance – crash of server or client, loss of message • Scalability – Incremental file system growth • Efficient

  4. 6.2DFS Design and Implementation • Hierarchy files structure • File mounting protocol • Explicit mounting, manual • Boot mounting, boot up time mounting • Auto mounting, mounting at use • Distribute state information between server and clients. Stateless or stateful server

  5. File access • Space multiplexing, multiple copy of file • Remote access • Cache access • Download/upload access • Time multiplexing, concurrent control. Same file different time • Simple RW • Transaction • session • File sharing semantics • Unix, update propagated immediately • Session, delayed update • Transaction, delayed update

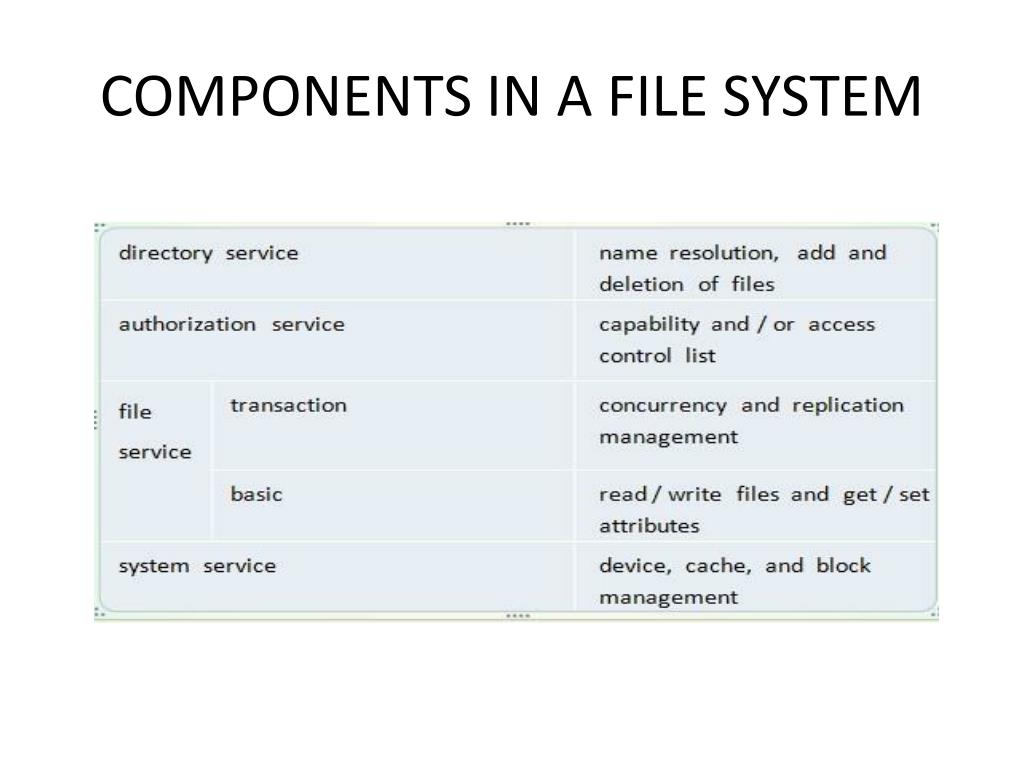

  6. COMPONENTS IN A FILE SYSTEM

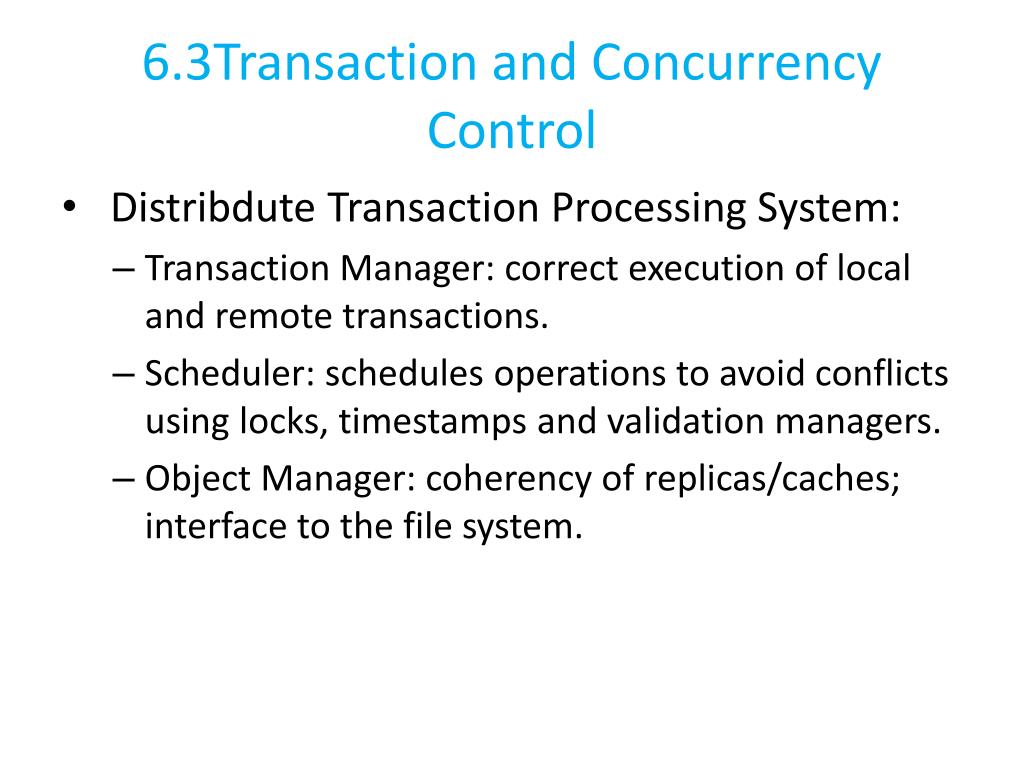

  7. 6.3Transaction and Concurrency Control • Distribdute Transaction Processing System: • Transaction Manager: correct execution of local and remote transactions. • Scheduler: schedules operations to avoid conflicts using locks, timestamps and validation managers. • Object Manager: coherency of replicas/caches; interface to the file system.

  8. Serializability: A schedule is Serializable if the result of execution is equivalent to that of a serial schedule. • Concurrency Control Protocol required to maintain ACID Semantics for Concurrent transactions. • Two phase locking • Timestamp ordering • Optimistic

  9. 6.4Data and File Replication • Architecture • Client chooses one / more FSA to access data object. • FSA acts as front end to replica managers RMs to provide replication transparency. • FSA contacts one or more RMs for actual updating and reading of data objects.

  10. One-copy Serializability: • The execution of transaction on replicated objects is equivalent to the execution of the same transactions on non-replicated objects • Read Operations : Read-one-primary, Read-one ,Read-quorum • Write Operations:Write-one-primary,Write-all,Write-all-available,Write-quorum,Write-gossip

  11. Quorum Voting : Uses Read Quorum, Write Quorum • Write-write conflict: 2 * Write quorum > all object copies • Read-write conflict: Write quorum + read quorum > all object copies. • Gossip Update Propagation: • Read: if TSfsa<=TSrm, RM has recent data, return it, otherwise wait for gossip, or try other RM • Update :if Tsfsa>TSrm, update. Update TSrm send gossip. Otherwise, process based on application, perform update or reject • Gossip : update RM if gossip carries new updates.

  12. Current work • A Distributed Cache for Hadoop Distributed File System in Real-Time Cloud Service • Intensive Workload Consolidation for the Hadoop Distributed File Systems • An integrated high-performance distributed file system implementation on existing local network • A Cost-Effective File Lookup Service in a Distributed Metadata File System • The Mobile Agent-based Distributed Network File system

  13. Future work • Innovations in the area of security for Distributed/Cloud Computing • Improve efficiency of Parallel/Distributed system Concurrency control protocol • Improve Efficiency and Effectiveness of file replication scheme • Integrate File Replication and Consistency Maintenance

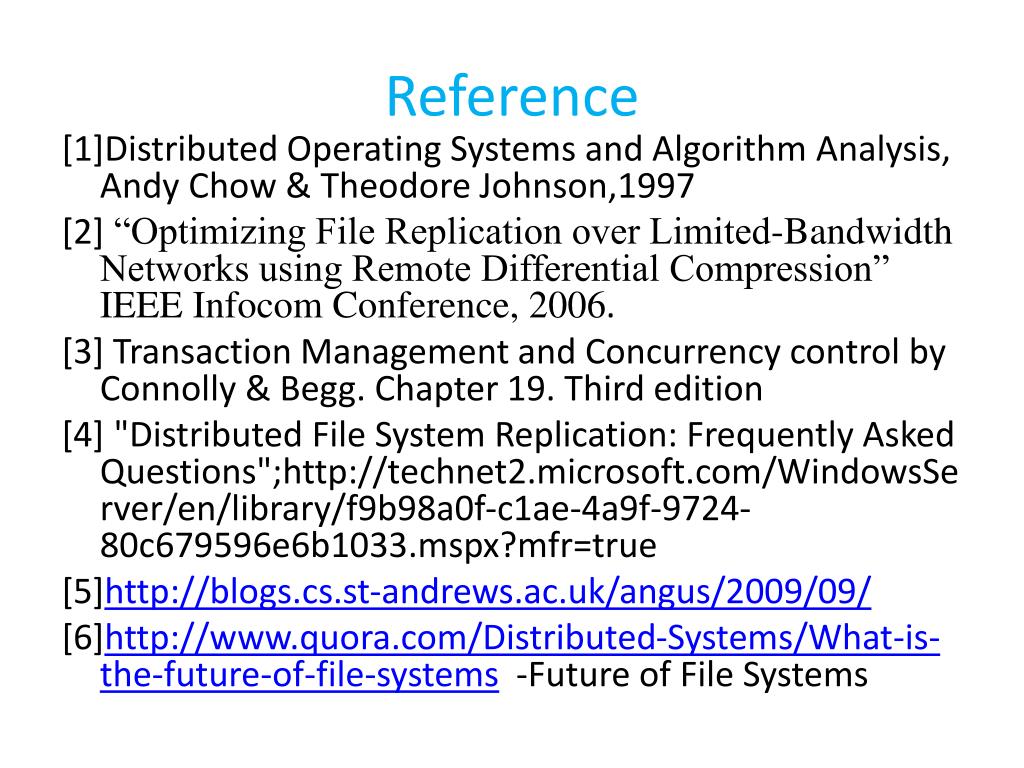

  14. Reference [1]Distributed Operating Systems and Algorithm Analysis, Andy Chow & Theodore Johnson,1997 [2] “Optimizing File Replication over Limited-Bandwidth Networks using Remote Differential Compression” IEEE Infocom Conference, 2006. [3] Transaction Management and Concurrency control by Connolly & Begg. Chapter 19. Third edition [4]"Distributed File System Replication: Frequently Asked Questions";http://technet2.microsoft.com/WindowsServer/en/library/f9b98a0f-c1ae-4a9f-9724-80c679596e6b1033.mspx?mfr=true [5]http://blogs.cs.st-andrews.ac.uk/angus/2009/09/ [6]http://www.quora.com/Distributed-Systems/What-is-the-future-of-file-systems -Future of File Systems

  15. Thank you！
