Presentation Transcript

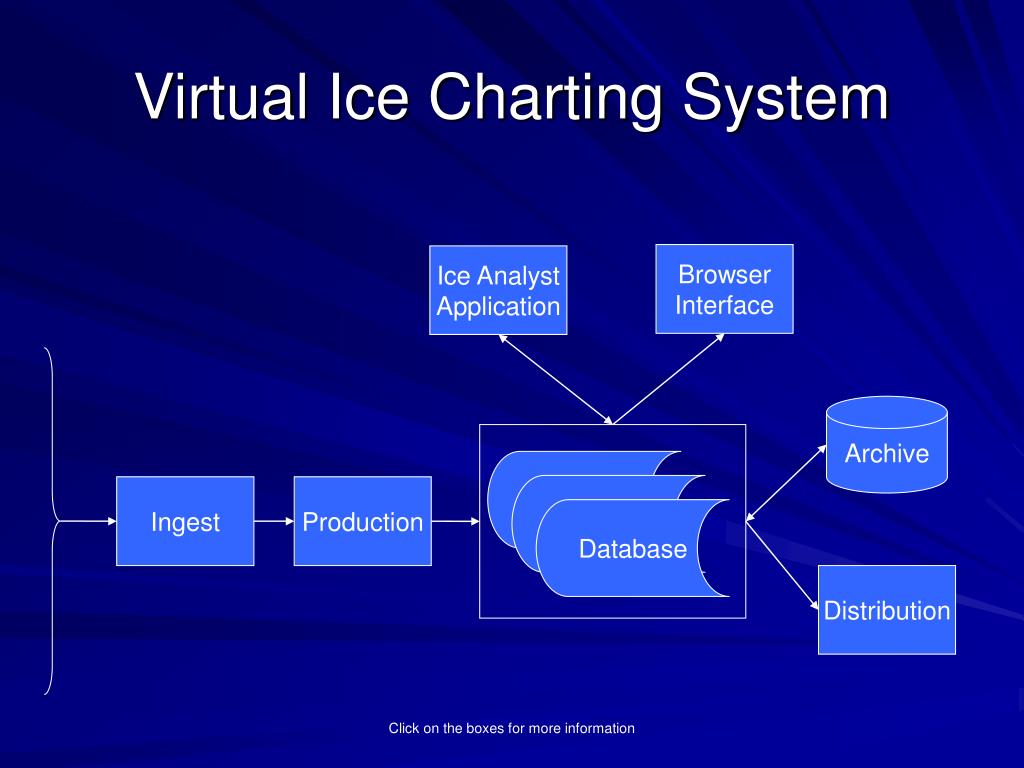

  1. Database Database Database Virtual Ice Charting System Browser Interface Ice Analyst Application Archive Ingest Production Distribution Click on the boxes for more information

  2. Ingest Data from different sources are ingested and made ready for further production, including formatting.

  3. Production Production includes rectification, compositing (spectral, spatial and time), value adding, e.g. production of SST fields and SAR filtering.

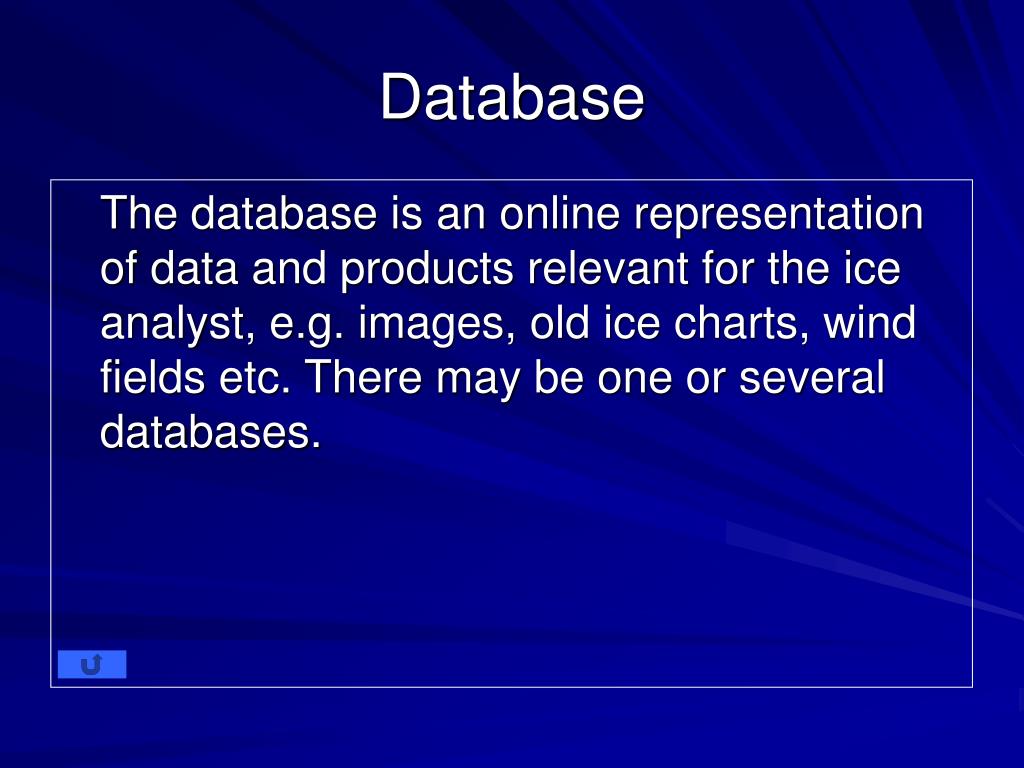

  4. Database The database is an online representation of data and products relevant for the ice analyst, e.g. images, old ice charts, wind fields etc. There may be one or several databases.

  5. Archive Holds the offline data and product catalogue.

  6. Distribution Methods for distribution of data and products to end users.

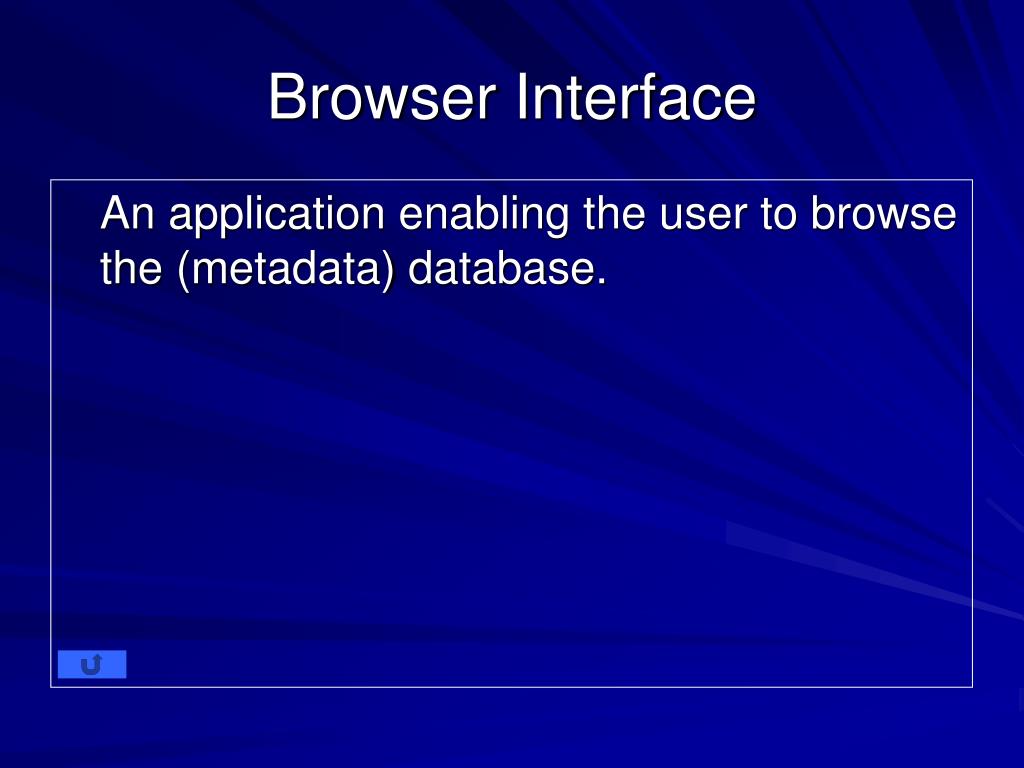

  7. Browser Interface An application enabling the user to browse the (metadata) database.

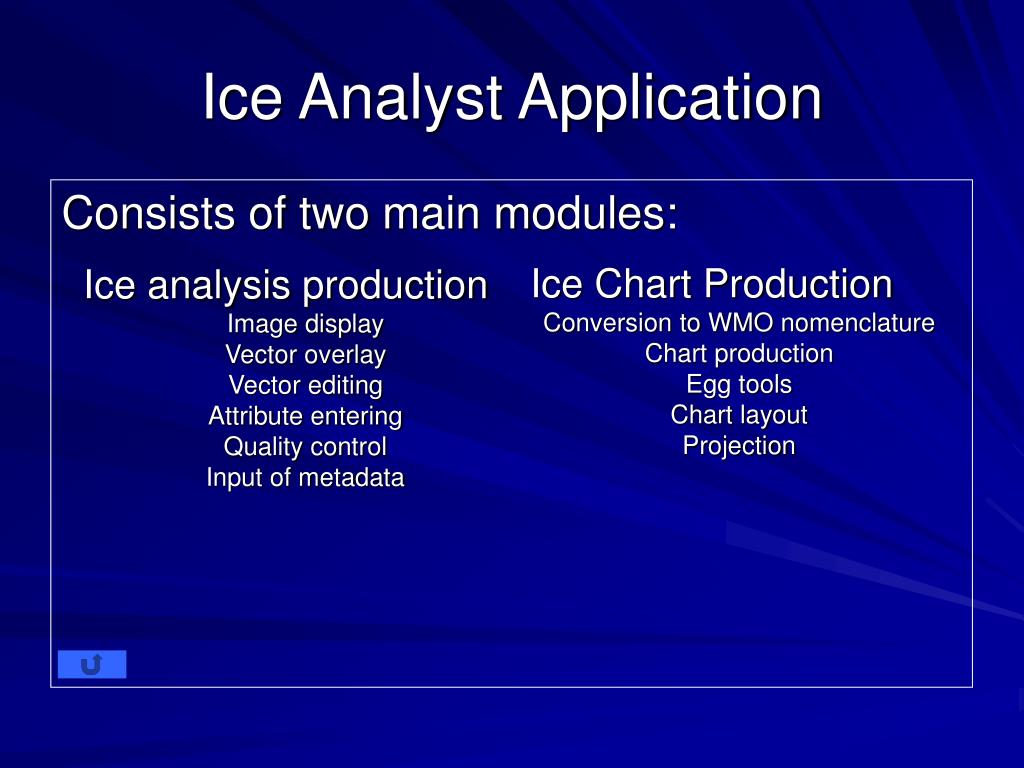

  8. Ice Analyst Application Consists of two main modules: Ice Chart Production Conversion to WMO nomenclature Chart production Egg tools Chart layout Projection Ice analysis production Image display Vector overlay Vector editing Attribute entering Quality control Input of metadata
