  1. Genetic Programming Primerami hauptman

  2. Outline • Intro • GP definition • Human Competitive Results • Representation • Advantages • GP operators • The GP Individual • The GP experiment • Example – symbolic regression • Additional Concepts

  3. Intro • Representation is a crucial issue in problem-solving • Part of the solution • Generic GAs • Linear (bit-vector) solutions • Fixed length • Problems: • Often difficult and unnatural • Limited search; Length may be unknown • Examples – TSP; AI; … • Very few “real world” implementations

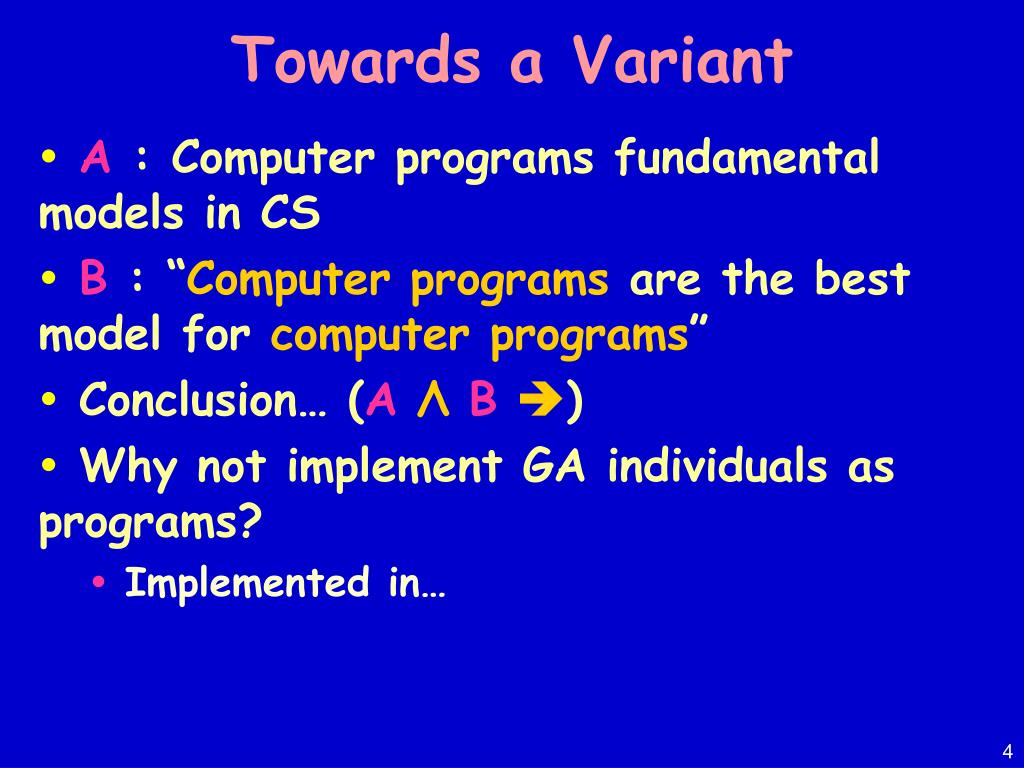

  4. Towards a Variant • A : Computer programs fundamental models in CS • B : “Computer programs are the best model for computer programs” • Conclusion… (AΛB) • Why not implement GA individuals as programs? • Implemented in…

  5. Genetic Programming [GP] • Evolutionary search in program space • Tree-structured representation • Non tree-based program representations exist (e.g. Machine-Code GA) • Introduced by Cramer [1985] • Developed by Koza [1992] • Active and highly successful field • Conferences • Patents • And especially…

  6. Human-Competitive Results

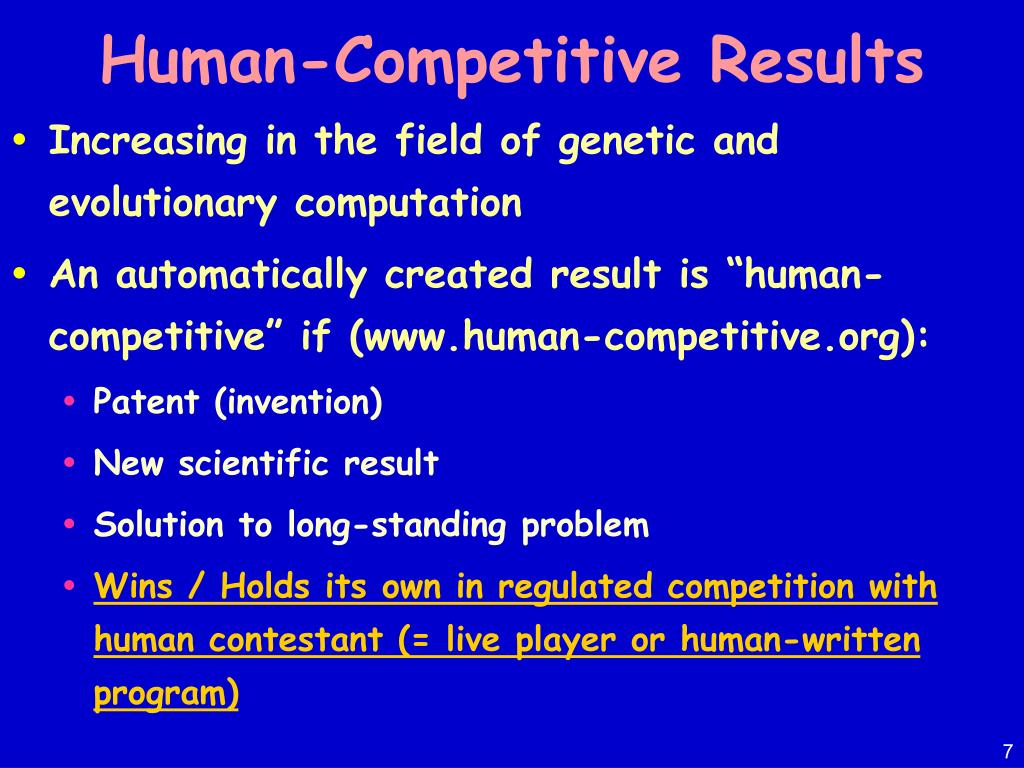

  7. Human-Competitive Results • Increasing in the field of genetic and evolutionary computation • An automatically created result is “human-competitive” if (www.human-competitive.org): • Patent (invention) • New scientific result • Solution to long-standing problem • Wins / Holds its own in regulated competition with human contestant (= live player or human-written program)

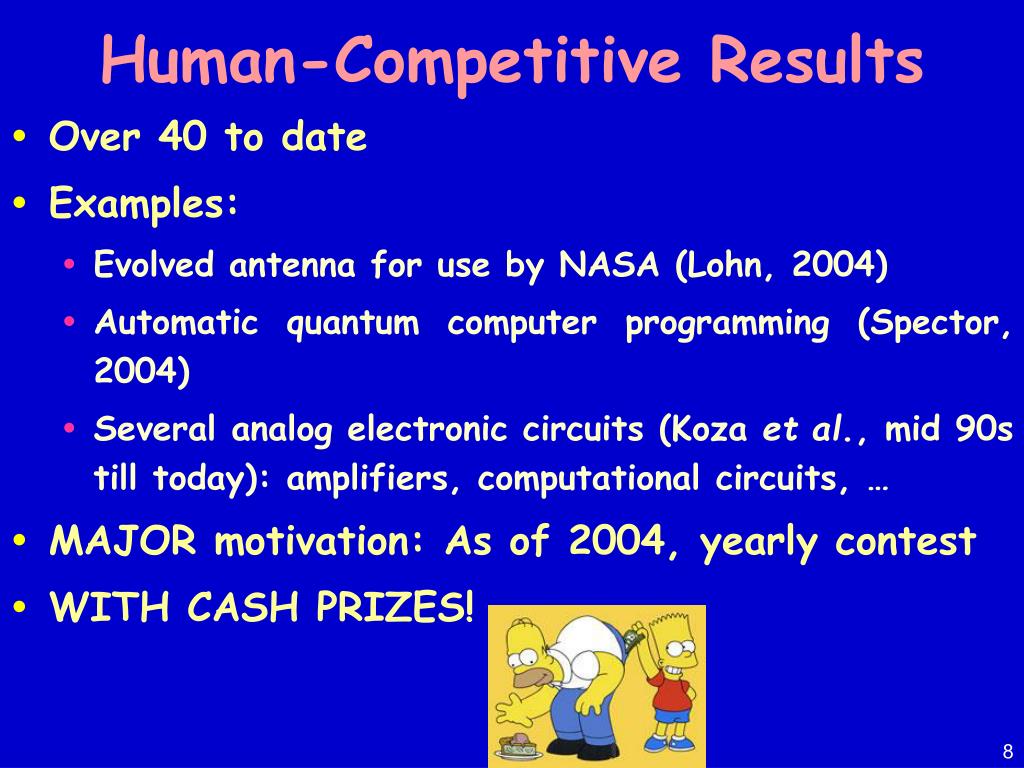

  8. Human-Competitive Results • Over 40 to date • Examples: • Evolved antenna for use by NASA (Lohn, 2004) • Automatic quantum computer programming (Spector, 2004) • Several analog electronic circuits (Koza et al., mid 90s till today): amplifiers, computational circuits, … • MAJOR motivation: As of 2004, yearly contest • WITH CASH PRIZES!

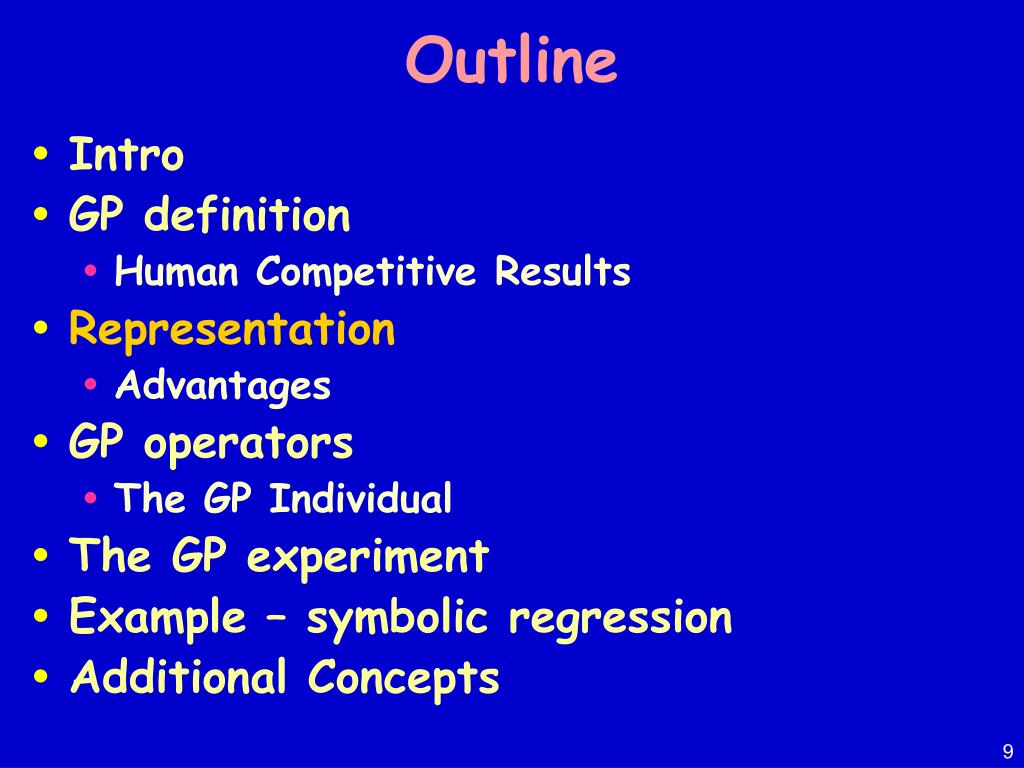

  9. Outline • Intro • GP definition • Human Competitive Results • Representation • Advantages • GP operators • The GP Individual • The GP experiment • Example – symbolic regression • Additional Concepts

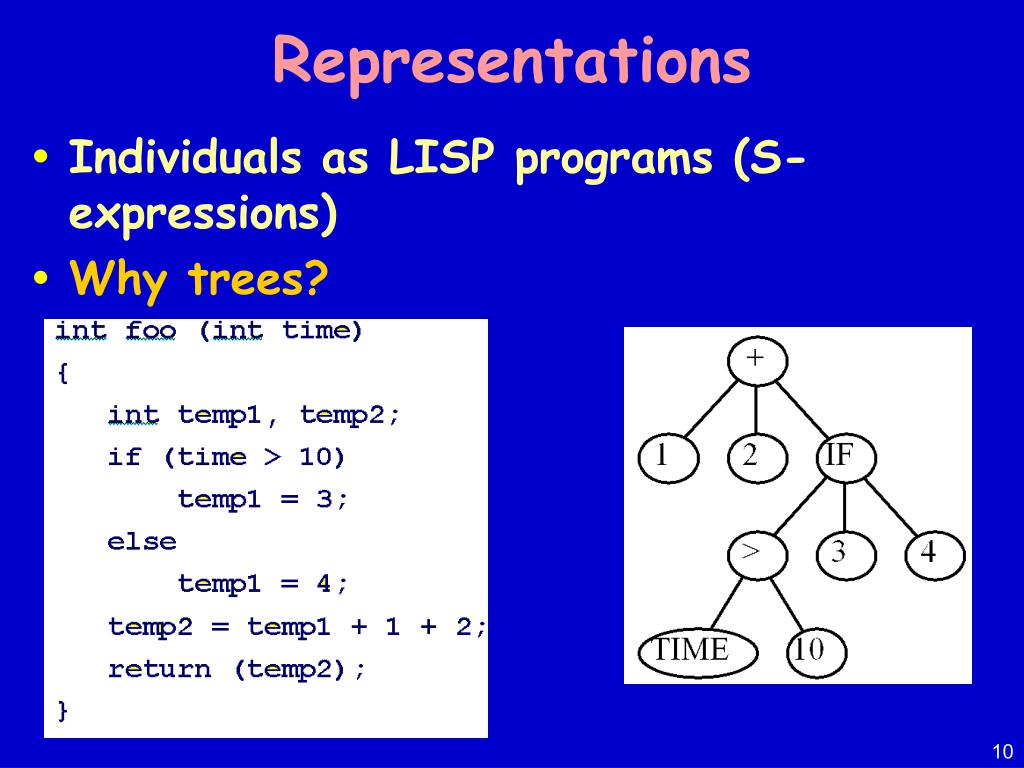

  10. Representations • Individuals as LISP programs (S-expressions) • Why trees?

  11. Advantages of trees • Before Genetic operators • Powerful representation • (+ 1 2 (IF (> TIME 10) 3 4)) • Simple • No: local vars, types … • Individual  Solution • Saves precious time • Recursive - size may vary • Main advantage:

  12. Outline • Intro • GP definition • Human Competitive Results • Representation • Advantages • GP operators • The GP Individual • The GP experiment • Example – symbolic regression • Additional Concepts

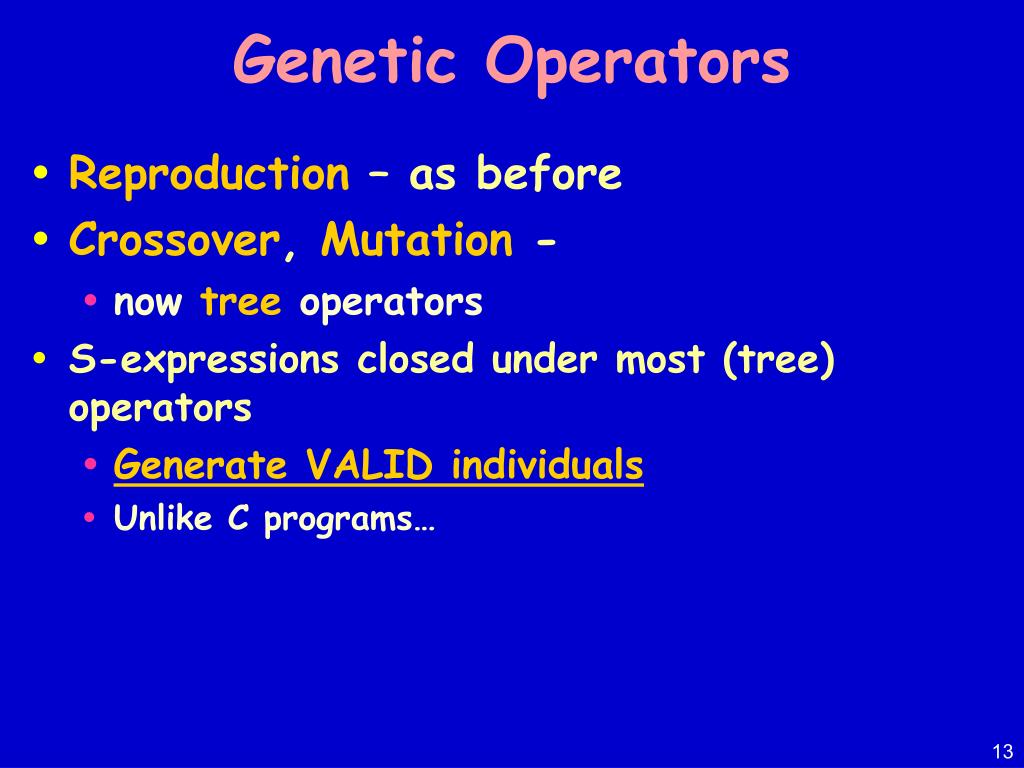

  13. Genetic Operators • Reproduction – as before • Crossover, Mutation - • now tree operators • S-expressions closed under most (tree) operators • Generate VALID individuals • Unlike C programs…

  14. GP Operators - Crossover • BINARY 1) Randomly select 2 nodes 2) Swap underlying sub-trees • S.t. depth constraints (if applicable) FATHERMOTHER OFFSPRING1 OFFSPRING2

  15. GP Operators - Mutation • UNARY 1) Select mutation point 2) Remove entire sub-tree and grow a new one • Again – depth constraints

  16. Genome • What’s inside the tree… • Genome contains functions and terminals • Functions - Internal nodes • Varying complexity • Examples: +, -, And, Or, If, IFLTE, ADFs • Terminals - Leaves • Constants or “sensors”; Actions • Generally more domain dependant • Examples: Variables, Constants, 0-params functions, ERCs

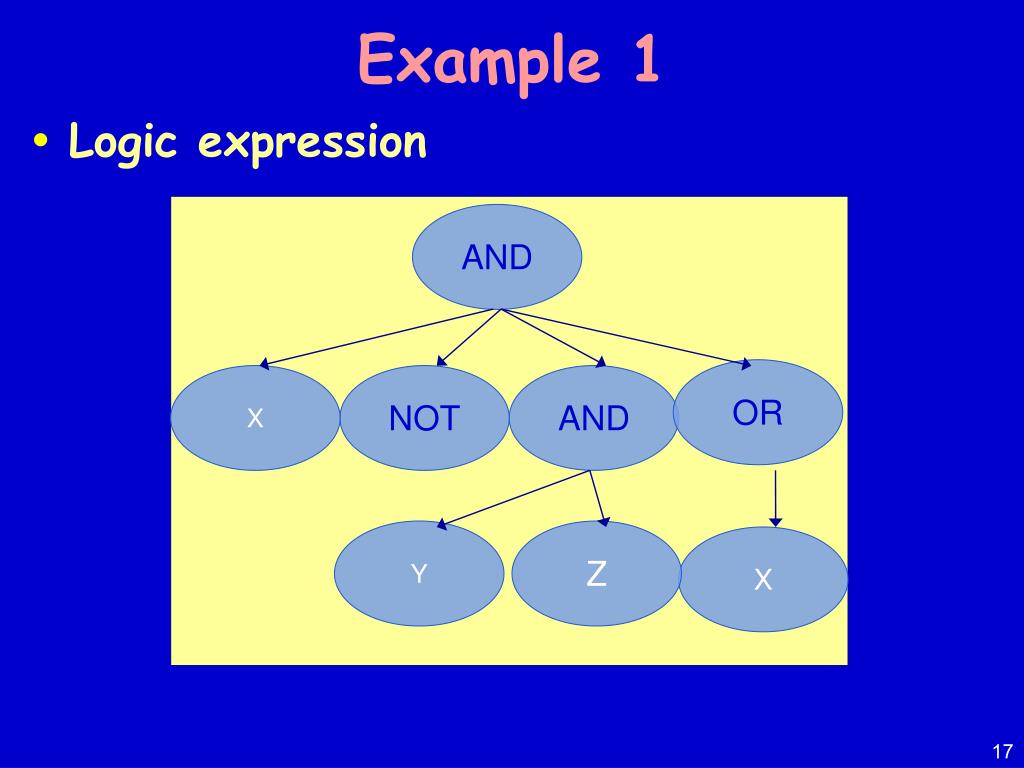

  17. Example 1 • Logic expression AND OR X NOT AND Y Z X

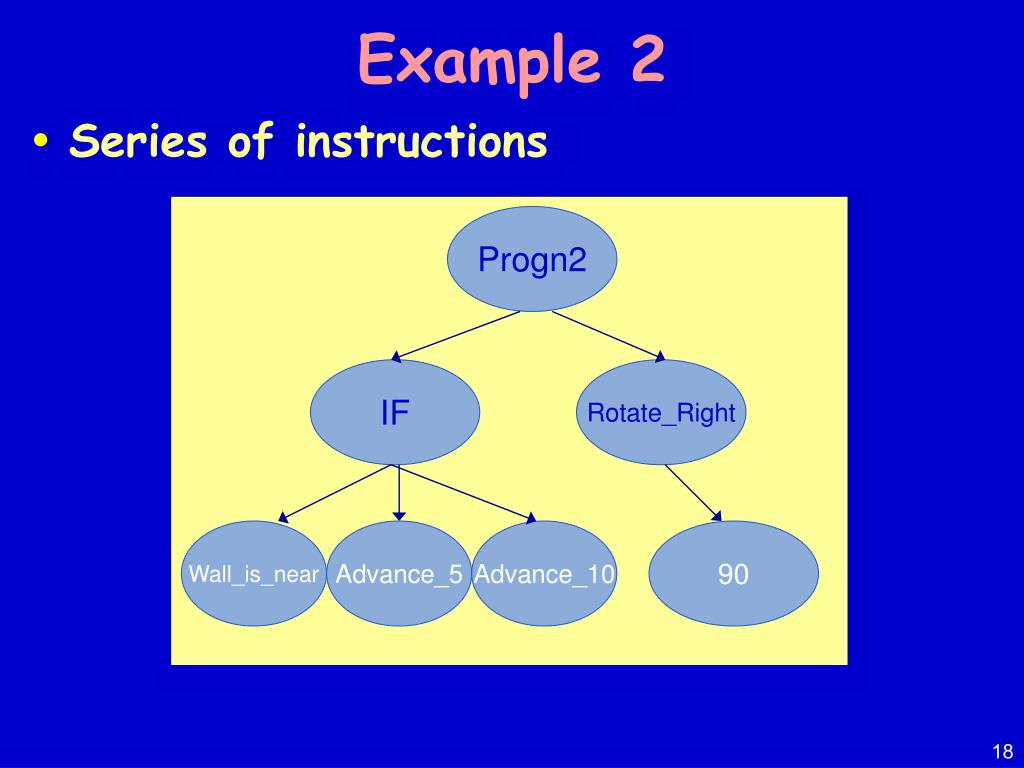

  18. Example 2 • Series of instructions Progn2 IF Rotate_Right Wall_is_near Advance_5 Advance_10 90

  19. More realistic trees… • GP-EndChess Tree 0: (If3 (Or2 (Not (Or2 (And2 OppPieceAttUnprotected NotMyKingInCheck) (Or2 NotMyPieceAttUnprotected 100*Increase))) (And2 (Or3 (And2 OppKingStuck NotMyPieceAttUnprotected) (And2 OppPieceAttUnprotected OppKingStuck) (And3 -1000*MateInOne OppKingInCheckPieceBehind NotMyKingStuck)) (Or2 (Not NotMyKingStuck) OppKingInCheck))) NumMyPiecesUNATT (If3 (< (If3 (Or2 NotMyPieceAttUnprotected NotMyKingInCheck) (If3 NotMyPieceAttUnprotected #NotMovesOppKing OppKingInCheckPieceBehind) (If3 OppKingStuck OppKingInCheckPieceBehind -1000*MateInOne)) (If3 (And2 100*Increase 1000*Mate?) (If3 (< NumMyPiecesUNATT (If3 NotMyPieceAttUnprotected -1000*MateInOne OppKingProxEdges)) (If3 (< MyKingDistEdges #NotMovesOppKing) (If3 -1000*MateInOne -1000*MateInOne NotMyPieceATT) (If3 100*Increase #MovesMyKing OppKingInCheckPieceBehind)) NumOppPiecesATT) (If3 NotMyKingStuck -100.0 OppKingProxEdges))) (If3 OppKingInCheck (If3 (Or2 NotMyPieceAttUnprotected NotMyKingInCheck) (If3 (< MyKingDistEdges #NotMovesOppKing) (If3 -1000*MateInOne -1000*MateInOne NotMyPieceATT) (If3 100*Increase #MovesMyKing OppKingInCheckPieceBehind)) NumOppPiecesATT) (If3 (And3 -1000*MateInOne NotMyPieceAttUnprotected 100*Increase) (If3 (< NumMyPiecesUNATT (If3 NotMyPieceAttUnprotected -1000*MateInOne OppKingProxEdges)) (If3 (< MyKingDistEdges #NotMovesOppKing) (If3 -1000*MateInOne -1000*MateInOne NotMyPieceATT) (If3 100*Increase #MovesMyKing OppKingInCheckPieceBehind)) NumOppPiecesATT) -1000*MateInOne)) (If3 (< (If3 100*Increase MyKingDistEdges 100*Increase) (If3 OppKingStuck OppKingInCheckPieceBehind -1000*MateInOne)) -100.0 (If3 (And2 NotMyPieceAttUnprotected -1000*MateInOne) (If3 (< NumMyPiecesUNATT (If3 NotMyPieceAttUnprotected -1000*MateInOne OppKingProxEdges)) (If3 (< MyKingDistEdges #NotMovesOppKing) (If3 -1000*MateInOne -1000*MateInOne NotMyPieceATT) (If3 100*Increase #MovesMyKing OppKingInCheckPieceBehind)) NumOppPiecesATT) (If3 OppPieceAttUnprotected NumMyPiecesUNATT MyFork)))))

  20. Outline • Intro • GP definition • Human Competitive Results • Representation • Advantages • GP operators • The GP Individual • The GP experiment • Example – symbolic regression • Additional Concepts

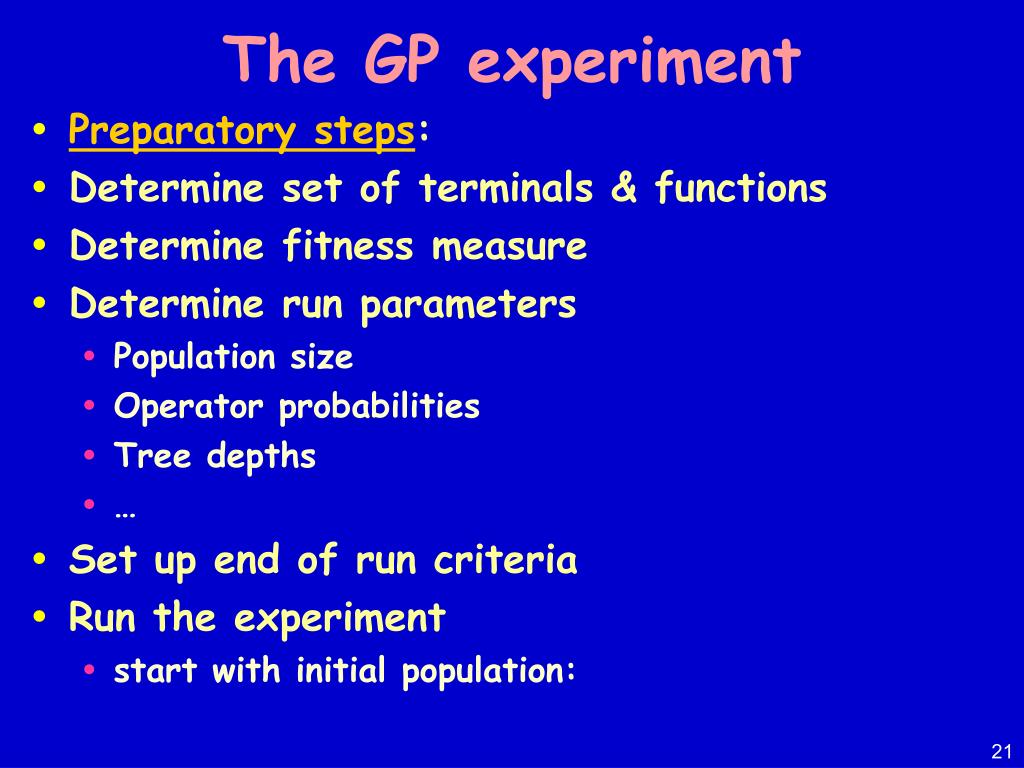

  21. The GP experiment • Preparatory steps: • Determine set of terminals & functions • Determine fitness measure • Determine run parameters • Population size • Operator probabilities • Tree depths • … • Set up end of run criteria • Run the experiment • start with initial population:

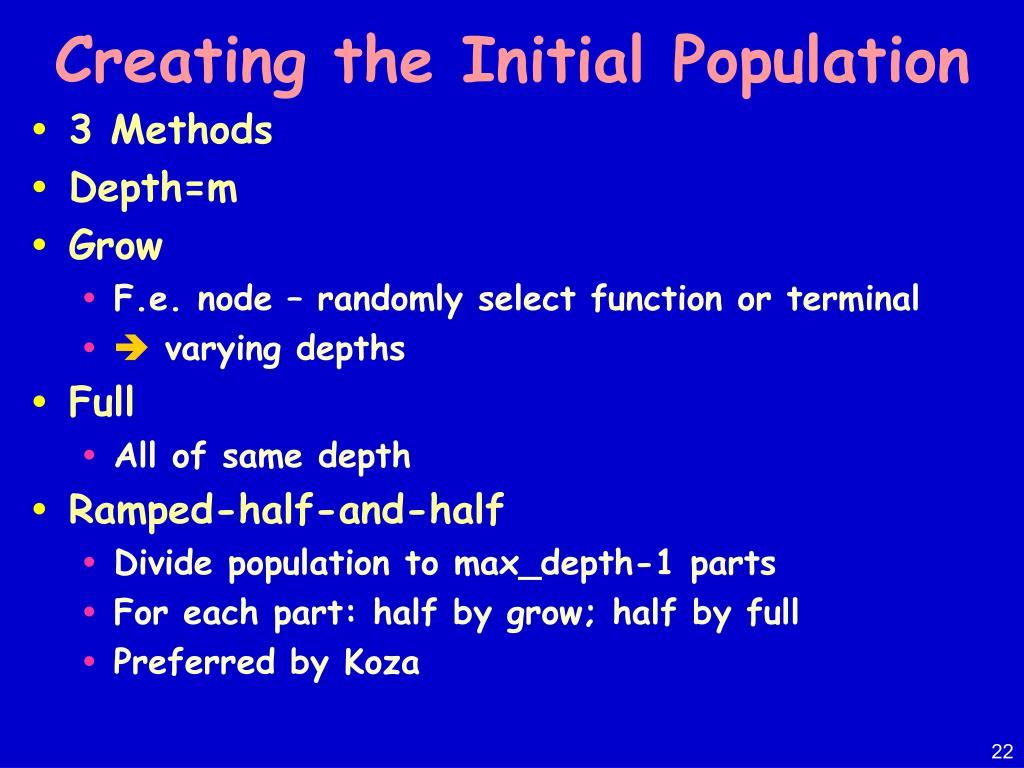

  22. Creating the Initial Population • 3 Methods • Depth=m • Grow • F.e. node – randomly select function or terminal •  varying depths • Full • All of same depth • Ramped-half-and-half • Divide population to max_depth-1 parts • For each part: half by grow; half by full • Preferred by Koza

  23. Flowchart of GP

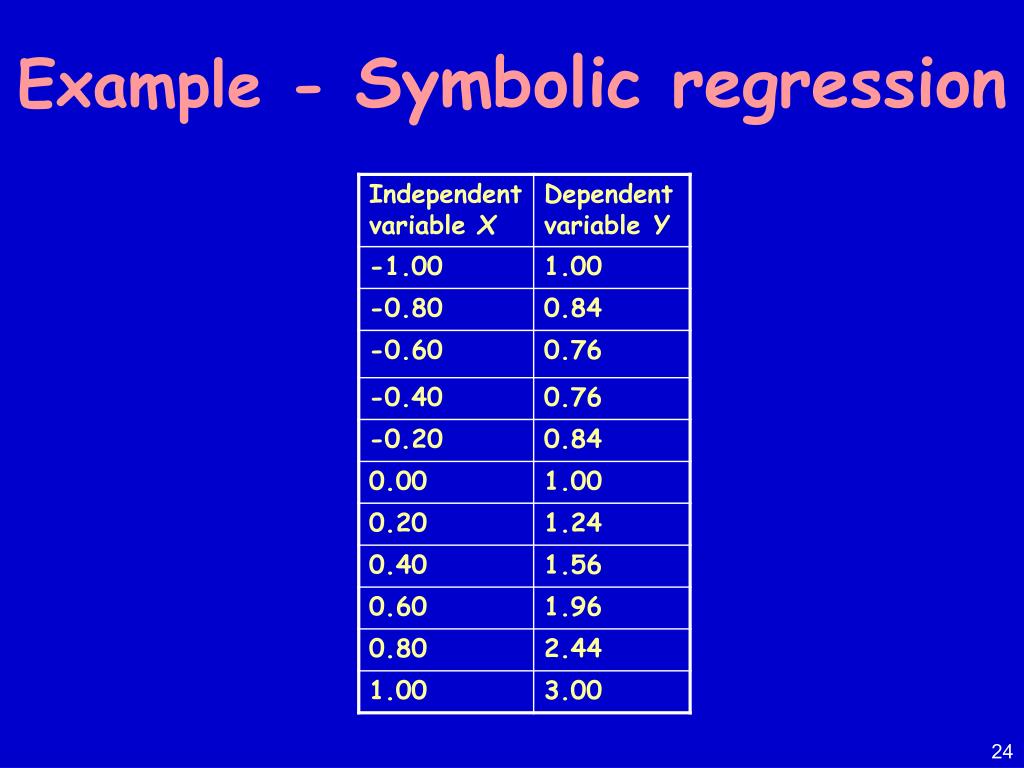

  24. Example - Symbolic regression

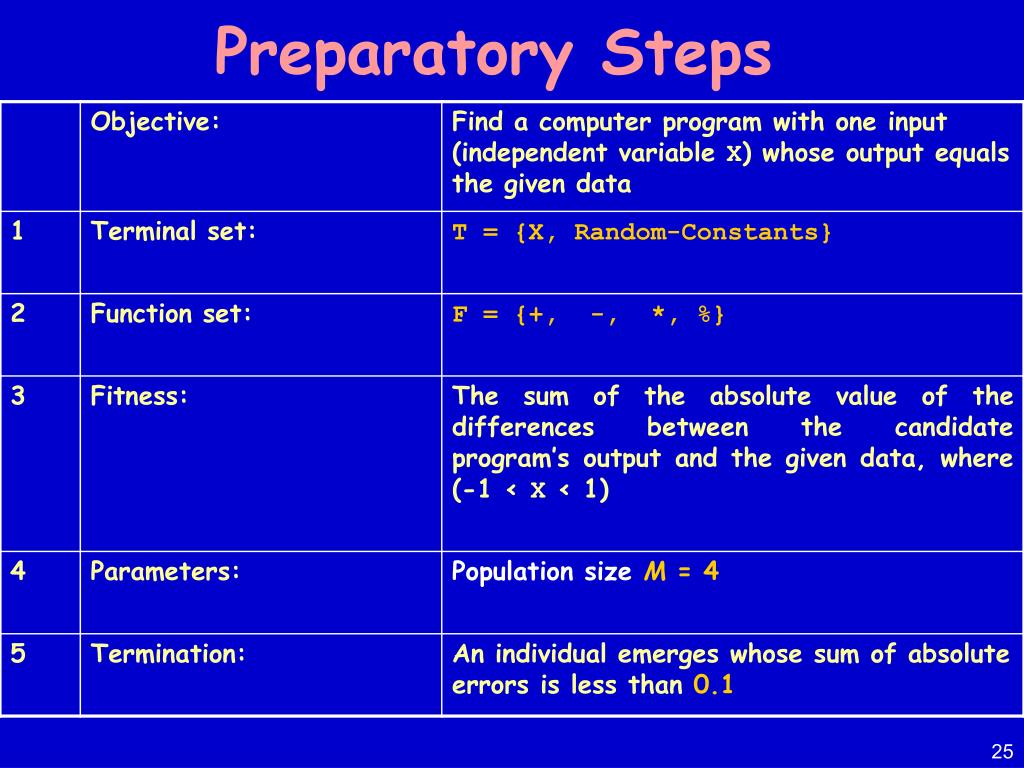

  25. Preparatory Steps

  26. Notes • Complexity of function = ? • Size of solution unknown • More points  more difficult • Depth constraints • Can limit complexity • Needed anyway • Typically size of pop >= 50 • “%” function • is “/” excluding zero in 2nd argument • Needed to avoid BAD individuals

  27. Generation 0 • 4 Random Individuals (later: creation) • More complex than actual • transformed

  28. Fitness x + 1 x2 + 1 2 x 4.4 6.00 9.48 15.4 • f(x) = x2 +x+ 1

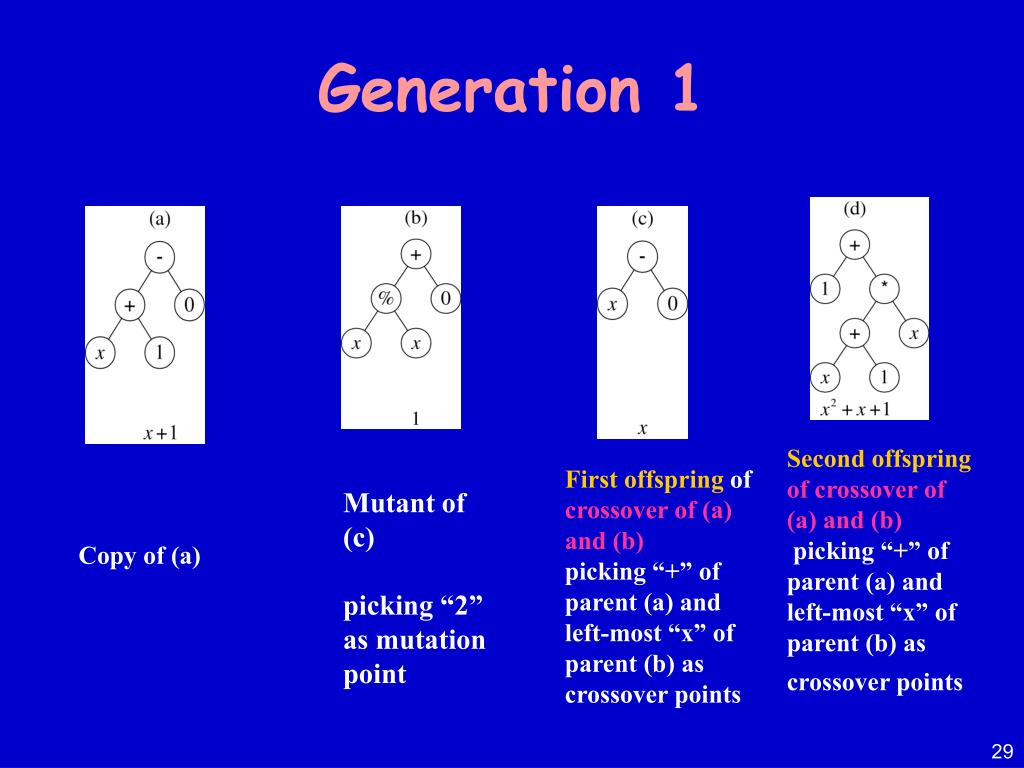

  29. Generation 1 First offspring of crossover of (a) and (b)  picking “+” of parent (a) and left-most “x” of parent (b) as crossover points Second offspringof crossover of (a) and (b)  picking “+” of parent (a) and left-most “x” of parent (b) as crossover points Mutant of (c) picking “2” as mutation point Copy of (a)

  30. Generation 1 - Fitness 15.4 0 - IDEAL 6.0 4.4

  31. Outline • Intro • GP definition • Human Competitive Results • Representation • Advantages • GP operators • The GP Individual • GP experiments • Example – symbolic regression • Additional Concepts

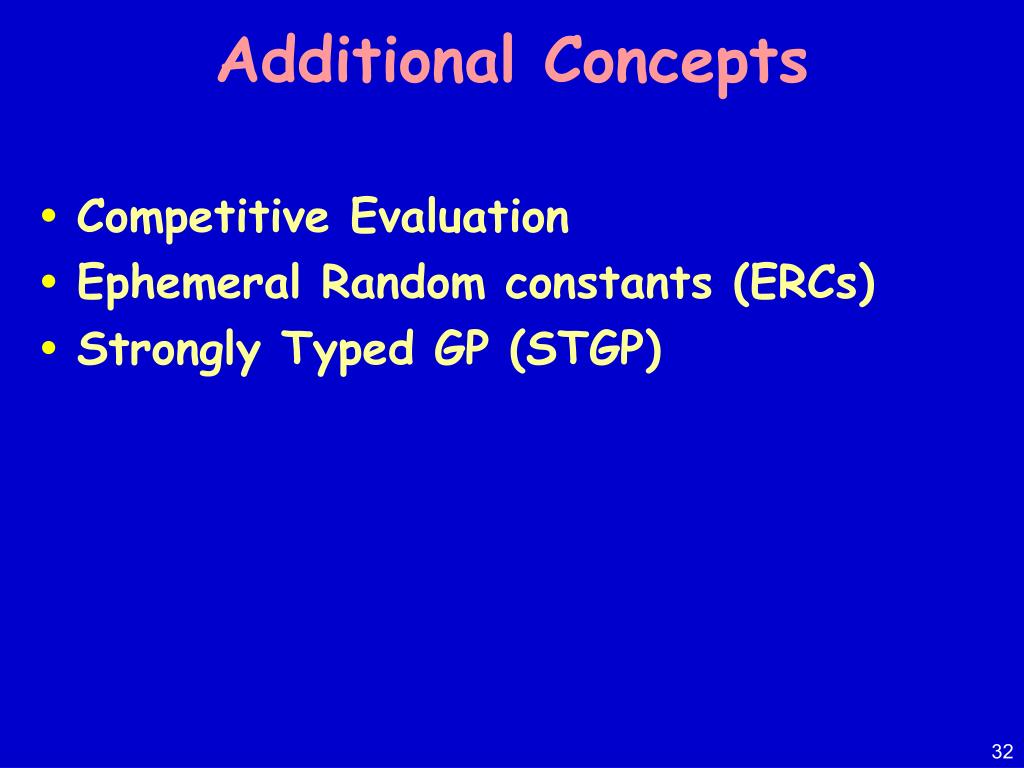

  32. Additional Concepts • Competitive Evaluation • Ephemeral Random constants (ERCs) • Strongly Typed GP (STGP)

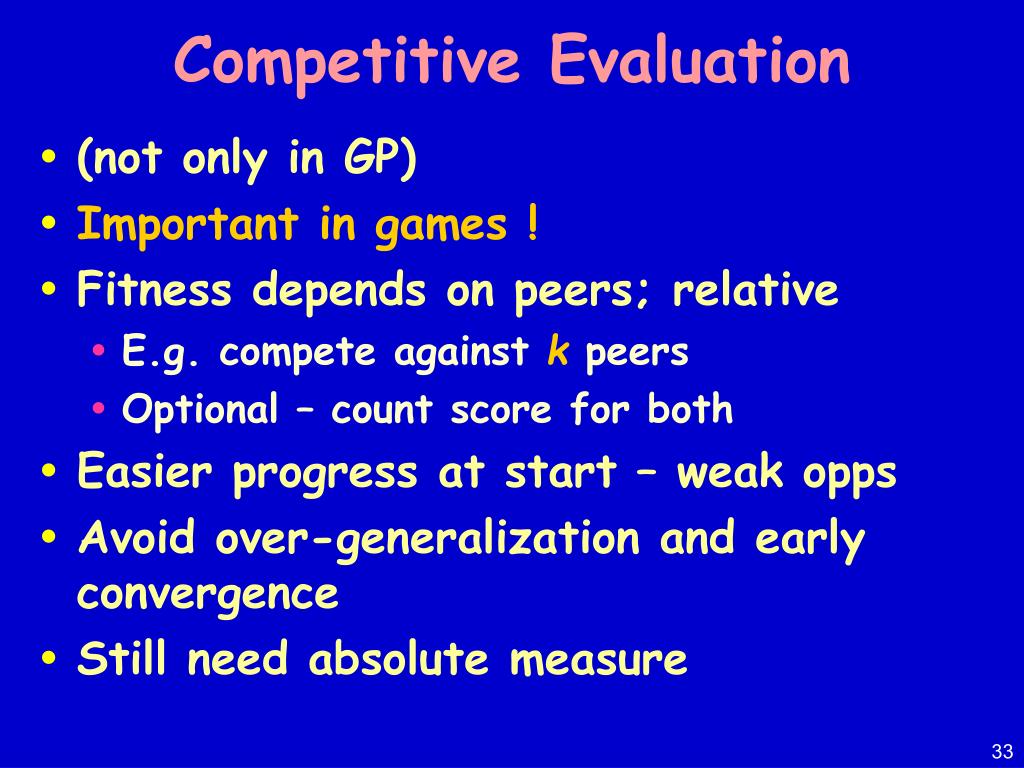

  33. Competitive Evaluation • (not only in GP) • Important in games ! • Fitness depends on peers; relative • E.g. compete against k peers • Optional – count score for both • Easier progress at start – weak opps • Avoid over-generalization and early convergence • Still need absolute measure

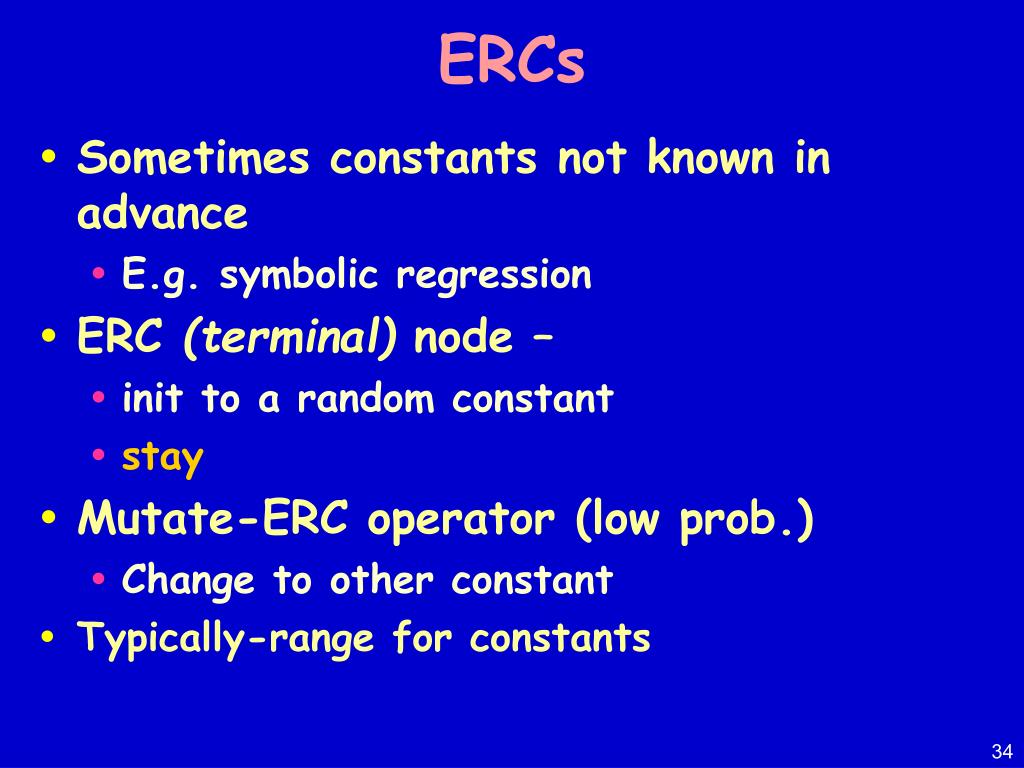

  34. ERCs • Sometimes constants not known in advance • E.g. symbolic regression • ERC (terminal) node – • init to a random constant • stay • Mutate-ERC operator (low prob.) • Change to other constant • Typically-range for constants

  35. Strongly Typed Genetic Programming (STGP) • Montana [1995] • Node data types may vary; casting not enough • Impose structural constraints • Assigning (pseudo) types to functions & terminals • Sometimes more than one • Typically actual (implementation) types are all real numbers

  36. STGP Example • Include both Boolean and Float terminals • True, False, zero-arg Predicates • ERCs, float zero-arg functions • Some used as both – “Query” • Important predicate • Returns a large float if true • If function • Children: Boolean, Float, Float • Query can be at each child location of If
