  1. Test of the Mirrors F.Bucci, A.Cassese, M.Lenti

  2. Package Taken at CERN 8.4.2011 9:00; arrived at Firenze 8.4.2011 18:00

  3. Lab’s OpticalMeasurementsLab 12.4.2011 DummyMirror in CleanRoom 12.4.2011

  4. Box 4 11.4.2011 Layer1: HalfHexA and B Layer2: Hex13 Layer3: Hex03 Layer4: Hex14

  5. HalfHexA HalfHexAand B in Box4 (11.4.2011) HalfHexAon shelf (11.4.2011) HalfHex1Aon shelf (11.4.2011) Comments: HalfHexAhas no visibledefects HalfHex1A in UOL (16.5.2011)

  6. HalfHexA (top) Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.965 m DistMirror-Diode: 33.995 m Minimum: -27.1 cm R = (33.965+33.995-0.271)/2 = 33.845 m F = R/2 = 16.922 m σX(min) = 0.16 mm σy(min) = 0.18 mm √(σX*σY)(min) = 0.19 mm Horiz.*Vert. Sigma(2)

  7. HalfHexA (center) Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.965 m DistMirror-Diode: 33.995 m Minimum: -3.1 cm R = (33.965+33.995-0.031)/2 = 33.965 m F = R/2 = 16.982 m σX(min) = 0.16 mm σy(min) = 0.21 mm √(σX*σY)(min) = 0.21 mm Horiz.*Vert. Sigma(2)

  8. HalfHexA (bottom) Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.965 m DistMirror-Diode: 33.995 m Minimum: +20.1cm R = (33.965+33.995+0.201)/2 = 34.081 m F = R/2 = 17.040 m σX(min) = 0.25 mm σy(min) = 0.28 mm √(σX*σY)(min) = 0.27 mm Horiz.*Vert. Sigma(2)

  9. HalfHexA vertex[0]: 0.227899 350.273 vertex[1]: 302.18 175.524 vertex[2]: 301.967 -175.524 vertex[3]: -0.227899 -350.273 side_length[0]: 348.872 side_length[1]: 351.049 side_length[2]: 349.083 side_length[3]: 700.546 distance 1-3: 302.073 Cfr position: -1.32771 0.180346 Cfrradius: 90.6702 hole 1: 106.791 -5.59082 hole 2: 176.987 -5.71478 6mm-hole 1 dist: 0.40918 6mm-hole 2 dist: 0.285218 HalfHexAon DEA (12.5.2011)

  10. HalfHexB HalfHexBin Box4 (11.4.2011) HalfHexBin Box4 (11.4.2011) HalfHexBon shelf (11.4.2011) HalfHexBon shelf (11.4.2011) HalfHexB in UOL (17.5.2011) Comments: HalfHex2 has no visibledefects

  11. HalfHexB (top) Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.965 m DistMirror-Diode: 33.995 m Minimum: -4.5 cm R = (33.965+33.995-0.045)/2 = 33.958 m F = R/2 = 16.979 m σX(min) = 0.20 mm σy(min) = 0.21 mm √(σX*σY)(min) = 0.20 mm Fx-Fy: -1.1 cm Horiz.*Vert. Sigma(2)

  12. HalfHexB (center) Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.965 m DistMirror-Diode: 33.995 m Minimum: +11.4cm R = (33.965+33.995+0.114)/2 = 34.037 m F = R/2 = 17.019 m σX(min) = 0.19 mm σy(min) = 0.17 mm √(σX*σY)(min) = 0.18 mm Fx-Fy: -9.0 cm Horiz.*Vert. Sigma(2)

  13. HalfHexB (bottom) Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.965 m DistMirror-Diode: 33.995 m Minimum: -33.7 cm R = (33.965+33.995-0.337)/2 = 33.812 m F = R/2 = 16.906 m σX(min) = 0.17 mm σy(min) = 0.19 mm √(σX*σY)(min) = 0.26 mm Fx-Fy: 167.8 cm Horiz.*Vert. Sigma(2)

  14. The innerholeislessdeepthan the outeroneby 1 mm (15.6 mm vs 17.2 mm) HalfHexB vertex[0]: -0.12045 350.44 vertex[1]: 0.12045 -350.44 vertex[2]: -302.425 -175.619 vertex[3]: -302.521 175.619 side_length[0]: 700.879 side_length[1]: 349.422 side_length[2]: 351.238 side_length[3]: 349.297 distance 1-3: 302.473 Cfr position: 1.18899 0.12992 Cfrradius: 90.7348 hole 1: -105.69 -5.88765 hole 2: -175.814 -5.90598 6mm-hole 1 dist: 0.112348 6mm-hole 2 dist: 0.0940233 HalfHexBon DEA (13.5.2011)

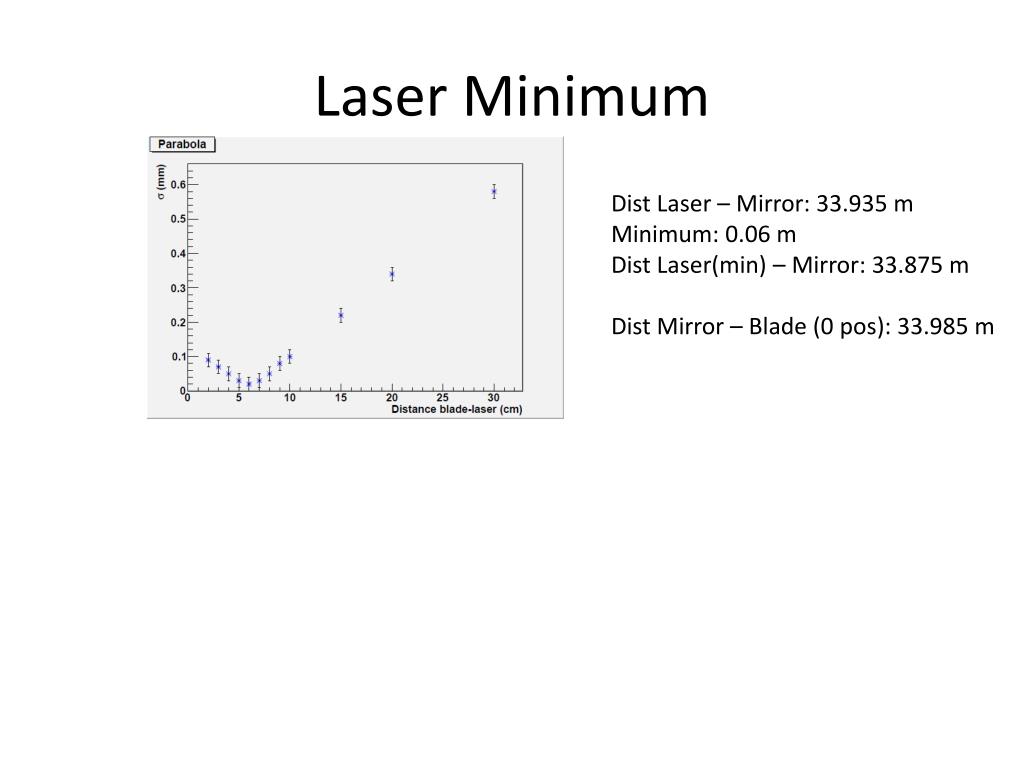

  15. Laser Minimum Dist Laser – Mirror: 33.935 m Minimum: 0.06 m Dist Laser(min) – Mirror: 33.875 m DistMirror – Blade (0 pos): 33.985 m

  16. Comments: Hex13 has no visibledefects Hex13 Hex13 in Box4 (11.4.2011) Hex13 in Box4 (11.4.2011) Hex13 in Box4 (11.4.2011) Hex13 in Box4 (11.4.2011) Hex13 in Lab (12.4.2011) Hex13: scratch (20.4.2011)

  17. Hex13 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: -7.6 cm R = (33.875+33.985-0.076)/2 = 33.892 m F = R/2 = 16.946 m σX(min) = 0.22 mm σy(min) = 0.22 mm √(σX*σY)(min) = 0.22 mm Fx-Fy: -17.1 cm Horiz.*Vert. Sigma(2)

  18. vertex[0]: 0.0998281 350.714 vertex[1]: 303.061 175.738 vertex[2]: 302.887 -175.738 vertex[3]: -0.0175653 -350.725 vertex[4]: -303.005 -175.697 vertex[5]: -302.944 175.697 side_length[0]: 349.861 side_length[1]: 351.475 side_length[2]: 349.817 side_length[3]: 349.908 side_length[4]: 351.394 side_length[5]: 349.952 distance 0-3: 607.454 distance 1-4: 605.949 distance 2-5: 607.337 hole 1: -269.903 -5.7517 hole 2: 0.197048 -2.33785 hole 3: 269.829 -5.02514 REPORT: 6mm - hole 1 distance : 0.248297 ok 3mm - hole 2 distance : 0.662149 6mm - hole 3 distance : 0.974863 Hex13 V0 S5 S0 V5 V1 H3 H1 H2 S4 S1 Hex13 on DEA (18.4.2011) V2 V4 S3 S2 V3

  19. Comments: Hex13 has some scratches Hex03 Hex03 in Box4 (13.4.2011) Hex03 in Box4 (13.4.2011) Hex03 in box (13.4.2011) Hex03: scratch (13.4.2011) Hex03 in Lab (14.4.2011) Hex03 in Lab (14.4.2011)

  20. Hex03 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: +1.6 cm R = (33.875+33.985+0.016)/2 = 33.938 m F = R/2 = 16.969 m σX(min) = 0.17 mm σy(min) = 0.16 mm √(σX*σY)(min) = 0.13 mm Fx-Fy: -6.2 Horiz.*Vert. Sigma(2)

  21. vertex[0]: 0.118923 350.61 vertex[1]: 302.982 175.723 vertex[2]: 302.836 -175.723 vertex[3]: -0.333806 -350.639 vertex[4]: -302.927 -175.552 vertex[5]: -302.891 175.552 side_length[0]: 349.731 side_length[1]: 351.445 side_length[2]: 350.011 side_length[3]: 349.597 side_length[4]: 351.105 side_length[5]: 349.943 distance 0-3: 607.347 distance 1-4: 605.818 distance 2-5: 607.076 hole 1: -270.229 -5.76274 hole 2: -0.19162 -2.37841 hole 3: 269.749 -4.75647 REPORT: 6mm - hole 1 distance : 0.237257 ok 3mm - hole 2 distance : 0.621588 6mm - hole 3 distance : 1.24353 Hex03

  22. Comments: Hex13 has some verysmallscratches, some defects on the back Hex14 Hex14 in Box4 (15.4.2011) Hex14 in Box4 (15.4.2011) Hex14 in box (15.4.2011) Hex14: defect on the back Hex14 in UOL (18.4.2011) Hex14: defect on the back

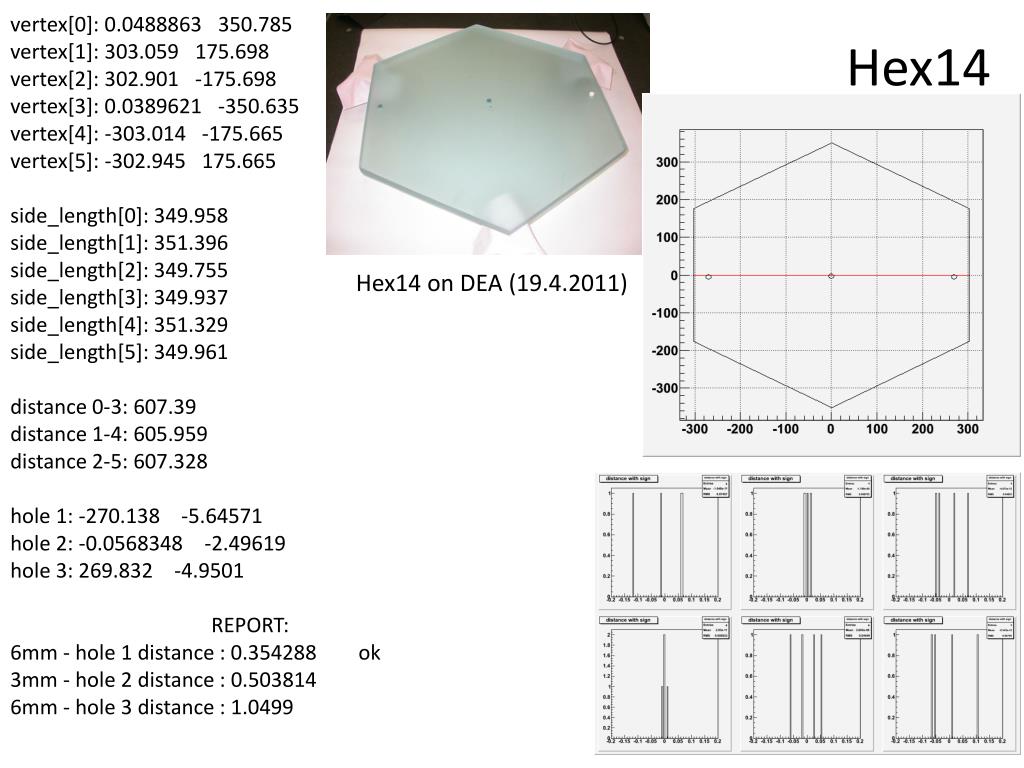

  23. Hex14 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: -0.8 cm R = (33.875+33.985-0.008)/2 = 33.926 m F = R/2 = 16.963 m σX(min) = 0.35 mm σy(min) = 0.27 mm √(σX*σY)(min) = 0.31 mm Fx-Fy: -5.4 cm Horiz.*Vert. Sigma(2)

  24. vertex[0]: 0.0488863 350.785 vertex[1]: 303.059 175.698 vertex[2]: 302.901 -175.698 vertex[3]: 0.0389621 -350.635 vertex[4]: -303.014 -175.665 vertex[5]: -302.945 175.665 side_length[0]: 349.958 side_length[1]: 351.396 side_length[2]: 349.755 side_length[3]: 349.937 side_length[4]: 351.329 side_length[5]: 349.961 distance 0-3: 607.39 distance 1-4: 605.959 distance 2-5: 607.328 hole 1: -270.138 -5.64571 hole 2: -0.0568348 -2.49619 hole 3: 269.832 -4.9501 REPORT: 6mm - hole 1 distance : 0.354288 ok 3mm - hole 2 distance : 0.503814 6mm - hole 3 distance : 1.0499 Hex14 Hex14 on DEA (19.4.2011)

  25. Box5 19.04.2011 Layer1: Hex20 Layer2: Hex12 Layer3: Hex09 Layer4: Hex16

  26. Hex20 Hex20 in Box5 (19.04.2011) Hex20: scratches (20.04.2011) Hex20: bad corner (19.04.2011) Hex20 in UOL (19.04.2011)

  27. Hex20 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: -9.0 cm R = (33.875+33.985-0.09)/2 = 33.885 m F = R/2 = 16.943 m σX(min) = 0.33 mm σy(min) = 0.22 mm √(σX*σY)(min) = 0.21 mm Fx-Fy: -10.7 cm Horiz.*Vert. Sigma(2)

  28. vertex[0]: -0.00148115 350.547 vertex[1]: 302.947 175.705 vertex[2]: 302.798 -175.705 vertex[3]: -0.0684566 -350.729 vertex[4]: -302.922 -175.606 vertex[5]: -302.823 175.606 side_length[0]: 349.782 side_length[1]: 351.411 side_length[2]: 349.803 side_length[3]: 349.841 side_length[4]: 351.211 side_length[5]: 349.722 distance 0-3: 607.268 distance 1-4: 605.745 distance 2-5: 607.173 hole 1: -270.221 -5.41886 hole 2: -0.283608 -2.22892 hole 3: 269.877 -4.67791 ComparisonwithMarconREPORT: 6mm - hole 1 distance : 0.581145 ok 3mm - hole 2 distance : 0.77108 6mm - hole 3 distance : 1.32209 Hex20 Hex20 on DEA (20.04.2011)

  29. Hex12 Hex12 in Box5 (19.04.2011) Hex12 in box (19.04.2011) Hex12: bad corner (19.04.2011) Hex12 in UOL (20.04.2011)

  30. Hex12 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: -5.2 cm R = (33.875+33.985-0.052)/2 = 33.904 m F = R/2 = 16.952 m σX(min) = 0.19 mm σy(min) = 0.22 mm √(σX*σY)(min) = 0.22 mm Fx-Fy: +8.0 cm Horiz.*Vert. Sigma(2)

  31. vertex[0]: 0.105298 350.666 vertex[1]: 302.989 175.71 vertex[2]: 302.825 -175.71 vertex[3]: -0.161216 -350.687 vertex[4]: -302.958 -175.671 vertex[5]: -302.856 175.671 side_length[0]: 349.783 side_length[1]: 351.419 side_length[2]: 349.882 side_length[3]: 349.738 side_length[4]: 351.342 side_length[5]: 349.87 distance 0-3: 607.401 distance 1-4: 605.814 distance 2-5: 607.201 hole 1: -270.728 -8.85194 hole 2: -0.632212 -3.4626 hole 3: 269.464 -4.03547 REPORT: 6mm - hole 1 distance : -2.85194 lowerby3 mm 3mm - hole 2 distance : -0.462598 6mm - hole 3 distance : 1.96453 higherby1.5 mm Hex12 Hex12 on DEA (20.04.2011)

  32. Hex09 Hex09 in Box5 (20.04.2011) Hex09 in box (20.04.2011) Hex09: thinslicecloseto the holeafter UOL(20.04.2011) Hex09 in UOL (20.04.2011)

  33. Hex09 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: +3.6 cm R = (33.875+33.985+0.036)/2 = 33.948 m F = R/2 = 16.974 m σX(min) = 0.23 mm σy(min) = 0.22 mm √(σX*σY)(min) = 0.26 mm Fx-Fy: +22.0 cm Horiz.*Vert. Sigma(2)

  34. vertex[0]: 0.15109 350.91 vertex[1]: 302.962 175.745 vertex[2]: 302.569 -175.745 vertex[3]: -0.357033 -350.382 vertex[4]: -302.245 -175.856 vertex[5]: -303.286 175.856 side_length[0]: 349.824 side_length[1]: 351.491 side_length[2]: 349.66 side_length[3]: 348.706 side_length[4]: 351.713 side_length[5]: 350.311 distance 0-3: 607.346 distance 1-4: 605.531 distance 2-5: 607.254 hole 1: -270.567 -5.49467 hole 2: -0.466712 -2.16306 hole 3: 269.461 -5.0345 REPORT: 6mm - hole 1 distance :0.505332 3mm - hole 2 distance :0.836935 6mm - hole 3 distance :0.965498 higherby2 mm Hex09 Hex09 on DEA (21.04.2011) Hex09: fingerprintsafter DEA (26.04.2011)

  35. Hex16 Hex16 in Box5 (21.04.2011) Hex16 in box (21.04.2011) Hex16: bad corner(21.04.2011) Hex16 in UOL (21.04.2011)

  36. Hex16 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: -7.5 cm R = (33.875+33.985-0.075)/2 = 33.893 m F = R/2 = 16.946 m σX(min) = 0.49 mm σy(min) = 0.31 mm √(σX*σY)(min) = 0.41 mm Fx-Fy: -20.5 cm Horiz.*Vert. Sigma(2)

  37. vertex[0]: -0.280014 350.671 vertex[1]: 303.015 175.433 vertex[2]: 303.116 -175.433 vertex[3]: 0.216833 -350.645 vertex[4]: -302.992 -175.503 vertex[5]: -303.139 175.503 side_length[0]: 350.28 side_length[1]: 350.865 side_length[2]: 349.924 side_length[3]: 350.158 side_length[4]: 351.005 side_length[5]: 349.868 distance 0-3: 607.016 distance 1-4: 606.131 distance 2-5: 607.326 hole 1: -270.656 -7.78536 hole 2: -0.694119 -3.13414 hole 3: 269.466 -4.73556 ComparisonwithMarconREPORT: 6mm - hole 1 distance : -1.78536 lowerby2 mm 3mm - hole 2 distance : -0.134143 6mm - hole 3 distance : 1.26444 higherby1 mm Hex16 Hex16 on DEA (21.04.2011)

  38. Hex16 Hex16: corner notopaque (21.04.2011) Hex16: fingerprintsafter DEA (26.04.2011)

  39. Box3 26.04.2011 Layer1: Hex15 Layer2: Hex10 Layer3: Hex06 Layer4: Hex04

  40. Hex15 Hex15 in Box3 (26.04.2011) Hex15 in box (26.04.2011) Hex15 in UOL (26.04.2011)

  41. Hex15 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: -3.4 cm R = (33.875+33.985-0.034)/2 = 33.913 m F = R/2 = 16.957 m σX(min) = 0.28 mm σy(min) = 0.30 mm √(σX*σY)(min) = 0.41 mm Fx-Fy: +36.9 cm Horiz.*Vert. Sigma(2)

  42. vertex[0]: 0.288946 350.684 vertex[1]: 302.944 175.744 vertex[2]: 302.743 -175.744 vertex[3]: -0.0641858 -350.641 vertex[4]: -302.969 -175.564 vertex[5]: -302.718 175.564 side_length[0]: 349.577 side_length[1]: 351.488 side_length[2]: 349.688 side_length[3]: 349.862 side_length[4]: 351.129 side_length[5]: 349.972 distance 0-3: 607.371 distance 1-4: 605.688 distance 2-5: 607.082 hole1: -270.706 -3.17477 hole 2: -0.677745 -0.0564275 hole 3: 269.255 -2.48743 REPORT: 6mm - hole 1 distance : 2.82523 higherby3 mm 3mm - hole 2 distance : 2.94357 6mm - hole 3 distance : 3.51257 higherby3 mm Hex15 Hex15 on DEA (02.05.2011)

  43. Hex10 Hex10 in Box3 (28.04.2011) Hex10 in box (29.04.2011) Hex10: 2° scratch (deep) (28.04.2011) Hex10 in UOL (29.04.2011) Hex10: 1° scratch (light) (28.04.2011)

  44. Hex10 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: +0.6 cm R = (33.875+33.985+0.006)/2 = 33.933 m F = R/2 = 16.967 m σX(min) = 0.20 mm σy(min) = 0.13 mm √(σX*σY)(min) = 0.12 mm Fx-Fy: +4.2 cm Horiz.*Vert. Sigma(2)

  45. vertex[0]: 0.0833306 350.696 vertex[1]: 302.953 175.676 vertex[2]: 302.919 -175.676 vertex[3]: -0.0577375 -350.617 vertex[4]: -302.954 -175.685 vertex[5]: -302.918 175.685 side_length[0]: 349.803 side_length[1]: 351.352 side_length[2]: 349.856 side_length[3]: 349.781 side_length[4]: 351.37 side_length[5]: 349.913 distance 0-3: 607.334 distance 1-4: 605.872 distance 2-5: 607.246 hole 1: -270.361 -5.67183 hole 2: -0.330472 -2.34859 hole 3: 269.569 -4.87436 REPORT: 6mm - hole 1 distance : 0.328165 ok 3mm - hole 2 distance : 0.651405 6mm - hole 3 distance : 1.12564 Hex10 Hex10 on DEA (02.05.2011)

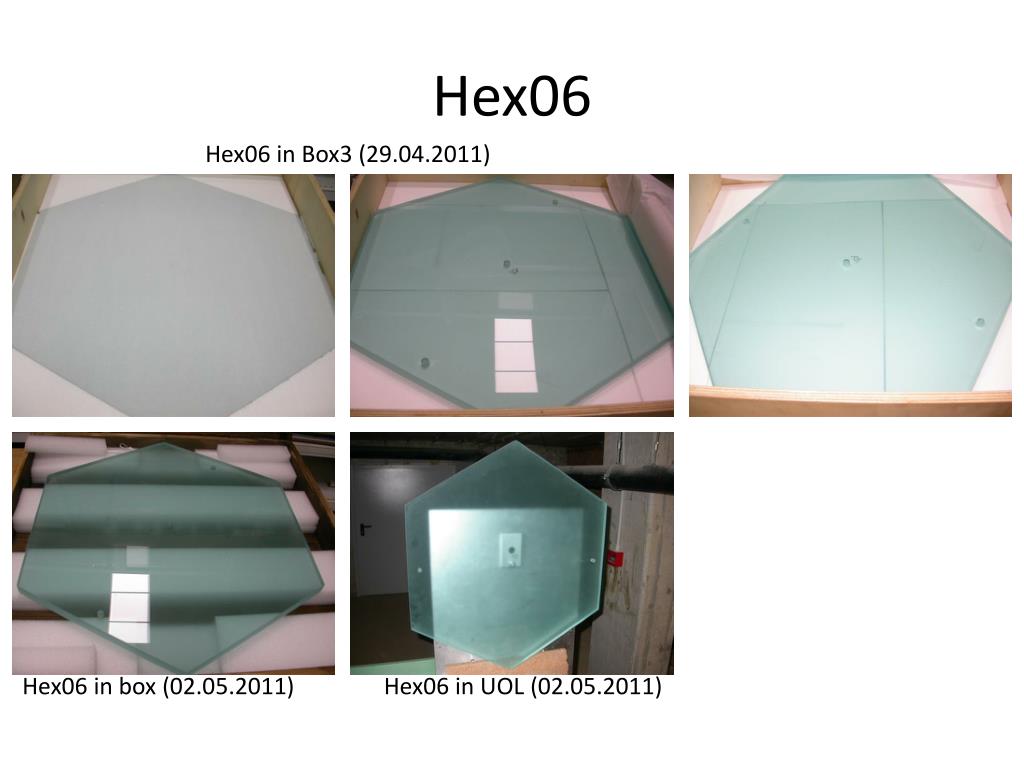

  46. Hex06 Hex06 in Box3 (29.04.2011) Hex06 in box (02.05.2011) Hex06 in UOL (02.05.2011)

  47. Hex06 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: +9.4 cm R = (33.875+33.985+0.094)/2 = 33.977 m F = R/2 = 16.989 m σX(min) = 0.21 mm σy(min) = 0.24 mm √(σX*σY)(min) = 0.20 mm Fx-Fy: +15.6 cm Horiz.*Vert. Sigma(2)

  48. vertex[0]: -0.00442591 350.753 vertex[1]: 303.036 175.666 vertex[2]: 302.835 -175.666 vertex[3]: -0.165528 -350.574 vertex[4]: -302.932 -175.62 vertex[5]: -302.939 175.62 side_length[0]: 349.984 side_length[1]: 351.333 side_length[2]: 349.86 side_length[3]: 349.681 side_length[4]: 351.24 side_length[5]: 349.915 distance 0-3: 607.328 distance 1-4: 605.871 distance 2-5: 607.199 hole 1: -270.456 -7.73721 hole 2: -0.722003 -3.28546 hole 3: 269.428 -4.75677 REPORT: 6mm - hole 1 distance : -1.73721 lower1 mm 3mm - hole 2 distance : -0.28546 6mm - hole 3 distance : 1.24323 ok Hex06 Hex06 on DEA (03.05.2011)

  49. Hex04 Hex04 in Box3 (02.05.2011) Hex04 in box (02.05.2011) Hex04: bad corner(02.05.2011) Hex04 in UOL (02.05.2011)

  50. Hex04 Horiz. Sigma Vert. Sigma DistLaser-Mirror: 33.875 m DistMirror-Diode: 33.985 m Minimum: +25.2 cm R = (33.875+33.985+0.252)/2 = 34.056 m F = R/2 = 17.028 m σX(min) = 0.15 mm σy(min) = 0.14 mm √(σX*σY)(min) = 0.11 mm Fx-Fy: -3.2 cm Horiz.*Vert. Sigma(2)
